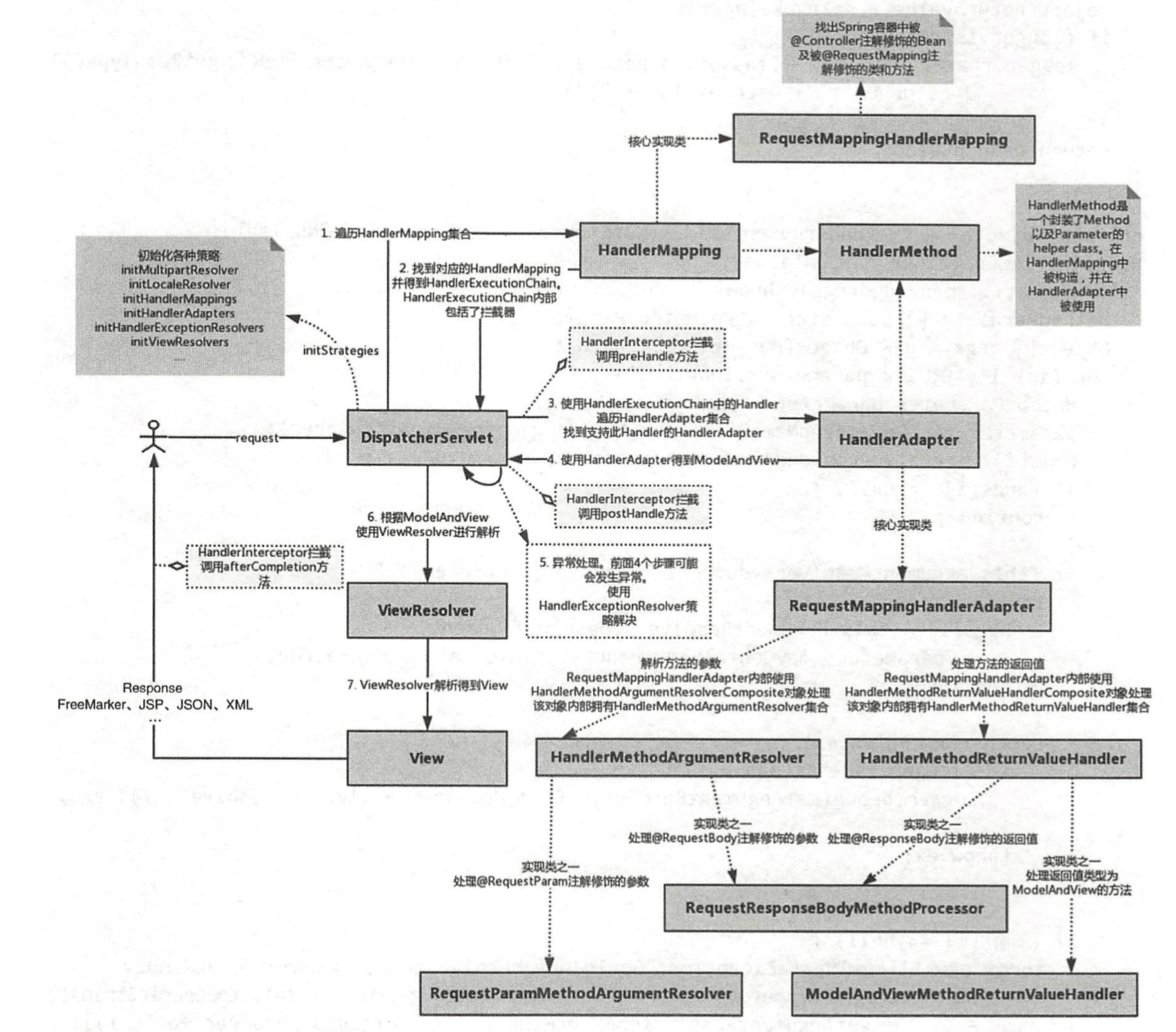

SpringMVC 的处理过程可分为如下 三步 :
- ( 1) ApplicationContext初始化时用 Map 保存所有 URL 和 Controller 类的对应关系 。
- (2)根据请求 URL 找到对应的 Controller，并从 Controller 中找到处理请求的方法。
- (3)将 Request参数绑定到方法的形参上，执行方法处理请求，并返回结果视图 。
1 初始化阶段
首先找到 DispatcherServlet类， 寻找 init()方法。我们发现 init()方法其实在父类 HttpServletBean 中，其源码如下 :
public final void init() throws ServletException {
// Set bean properties from init parameters.
PropertyValues pvs = new ServletConfigPropertyValues(getServletConfig(), this.requiredProperties);
if (!pvs.isEmpty()) {
try {
//定位资源
BeanWrapper bw = PropertyAccessorFactory.forBeanPropertyAccess(this);
//加载配置信息
ResourceLoader resourceLoader = new ServletContextResourceLoader(getServletContext());
bw.registerCustomEditor(Resource.class, new ResourceEditor(resourceLoader, getEnvironment()));
initBeanWrapper(bw);
bw.setPropertyValues(pvs, true);
}
catch (BeansException ex) {
if (logger.isErrorEnabled()) {
logger.error("Failed to set bean properties on servlet '" + getServletName() + "'", ex);
}
throw ex;
}
}
// Let subclasses do whatever initialization they like.
//完成bean的初始化
initServletBean();
}
在这段代码中调用了一个 重要的方法 : initServletBean()。 initServletBean()方法 的源码如下 :
protected final void initServletBean() throws ServletException {
getServletContext().log("Initializing Spring " + getClass().getSimpleName() + " '" + getServletName() + "'");
if (logger.isInfoEnabled()) {
logger.info("Initializing Servlet '" + getServletName() + "'");
}
long startTime = System.currentTimeMillis();
try {
this.webApplicationContext = initWebApplicationContext();
initFrameworkServlet();
}
catch (ServletException | RuntimeException ex) {
logger.error("Context initialization failed", ex);
throw ex;
}
if (logger.isDebugEnabled()) {
String value = this.enableLoggingRequestDetails ?
"shown which may lead to unsafe logging of potentially sensitive data" :
"masked to prevent unsafe logging of potentially sensitive data";
logger.debug("enableLoggingRequestDetails='" + this.enableLoggingRequestDetails +
"': request parameters and headers will be " + value);
}
if (logger.isInfoEnabled()) {
logger.info("Completed initialization in " + (System.currentTimeMillis() - startTime) + " ms");
}
}
上面这段代码主要就是初始化 IoC 容器，最终会调用 refresh()方法，前面的章节对 IoC 容器的 初始化己经讲得很详细，在此不再赘述。 我们看到，在 IoC容器初始化之后， 又调用了 onRefresh() 方法，它是在 DisptcherServlet 类中实现的 ， 来看源码 :
初始化web容器：
protected WebApplicationContext initWebApplicationContext() {
//先从 ServletContext 中获得父容器 WebApplicationContext
WebApplicationContext rootContext =
WebApplicationContextUtils.getWebApplicationContext(getServletContext());
//声明子容器
WebApplicationContext wac = null;
//建立子和父容器之间的关系
if (this.webApplicationContext != null) {
// A context instance was injected at construction time -> use it
wac = this.webApplicationContext;
if (wac instanceof ConfigurableWebApplicationContext) {
ConfigurableWebApplicationContext cwac = (ConfigurableWebApplicationContext) wac;
if (!cwac.isActive()) {
// The context has not yet been refreshed -> provide services such as
// setting the parent context, setting the application context id, etc
if (cwac.getParent() == null) {
// The context instance was injected without an explicit parent -> set
// the root application context (if any; may be null) as the parent
cwac.setParent(rootContext);
}
configureAndRefreshWebApplicationContext(cwac);
}
}
}
//先去 ServletContext 中查找 Web 容器的引用是否存在 ，并创建好默认的空 IoC 容器
if (wac == null) {
// No context instance was injected at construction time -> see if one
// has been registered in the servlet context. If one exists, it is assumed
// that the parent context (if any) has already been set and that the
// user has performed any initialization such as setting the context id
wac = findWebApplicationContext();
}
//给上一步创建好的ioc容器赋值
if (wac == null) {
// No context instance is defined for this servlet -> create a local one
wac = createWebApplicationContext(rootContext);
}
//处罚onRefresh（）方法
if (!this.refreshEventReceived) {
// Either the context is not a ConfigurableApplicationContext with refresh
// support or the context injected at construction time had already been
// refreshed -> trigger initial onRefresh manually here.
synchronized (this.onRefreshMonitor) {
onRefresh(wac);
}
}
if (this.publishContext) {
// Publish the context as a servlet context attribute.
String attrName = getServletContextAttributeName();
getServletContext().setAttribute(attrName, wac);
}
return wac;
}
我们看到，在 IoC容器初始化之后， 又调用了 onRefresh() 方法，它是在 DisptcherServlet 类中实现的 ， 来看源码 :
protected void onRefresh(ApplicationContext context) {
initStrategies(context);
}
/**
* Initialize the strategy objects that this servlet uses.
* <p>May be overridden in subclasses in order to initialize further strategy objects.
*/
protected void initStrategies(ApplicationContext context) {
//初始化springMvc九大组件
//多文件上传的组件
initMultipartResolver(context);
//初始化本地语言环境
initLocaleResolver(context);
//初始化模板处理器
initThemeResolver(context);
//初始化 handlerMapping
initHandlerMappings(context);
//初始化参数适配器
initHandlerAdapters(context);
//初始化异常拦截器
initHandlerExceptionResolvers(context);
//初始化视图预处理器
initRequestToViewNameTranslator(context);
//初始化视图转换器
initViewResolvers(context);
//初始化Flash管理器
initFlashMapManager(context);
}
到这就完成了 Spring MVC 的九大组件的初始化。接下来，我们来看 URL 和 Controller 的关 系是如何建立的 。 HandlerMapping 的子类 AbstractDetectingUrlHandlerMapping 实现了 initApplicationContext()方法，我们直接看子类中的初始化容器方法:
public void initApplicationContext() throws ApplicationContextException {
super.initApplicationContext();
detectHandlers();
}
/**
* Register all handlers found in the current ApplicationContext.
* <p>The actual URL determination for a handler is up to the concrete
* {@link #determineUrlsForHandler(String)} implementation. A bean for
* which no such URLs could be determined is simply not considered a handler.
* @throws org.springframework.beans.BeansException if the handler couldn't be registered
* @see #determineUrlsForHandler(String)
*/
protected void detectHandlers() throws BeansException {
ApplicationContext applicationContext = obtainApplicationContext();
//获取 ApplicationContext 容器中所有 Bean 的名字
String[] beanNames = (this.detectHandlersInAncestorContexts ?
BeanFactoryUtils.beanNamesForTypeIncludingAncestors(applicationContext, Object.class) :
applicationContext.getBeanNamesForType(Object.class));
// Take any bean name that we can determine URLs for.
//遍历 beanNames， 并找到这些 Bean 对应的 URL
for (String beanName : beanNames) {
//查找 Bean 上的所有 URL(Controlle「 上的 URL+方法上的 URL)，该方法由对应的子类实现
String[] urls = determineUrlsForHandler(beanName);
if (!ObjectUtils.isEmpty(urls)) {
// URL paths found: Let's consider it a handler.
//保存 urls 和 beanName 的对应关系，放入 Map<urls,beanName>,
// 该方法在父类 AbstractUr、!Handler、Mapping 中实现
registerHandler(urls, beanName);
}
}
if ((logger.isDebugEnabled() && !getHandlerMap().isEmpty()) || logger.isTraceEnabled()) {
logger.debug("Detected " + getHandlerMap().size() + " mappings in " + formatMappingName());
}
}
/**
* Determine the URLs for the given handler bean.
* @param beanName the name of the candidate bean
* @return the URLs determined for the bean, or an empty array if none
*/
// 获取 Controller 中所有方法的 URL，由子类实现，典型的模板模式
protected abstract String[] determineUrlsForHandler(String beanName);
determineUrlsForHandler(String beanName)方法的作用是获取每个 Controller 中的 URL， 不同 的子类有不同的实现，这是典型的模板模式。因为开发中用得最多的就是用注解来配置 Controller 中的 URL. BeanNameUr!HandlerMapping 是 AbstractDetectingUr!HandlerMapping 的子类，用于处 理注解形式的 U也映射。我们这里以 BeanNameUr!HandlerMapping为例来进行分析，看看如何查 找 beanName 上所有映射的 URL。
public class BeanNameUrlHandlerMapping extends AbstractDetectingUrlHandlerMapping {
/**
* Checks name and aliases of the given bean for URLs, starting with "/".
*/
@Override
protected String[] determineUrlsForHandler(String beanName) {
List<String> urls = new ArrayList<>();
if (beanName.startsWith("/")) {
urls.add(beanName);
}
String[] aliases = obtainApplicationContext().getAliases(beanName);
for (String alias : aliases) {
if (alias.startsWith("/")) {
urls.add(alias);
}
}
return StringUtils.toStringArray(urls);
}
}
到这里 HandlerMapping 组件 己经建立了所有 URL 和 Controller 的对应关系。
2.运行调用阶段
在日常开发中，我们最常用的请求方式大概就是Get和Post了，Tomcat或者Jetty等web服务器在接受到请求后会调用到DispatcherServlet对应的方法
@Override
protected final void doGet(HttpServletRequest request, HttpServletResponse response)
throws ServletException, IOException {
processRequest(request, response);
}
@Override
protected final void doPost(HttpServletRequest request, HttpServletResponse response)
throws ServletException, IOException {
processRequest(request, response);
}
可以看到其实最终都是调用的同一个方法FrameworkServlet.processRequest():
protected final void processRequest(HttpServletRequest request, HttpServletResponse response)
throws ServletException, IOException {
//记录开始时间
long startTime = System.currentTimeMillis();
Throwable failureCause = null;
//记录当前线程的信息
LocaleContext previousLocaleContext = LocaleContextHolder.getLocaleContext();
LocaleContext localeContext = buildLocaleContext(request);
RequestAttributes previousAttributes = RequestContextHolder.getRequestAttributes();
ServletRequestAttributes requestAttributes = buildRequestAttributes(request, response, previousAttributes);
WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);
asyncManager.registerCallableInterceptor(FrameworkServlet.class.getName(), new RequestBindingInterceptor());
initContextHolders(request, localeContext, requestAttributes);
try {
//核心处理，往下看
doService(request, response);
}
catch (ServletException | IOException ex) {
failureCause = ex;
throw ex;
}
catch (Throwable ex) {
failureCause = ex;
throw new NestedServletException("Request processing failed", ex);
}
finally {//清除线程绑定信息
resetContextHolders(request, previousLocaleContext, previousAttributes);
if (requestAttributes != null) {
requestAttributes.requestCompleted();
}
if (logger.isDebugEnabled()) {
if (failureCause != null) {
this.logger.debug("Could not complete request", failureCause);
}
else {
if (asyncManager.isConcurrentHandlingStarted()) {
logger.debug("Leaving response open for concurrent processing");
}
else {
this.logger.debug("Successfully completed request");
}
}
}
//发送事件通知
publishRequestHandledEvent(request, response, startTime, failureCause);
}
}
protected void doService(HttpServletRequest request, HttpServletResponse response) throws Exception {
if (logger.isDebugEnabled()) {
String resumed = WebAsyncUtils.getAsyncManager(request).hasConcurrentResult() ? " resumed" : "";
logger.debug("DispatcherServlet with name '" + getServletName() + "'" + resumed +
" processing " + request.getMethod() + " request for [" + getRequestUri(request) + "]");
}
// Keep a snapshot of the request attributes in case of an include,
// to be able to restore the original attributes after the include.
Map<String, Object> attributesSnapshot = null;
if (WebUtils.isIncludeRequest(request)) {
attributesSnapshot = new HashMap<>();
Enumeration<?> attrNames = request.getAttributeNames();
while (attrNames.hasMoreElements()) {
String attrName = (String) attrNames.nextElement();
if (this.cleanupAfterInclude || attrName.startsWith(DEFAULT_STRATEGIES_PREFIX)) {
attributesSnapshot.put(attrName, request.getAttribute(attrName));
}
}
}
// Make framework objects available to handlers and view objects.
request.setAttribute(WEB_APPLICATION_CONTEXT_ATTRIBUTE, getWebApplicationContext());
request.setAttribute(LOCALE_RESOLVER_ATTRIBUTE, this.localeResolver);
request.setAttribute(THEME_RESOLVER_ATTRIBUTE, this.themeResolver);
request.setAttribute(THEME_SOURCE_ATTRIBUTE, getThemeSource());
if (this.flashMapManager != null) {
FlashMap inputFlashMap = this.flashMapManager.retrieveAndUpdate(request, response);
if (inputFlashMap != null) {
request.setAttribute(INPUT_FLASH_MAP_ATTRIBUTE, Collections.unmodifiableMap(inputFlashMap));
}
request.setAttribute(OUTPUT_FLASH_MAP_ATTRIBUTE, new FlashMap());
request.setAttribute(FLASH_MAP_MANAGER_ATTRIBUTE, this.flashMapManager);
}
try {
doDispatch(request, response);
}
finally {
if (!WebAsyncUtils.getAsyncManager(request).isConcurrentHandlingStarted()) {
// Restore the original attribute snapshot, in case of an include.
if (attributesSnapshot != null) {
restoreAttributesAfterInclude(request, attributesSnapshot);
}
}
}
}
运行调用是由请求触发的，所以入口为 DispatcherServlet 的核心方法 doService(), 中的核心由 doDispatch()实现，源代码如下:
protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
HttpServletRequest processedRequest = request;
HandlerExecutionChain mappedHandler = null;
boolean multipartRequestParsed = false;
WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);
try {
ModelAndView mv = null;
Exception dispatchException = null;
try {
// 1.检查是否是文件上传的请求
processedRequest = checkMultipart(request);
multipartRequestParsed = (processedRequest != request);
// Determine handler for the current request.
// 11 2.取得处理当前请求的 Controll肘 ，这里也称为 Hanlder， 即处理器
// 第一步的意义就在这里体现了。这里并不是直接返回 Controll,
// 而是返回 Handler、ExecutionChain 请求处理器链对象,
// 该对象封装了 Handler、和 interceptor
mappedHandler = getHandler(processedRequest);
// 如果 Handler 为空，则返回 404
if (mappedHandler == null) {
noHandlerFound(processedRequest, response);
return;
}
// Determine handler adapter for the current request.
// 3. 获取处理请求的处理器适配器 HandleAdapte
HandlerAdapter ha = getHandlerAdapter(mappedHandler.getHandler());
// Process last-modified header, if supported by the handler.
//处理 last-modified 请求头
String method = request.getMethod();
boolean isGet = "GET".equals(method);
if (isGet || "HEAD".equals(method)) {
long lastModified = ha.getLastModified(request, mappedHandler.getHandler());
if (new ServletWebRequest(request, response).checkNotModified(lastModified) && isGet) {
return;
}
}
if (!mappedHandler.applyPreHandle(processedRequest, response)) {
return;
}
// Actually invoke the handler.
// 4.实际处理器处理请求，返回结果视图对象
mv = ha.handle(processedRequest, response, mappedHandler.getHandler());
if (asyncManager.isConcurrentHandlingStarted()) {
return;
}
//结果视图对象的处理
applyDefaultViewName(processedRequest, mv);
mappedHandler.applyPostHandle(processedRequest, response, mv);
}
catch (Exception ex) {
dispatchException = ex;
}
catch (Throwable err) {
// As of 4.3, we're processing Errors thrown from handler methods as well,
// making them available for @ExceptionHandler methods and other scenarios.
dispatchException = new NestedServletException("Handler dispatch failed", err);
}
processDispatchResult(processedRequest, response, mappedHandler, mv, dispatchException);
}
catch (Exception ex) {
triggerAfterCompletion(processedRequest, response, mappedHandler, ex);
}
catch (Throwable err) {
triggerAfterCompletion(processedRequest, response, mappedHandler,
new NestedServletException("Handler processing failed", err));
}
finally {
if (asyncManager.isConcurrentHandlingStarted()) {
// Instead of postHandle and afterCompletion
if (mappedHandler != null) {
//请求成功响应之后的方法
mappedHandler.applyAfterConcurrentHandlingStarted(processedRequest, response);
}
}
else {
// Clean up any resources used by a multipart request.
if (multipartRequestParsed) {
cleanupMultipart(processedRequest);
}
}
}
}
1.获取handler
protected HandlerExecutionChain getHandler(HttpServletRequest request) throws Exception {
if (this.handlerMappings != null) {
//遍历所有的handlerMapping，这里的handlemapping就是初始化阶段构造的三个
for (HandlerMapping hm : this.handlerMappings) {
if (logger.isTraceEnabled()) {
logger.trace(
"Testing handler map [" + hm + "] in DispatcherServlet with name '" + getServletName() + "'");
}
//这里调用具体的handler，哪个handler能够处理就直接返回
HandlerExecutionChain handler = hm.getHandler(request);
if (handler != null) {
return handler;
}
}
}
return null;
}
public final HandlerExecutionChain getHandler(HttpServletRequest request) throws Exception {
//1. 调用具体的实现去获取handler
Object handler = getHandlerInternal(request);
//如果为空使用默认的
if (handler == null) {
handler = getDefaultHandler();
}
//没有默认的返回空
if (handler == null) {
return null;
}
// 尝试通过BeanName去获取handler
if (handler instanceof String) {
String handlerName = (String) handler;
handler = obtainApplicationContext().getBean(handlerName);
}
//2. 获取handler执行链
HandlerExecutionChain executionChain = getHandlerExecutionChain(handler, request);
if (CorsUtils.isCorsRequest(request)) {
CorsConfiguration globalConfig = this.globalCorsConfigSource.getCorsConfiguration(request);
CorsConfiguration handlerConfig = getCorsConfiguration(handler, request);
CorsConfiguration config = (globalConfig != null ? globalConfig.combine(handlerConfig) : handlerConfig);
executionChain = getCorsHandlerExecutionChain(request, executionChain, config);
}
return executionChain;
}
获取具体的handler，这里以AbstractUrlHandlerMapping为例解读一下，顾明思议，这个类是根据请求url获取响应的handler的
protected Object getHandlerInternal(HttpServletRequest request) throws Exception {
//截取url
String lookupPath = getUrlPathHelper().getLookupPathForRequest(request);
//根据url寻找handler
Object handler = lookupHandler(lookupPath, request);
if (handler == null) {
// 如果请求路径为/则使用RootHandler
Object rawHandler = null;
if ("/".equals(lookupPath)) {
rawHandler = getRootHandler();
}
if (rawHandler == null) {
//使用默认
rawHandler = getDefaultHandler();
}
if (rawHandler != null) {
// 根据beanName尝试获取Handler
if (rawHandler instanceof String) {
String handlerName = (String) rawHandler;
rawHandler = obtainApplicationContext().getBean(handlerName);
}//校验
validateHandler(rawHandler, request);
handler = buildPathExposingHandler(rawHandler, lookupPath, lookupPath, null);
}
}
if (handler != null && logger.isDebugEnabled()) {
logger.debug("Mapping [" + lookupPath + "] to " + handler);
}
else if (handler == null && logger.isTraceEnabled()) {
logger.trace("No handler mapping found for [" + lookupPath + "]");
}
return handler;
}
protected Object lookupHandler(String urlPath, HttpServletRequest request) throws Exception {
// 直接根据url匹配
Object handler = this.handlerMap.get(urlPath);
if (handler != null) {
// Bean name or resolved handler?
if (handler instanceof String) {
String handlerName = (String) handler;
handler = obtainApplicationContext().getBean(handlerName);
}
validateHandler(handler, request);
//封装执行链
return buildPathExposingHandler(handler, urlPath, urlPath, null);
}
// 正则匹配
List<String> matchingPatterns = new ArrayList<>();
for (String registeredPattern : this.handlerMap.keySet()) {
if (getPathMatcher().match(registeredPattern, urlPath)) {
matchingPatterns.add(registeredPattern);
}
else if (useTrailingSlashMatch()) {
if (!registeredPattern.endsWith("/") && getPathMatcher().match(registeredPattern + "/", urlPath)) {
matchingPatterns.add(registeredPattern +"/");
}
}
}
String bestMatch = null;
Comparator<String> patternComparator = getPathMatcher().getPatternComparator(urlPath);
if (!matchingPatterns.isEmpty()) {
matchingPatterns.sort(patternComparator);
if (logger.isDebugEnabled()) {
logger.debug("Matching patterns for request [" + urlPath + "] are " + matchingPatterns);
}
bestMatch = matchingPatterns.get(0);
}
if (bestMatch != null) {
handler = this.handlerMap.get(bestMatch);
if (handler == null) {
if (bestMatch.endsWith("/")) {
handler = this.handlerMap.get(bestMatch.substring(0, bestMatch.length() - 1));
}
if (handler == null) {
throw new IllegalStateException(
"Could not find handler for best pattern match [" + bestMatch + "]");
}
}
// Bean name or resolved handler?
if (handler instanceof String) {
String handlerName = (String) handler;
handler = obtainApplicationContext().getBean(handlerName);
}
validateHandler(handler, request);
String pathWithinMapping = getPathMatcher().extractPathWithinPattern(bestMatch, urlPath);
// There might be multiple 'best patterns', let's make sure we have the correct URI template variables
// for all of them
Map<String, String> uriTemplateVariables = new LinkedHashMap<>();
for (String matchingPattern : matchingPatterns) {
if (patternComparator.compare(bestMatch, matchingPattern) == 0) {
Map<String, String> vars = getPathMatcher().extractUriTemplateVariables(matchingPattern, urlPath);
Map<String, String> decodedVars = getUrlPathHelper().decodePathVariables(request, vars);
uriTemplateVariables.putAll(decodedVars);
}
}
if (logger.isDebugEnabled()) {
logger.debug("URI Template variables for request [" + urlPath + "] are " + uriTemplateVariables);
}
return buildPathExposingHandler(handler, bestMatch, pathWithinMapping, uriTemplateVariables);
}
// No handler found...
return null;
}
2. 封装执行链
当获取到相应的handler后，查看是否存在拦截器，如果存在的话则加入执行链中
protected Object buildPathExposingHandler(Object rawHandler, String bestMatchingPattern,
String pathWithinMapping, @Nullable Map<String, String> uriTemplateVariables) {
HandlerExecutionChain chain = new HandlerExecutionChain(rawHandler);
chain.addInterceptor(new PathExposingHandlerInterceptor(bestMatchingPattern, pathWithinMapping));
if (!CollectionUtils.isEmpty(uriTemplateVariables)) {
chain.addInterceptor(new UriTemplateVariablesHandlerInterceptor(uriTemplateVariables));
}
return chain;
}
3 获取handlerAdpter
根据handler获取匹配的handlerAdpter
protected HandlerAdapter getHandlerAdapter(Object handler) throws ServletException {
if (this.handlerAdapters != null) {
for (HandlerAdapter ha : this.handlerAdapters) {
if (logger.isTraceEnabled()) {
logger.trace("Testing handler adapter [" + ha + "]");
}
//不同的handlerAdapter的判断方法不同
if (ha.supports(handler)) {
return ha;
}
}
}
throw new ServletException("No adapter for handler [" + handler +
"]: The DispatcherServlet configuration needs to include a HandlerAdapter that supports this handler");
}
以SimpleControllerHandlerAdapter为例，判断是否实现Controller接口
public boolean supports(Object handler) {
return (handler instanceof Controller);
}
4. 执行请求
public ModelAndView handle(HttpServletRequest request, HttpServletResponse response, Object handler)
throws Exception {
return ((Controller) handler).handleRequest(request, response);
}
public ModelAndView handleRequest(HttpServletRequest request, HttpServletResponse response)
throws Exception {
if (HttpMethod.OPTIONS.matches(request.getMethod())) {
response.setHeader("Allow", getAllowHeader());
return null;
}
// Delegate to WebContentGenerator for checking and preparing.
checkRequest(request);
prepareResponse(response);
// 如果需要同步session
if (this.synchronizeOnSession) {
HttpSession session = request.getSession(false);
if (session != null) {
Object mutex = WebUtils.getSessionMutex(session);
synchronized (mutex) {
return handleRequestInternal(request, response);
}
}
}
调用Controller方法
return handleRequestInternal(request, response);
}
5.处理返回结果
private void processDispatchResult(HttpServletRequest request, HttpServletResponse response,
@Nullable HandlerExecutionChain mappedHandler, @Nullable ModelAndView mv,
@Nullable Exception exception) throws Exception {
boolean errorView = false;
//是否包含异常信息
if (exception != null) {
if (exception instanceof ModelAndViewDefiningException) {
logger.debug("ModelAndViewDefiningException encountered", exception);
mv = ((ModelAndViewDefiningException) exception).getModelAndView();
}
else {//异常视图处理
Object handler = (mappedHandler != null ? mappedHandler.getHandler() : null);
mv = processHandlerException(request, response, handler, exception);
errorView = (mv != null);
}
}
if (mv != null && !mv.wasCleared()) {
// 页面跳转处理
render(mv, request, response);
if (errorView) {
WebUtils.clearErrorRequestAttributes(request);
}
}
else {
if (logger.isDebugEnabled()) {
logger.debug("Null ModelAndView returned to DispatcherServlet with name '" + getServletName() +
"': assuming HandlerAdapter completed request handling");
}
}
if (WebAsyncUtils.getAsyncManager(request).isConcurrentHandlingStarted()) {
// Concurrent handling started during a forward
return;
}
if (mappedHandler != null) {
mappedHandler.triggerAfterCompletion(request, response, null);
}
}
6.页面跳转的逻辑
protected void render(ModelAndView mv, HttpServletRequest request, HttpServletResponse response) throws Exception {
// Determine locale for request and apply it to the response.
Locale locale =
(this.localeResolver != null ? this.localeResolver.resolveLocale(request) : request.getLocale());
response.setLocale(locale);
View view;
String viewName = mv.getViewName();
if (viewName != null) {
//1.解析视图名
view = resolveViewName(viewName, mv.getModelInternal(), locale, request);
if (view == null) {
throw new ServletException("Could not resolve view with name '" + mv.getViewName() +
"' in servlet with name '" + getServletName() + "'");
}
}
else {
// No need to lookup: the ModelAndView object contains the actual View object.
view = mv.getView();
if (view == null) {
throw new ServletException("ModelAndView [" + mv + "] neither contains a view name nor a " +
"View object in servlet with name '" + getServletName() + "'");
}
}
// Delegate to the View object for rendering.
if (logger.isDebugEnabled()) {
logger.debug("Rendering view [" + view + "] in DispatcherServlet with name '" + getServletName() + "'");
}
try {
if (mv.getStatus() != null) {
response.setStatus(mv.getStatus().value());
}//2.跳转
view.render(mv.getModelInternal(), request, response);
}
catch (Exception ex) {
if (logger.isDebugEnabled()) {
logger.debug("Error rendering view [" + view + "] in DispatcherServlet with name '" +
getServletName() + "'", ex);
}
throw ex;
}
}
7.解析视图名称
protected View resolveViewName(String viewName, @Nullable Map<String, Object> model,
Locale locale, HttpServletRequest request) throws Exception {
if (this.viewResolvers != null) {
for (ViewResolver viewResolver : this.viewResolvers) {
View view = viewResolver.resolveViewName(viewName, locale);
if (view != null) {
return view;
}
}
}
return null;
}
8.页面跳转
具体的跳转逻辑是根据当前使用的渲染引擎决定的，比如html、jsp、Thymeleaf等，这里简单 列举一个Thymeleaf的逻辑吧
public void render(Map<String, ?> model, HttpServletRequest request, HttpServletResponse response) throws Exception {
this.renderFragment(this.markupSelectors, model, request, response);
}
protected void renderFragment(Set<String> markupSelectorsToRender, Map<String, ?> model, HttpServletRequest request, HttpServletResponse response) throws Exception {
ServletContext servletContext = this.getServletContext();
String viewTemplateName = this.getTemplateName();
ISpringTemplateEngine viewTemplateEngine = this.getTemplateEngine();
if (viewTemplateName == null) {
throw new IllegalArgumentException("Property 'templateName' is required");
} else if (this.getLocale() == null) {
throw new IllegalArgumentException("Property 'locale' is required");
} else if (viewTemplateEngine == null) {
throw new IllegalArgumentException("Property 'templateEngine' is required");
} else {
Map<String, Object> mergedModel = new HashMap(30);
Map<String, Object> templateStaticVariables = this.getStaticVariables();
if (templateStaticVariables != null) {
mergedModel.putAll(templateStaticVariables);
}
if (pathVariablesSelector != null) {
Map<String, Object> pathVars = (Map)request.getAttribute(pathVariablesSelector);
if (pathVars != null) {
mergedModel.putAll(pathVars);
}
}
if (model != null) {
mergedModel.putAll(model);
}
ApplicationContext applicationContext = this.getApplicationContext();
RequestContext requestContext = new RequestContext(request, response, this.getServletContext(), mergedModel);
SpringWebMvcThymeleafRequestContext thymeleafRequestContext = new SpringWebMvcThymeleafRequestContext(requestContext, request);
addRequestContextAsVariable(mergedModel, "springRequestContext", requestContext);
addRequestContextAsVariable(mergedModel, "springMacroRequestContext", requestContext);
mergedModel.put("thymeleafRequestContext", thymeleafRequestContext);
ConversionService conversionService = (ConversionService)request.getAttribute(ConversionService.class.getName());
ThymeleafEvaluationContext evaluationContext = new ThymeleafEvaluationContext(applicationContext, conversionService);
mergedModel.put("thymeleaf::EvaluationContext", evaluationContext);
IEngineConfiguration configuration = viewTemplateEngine.getConfiguration();
WebExpressionContext context = new WebExpressionContext(configuration, request, response, servletContext, this.getLocale(), mergedModel);
String templateName;
Set markupSelectors;
if (!viewTemplateName.contains("::")) {
templateName = viewTemplateName;
markupSelectors = null;
} else {
IStandardExpressionParser parser = StandardExpressions.getExpressionParser(configuration);
FragmentExpression fragmentExpression;
try {
fragmentExpression = (FragmentExpression)parser.parseExpression(context, "~{" + viewTemplateName + "}");
} catch (TemplateProcessingException var24) {
throw new IllegalArgumentException("Invalid template name specification: '" + viewTemplateName + "'");
}
ExecutedFragmentExpression fragment = FragmentExpression.createExecutedFragmentExpression(context, fragmentExpression);
templateName = FragmentExpression.resolveTemplateName(fragment);
markupSelectors = FragmentExpression.resolveFragments(fragment);
Map<String, Object> nameFragmentParameters = fragment.getFragmentParameters();
if (nameFragmentParameters != null) {
if (fragment.hasSyntheticParameters()) {
throw new IllegalArgumentException("Parameters in a view specification must be named (non-synthetic): '" + viewTemplateName + "'");
}
context.setVariables(nameFragmentParameters);
}
}
String templateContentType = this.getContentType();
Locale templateLocale = this.getLocale();
String templateCharacterEncoding = this.getCharacterEncoding();
Set processMarkupSelectors;
if (markupSelectors != null && markupSelectors.size() > 0) {
if (markupSelectorsToRender != null && markupSelectorsToRender.size() > 0) {
throw new IllegalArgumentException("A markup selector has been specified (" + Arrays.asList(markupSelectors) + ") for a view that was already being executed as a fragment (" + Arrays.asList(markupSelectorsToRender) + "). Only one fragment selection is allowed.");
}
processMarkupSelectors = markupSelectors;
} else if (markupSelectorsToRender != null && markupSelectorsToRender.size() > 0) {
processMarkupSelectors = markupSelectorsToRender;
} else {
processMarkupSelectors = null;
}
response.setLocale(templateLocale);
if (!this.getForceContentType()) {
String computedContentType = SpringContentTypeUtils.computeViewContentType(request, templateContentType != null ? templateContentType : "text/html;charset=ISO-8859-1", templateCharacterEncoding != null ? Charset.forName(templateCharacterEncoding) : null);
response.setContentType(computedContentType);
} else {
if (templateContentType != null) {
response.setContentType(templateContentType);
} else {
response.setContentType("text/html;charset=ISO-8859-1");
}
if (templateCharacterEncoding != null) {
response.setCharacterEncoding(templateCharacterEncoding);
}
}
viewTemplateEngine.process(templateName, processMarkupSelectors, context, response.getWriter());
}
}
getHandler(processedRequest)方法实际上从 HandlerMapping中找到 U也和 Controller的对应关 系 ，也就是 Map<url,Controller>。 我们知道，最终处理请求的是 Controller 中的方法，现在只是知 道了 Controller，如何确 认 Controller 中处理请求的方法呢?继续往下看。
从 Map<urls,beanName>中取得 Controller 后，经过拦截器的预处理方法，再通过反射获取该 方法上的注解和参数，解析方法和参数上的注解，然后反射调用方法获取 Mode!AndView 结果视图。最后调用 RequestMappingHandlerAdapter的 handle()中的核心代码，由 handlelntenal (request, response, handler)实现 :
protected ModelAndView handleInternal(HttpServletRequest request,
HttpServletResponse response, HandlerMethod handlerMethod) throws Exception {
ModelAndView mav;
checkRequest(request);
// Execute invokeHandlerMethod in synchronized block if required.
if (this.synchronizeOnSession) {
HttpSession session = request.getSession(false);
if (session != null) {
Object mutex = WebUtils.getSessionMutex(session);
synchronized (mutex) {
mav = invokeHandlerMethod(request, response, handlerMethod);
}
}
else {
// No HttpSession available -> no mutex necessary
mav = invokeHandlerMethod(request, response, handlerMethod);
}
}
else {
// No synchronization on session demanded at all...
mav = invokeHandlerMethod(request, response, handlerMethod);
}
if (!response.containsHeader(HEADER_CACHE_CONTROL)) {
if (getSessionAttributesHandler(handlerMethod).hasSessionAttributes()) {
applyCacheSeconds(response, this.cacheSecondsForSessionAttributeHandlers);
}
else {
prepareResponse(response);
}
}
return mav;
}
整个处理过程中最核心的步骤其实就是拼接 Controller 的 URL 和方法的 URL，与 Request 的 URL 进行匹配，找到匹配的方法。 在AbstractHandlerMethodMapping的getHandlerInternal方法上。
protected HandlerMethod getHandlerInternal(HttpServletRequest request) throws Exception {
//如果请求 URL 为 http://localhost:8080/web/hello.json， 则 lookupPath=web/hello.json
String lookupPath = getUrlPathHelper().getLookupPathForRequest(request);
request.setAttribute(LOOKUP_PATH, lookupPath);
this.mappingRegistry.acquireReadLock();
try {
//遍历 Controlle「 上的所有方法 ， 获取 URL 匹配的方法
HandlerMethod handlerMethod = lookupHandlerMethod(lookupPath, request);
return (handlerMethod != null ? handlerMethod.createWithResolvedBean() : null);
}
finally {
this.mappingRegistry.releaseReadLock();
}
}
通过上面的代码分析，己经找到处理请求的 Controller 中的方法了，下面看如何解析该方法上 的参数， 井反射调用该方法。 RequestMappingHandlerAdapter的invokeHandlerMethod方法：
protected ModelAndView invokeHandlerMethod(HttpServletRequest request,
HttpServletResponse response, HandlerMethod handlerMethod) throws Exception {
ServletWebRequest webRequest = new ServletWebRequest(request, response);
try {
WebDataBinderFactory binderFactory = getDataBinderFactory(handlerMethod);
ModelFactory modelFactory = getModelFactory(handlerMethod, binderFactory);
ServletInvocableHandlerMethod invocableMethod = createInvocableHandlerMethod(handlerMethod);
if (this.argumentResolvers != null) {
invocableMethod.setHandlerMethodArgumentResolvers(this.argumentResolvers);
}
if (this.returnValueHandlers != null) {
invocableMethod.setHandlerMethodReturnValueHandlers(this.returnValueHandlers);
}
invocableMethod.setDataBinderFactory(binderFactory);
invocableMethod.setParameterNameDiscoverer(this.parameterNameDiscoverer);
ModelAndViewContainer mavContainer = new ModelAndViewContainer();
mavContainer.addAllAttributes(RequestContextUtils.getInputFlashMap(request));
modelFactory.initModel(webRequest, mavContainer, invocableMethod);
mavContainer.setIgnoreDefaultModelOnRedirect(this.ignoreDefaultModelOnRedirect);
AsyncWebRequest asyncWebRequest = WebAsyncUtils.createAsyncWebRequest(request, response);
asyncWebRequest.setTimeout(this.asyncRequestTimeout);
WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);
asyncManager.setTaskExecutor(this.taskExecutor);
asyncManager.setAsyncWebRequest(asyncWebRequest);
asyncManager.registerCallableInterceptors(this.callableInterceptors);
asyncManager.registerDeferredResultInterceptors(this.deferredResultInterceptors);
if (asyncManager.hasConcurrentResult()) {
Object result = asyncManager.getConcurrentResult();
mavContainer = (ModelAndViewContainer) asyncManager.getConcurrentResultContext()[0];
asyncManager.clearConcurrentResult();
LogFormatUtils.traceDebug(logger, traceOn -> {
String formatted = LogFormatUtils.formatValue(result, !traceOn);
return "Resume with async result [" + formatted + "]";
});
invocableMethod = invocableMethod.wrapConcurrentResult(result);
}
invocableMethod.invokeAndHandle(webRequest, mavContainer);
if (asyncManager.isConcurrentHandlingStarted()) {
return null;
}
return getModelAndView(mavContainer, modelFactory, webRequest);
}
finally {
webRequest.requestCompleted();
}
}
invocableMethod.invokeAndHandle()最终要实现的目的是 : 完成请求 中的 参数和方法参数上数 据 的绑定 。 SpringMVC 中提供两种从请求参数到方法中参数 的绑定方式 :
Cl )通过注解进行绑定 ， @RequestParamo
(2)通过参数名称进行绑定 。
通过注解进行绑定 ， 只要在方法的参数前面声 明@RequestParam(”name”)，就可以将请求中参
数 name 的值绑定到方法的该参数上 。
通过参数名称进行绑定的前提是必 须获取方法 中参数的名称， Java 反射只提供了获取方法参 数类型的方法， 并没有提供获取参数名称的方法。 SpringMVC解决这个问题的方法是用 asm框架 读取字节码文件。 asm 框架是一个字节码操作框架，更多介绍可以参考其宫网。 个人建议通过注 解进行绑定，如下代码所示，这样就可以省去 asm框架的读取字节码的操作。
在InvocableHandlerMethod类的方法中invokeForRequest（）：
public Object invokeForRequest(NativeWebRequest request, @Nullable ModelAndViewContainer mavContainer,
Object... providedArgs) throws Exception {
//调用。。。
Object[] args = getMethodArgumentValues(request, mavContainer, providedArgs);
if (logger.isTraceEnabled()) {
logger.trace("Arguments: " + Arrays.toString(args));
}
return doInvoke(args);
}
/**
* Get the method argument values for the current request, checking the provided
* argument values and falling back to the configured argument resolvers.
* <p>The resulting array will be passed into {@link #doInvoke}.
* @since 5.1.2
*/
protected Object[] getMethodArgumentValues(NativeWebRequest request, @Nullable ModelAndViewContainer mavContainer,
Object... providedArgs) throws Exception {
MethodParameter[] parameters = getMethodParameters();
if (ObjectUtils.isEmpty(parameters)) {
return EMPTY_ARGS;
}
Object[] args = new Object[parameters.length];
for (int i = 0; i < parameters.length; i++) {
MethodParameter parameter = parameters[i];
parameter.initParameterNameDiscovery(this.parameterNameDiscoverer);
args[i] = findProvidedArgument(parameter, providedArgs);
if (args[i] != null) {
continue;
}
if (!this.resolvers.supportsParameter(parameter)) {
throw new IllegalStateException(formatArgumentError(parameter, "No suitable resolver"));
}
try {
args[i] = this.resolvers.resolveArgument(parameter, mavContainer, request, this.dataBinderFactory);
}
catch (Exception ex) {
// Leave stack trace for later, exception may actually be resolved and handled...
if (logger.isDebugEnabled()) {
String exMsg = ex.getMessage();
if (exMsg != null && !exMsg.contains(parameter.getExecutable().toGenericString())) {
logger.debug(formatArgumentError(parameter, exMsg));
}
}
throw ex;
}
}
return args;
}
springMvc核心组件关系图：
来源：https://www.cnblogs.com/heqiyoujing/p/12209878.html
