参考资料：官方文档
一、虚拟机安装
配置说明： windows下使用vbox，centos17.6 min版，kubernetes的版本是1.14.1,
安装如下三台机器：
192.168.56.15 k15
192.168.56.16 k16
192.168.56.17 k17

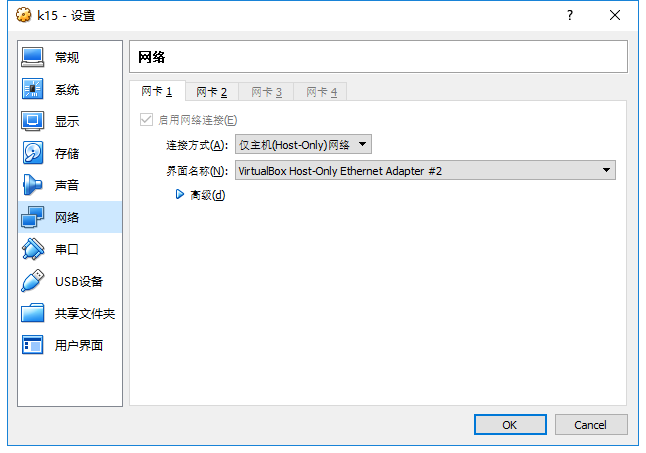

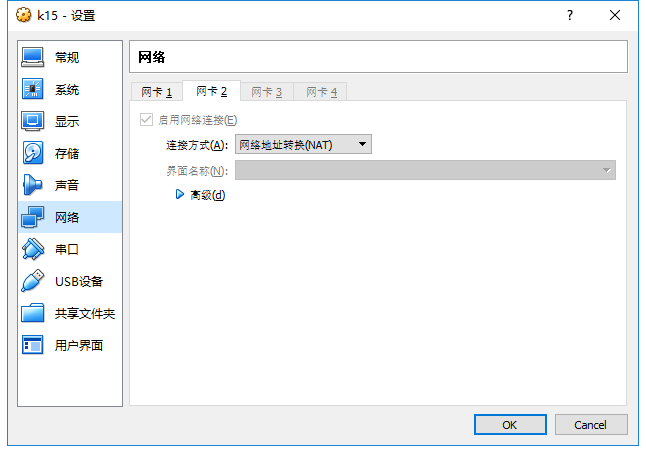

其中k15作为master，k16和k17作为node，虚拟机的安装重点关注网卡设置，设置两个网卡，第一个网卡（ifcfg-enp0s3）Host Only模式，第二个网卡（ifcfg-enp0s8）NAT模式，参见下图
二、虚拟机基本设置
本章节三台机器都执行，这里以k15为例
1.配置hostname
hostnamectl --static set-hostname k15
2. 网卡设置
红色字体部分是需要修改和新增的配置
#网卡1 Local Bridge
vi /etc/sysconfig/network-scripts/ifcfg-enp0s3
TYPE=Ethernet
PROXY_METHOD=none
BROWSER_ONLY=no
BOOTPROTO=static
DEFROUTE=yes
IPV4_FAILURE_FATAL=no
IPV6INIT=yes
IPV6_AUTOCONF=yes
IPV6_DEFROUTE=yes
IPV6_FAILURE_FATAL=no
IPV6_ADDR_GEN_MODE=stable-privacy
NAME=enp0s3
UUID=ede01346-f054-4dbc-94ff-b78b665e9089
DEVICE=enp0s3
ONBOOT=yes
IPADDR=192.168.56.15#网卡2 NAT
vi /etc/sysconfig/network-scripts/ifcfg-enp0s8
TYPE=Ethernet
PROXY_METHOD=none
BROWSER_ONLY=no
BOOTPROTO=dhcp
DEFROUTE=yes
IPV4_FAILURE_FATAL=no
IPV6INIT=yes
IPV6_AUTOCONF=yes
IPV6_DEFROUTE=yes
IPV6_FAILURE_FATAL=no
IPV6_ADDR_GEN_MODE=stable-privacy
NAME=enp0s8
UUID=9f93f30e-45d0-4441-bdd7-f1cf8720ac2a
DEVICE=enp0s8
ONBOOT=yes查看网络设置
#网络重启
systemctl restart network
#ping网关
ping 192.168.56.0
#ping外网
ping www.baidu.com3.设置/etc/hosts
vi /etc/hosts
192.168.56.15 k15
192.168.56.16 k16
192.168.56.17 k17
4.三台机器之间免密登录
ssh-keygen -t rsa #一路回车
ssh-copy-id root@k16
ssh-copy-id root@k175.rpm配置阿里镜像
mv /etc/yum.repos.d/CentOS-Base.repo /etc/yum.repos.d/CentOS-Base.repo.backup
curl -o /etc/yum.repos.d/CentOS-Base.repo http://mirrors.aliyun.com/repo/Centos-7.repo
yum clean all
yum makecache
yum update
三、kubernetes安装需要的基本配置
本章节三台机器都执行，这里以k15为例
1.禁用防火墙
systemctl stop firewalld
systemctl disable firewalld2.禁用swap
sed -ri 's/.*swap.*/#&/' /etc/fstab3.禁用selinux
修改/etc/selinux/config 文件
将SELINUX=enforcing改为SELINUX=disabled
4.重启机器
四、安装docker
本章节三台机器都执行，这里以k15为例
安装docker，参见Centos7上安装docker
#查看docker版本
docker version
#启动
systemctl start docker
#设置开机自动启动
systemctl enable docker五、安装kubeadm
本章节三台机器都执行，这里以k15为例
1.设置国内yum源
官方推荐的源是
cat <<EOF > /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
baseurl=https://packages.cloud.google.com/yum/repos/kubernetes-el7-x86_64
enabled=1
gpgcheck=1
repo_gpgcheck=1
gpgkey=https://packages.cloud.google.com/yum/doc/yum-key.gpg https://packages.cloud.google.com/yum/doc/rpm-package-key.gpg
exclude=kube*
EOF官方提供的谷歌镜像源国内无法访问，这里我们使用阿里云镜像仓库解决这个问题：
cat <<EOF > /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
baseurl=http://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64
enabled=1
gpgcheck=0
repo_gpgcheck=0
gpgkey=http://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg http://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
EOF2.执行安装
yum install -y kubelet kubeadm kubectl --disableexcludes=kubernetes
systemctl enable --now kubelet3.设置启动bridge模块
Some users on RHEL/CentOS 7 have reported issues with traffic being routed incorrectly due to iptables being bypassed. You should ensure net.bridge.bridge-nf-call-iptables is set to 1 in your sysctl config, e.g.
cat <<EOF > /etc/sysctl.d/k8s.conf
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
EOF
sysctl --system设置为开机自动启动
vi /etc/rc.local
modprobe ip_vs
modprobe ip_vs_rr
modprobe ip_vs_wrr
modprobe ip_vs_sh
modprobe nf_conntrack_ipv4
modprobe br_netfilter查看
lsmod | grep ip_vs4.设置
六，kubeadm init
1.设置cgoups
cat >/etc/sysconfig/kubelet<<EOF
KUBELET_CGROUP_ARGS="--cgroup-driver=$DOCKER_CGROUPS"
KUBELET_EXTRA_ARGS="--pod-infra-container-image=registry.cn-hangzhou.aliyuncs.com/google_containers/pause-amd64:3.1"
EOF设置完以后执行
2.从国内镜像下载kubeadm需要的docker镜像
安装kubeadm把相关的组件都安装在docker里，除了kubelet，这些docker镜像路径kubeadm会从google源取，因为不能访问google网站，所以再需要手工先从国内镜像下载
如果不下载镜像错误是这样的kubeadm执行初始化
[root@k8s15 system]# kubeadm init --apiserver-advertise-address 192.168.56.15 --pod-network-cidr=10.244.0.0/16
I0502 05:36:03.001120 27914 version.go:96] could not fetch a Kubernetes version from the internet: unable to get URL "https://dl.k8s.io/release/stable-1.txt": Get https://dl.k8s.io/release/stable-1.txt: net/http: request canceled while waiting for connection (Client.Timeout exceeded while awaiting headers)
I0502 05:36:03.001307 27914 version.go:97] falling back to the local client version: v1.14.1
[init] Using Kubernetes version: v1.14.1
[preflight] Running pre-flight checks
[WARNING Firewalld]: firewalld is active, please ensure ports [6443 10250] are open or your cluster may not function correctly
[WARNING IsDockerSystemdCheck]: detected "cgroupfs" as the Docker cgroup driver. The recommended driver is "systemd". Please follow the guide at https://kubernetes.io/docs/setup/cri/
error execution phase preflight: [preflight] Some fatal errors occurred:
[ERROR Swap]: running with swap on is not supported. Please disable swap
[preflight] If you know what you are doing, you can make a check non-fatal with `--ignore-preflight-errors=...`先查看kubeadm都需要哪些镜像
[root@k8s15 system]# cat kubeadm-config.yaml
cat: kubeadm-config.yaml: No such file or directory
[root@k8s15 system]# kubeadm config images list
I0502 05:41:38.423762 28228 version.go:96] could not fetch a Kubernetes version from the internet: unable to get URL "https://dl.k8s.io/release/stable-1.txt": Get https://dl.k8s.io/release/stable-1.txt: net/http: request canceled while waiting for connection (Client.Timeout exceeded while awaiting headers)
I0502 05:41:38.423825 28228 version.go:97] falling back to the local client version: v1.14.1
k8s.gcr.io/kube-apiserver:v1.14.1
k8s.gcr.io/kube-controller-manager:v1.14.1
k8s.gcr.io/kube-scheduler:v1.14.1
k8s.gcr.io/kube-proxy:v1.14.1
k8s.gcr.io/pause:3.1
k8s.gcr.io/etcd:3.3.10
k8s.gcr.io/coredns:1.3.1
重新安装还是说docker源有问题，继续参考这篇文章
echo ""
echo "=========================================================="
echo "Pull Kubernetes v1.14.1 Images from aliyuncs.com ......"
echo "=========================================================="
echo ""
MY_REGISTRY=registry.cn-hangzhou.aliyuncs.com/openthings
## 拉取镜像
docker pull ${MY_REGISTRY}/k8s-gcr-io-kube-apiserver:v1.14.1
docker pull ${MY_REGISTRY}/k8s-gcr-io-kube-controller-manager:v1.14.1
docker pull ${MY_REGISTRY}/k8s-gcr-io-kube-scheduler:v1.14.1
docker pull ${MY_REGISTRY}/k8s-gcr-io-kube-proxy:v1.14.1
docker pull ${MY_REGISTRY}/k8s-gcr-io-etcd:3.3.10
docker pull ${MY_REGISTRY}/k8s-gcr-io-pause:3.1
docker pull ${MY_REGISTRY}/k8s-gcr-io-coredns:1.3.1
## 添加Tag
docker tag ${MY_REGISTRY}/k8s-gcr-io-kube-apiserver:v1.14.1 k8s.gcr.io/kube-apiserver:v1.14.1
docker tag ${MY_REGISTRY}/k8s-gcr-io-kube-scheduler:v1.14.1 k8s.gcr.io/kube-scheduler:v1.14.1
docker tag ${MY_REGISTRY}/k8s-gcr-io-kube-controller-manager:v1.14.1 k8s.gcr.io/kube-controller-manager:v1.14.1
docker tag ${MY_REGISTRY}/k8s-gcr-io-kube-proxy:v1.14.1 k8s.gcr.io/kube-proxy:v1.14.1
docker tag ${MY_REGISTRY}/k8s-gcr-io-etcd:3.3.10 k8s.gcr.io/etcd:3.3.10
docker tag ${MY_REGISTRY}/k8s-gcr-io-pause:3.1 k8s.gcr.io/pause:3.1
docker tag ${MY_REGISTRY}/k8s-gcr-io-coredns:1.3.1 k8s.gcr.io/coredns:1.3.1
echo ""
echo "=========================================================="
echo "Pull Kubernetes v1.14.1 Images FINISHED."
echo "into registry.cn-hangzhou.aliyuncs.com/openthings, "
echo " by openthings@https://my.oschina.net/u/2306127."
echo "=========================================================="
echo ""生成上面的脚然后执行，然后可以通过docker images查看下载的镜像
3.执行kubeadm init
[root@k8s15 ~]# kubeadm init --apiserver-advertise-address 192.168.56.15 --pod-network-cidr=10.244.0.0/16
I0502 09:16:55.764075 7400 version.go:96] could not fetch a Kubernetes version from the internet: unable to get URL "https://dl.k8s.io/release/stable-1.txt": Get https://dl.k8s.io/release/stable-1.txt: net/http: request canceled while waiting for connection (Client.Timeout exceeded while awaiting headers)
I0502 09:16:55.764251 7400 version.go:97] falling back to the local client version: v1.14.1
[init] Using Kubernetes version: v1.14.1
[preflight] Running pre-flight checks
[preflight] Pulling images required for setting up a Kubernetes cluster
[preflight] This might take a minute or two, depending on the speed of your internet connection
[preflight] You can also perform this action in beforehand using 'kubeadm config images pull'
[kubelet-start] Writing kubelet environment file with flags to file "/var/lib/kubelet/kubeadm-flags.env"
[kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml"
[kubelet-start] Activating the kubelet service
[certs] Using certificateDir folder "/etc/kubernetes/pki"
[certs] Generating "ca" certificate and key
[certs] Generating "apiserver-kubelet-client" certificate and key
[certs] Generating "apiserver" certificate and key
[certs] apiserver serving cert is signed for DNS names [k8s15 kubernetes kubernetes.default kubernetes.default.svc kubernetes.default.svc.cluster.local] and IPs [10.96.0.1 192.168.56.15]
[certs] Generating "front-proxy-ca" certificate and key
[certs] Generating "front-proxy-client" certificate and key
[certs] Generating "etcd/ca" certificate and key
[certs] Generating "etcd/server" certificate and key
[certs] etcd/server serving cert is signed for DNS names [k8s15 localhost] and IPs [192.168.56.15 127.0.0.1 ::1]
[certs] Generating "etcd/peer" certificate and key
[certs] etcd/peer serving cert is signed for DNS names [k8s15 localhost] and IPs [192.168.56.15 127.0.0.1 ::1]
[certs] Generating "etcd/healthcheck-client" certificate and key
[certs] Generating "apiserver-etcd-client" certificate and key
[certs] Generating "sa" key and public key
[kubeconfig] Using kubeconfig folder "/etc/kubernetes"
[kubeconfig] Writing "admin.conf" kubeconfig file
[kubeconfig] Writing "kubelet.conf" kubeconfig file
[kubeconfig] Writing "controller-manager.conf" kubeconfig file
[kubeconfig] Writing "scheduler.conf" kubeconfig file
[control-plane] Using manifest folder "/etc/kubernetes/manifests"
[control-plane] Creating static Pod manifest for "kube-apiserver"
[control-plane] Creating static Pod manifest for "kube-controller-manager"
[control-plane] Creating static Pod manifest for "kube-scheduler"
[etcd] Creating static Pod manifest for local etcd in "/etc/kubernetes/manifests"
[wait-control-plane] Waiting for the kubelet to boot up the control plane as static Pods from directory "/etc/kubernetes/manifests". This can take up to 4m0s
[apiclient] All control plane components are healthy after 24.006122 seconds
[upload-config] storing the configuration used in ConfigMap "kubeadm-config" in the "kube-system" Namespace
[kubelet] Creating a ConfigMap "kubelet-config-1.14" in namespace kube-system with the configuration for the kubelets in the cluster
[upload-certs] Skipping phase. Please see --experimental-upload-certs
[mark-control-plane] Marking the node k8s15 as control-plane by adding the label "node-role.kubernetes.io/master=''"
[mark-control-plane] Marking the node k8s15 as control-plane by adding the taints [node-role.kubernetes.io/master:NoSchedule]
[bootstrap-token] Using token: xsatmx.ccv54br4fl9jt66r
[bootstrap-token] Configuring bootstrap tokens, cluster-info ConfigMap, RBAC Roles
[bootstrap-token] configured RBAC rules to allow Node Bootstrap tokens to post CSRs in order for nodes to get long term certificate credentials
[bootstrap-token] configured RBAC rules to allow the csrapprover controller automatically approve CSRs from a Node Bootstrap Token
[bootstrap-token] configured RBAC rules to allow certificate rotation for all node client certificates in the cluster
[bootstrap-token] creating the "cluster-info" ConfigMap in the "kube-public" namespace
[addons] Applied essential addon: CoreDNS
[addons] Applied essential addon: kube-proxy
Your Kubernetes control-plane has initialized successfully!
To start using your cluster, you need to run the following as a regular user:
mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config
You should now deploy a pod network to the cluster.
Run "kubectl apply -f [podnetwork].yaml" with one of the options listed at:
https://kubernetes.io/docs/concepts/cluster-administration/addons/
Then you can join any number of worker nodes by running the following on each as root:
kubeadm join 192.168.56.15:6443 --token xsatmx.ccv54br4fl9jt66r \
--discovery-token-ca-cert-hash sha256:a82d920063399de8cbd77db1d0c7fecb226fbc3b58932a9524341804b79e597e
mkdir -p $HOME/.kube
cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
chown $(id -u):$(id -g) $HOME/.kube/config
echo export KUBECONFIG=~/.kube/config>> ~/.bashrc
source ~/.bashrc
[root@k8s15 ~]# kubectl apply -f https://raw.githubusercontent.com/coreos/flannel/master/Documentation/kube-flannel.yml
podsecuritypolicy.extensions/psp.flannel.unprivileged created
clusterrole.rbac.authorization.k8s.io/flannel created
clusterrolebinding.rbac.authorization.k8s.io/flannel created
serviceaccount/flannel created
configmap/kube-flannel-cfg created
daemonset.extensions/kube-flannel-ds-amd64 created
daemonset.extensions/kube-flannel-ds-arm64 created
daemonset.extensions/kube-flannel-ds-arm created
daemonset.extensions/kube-flannel-ds-ppc64le created
daemonset.extensions/kube-flannel-ds-s390x created
在k8s16和k8s17上执行
[root@k8s16 yum.repos.d]# kubeadm join 192.168.56.15:6443 --token xsatmx.ccv54br4fl9jt66r \
> --discovery-token-ca-cert-hash sha256:a82d920063399de8cbd77db1d0c7fecb226fbc3b58932a9524341804b79e597e
[preflight] Running pre-flight checks
[WARNING IsDockerSystemdCheck]: detected "cgroupfs" as the Docker cgroup driver. The recommended driver is "systemd". Please follow the guide at https://kubernetes.io/docs/setup/cri/
[preflight] Reading configuration from the cluster...
[preflight] FYI: You can look at this config file with 'kubectl -n kube-system get cm kubeadm-config -oyaml'
[kubelet-start] Downloading configuration for the kubelet from the "kubelet-config-1.14" ConfigMap in the kube-system namespace
[kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml"
[kubelet-start] Writing kubelet environment file with flags to file "/var/lib/kubelet/kubeadm-flags.env"
[kubelet-start] Activating the kubelet service
[kubelet-start] Waiting for the kubelet to perform the TLS Bootstrap...
This node has joined the cluster:
* Certificate signing request was sent to apiserver and a response was received.
* The Kubelet was informed of the new secure connection details.
Run 'kubectl get nodes' on the control-plane to see this node join the cluster.七、kubeadm reset
kubeadm reset
rm -rf /var/lib/etcd
rm -rf ~/.kube
kubeadm init \
--kubernetes-version=v1.14.1 \
--apiserver-advertise-address=192.168.56.15 \
--pod-network-cidr=10.244.0.0/16 \
--ignore-preflight-errors=Swap
mkdir -p $HOME/.kube
cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
chown $(id -u):$(id -g) $HOME/.kube/config
export KUBECONFIG=/etc/kubernetes/admin.conf
kubectl apply -f https://raw.githubusercontent.com/coreos/flannel/master/Documentation/kube-flannel.yml
rm -rf /etc/kubernetes/manifests
rm -rf /etc/kubernetes/kubelet.conf
rm -rf /etc/kubernetes/pki/ca.crt
八、kubectl join 添加k16和k17作为node节点
kubeadm join 192.168.56.15:6443 --token 7h02b5.5yd3vc8aq8ydl6g0 \
--discovery-token-ca-cert-hash sha256:17ce1395fff815815b7e7173a0df85973108bfa9b43f98ddb97fad8b7ee98cfa在k15上查看集群的节点
[root@k15 ~]# kubectl get nodes
NAME STATUS ROLES AGE VERSION
k15 Ready master 22h v1.14.1
k16 Ready <none> 22h v1.14.1
k17 Ready <none> 22h v1.14.1
来源：oschina
链接：https://my.oschina.net/u/4296609/blog/3551701
