Alertmanager 安装(k8s报警)

一、下载Alertmanager

https://prometheus.io/download/

wget https://github.com/prometheus/alertmanager/releases/download/v0.16.0-alpha.0/alertmanager-0.16.0-alpha.0.linux-amd64.tar.gz

#解压
tar xf alertmanager-0.16.0-alpha.0.linux-amd64.tar.gz
mv alertmanager-0.16.0-alpha.0.linux-amd64  /usr/local/alertmanager
#创建数据目录
mkdir -p /data/alertmanager

#创建用户
useradd prometheus
chown -R prometheus:prometheus /usr/local/alertmanager  /data/alertmanager/


#添加启动服务
vim /usr/lib/systemd/system/alertmanager.service
[Unit]
Description=Alertmanager
After=network.target

[Service]
Type=simple
User=prometheus
ExecStart=/usr/local/alertmanager/alertmanager --config.file=/usr/local/alertmanager/alertmanager.yml --storage.path=/data/alertmanager
Restart=on-failure

[Install]
WantedBy=multi-user.target

#启动服务
systemctl start alertmanager.service
#查看端口
[root@k8s-m alertmanger]# ss -lntp|grep 9093
LISTEN     0      128         :::9093                    :::*                   users:(("alertmanager",pid=26298,fd=6))

　　

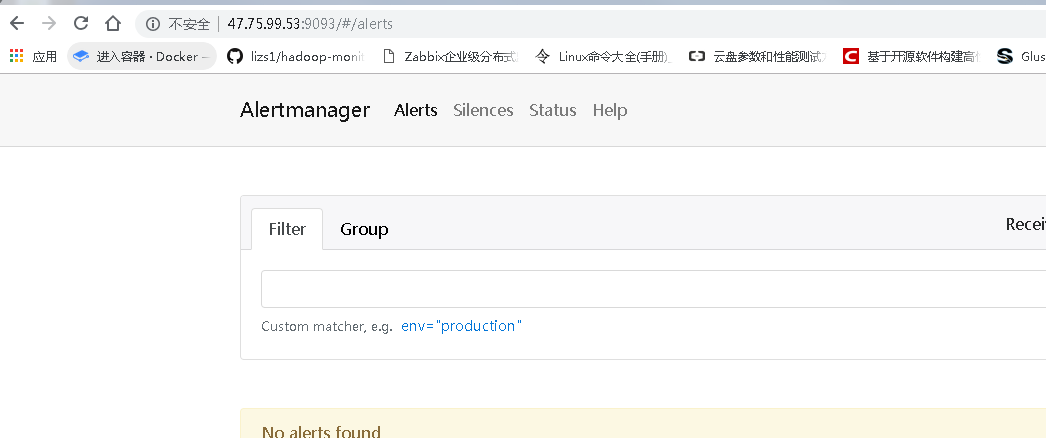

浏览器访问

http://IP:9093



二、结合prometheus实现监控报警

安装prometheus

https://www.cnblogs.com/zhangb8042/p/10204997.html

#创建一个configmap（监控用的）

apiVersion: v1
kind: ConfigMap
metadata:
  name: prometheus-config2
  namespace: kube-system
data:
  rules.yml: |
    groups:
    - name: test-rules
      rules:
      - alert: InstanceDown
        expr: up == 0
        for: 2m
        labels:
         team: node
        annotations:
         summary: "{{$labels.instance}}: has been down"
         description: "{{$labels.instance}}: job {{$labels.job}} has been down "



修改下载的prometheus.deploy.yml的配置文件（挂载上面的configmap）

apiVersion: apps/v1beta2
kind: Deployment
metadata:
  labels:
    name: prometheus-deployment
  name: prometheus
  namespace: kube-system
spec:
  replicas: 1
  selector:
    matchLabels:
      app: prometheus
  template:
    metadata:
      labels:
        app: prometheus
    spec:
      containers:
      - image: prom/prometheus:v2.0.0
        name: prometheus
        command:
        - "/bin/prometheus"
        args:
        - "--config.file=/etc/prometheus/prometheus.yml"
        - "--storage.tsdb.path=/prometheus"
        - "--storage.tsdb.retention=24h"
        ports:
        - containerPort: 9090
          protocol: TCP
        volumeMounts:
        - mountPath: "/prometheus"
          name: data
        - mountPath: "/etc/prometheus"
          name: config-volume
        - mountPath: "/etc/rules"
          name: rules
        resources:
          requests:
            cpu: 100m
            memory: 100Mi
          limits:
            cpu: 500m
            memory: 2500Mi
      serviceAccountName: prometheus
      volumes:
      - name: data
        emptyDir: {}
      - name: config-volume
        configMap:
          name: prometheus-config
      - name: rules
        configMap:
          name: prometheus-config2



#修改原先的configmap文件

apiVersion: v1
kind: ConfigMap
metadata:
  name: prometheus-config
  namespace: kube-system
data:
  prometheus.yml: |
    global:
      scrape_interval:     15s
      evaluation_interval: 15s
      scrape_timeout: 15s
      external_labels:
        monitor: 'codelab_monitor'
    alerting:
      alertmanagers:
      - static_configs:
        - targets: ["172.31.0.248:9093"] #alertmanagers地址
    rule_files: ## rule配置，首次读取默认加载，之后根据evaluation_interval设定的周期加载
    - "/etc/rules/rules.yml"

    scrape_configs:
    - job_name: 'prometheus' # job_name默认写入timeseries的labels中，可以用于查询使用
      scrape_interval: 15s # 抓取周期，默认采用global配置
      static_configs: # 静态配置
      - targets: ['localhost:9090'] # prometheus所要抓取数据的地址

    scrape_configs:
    - job_name: 'kubernetes-apiservers'
      kubernetes_sd_configs:
      - role: endpoints
      scheme: https
      tls_config:
        ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
      bearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/token
      relabel_configs:
      - source_labels: [__meta_kubernetes_namespace, __meta_kubernetes_service_name, __meta_kubernetes_endpoint_port_name]
        action: keep
        regex: default;kubernetes;https

    - job_name: 'kubernetes-nodes'
      kubernetes_sd_configs:
      - role: node
      scheme: https
      tls_config:
        ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
      bearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/token
      relabel_configs:
      - action: labelmap
        regex: __meta_kubernetes_node_label_(.+)
      - target_label: __address__
        replacement: kubernetes.default.svc:443
      - source_labels: [__meta_kubernetes_node_name]
        regex: (.+)
        target_label: __metrics_path__
        replacement: /api/v1/nodes/${1}/proxy/metrics

    - job_name: 'kubernetes-cadvisor'
      kubernetes_sd_configs:
      - role: node
      scheme: https
      tls_config:
        ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
      bearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/token
      relabel_configs:
      - action: labelmap
        regex: __meta_kubernetes_node_label_(.+)
      - target_label: __address__
        replacement: kubernetes.default.svc:443
      - source_labels: [__meta_kubernetes_node_name]
        regex: (.+)
        target_label: __metrics_path__
        replacement: /api/v1/nodes/${1}/proxy/metrics/cadvisor

    - job_name: 'kubernetes-service-endpoints'
      kubernetes_sd_configs:
      - role: endpoints
      relabel_configs:
      - source_labels: [__meta_kubernetes_service_annotation_prometheus_io_scrape]
        action: keep
        regex: true
      - source_labels: [__meta_kubernetes_service_annotation_prometheus_io_scheme]
        action: replace
        target_label: __scheme__
        regex: (https?)
      - source_labels: [__meta_kubernetes_service_annotation_prometheus_io_path]
        action: replace
        target_label: __metrics_path__
        regex: (.+)
      - source_labels: [__address__, __meta_kubernetes_service_annotation_prometheus_io_port]
        action: replace
        target_label: __address__
        regex: ([^:]+)(?::\d+)?;(\d+)
        replacement: $1:$2
      - action: labelmap
        regex: __meta_kubernetes_service_label_(.+)
      - source_labels: [__meta_kubernetes_namespace]
        action: replace
        target_label: kubernetes_namespace
      - source_labels: [__meta_kubernetes_service_name]
        action: replace
        target_label: kubernetes_name

    - job_name: 'kubernetes-services'
      kubernetes_sd_configs:
      - role: service
      metrics_path: /probe
      params:
        module: [http_2xx]
      relabel_configs:
      - source_labels: [__meta_kubernetes_service_annotation_prometheus_io_probe]
        action: keep
        regex: true
      - source_labels: [__address__]
        target_label: __param_target
      - target_label: __address__
        replacement: blackbox-exporter.example.com:9115
      - source_labels: [__param_target]
        target_label: instance
      - action: labelmap
        regex: __meta_kubernetes_service_label_(.+)
      - source_labels: [__meta_kubernetes_namespace]
        target_label: kubernetes_namespace
      - source_labels: [__meta_kubernetes_service_name]
        target_label: kubernetes_name

    - job_name: 'kubernetes-ingresses'
      kubernetes_sd_configs:
      - role: ingress
      relabel_configs:
      - source_labels: [__meta_kubernetes_ingress_annotation_prometheus_io_probe]
        action: keep
        regex: true
      - source_labels: [__meta_kubernetes_ingress_scheme,__address__,__meta_kubernetes_ingress_path]
        regex: (.+);(.+);(.+)
        replacement: ${1}://${2}${3}
        target_label: __param_target
      - target_label: __address__
        replacement: blackbox-exporter.example.com:9115
      - source_labels: [__param_target]
        target_label: instance
      - action: labelmap
        regex: __meta_kubernetes_ingress_label_(.+)
      - source_labels: [__meta_kubernetes_namespace]
        target_label: kubernetes_namespace
      - source_labels: [__meta_kubernetes_ingress_name]
        target_label: kubernetes_name

    - job_name: 'kubernetes-pods'
      kubernetes_sd_configs:
      - role: pod
      relabel_configs:
      - source_labels: [__meta_kubernetes_pod_annotation_prometheus_io_scrape]
        action: keep
        regex: true
      - source_labels: [__meta_kubernetes_pod_annotation_prometheus_io_path]
        action: replace
        target_label: __metrics_path__
        regex: (.+)
      - source_labels: [__address__, __meta_kubernetes_pod_annotation_prometheus_io_port]
        action: replace
        regex: ([^:]+)(?::\d+)?;(\d+)
        replacement: $1:$2
        target_label: __address__
      - action: labelmap
        regex: __meta_kubernetes_pod_label_(.+)
      - source_labels: [__meta_kubernetes_namespace]
        action: replace
        target_label: kubernetes_namespace
      - source_labels: [__meta_kubernetes_pod_name]
        action: replace
        target_label: kubernetes_pod_name



#重新导入所有文件

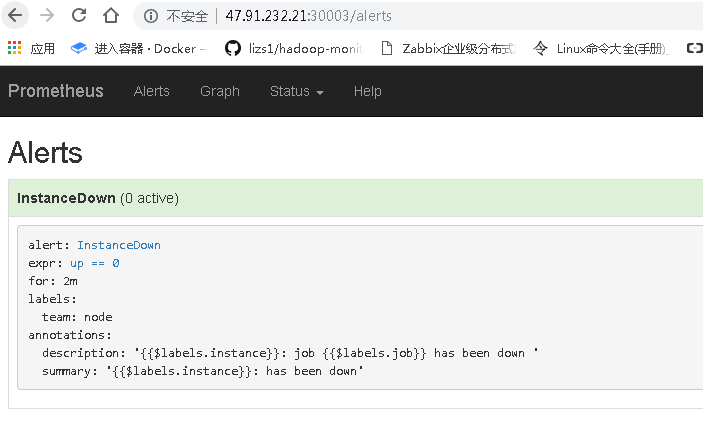

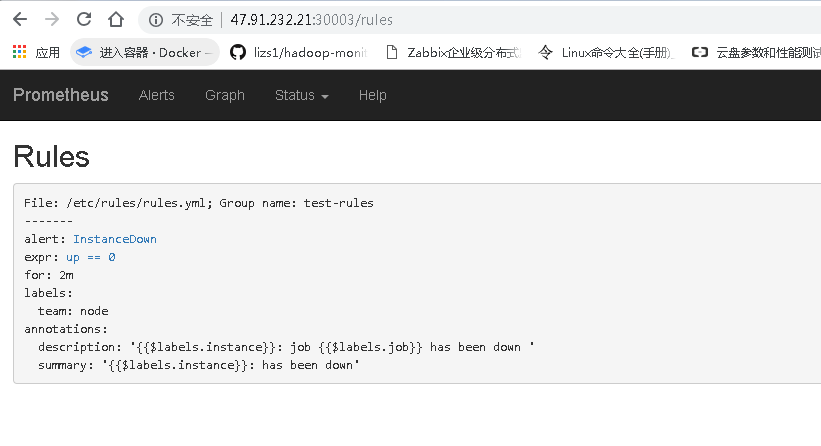

#查看prometheus页面的监控与报警项

#配置alertmanager的报警设置（我暂时使用的是email，支持微信和钉钉）

修改alertmanager.yml文件

[root@k8s-m prometheus]# cat  /usr/local/alertmanager/alertmanager.yml
global:
  resolve_timeout: 5m #处理超时时间，默认为5min
  smtp_smarthost: 'smtp.163.com:25' # 邮箱smtp服务器代理
  smtp_from: 'xxxx@163.com' # 发送邮箱名称
  smtp_auth_username: 'xxxx@163.com' # 邮箱名称
  smtp_auth_password: 'xxxxxxxxx' #邮箱密码

route:
  group_by: ['alertname'] # 报警分组名称
  group_wait: 10s # 最初即第一次等待多久时间发送一组警报的通知
  group_interval: 10s # 在发送新警报前的等待时间
  repeat_interval: 1m # 发送重复警报的周期
  receiver: 'email' # 发送警报的接收者的名称，以下receivers name的名称


receivers:
  - name: 'email' # 警报
    email_configs: # 邮箱配置
    - to: '18305944341@163.com'  # 接收警报的email配置


inhibit_rules:
  - source_match:
      severity: 'critical'
    target_match:
      severity: 'warning'
    equal: ['alertname', 'dev', 'instance']



#重启alertmanager

systemctl restart alertmanager.service



#干掉node端的kubelet

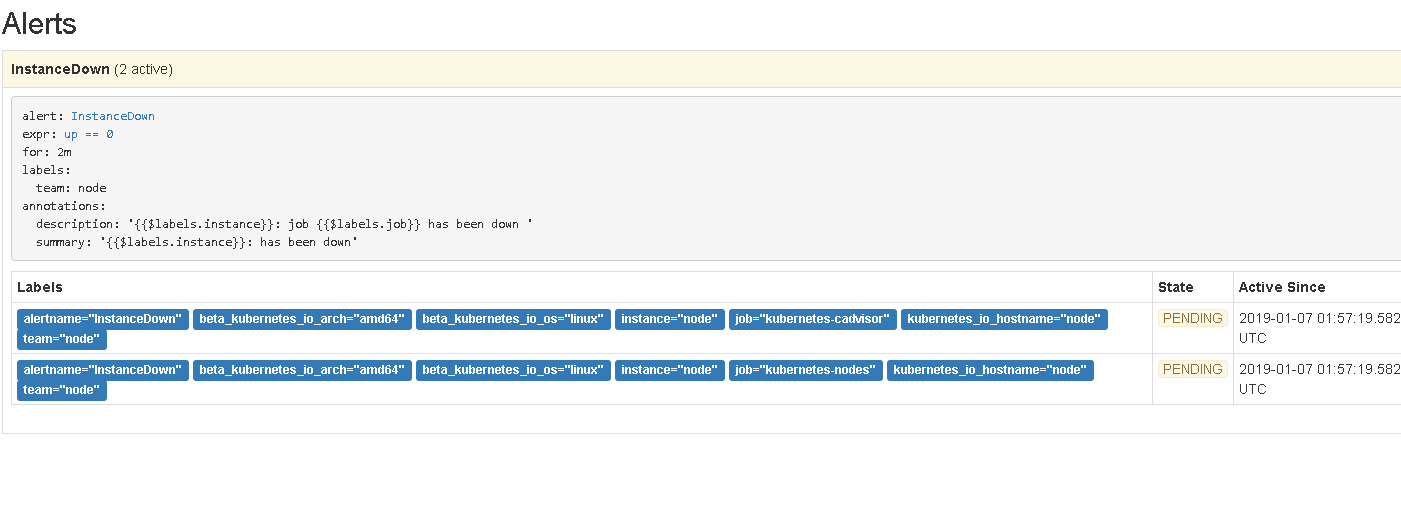

#过一会查看prometheus（出现问题了）

#查看alertmanager

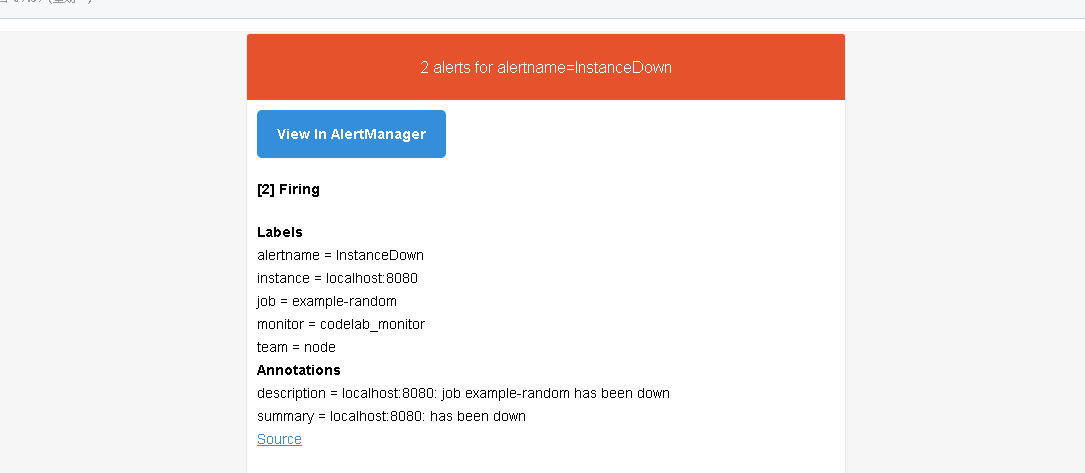

#查看邮箱



#配置钉钉报警

一、下载prometheus-webhook-dingtalk插件

wget https://github.com/timonwong/prometheus-webhook-dingtalk/releases/download/v0.3.0/prometheus-webhook-dingtalk-0.3.0.linux-amd64.tar.gz
tar xf prometheus-webhook-dingtalk-0.3.0.linux-amd64.tar.gz
mv prometheus-webhook-dingtalk-0.3.0.linux-amd64 /usr/local
ln -s  /usr/local/prometheus-webhook-dingtalk-0.3.0.linux-amd64  /usr/local/prometheus-webhook-dingtalk
cp default.tmpl{,.default}
vim  default.tmpl#修改报警模板
{{ define "__subject" }}[{{ .Status | toUpper }}{{ if eq .Status "firing" }}:{{ .Alerts.Firing | len }}{{ end }}] {{ .GroupLabels.SortedPairs.Values | join " " }} {{ if gt (len .CommonLabels) (len .GroupLabels) }}({{ with .CommonLabels.Remove .GroupLabels.Names }}{{ .Values | join " " }}{{ end }}){{ end }}{{ end }}
{{ define "__alertmanagerURL" }}{{ .ExternalURL }}/#/alerts?receiver={{ .Receiver }}{{ end }}

{{ define "__text_alert_list" }}{{ range . }}
**Labels**
{{ range .Labels.SortedPairs }}> - {{ .Name }}: {{ .Value | markdown | html }}
{{ end }}
**Annotations**
{{ range .Annotations.SortedPairs }}> - {{ .Name }}: {{ .Value | markdown | html }}
{{ end }}
**Source:** [{{ .GeneratorURL }}]({{ .GeneratorURL }})

{{ end }}{{ end }}

{{ define "ding.link.title" }}{{ template "__subject" . }}{{ end }}
{{ define "ding.link.content" }}#### \[{{ .Status | toUpper }}{{ if eq .Status "firing" }}:{{ .Alerts.Firing | len }}{{ end }}\] **[{{ index .GroupLabels "alertname" }}]({{ template "__alertmanagerURL" . }})**
{{ template "__text_alert_list" .Alerts.Firing }}
{{ end }}

#启动prometheus-webhook-dingtalk
 /usr/local/prometheus-webhook-dingtalk/prometheus-webhook-dingtalk   --web.listen-address="0.0.0.0:8060" --ding.profile="ops_dingding=https://oapi.dingtalk.com/robot/send?access_token=xxxxxxxxxxxxx" #钉钉机器人wehook地址

　　#2、修改alertmanager.yml文件

[root@k8s-m alertmanager]# cat alertmanager.yml
global:
  resolve_timeout: 5m
route:
  receiver: webhook
  group_wait: 30s
  group_interval: 5m
  repeat_interval: 4h
  group_by: [alertname]
  routes:
  - receiver: webhook
    group_wait: 10s
    match:
      team: node
receivers:
- name: webhook
  webhook_configs:
  - url: http://localhost:8060/dingtalk/ops_dingding/send
    send_resolved: true

#重启alertmanager
systemctl  restart alertmanager.service

　　



#钉钉报警查看
