PropertyEditorRegistry 和 PropertyEditorRegistrySupport 源码

• PropertyEditorRegistry 属性编辑器注册表

  • 封装了注册 JavaBeans PropertyEditors 的方法

    //注册给定类型的所有属性的自定义属性编辑器
    void registerCustomEditor(Class<?> requiredType, PropertyEditor propertyEditor);


    //如果属性path是一个array/Collection，这里的requireType应该是其元素的类型
    void registerCustomEditor(@Nullable Class<?> requiredType, @Nullable String propertyPath, PropertyEditor propertyEditor);


    //找到一个指定类型和属性的属性编辑器
    @Nullable
    PropertyEditor findCustomEditor(@Nullable Class<?> requiredType, @Nullable String propertyPath);

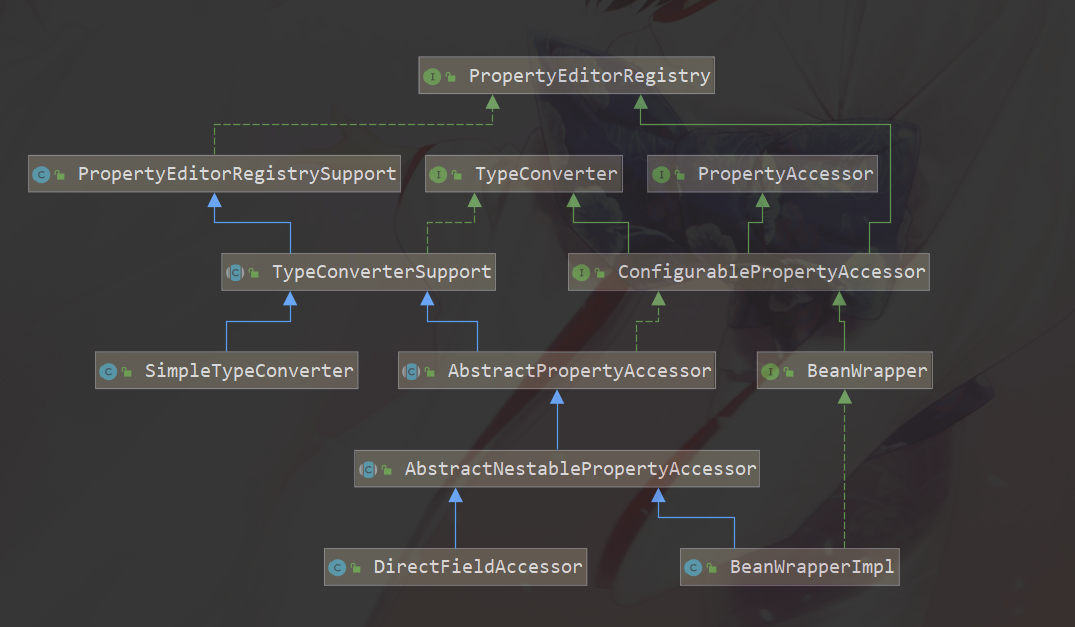

• PropertyEditorRegistrySupport 属性便捷器注册支持

  • 是 PropertyEditorRegistry 的基本实现 ， 提供了默认编辑器和自定义编辑器的管理 ，只要担任 BeanWrapperImpl 的基类。

  • 有几个成员变量

    @Nullable
    private ConversionService conversionService;

    private boolean defaultEditorsActive = false;

    private boolean configValueEditorsActive = false;

    @Nullable
    private Map<Class<?>, PropertyEditor> defaultEditors;

    @Nullable
    private Map<Class<?>, PropertyEditor> overriddenDefaultEditors;

    @Nullable
    private Map<Class<?>, PropertyEditor> customEditors;

    @Nullable
    private Map<String, CustomEditorHolder> customEditorsForPath;

    @Nullable
    private Map<Class<?>, PropertyEditor> customEditorCache;


  • 其中有 关于 ConversionService 的方法

  • /**
     * Specify a Spring 3.0 ConversionService to use for converting
     * property values, as an alternative to JavaBeans PropertyEditors.
     */
    public void setConversionService(@Nullable ConversionService conversionService) {
       this.conversionService = conversionService;
    }

    /**
     * Return the associated ConversionService, if any.
     */
    @Nullable
    public ConversionService getConversionService() {
       return this.conversionService;
    }


  • 关于默认编辑器方法

    //激活这个注册表实例的默认编辑器，允许懒注册的默认编辑器在需要的时候被注册
    protected void registerDefaultEditors() {
       this.defaultEditorsActive = true;
    }
    //激活配置编辑器，为了配置值。这些编辑器没有被默认注册，因为他们不大适合用于数据绑定。
    public void useConfigValueEditors() {
    		this.configValueEditorsActive = true;
    }
    //重写默认编辑器
    /* 和注册一个自定义编辑器不同，重写完之后还是一个默认编辑器
    * 一个ConversionService会重写这样一个默认编辑器，然而，自定义编辑器通常重写ConversionService
    */
    public void overrideDefaultEditor(Class<?> requiredType, PropertyEditor propertyEditor) {
        if (this.overriddenDefaultEditors == null) {
            this.overriddenDefaultEditors = new HashMap<>();
        }
        this.overriddenDefaultEditors.put(requiredType, propertyEditor);
    }
    //根据属性类型得到默认属性编辑器，如果他们是active的，则懒注册他们
    @Nullable
    public PropertyEditor getDefaultEditor(Class<?> requiredType) {
        if (!this.defaultEditorsActive) {
            return null;
        }
        if (this.overriddenDefaultEditors != null) {
            PropertyEditor editor = this.overriddenDefaultEditors.get(requiredType);
            if (editor != null) {
                return editor;
            }
        }
        if (this.defaultEditors == null) {
            createDefaultEditors();
        }
        return this.defaultEditors.get(requiredType);
    }
    //创建了许多默认编辑器（在这个注册表实例里）
    private void createDefaultEditors() {
    		this.defaultEditors = new HashMap<>(64);

    		// 简单的编辑器，没有参数化的功能
    		// The JDK does not contain a default editor for any of these target types.
    		this.defaultEditors.put(Charset.class, new CharsetEditor());
    		this.defaultEditors.put(Class.class, new ClassEditor());
    		this.defaultEditors.put(Class[].class, new ClassArrayEditor());
    		this.defaultEditors.put(Currency.class, new CurrencyEditor());
    		this.defaultEditors.put(File.class, new FileEditor());
    		this.defaultEditors.put(InputStream.class, new InputStreamEditor());
    		this.defaultEditors.put(InputSource.class, new InputSourceEditor());
    		this.defaultEditors.put(Locale.class, new LocaleEditor());
    		this.defaultEditors.put(Path.class, new PathEditor());
    		this.defaultEditors.put(Pattern.class, new PatternEditor());
    		this.defaultEditors.put(Properties.class, new PropertiesEditor());
    		this.defaultEditors.put(Reader.class, new ReaderEditor());
    		this.defaultEditors.put(Resource[].class, new ResourceArrayPropertyEditor());
    		this.defaultEditors.put(TimeZone.class, new TimeZoneEditor());
    		this.defaultEditors.put(URI.class, new URIEditor());
    		this.defaultEditors.put(URL.class, new URLEditor());
    		this.defaultEditors.put(UUID.class, new UUIDEditor());
    		this.defaultEditors.put(ZoneId.class, new ZoneIdEditor());

    		// 集合类的默认编辑器实例
    		// Can be overridden by registering custom instances of those as custom editors.
    		this.defaultEditors.put(Collection.class, new CustomCollectionEditor(Collection.class));
    		this.defaultEditors.put(Set.class, new CustomCollectionEditor(Set.class));
    		this.defaultEditors.put(SortedSet.class, new CustomCollectionEditor(SortedSet.class));
    		this.defaultEditors.put(List.class, new CustomCollectionEditor(List.class));
    		this.defaultEditors.put(SortedMap.class, new CustomMapEditor(SortedMap.class));

    		// 基本数组的默认编辑器
    		this.defaultEditors.put(byte[].class, new ByteArrayPropertyEditor());
    		this.defaultEditors.put(char[].class, new CharArrayPropertyEditor());

    		// The JDK does not contain a default editor for char!
    		this.defaultEditors.put(char.class, new CharacterEditor(false));
    		this.defaultEditors.put(Character.class, new CharacterEditor(true));

    		// Spring's CustomBooleanEditor accepts more flag values than the JDK's default editor.
    		this.defaultEditors.put(boolean.class, new CustomBooleanEditor(false));
    		this.defaultEditors.put(Boolean.class, new CustomBooleanEditor(true));

    		// The JDK does not contain default editors for number wrapper types!
    		// Override JDK primitive number editors with our own CustomNumberEditor.
    		this.defaultEditors.put(byte.class, new CustomNumberEditor(Byte.class, false));
    		this.defaultEditors.put(Byte.class, new CustomNumberEditor(Byte.class, true));
    		this.defaultEditors.put(short.class, new CustomNumberEditor(Short.class, false));
    		this.defaultEditors.put(Short.class, new CustomNumberEditor(Short.class, true));
    		this.defaultEditors.put(int.class, new CustomNumberEditor(Integer.class, false));
    		this.defaultEditors.put(Integer.class, new CustomNumberEditor(Integer.class, true));
    		this.defaultEditors.put(long.class, new CustomNumberEditor(Long.class, false));
    		this.defaultEditors.put(Long.class, new CustomNumberEditor(Long.class, true));
    		this.defaultEditors.put(float.class, new CustomNumberEditor(Float.class, false));
    		this.defaultEditors.put(Float.class, new CustomNumberEditor(Float.class, true));
    		this.defaultEditors.put(double.class, new CustomNumberEditor(Double.class, false));
    		this.defaultEditors.put(Double.class, new CustomNumberEditor(Double.class, true));
    		this.defaultEditors.put(BigDecimal.class, new CustomNumberEditor(BigDecimal.class, true));
    		this.defaultEditors.put(BigInteger.class, new CustomNumberEditor(BigInteger.class, true));

    		// Only register config value editors if explicitly requested.
        	// 仅在明确要求时注册配置值编辑器
    		if (this.configValueEditorsActive) {
    			StringArrayPropertyEditor sae = new StringArrayPropertyEditor();
    			this.defaultEditors.put(String[].class, sae);
    			this.defaultEditors.put(short[].class, sae);
    			this.defaultEditors.put(int[].class, sae);
    			this.defaultEditors.put(long[].class, sae);
    		}
    	}

    /**
     * 把这个注册表实例中的默认编辑器复制到另一个注册表中
     * @param target the target registry to copy to
     */
    protected void copyDefaultEditorsTo(PropertyEditorRegistrySupport target) {
        target.defaultEditorsActive = this.defaultEditorsActive;
        target.configValueEditorsActive = this.configValueEditorsActive;
        target.defaultEditors = this.defaultEditors;
        target.overriddenDefaultEditors = this.overriddenDefaultEditors;
    }


  • 关于自定义编辑器的方法

    • 实现的PropertyEditorRegistry接口中的三个方法

    @Override
    public void registerCustomEditor(Class<?> requiredType, PropertyEditor propertyEditor) {
       registerCustomEditor(requiredType, null, propertyEditor);
    }

    @Override
    public void registerCustomEditor(@Nullable Class<?> requiredType, @Nullable String propertyPath, PropertyEditor propertyEditor) {
       if (requiredType == null && propertyPath == null) {
          throw new IllegalArgumentException("Either requiredType or propertyPath is required");
       }
       if (propertyPath != null) {
          if (this.customEditorsForPath == null) {
             this.customEditorsForPath = new LinkedHashMap<>(16);
          }
          this.customEditorsForPath.put(propertyPath, new CustomEditorHolder(propertyEditor, requiredType));
       }
       else {
          if (this.customEditors == null) {
             this.customEditors = new LinkedHashMap<>(16);
          }
          this.customEditors.put(requiredType, propertyEditor);
          this.customEditorCache = null;
       }
    }

    @Override
    @Nullable
    public PropertyEditor findCustomEditor(@Nullable Class<?> requiredType, @Nullable String propertyPath) {
       Class<?> requiredTypeToUse = requiredType;
       if (propertyPath != null) {
          if (this.customEditorsForPath != null) {
             // Check property-specific editor first.
             PropertyEditor editor = getCustomEditor(propertyPath, requiredType);
             if (editor == null) {
                List<String> strippedPaths = new ArrayList<>();
                addStrippedPropertyPaths(strippedPaths, "", propertyPath);
                for (Iterator<String> it = strippedPaths.iterator(); it.hasNext() && editor == null;) {
                   String strippedPath = it.next();
                   editor = getCustomEditor(strippedPath, requiredType);
                }
             }
             if (editor != null) {
                return editor;
             }
          }
          if (requiredType == null) {
             requiredTypeToUse = getPropertyType(propertyPath);
          }
       }
       // No property-specific editor -> check type-specific editor.
       return getCustomEditor(requiredTypeToUse);
    }

    //这个注册表是否含有特定 array/Collection 元素类 的自定义编辑器
    public boolean hasCustomEditorForElement(@Nullable Class<?> elementType, @Nullable String propertyPath) {
    		if (propertyPath != null && this.customEditorsForPath != null) {
    			for (Map.Entry<String, CustomEditorHolder> entry : this.customEditorsForPath.entrySet()) {
    				if (PropertyAccessorUtils.matchesProperty(entry.getKey(), propertyPath) &&
    						entry.getValue().getPropertyEditor(elementType) != null) {
    					return true;
    				}
    			}
    		}
    		// No property-specific editor -> check type-specific editor.
    		return (elementType != null && this.customEditors != null && this.customEditors.containsKey(elementType));
    }

    //根据property path得到该属性的类型，默认返回null，该方法在BeanWrapper中被再次定义，且在BeanWrapperImpl中被重写
    @Nullable
    protected Class<?> getPropertyType(String propertyPath) {
        return null;
    }

    //返回指定类型和属性的自定义编辑器
    @Nullable
    private PropertyEditor getCustomEditor(String propertyName, @Nullable Class<?> requiredType) {
        CustomEditorHolder holder =
                (this.customEditorsForPath != null ? this.customEditorsForPath.get(propertyName) : null);
        return (holder != null ? holder.getPropertyEditor(requiredType) : null);
    }

    //返回指定type的自定义编辑器，如果没有直接匹配的结果，将会尝试其父类的自定义编辑器（在任何情况下都能通过 getAsText将值呈现为String）
    @Nullable
    private PropertyEditor getCustomEditor(@Nullable Class<?> requiredType) {
        if (requiredType == null || this.customEditors == null) {
            return null;
        }
        // Check directly registered editor for type.
        PropertyEditor editor = this.customEditors.get(requiredType);
        if (editor == null) {
            // Check cached editor for type, registered for superclass or interface.
            if (this.customEditorCache != null) {
                editor = this.customEditorCache.get(requiredType);
            }
            if (editor == null) {
                // Find editor for superclass or interface.
                for (Iterator<Class<?>> it = this.customEditors.keySet().iterator(); it.hasNext() && editor == null;) {
                    Class<?> key = it.next();
                    if (key.isAssignableFrom(requiredType)) {
                        editor = this.customEditors.get(key);
                        // Cache editor for search type, to avoid the overhead
                        // of repeated assignable-from checks.
                        if (this.customEditorCache == null) {
                            this.customEditorCache = new HashMap<>();
                        }
                        this.customEditorCache.put(requiredType, editor);
                    }
                }
            }
        }
        return editor;
    }

    //猜猜该属性名称所对应的属性类型（从自定义编辑器中猜）
    @Nullable
    protected Class<?> guessPropertyTypeFromEditors(String propertyName) {
        if (this.customEditorsForPath != null) {
            CustomEditorHolder editorHolder = this.customEditorsForPath.get(propertyName);
            if (editorHolder == null) {
                List<String> strippedPaths = new ArrayList<>();
                addStrippedPropertyPaths(strippedPaths, "", propertyName);
                for (Iterator<String> it = strippedPaths.iterator(); it.hasNext() && editorHolder == null;) {
                    String strippedName = it.next();
                    editorHolder = this.customEditorsForPath.get(strippedName);
                }
            }
            if (editorHolder != null) {
                return editorHolder.getRegisteredType();
            }
        }
        return null;
    }

    /**把这个注册表实例中的自定义编辑器复制到目标注册表实例中
     */
    protected void copyCustomEditorsTo(PropertyEditorRegistry target, @Nullable String nestedProperty) {
        String actualPropertyName =
                (nestedProperty != null ? PropertyAccessorUtils.getPropertyName(nestedProperty) : null);
        if (this.customEditors != null) {
            this.customEditors.forEach(target::registerCustomEditor);
        }
        if (this.customEditorsForPath != null) {
            this.customEditorsForPath.forEach((editorPath, editorHolder) -> {
                if (nestedProperty != null) {
                    int pos = PropertyAccessorUtils.getFirstNestedPropertySeparatorIndex(editorPath);
                    if (pos != -1) {
                        String editorNestedProperty = editorPath.substring(0, pos);
                        String editorNestedPath = editorPath.substring(pos + 1);
                        if (editorNestedProperty.equals(nestedProperty) || editorNestedProperty.equals(actualPropertyName)) {
                            target.registerCustomEditor(
                                    editorHolder.getRegisteredType(), editorNestedPath, editorHolder.getPropertyEditor());
                        }
                    }
                }
                else {
                    target.registerCustomEditor(
                            editorHolder.getRegisteredType(), editorPath, editorHolder.getPropertyEditor());
                }
            });
        }
    }


    /**添加具有剥离键和/或索引的所有变体的属性路径。使用嵌套路径递归调用自身。*/
    private void addStrippedPropertyPaths(List<String> strippedPaths, String nestedPath, String propertyPath) {
        int startIndex = propertyPath.indexOf(PropertyAccessor.PROPERTY_KEY_PREFIX_CHAR);
        if (startIndex != -1) {
            int endIndex = propertyPath.indexOf(PropertyAccessor.PROPERTY_KEY_SUFFIX_CHAR);
            if (endIndex != -1) {
                String prefix = propertyPath.substring(0, startIndex);
                String key = propertyPath.substring(startIndex, endIndex + 1);
                String suffix = propertyPath.substring(endIndex + 1, propertyPath.length());
                // Strip the first key.
                strippedPaths.add(nestedPath + prefix + suffix);
                // Search for further keys to strip, with the first key stripped.
                addStrippedPropertyPaths(strippedPaths, nestedPath + prefix, suffix);
                // Search for further keys to strip, with the first key not stripped.
                addStrippedPropertyPaths(strippedPaths, nestedPath + prefix + key, suffix);
            }
        }
    }


  • 内部类CustomEditorHolder

    //具有属性名称的注册定制编辑器的持有人。
    //保留PropertyEditor本身及其注册的类型。
    private static final class CustomEditorHolder {

        private final PropertyEditor propertyEditor;

        @Nullable
        private final Class<?> registeredType;

        private CustomEditorHolder(PropertyEditor propertyEditor, @Nullable Class<?> registeredType) {
            this.propertyEditor = propertyEditor;
            this.registeredType = registeredType;
        }

        private PropertyEditor getPropertyEditor() {
            return this.propertyEditor;
        }

        @Nullable
        private Class<?> getRegisteredType() {
            return this.registeredType;
        }

        @Nullable
        private PropertyEditor getPropertyEditor(@Nullable Class<?> requiredType) {
            // 特殊情况：如果没有指定的requiredType（通常只发生在是Collection元素的时候），或者requiredType没有被分派到注册表中的类型（通常只发生在Object的通用属性的情况），那么就会返回PropertyEditor（没有注册为Collection和array type）
            if (this.registeredType == null ||
                    (requiredType != null &&
                    (ClassUtils.isAssignable(this.registeredType, requiredType) ||
                    ClassUtils.isAssignable(requiredType, this.registeredType))) ||
                    (requiredType == null &&
                    (!Collection.class.isAssignableFrom(this.registeredType) && !this.registeredType.isArray()))) {
                return this.propertyEditor;
            }
            else {
                return null;
            }
        }
    }


来源：https://www.cnblogs.com/woshi123/p/12658357.html
