Material Design学习（二）——滑动菜单

拷贝一份昨天的项目，并改名day20_SlidingMenu

一、`DrawerLayout`抽屉布局

DrawerLayout 是个抽屉布局，可以放入两个子控件。第一个子控件是主屏幕显示的内容，第二个子控件是滑动菜单中显示的内容

主布局：

<?xml version="1.0" encoding="utf-8"?>
<androidx.drawerlayout.widget.DrawerLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    android:id="@+id/drawer_layout"
    android:layout_width="match_parent"
    android:layout_height="match_parent">

    <FrameLayout
        android:layout_width="match_parent"
        android:layout_height="match_parent">

        <androidx.appcompat.widget.Toolbar
            android:id="@+id/toolbar"
            android:layout_width="match_parent"
            android:background="?attr/colorPrimary"
            android:layout_height="?attr/actionBarSize"
            android:theme="@style/ThemeOverlay.AppCompat.Dark.ActionBar"
            app:popupTheme="@style/ThemeOverlay.AppCompat.Light" />
    </FrameLayout>

    <TextView
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:text="这是菜单"
        android:textSize="30sp"
        android:background="#FFF"
        android:gravity="start"/>

</androidx.drawerlayout.widget.DrawerLayout>

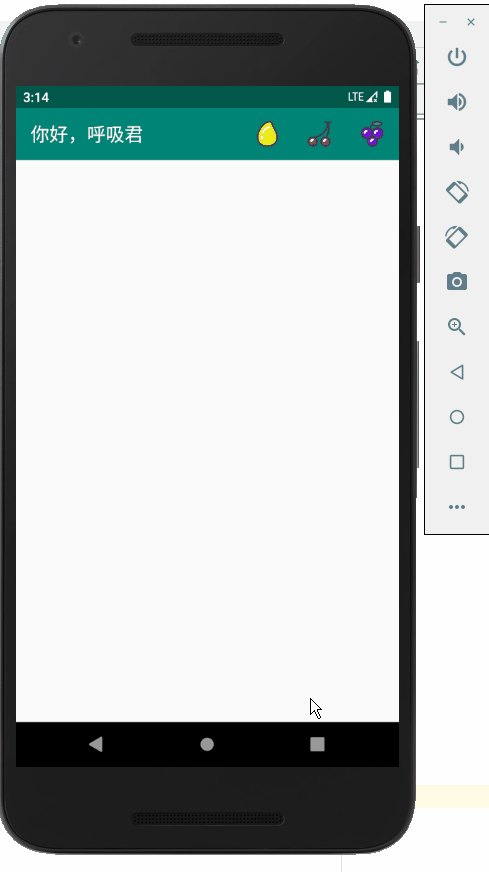

在这里插入图片描述

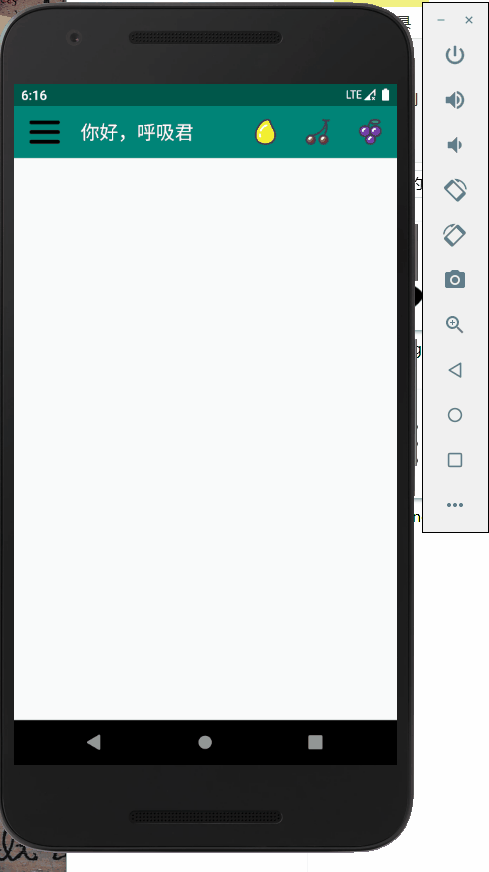

增加导航按钮：

public class MainActivity extends AppCompatActivity {
    private DrawerLayout mDrawerLayout;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        Toolbar toolbar = findViewById(R.id.toolbar);
        setSupportActionBar(toolbar);
        mDrawerLayout = findViewById(R.id.drawer_layout);
        ActionBar actionBar = getSupportActionBar();
        if( actionBar!= null){
            actionBar.setDisplayHomeAsUpEnabled(true);
            actionBar.setHomeAsUpIndicator(R.drawable.menu);
        }
    }

......

    // 处理按钮点击事件
    @Override
    public boolean onOptionsItemSelected(@NonNull MenuItem item) {
        switch (item.getItemId()) {
......
            case android.R.id.home:
                mDrawerLayout.openDrawer(GravityCompat.START);
                break;
            default:
                break;
        }
        return true;
    }
}

getSupportActionBar()得到ActionBar的实例
setDisplayHomeAsUpEnabled()，显示导航按钮[HomeAsUp]
HomeAsUp按钮的id永远是android.R.home
DrawerLayout.openDrawer()展示滑动菜单，要求传入菜单栏布局方式，于是传入GravityCompat.START

二、`NavigationView`抽屉夹层

依赖库：

    implementation 'com.google.android.material:material:1.2.0-alpha04'  // 提供NavigationView
    implementation 'de.hdodenhof:circleimageview:3.1.0' // 让图标圆片化

menu布局nav_menu.xml：

<?xml version="1.0" encoding="utf-8"?>
<menu xmlns:android="http://schemas.android.com/apk/res/android">
    <group android:checkableBehavior="single">
        <item
            android:title="Call"
            android:id="@+id/nav_call"
            android:icon="@drawable/call"/>
        <item
            android:id="@+id/nav_friends"
            android:title="Friends"
            android:icon="@drawable/friends"/>
        <item
            android:title="Location"
            android:id="@+id/nav_location"
            android:icon="@drawable/location"/>
        <item
            android:id="@+id/nav_mail"
            android:icon="@drawable/mail"
            android:title="Mail"/>
        <item
            android:id="@+id/nav_task"
            android:title="Task"
            android:icon="@drawable/task"/>
    </group>
</menu>

group表示一个组，checkableBehavior表示组中菜单只能single【单选】

header布局nav_header.xml：

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="180dp"
    android:padding="10dp"
    android:background="?attr/colorPrimary">

    <de.hdodenhof.circleimageview.CircleImageView
        android:id="@+id/icon_image"
        android:layout_width="70dp"
        android:layout_height="70dp"
        android:src="@drawable/head_portrait"
        android:layout_centerInParent="true"/>

    <TextView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:id="@+id/mail"
        android:layout_alignParentBottom="true"
        android:text="puppy@foxmail.com"
        android:textColor="#FFF"
        android:textSize="14sp"/>

    <TextView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:id="@+id/username"
        android:layout_above="@+id/mail"
        android:text="Dog Han"
        android:textColor="#FFF"
        android:textSize="14sp"/>

</RelativeLayout>

主布局：

<?xml version="1.0" encoding="utf-8"?>
<androidx.drawerlayout.widget.DrawerLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    android:id="@+id/drawer_layout"
    android:layout_width="match_parent"
    android:layout_height="match_parent">

    <FrameLayout
        android:layout_width="match_parent"
        android:layout_height="match_parent">
        <androidx.appcompat.widget.Toolbar
            android:id="@+id/toolbar"
            android:layout_width="match_parent"
            android:background="?attr/colorPrimary"
            android:layout_height="?attr/actionBarSize"
            android:theme="@style/ThemeOverlay.AppCompat.Dark.ActionBar"
            app:popupTheme="@style/ThemeOverlay.AppCompat.Light" />
    </FrameLayout>

    <com.google.android.material.navigation.NavigationView
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:layout_gravity="start"
        android:id="@+id/nav_view"
        app:menu="@menu/nav_menu"
        app:headerLayout="@layout/nav_header"/>

</androidx.drawerlayout.widget.DrawerLayout>

主活动：

public class MainActivity extends AppCompatActivity {
    private DrawerLayout mDrawerLayout;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        Toolbar toolbar = findViewById(R.id.toolbar);
        setSupportActionBar(toolbar);
        mDrawerLayout = findViewById(R.id.drawer_layout);
        ActionBar actionBar = getSupportActionBar();
        NavigationView navigationView = findViewById(R.id.nav_view);
        if( actionBar!= null){
            actionBar.setDisplayHomeAsUpEnabled(true);
            actionBar.setHomeAsUpIndicator(R.drawable.menu);
        }
        navigationView.setCheckedItem(R.id.nav_call);
        navigationView.setNavigationItemSelectedListener(new NavigationView.OnNavigationItemSelectedListener() {
            @Override
            public boolean onNavigationItemSelected(@NonNull MenuItem item) {
                mDrawerLayout.closeDrawer(GravityCompat.START);
                return true;
            }
        });
    }

......
}
