洛伦兹系统
数据生成见博文：混沌系统数值模拟
回声状态网络
动力学模型
- 状态更新函数
- 输出函数

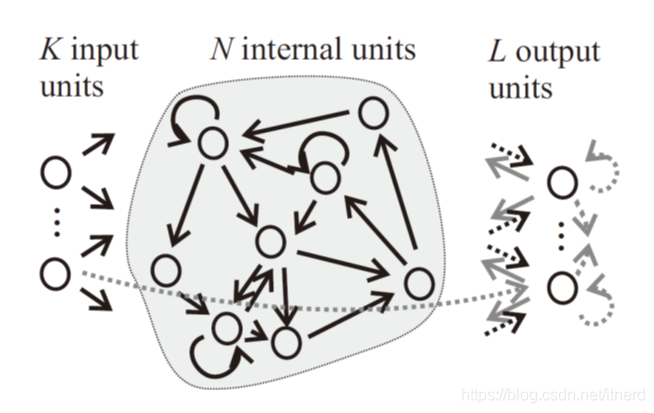

结构下图所示，虚线连接不是必要的
python 实现
所需的包
import networkx as nx
import json
from decimal import Decimal
from collections import OrderedDict
配置文件
# if config file not exists, use this default config
default_config = """{
"input": {
"nodes": 2,
"functions":
[
"lambda x: np.cos(32 * np.pi * x)",
"lambda x: np.sin(32 * np.pi * x) + np.cos(128 * np.pi * x)"
],
"length": 5000
},
"reservoir": {
"start_node": 202,
"end_node": 203,
"step": 1,
"degree_function": "lambda x: np.sqrt(x)",
"sigma": 0.5,
"bias": 1,
"leakage_rate": 0.3,
"regression_parameter": 1e-8
},
"output": {
"nodes": 2
},
"training": {
"init": 1000,
"train": 3000,
"test": 2000,
"error": 1999
}
}
"""
Reservoir 类
- 默认读取配置文件 ‘reservoir.config’，如果找不到配置文件就用上面的默认配置
class Reservoir:
def __init__(self):
config_file_name = 'reservoir.config'
global config
config = json.loads(default_config, object_pairs_hook=OrderedDict)
# Input layer
self.M = config["input"]["nodes"]
self.input_len = config["input"]["length"]
self.input_func = []
dataset = []
for i in range(self.M):
self.input_func.append(eval(config["input"]["functions"][i]))
dataset.append(self.input_func[i](
np.arange(self.input_len) / self.input_len))
self.dataset = np.array(list(zip(*dataset))).T # shape = (M, length)
# Reservoir layer
self.start_node = config["reservoir"]["start_node"]
self.N = self.start_node
self.step = config["reservoir"]["step"]
self.end_node = config["reservoir"]["end_node"]
self.degree_func = eval(config["reservoir"]["degree_function"])
self.D = self.degree_func(self.start_node)
self.sigma = config["reservoir"]["sigma"]
self.bias = config["reservoir"]["bias"]
self.alpha = config["reservoir"]["leakage_rate"]
self.beta = config["reservoir"]["regression_parameter"]
# Output layer
self.P = config["output"]["nodes"]
# Training relevant
self.init_len = config["training"]["init"]
self.train_len = config["training"]["train"]
self.test_len = config["training"]["test"]
self.error_len = config["training"]["error"]
- 参数解释
| 参数 | 解释 |
|---|---|
| M | 输入节点数 |
| N | 隐层节点数，储备池中的单元数 |
| P | 输出节点数 |
| D | 网络平均度 |
| start_node，step，end_node | 搜索最佳隐层节点数时的起始节点数、步长、终止 |
| beta、regression_parameter | 岭回归的参数 |
| sigma | 随机初始化权重的分布范围 |
| bias | 加权求和再加偏置 |
| alpha | LIF的渗漏系数 |
- 默认配置文件中定义了数据集，如需使用自己的数据集，使用如下代码
def set_dataset(self, data):
self.M = self.P = data.shape[0]
self.dataset = data
- 训练
| 变量 | 含义 |
|---|---|
| r | 每一时刻的隐层状态 |
| S | 预测目标 |
| R | 记录训练时间段的输入和状态 |
| A | 隐层网络的邻接矩阵 |
| rho | 原始 A 的谱半径 |
状态更新：
输出 不止取决与状态，还直接和输入有关：
def train(self):
# collection of reservoir state vectors
self.R = np.zeros((1 + self.N + self.M, self.train_len - self.init_len))
# collection of input signals
self.S = np.vstack([x[self.init_len + 1: self.train_len + 1] for x in self.dataset])
self.r = np.zeros((self.N, 1))
np.random.seed(43) #42
self.Win = np.random.uniform(-self.sigma,
self.sigma, (self.N, self.M + 1))
# TODO: the values of non-zero elements are randomly drawn from uniform dist [-1, 1]
g = nx.erdos_renyi_graph(self.N, self.D / self.N, 42, True)
# nx.draw(g, node_size=self.N)
self.A = nx.adjacency_matrix(g).todense()
# spectral radius: rho
self.rho = max(abs(np.linalg.eig(self.A)[0]))
self.A *= 1.25 / self.rho
# run the reservoir with the data and collect r
for t in range(self.train_len):
u = np.vstack([x[t] for x in self.dataset])
# r(t + \Delta t) = (1 - alpha)r(t) + alpha * tanh(A * r(t) + W_in * u(t) + bias)
self.r = (1 - self.alpha) * self.r + self.alpha * np.tanh(np.dot(self.A,self.r) + np.dot(self.Win, np.vstack((self.bias, u))))
if t >= self.init_len:
self.R[:, [t - self.init_len]] = np.vstack((self.bias, u, self.r))[:, 0]
# train the output
R_T = self.R.T # Transpose
# W_out*r = s
# W_out = (s * r^T) * ((r * r^T) + beta * I)
self.Wout = np.dot(np.dot(self.S, R_T), np.linalg.inv(np.dot(self.R, R_T) + self.beta * np.eye(self.M + self.N + 1)))
- 训练完后，以输出作为下一时刻输入，无限运行下去
def _run(self):
# run the trained ESN in alpha generative mode. no need to initialize here,
# because r is initialized with training data and we continue from there.
self.S = np.zeros((self.P, self.test_len))
u = np.vstack([x[self.train_len] for x in self.dataset])
for t in range(self.test_len):
# r(t + \Delta t) = (1 - alpha)r(t) + alpha * tanh(A * r(t) + Win * u(t) + bias)
self.r = (1 - self.alpha) * self.r + self.alpha * np.tanh(np.dot(self.A,
self.r) + np.dot(self.Win, np.vstack((self.bias, u))))
s = np.dot(self.Wout, np.vstack((self.bias, u, self.r)))
self.S[:, t] = np.squeeze(np.asarray(s))
# use output as input
u = s
# compute Root Mean Square (RMS) error for the first self.error_len time steps
self.RMS = []
for i in range(self.P):
self.RMS.append(sum(np.square(self.dataset[i, self.train_len+1: self.train_len+self.error_len+1] - self.S[i, 0: self.error_len])) / self.error_len)
- 画图
def draw(self):
f, plots = plt.subplots(1, self.M, figsize=(self.M * 5, 5))
plt.suptitle('N = ' + str(self.N) + ', Degree = %.5f' % (self.D))
for i in range(self.M):
p = plots[i]
p.text(0.5, -0.1, 'RMS = %.15e' % self.RMS[i], size=10, ha="center", transform=p.transAxes)
p.plot(self.S[i], label = 'prediction')
p.plot(self.dataset[i][self.train_len + 1 : self.train_len + self.test_len + 1], label = 'input signal')
p.legend(loc = 'upper right')
plt.show()
- 完整运行：训练+预测
def run(self):
with open('reservoir.output', 'a') as output:
for i in range(self.start_node, self.end_node + 1, self.step):
self.N = i
self.D = self.degree_func(self.N)
self.train()
self._run()
self.summary()
self.draw()
def summary(self):
res = 'N= ' + str(self.N) + ', D= ' + '%.15f' % self.D + ', '
for j in range(self.P):
res += 'RMS_{}= {:.5e}, '.format(j, Decimal(self.RMS[j]))
res += '\n'
print(res)
运行结果
默认的测试样例
r = Reservoir()
# r.set_dataset(x)
r.run()
lorentz 系统
r = Reservoir()
r.set_dataset(x)
r.run()

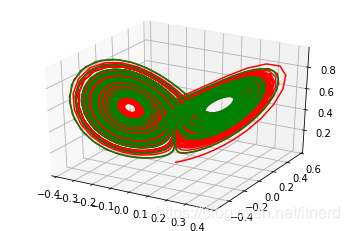

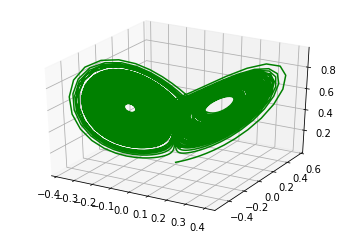

看起来好像乱七八糟，但实际上ESN已经重建了洛伦兹系统的动态行为，看如下 3D 图：
fig = plt.figure()
ax = fig.add_subplot(111, projection='3d')
ax = fig.add_subplot()
plt.plot(*r.dataset, 'r')
plt.plot(*r.S, 'g')
