Semaphore实现原理

示例代码

public class TestSemaphore {

    public static Semaphore semaphore=new Semaphore(2);

    public static void main(String[] args) {
        System.out.println("main start");
        for (int i =0;i<5;i++){
            new Thread(new Taskes()).start();
        }
        System.out.println("main end");
    }
}

class Taskes implements Runnable{

    @Override
    public void run() {
        try {
            TestSemaphore.semaphore.acquire();
            LocalTime time = LocalTime.now();
            System.out.println(Thread.currentThread().getName()+"任务开始--------"+time.getMinute()+":"+time.getSecond());
            Thread.sleep(5000);
            System.out.println(Thread.currentThread().getName()+"任务结束");
        } catch (InterruptedException e) {
            e.printStackTrace();
        }finally {
            TestSemaphore.semaphore.release();
        }
    }
}

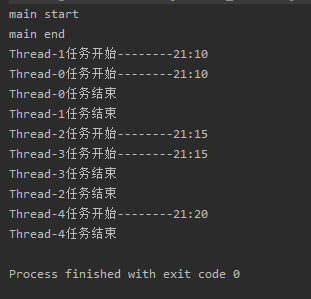

我们看到，一个开了5个线程，但每次只有两个在执行

源码

从它的内部类可以看出跟lock师出同门都是基于AQS的

Sync(int permits) {
            setState(permits);
        }
public void acquire() throws InterruptedException {
        sync.acquireSharedInterruptibly(1);
    }
 public void release() {
        sync.releaseShared(1);
    }

我们能够看出，构造器设置state值，其实就是加了permits把共享锁，每次调用acquire就是在获取共享锁，调用release是释放共享锁。
与其他加锁不同的是，这里获取锁是state的自减操作，当state归零时便无法获取锁只能阻塞；
释放锁是state的自加操作
这种变化情况与平时的加锁state变化情况正好相反。

acquire

public void acquire() throws InterruptedException {
        sync.acquireSharedInterruptibly(1);
    }

 public final void acquireSharedInterruptibly(int arg)
            throws InterruptedException {
        if (Thread.interrupted())
            throw new InterruptedException();
            //tryAcquireShared看下面的nonfairTryAcquireShared即可
        if (tryAcquireShared(arg) < 0)
            doAcquireSharedInterruptibly(arg);
    }
 final int nonfairTryAcquireShared(int acquires) {
 			//自旋获取，state自减后的值返回，当state剩余量小于0时会进入doAcquireSharedInterruptibly中进行阻塞获取；否则会在acquireSharedInterruptibly中返回
            for (;;) {
                int available = getState();
                int remaining = available - acquires;
                if (remaining < 0 ||
                    compareAndSetState(available, remaining))
                    return remaining;
            }
        }
private void doAcquireSharedInterruptibly(int arg)
        throws InterruptedException {
        final Node node = addWaiter(Node.SHARED);
        boolean failed = true;
        try {
            for (;;) {
                final Node p = node.predecessor();
                if (p == head) {
                    int r = tryAcquireShared(arg);
                    if (r >= 0) {
                        setHeadAndPropagate(node, r);
                        p.next = null; // help GC
                        failed = false;
                        return;
                    }
                }
                if (shouldParkAfterFailedAcquire(p, node) &&
                    parkAndCheckInterrupt())
                    throw new InterruptedException();
            }
        } finally {
            if (failed)
                cancelAcquire(node);
        }
    }

大概总结一下就是

1. 我们这里默认获取量为1，每次获取的时候会判断剩余量并进行自减操作，将剩余量返回，如果令牌数仍大于0，会直接返回，不影响。
2. 对于令牌数小于0了，就将当前线程放入AQS同步队列中让其阻塞

release

public void release() {
        sync.releaseShared(1);
    }
 public final boolean releaseShared(int arg) {
        if (tryReleaseShared(arg)) {
            doReleaseShared();
            return true;
        }
        return false;
    }

protected final boolean tryReleaseShared(int releases) {
            for (;;) {
                int current = getState();
                int next = current + releases;
                if (next < current) // overflow
                    throw new Error("Maximum permit count exceeded");
                if (compareAndSetState(current, next))
                    return true;
            }
        }

private void doReleaseShared() {
        for (;;) {
            Node h = head;
            if (h != null && h != tail) {
                int ws = h.waitStatus;
                if (ws == Node.SIGNAL) {
                    if (!compareAndSetWaitStatus(h, Node.SIGNAL, 0))
                        continue;            // loop to recheck cases
                    unparkSuccessor(h);
                }
                else if (ws == 0 &&
                         !compareAndSetWaitStatus(h, 0, Node.PROPAGATE))
                    continue;                // loop on failed CAS
            }
            if (h == head)                   // loop if head changed
                break;
        }
    }

总结一下：

1. 线程将令牌还回去时，会将还回去的令牌数量增加，这个增加用CAS进行，成功返回True
2. 返回为True时会在AQS中对同步队列中的节点进行唤醒操作
