react 之 openlayer地图标注

一、引入依赖的库文件

 import React, { Component } from 'react'; import Map from '../../component/map/map'; // 数据源 import { Vector as VectorSource } from 'ol/source'; // 图层 import { Vector} from 'ol/layer'; // 要素 import Feature from 'ol/Feature'; //  import {Point} from 'ol/geom'; // 坐标系转化 import {fromLonLat} from 'ol/proj'; // 样式 import {Icon,Style} from 'ol/style'; // mark标注图片 import markImage from '../../assets/Marker.png'

二、加载地图组件

      render() {     return (       <div  >         {/* <img src={bg}></img> */}         <button onClick={this.addMarker}>点击开始添加标注</button>         <Map ref="map" center={{ lon: 113.8, lat: 34.6 }}  />;       </div>     );   }

三、添加标注

  let {map} = this.refs.map     //创建标注要素     let markFeature = new Feature({         geometry: new Point(fromLonLat([116.28, 39.54])),      })     //设置图标的样式     markFeature.setStyle(this.setMakerStyle)     // 创建标注的数据源     var vectorSource = new VectorSource({         features: [markFeature]     });     // 创建标注图层     var vectorLayer = new Vector({         source: vectorSource     });     // 将标注图层添加到地图上     map.addLayer(vectorLayer);      this.setState({         vectorSource     })

四、全部代码

 // 设置地图背景色 import React, { Component } from 'react'; import Map from '../../component/map/map'; // 数据源 import { Vector as VectorSource } from 'ol/source'; // 图层 import { Vector} from 'ol/layer'; // 要素 import Feature from 'ol/Feature'; //  import {Point} from 'ol/geom'; // 坐标系转化 import {fromLonLat} from 'ol/proj'; // 样式 import {Icon,Style} from 'ol/style'; // mark标注图片 import markImage from '../../assets/Marker.png' class MapOverviewMap extends Component {     constructor(props){         super(props)         this.state={                      }     }   componentDidMount() {     let {map} = this.refs.map     //创建标注要素     let markFeature = new Feature({         geometry: new Point(fromLonLat([116.28, 39.54])),      })     //设置图标的样式     markFeature.setStyle(this.setMakerStyle)     // 创建标注的数据源     var vectorSource = new VectorSource({         features: [markFeature]     });     // 创建标注图层     var vectorLayer = new Vector({         source: vectorSource     });     // 将标注图层添加到地图上     map.addLayer(vectorLayer);      this.setState({         vectorSource     })    }    addMarker = ()=>{     let {map} = this.refs.map     let that = this    //鼠标单击事件    map.on('singleclick', function (e) {         console.log(e)         // alert("鼠标被单击了"+e.coordinate);         that.addMakerOn(e.coordinate)     });   }    addMakerOn = (coordinate)=>{     //创建标注要素     let markFeature = new Feature({         geometry: new Point(coordinate),      })     //设置图标的样式     markFeature.setStyle(this.setMakerStyle)     // 图标要素添加到数据源上     this.state.vectorSource.addFeature(markFeature)   }    setMakerStyle=()=>{    return new Style({         /**{olx.style.IconOptions}类型*/         image: new Icon(             ({                 anchor: [0.5, 40],                 anchorOrigin: 'top-right',                 anchorXUnits: 'fraction',                 anchorYUnits: 'pixels',                 offsetOrigin: 'top-right',                 // offset:[0,10],                 //图标缩放比例                 scale:0.6,                 //透明度                 opacity: 0.75,                 //图标的url                 src: markImage             })             )     })   }      render() {     return (       <div  >         {/* <img src={bg}></img> */}         <button onClick={this.addMarker}>点击开始添加标注</button>         <Map ref="map" center={{ lon: 113.8, lat: 34.6 }}  />;       </div>     );   } }  export default MapOverviewMap;

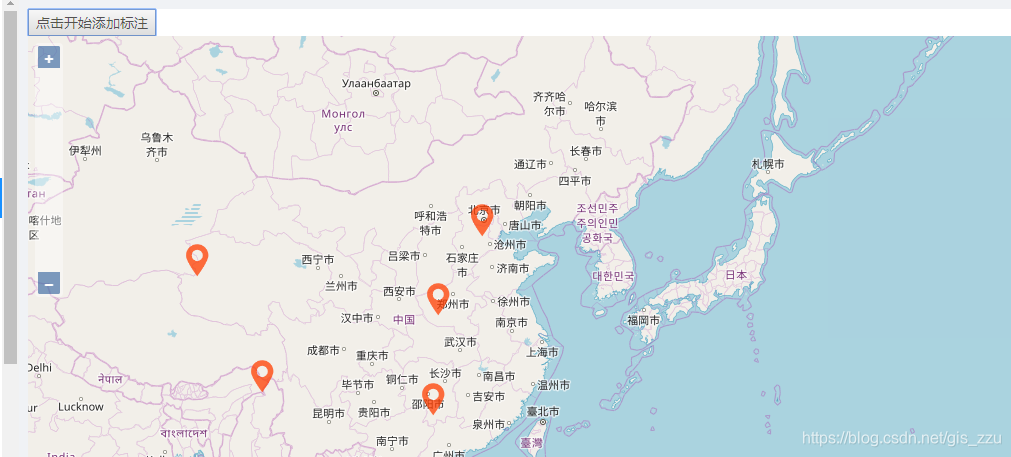

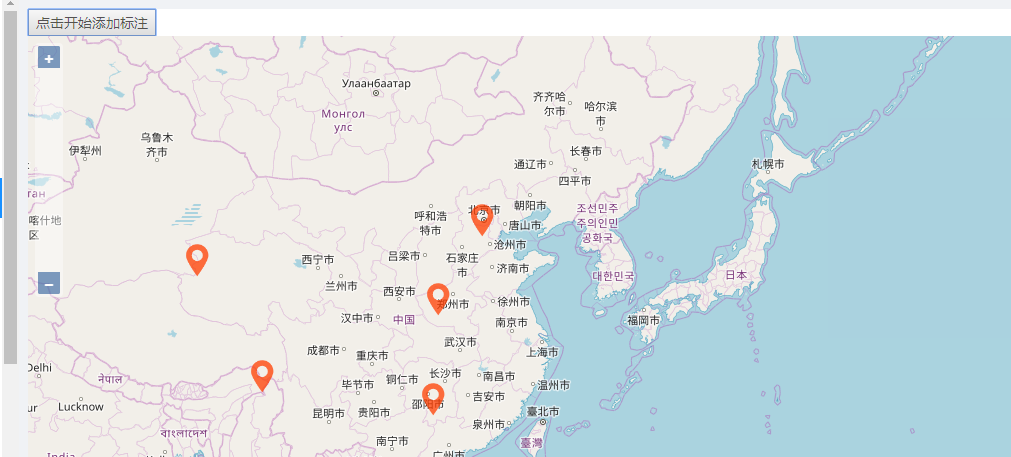

五、效果图

文章来源: https://blog.csdn.net/gis_zzu/article/details/91890465
