第一次尝试这种风格写代码,感觉蛮不错的
这种代码的设计风格实现起来就很舒服

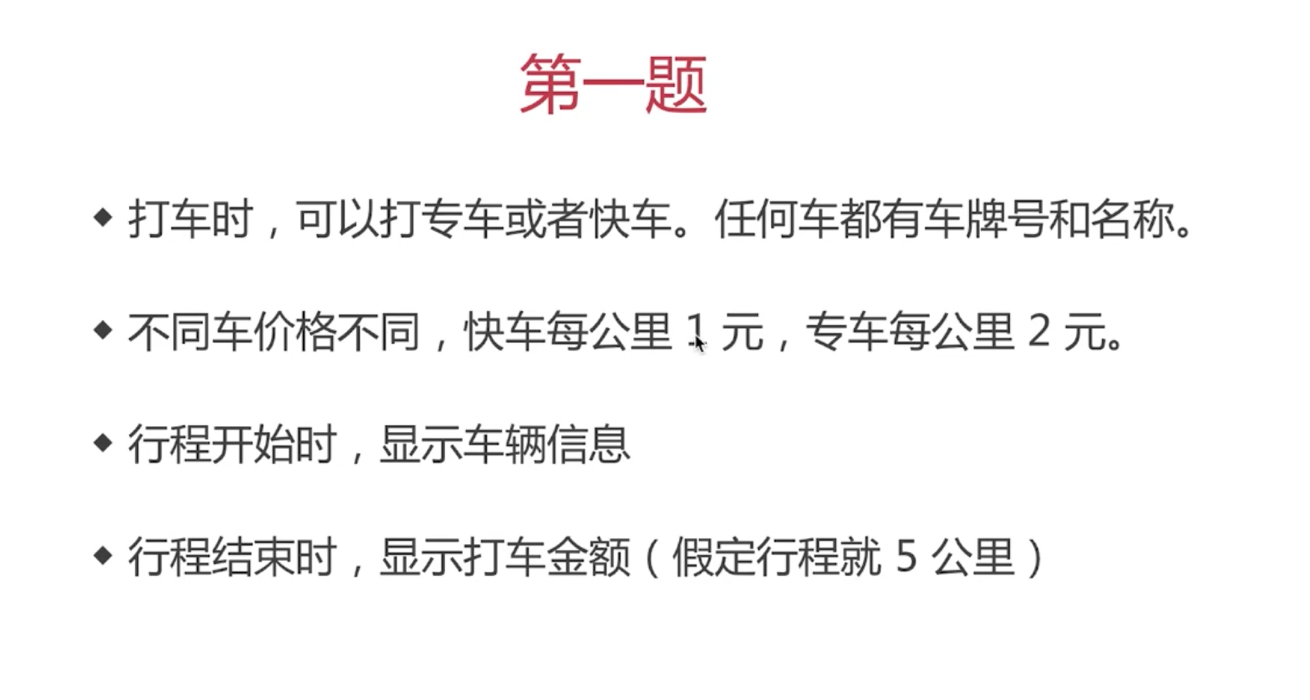

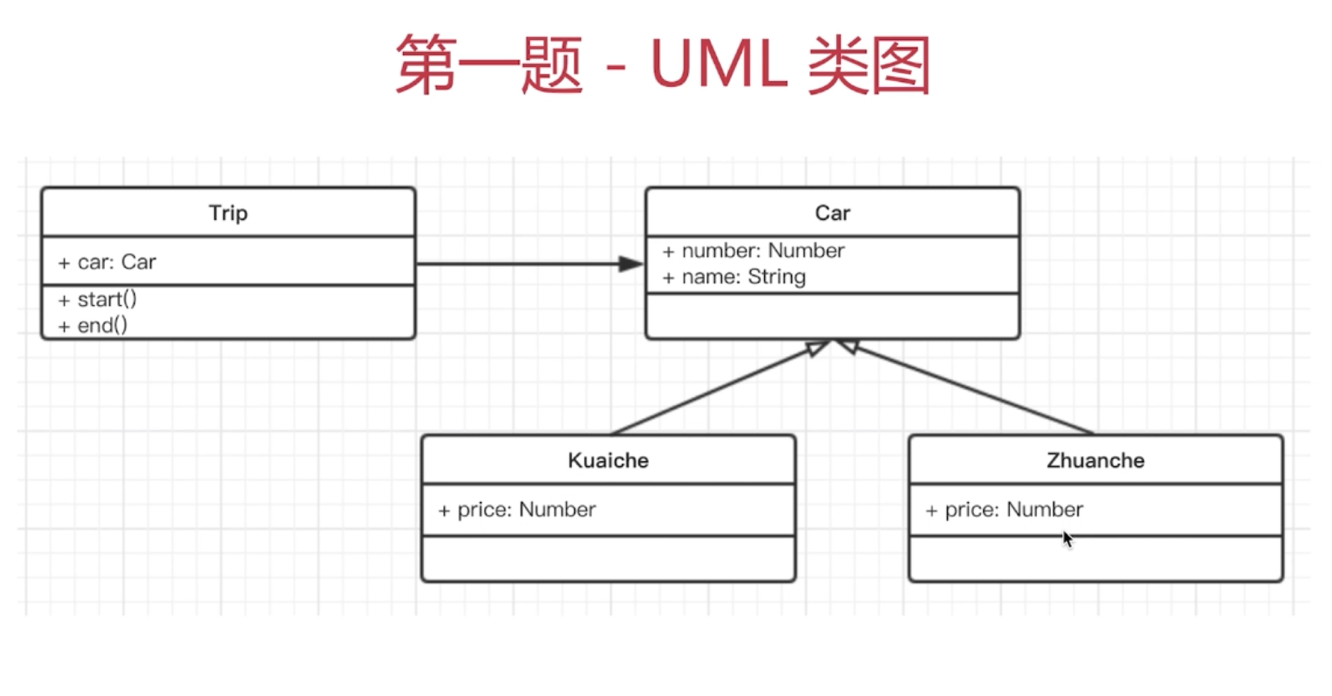

第一题实现:

class Car { 	constructor(number, name) { 		this.number = number 		this.name = name 	} } class Kuaiche extends Car { 	constructor(number, name) { 		super(number, name) 		this.price = 1 	} } class Zhuanche extends Car { 	constructor (number, name) { 		super(number, name) 		this.price = 2 	} } class Trip { 	constructor(car) { 		this.car = car 	} 	start () { 		console.log(`开始行程,显示车辆信息:号码->${this.car.number},车名->${this.car.name}`) 	} 	end () { 		console.log(`结束行程,显示金额:${this.car.price * 5}`) 	} }  let car = new Kuaiche(110, '本田') let trip = new Trip(car) trip.start() trip.end()

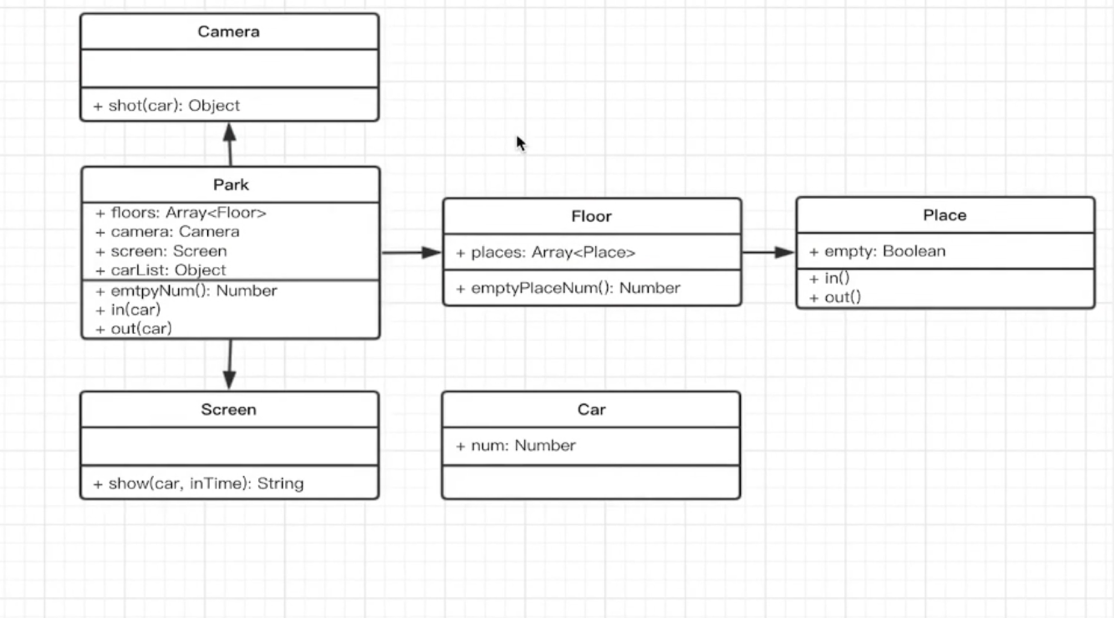

第二题实现:

class Park {     constructor(floors) {         this.camera = new Camera         this.screen = new Screen         this.floors = floors || []         this.carList = {}     }     in (car) {     	// 通过摄像头获取信息     	const info = this.camera.shot(car)     	// 停到某个停车位     	const i = parseInt(Math.random()*100)     	const place = this.floors[0].places[i]     	place.in()     	info.place = place     	this.carList[car.number] = info     }     out (car) {     	//获取信息     	const info = this.carList[car.number]     	// 将停车位清空     	const place = info.place     	place.out()     	// 显示时间     	this.screen.show(car, info.inTime)     	delete this.carList[car.number]       }     // 停车场总共还有多少个空的车位     emptyPlaceNum (floors) {     	return this.floors.map((floor) => {     		return `第${floor.index}层还有${floor.emptyPlaceNum()}个空车位`     	}).join('\n')     } } class Floor {     constructor(index, places) {     	//index表示第几层     	this.index = index         this.places = places || []     }     emptyPlaceNum() {     	let count = 0     	for (let i=0;i<this.places.length;i++){     		if (this.places[i].empty) {     			count+=1     		}     	}     	// console.log(count)     	return count      	// let num = 0      //    this.places.forEach(p => {      //        if (p.empty) {      //            num = num + 1      //        }      //    })      //    return num     } } class Place {     constructor() {         this.empty = true     }      in () {     	// console.error('进来了')     	this.empty = false     }     out() {     	this.empty = true     } } class Camera {     shot(car) {     	return {     		num: car.number,     		inTime: Date.now()     	}     	// console.log(`车牌号:${car.number}`)     	// console.log(`进入时间:${new Date().getTime()}`)     } } class Screen {     show(car, inTime) {     	console.log(`车牌号:${car.number}`)     	console.log(`该车辆停留的时间为:${Date.now() - inTime}`)     } } class Car {     constructor(number) {         this.number = number     } }   // 测试 // 初始化停车场 const floors = [] for (let i=0;i<3;i++){ 	const places = [] 	for (let j=0;j<100;j++) { 		places[j] = new Place() 	} 	floors[i] = new Floor(i+1, places) }   const park = new Park(floors) const car1 = new Car(100) const car2 = new Car(110) const car3 = new Car(200) console.log('第一辆车进入') console.log(park.emptyPlaceNum()) park.in(car1)  console.log('----------------')  console.log('第二辆车进入') console.log(park.emptyPlaceNum()) park.in(car2)  console.log('----------------') console.log('第一辆车离开') park.out(car1)  console.log('----------------') console.log('第二辆车离开') park.out(car2)  console.log('----------------')  console.log('第三辆车进入') park.in(car3) console.log('----------------') console.log('第三辆车离开') console.log(park.emptyPlaceNum()) park.out(car3)
