Spring Boot + Spring Security图形验证码

引入依赖:

<dependency>
            <groupId>org.springframework.security.oauth</groupId>
            <artifactId>spring-security-oauth2</artifactId>
            <version>2.5.0.RELEASE</version>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-security</artifactId>
        </dependency>
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>2.1.3</version>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <scope>runtime</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.security</groupId>
            <artifactId>spring-security-test</artifactId>
            <scope>test</scope>
        </dependency>
 <dependency>
            <groupId>org.springframework.social</groupId>
            <artifactId>spring-social-config</artifactId>
            <version>1.1.6.RELEASE</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/org.apache.commons/commons-lang3 -->
        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-lang3</artifactId>
            <version>3.10</version>
        </dependency>

建立验证码对象:

public class ImageCode {

    private BufferedImage image;

    private String code;

    private LocalDateTime expireTime;

    public ImageCode(BufferedImage image, String code, int expireIn) {
        this.image = image;
        this.code = code;
        this.expireTime = LocalDateTime.now().plusSeconds(expireIn);
    }
   //image验证码图片，code验证码和expireTime过期时间
    public ImageCode(BufferedImage image, String code, LocalDateTime expireTime) {
        this.image = image;
        this.code = code;
        this.expireTime = expireTime;
    }

    boolean isExpire() {
        return LocalDateTime.now().isAfter(expireTime);
    }
    // get,set 略
}

注: 此处尽量使用getter/setter代码,不推荐lombok(偶有bug),建议使用快捷键生成即可

生成验证码的控制器:

@RestController
public class ValidateController {

    public final static String SESSION_KEY_IMAGE_CODE = "SESSION_KEY";
	//HttpSessionSessionStrategy对象封装了一些处理Session的方法 如果不想使用spring-social-config 可以使用HttpSession或者Redis等代替
	//表明将验证码存储,用于登录时验证码的校验
    private SessionStrategy sessionStrategy = new HttpSessionSessionStrategy();

    @GetMapping("/code/image")
    public void createCode(HttpServletRequest request, HttpServletResponse response) throws IOException {
        ImageCode imageCode = createImageCode();
        //存储验证码
		sessionStrategy.setAttribute(new ServletWebRequest(request), SESSION_KEY, imageCode);
		//将图片写入流中返回页面
        ImageIO.write(imageCode.getImage(), "jpeg", response.getOutputStream());
    }
	// 生成验证码对象
	private ImageCode createImageCode() {
	// 可以自定义
    int width = 90; // 验证码图片宽度
    int height = 36; // 验证码图片长度
    int length = 4; // 验证码位数
    int expireIn = 60; // 验证码有效时间 60s

    BufferedImage image = new BufferedImage(width, height, BufferedImage.TYPE_INT_RGB);
    Graphics g = image.getGraphics();

    Random random = new Random();

    g.setColor(getRandColor(200, 250));
    g.fillRect(0, 0, width, height);
    g.setFont(new Font("Times New Roman", Font.ITALIC, 20));
    g.setColor(getRandColor(160, 200));
    for (int i = 0; i < 155; i++) {
        int x = random.nextInt(width);
        int y = random.nextInt(height);
        int xl = random.nextInt(12);
        int yl = random.nextInt(12);
        g.drawLine(x, y, x + xl, y + yl);
    }

    StringBuilder sRand = new StringBuilder();
    for (int i = 0; i < length; i++) {
        String rand = String.valueOf(random.nextInt(10));
        sRand.append(rand);
        g.setColor(new Color(20 + random.nextInt(110), 20 + random.nextInt(110), 20 + random.nextInt(110)));
        g.drawString(rand, 13 * i + 6, 16);
    }
    g.dispose();
    return new ImageCode(image, sRand.toString(), expireIn);
}

private Color getRandColor(int fc, int bc) {
    Random random = new Random();
    if (fc > 255) {
        fc = 255;
    }
    if (bc > 255) {
        bc = 255;
    }
    int r = fc + random.nextInt(bc - fc);
    int g = fc + random.nextInt(bc - fc);
    int b = fc + random.nextInt(bc - fc);
    return new Color(r, g, b);
}
}

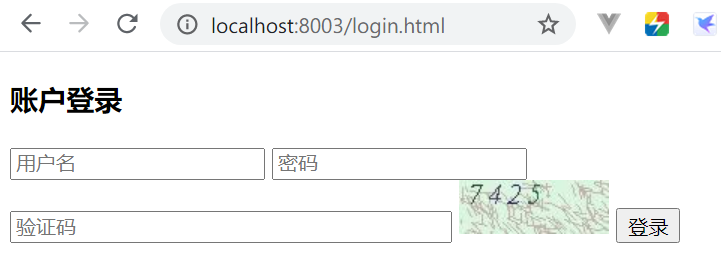

在src/main/resources/resources/建立login.html:

<!DOCTYPE html>
<html>
<head>
    <meta charset="UTF-8">
    <title>登录</title>
</head>
<body>
<form class="login-page" action="/login" method="post">
    <div class="form">
        <h3>账户登录</h3>
        <input type="text" placeholder="用户名" name="username" required="required" >
        <input type="password" placeholder="密码" name="password" required="required" >

    <input type="text" name="imageCode" placeholder="验证码" style="width: 50%;"/>
    <img src="/code/image"/>
        <button type="submit">登录</button>
    </div>
</form>
</body>
</html>

定义验证码异常类型:

// 该exception继承AuthenticationException
public class ValidateCodeException extends AuthenticationException {
     ValidateCodeException(String message) {
        super(message);
    }
}

定义过滤器

Spring Security实际上是由许多过滤器组成的过滤器链，

处理用户登录逻辑的过滤器为UsernamePasswordAuthenticationFilter，而验证码校验过程应该是在这个过滤器之前的，

必须在验证码校验通过后才能去校验用户名和密码。

Spring Security并没有直接提供验证码校验相关的过滤器接口，所以我们需要自己定义一个验证码校验的过滤器ValidateCodeFilter

@Component
public class ValidateCodeFilter extends OncePerRequestFilter {

    @Autowired  // 定义的错误处理
    private AuthenticationFailureHandler authenticationFailureHandler;
	// 此时可以通过HttpSessionSessionStrategy 获取在后端生成验证码时候存储在session中的验证码
    private SessionStrategy sessionStrategy = new HttpSessionSessionStrategy();

    @Override
    protected void doFilterInternal(HttpServletRequest httpServletRequest, HttpServletResponse httpServletResponse,
    	FilterChain filterChain) throws ServletException, IOException {
		// 如果请求路径是/login,并且是get请求的时候
        if (StringUtils.equalsIgnoreCase("/login", httpServletRequest.getRequestURI())
                && StringUtils.equalsIgnoreCase(httpServletRequest.getMethod(), "get")) {
            try {
                validateCode(new ServletWebRequest(httpServletRequest));
            } catch (ValidateCodeException e) {
				//发生错误  则将参数传递给自定义的authenticationFailureHandler
                authenticationFailureHandler.onAuthenticationFailure(httpServletRequest, httpServletResponse, e);
                return;
            }
        }
		//放行请求
        filterChain.doFilter(httpServletRequest, httpServletResponse);
    }
private void validateCode(ServletWebRequest servletWebRequest) throws ServletRequestBindingException {
    ImageCode codeInSession = (ImageCode) sessionStrategy.getAttribute(servletWebRequest, ValidateController.SESSION_KEY);
    String codeInRequest = ServletRequestUtils.getStringParameter(servletWebRequest.getRequest(), "imageCode");

    if (StringUtils.isBlank(codeInRequest)) {
        throw new ValidateCodeException("验证码不能为空！");
    }
    if (codeInSession == null) {
        throw new ValidateCodeException("验证码不存在！");
    }
    if (codeInSession.isExpire()) {
        sessionStrategy.removeAttribute(servletWebRequest, ValidateController.SESSION_KEY);
        throw new ValidateCodeException("验证码已过期！");
    }
    if (!StringUtils.equalsIgnoreCase(codeInSession.getCode(), codeInRequest)) {

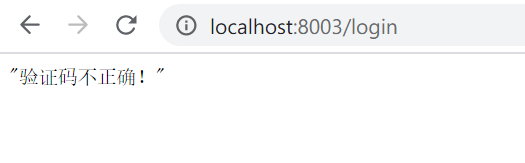

        throw new ValidateCodeException("验证码不正确！");
    }
    sessionStrategy.removeAttribute(servletWebRequest, ValidateController.SESSION_KEY);

   }
}

修改MySecurityConfig

@Component
public class MySecurityConfig extends WebSecurityConfigurerAdapter {
    @Autowired
    private MyAuthenticationFailureHandler authenticationFailureHandler;

    @Autowired
    private MyAuthenticationSuccessHandler authenticationSuccessHandler;
    @Autowired
 private ValidateCodeFilter validateCodeFilter;
    @Bean
    public BCryptPasswordEncoder bCryptPasswordEncoder(){
        return new BCryptPasswordEncoder();
    }
    @Override
    protected void configure(HttpSecurity http) throws Exception {
         http.addFilterBefore(validateCodeFilter, UsernamePasswordAuthenticationFilter.class) // 添加验证码校验过滤器
                .formLogin() // 表单登录
                // http.httpBasic() // HTTP Basic
                .loginPage("/authentication/require") // 登录跳转 URL
                .loginProcessingUrl("/login") // 处理表单登录 URL
                .failureHandler(authenticationFailureHandler) // 处理登录失败
                .successHandler(authenticationSuccessHandler)
                .and()
                .authorizeRequests() // 授权配置
                .antMatchers("/authentication/require",
                        "/login.html",
                        "/code/image").permitAll() // 无需认证的请求路径
                .anyRequest()  // 所有请求
                .authenticated() // 都需要认证
                .and().csrf().disable();
    }
}
