SAP状态栏中进程条实现[SAPGUI_PROGRESS_INDICATOR/CL_PROGRESS_INDICATOR]

在执行一些数据量大的程序时，通常在程序下方的状态栏中加一个秒表用来显示进度，供用户了解程序运行到什么程度。实现方法有如下两种：

1, SAPGUI_PROGRESS_INDICATOR

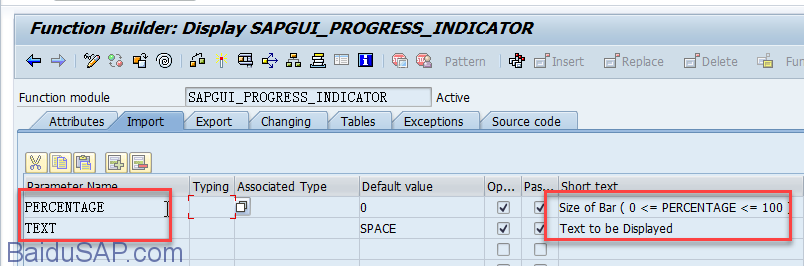

常用而古老的方法，调用SAPGUI_PROGRESS_INDICATOR函数，指定函数的两个参数

percentage ：百分比的数值，用来控制秒表的指针,0到100之间的数字。
text：状态栏显示的文本

&lt;img class="alignnone size-full wp-image-2942" src="http://www.baidusap.com/wp-content/uploads/2017-02-13_14-45-57.png" alt="2017-02-13_14-45-57" width="804" height="266" srcset="http://www.baidusap.com/wp-content/uploads/2017-02-13_14-45-57.png 804w, http://www.baidusap.com/wp-content/uploads/2017-02-13_14-45-57-740x245.png 740w, http://www.baidusap.com/wp-content/uploads/2017-02-13_14-45-57-768x254.png 768w" sizes="(max-width: 804px) 100vw, 804px" /&gt;

例子代码：

选择画面输入循环次数，每次循环等待1秒，然后更新进步条的秒表指针和文本。

REPORT ztest_progress.

DATA: g_perc TYPE p.
DATA: g_stxt TYPE string.
DATA: g_sperc(3) TYPE c.

PARAMETERS: p_times TYPE i DEFAULT  5.

g_perc = 0.
DO p_times TIMES.
  WAIT UP TO 1 SECONDS.
  CLEAR:g_stxt.
  g_perc = sy-index / p_times * 100.
  g_sperc = g_perc.
  CONCATENATE '已经完成了'  g_sperc '%' INTO g_stxt.
  CALL FUNCTION 'SAPGUI_PROGRESS_INDICATOR'
    EXPORTING
      percentage = g_perc     "百分比的数值，用来控制秒表的指针。
      text       = g_stxt.    "状态栏显示的文本。

ENDDO.

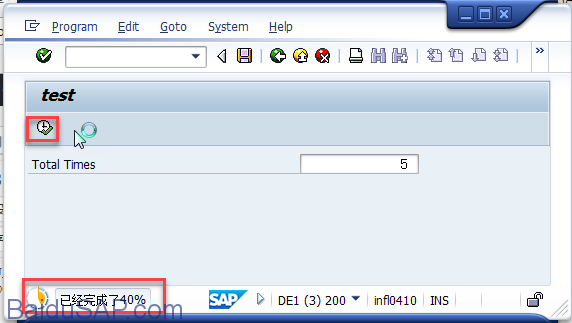

运行效果：

&lt;img class="alignnone size-full wp-image-2943" src="http://www.baidusap.com/wp-content/uploads/2017-02-13_14-48-43.png" alt="2017-02-13_14-48-43" width="572" height="323" /&gt;

2, CL_PROGRESS_INDICATOR

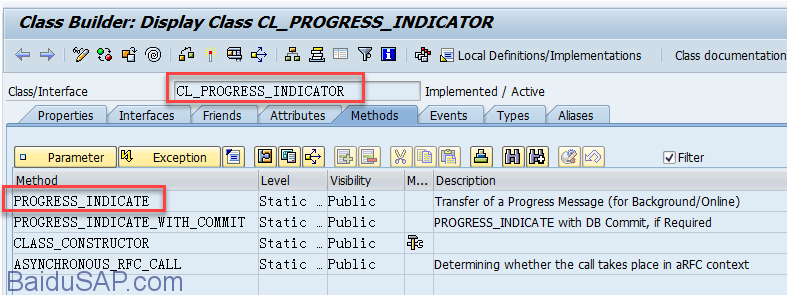

SAP还提供了更方便快捷的类CL_PROGRESS_INDICATOR中的方法PROGRESS_INDICATE来实现这个进度条。

&lt;img class="alignnone size-full wp-image-2945" src="http://www.baidusap.com/wp-content/uploads/2017-02-13_14-53-22.png" alt="2017-02-13_14-53-22" width="787" height="295" srcset="http://www.baidusap.com/wp-content/uploads/2017-02-13_14-53-22.png 787w, http://www.baidusap.com/wp-content/uploads/2017-02-13_14-53-22-740x277.png 740w, http://www.baidusap.com/wp-content/uploads/2017-02-13_14-53-22-768x288.png 768w" sizes="(max-width: 787px) 100vw, 787px" /&gt;

这个类方法其实也是调用了SAPGUI_PROGRESS_INDICATOR函数，只不过是更友好的封装了一下。

CL_PROGRESS_INDICATOR=>PROGRESS_INDICATE有两种显示模式：

立即显示
每隔10秒更新一下进度条

通过参数i_output_immediately控制('X' = Display Progress Immediately ).

立即显示的例子：

PARAMETERS: p_times1 TYPE i DEFAULT  5. "Immediately

DO p_times1 TIMES.

  cl_progress_indicator=>progress_indicate(
    EXPORTING
       i_text               = | Output immediately { sy-index } / { p_times1 } |
*    i_msgid              = i_msgid    " Message Class (If I_TEXT is not transferred)
*    i_msgno              = i_msgno    " Message Number (If I_TEXT is not transferred)
*    i_msgv1              = i_msgv1    " Message Variable (Maximum of 50 Characters)
*    i_msgv2              = i_msgv2    " Message Variable (Maximum of 50 Characters)
*    i_msgv3              = i_msgv3    " Message Variable (Maximum of 50 Characters)
*    i_msgv4              = i_msgv4    " Message Variable (Maximum of 50 Characters)
      i_processed          = sy-index    " Number of Objects Already Processed
      i_total              = p_times1    " Total Number of Objects to Be Processed
      i_output_immediately = abap_true    " X = Display Progress Immediately
*  importing
*    e_progress_sent      = e_progress_sent    " X = Progress Information Was Displayed
  ).
  WAIT UP TO 1 SECONDS.

ENDDO.

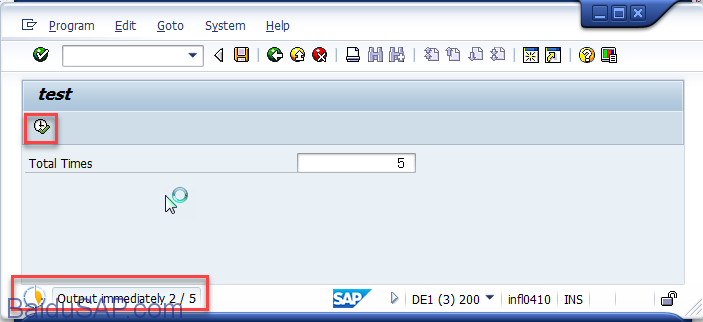

运行效果：

&lt;img class="alignnone size-full wp-image-2953" src="http://www.baidusap.com/wp-content/uploads/2017-02-13_15-02-48-2.png" alt="2017-02-13_15-02-48" width="703" height="322" /&gt;

每隔10秒显示的例子：

PARAMETERS:  p_times1 TYPE i DEFAULT  20. "Once per 10 seconds.
DO p_times1 TIMES.

  cl_progress_indicator=>progress_indicate(
    EXPORTING
       i_text               = | Output once per 10 seconds { sy-index } / { p_times1 } |
*    i_msgid              = i_msgid    " Message Class (If I_TEXT is not transferred)
*    i_msgno              = i_msgno    " Message Number (If I_TEXT is not transferred)
*    i_msgv1              = i_msgv1    " Message Variable (Maximum of 50 Characters)
*    i_msgv2              = i_msgv2    " Message Variable (Maximum of 50 Characters)
*    i_msgv3              = i_msgv3    " Message Variable (Maximum of 50 Characters)
*    i_msgv4              = i_msgv4    " Message Variable (Maximum of 50 Characters)
      i_processed          = sy-index    " Number of Objects Already Processed
      i_total              = p_times1    " Total Number of Objects to Be Processed
      i_output_immediately = abap_false    " X = Display Progress Immediately
*  importing
*    e_progress_sent      = e_progress_sent    " X = Progress Information Was Displayed
  ).

  WAIT UP TO 1 SECONDS.
ENDDO.

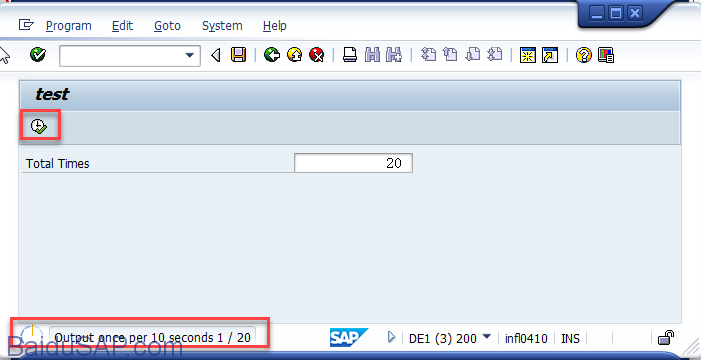

运行效果：

&lt;img class="alignnone size-full wp-image-2954" src="http://www.baidusap.com/wp-content/uploads/2017-02-13_16-01-48.png" alt="2017-02-13_16-01-48" width="701" height="360" /&gt;

以上。
