springboot 集成 rabbitMQ

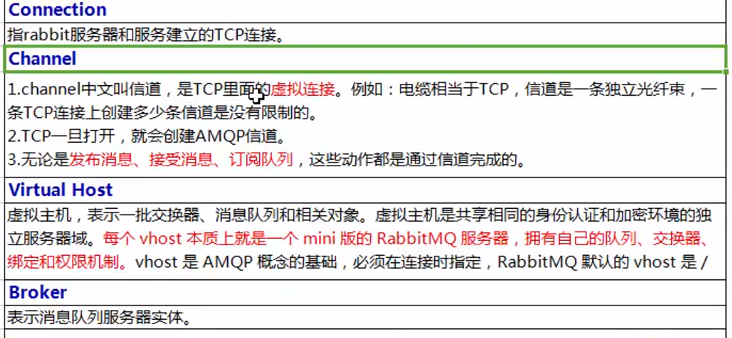

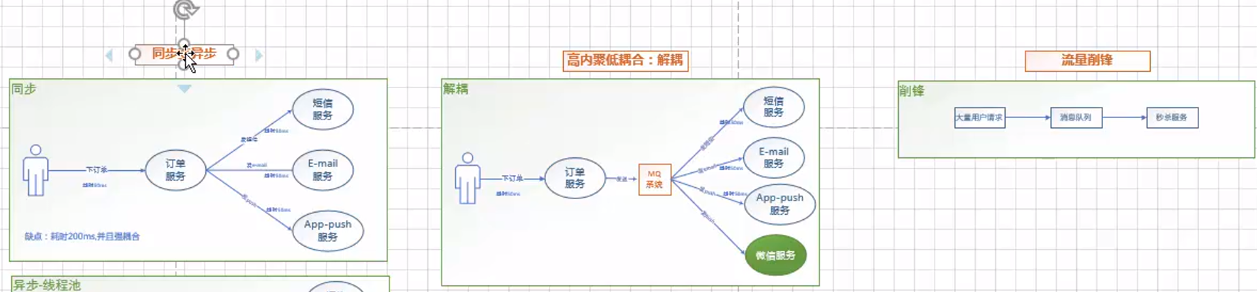

rabbitMQ：先放两张图方便记忆

视频教程：https://study.163.com/course/courseMain.htm?courseId=1004576013

环境：首先要安装好 rabbitMQ

springboot 集成 rabbitMQ还是挺简单的。

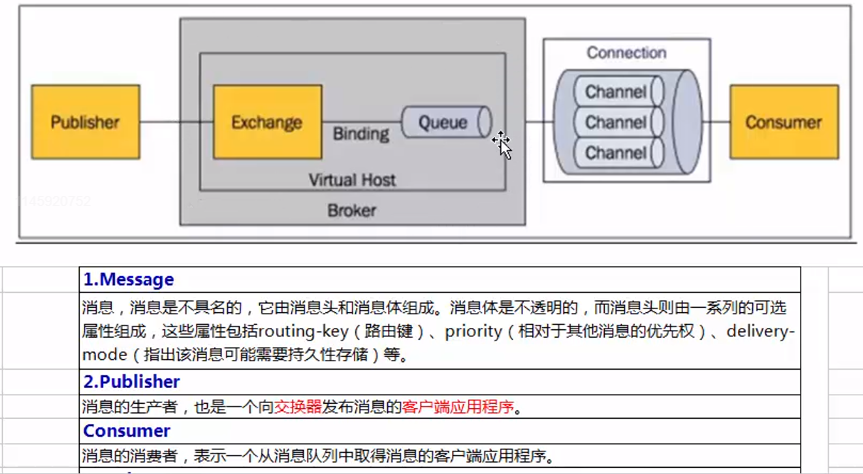

rabbitMQ的原理是（个人理解），自己做好的demo已经保存到百度网盘下。

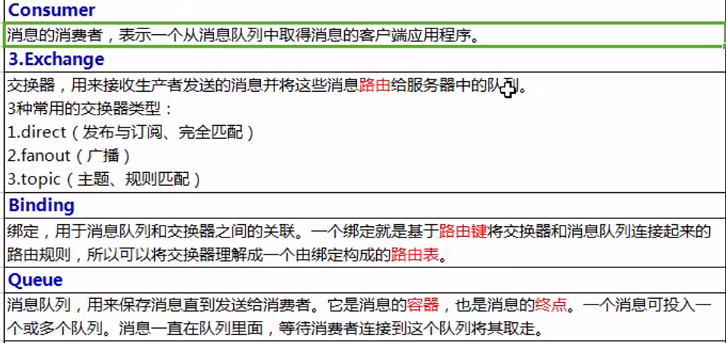

生产者：发送消息给交换器 exchange

消费者：监听队列消息

队列：队列和交换器绑定

交换器：生产者发送消息给路由器 交换器根据规则发送消息到队列

1.创建一个springboot项目依赖：web，rabbitMQ

2.配置properties

spring.application.name=rabbitMQ
server.port=8080

spring.rabbitmq.host=172.17.0.50
spring.rabbitmq.port=5672
spring.rabbitmq.username=hanhao
spring.rabbitmq.password=hanhao

第二种配置：direct

spring.application.name=rabbitDirectProvider
server.port=9999
spring.rabbitmq.host=172.17.0.50
spring.rabbitmq.port=5672
spring.rabbitmq.username=hanhao
spring.rabbitmq.password=hanhao

mq.config.exchange=log.direct

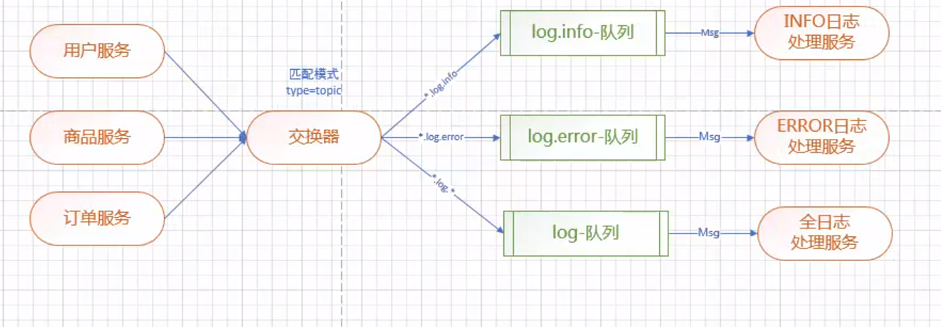

第三种：topic 匹配模式

消费者：

package com.bicon.directconsumer;

import org.springframework.amqp.core.ExchangeTypes;
import org.springframework.amqp.rabbit.annotation.Exchange;
import org.springframework.amqp.rabbit.annotation.Queue;
import org.springframework.amqp.rabbit.annotation.QueueBinding;
import org.springframework.amqp.rabbit.annotation.RabbitHandler;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.stereotype.Component;

@Component
@RabbitListener(bindings=@QueueBinding(
        value=@Queue(value="${mq.config.queue.error}",autoDelete="true"),
        exchange=@Exchange(value="${mq.config.exchange}",type=ExchangeTypes.TOPIC),
        key="*.log.error"
        )
        )
public class ErrorReceive {

    @RabbitHandler
    public void process(String msg) {
        System.out.println("接收到ERROR："+msg);
    }

}

生产者：

package com.bicon.directprovider;

import javax.validation.Valid;

import net.bytebuddy.asm.Advice.This;

import org.springframework.amqp.core.AmqpTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.stereotype.Component;

@Component
public class OrderSender {

    @Autowired
    private AmqpTemplate rabbitTemplate;

    @Value("${mq.config.exchange}")
    private String exchange;

    public void send(String msg){
        this.rabbitTemplate.convertAndSend(this.exchange,"order.log.info",msg);
        this.rabbitTemplate.convertAndSend(this.exchange,"order.log.debug",msg);
        this.rabbitTemplate.convertAndSend(this.exchange,"order.log.warn",msg);
        this.rabbitTemplate.convertAndSend(this.exchange,"order.log.error",msg);
    }
}

来源：oschina

链接：https://my.oschina.net/u/4293665/blog/4061828
