光照 = 环境光照 + 漫反射光照 + 镜面光照

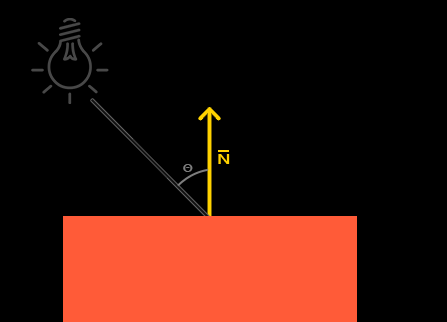

漫反射:法向量 + 光源方向向量

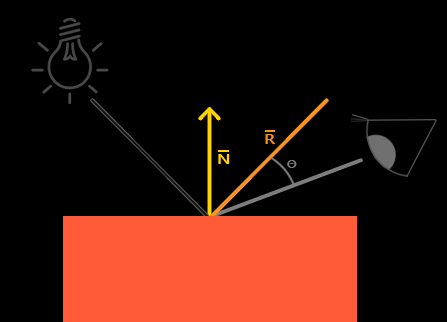

镜面反射:反射向量+视点向量 ;其中视点向量= 照相机位置坐标 - 片段坐标
法向量:整个片段着色器里的计算都是在世界空间坐标中进行的,所以应该将法向量变换到世界坐标中。

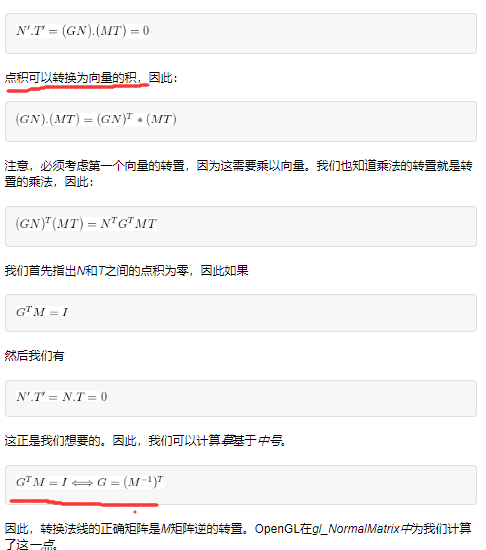

具体证明在该博客: http://www.lighthouse3d.com/tutorials/glsl-12-tutorial/the-normal-matrix/

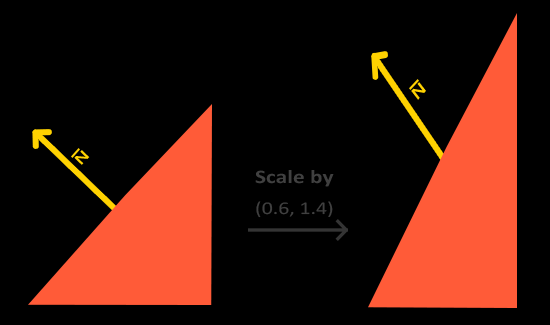

在世界坐标系中,法向量与平面垂直,变化后不再垂直。求变化后的法向量
拍摄物体顶点着色器:
out vec3 Normal;
out vec3 WorldPos;
uniform mat4 model;
uniform mat4 view;
uniform mat4 projection;
void main()
{
gl_Position = projection * view * model * vec4(aPos, 1.0);
TexCoord = vec2(aTexCoord.x,1- aTexCoord.y);
WorldPos = vec3(model * vec4(aPos, 1.0));
Normal = mat3(transpose(inverse(model))) * normal;
}
拍摄物体片段着色器:
#version 330 core
out vec4 FragColor;
in vec2 TexCoord;
in vec3 Normal;
in vec3 WorldPos;
uniform vec3 lightColor;
uniform vec3 lightPos;
uniform vec3 viewPos;
// 采样器:解决了如何将纹理对象传给片段着色器
//纹理单元·
uniform sampler2D texture1;
uniform sampler2D texture2;
//这个片段着色器的输出就是纹理的(插值)纹理坐标上的(过滤后的)颜色。
void main()
{
//环境光照
//定义环境因子
float ambientStrength = 0.1;
vec3 enviormentLight = ambientStrength * lightColor;
//实现漫反射
vec3 normal = normalize(Normal);
vec3 lightDirection = normalize(lightPos - WorldPos);
//不为负值
float diffuseReflection = max(dot(normal, lightDirection ),0);
vec3 diffuseReflectionLight = diffuseReflection * lightColor;
//实现镜面反射
//镜面反射强度
float specularStrength = 0.5;
vec3 viewDirecton = normalize(viewPos - WorldPos );
vec3 reflectionDirection = reflect(-lightDirection,viewDirecton );
float spec = pow(max(dot(viewDirecton, reflectionDirection), 0.0), 2);
vec3 specularLight = specularStrength * spec * lightColor;
vec3 result = enviormentLight + diffuseReflectionLight + specularLight;
FragColor = vec4(result, 1.0f) * mix(texture(texture1, TexCoord), texture(texture2, vec2( TexCoord.x, 1 - TexCoord.y)), 0.5f);
}
光源顶点着色器:
#version 330 core
layout(location = 0) in vec3 aPos;
uniform mat4 model;
uniform mat4 view;
uniform mat4 projection;
void main()
{
gl_Position = projection * view * model * vec4(aPos, 1.0);
}
光源片段着色器:
#version 330 core
out vec4 FragColor;
void main()
{
FragColor = vec4(1.0);
}
着色器头文件:
#ifndef SHADER_H
#define SHADER_H
#include <glad/glad.h>
#include <glm/glm.hpp>
#include <string>
#include <fstream>
#include <sstream>
#include <iostream>
class ShaderTest
{
public:
unsigned int ID;
// constructor generates the shader on the fly
// ------------------------------------------------------------------------
ShaderTest(const char* vertexPath, const char* fragmentPath, const char* geometryPath = nullptr)
{
// 1. retrieve the vertex/fragment source code from filePath
std::string vertexCode;
std::string fragmentCode;
std::string geometryCode;
std::ifstream vShaderFile;
std::ifstream fShaderFile;
std::ifstream gShaderFile;
// ensure ifstream objects can throw exceptions:
vShaderFile.exceptions(std::ifstream::failbit | std::ifstream::badbit);
fShaderFile.exceptions(std::ifstream::failbit | std::ifstream::badbit);
gShaderFile.exceptions(std::ifstream::failbit | std::ifstream::badbit);
try
{
// open files
vShaderFile.open(vertexPath);
fShaderFile.open(fragmentPath);
std::stringstream vShaderStream, fShaderStream;
// read file's buffer contents into streams
vShaderStream << vShaderFile.rdbuf();
fShaderStream << fShaderFile.rdbuf();
// close file handlers
vShaderFile.close();
fShaderFile.close();
// convert stream into string
vertexCode = vShaderStream.str();
fragmentCode = fShaderStream.str();
// if geometry shader path is present, also load a geometry shader
if (geometryPath != nullptr)
{
gShaderFile.open(geometryPath);
std::stringstream gShaderStream;
gShaderStream << gShaderFile.rdbuf();
gShaderFile.close();
geometryCode = gShaderStream.str();
}
}
catch (std::ifstream::failure e)
{
std::cout << "ERROR::SHADER::FILE_NOT_SUCCESFULLY_READ" << std::endl;
}
const char* vShaderCode = vertexCode.c_str();
const char * fShaderCode = fragmentCode.c_str();
// 2. compile shaders
unsigned int vertex, fragment;
// vertex shader
vertex = glCreateShader(GL_VERTEX_SHADER);
glShaderSource(vertex, 1, &vShaderCode, NULL);
glCompileShader(vertex);
checkCompileErrors(vertex, "VERTEX");
// fragment Shader
fragment = glCreateShader(GL_FRAGMENT_SHADER);
glShaderSource(fragment, 1, &fShaderCode, NULL);
glCompileShader(fragment);
checkCompileErrors(fragment, "FRAGMENT");
// if geometry shader is given, compile geometry shader
unsigned int geometry;
if (geometryPath != nullptr)
{
const char * gShaderCode = geometryCode.c_str();
geometry = glCreateShader(GL_GEOMETRY_SHADER);
glShaderSource(geometry, 1, &gShaderCode, NULL);
glCompileShader(geometry);
checkCompileErrors(geometry, "GEOMETRY");
}
// shader Program
ID = glCreateProgram();
glAttachShader(ID, vertex);
glAttachShader(ID, fragment);
if (geometryPath != nullptr)
glAttachShader(ID, geometry);
glLinkProgram(ID);
checkCompileErrors(ID, "PROGRAM");
// delete the shaders as they're linked into our program now and no longer necessery
glDeleteShader(vertex);
glDeleteShader(fragment);
if (geometryPath != nullptr)
glDeleteShader(geometry);
}
// activate the shader
// ------------------------------------------------------------------------
void use()
{
glUseProgram(ID);
}
void deleteProgram()
{
glDeleteProgram(ID);
}
// utility uniform functions
// ------------------------------------------------------------------------
void setBool(const std::string &name, bool value) const
{
glUniform1i(glGetUniformLocation(ID, name.c_str()), (int)value);
}
// ------------------------------------------------------------------------
void setInt(const std::string &name, int value) const
{
glUniform1i(glGetUniformLocation(ID, name.c_str()), value);
}
// ------------------------------------------------------------------------
void setFloat(const std::string &name, float value) const
{
glUniform1f(glGetUniformLocation(ID, name.c_str()), value);
}
// ------------------------------------------------------------------------
void setVec2(const std::string &name, const glm::vec2 &value) const
{
glUniform2fv(glGetUniformLocation(ID, name.c_str()), 1, &value[0]);
}
void setVec2(const std::string &name, float x, float y) const
{
glUniform2f(glGetUniformLocation(ID, name.c_str()), x, y);
}
// ------------------------------------------------------------------------
void setVec3(const std::string &name, const glm::vec3 &value) const
{
glUniform3fv(glGetUniformLocation(ID, name.c_str()), 1, &value[0]);
}
void setVec3(const std::string &name, float x, float y, float z) const
{
glUniform3f(glGetUniformLocation(ID, name.c_str()), x, y, z);
}
// ------------------------------------------------------------------------
void setVec4(const std::string &name, const glm::vec4 &value) const
{
glUniform4fv(glGetUniformLocation(ID, name.c_str()), 1, &value[0]);
}
void setVec4(const std::string &name, float x, float y, float z, float w)
{
glUniform4f(glGetUniformLocation(ID, name.c_str()), x, y, z, w);
}
// ------------------------------------------------------------------------
void setMat2(const std::string &name, const glm::mat2 &mat) const
{
glUniformMatrix2fv(glGetUniformLocation(ID, name.c_str()), 1, GL_FALSE, &mat[0][0]);
}
// ------------------------------------------------------------------------
void setMat3(const std::string &name, const glm::mat3 &mat) const
{
glUniformMatrix3fv(glGetUniformLocation(ID, name.c_str()), 1, GL_FALSE, &mat[0][0]);
}
// ------------------------------------------------------------------------
void setMat4(const std::string &name, const glm::mat4 &mat) const
{
glUniformMatrix4fv(glGetUniformLocation(ID, name.c_str()), 1, GL_FALSE, &mat[0][0]);
}
private:
// utility function for checking shader compilation/linking errors.
// ------------------------------------------------------------------------
void checkCompileErrors(GLuint shader, std::string type)
{
GLint success;
GLchar infoLog[1024];
if (type != "PROGRAM")
{
glGetShaderiv(shader, GL_COMPILE_STATUS, &success);
if (!success)
{
glGetShaderInfoLog(shader, 1024, NULL, infoLog);
std::cout << "ERROR::SHADER_COMPILATION_ERROR of type: " << type << "\n" << infoLog << "\n -- --------------------------------------------------- -- " << std::endl;
}
}
else
{
glGetProgramiv(shader, GL_LINK_STATUS, &success);
if (!success)
{
glGetProgramInfoLog(shader, 1024, NULL, infoLog);
std::cout << "ERROR::PROGRAM_LINKING_ERROR of type: " << type << "\n" << infoLog << "\n -- --------------------------------------------------- -- " << std::endl;
}
}
}
};
#endif
主程序:
#define STB_IMAGE_IMPLEMENTATION
#include"STB_IMAGE/stb_image.h"
#include<glad/glad.h>
#include<GLFW/glfw3.h>
#include <glm/glm.hpp>
#include <glm/gtc/matrix_transform.hpp>
#include <glm/gtc/type_ptr.hpp>
#include <ShaderTest.h>
#include <Texture.h>
#include <iostream>
void framebuffer_size_callback(GLFWwindow* window, int width, int height);
void processInput(GLFWwindow* window);
void mouse_callback(GLFWwindow* window, double xpos, double ypos);
void scroll_callback(GLFWwindow* window, double xoffset, double yoffset);
const unsigned int WINDOW_WIDTH = 800;
const unsigned int WINDOW_HEIGHT = 600;
glm::vec3 cameraPos = glm::vec3(0.0f, 0.0f, 3.0f);
glm::vec3 cameraFront = glm::vec3(0.0f, 0.0f, -1.0f);
glm::vec3 cameraUp = glm::vec3(0.0f, 1.0f, 0.0f);
float lastTime = 0.0f;
float deltaTime = 0.0f;
bool firstMouse = true;
double lastX = WINDOW_WIDTH / 2;
double lastY = WINDOW_HEIGHT / 2;
float yaw = -90.0f; // yaw is initialized to -90.0 degrees since a yaw of 0.0 results in a direction vector pointing to the right so we initially rotate a bit to the left.
float pitch = 0.0f;
float fov = 45.0f;
int main()
{
//1实例化GLFW窗户
glfwInit();
glfwWindowHint(GLFW_CONTEXT_VERSION_MAJOR, 3);
glfwWindowHint(GLFW_CONTEXT_VERSION_MINOR, 3);
glfwWindowHint(GLFW_OPENGL_PROFILE, GLFW_OPENGL_CORE_PROFILE);
//创建窗口对象
GLFWwindow* window = glfwCreateWindow(WINDOW_WIDTH, WINDOW_HEIGHT, "TestWindows", NULL, NULL);
if (!window)
{
std::cout << "Failed to create Windows" << std::endl;
//释放资源
glfwTerminate();
return -1;
}
//保留上下文
glfwMakeContextCurrent(window);
glfwSetFramebufferSizeCallback(window, framebuffer_size_callback);
//初始化GLAD
if (!gladLoadGLLoader((GLADloadproc)glfwGetProcAddress))
{
std::cout << "Failed to initialize GLAD" << std::endl;
return -1;
}
//顶点数据
float vertexDatas[] = {
//----位置---- ----颜色---- ---法向量---
-0.5f, -0.5f, -0.5f, 0.0f, 0.0f, 0.0f, 0.0f, -1.0f,
0.5f, -0.5f, -0.5f, 1.0f, 0.0f, 0.0f, 0.0f, -1.0f,
0.5f, 0.5f, -0.5f, 1.0f, 1.0f, 0.0f, 0.0f, -1.0f,
0.5f, 0.5f, -0.5f, 1.0f, 1.0f, 0.0f, 0.0f, -1.0f,
-0.5f, 0.5f, -0.5f, 0.0f, 1.0f, 0.0f, 0.0f, -1.0f,
-0.5f, -0.5f, -0.5f, 0.0f, 0.0f, 0.0f, 0.0f, -1.0f,
-0.5f, -0.5f, 0.5f, 0.0f, 0.0f, 0.0f, 0.0f, 1.0f,
0.5f, -0.5f, 0.5f, 1.0f, 0.0f, 0.0f, 0.0f, 1.0f,
0.5f, 0.5f, 0.5f, 1.0f, 1.0f, 0.0f, 0.0f, 1.0f,
0.5f, 0.5f, 0.5f, 1.0f, 1.0f, 0.0f, 0.0f, 1.0f,
-0.5f, 0.5f, 0.5f, 0.0f, 1.0f, 0.0f, 0.0f, 1.0f,
-0.5f, -0.5f, 0.5f, 0.0f, 0.0f, 0.0f, 0.0f, 1.0f,
-0.5f, 0.5f, 0.5f, 1.0f, 0.0f, -1.0f, 0.0f, 0.0f,
-0.5f, 0.5f, -0.5f, 1.0f, 1.0f, -1.0f, 0.0f, 0.0f,
-0.5f, -0.5f, -0.5f, 0.0f, 1.0f, -1.0f, 0.0f, 0.0f,
-0.5f, -0.5f, -0.5f, 0.0f, 1.0f, -1.0f, 0.0f, 0.0f,
-0.5f, -0.5f, 0.5f, 0.0f, 0.0f, -1.0f, 0.0f, 0.0f,
-0.5f, 0.5f, 0.5f, 1.0f, 0.0f, -1.0f, 0.0f, 0.0f,
0.5f, 0.5f, 0.5f, 1.0f, 0.0f, 1.0f, 0.0f, 0.0f,
0.5f, 0.5f, -0.5f, 1.0f, 1.0f, 1.0f, 0.0f, 0.0f,
0.5f, -0.5f, -0.5f, 0.0f, 1.0f, 1.0f, 0.0f, 0.0f,
0.5f, -0.5f, -0.5f, 0.0f, 1.0f, 1.0f, 0.0f, 0.0f,
0.5f, -0.5f, 0.5f, 0.0f, 0.0f, 1.0f, 0.0f, 0.0f,
0.5f, 0.5f, 0.5f, 1.0f, 0.0f, 1.0f, 0.0f, 0.0f,
-0.5f, -0.5f, -0.5f, 0.0f, 1.0f, 0.0f, -1.0f, 0.0f,
0.5f, -0.5f, -0.5f, 1.0f, 1.0f, 0.0f, -1.0f, 0.0f,
0.5f, -0.5f, 0.5f, 1.0f, 0.0f, 0.0f, -1.0f, 0.0f,
0.5f, -0.5f, 0.5f, 1.0f, 0.0f, 0.0f, -1.0f, 0.0f,
-0.5f, -0.5f, 0.5f, 0.0f, 0.0f, 0.0f, -1.0f, 0.0f,
-0.5f, -0.5f, -0.5f, 0.0f, 1.0f, 0.0f, -1.0f, 0.0f,
-0.5f, 0.5f, -0.5f, 0.0f, 1.0f, 0.0f, 1.0f, 0.0f,
0.5f, 0.5f, -0.5f, 1.0f, 1.0f, 0.0f, 1.0f, 0.0f,
0.5f, 0.5f, 0.5f, 1.0f, 0.0f, 0.0f, 1.0f, 0.0f,
0.5f, 0.5f, 0.5f, 1.0f, 0.0f, 0.0f, 1.0f, 0.0f,
-0.5f, 0.5f, 0.5f, 0.0f, 0.0f, 0.0f, 1.0f, 0.0f,
-0.5f, 0.5f, -0.5f, 0.0f, 1.0f, 0.0f, 1.0f, 0.0f
};
//2创建VAO,VBO,EBO
unsigned int VAOID, VBOId;
glGenVertexArrays(1, &VAOID); //第一个参数是对象的数量
glGenBuffers(1, &VBOId);
//绑定VAO
glBindVertexArray(VAOID);
//绑定到顶点缓冲对象上
glBindBuffer(GL_ARRAY_BUFFER, VBOId);
//将顶点数据copy到缓冲内存中
glBufferData(GL_ARRAY_BUFFER, sizeof(vertexDatas), vertexDatas, GL_STATIC_COPY);
//解析顶点数据,给对应1的顶点属性数组指定数据
//第一个参数是顶点属性,与着色器程序location相对
//位置属性
glVertexAttribPointer(0, 3, GL_FLOAT, GL_FALSE, 8 * sizeof(float), (void*)0);
//启用顶点属性,默认是禁用的 //
glEnableVertexAttribArray(0); //参数:顶点属性值
//纹理属性
glVertexAttribPointer(1, 2, GL_FLOAT, GL_FALSE, 8 * sizeof(float), (void*)(3 * sizeof(float)));
glEnableVertexAttribArray(1);
//法向量
glVertexAttribPointer(2, 3, GL_FLOAT, GL_FALSE, 8 * sizeof(float), (void*)(5 * sizeof(float)));
glEnableVertexAttribArray(2);
//解绑VBO,VAO,不需要解绑EBO(当VAO被绑定时,EBO不能解绑
glBindBuffer(GL_ARRAY_BUFFER, 0); //unbind VBO ,第二个参数是解除绑定,回归原始值
glBindVertexArray(0); // unbind VAO 第一个参数是解除绑定,回归原始值
//创建发光源VAO
unsigned int lightVAO;
glGenVertexArrays(1, &lightVAO);
glBindVertexArray(lightVAO);
glBindBuffer(GL_ARRAY_BUFFER, VBOId);
glVertexAttribPointer(0, 3, GL_FLOAT, GL_FALSE, 8 * sizeof(float), (void*)0);
//启用顶点属性,默认是禁用的 //
glEnableVertexAttribArray(0); //参数:顶点属性值
//3.创建着色器
ShaderTest shaderTest("openGL_Color.vs", "openGL_Color.fs");
ShaderTest shaderLight("openGL_Color_Light.vs", "openGL_Color_Light.fs");
//4.纹理对象
unsigned int textureId;
glGenTextures(1, &textureId);
glBindTexture(GL_TEXTURE_2D, textureId);
//设置纹理环绕方式
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL_REPEAT);
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_REPEAT);
//纹理采样方式
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_LINEAR);
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_LINEAR);
//载入图片信息
int width, height, channels;
unsigned char* data = stbi_load("F:/C++项目/LibsInclude/src/face.png", &width, &height, &channels, 0);
if (data)
{
//装入纹理对象的数据,将内存的数据与纹理对象关联
glTexImage2D(GL_TEXTURE_2D, 0, GL_RGBA, width, height, 0, GL_RGBA, GL_UNSIGNED_BYTE, data);
//设置多级渐远方式
glGenerateMipmap(GL_TEXTURE_2D);
}
else
{
std::cout << "Failed to load Firsttexture" << std::endl;
}
//释放内存
stbi_image_free(data);
unsigned int textureId2;
glGenTextures(1, &textureId2);
glBindTexture(GL_TEXTURE_2D, textureId2);
//设置纹理环绕方式
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL_REPEAT);
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_REPEAT);
//纹理采样方式
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_LINEAR);
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_LINEAR);
//载入图片信息
data = stbi_load("F:/C++项目/LibsInclude/src/container.jpg", &width, &height, &channels, 0);
if (data)
{
//装入纹理对象的数据,将内存的数据与纹理对象关联
glTexImage2D(GL_TEXTURE_2D, 0, GL_RGB, width, height, 0, GL_RGB, GL_UNSIGNED_BYTE, data);
//设置多级渐远方式
glGenerateMipmap(GL_TEXTURE_2D);
}
else
{
std::cout << "Failed to load Firsttexture" << std::endl;
}
//释放内存
stbi_image_free(data);
//设定纹理单元的索引
shaderTest.use();
glUniform1i(glGetUniformLocation(shaderTest.ID, "texture1"), 0);
glUniform1i(glGetUniformLocation(shaderTest.ID, "texture2"), 1);
//开启深度测试、
glEnable(GL_DEPTH_TEST);
glm::vec3 lightPos(1.0f, 1.0f, 1.5f);
//循环渲染
while (!glfwWindowShouldClose(window))
{
float currentTime = glfwGetTime();
deltaTime = currentTime - lastTime;
lastTime = currentTime;
//input
processInput(window);
glfwSetCursorPosCallback(window, mouse_callback);
glfwSetScrollCallback(window, scroll_callback);
//清除颜色缓冲和深度缓冲
glClearColor(0.2f, 0.3f, 0.3f, 1.0f);
glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);
//绑定纹理单元和纹理对象
glActiveTexture(GL_TEXTURE0);
glBindTexture(GL_TEXTURE_2D, textureId);
glActiveTexture(GL_TEXTURE1);
glBindTexture(GL_TEXTURE_2D, textureId2);
//激活着色器程序
shaderTest.use();
glm::mat4 model = glm::mat4(1.0f);
glm::mat4 view = glm::mat4(1.0f);
glm::mat4 projection = glm::mat4(1.0f);
view = glm::lookAt(cameraPos, cameraPos + cameraFront, cameraUp);
projection = glm::perspective(glm::radians(fov), (float)WINDOW_WIDTH / (float)WINDOW_HEIGHT, 0.1f, 100.0f);
model = glm::rotate(model, (float)glfwGetTime(), glm::vec3(0.5f, 1.0f, 0.0f));
glUniformMatrix4fv(glGetUniformLocation(shaderTest.ID, "model"), 1, GL_FALSE, glm::value_ptr(model));
glUniformMatrix4fv(glGetUniformLocation(shaderTest.ID, "view"), 1, GL_FALSE, &view[0][0]);
glUniformMatrix4fv(glGetUniformLocation(shaderTest.ID, "projection"), 1, GL_FALSE, glm::value_ptr(projection));
shaderTest.setVec3("lightColor", glm::vec3(1.0f, 1.0f, 1.0f));
shaderTest.setVec3("lightPos", lightPos);
shaderTest.setVec3("viewPos", cameraPos);
glBindVertexArray(VAOID);
glDrawArrays(GL_TRIANGLES, 0, 36);
//绘制发光源
shaderLight.use();
model = glm::mat4(1.0f);
model = glm::translate(model, lightPos);
model = glm::scale(model, glm::vec3(0.3));
shaderLight.setMat4("model", model);
shaderLight.setMat4("view", view);
shaderLight.setMat4("projection", projection);
glBindVertexArray(lightVAO);
glDrawArrays(GL_TRIANGLES, 0, 36);
//交换颜色缓冲
glfwSwapBuffers(window);
//检查是否触发事件
glfwPollEvents();
}
//删除VBO,VAO
glDeleteVertexArrays(1, &VAOID);
glDeleteBuffers(1, &VBOId);
//删除程序对象
shaderTest.deleteProgram();
//释放资源
glfwTerminate();
return 0;
}
//回调函数,窗口改变时视口改变
void framebuffer_size_callback(GLFWwindow* window, int width, int height)
{
glViewport(0, 0, width, height);
}
//输入控制
void processInput(GLFWwindow* window)
{
float moveSpeed = 0.5f * deltaTime;
if (glfwGetKey(window, GLFW_KEY_ESCAPE) == GLFW_PRESS)
{
glfwSetWindowShouldClose(window, true);
}
if (glfwGetKey(window, GLFW_KEY_W) == GLFW_PRESS)
{
cameraPos += cameraFront * moveSpeed;
}
if (glfwGetKey(window, GLFW_KEY_S) == GLFW_PRESS)
{
cameraPos -= cameraFront * moveSpeed;
}
if (glfwGetKey(window, GLFW_KEY_A) == GLFW_PRESS)
{
cameraPos += glm::normalize(glm::cross(cameraFront, cameraUp))* moveSpeed;
}
if (glfwGetKey(window, GLFW_KEY_D) == GLFW_PRESS)
{
cameraPos -= glm::normalize(glm::cross(cameraFront, cameraUp))* moveSpeed;
}
}
//鼠标回调
void mouse_callback(GLFWwindow* window, double xpos, double ypos)
{
if (firstMouse)
{
lastX = xpos;
lastY = ypos;
firstMouse = false;
}
float xoffset = xpos - lastX;
float yoffset = lastY - ypos;
lastX = xpos;
lastY = ypos;
float sensitivity = 0.05;
xoffset *= sensitivity;
yoffset *= sensitivity;
yaw += xoffset;
pitch += yoffset;
if (pitch > 89.0f)
pitch = 89.0f;
if (pitch < -89.0f)
pitch = -89.0f;
glm::vec3 front;
front.x = cos(glm::radians(yaw)) * cos(glm::radians(pitch));
front.y = sin(glm::radians(pitch));
front.z = sin(glm::radians(yaw)) * cos(glm::radians(pitch));
cameraFront = glm::normalize(front);
}
//定义光标回调函数
void scroll_callback(GLFWwindow* window, double xoffset, double yoffset)
{
if (fov >= 1.0f && fov <= 90.0f)
fov -= yoffset;
if (fov <= 1.0f)
fov = 1.0f;
if (fov >= 90.0f)
fov = 90.0f;
}

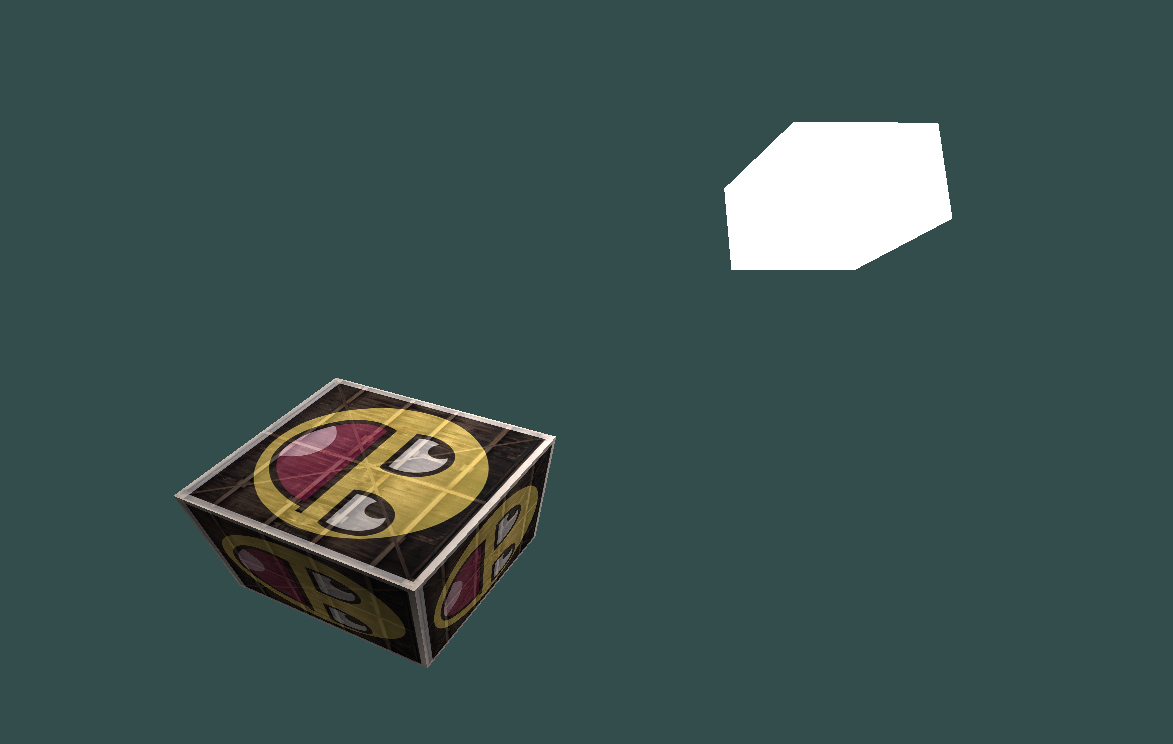

结果:
来源:oschina
链接:https://my.oschina.net/1024and1314/blog/3211531
