分库分表 Sharding-JDBC 介绍和实战

你。 提交于 2020-02-28 06:01:50

1 介绍

Sharding-JDBC是开源的数据库中间件。Sharding-JDBC定位为轻量级数据库驱动,由客户端直连数据库,以jar包形式提供服务,没有使用中间层,无须额外部署,无须其他依赖。Sharding-JDBC可以实现旧代码迁移零成本的目标。Sharding-JDBC与MyCat不同,MyCat本质上是一种数据库代理。

2 实战SQL

2.1 有2个库

库名 表名
shop_0 shop_info_0、shop_info_1
shop_1 shop_info_0、shop_info_1

2.2 表结构SQL

DROP DATABASE IF EXISTS `shop_0`;

CREATE DATABASE `shop_0`;

USE `shop_0`;

CREATE TABLE `shop_info_0` (
  `shop_id` bigint(80) NOT NULL,
  `shop_name` varchar(45) DEFAULT NULL,
  `account` varchar(45) NOT NULL,
  PRIMARY KEY (`shop_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

CREATE TABLE `shop_info_1` (
  `shop_id` bigint(80) NOT NULL,
  `shop_name` varchar(45) DEFAULT NULL,
  `account` varchar(45) NOT NULL,
  PRIMARY KEY (`shop_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

DROP DATABASE IF EXISTS `shop_1`;

CREATE DATABASE `shop_1`;

USE `shop_1`;

CREATE TABLE `shop_info_0` (
  `shop_id` bigint(80) NOT NULL,
  `shop_name` varchar(45) DEFAULT NULL,
  `account` varchar(45) NOT NULL,
  PRIMARY KEY (`shop_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

CREATE TABLE `shop_info_1` (
  `shop_id` bigint(80) NOT NULL,
  `shop_name` varchar(45) DEFAULT NULL,
  `account` varchar(45) NOT NULL,
  PRIMARY KEY (`shop_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

3 实战项目

3.1 pom依赖

<dependency>
    <groupId>io.shardingjdbc</groupId>
    <artifactId>sharding-jdbc-core</artifactId>
    <version>2.0.3</version>
</dependency>
<dependency>
    <groupId>org.projectlombok</groupId>
    <artifactId>lombok</artifactId>
    <version>1.18.12</version>
    <scope>provided</scope>
</dependency>

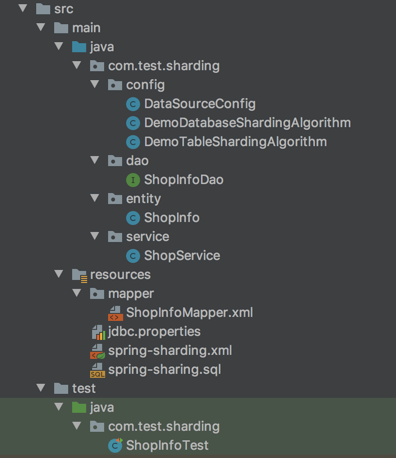

3.2 项目结构

3.3 路由配置类 DataSourceConfig

package com.test.sharding.config;


import io.shardingjdbc.core.api.config.ShardingRuleConfiguration;
import io.shardingjdbc.core.api.config.TableRuleConfiguration;
import io.shardingjdbc.core.api.config.strategy.StandardShardingStrategyConfiguration;
import io.shardingjdbc.core.jdbc.core.datasource.ShardingDataSource;
import io.shardingjdbc.core.keygen.DefaultKeyGenerator;
import org.apache.commons.dbcp.BasicDataSource;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import javax.sql.DataSource;
import java.sql.SQLException;
import java.util.HashMap;
import java.util.Map;

/**
 * sharding-jdbc数据源配置
 *
 * 本例有2个库:
 * shop_0 里面有2个表 shop_info_0、shop_info_1
 * shop_1 里面有2个表 shop_info_0、shop_info_1
 *
 * 分库规则实现类(自定义):{@see DemoDatabaseShardingAlgorithm}
 * 分表规则实现类(自定义):{@see DemoTableShardingAlgorithm}
 * 主键生成实现类(包里自带):{@see DefaultKeyGenerator}
 */
@Configuration
public class DataSourceConfig {

    /**
     * sharding-jdbc数据源
     */
    @Bean(name = "shardingDataSource")
    DataSource getShardingDataSource() throws SQLException {
        // 分库分表规则配置类
        ShardingRuleConfiguration shardingRuleConfiguration = new ShardingRuleConfiguration();
        // 表规则配置
        shardingRuleConfiguration.getTableRuleConfigs().add(getShopTableRuleConfiguration());
        // 表的组 shop_info
        shardingRuleConfiguration.getBindingTableGroups().add("shop_info");

        // DataBase的分片策略,具体规则 DemoDatabaseShardingAlgorithm#doSharding 来实现
        String shardingColumnDB = "shop_id";
        String preciseAlgorithmClassNameDB = DemoDatabaseShardingAlgorithm.class.getName();
        StandardShardingStrategyConfiguration databaseStrategyConfi = new StandardShardingStrategyConfiguration(
                shardingColumnDB, preciseAlgorithmClassNameDB);
        shardingRuleConfiguration.setDefaultDatabaseShardingStrategyConfig(databaseStrategyConfi);

        // Table的分片策略,具体规则 DemoTableShardingAlgorithm#doSharding 来实现
        String shardingColumnTable = "shop_id";
        String preciseAlgorithmClassNameTable = DemoTableShardingAlgorithm.class.getName();
        StandardShardingStrategyConfiguration tableStrategyConfig = new StandardShardingStrategyConfiguration(
                shardingColumnTable, preciseAlgorithmClassNameTable);
        shardingRuleConfiguration.setDefaultTableShardingStrategyConfig(tableStrategyConfig);

        // 根据配置实例化一个ShardingDataSource  bean
        return new ShardingDataSource(shardingRuleConfiguration.build(createDataSourceMap()));
    }

    /**
     * 商户表规则配置
     */
    @Bean
    TableRuleConfiguration getShopTableRuleConfiguration() {
        TableRuleConfiguration orderTableRuleConfig = new TableRuleConfiguration();
        // 逻辑表是shop_info
        orderTableRuleConfig.setLogicTable("shop_info");
        // 实际的物理节点是shop_${0..1}.shop_info_${0..1} 即database.table
        orderTableRuleConfig.setActualDataNodes("shop_${0..1}.shop_info_${0..1}");
        // 主键生成的列名
        orderTableRuleConfig.setKeyGeneratorColumnName("shop_id");
        // 主键生成类,可根据需要自定义实现
        orderTableRuleConfig.setKeyGeneratorClass(DefaultKeyGenerator.class.getName());
        return orderTableRuleConfig;
    }

    /**
     * 封装多个MySQL数据源
     */
    private Map<String, DataSource> createDataSourceMap() {
        Map<String, DataSource> result = new HashMap<>(2);
        result.put("shop_0", createDataSource("shop_0"));
        result.put("shop_1", createDataSource("shop_1"));
        return result;
    }

    /**
     * MySQL数据源
     */
    private DataSource createDataSource(final String dataSourceName) {
        BasicDataSource result = new BasicDataSource();
        result.setDriverClassName(com.mysql.jdbc.Driver.class.getName());
        result.setUrl(String.format("jdbc:mysql://localhost:3306/%s?characterEncoding=utf-8&useSSL=false",
                dataSourceName));
        result.setUsername("root");
        result.setPassword("123456");
        return result;
    }
}

3.4 分库规则实现类

package com.test.sharding.config;


import io.shardingjdbc.core.api.algorithm.sharding.PreciseShardingValue;
import io.shardingjdbc.core.api.algorithm.sharding.standard.PreciseShardingAlgorithm;

import java.util.Collection;

/**
 * 数据库分片的计算逻辑
 */
public class DemoDatabaseShardingAlgorithm implements PreciseShardingAlgorithm<Long> {

    /**
     * 数据库分片
     * @param collection 本例:存的是 shop_0、shop_1
     * @param preciseShardingValue  分表主键值,本例是 shop_id
     * @return
     */
    @Override
    public String doSharding(Collection<String> collection,
                             PreciseShardingValue<Long> preciseShardingValue) {

        for (String databaseName : collection) {
            // 数据库后缀名
            // preciseShardingValue.getValue() % 2 = 1 奇数则匹配 shop_1 库
            // preciseShardingValue.getValue() % 2 = 0 偶数则匹配 shop_0 库
            String suffix = String.valueOf(preciseShardingValue.getValue() % 2);
            //如果数据库后缀 = suffix  则选择这个库
            if (databaseName.endsWith(suffix)) {
                return databaseName;
            }
        }
        throw new IllegalArgumentException("参数异常");
    }
}

3.5 分表规则实现类

package com.test.sharding.config;


import io.shardingjdbc.core.api.algorithm.sharding.PreciseShardingValue;
import io.shardingjdbc.core.api.algorithm.sharding.standard.PreciseShardingAlgorithm;

import java.util.Collection;

/**
 * 数据表的分片规则
 */
public class DemoTableShardingAlgorithm implements PreciseShardingAlgorithm<Long> {

    /**
     * 每个库里有2个表
     * @param collection 本实例,里面是 shop_info_0 表、shop_info_1 表
     * @param preciseShardingValue 分表主键值,本例是 shop_id
     * @return
     */
    @Override
    public String doSharding(Collection<String> collection,
                             PreciseShardingValue<Long> preciseShardingValue) {
        for (String tableName : collection) {
            // 表的后缀名
            // preciseShardingValue.getValue() % 2 = 1 奇数则匹配 shop_info_1 表
            // preciseShardingValue.getValue() % 2 = 0 偶数则匹配 shop_info_0 表
            String suffix = String.valueOf(preciseShardingValue.getValue() % 2);
            //如果表的后缀 = suffix  则选择这个表
            if (tableName.endsWith(suffix)) {
                return tableName;
            }
        }
        throw new IllegalArgumentException("参数异常");
    }
}

3.6 xml配置

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">

<mapper namespace="com.test.sharding.dao.ShopInfoDao">
  <resultMap id="BaseResultMap" type="com.test.sharding.entity.ShopInfo">
    <id column="shop_id" jdbcType="BIGINT" property="shopId" />
    <result column="shop_name" jdbcType="VARCHAR" property="shopName" />
    <result column="account" jdbcType="VARCHAR" property="account" />
  </resultMap>
  <sql id="Base_Column_List">
    shop_id, shop_name, account
  </sql>

  <select id="selectByPrimaryKey" parameterType="java.lang.Long" resultMap="BaseResultMap">
    select
    <include refid="Base_Column_List" />
    from shop_info
    where shop_id = #{shopId,jdbcType=BIGINT}
  </select>

  <insert id="insert" parameterType="com.test.sharding.entity.ShopInfo">
    insert into shop_info
     (shop_id, shop_name, account)
    values
    (
      #{shopId,jdbcType=BIGINT},
      #{shopName,jdbcType=VARCHAR},
      #{account,jdbcType=VARCHAR}
    )
  </insert>

  <!-- 主键根据主键生成策略生成 -->
  <insert id="insertAutoIncrement" parameterType="com.test.sharding.entity.ShopInfo">
    insert into shop_info (shop_name, account)
    values (
      #{shopName,jdbcType=VARCHAR},
      #{account,jdbcType=VARCHAR}
    )
  </insert>

</mapper>

3.7 单元测试类

package com.test.sharding;

import com.alibaba.fastjson.JSON;
import com.test.sharding.entity.ShopInfo;
import com.test.sharding.service.ShopService;
import io.shardingjdbc.core.api.HintManager;
import io.shardingjdbc.core.hint.HintManagerHolder;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.test.context.ContextConfiguration;
import org.springframework.test.context.junit4.SpringJUnit4ClassRunner;

import javax.annotation.Resource;

/**
 * 单元测试
 */
@RunWith(SpringJUnit4ClassRunner.class)
@ContextConfiguration("classpath:spring-sharding.xml")
public class ShopInfoTest {
    @Resource
    ShopService shopService;

    public static Long shopId = 0L;

    /**
     * 模拟保存商户
     */
    @Test
    public void saveShop() {
        //保存10个商户
        for (int i = 0; i < 10; i++) {
            ShopInfo shopInfo = new ShopInfo();
            shopInfo.setShopId(shopId++);
            shopInfo.setAccount("Account" + i);
            shopInfo.setUserName("name" + i);
            shopService.saveShop(shopInfo);
        }
    }

    /**
     * 模拟查询商户
     */
    @Test
    public void queryShop() {
        ShopInfo shopInfo = shopService.queryShop(1L);
        System.out.printf("商户信息是=%s%n", JSON.toJSONString(shopInfo));
    }

    /**
     * 模拟保存商户
     */
    @Test
    public void saveShop2() {
        //保存10个商户
        for (int i = 10; i < 20; i++) {
            ShopInfo shopInfo = new ShopInfo();
            shopInfo.setShopId(Long.valueOf(i));
            shopInfo.setAccount("Account" + i);
            shopInfo.setUserName("name" + i);
            //强制修改路由规则
            if(i == 15) {
                HintManagerHolder.clear();
                HintManager hintManager = HintManager.getInstance();
                hintManager.addDatabaseShardingValue("shop_info", "shop_id", 2L);
                hintManager.addTableShardingValue("shop_info", "shop_id", 2L);
            }
            shopService.saveShop(shopInfo);
        }
    }

    /**
     * 测试主键自增
     */
    @Test
    public void saveShop3() throws InterruptedException {
        //保存10个商户
        for (int i = 0; i < 10; i++) {
            int finalI = i;
            new Thread(new Runnable() {
                @Override
                public void run() {
                    ShopInfo shopInfo = new ShopInfo();
                    shopInfo.setAccount("Account" + finalI);
                    shopInfo.setUserName("name" + finalI);
                    try {
                        Thread.sleep(1);
                    } catch (InterruptedException e) {
                        e.printStackTrace();
                    }
                    shopService.saveShopAutoIncrement(shopInfo);
                }
            }).start();
        }
        Thread.sleep(1000);
    }

}
