机器学习读书笔记（七）：Combining Different Models for Ensemble Learning
学习目标：
- Making predictions based on majority voting.
- Reduce overfitting by drawing random combinations of the training set with repetition.
- Build powerful models form weak learners that learn from their mistakes.
Ensemble Learning
Introduction
The goal behind ensemble methods is to combine different classifiers into a meta-classifier that has a better generalization performance than each individual classifier alone.
!!! To achieve this goal, we have several approaches to create these models. Among the most popular ensemble methods, majority voting is quite outstanding!
Majority voting (plurality voting)
Majority voting simply means that we select the class label that has been predicted by the majority of classifiers. As for multi-class settings, we call it plurality voting!

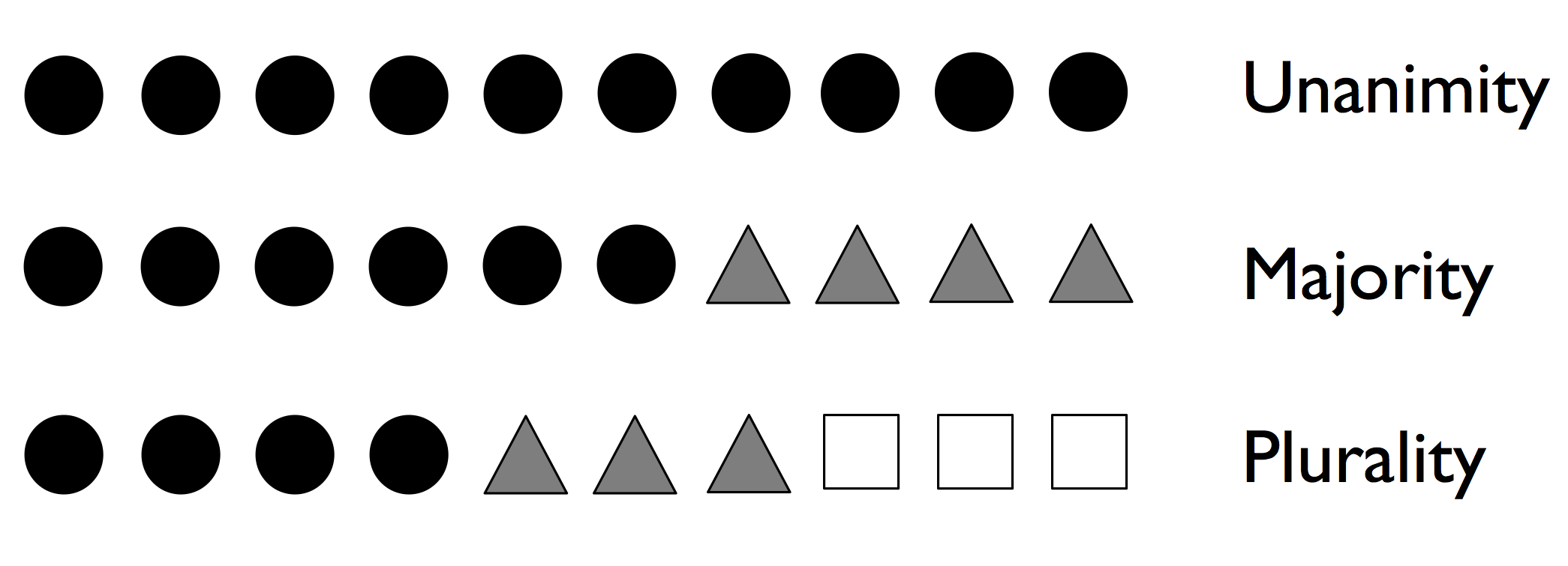

It can be seen very clearly through the following graph, which indicates that majorit voting is just a rather simple methods not too hard to understand~~~:

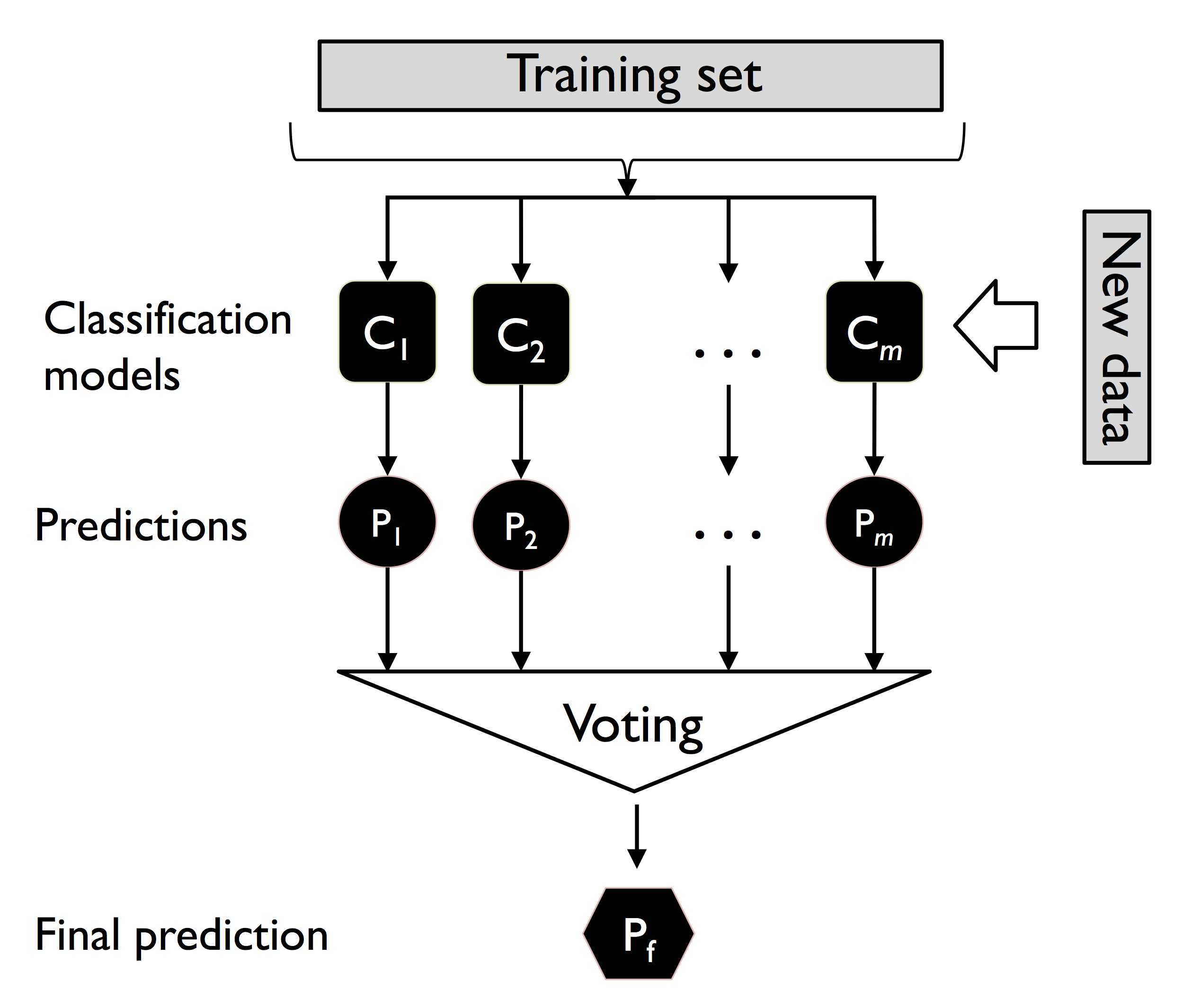

When we put it into actual senerio for practice, we start by training m different calssifiers( ). By comparing all these classification algorithms, it’s trivial to conduct a majority voting method, which can also be illustrated obviously by the following graph:
Except graph, we can also display the process of voting through mathmatical formula:
Now comes the theoretical time!! To illustrate why ensemble methods can work better than individual classifiers alone, let’s first make some assumptions!
For the following example,
First, we make the assumption that all n base classifiers for a binary classification task have the same error rate .
Futhermore, we assume that the classifiers are independent and the error rates are not correlated.
Under all these assumption, we can simply express the error probability of an emsemble of base classifiers as a probability mass function of a binomial distribution:
, where k refers to when n is an even number.
It is just an simple expression in probability so we don’t have to discuss too much about that. Just remember: it reveals the whole probability that the prediction of the ensemble is wrong. Now let’s take a look at a more concrete example of 11 base calssifiers(n=11) with an error rate :
As we can see, the error rate of the ensemble(0.034) is much lower than the error rate of each individual classifier(0.25)
To visualize this process, we use Python to plot the curve of the relationship between Ensemble error and Base error as follows:
from scipy.special import comb
import math
def ensemble_error(n_classifier, error):
k_start = int(math.ceil(n_classifier / 2.))
probs = [comb(n_classifier, k) * error**k * (1-error)**(n_classifier - k)
for k in range(k_start, n_classifier + 1)]
return sum(probs)
from scipy.special import comb
import math
def ensemble_error(n_classifier, error):
k_start = int(math.ceil(n_classifier / 2.))
probs = [comb(n_classifier, k) * error**k * (1-error)**(n_classifier - k)
for k in range(k_start, n_classifier + 1)]
return sum(probs)
ensemble_error(n_classifier=11, error=0.25)
0.03432750701904297
import numpy as np
error_range = np.arange(0.0, 1.01, 0.01)
ens_errors = [ensemble_error(n_classifier=11, error=error)
for error in error_range]
import numpy as np
error_range = np.arange(0.0, 1.01, 0.01)
ens_errors = [ensemble_error(n_classifier=11, error=error)
for error in error_range]
import matplotlib.pyplot as plt
plt.plot(error_range,
ens_errors,
label='Ensemble error',
linewidth=2)
plt.plot(error_range,
error_range,
linestyle='--',
label='Base error',
linewidth=2)
plt.xlabel('Base error')
plt.ylabel('Base/Ensemble error')
plt.legend(loc='upper left')
plt.grid(alpha=0.5)
#plt.savefig('images/07_03.png', dpi=300)
plt.show()
It doesn’t matter if you are a little confused by the overwhelming code blocks above~
they are just the translation of the process we’d dicussed before. Let’s concentrate on the result of the plotted graph!
As we can see in the resulting plot, the error probability of an ensemble is always better than the error of an individual base classifier as long as the base classifiers perform better than random gussing().
Implementating a simple majority classifier
In this section, we are going to expend the equal weighted model to the algorithm associated with individual weights for confidence, and besides, some classifiers that return the probability of a predicted calss. Finally, Python will be used to realize this algorithm for us as usual.
1.Weighted majority voting could be written in more precise mathmatical terms as follows:
where varies from {0,1} and is one of the two possible values that maximize the sum of all class labels by their individual weights.
when the weights are assunmed to be the same, we get the familiar simplified formula that we have seen before:
Let’s do this by Python!
import numpy as np
np.argmax(np.bincount([0, 0, 1],
weights=[0.2, 0.2, 0.6]))
1
2.When sometimes the classifiers return the probability of a predicted class label,such as logistic regression, the modified version of the majority vote for predicting class labels from probabilities can be written as follows:
Here, is the predicted probability of the classifier for class label
Let’s do this by Python too!
ex = np.array([[0.9, 0.1],
[0.8, 0.2],
[0.4, 0.6]])
p = np.average(ex,
axis=0,
weights=[0.2, 0.2, 0.6])
p
array([0.58, 0.42])
np.argmax(p)
0
Now let’s implement the Python code again to make a MajorityVoteClassifier!
from sklearn.base import BaseEstimator
from sklearn.base import ClassifierMixin
from sklearn.preprocessing import LabelEncoder
from sklearn.externals import six
from sklearn.base import clone
from sklearn.pipeline import _name_estimators
import numpy as np
import operator
class MajorityVoteClassifier(BaseEstimator,
ClassifierMixin):
""" A majority vote ensemble classifier
Parameters
----------
classifiers : array-like, shape = [n_classifiers]
Different classifiers for the ensemble
vote : str, {'classlabel', 'probability'} (default='label')
If 'classlabel' the prediction is based on the argmax of
class labels. Else if 'probability', the argmax of
the sum of probabilities is used to predict the class label
(recommended for calibrated classifiers).
weights : array-like, shape = [n_classifiers], optional (default=None)
If a list of `int` or `float` values are provided, the classifiers
are weighted by importance; Uses uniform weights if `weights=None`.
"""
def __init__(self, classifiers, vote='classlabel', weights=None):
self.classifiers = classifiers
self.named_classifiers = {key: value for key, value
in _name_estimators(classifiers)}
self.vote = vote
self.weights = weights
def fit(self, X, y):
""" Fit classifiers.
Parameters
----------
X : {array-like, sparse matrix}, shape = [n_samples, n_features]
Matrix of training samples.
y : array-like, shape = [n_samples]
Vector of target class labels.
Returns
-------
self : object
"""
if self.vote not in ('probability', 'classlabel'):
raise ValueError("vote must be 'probability' or 'classlabel'"
"; got (vote=%r)"
% self.vote)
if self.weights and len(self.weights) != len(self.classifiers):
raise ValueError('Number of classifiers and weights must be equal'
'; got %d weights, %d classifiers'
% (len(self.weights), len(self.classifiers)))
# Use LabelEncoder to ensure class labels start with 0, which
# is important for np.argmax call in self.predict
self.lablenc_ = LabelEncoder()
self.lablenc_.fit(y)
self.classes_ = self.lablenc_.classes_
self.classifiers_ = []
for clf in self.classifiers:
fitted_clf = clone(clf).fit(X, self.lablenc_.transform(y))
self.classifiers_.append(fitted_clf)
return self
def predict(self, X):
""" Predict class labels for X.
Parameters
----------
X : {array-like, sparse matrix}, shape = [n_samples, n_features]
Matrix of training samples.
Returns
----------
maj_vote : array-like, shape = [n_samples]
Predicted class labels.
"""
if self.vote == 'probability':
maj_vote = np.argmax(self.predict_proba(X), axis=1)##看似比classlabel更简洁，但是没想到吧，这是下面封装的一个函数！！！
else: # 'classlabel' vote
# Collect results from clf.predict calls
predictions = np.asarray([clf.predict(X)
for clf in self.classifiers_]).T
maj_vote = np.apply_along_axis(
lambda x:
np.argmax(np.bincount(x,
weights=self.weights)),
axis=1,
arr=predictions)
maj_vote = self.lablenc_.inverse_transform(maj_vote)
return maj_vote
def predict_proba(self, X):
""" Predict class probabilities for X.
Parameters
----------
X : {array-like, sparse matrix}, shape = [n_samples, n_features]
Training vectors, where n_samples is the number of samples and
n_features is the number of features.
Returns
----------
avg_proba : array-like, shape = [n_samples, n_classes]
Weighted average probability for each class per sample.
"""
probas = np.asarray([clf.predict_proba(X)
for clf in self.classifiers_])
avg_proba = np.average(probas, axis=0, weights=self.weights)
return avg_proba
def get_params(self, deep=True):
""" Get classifier parameter names for GridSearch"""
if not deep:
return super(MajorityVoteClassifier, self).get_params(deep=False)
else:
out = self.named_classifiers.copy()
for name, step in six.iteritems(self.named_classifiers):#six.iteritems 就是将我们后面这个字典转化为一个可迭代结构
for key, value in six.iteritems(step.get_params(deep=True)):#get_params 是所有sklearn estimater 都有的一个函数
#The get_params function takes no arguments and returns a dict of the __init__ parameters of the estimator, together with their values. It must take one keyword argument, deep, which receives a boolean value that determines whether the method should return the parameters of sub-estimators (for most estimators, this can be ignored). The default value for deep should be true.
out['%s__%s' % (name, key)] = value
return out
To tell you the truth, Sebastian Raschka is really a ‘bad’ guy for he has implement the MjorityVoteClassifier(a much more sophisticated version) in the sklearn and just tells you right after finishing reading the whole chapter!!!
Let’s use it in practice!
1.load dataset iris
from sklearn import datasets
from sklearn.preprocessing import StandardScaler
from sklearn.preprocessing import LabelEncoder
from sklearn.model_selection import train_test_split
iris = datasets.load_iris()
X, y = iris.data[50:, [1, 2]], iris.target[50:]
le = LabelEncoder()
y = le.fit_transform(y)
X_train, X_test, y_train, y_test =\
train_test_split(X, y,
test_size=0.5,
random_state=1,
stratify=y)
2.train three classifiers individually via a 10-fold cross-validation on the training dataset to look at their performance.
import numpy as np
from sklearn.linear_model import LogisticRegression
from sklearn.tree import DecisionTreeClassifier
from sklearn.neighbors import KNeighborsClassifier
from sklearn.pipeline import Pipeline
from sklearn.model_selection import cross_val_score
clf1 = LogisticRegression(penalty='l2',
C=0.001,
random_state=1)
clf2 = DecisionTreeClassifier(max_depth=1,
criterion='entropy',
random_state=0)
clf3 = KNeighborsClassifier(n_neighbors=1,
p=2,
metric='minkowski')
pipe1 = Pipeline([['sc', StandardScaler()],
['clf', clf1]])
pipe3 = Pipeline([['sc', StandardScaler()],
['clf', clf3]])
clf_labels = ['Logistic regression', 'Decision tree', 'KNN']
print('10-fold cross validation:\n')
for clf, label in zip([pipe1, clf2, pipe3], clf_labels):
scores = cross_val_score(estimator=clf,
X=X_train,
y=y_train,
cv=10,
scoring='roc_auc')
print("ROC AUC: %0.2f (+/- %0.2f) [%s]"
% (scores.mean(), scores.std(), label))
####################################
10-fold cross validation:
ROC AUC: 0.87 (+/- 0.17) [Logistic regression]
ROC AUC: 0.89 (+/- 0.16) [Decision tree]
ROC AUC: 0.88 (+/- 0.15) [KNN]
3.Finally the most exciting part! Majority Voting Time!
# Majority Rule (hard) Voting
mv_clf = MajorityVoteClassifier(classifiers=[pipe1, clf2, pipe3])
clf_labels += ['Majority voting']
all_clf = [pipe1, clf2, pipe3, mv_clf]
for clf, label in zip(all_clf, clf_labels):
scores = cross_val_score(estimator=clf,
X=X_train,
y=y_train,
cv=10,
scoring='roc_auc')
print("ROC AUC: %0.2f (+/- %0.2f) [%s]"
% (scores.mean(), scores.std(), label))
-----------------------------------
ROC AUC: 0.87 (+/- 0.17) [Logistic regression]
ROC AUC: 0.89 (+/- 0.16) [Decision tree]
ROC AUC: 0.88 (+/- 0.15) [KNN]
ROC AUC: 0.94 (+/- 0.13) [Majority voting]
As we can see, the performance of the MajorityVotingClassifier has substantially improved over the individual classifiers in the 10-fold cross-validation evaluation.
Evaluating and tuning the ensemble classifier
Compute a ROC curve from the test set
The test set is not used for model selection but only to report an unbiased estimate of the generalization performance of a classifier system.
code is as follow:
from matplotlib import pyplot as plt
from sklearn.metrics import roc_curve
from sklearn.metrics import auc
colors = ['black', 'orange', 'blue', 'green']
linestyles = [':', '--', '-.', '-']
for clf, label, clr, ls \
in zip(all_clf,
clf_labels, colors, linestyles):
# assuming the label of the positive class is 1
y_pred = clf.fit(X_train,
y_train).predict_proba(X_test)[:, 1]
fpr, tpr, thresholds = roc_curve(y_true=y_test,
y_score=y_pred)
roc_auc = auc(x=fpr, y=tpr)
plt.plot(fpr, tpr,
color=clr,
linestyle=ls,
label='%s (auc = %0.2f)' % (label, roc_auc))
plt.legend(loc='lower right')
plt.plot([0, 1], [0, 1],
linestyle='--',
color='gray',
linewidth=2)
plt.xlim([-0.1, 1.1])
plt.ylim([-0.1, 1.1])
plt.grid(alpha=0.5)
plt.xlabel('False positive rate (FPR)')
plt.ylabel('True positive rate (TPR)')
#plt.savefig('images/07_04', dpi=300)
plt.show()
Plot the decision region
sc = StandardScaler()
X_train_std = sc.fit_transform(X_train)
from itertools import product
all_clf = [pipe1, clf2, pipe3, mv_clf]
x_min = X_train_std[:, 0].min() - 1
x_max = X_train_std[:, 0].max() + 1
y_min = X_train_std[:, 1].min() - 1
y_max = X_train_std[:, 1].max() + 1
xx, yy = np.meshgrid(np.arange(x_min, x_max, 0.1),
np.arange(y_min, y_max, 0.1))
f, axarr = plt.subplots(nrows=2, ncols=2,
sharex='col',
sharey='row',
figsize=(7, 5))
for idx, clf, tt in zip(product([0, 1], [0, 1]),
all_clf, clf_labels):
clf.fit(X_train_std, y_train)
Z = clf.predict(np.c_[xx.ravel(), yy.ravel()])
Z = Z.reshape(xx.shape)
axarr[idx[0], idx[1]].contourf(xx, yy, Z, alpha=0.3)
axarr[idx[0], idx[1]].scatter(X_train_std[y_train==0, 0],
X_train_std[y_train==0, 1],
c='blue',
marker='^',
s=50)
axarr[idx[0], idx[1]].scatter(X_train_std[y_train==1, 0],
X_train_std[y_train==1, 1],
c='green',
marker='o',
s=50)
axarr[idx[0], idx[1]].set_title(tt)
plt.text(-3.5, -5.,
s='Sepal width [standardized]',
ha='center', va='center', fontsize=12)
plt.text(-12.5, 4.5,
s='Petal length [standardized]',
ha='center', va='center',
fontsize=12, rotation=90)
#plt.savefig('images/07_05', dpi=300)
plt.show()
Grid Search
Before actully setting out to dive into grid_searchCV, let’s have a glimpse of get a basic idea about how we can access the individual parameters inside a GridSearch object:
mv_clf.get_params()
--------------------------------------
{'pipeline-1': Pipeline(memory=None,
steps=[('sc', StandardScaler(copy=True, with_mean=True, with_std=True)), ['clf', LogisticRegression(C=0.001, class_weight=None, dual=False, fit_intercept=True,
intercept_scaling=1, max_iter=100, multi_class='ovr', n_jobs=1,
penalty='l2', random_state=1, solver='liblinear', tol=0.0001,
verbose=0, warm_start=False)]]),
'decisiontreeclassifier': DecisionTreeClassifier(class_weight=None, criterion='entropy', max_depth=1,
max_features=None, max_leaf_nodes=None,
min_impurity_decrease=0.0, min_impurity_split=None,
min_samples_leaf=1, min_samples_split=2,
min_weight_fraction_leaf=0.0, presort=False, random_state=0,
splitter='best'),
'pipeline-2': Pipeline(memory=None,
steps=[('sc', StandardScaler(copy=True, with_mean=True, with_std=True)), ['clf', KNeighborsClassifier(algorithm='auto', leaf_size=30, metric='minkowski',
metric_params=None, n_jobs=1, n_neighbors=1, p=2,
weights='uniform')]]),
'pipeline-1__memory': None,
'pipeline-1__steps': [('sc',
StandardScaler(copy=True, with_mean=True, with_std=True)),
['clf',
LogisticRegression(C=0.001, class_weight=None, dual=False, fit_intercept=True,
intercept_scaling=1, max_iter=100, multi_class='ovr', n_jobs=1,
penalty='l2', random_state=1, solver='liblinear', tol=0.0001,
verbose=0, warm_start=False)]],
'pipeline-1__sc': StandardScaler(copy=True, with_mean=True, with_std=True),
'pipeline-1__clf': LogisticRegression(C=0.001, class_weight=None, dual=False, fit_intercept=True,
intercept_scaling=1, max_iter=100, multi_class='ovr', n_jobs=1,
penalty='l2', random_state=1, solver='liblinear', tol=0.0001,
verbose=0, warm_start=False),
'pipeline-1__sc__copy': True,
'pipeline-1__sc__with_mean': True,
'pipeline-1__sc__with_std': True,
'pipeline-1__clf__C': 0.001,
'pipeline-1__clf__class_weight': None,
'pipeline-1__clf__dual': False,
'pipeline-1__clf__fit_intercept': True,
'pipeline-1__clf__intercept_scaling': 1,
'pipeline-1__clf__max_iter': 100,
'pipeline-1__clf__multi_class': 'ovr',
'pipeline-1__clf__n_jobs': 1,
'pipeline-1__clf__penalty': 'l2',
'pipeline-1__clf__random_state': 1,
'pipeline-1__clf__solver': 'liblinear',
'pipeline-1__clf__tol': 0.0001,
'pipeline-1__clf__verbose': 0,
'pipeline-1__clf__warm_start': False,
'decisiontreeclassifier__class_weight': None,
'decisiontreeclassifier__criterion': 'entropy',
'decisiontreeclassifier__max_depth': 1,
'decisiontreeclassifier__max_features': None,
'decisiontreeclassifier__max_leaf_nodes': None,
'decisiontreeclassifier__min_impurity_decrease': 0.0,
'decisiontreeclassifier__min_impurity_split': None,
'decisiontreeclassifier__min_samples_leaf': 1,
'decisiontreeclassifier__min_samples_split': 2,
'decisiontreeclassifier__min_weight_fraction_leaf': 0.0,
'decisiontreeclassifier__presort': False,
'decisiontreeclassifier__random_state': 0,
'decisiontreeclassifier__splitter': 'best',
'pipeline-2__memory': None,
'pipeline-2__steps': [('sc',
StandardScaler(copy=True, with_mean=True, with_std=True)),
['clf',
KNeighborsClassifier(algorithm='auto', leaf_size=30, metric='minkowski',
metric_params=None, n_jobs=1, n_neighbors=1, p=2,
weights='uniform')]],
'pipeline-2__sc': StandardScaler(copy=True, with_mean=True, with_std=True),
'pipeline-2__clf': KNeighborsClassifier(algorithm='auto', leaf_size=30, metric='minkowski',
metric_params=None, n_jobs=1, n_neighbors=1, p=2,
weights='uniform'),
'pipeline-2__sc__copy': True,
'pipeline-2__sc__with_mean': True,
'pipeline-2__sc__with_std': True,
'pipeline-2__clf__algorithm': 'auto',
'pipeline-2__clf__leaf_size': 30,
'pipeline-2__clf__metric': 'minkowski',
'pipeline-2__clf__metric_params': None,
'pipeline-2__clf__n_jobs': 1,
'pipeline-2__clf__n_neighbors': 1,
'pipeline-2__clf__p': 2,
'pipeline-2__clf__weights': 'uniform'}
Now let’s tune the inverse regularization parameter of the logistic regression classifier and the dicision tree depth via a grid search for demonstration purpose.
from sklearn.model_selection import GridSearchCV
params = {'decisiontreeclassifier__max_depth': [1, 2],
'pipeline-1__clf__C': [0.001, 0.1, 100.0]}
grid = GridSearchCV(estimator=mv_clf,
param_grid=params,
cv=10,
scoring='roc_auc')
grid.fit(X_train, y_train)
for r, _ in enumerate(grid.cv_results_['mean_test_score']):
print("%0.3f +/- %0.2f %r"
% (grid.cv_results_['mean_test_score'][r],
grid.cv_results_['std_test_score'][r] / 2.0,
grid.cv_results_['params'][r]))
----------------------------------------
0.933 +/- 0.07 {'decisiontreeclassifier__max_depth': 1, 'pipeline-1__clf__C': 0.001}
0.947 +/- 0.07 {'decisiontreeclassifier__max_depth': 1, 'pipeline-1__clf__C': 0.1}
0.973 +/- 0.04 {'decisiontreeclassifier__max_depth': 1, 'pipeline-1__clf__C': 100.0}
0.947 +/- 0.07 {'decisiontreeclassifier__max_depth': 2, 'pipeline-1__clf__C': 0.001}
0.947 +/- 0.07 {'decisiontreeclassifier__max_depth': 2, 'pipeline-1__clf__C': 0.1}
0.973 +/- 0.04 {'decisiontreeclassifier__max_depth': 2, 'pipeline-1__clf__C': 100.0}
print('Best parameters: %s' % grid.best_params_)
print('Accuracy: %.2f' % grid.best_score_)
----------------------------------------
Best parameters: {'decisiontreeclassifier__max_depth': 1, 'pipeline-1__clf__C': 100.0}
Accuracy: 0.97
To get our best performing module:
grid.best_estimator_.classifiers
mv_clf = grid.best_estimator_
mv_clf.set_params(**grid.best_estimator_.get_params())
mv_clf
-------------------------------
MajorityVoteClassifier(classifiers=[Pipeline(memory=None,
steps=[('sc',
StandardScaler(copy=True,
with_mean=True,
with_std=True)),
('clf',
LogisticRegression(C=100.0,
class_weight=None,
dual=False,
fit_intercept=True,
intercept_scaling=1,
l1_ratio=None,
max_iter=100,
multi_class='warn',
n_jobs=None,
penalty='l2',
random_state=1,
solver='lbfgs',
tol=0.0001,
verbose=0,...
min_weight_fraction_leaf=0.0,
presort=False,
random_state=0,
splitter='best'),
Pipeline(memory=None,
steps=[('sc',
StandardScaler(copy=True,
with_mean=True,
with_std=True)),
('clf',
KNeighborsClassifier(algorithm='auto',
leaf_size=30,
metric='minkowski',
metric_params=None,
n_jobs=None,
n_neighbors=1,
p=2,
weights='uniform'))],
verbose=False)],
vote='classlabel', weights=None)
Bagging: for bootstrap sample

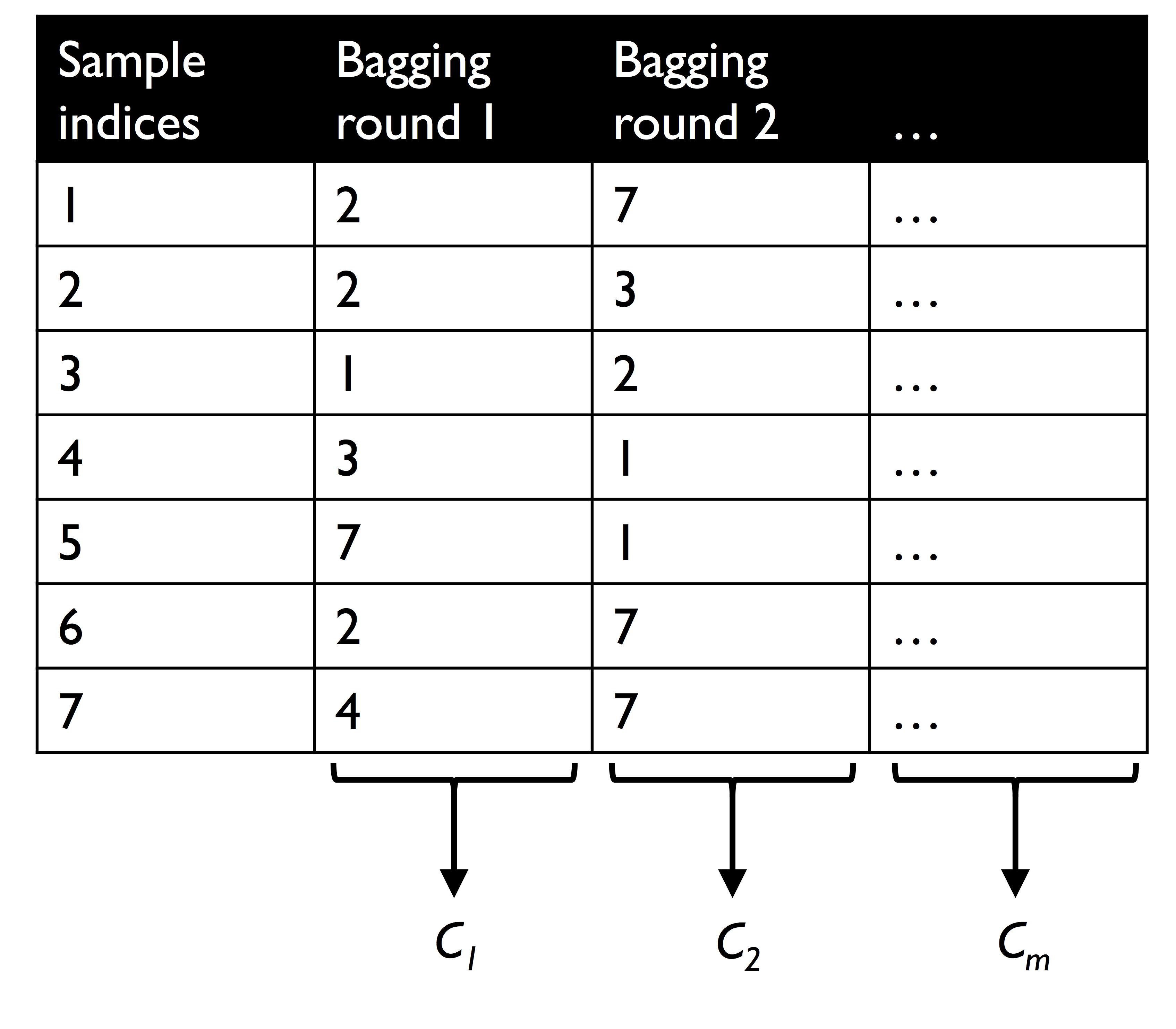

The idea of bagging is nothing more than Majority voting except we draw bootstrap samples(ramdom samples with repalcement) from the training set, which can be expressed as the following graph:
Here is a more concrete example:
1.Introduce the Wine dataset
import pandas as pd
df_wine = pd.read_csv('https://archive.ics.uci.edu/ml/'
'machine-learning-databases/wine/wine.data',
header=None)
df_wine.columns = ['Class label', 'Alcohol', 'Malic acid', 'Ash',
'Alcalinity of ash', 'Magnesium', 'Total phenols',
'Flavanoids', 'Nonflavanoid phenols', 'Proanthocyanins',
'Color intensity', 'Hue', 'OD280/OD315 of diluted wines',
'Proline']
# if the Wine dataset is temporarily unavailable from the
# UCI machine learning repository, un-comment the following line
# of code to load the dataset from a local path:
# df_wine = pd.read_csv('wine.data', header=None)
# drop 1 class
df_wine = df_wine[df_wine['Class label'] != 1]
y = df_wine['Class label'].values
X = df_wine[['Alcohol', 'OD280/OD315 of diluted wines']].values
2.encode the class labels into binary form and split the dataset:
from sklearn.preprocessing import LabelEncoder
from sklearn.model_selection import train_test_split
le = LabelEncoder()
y = le.fit_transform(y)
X_train, X_test, y_train, y_test =\
train_test_split(X, y,
test_size=0.2,
random_state=1,
stratify=y)
3.creating a bagging classifier:
from sklearn.ensemble import BaggingClassifier
from sklearn.tree import DecisionTreeClassifier
tree = DecisionTreeClassifier(criterion='entropy',
max_depth=None,
random_state=1)
bag = BaggingClassifier(base_estimator=tree,
n_estimators=500,
max_samples=1.0,
max_features=1.0,
bootstrap=True,
bootstrap_features=False,
n_jobs=1,
random_state=1)
4.calculate the accuracy score on the training and test dataset:
from sklearn.metrics import accuracy_score
tree = tree.fit(X_train, y_train)
y_train_pred = tree.predict(X_train)
y_test_pred = tree.predict(X_test)
tree_train = accuracy_score(y_train, y_train_pred)
tree_test = accuracy_score(y_test, y_test_pred)
print('Decision tree train/test accuracies %.3f/%.3f'
% (tree_train, tree_test))
bag = bag.fit(X_train, y_train)
y_train_pred = bag.predict(X_train)
y_test_pred = bag.predict(X_test)
bag_train = accuracy_score(y_train, y_train_pred)
bag_test = accuracy_score(y_test, y_test_pred)
print('Bagging train/test accuracies %.3f/%.3f'
% (bag_train, bag_test))
---------------------------------------
Decision tree train/test accuracies 1.000/0.833
Bagging train/test accuracies 1.000/0.917
5.Conclusion:
On the one hand, although the unpruned decision tree predicts all training samples correctly with an accuracy of 1.0, but the substantially lower test accuracy indicates that the high variance (overfittting) of the model.
On the other hand, the bagging classifier has a substantially better generalization performance as estimated on the test set.
6.Visualizaiton
import numpy as np
import matplotlib.pyplot as plt
x_min = X_train[:, 0].min() - 1
x_max = X_train[:, 0].max() + 1
y_min = X_train[:, 1].min() - 1
y_max = X_train[:, 1].max() + 1
xx, yy = np.meshgrid(np.arange(x_min, x_max, 0.1),
np.arange(y_min, y_max, 0.1))
f, axarr = plt.subplots(nrows=1, ncols=2,
sharex='col',
sharey='row',
figsize=(8, 3))
for idx, clf, tt in zip([0, 1],
[tree, bag],
['Decision tree', 'Bagging']):
clf.fit(X_train, y_train)
Z = clf.predict(np.c_[xx.ravel(), yy.ravel()])
Z = Z.reshape(xx.shape)
axarr[idx].contourf(xx, yy, Z, alpha=0.3)
axarr[idx].scatter(X_train[y_train == 0, 0],
X_train[y_train == 0, 1],
c='blue', marker='^')
axarr[idx].scatter(X_train[y_train == 1, 0],
X_train[y_train == 1, 1],
c='green', marker='o')
axarr[idx].set_title(tt)
axarr[0].set_ylabel('Alcohol', fontsize=12)
plt.text(10.2, -0.5,
s='OD280/OD315 of diluted wines',
ha='center', va='center', fontsize=12)
plt.tight_layout()
#plt.savefig('images/07_08.png', dpi=300, bbox_inches='tight')
plt.show()
7.Summary:
Bagging algorithm is actually an effective approach to reduce the variance of the model. However, it is ineffective in reducing model bias. Therefore , we are supposed to choose an ensemble of classifiers with low bias, such as unpruned decision trees.
Leveraging weak learners via adaptive boosting
Basic concepts:
1.weak learners: very simple classifiers consisting the ensemble model. Which have a slight performance advantage over random gussing.
2.key concept behind boosting: to let the weak learners subsequently learn from misclassified samples to improve the performance of the whole.However, there is a controversy over the ability of oraginal boosting and whether it is efficient in decreasing variance .
Now let’s concentrate on the star today: Adaboost
Adaptive boosting uses the complete training set to train the weak learner where the training samples are reweighted in each iteration to build a strong classifier that learns from the mistakes of the previous weak learners in the ensemble.

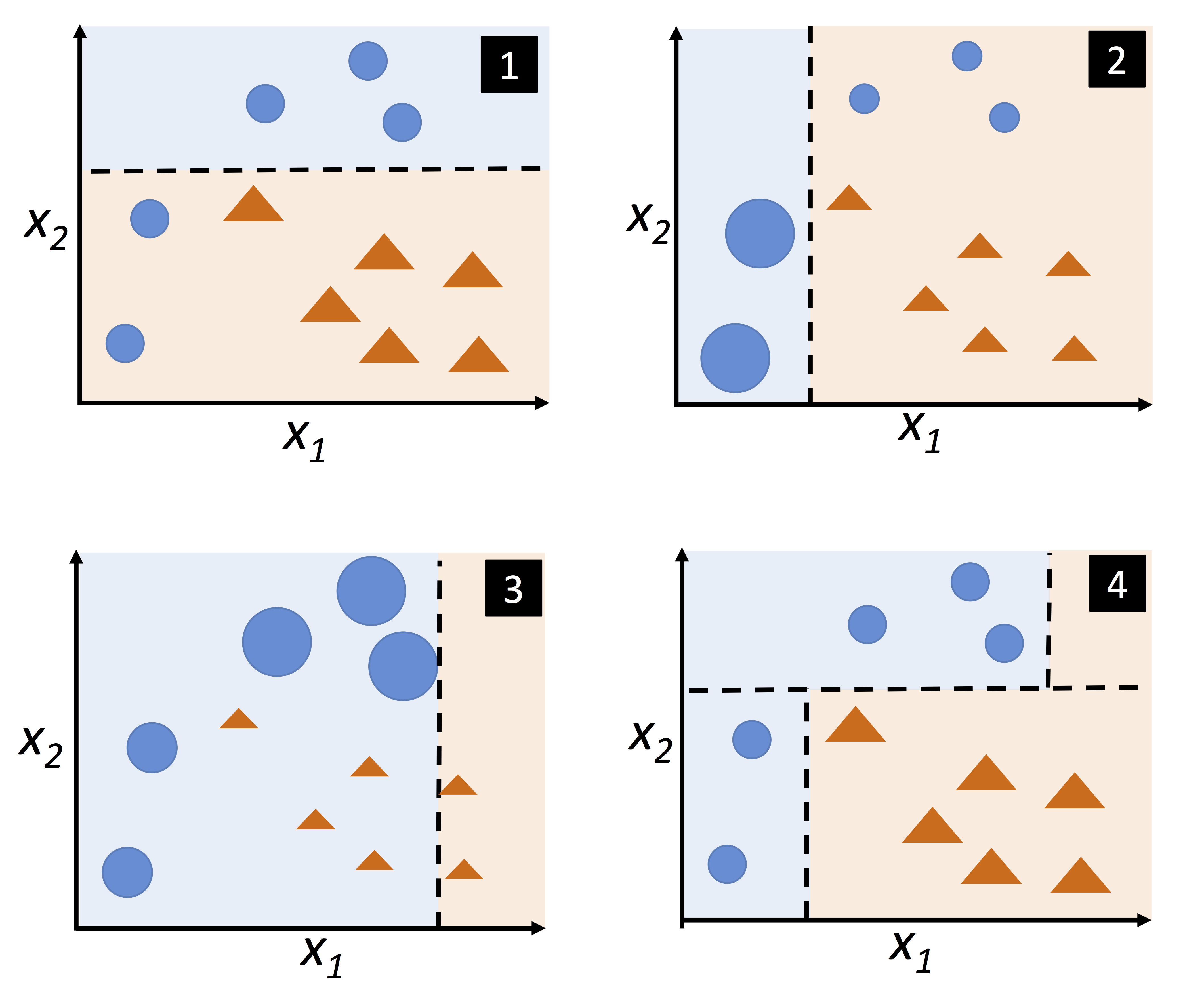

The first three pictures show the three rounds of classification that all make some mistakes. Each round there is any misclassified sample, we assign it a larger weight(Furthermore, lower the weight of the correctly calssified samples) so that it could be classified correctly in the coming round. Assuming that our Adaboost ensemble only consists of 3 rounds of boosting, we would combine the three weak learners trained on different reweighted subsets by a weighted majority vote.
The steps are as follows:
- Set weight vector to uniform weights where
- For in th boosting rounds, do the followings:
- Train a weighted weak learner: = train
- Predict the class labels: = predict
- Compute weighted error rate: =
- Compute coefficient:
- Update weights:
- Normalize weight to sum to 1:
- Compute final prediction: .
It may be a little bit overwhelming to do all the maths and programming but, luckily, sklearn has also implemented AdaBoostClassifier so you don’t need to worry about it!
1.building an AdaBoostClassifier
from sklearn.ensemble import AdaBoostClassifier
tree = DecisionTreeClassifier(criterion='entropy',
max_depth=1,
random_state=1)
ada = AdaBoostClassifier(base_estimator=tree,
n_estimators=500,
learning_rate=0.1,
random_state=1)
2.train and compare it with individual decision tree model
tree = tree.fit(X_train, y_train)
y_train_pred = tree.predict(X_train)
y_test_pred = tree.predict(X_test)
tree_train = accuracy_score(y_train, y_train_pred)
tree_test = accuracy_score(y_test, y_test_pred)
print('Decision tree train/test accuracies %.3f/%.3f'
% (tree_train, tree_test))
ada = ada.fit(X_train, y_train)
y_train_pred = ada.predict(X_train)
y_test_pred = ada.predict(X_test)
ada_train = accuracy_score(y_train, y_train_pred)
ada_test = accuracy_score(y_test, y_test_pred)
print('AdaBoost train/test accuracies %.3f/%.3f'
% (ada_train, ada_test))
---------------------------------------------
Decision tree train/test accuracies 0.916/0.875
AdaBoost train/test accuracies 1.000/0.917
3.visualization
x_min, x_max = X_train[:, 0].min() - 1, X_train[:, 0].max() + 1
y_min, y_max = X_train[:, 1].min() - 1, X_train[:, 1].max() + 1
xx, yy = np.meshgrid(np.arange(x_min, x_max, 0.1),
np.arange(y_min, y_max, 0.1))
f, axarr = plt.subplots(1, 2, sharex='col', sharey='row', figsize=(8, 3))
for idx, clf, tt in zip([0, 1],
[tree, ada],
['Decision tree', 'AdaBoost']):
clf.fit(X_train, y_train)
Z = clf.predict(np.c_[xx.ravel(), yy.ravel()])
Z = Z.reshape(xx.shape)
axarr[idx].contourf(xx, yy, Z, alpha=0.3)
axarr[idx].scatter(X_train[y_train == 0, 0],
X_train[y_train == 0, 1],
c='blue', marker='^')
axarr[idx].scatter(X_train[y_train == 1, 0],
X_train[y_train == 1, 1],
c='green', marker='o')
axarr[idx].set_title(tt)
axarr[0].set_ylabel('Alcohol', fontsize=12)
plt.text(10.2, -0.5,
s='OD280/OD315 of diluted wines',
ha='center', va='center', fontsize=12)
plt.tight_layout()
#plt.savefig('images/07_11.png', dpi=300, bbox_inches='tight')
plt.show()
Summary
It is worth noting that ensemble learning increases the computational complexity compared to individual classifiers. In practice, we need to think carefully whether we want to pay the price of increased computational costs for an often modest improvement of predictive performance.
Over!
Thank you for your precise time and patience and also thanks for the amazing book written by Sebastian Raschka!
来源：CSDN
作者：Flying Squirrel
链接：https://blog.csdn.net/weixin_45783752/article/details/104072896
