python Networkx绘图5

参考Link：
（10）Python利用igraph绘制复杂网络聚类（社区检测）结果图
https://blog.csdn.net/liuhuan323/article/details/78936781

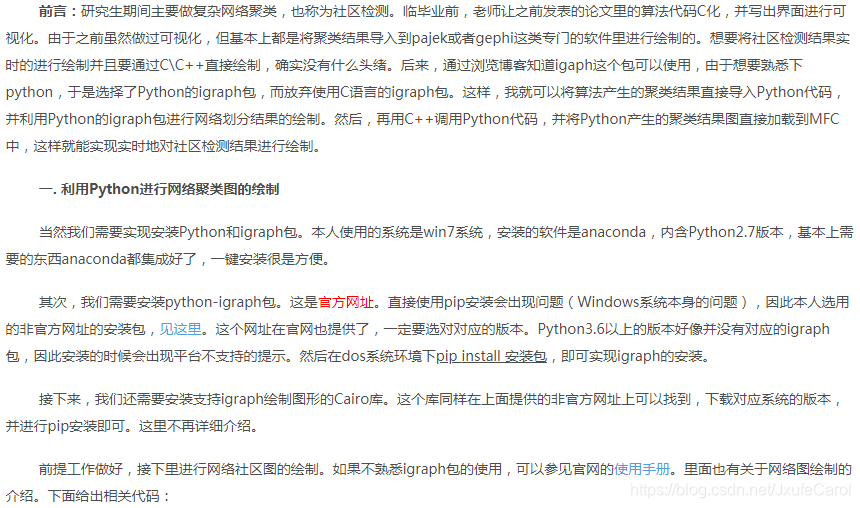

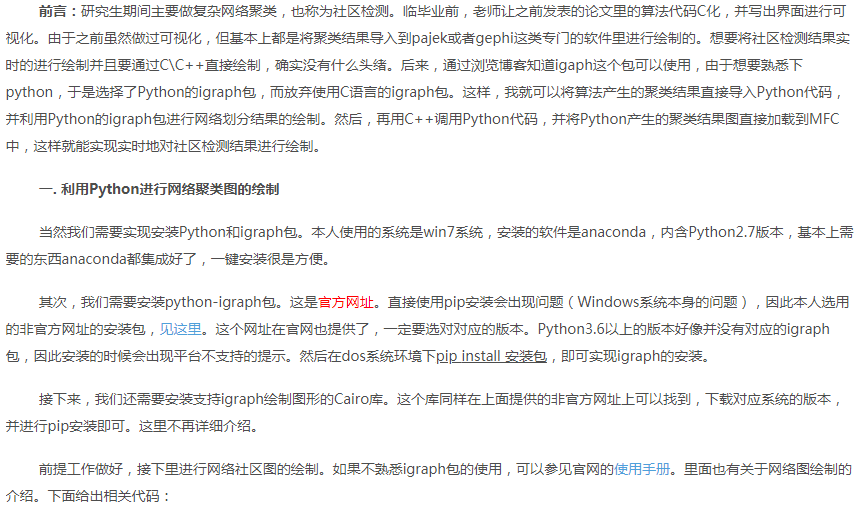

# Python 2.7

from igraph import *
from PIL import Image

colors_type = ["yellow", "red", "green", "coral", "alice blue", "cyan", "pink",
"gray", "blue", "green yellow", "orange", "light blue", "hot pink", "light green", "gold"]

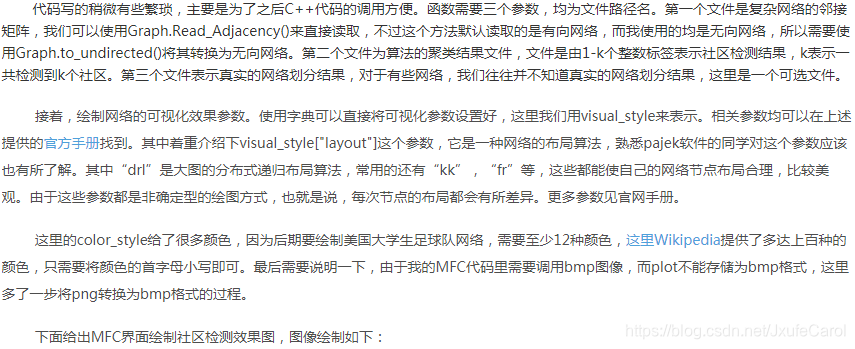

def PlotNetworks(net_file, detected_label, real_label = "Unknown Type"):
	## read files
	network = Graph.Read_Adjacency(net_file)
	Graph.to_undirected(network)
	f1 = open(detected_label)
	line = f1.readline()
	line = line.strip()
	str_line = line.split('\t')
	dlabel = [int(ele) for ele in str_line]
	network.vs["dlabel"] = dlabel
	if(real_label != "Unknown Type"):
		f2 = open(real_label)
		line = f2.readline()
		line = line.strip()
		str_line = line.split('\t')
		rlabel = [int(ele) for ele in str_line]
		network.vs["rlabel"] = rlabel

	# plot networks
	nnodes = len(network.vs)
	network.vs["name"] = [str(i+1) for i in range(nnodes)]

	layout = network.layout("drl")
	visual_style = {}
	if(nnodes < 100):
		visual_style["vertex_size"] = 22
	else:
		visual_style["vertex_size"] = 18
	visual_style["vertex_label"] = network.vs["name"]
	visual_style["layout"] = layout
	visual_style["bbox"] = (500,500)
	visual_style["margin"] = 20
	visual_style["edge_curved"] = 0.3
	visual_style["vertex_color"] = [colors_type[i-1] for i in network.vs["dlabel"]]
	plot(network, "social_network1.png", **visual_style)
	figure1 = Image.open("social_network1.png")
	figure1.save("social_network1.bmp")
	if(real_label != "Unknown Type"):
		visual_style["vertex_color"] = [colors_type[i-1] for i in network.vs["rlabel"]]
		plot(network, "social_network2.png", **visual_style)
		figure2 = Image.open("social_network2.png")
		figure2.save("social_network2.bmp")

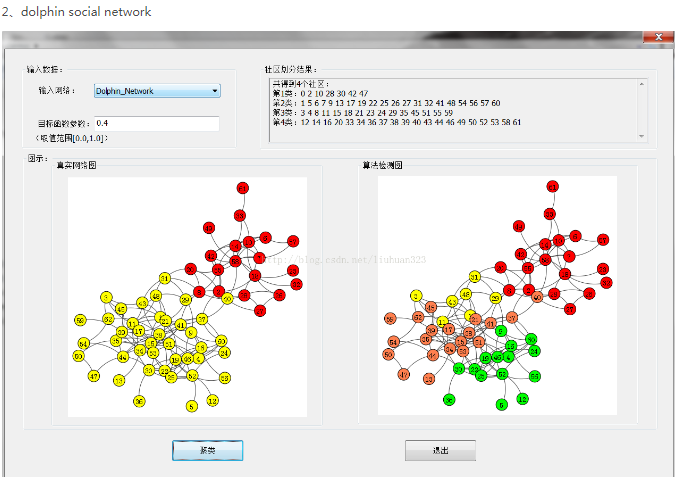

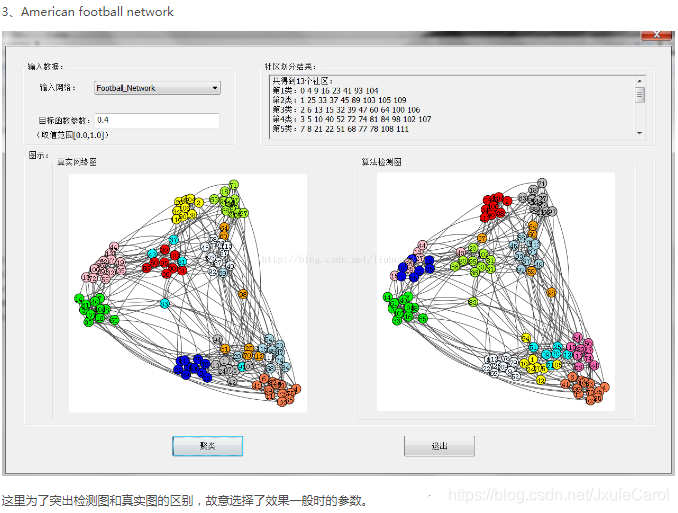

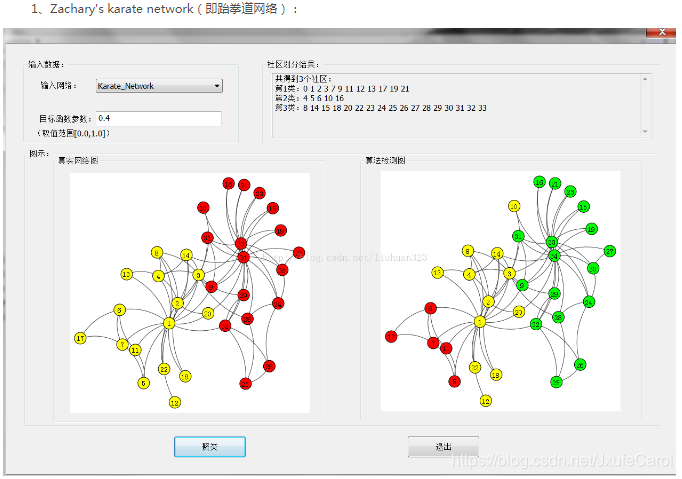

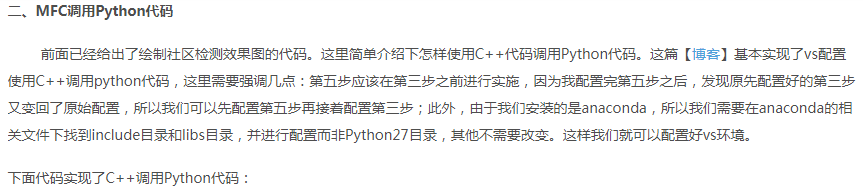

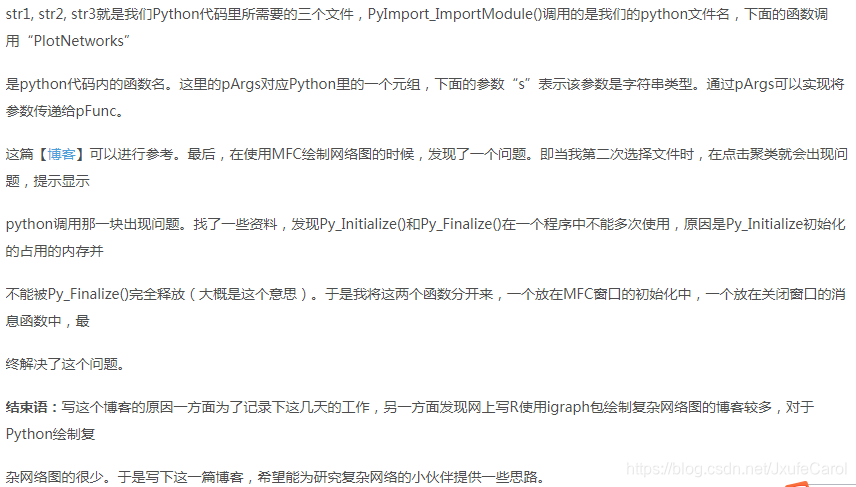

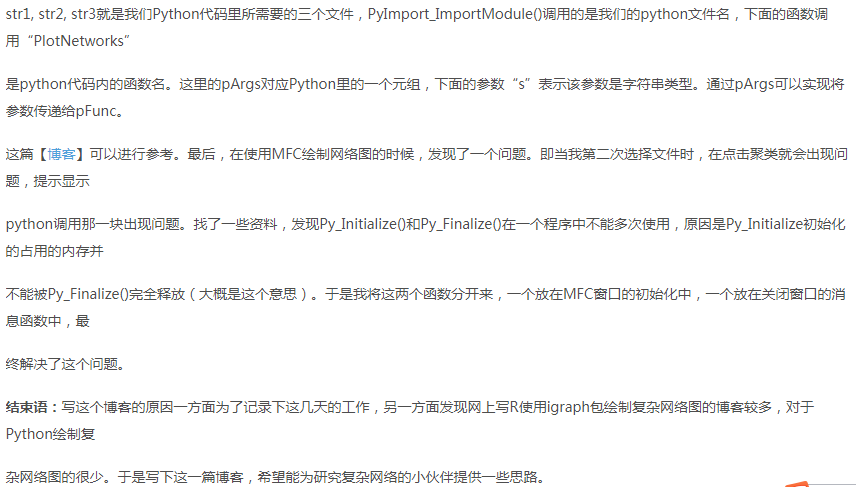

void callPython(char *str1, char *str2, char *str3)
{
	Py_Initialize();

	PyObject *pModule = NULL;
	PyObject *pFunc = NULL;
	pModule = PyImport_ImportModule("PlotNetworks");
	pFunc = PyObject_GetAttrString(pModule, "PlotNetworks");
	PyObject *pArgs = PyTuple_New(3);
	PyTuple_SetItem(pArgs, 0, Py_BuildValue("s", str1));
	PyTuple_SetItem(pArgs, 1, Py_BuildValue("s", str2));
	PyTuple_SetItem(pArgs, 2, Py_BuildValue("s", str3));
	PyEval_CallObject(pFunc, pArgs);
	Py_Finalize();
}
