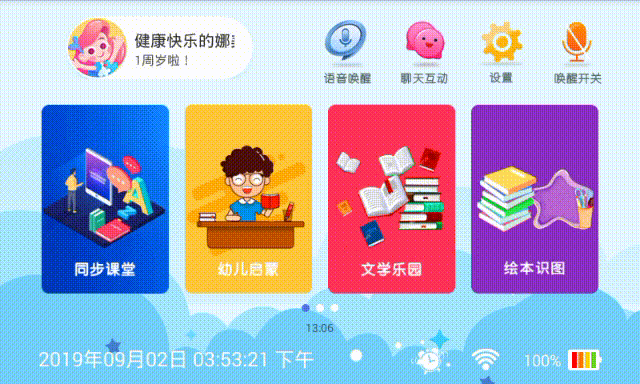

上图先：
采用3个布局文件的形式设置滑动页面
xml布局：
1 <android.support.v4.view.ViewPager 2 android:id="@+id/vp_robot_main" 3 android:layout_width="match_parent" 4 android:layout_height="236dp"> 5 6 </android.support.v4.view.ViewPager> 7 8 <!--小圆点--> 9 <LinearLayout 10 android:id="@+id/viewGroup" 11 android:layout_width="match_parent" 12 android:layout_height="33dp" 13 android:layout_alignParentBottom="true" 14 android:gravity="center" 15 android:orientation="vertical"> 16 17 <LinearLayout 18 android:layout_width="wrap_content" 19 android:layout_height="wrap_content" 20 android:layout_marginTop="3dip" 21 android:orientation="horizontal"> 22 23 24 <View 25 android:id="@+id/dot_1" 26 android:layout_width="10dp" 27 android:layout_height="10dp" 28 android:layout_marginLeft="4dip" 29 android:layout_marginRight="4dip" 30 android:background="@drawable/dot_normal" /> 31 32 <View 33 android:id="@+id/dot_2" 34 android:layout_width="10dp" 35 android:layout_height="10dp" 36 android:layout_marginLeft="4dip" 37 android:layout_marginRight="4dip" 38 android:background="@drawable/dot_normal" > 39 40 </View> 41 42 <View 43 android:id="@+id/dot_3" 44 android:layout_width="10dp" 45 android:layout_height="10dp" 46 android:layout_marginLeft="4dip" 47 android:layout_marginRight="4dip" 48 android:background="@drawable/dot_normal" /> 49 </LinearLayout> 50 </LinearLayout>
绑定子页面：viewpager_1, viewpager_2, viewpager_3 这三个子布局需要另外创建；
以及添加小圆点至list里面。
1 //设置viewpager布局 2 vp_robot_main = contentView.findViewById(R.id.vp_robot_main); 3 4 views = new ArrayList<>(); 5 LayoutInflater mLI = LayoutInflater.from(this); 6 View view1 = mLI.inflate(R.layout.viewpager_1,null); 7 View view2 = mLI.inflate(R.layout.viewpager_2,null); 8 View view3 = mLI.inflate(R.layout.viewpager_3,null); 9 views.add(view1); 10 views.add(view2); 11 views.add(view3); 12 //小圆点 13 dots = new ArrayList<>(); 14 dots.add(findViewById(R.id.dot_1)); 15 dots.add(findViewById(R.id.dot_2)); 16 dots.add(findViewById(R.id.dot_3));
1 /**
2 * 配置主页adapter
3 */
4 private void setMainAdapter() {
5
6 MyViewPagerAdapter myViewPagerAdapter = new MyViewPagerAdapter(this,views,mainItemModelList);
7 vp_robot_main.setAdapter(myViewPagerAdapter);
8
9 //设置指示器状态
10 //小圆点选中状态
11 dots.get(0).setBackgroundResource(R.drawable.dot_focused);
12 vp_robot_main.setOnPageChangeListener(new ViewPager.OnPageChangeListener() {
13 @Override
14 public void onPageScrolled(int i, float v, int i1) {
15
16 }
17
18 @Override
19 public void onPageSelected(int position) {
20
21 dots.get(oldPosition).setBackgroundResource(R.drawable.dot_normal);
22 dots.get(position).setBackgroundResource(R.drawable.dot_focused);
23 oldPosition = position;
24 }
25
26 @Override
27 public void onPageScrollStateChanged(int i) {
28
29 }
30 });
31 }
自定义viewpager的adapter：
1 public class MyViewPagerAdapter extends PagerAdapter implements View.OnClickListener {
2 private Context mContext;
3 private List<View> views;
4 private List<MainItemModel> mainItemModels = new ArrayList<>();
5 //主页中的9个item
6 private ImageView image1,image2,image3,image4
7 ,image5,image6,image7,image8,image9;
8
9 public MyViewPagerAdapter(Context context, List<View> views, List<MainItemModel> mainItemModels){
10 this.mContext = context;
11 this.views = views;
12 this.mainItemModels = mainItemModels;
13
14 }
15 @Override
16 public int getCount() {
17 return views.size();
18 }
19
20 @Override
21 public boolean isViewFromObject(@NonNull View view, @NonNull Object object) {
22 return view == object;
23 }
24
25 @NonNull
26 @Override
27 public Object instantiateItem(@NonNull ViewGroup container, int position) {
28
29 KLog.d("这是instantiateItem");
30 container.addView(views.get(position));
31 switch (position){
32 case 0:
33 KLog.d("000");
34 image1 = views.get(0).findViewById(R.id.iv_image1);
35 image2 = views.get(0).findViewById(R.id.iv_image2);
36 image3 = views.get(0).findViewById(R.id.iv_image3);
37 image4 = views.get(0).findViewById(R.id.iv_image4);
38
39 image1.setTag(0);
40 image1.setOnClickListener(this);
41 image2.setTag(1);
42 image2.setOnClickListener(this);
43 image3.setTag(2);
44 image3.setOnClickListener(this);
45 image4.setTag(3);
46 image4.setOnClickListener(this);
47
48 break;
49
50 case 1:
51 KLog.d("111");
52 image5 = views.get(1).findViewById(R.id.iv_image5);
53 image6 = views.get(1).findViewById(R.id.iv_image6);
54 image7 = views.get(1).findViewById(R.id.iv_image7);
55 image8 = views.get(1).findViewById(R.id.iv_image8);
56 image5.setTag(4);
57 image5.setOnClickListener(this);
58 image6.setTag(5);
59 image6.setOnClickListener(this);
60 image7.setTag(6);
61 image7.setOnClickListener(this);
62 image8.setTag(7);
63 image8.setOnClickListener(this);
64 break;
65 case 2:
66 KLog.d("222");
67 image9 = views.get(2).findViewById(R.id.iv_image9);
68 image9.setTag(8);
69 image9.setOnClickListener(this);
70 break;
71 default:
72 break;
73 }
74 return views.get(position);
75 }
76
77 @Override
78 public void destroyItem(@NonNull ViewGroup container, int position, @NonNull Object object) {
79 container.removeView(views.get(position));
80 }
81
82 public void skipActivity(Class clz) {
83 if (!MyUtil.isFastDoubleClick()) {
84 startActivity(new Intent(mContext, clz));
85 }
86 }
87
88 public void onClick(View view){
89 int tag = (int) view.getTag();
90 switch(tag){
91 case 0:
92 if (AIChatManager.isQrDreamInitSuccess) {
93 AIChatManager.getInstance().startTTS("同步课堂");
94 }
95 skipActivity(SyncClassActivity.class);
96 break;
97 case 1:
98 if (AIChatManager.isQrDreamInitSuccess) {
99 AIChatManager.getInstance().startTTS("幼儿启蒙");
100 }
101 skipActivity(ChildEnlightenActivity.class);
102 break;
103 case 2:
104 if (AIChatManager.isQrDreamInitSuccess) {
105 AIChatManager.getInstance().startTTS("文学乐园");
106 }
107 skipActivity(LiteratureWorldActivity.class);
108 break;
109 case 3:
110 if (AIChatManager.isQrDreamInitSuccess) {
111 AIChatManager.getInstance().startTTS("绘本识图");
112 }
113 CSZJUtil.skipOtherApp(mContext, CSZJUtil.PICTUREBOOK_PACKAGE_NAME);
114 break;
115 case 4:
116 if (AIChatManager.isQrDreamInitSuccess) {
117 AIChatManager.getInstance().startTTS("数学乐园");
118 }
119 skipActivity(MathWorldActivity.class);
120 break;
121 case 5:
122 if (AIChatManager.isQrDreamInitSuccess) {
123 AIChatManager.getInstance().startTTS("英语乐园");
124 }
125 Intent inetnt = new Intent(mContext, NetworkResDisplayActivity.class);
126 inetnt.putExtra(AppConstants.NETWORK_RES_INTENT_KEY, AppConstants.NETWORK_RES_ENGLISH_SONG);
127 startActivity(inetnt);
128 break;
129 case 6:
130 if (AIChatManager.isQrDreamInitSuccess) {
131 AIChatManager.getInstance().startTTS("科学天地");
132 }
133 skipActivity(ScienceActivity.class);
134 break;
135 case 7:
136 if (AIChatManager.isQrDreamInitSuccess) {
137 AIChatManager.getInstance().startTTS("娱乐天地");
138 }
139 skipActivity(RecreationWorldActivity.class);
140 break;
141 case 8:
142 if (AIChatManager.isQrDreamInitSuccess) {
143 AIChatManager.getInstance().startTTS("百宝箱");
144 }
145 skipActivity(TreasureBoxActivity.class);
146 break;
147 default:
148 break;
149
150 }
151 }
152 }
