Net Framework2.0
C# 桥接模式（抽象和实现分开）
namespace Mes.Printing.Printers
{
/// <summary>
/// Label Printer.
/// </summary>
public interface ILabelPrinter
{
/// <summary>
/// Print label.
/// </summary>
/// <param name="labelContent">label content</param>
/// <returns></returns>
void BarCodePrint(string labelContent);
}
}
using System;
namespace Mes.Printing.Printers
{
/// <summary>
/// Base Printer Type.
/// </summary>
public abstract class BasePrinter : ILabelPrinter
{
#region Printer Name
private string _PrinterName;
/// <summary>
/// Get or set printer name.
/// </summary>
public string PrinterName
{
get { return _PrinterName; }
set { _PrinterName = value; }
}
#endregion
#region Device Name
private string _DeviceName;
/// <summary>
/// Get or set device name.
/// </summary>
public string DeviceName
{
get { return _DeviceName; }
set { _DeviceName = value; }
}
#endregion
#region SourcePath
private string _SourcePath;
public string SourcePath
{
get { return _SourcePath; }
set { _SourcePath = value; }
}
#endregion
#region Copies
private int _Copies;
public int Copies
{
get { return _Copies; }
set { _Copies = value; }
}
#endregion
#region Print
/// <summary>
/// Print label.
/// </summary>
/// <param name="labelContent">label content</param>
/// <returns></returns>
public void BarCodePrint(string labelContent)
{
if (Copies <= 0)
throw new ArgumentOutOfRangeException("copies", "The number of copies must be greater than 0.");
if (String.IsNullOrEmpty(PrinterName))
throw new ArgumentNullException("PrinterName");
//if (String.IsNullOrEmpty(DeviceName))
// throw new ArgumentNullException("DeviceName");
if (String.IsNullOrEmpty(SourcePath))
throw new ArgumentNullException("SourcePath");
if (String.IsNullOrEmpty(labelContent))
throw new ArgumentNullException("labelContent");
// Print Label
PrintLabel(PrinterName, DeviceName, SourcePath, labelContent, Copies);
}
#endregion
/// <summary>
/// Print label.
/// </summary>
/// <param name="printerName">user selected printer name(when tcp print, tcp ip address)</param>
/// <param name="targetPath">target path(when tcp print,tcp port)</param>
/// <param name="SourcePath">label file path</param>
/// <param name="labelContent">label content</param>
/// <param name="copies">print label copies</param>
/// <returns></returns>
protected abstract void PrintLabel(string printerName, string targetPath, string SourcePath, string labelContent, int copies);
}
}
using System;
using System.Collections.Generic;
using System.IO;
using System.Text;
using System.Threading;
using System.Configuration;
namespace Mes.Printing.Printers
{
/// <summary>
/// Zebra Printer.
/// </summary>
public abstract class ZebraPrinter : BasePrinter
{
private int _IntervalTime;
private int _IntervalDefaultTime = 0;
public ZebraPrinter()
{
_IntervalTime = String.IsNullOrEmpty(GetSettingValue("IntervalTime")) ? _IntervalDefaultTime : Convert.ToInt32(GetSettingValue("IntervalTime"));
}
private string GetSettingValue(string settingKey)
{
if (String.IsNullOrEmpty(settingKey))
return null;
string settingValue = ConfigurationManager.AppSettings[settingKey];
if (!String.IsNullOrEmpty(settingValue))
return settingValue;
return null;
}
/// <summary>
/// Send command data to printer.
/// </summary>
/// <param name="cmdData">Command Data</param>
//protected abstract void Print(byte[] cmdData);
/// <summary>
/// Send command data to printer.
/// </summary>
/// <param name="labelContent">Zebra CodeSoft Lab Detail Content</param>
protected abstract void Print(string labelContent);
/// <summary>
/// Print label.
/// </summary>
/// <param name="printerName">user selected printer name(when tcp print, tcp ip address)</param>
/// <param name="targetPath">target path(when tcp print,tcp port)</param>
/// <param name="SourcePath">label file path</param>
/// <param name="labelContent">label content</param>
/// <param name="copies">print label copies</param>
/// <returns></returns>
protected override void PrintLabel(string printerName, string targetPath, string SourcePath, string labelContent, int copies)
{
if (copies <= 0)
return;
// Send to Printer
for (int i = 0; i < copies; i++)
{
Print(labelContent);
if (_IntervalTime > 0)
Thread.Sleep(_IntervalTime);
}
}
}
}
using System;
using System.IO.Ports;
using HeT.Logging;
using System.Text;
namespace Mes.Printing.Printers
{
/// <summary>
/// Zebra Printer (Device Type is COM).
/// </summary>
public class ZebraPrinter_COM : ZebraPrinter
{
/// <summary>
/// Send command data to printer.
/// </summary>
/// <param name="zplText">Zebra CodeSoft Lab Detail Content</param>
protected override void Print(string zplText)
{
// Get Command Data
byte[] cmdData = Encoding.Default.GetBytes(zplText);
// Serial Port for Printer
SerialPort printerPort = null;
try
{
// Create Serial Port
printerPort = new SerialPort(DeviceName, 9600, Parity.None, 8, StopBits.One);
// Open Port
printerPort.Open();
// Write Command Data to Printer
printerPort.Write(cmdData, 0, cmdData.Length);
}
catch
{
LogService.Error(String.Format("{0}-{1}", "Printer_InvalidPrinter", DeviceName));
throw new Exception(String.Format("{0}-{1}", "Printer_InvalidPrinter", DeviceName));
}
finally
{
// Close Printer
if (printerPort != null && printerPort.IsOpen)
{
try
{
printerPort.Close();
}
catch { }
}
// Release Resource
if (printerPort != null)
printerPort.Dispose();
}
}
}
}
using System;
using System.Runtime.InteropServices;
using HeT.Logging;
using System.Text;
namespace Mes.Printing.Printers
{
/// <summary>
/// Zebra Printer (Device Type is DRV).
/// </summary>
public class ZebraPrinter_DRV : ZebraPrinter
{
#region Functions of winspool.Drv
/// <summary>
/// The DocInfo structure describes a document that will be printed.
/// </summary>
[StructLayout(LayoutKind.Sequential, CharSet = CharSet.Auto)]
private class DocInfo
{
/// <summary>
/// A string that specifies the name of the document.
/// </summary>
[MarshalAs(UnmanagedType.LPStr)]
public string DocName;
/// <summary>
/// A string that specifies the name of an output file. To print to a printer, set this to NULL.
/// </summary>
[MarshalAs(UnmanagedType.LPStr)]
public string OutputFile;
/// <summary>
/// A string that identifies the type of data used to record the document.
/// </summary>
[MarshalAs(UnmanagedType.LPStr)]
public string DataType;
}
/// <summary>
/// The OpenPrinter function retrieves a handle to the specified printer or print server or other types of handles in the print subsystem.
/// </summary>
/// <param name="printerName">A pointer to a null-terminated string that specifies the name of the printer or print server, the printer object, the XcvMonitor, or the XcvPort.</param>
/// <param name="pPrinter">A pointer to a variable that receives a handle (not thread safe) to the open printer or print server object.</param>
/// <param name="pDefault">A pointer to a PRINTER_DEFAULTS structure. This value can be NULL.</param>
/// <returns>If the function succeeds, the return value is true.</returns>
[DllImport("winspool.Drv", EntryPoint = "OpenPrinterA", SetLastError = true, CharSet = CharSet.Auto, ExactSpelling = true, CallingConvention = CallingConvention.StdCall)]
private static extern bool OpenPrinter([MarshalAs(UnmanagedType.LPStr)] string printerName, out IntPtr pPrinter, IntPtr pDefault);
/// <summary>
/// The ClosePrinter function closes the specified printer object.
/// </summary>
/// <param name="pPrinter">A handle to the printer object to be closed. This handle is returned by the OpenPrinter function.</param>
/// <returns>If the function succeeds, the return value is true.</returns>
[DllImport("winspool.Drv", EntryPoint = "ClosePrinter", SetLastError = true, ExactSpelling = true, CallingConvention = CallingConvention.StdCall)]
private static extern bool ClosePrinter(IntPtr pPrinter);
/// <summary>
/// The StartDocPrinter function notifies the print spooler that a document is to be spooled for printing.
/// </summary>
/// <param name="pPrinter">A handle to the printer. Use the OpenPrinter function to retrieve a printer handle.</param>
/// <param name="level">The version of the structure to which pDocInfo points. This value must be 1.</param>
/// <param name="pDocInfo">A pointer to a DocInfo structure that describes the document to print.</param>
/// <returns>If the function succeeds, the return value is true.</returns>
[DllImport("winspool.Drv", EntryPoint = "StartDocPrinterA", SetLastError = true, CharSet = CharSet.Auto, ExactSpelling = true, CallingConvention = CallingConvention.StdCall)]
private static extern bool StartDocPrinter(IntPtr pPrinter, Int32 level, [In, MarshalAs(UnmanagedType.LPStruct)] DocInfo pDocInfo);
/// <summary>
/// The EndDocPrinter function ends a print job for the specified printer.
/// </summary>
/// <param name="pPrinter">Handle to a printer for which the print job should be ended. Use the OpenPrinter function to retrieve a printer handle.</param>
/// <returns>If the function succeeds, the return value is true.</returns>
[DllImport("winspool.Drv", EntryPoint = "EndDocPrinter", SetLastError = true, ExactSpelling = true, CallingConvention = CallingConvention.StdCall)]
private static extern bool EndDocPrinter(IntPtr pPrinter);
/// <summary>
/// The StartPagePrinter function notifies the spooler that a page is about to be printed on the specified printer.
/// </summary>
/// <param name="pPrinter">Handle to a printer. Use the OpenPrinter function to retrieve a printer handle.</param>
/// <returns>If the function succeeds, the return value is true.</returns>
[DllImport("winspool.Drv", EntryPoint = "StartPagePrinter", SetLastError = true, ExactSpelling = true, CallingConvention = CallingConvention.StdCall)]
private static extern bool StartPagePrinter(IntPtr pPrinter);
/// <summary>
/// The EndPagePrinter function notifies the print spooler that the application is at the end of a page in a print job.
/// </summary>
/// <param name="pPrinter">Handle to a printer. Use the OpenPrinter function to retrieve a printer handle.</param>
/// <returns>If the function succeeds, the return value is true.</returns>
[DllImport("winspool.Drv", EntryPoint = "EndPagePrinter", SetLastError = true, ExactSpelling = true, CallingConvention = CallingConvention.StdCall)]
private static extern bool EndPagePrinter(IntPtr pPrinter);
/// <summary>
/// The WritePrinter function notifies the print spooler that data should be written to the specified printer.
/// </summary>
/// <param name="pPrinter">Handle to a printer. Use the OpenPrinter function to retrieve a printer handle.</param>
/// <param name="pBuf">A pointer to an array of bytes that contains the data that should be written to the printer.</param>
/// <param name="cbBuf">The size, in bytes, of the array.</param>
/// <param name="pcWritten">A value that receives the number of bytes of data that were written to the printer.</param>
/// <returns>If the function succeeds, the return value is true.</returns>
[DllImport("winspool.Drv", EntryPoint = "WritePrinter", SetLastError = true, ExactSpelling = true, CallingConvention = CallingConvention.StdCall)]
private static extern bool WritePrinter(IntPtr pPrinter, IntPtr pBuf, Int32 cbBuf, out Int32 pcWritten);
#endregion
/// <summary>
/// Send command data to printer.
/// </summary>
/// <param name="zplText">Zebra CodeSoft Lab Detail Content</param>
protected override void Print(string zplText)
{
// Get Command Data
byte[] cmdData = Encoding.Default.GetBytes(zplText);
// Command Data Length
int cbBuf = cmdData.Length;
// A pointer to unmanaged memory
IntPtr pBuf = IntPtr.Zero;
try
{
// Allocate unmanaged memory for command data
pBuf = Marshal.AllocCoTaskMem(cbBuf);
// Copy command data to the unmamaged memory
Marshal.Copy(cmdData, 0, pBuf, cbBuf);
// Send RAW data to Printer
SendBytesToPrinter(pBuf, cbBuf);
}
finally
{
// Release the unmamaged memory.
if (pBuf != IntPtr.Zero)
Marshal.FreeCoTaskMem(pBuf);
}
}
/// <summary>
/// Send bytes to printer.
/// </summary>
/// <param name="pBuf">A pointer to command data</param>
/// <param name="cbBuf">Command data length</param>
private void SendBytesToPrinter(IntPtr pBuf, Int32 cbBuf)
{
if (String.IsNullOrEmpty(PrinterName))
throw new InvalidOperationException("Printer Name Required.");
Int32 pcWritten = 0;
// A Pointer to Printer
IntPtr pPrinter = IntPtr.Zero;
// Doc Information
DocInfo pDocInfo = new DocInfo()
{
DocName = ".NET RAW Document",//"Label",
DataType = "RAW"
};
// Status Flags
bool _Opened = false;
bool _DocStarted = false;
bool _PageStarted = false;
try
{
// Open Printer
_Opened = OpenPrinter(PrinterName.Normalize(), out pPrinter, IntPtr.Zero);
if (_Opened)
{
// Start a Document
_DocStarted = StartDocPrinter(pPrinter, 1, pDocInfo);
if (_DocStarted)
{
// Start Page
_PageStarted = StartPagePrinter(pPrinter);
// Write Data to Printer
if (_PageStarted && !WritePrinter(pPrinter, pBuf, cbBuf, out pcWritten))
{
LogService.Error(String.Format("{0}-{1}", "Printer_InvalidPrinter", PrinterName));
throw new Exception(String.Format("{0}-{1}", "Printer_InvalidPrinter", PrinterName));
}
}
}
}
finally
{
// End Page
if (_PageStarted)
EndPagePrinter(pPrinter);
// End Document
if (_DocStarted)
EndDocPrinter(pPrinter);
// Close Printer
if (_Opened)
ClosePrinter(pPrinter);
}
}
}
}
using Microsoft.Office.Interop.Excel;
using System;
using System.Collections.Generic;
using System.Reflection;
using Microsoft.CSharp;
namespace Mes.Printing.Printers
{
/// <summary>
/// Zebra Printer (Device Type is Excel).
/// </summary>
public class ZebraPrinter_Excel : ZebraPrinter
{
/// <summary>
/// Send command data to printer.
/// </summary>
/// <param name="labelContent">Zebra CodeSoft Lab Detail Content</param>
protected override void Print(string labelContent)
{
// Declare excel variables.
Microsoft.Office.Interop.Excel.Application mExcel = null;
Microsoft.Office.Interop.Excel.Workbook mWorkbook = null;
Microsoft.Office.Interop.Excel.Worksheet mWorkSheet = null;
List<string> excelVariablesNameList = new List<string>();
try
{
// Initialize Excel for print.
InitializeExcel(mExcel, mWorkbook, mWorkSheet, excelVariablesNameList, SourcePath);
// Print barcode by excel.
PrintBarCodeByExcel(mExcel, mWorkbook, mWorkSheet, excelVariablesNameList, labelContent);
}
catch (Exception ex)
{
throw new Exception(ex.ToString());
}
}
private void InitializeExcel(Microsoft.Office.Interop.Excel.Application mExcel,
Microsoft.Office.Interop.Excel.Workbook mWorkbook,
Microsoft.Office.Interop.Excel.Worksheet mWorkSheet,
List<string> excelVariablesNameList,
string fileFullPath)
{
//if (!File.Exists(strLabelFilePath))
//{
// strResult = "Lable文件:" + strLabelFilePath + "不存在！";
// return strResult;
//}
#region Initialize Excel for print.
mExcel = new Microsoft.Office.Interop.Excel.Application();
//mExcel.Visible = true;
mWorkbook = mExcel.Application.Workbooks.Open(fileFullPath,
Missing.Value, Missing.Value, Missing.Value, Missing.Value, Missing.Value,
Missing.Value, Missing.Value, Missing.Value, Missing.Value, Missing.Value,
Missing.Value, Missing.Value, Missing.Value, Missing.Value);
mWorkSheet = new Worksheet();
mWorkSheet = (Microsoft.Office.Interop.Excel.Worksheet)mWorkbook.Worksheets[1];
// Empty all variables in EXCEL.
for (int i = 1; i <= mWorkbook.Names.Count; i++)
{
if (mWorkbook.Names.Item(i).Value.ToString().ToUpper().IndexOf("!#REF!") < 0 &&
mWorkbook.Names.Item(i).Name.ToString().ToUpper().IndexOf("PALLET SHEET") < 0 &&
mWorkbook.Names.Item(i).Name.ToString().ToUpper().IndexOf("PRINT_TITLES") < 0 &&
mWorkbook.Names.Item(i).Name.ToString().ToUpper().IndexOf("PRINT_AREA") < 0)
{
excelVariablesNameList.Add(mWorkbook.Names.Item(i).Name.ToUpper().Trim());
Microsoft.Office.Interop.Excel.Range MyRange = mExcel.get_Range(mWorkbook.Names.Item(i).Name, Type.Missing);
MyRange.Value2 = "";
}
}
#endregion
}
public void PrintBarCodeByExcel(Microsoft.Office.Interop.Excel.Application mExcel,
Microsoft.Office.Interop.Excel.Workbook mWorkbook,
Microsoft.Office.Interop.Excel.Worksheet mWorkSheet,
List<string> excelVariablesNameList,
string labelContent)
{
// Input is an array of strings, each member's format-》a:b:c:d；
string strResult = string.Empty;
string subTitle, mainTitle, labelVariableName, labelVariableValue;
string[] labelContentArr = labelContent.Split(';');
foreach (string strTemp in labelContentArr)
{
mainTitle = (strTemp.Split(':'))[0];//row["recordtype"].ToString();
switch (mainTitle)
{
case "TEMPFILENAME":
continue;
case "DETAIL":
subTitle = (strTemp.Split(':'))[1];
// Begin fill value.
if (subTitle == "BEGIN")
continue;
if (subTitle == "END")
{
//print label.
mWorkbook.PrintOut(Missing.Value, Missing.Value, Missing.Value, Missing.Value,
Missing.Value, Missing.Value, Missing.Value, Missing.Value);
strResult = "OK";
}
else
{
// Fill value.
labelVariableName = (strTemp.Split(':'))[2].Replace("@", "");
// In the old way, no * sign is needed.
//labelVariableValue = "*"+(strTemp.Split(':'))[3]+"*";
if (strTemp.Split(':').Length > 4)
{
//labelVariableValue = (strTemp.Split(':'))[3] + ":" + (strTemp.Split(':'))[4];
string v_Value_temp = strTemp;
int iIndex = 0;
iIndex = v_Value_temp.IndexOf(":");
v_Value_temp = v_Value_temp.Substring(iIndex + 1);
iIndex = v_Value_temp.IndexOf(":");
v_Value_temp = v_Value_temp.Substring(iIndex + 1);
iIndex = v_Value_temp.IndexOf(":");
v_Value_temp = v_Value_temp.Substring(iIndex + 1);
labelVariableValue = v_Value_temp;
}
else
{
labelVariableValue = (strTemp.Split(':'))[3];
}
if (excelVariablesNameList.Contains(labelVariableName.ToUpper().Trim()))
{
Microsoft.Office.Interop.Excel.Range MyRange = mExcel.get_Range(labelVariableName, Type.Missing);
MyRange.Value2 = labelVariableValue;
}
}
continue;
}
}
}
}
}
using HeT.Logging;
using LabelManager2;
using System;
using System.Collections.Generic;
using System.Configuration;
using System.Diagnostics;
using System.IO;
using System.Security.Cryptography;
using System.Threading;
namespace Mes.Printing.Printers
{
/// <summary>
/// Zebra Printer (Device Type is LabelManager2).
/// </summary>
public class ZebraPrinter_LabelManager2 : ZebraPrinter
{
private double _PrintBreakTime;
private double _PrintBreakDefaultTime = 2;
#region Single Instance
/// <summary>
/// Print break monitor timer.
/// </summary>
private Timer _PrintBreakMonitorTimer;
/// <summary>
/// Constructor.
/// </summary>
public ZebraPrinter_LabelManager2()
{
_PrintBreakTime = String.IsNullOrEmpty(GetSettingValue("PrintBreakTime")) ? _PrintBreakDefaultTime : Convert.ToDouble(GetSettingValue("PrintBreakTime"));
_PrintBreakMonitorTimer = new Timer(PrintBreakMonitorTimerCallback, null, 0, 1000);
}
private string GetSettingValue(string settingKey)
{
if (String.IsNullOrEmpty(settingKey))
return null;
string settingValue = ConfigurationManager.AppSettings[settingKey];
if (!String.IsNullOrEmpty(settingValue))
return settingValue;
return null;
}
/// <summary>
/// instance.
/// </summary>
private static ZebraPrinter_LabelManager2 _Instance;
/// <summary>
/// instance sync object.
/// </summary>
private static readonly object instanceSyncRoot = new object();
/// <summary>
/// Get ZebraPrinter_LabelManager2 instance.
/// </summary>
public static ZebraPrinter_LabelManager2 Instance
{
get
{
if (_Instance == null)
{
lock (instanceSyncRoot)
{
if (_Instance == null)
InitializeInstance();
}
}
return _Instance;
}
}
/// <summary>
/// Initialize Instance.
/// </summary>
public static void InitializeInstance()
{
_Instance = new ZebraPrinter_LabelManager2();
}
#endregion
#region PrintBreakMonitorTimerCallback
private readonly object monitorSyncRoot = new object();
/// <summary>
/// Print break monitor timer call back.
/// </summary>
/// <param name="state"></param>
private void PrintBreakMonitorTimerCallback(object state)
{
if (!System.Threading.Monitor.TryEnter(monitorSyncRoot))
return;
if (isPrintingActive)
return;
try
{
if (lblApp == null)
return;
// When last print time break more than 2 minutes, force close labelmanagers.
//if (printTimeLast.AddMinutes(2) <= System.DateTime.Now)
if (printTimeLast.AddMinutes(_PrintBreakTime) <= System.DateTime.Now)
{
if (lblApp != null)
{
// Force close all documents.
if (lblApp.Documents != null)
lblApp.Documents.CloseAll();
// Force quit labelmanager2.
lblApp.Quit();
}
// Reset labelmanager2 and documents.
lblApp = null;
lblDoc = null;
// Garbage Recycling, Cleaning Memory.
GC.Collect(0);
}
}
catch (Exception ex)
{
LogService.Error("PrintBreakMonitorTimerCallback error.");
LogService.Error(ex.ToString());
}
finally
{
System.Threading.Monitor.Exit(monitorSyncRoot);
}
}
#endregion
#region Print
// Label manager2 application class.
private LabelManager2.ApplicationClass lblApp = null;
// Document.
private Document lblDoc = null;
// Last file hash code.
private string labelFileHashCodeLast = String.Empty;
// Last file full path.
private string labelFilePathLast = String.Empty;
// Last print time.
private System.DateTime printTimeLast = System.DateTime.Now;
// is printing now
private bool isPrintingActive = false;
// Print sync root object.
private readonly object printSyncRoot = new object();
/// <summary>
/// Send command data to printer.
/// </summary>
/// <param name="labelContent">Zebra CodeSoft Lab Detail Content</param>
protected override void Print(string labelContent)
{
// 1. Add a reference to Lppx 2.tlb in the project
// (this Lppx 2.tlb depends on the version of codesoft,
// under 6 is the installation directory, under 7 is C: Program Files (x86) Tki 7 Common or C: Program Files Tki 7 Common).
// 2. After adding a reference, find LabelManager2 under the project reference
// and change the embedded interoperability type in its attribute to False, otherwise the operation will be wrong.
// 3. Code Start
lock (printSyncRoot)
{
isPrintingActive = true;
try
{
string labelFileHashCodeCurr = GetFileHashcode(SourcePath);
if (lblApp == null)
{
// Initialize label manager2 for print lab file.
lblApp = new ApplicationClass();
lblApp.Documents.Open(SourcePath);
lblDoc = lblApp.ActiveDocument;
}
// Validate file path change or file hash code change.
if (labelFilePathLast != SourcePath || labelFileHashCodeLast != labelFileHashCodeCurr)
{
if (lblApp != null)
{
// Force close all documents.
if (lblApp.Documents != null)
lblApp.Documents.CloseAll();
// Force quit labelmanager2.
lblApp.Quit();
}
// Reset labelmanager2 and documents.
lblApp = null;
lblDoc = null;
// Garbage Recycling, Cleaning Memory.
GC.Collect(0);
// Initialize label manager2 for print lab file.
lblApp = new ApplicationClass();
lblApp.Documents.Open(SourcePath);
lblDoc = lblApp.ActiveDocument;
}
List<string> labelVariablesNameList = new List<string>();
for (int i = 1; i <= lblDoc.Variables.FormVariables.Count; i++)
{
labelVariablesNameList.Add(lblDoc.Variables.FormVariables.Item(i).Name.ToUpper().Trim());
lblDoc.Variables.FormVariables.Item(lblDoc.Variables.FormVariables.Item(i).Name).Value = String.Empty;
}
#region Label Content Example
//EG:strResult = print.PrintSSNLabel(pstrssn, pstrskuno, pstrwo, pstrtaskcode, functioncode);
// return content like below：
//TEMPFILENAME:\10880007961_SN_ELUX_45X15.LAB::;
//DETAIL:BEGIN::;
//DETAIL::APP_TYPE:EUI17D40HA;
//DETAIL::BOARD_CODE:A06010931 / A;
//DETAIL::BOOT_VER:BAA.G013;
//DETAIL::DATE_YY / MM / DD:19 / 08 / 27;
//DETAIL::FW_VER:UDA0L204;
//DETAIL::PSOC_VER:CDA0L003;
//DETAIL::SN:166326081901006;
//DETAIL:END::
#endregion
#region Prepare form variables for document.
string mainTitle, subTitle, labelVariableName, labelVariableValue;
string prepareFormVariableResult = "FAIL";
string[] labelContentArr = labelContent.Split(';');
if (labelContentArr.Length <= 0)
throw new ArgumentNullException("labelContentArr");
#region Parse labelcontent arr.
foreach (string strTemp in labelContentArr)
{
mainTitle = (strTemp.Split(':'))[0];
switch (mainTitle)
{
case "TEMPFILENAME":
continue;
case "DETAIL":
subTitle = (strTemp.Split(':'))[1];
switch (subTitle)
{
case "BEGIN":
continue;
case "END":
prepareFormVariableResult = "OK";
break;
default:
// Fill value.
labelVariableName = (strTemp.Split(':'))[2].Replace("@", "");
if (strTemp.Split(':').Length > 4)
{
string v_Value_temp = strTemp;
int iIndex = 0;
iIndex = v_Value_temp.IndexOf(":");
v_Value_temp = v_Value_temp.Substring(iIndex + 1);
iIndex = v_Value_temp.IndexOf(":");
v_Value_temp = v_Value_temp.Substring(iIndex + 1);
iIndex = v_Value_temp.IndexOf(":");
v_Value_temp = v_Value_temp.Substring(iIndex + 1);
labelVariableValue = v_Value_temp;
}
else
{
labelVariableValue = (strTemp.Split(':'))[3];
}
if (labelVariablesNameList.Contains(labelVariableName.ToUpper()))
lblDoc.Variables.FormVariables.Item(labelVariableName).Value = labelVariableValue;
break;
}
continue;
default:
break;
}
}
#endregion
#endregion
// Print label.
if (prepareFormVariableResult == "OK")
lblDoc.PrintDocument(Copies);
// Record label file full path, label file hash code and print time.
labelFileHashCodeLast = labelFileHashCodeCurr;
labelFilePathLast = SourcePath;
printTimeLast = System.DateTime.Now;
}
catch (Exception ex)
{
LogService.Error(ex.Message.ToString());
throw new Exception(ex.Message.ToString());
}
finally
{
isPrintingActive = false;
}
}
}
/// <summary>
/// Get file hash code.
/// </summary>
/// <param name="filePath">file full path</param>
/// <returns></returns>
private string GetFileHashcode(string filePath)
{
string hashValue = String.Empty;
try
{
using (HashAlgorithm hash = HashAlgorithm.Create())
{
using (FileStream file = new FileStream(filePath, FileMode.Open, FileAccess.Read))
{
// Hash algorithm obtains byte array of hash code from text
byte[] hashByte = hash.ComputeHash(file);
// Replace byte assembly with string
hashValue = BitConverter.ToString(hashByte);
}
}
}
catch (Exception ex)
{
LogService.Info("GetFileHashcode Error:" + ex.Message + filePath);
return String.Empty;
}
return hashValue;
}
#endregion
}
}
using Microsoft.Win32.SafeHandles;
using System;
using System.IO;
using System.Runtime.InteropServices;
using HeT.Logging;
using System.Text;
using System.Diagnostics;
namespace Mes.Printing.Printers
{
/// <summary>
/// Zebra Printer (Device Type is LPT).
/// </summary>

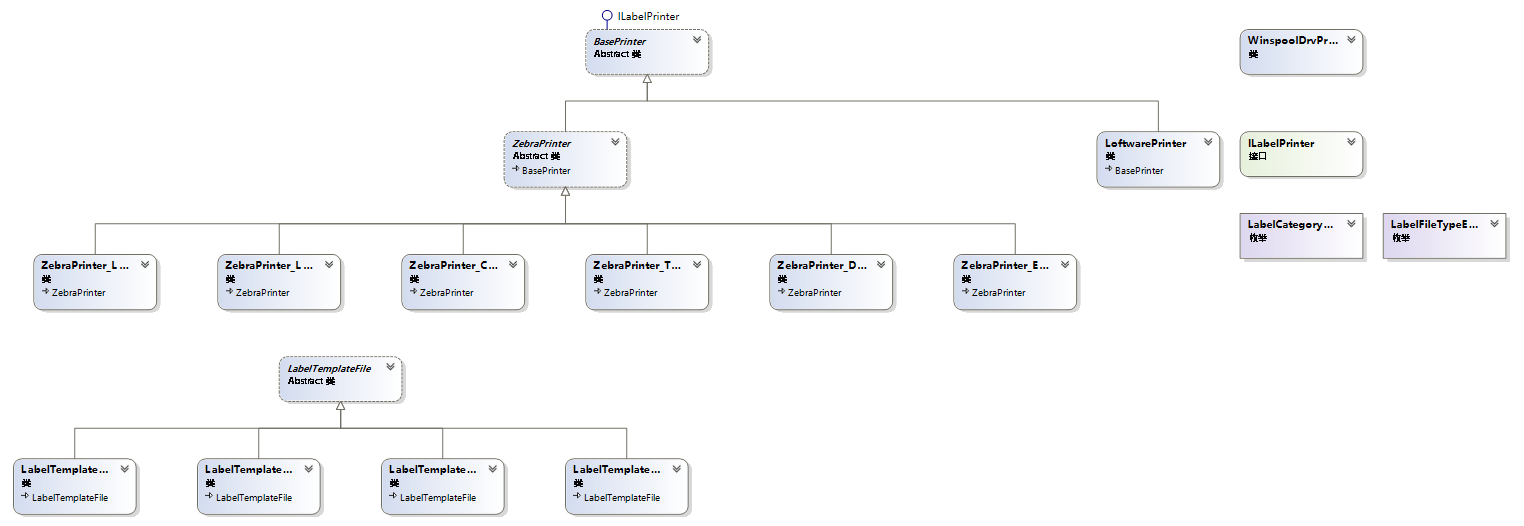

public class ZebraPrinter_LPT : ZebraPrinter
{
#region Functions of kernal32.dll
private const short INVALID_HANDLE_VALUE = -1;
private const uint GENERIC_READ = 0x80000000;
private const uint GENERIC_WRITE = 0x40000000;
private const uint OPEN_EXISTING = 3;
/// <summary>
/// Creates or opens a file or I/O device.
/// </summary>
/// <param name="strFileName">The name of the file or device to be created or opened</param>
/// <param name="dwDesiredAccess">The requested access to the file or device, which can be summarized as read, write, both or neither zero.</param>
/// <param name="dwShareMode">The requested sharing mode of the file or device, which can be read, write, both, delete, all of these, or none (refer to the following table)</param>
/// <param name="intptrSecurityAttributes">A pointer to a SECURITY_ATTRIBUTES structure that contains two separate but related data members: an optional security descriptor, and a Boolean value that determines whether the returned handle can be inherited by child processes.</param>
/// <param name="dwCreationDisposition">An action to take on a file or device that exists or does not exist.</param>
/// <param name="dwFlagsAndAttributes">The file or device attributes and flags.</param>
/// <param name="intptrTemplateFile">A valid handle to a template file with the GENERIC_READ access right.</param>
/// <returns>If the function succeeds, the return value is an open handle to the specified file, device, named pipe, or mail slot.</returns>
[DllImport("kernel32.dll")]
private static extern SafeFileHandle CreateFile(
string strFileName,
uint dwDesiredAccess,
uint dwShareMode,
IntPtr intptrSecurityAttributes,
uint dwCreationDisposition,
uint dwFlagsAndAttributes,
IntPtr intptrTemplateFile
);
#endregion
/// <summary>
/// Send command data to printer.
/// </summary>
/// <param name="zplText">Zebra CodeSoft Lab Detail Content</param>
protected override void Print(string zplText)
{
// Get Command Data
byte[] cmdData = Encoding.Default.GetBytes(zplText);
#region Flex LPT print model
// Open Printer
//using (SafeFileHandle printerHandler = CreateFile(PrinterName, GENERIC_WRITE, 0, IntPtr.Zero, OPEN_EXISTING, 0, IntPtr.Zero))
//{
// if (printerHandler.IsInvalid)
// {
// LogService.Error(String.Format("{0}-{1}", "Printer_InvalidPrinter", PrinterName));
// throw new Exception(String.Format("{0}-{1}", "Printer_InvalidPrinter", PrinterName));
// }
// // Output Stream for Printer
// FileStream oStream = null;
// try
// {
// // Create Output Stream
// oStream = new FileStream(printerHandler, FileAccess.ReadWrite);
// // Write Command Data to Printer
// oStream.Write(cmdData, 0, cmdData.Length);
// }
// catch
// {
// LogService.Error(String.Format("{0}-{1}", "Printer_InvalidPrinter", PrinterName));
// throw new Exception(String.Format("{0}-{1}", "Printer_InvalidPrinter", PrinterName));
// }
// finally
// {
// if (oStream != null)
// oStream.Dispose();
// oStream = null;
// }
//}
#endregion
#region Het LPT print model
CreateZPLFile(zplText);
string strcmd = "type c:\\SCANLOG\\temp.prn > " + DeviceName;
ExecuteDosCommand(strcmd, 100);
#endregion
}
/// <summary>
/// Create ZPL format LABEL document and store it in C: SCANLOG directory.
/// </summary>
/// <param name="Strlabelcode"></param>
private void CreateZPLFile(string Strlabelcode)
{
string filePath = @"C:\SCANLOG\";
string fileName = "temp.prn";
// Create a catalogue
if (!Directory.Exists(filePath))
Directory.CreateDirectory(filePath);
if (System.IO.File.Exists(filePath + fileName))
System.IO.File.Delete(filePath + fileName);
FileStream fs = new FileStream(filePath + fileName, FileMode.CreateNew);
StreamWriter sw = new StreamWriter(fs, Encoding.Default);
sw.Write(Strlabelcode + "\r\n");
sw.Close();
fs.Close();
}
/// <summary>
/// Execute dos command.
/// </summary>
/// <param name="dosCommand">dosCommand</param>
/// <param name="milliseconds">Waiting for command execution time (in milliseconds), if set to 0, then unlimited waiting</param>
/// <returns>Returns the output, and if an exception occurs, returns an empty string</returns>
public string ExecuteDosCommand(string dosCommand, int milliseconds)
{
// Output string.
string output = String.Empty;
if (!String.IsNullOrEmpty(dosCommand))
{
// Create process objects.
Process process = new Process();
ProcessStartInfo startInfo = new ProcessStartInfo();
// Set commands to be executed.
startInfo.FileName = "cmd.exe";
// Set parameters, where "/C" means exit immediately after execution of the command.
startInfo.Arguments = "/C " + dosCommand;
// Start without System Shell.
startInfo.UseShellExecute = false;
// Unredirected input.
startInfo.RedirectStandardInput = false;
// Redirected output.
startInfo.RedirectStandardOutput = true;
// Do not create windows.
startInfo.CreateNoWindow = true;
process.StartInfo = startInfo;
try
{
// Start the process
if (process.Start())
{
if (milliseconds == 0)
process.WaitForExit();// There is no limit to waiting for the process to end.
else
process.WaitForExit(milliseconds);// Here, wait for the process to end, waiting for the specified milliseconds
// Output of read process.
output = process.StandardOutput.ReadToEnd();
}
}
catch (Exception ex)
{
LogService.Error(ex.Message.ToString());
}
finally
{
if (process != null)
process.Close();
}
}
return output;
}
}
}
