在上一篇文章详细的介绍了Gateway的Predict，Predict决定了请求由哪一个路由处理，在路由处理之前，需要经过“pre”类型的过滤器处理，处理返回响应之后，可以由“post”类型的过滤器处理。

filter的作用和生命周期

由filter工作流程点，可以知道filter有着非常重要的作用，在“pre”类型的过滤器可以做参数校验、权限校验、流量监控、日志输出、协议转换等，在“post”类型的过滤器中可以做响应内容、响应头的修改，日志的输出，流量监控等。首先需要弄清一点为什么需要网关这一层，这就不得不说下filter的作用了。

作用

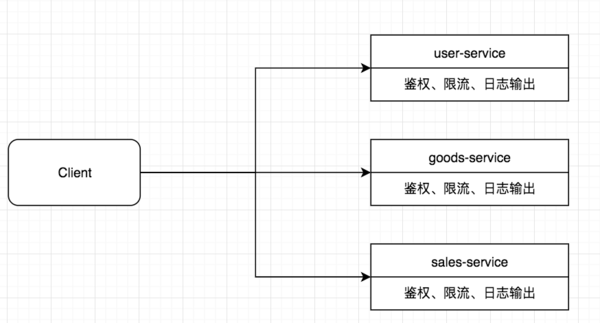

当我们有很多个服务时，比如下图中的user-service、goods-service、sales-service等服务，客户端请求各个服务的Api时，每个服务都需要做相同的事情，比如鉴权、限流、日志输出等。

在这里插入图片描述

对于这样重复的工作，有没有办法做的更好，答案是肯定的。在微服务的上一层加一个全局的权限控制、限流、日志输出的Api Gatewat服务，然后再将请求转发到具体的业务服务层。这个Api Gateway服务就是起到一个服务边界的作用，外接的请求访问系统，必须先通过网关层。

在这里插入图片描述

生命周期

Spring Cloud Gateway同zuul类似，有“pre”和“post”两种方式的filter。客户端的请求先经过“pre”类型的filter，然后将请求转发到具体的业务服务，比如上图中的user-service，收到业务服务的响应之后，再经过“post”类型的filter处理，最后返回响应到客户端。

在这里插入图片描述

与zuul不同的是，filter除了分为“pre”和“post”两种方式的filter外，在Spring Cloud Gateway中，filter从作用范围可分为另外两种，一种是针对于单个路由的gateway filter，它在配置文件中的写法同predict类似；另外一种是针对于所有路由的global gateway filer。现在从作用范围划分的维度来讲解这两种filter。

gateway filter

过滤器允许以某种方式修改传入的HTTP请求或传出的HTTP响应。过滤器可以限定作用在某些特定请求路径上。 Spring Cloud Gateway包含许多内置的GatewayFilter工厂。

GatewayFilter工厂同上一篇介绍的Predicate工厂类似，都是在配置文件application.yml中配置，遵循了约定大于配置的思想，只需要在配置文件配置GatewayFilter Factory的名称，而不需要写全部的类名，比如AddRequestHeaderGatewayFilterFactory只需要在配置文件中写AddRequestHeader，而不是全部类名。在配置文件中配置的GatewayFilter Factory最终都会相应的过滤器工厂类处理。

Spring Cloud Gateway 内置的过滤器工厂一览表如下：

在这里插入图片描述

现在挑几个常见的过滤器工厂来讲解，每一个过滤器工厂在官方文档都给出了详细的使用案例，如果不清楚的还可以在org.springframework.cloud.gateway.filter.factory看每一个过滤器工厂的源码。

AddRequestHeader GatewayFilter Factory

创建工程，引入相关的依赖,包括spring boot 版本2.0.5，spring Cloud版本Finchley，gateway依赖如下：

<dependency>     <groupId>org.springframework.cloud</groupId>     <artifactId>spring-cloud-starter-gateway</artifactId> </dependency>

在工程的配置文件中，加入以下的配置：

server:   port: 8081 spring:   profiles:     active: add_request_header_route

spring:
cloud:
gateway:
routes:
- id: add_request_header_route
uri: http://httpbin.org:80/get
filters:
- AddRequestHeader=X-Request-Foo, Bar
predicates:
- After=2017-01-20T17:42:47.789-07:00[America/Denver]
profiles: add_request_header_route

在上述的配置中，工程的启动端口为8081，配置文件为add_request_header_route，在add_request_header_route配置中，配置了roter的id为add_request_header_route，路由地址为http://httpbin.org:80/get，该router有AfterPredictFactory，有一个filter为AddRequestHeaderGatewayFilterFactory(约定写成AddRequestHeader)，AddRequestHeader过滤器工厂会在请求头加上一对请求头，名称为X-Request-Foo，值为Bar。为了验证AddRequestHeaderGatewayFilterFactory是怎么样工作的，查看它的源码，AddRequestHeaderGatewayFilterFactory的源码如下：

 public class AddRequestHeaderGatewayFilterFactory extends AbstractNameValueGatewayFilterFactory { <span class="token annotation punctuation">@Override</span> <span class="token keyword">public</span> GatewayFilter <span class="token function">apply</span><span class="token punctuation">(</span>NameValueConfig config<span class="token punctuation">)</span> <span class="token punctuation">{</span> 	<span class="token keyword">return</span> <span class="token punctuation">(</span>exchange<span class="token punctuation">,</span> chain<span class="token punctuation">)</span> <span class="token operator">-</span><span class="token operator">&gt;</span> <span class="token punctuation">{</span> 		ServerHttpRequest request <span class="token operator">=</span> exchange<span class="token punctuation">.</span><span class="token function">getRequest</span><span class="token punctuation">(</span><span class="token punctuation">)</span><span class="token punctuation">.</span><span class="token function">mutate</span><span class="token punctuation">(</span><span class="token punctuation">)</span> 				<span class="token punctuation">.</span><span class="token function">header</span><span class="token punctuation">(</span>config<span class="token punctuation">.</span><span class="token function">getName</span><span class="token punctuation">(</span><span class="token punctuation">)</span><span class="token punctuation">,</span> config<span class="token punctuation">.</span><span class="token function">getValue</span><span class="token punctuation">(</span><span class="token punctuation">)</span><span class="token punctuation">)</span> 				<span class="token punctuation">.</span><span class="token function">build</span><span class="token punctuation">(</span><span class="token punctuation">)</span><span class="token punctuation">;</span>  		<span class="token keyword">return</span> chain<span class="token punctuation">.</span><span class="token function">filter</span><span class="token punctuation">(</span>exchange<span class="token punctuation">.</span><span class="token function">mutate</span><span class="token punctuation">(</span><span class="token punctuation">)</span><span class="token punctuation">.</span><span class="token function">request</span><span class="token punctuation">(</span>request<span class="token punctuation">)</span><span class="token punctuation">.</span><span class="token function">build</span><span class="token punctuation">(</span><span class="token punctuation">)</span><span class="token punctuation">)</span><span class="token punctuation">;</span> 	<span class="token punctuation">}</span><span class="token punctuation">;</span> <span class="token punctuation">}</span>

}

由上面的代码可知，根据旧的ServerHttpRequest创建新的 ServerHttpRequest ，在新的ServerHttpRequest加了一个请求头，然后创建新的 ServerWebExchange ，提交过滤器链继续过滤。

启动工程，通过curl命令来模拟请求：

 curl localhost:8081

最终显示了从 http://httpbin.org:80/get得到了请求，响应如下：

{   "args": {},   "headers": {     "Accept": "*/*",     "Connection": "close",     "Forwarded": "proto=http;host=\"localhost:8081\";for=\"0:0:0:0:0:0:0:1:56248\"",     "Host": "httpbin.org",     "User-Agent": "curl/7.58.0",     "X-Forwarded-Host": "localhost:8081",     "X-Request-Foo": "Bar"   },   "origin": "0:0:0:0:0:0:0:1, 210.22.21.66",   "url": "http://localhost:8081/get" }

可以上面的响应可知，确实在请求头中加入了X-Request-Foo这样的一个请求头，在配置文件中配置的AddRequestHeader过滤器工厂生效。

跟AddRequestHeader过滤器工厂类似的还有AddResponseHeader过滤器工厂，在此就不再重复。

RewritePath GatewayFilter Factory

在Nginx服务启中有一个非常强大的功能就是重写路径，Spring Cloud Gateway默认也提供了这样的功能，这个功能是Zuul没有的。在配置文件中加上以下的配置：

 spring:   profiles:     active: rewritepath_route --- spring:   cloud:     gateway:       routes:       - id: rewritepath_route         uri: https://blog.csdn.net         predicates:         - Path=/foo/**         filters:         - RewritePath=/foo/(?<segment>.*), /$\{segment}   profiles: rewritepath_route

上面的配置中，所有的/foo/**开始的路径都会命中配置的router，并执行过滤器的逻辑，在本案例中配置了RewritePath过滤器工厂，此工厂将/foo/(?.*)重写为{segment}，然后转发到https://blog.csdn.net。比如在网页上请求localhost:8081/foo/forezp，此时会将请求转发到https://blog.csdn.net/forezp的页面，比如在网页上请求localhost:8081/foo/forezp/1，页面显示404，就是因为不存在https://blog.csdn.net/forezp/1这个页面。

自定义过滤器

Spring Cloud Gateway内置了19种强大的过滤器工厂，能够满足很多场景的需求，那么能不能自定义自己的过滤器呢，当然是可以的。在spring Cloud Gateway中，过滤器需要实现GatewayFilter和Ordered2个接口。写一个RequestTimeFilter，代码如下：

 public class RequestTimeFilter implements GatewayFilter, Ordered { <span class="token keyword">private</span> <span class="token keyword">static</span> <span class="token keyword">final</span> Log log <span class="token operator">=</span> LogFactory<span class="token punctuation">.</span><span class="token function">getLog</span><span class="token punctuation">(</span>GatewayFilter<span class="token punctuation">.</span><span class="token keyword">class</span><span class="token punctuation">)</span><span class="token punctuation">;</span> <span class="token keyword">private</span> <span class="token keyword">static</span> <span class="token keyword">final</span> String REQUEST_TIME_BEGIN <span class="token operator">=</span> <span class="token string">"requestTimeBegin"</span><span class="token punctuation">;</span>  <span class="token annotation punctuation">@Override</span> <span class="token keyword">public</span> Mono<span class="token generics function"><span class="token punctuation">&lt;</span>Void<span class="token punctuation">&gt;</span></span> <span class="token function">filter</span><span class="token punctuation">(</span>ServerWebExchange exchange<span class="token punctuation">,</span> GatewayFilterChain chain<span class="token punctuation">)</span> <span class="token punctuation">{</span>      exchange<span class="token punctuation">.</span><span class="token function">getAttributes</span><span class="token punctuation">(</span><span class="token punctuation">)</span><span class="token punctuation">.</span><span class="token function">put</span><span class="token punctuation">(</span>REQUEST_TIME_BEGIN<span class="token punctuation">,</span> System<span class="token punctuation">.</span><span class="token function">currentTimeMillis</span><span class="token punctuation">(</span><span class="token punctuation">)</span><span class="token punctuation">)</span><span class="token punctuation">;</span>     <span class="token keyword">return</span> chain<span class="token punctuation">.</span><span class="token function">filter</span><span class="token punctuation">(</span>exchange<span class="token punctuation">)</span><span class="token punctuation">.</span><span class="token function">then</span><span class="token punctuation">(</span>             Mono<span class="token punctuation">.</span><span class="token function">fromRunnable</span><span class="token punctuation">(</span><span class="token punctuation">(</span><span class="token punctuation">)</span> <span class="token operator">-</span><span class="token operator">&gt;</span> <span class="token punctuation">{</span>                 Long startTime <span class="token operator">=</span> exchange<span class="token punctuation">.</span><span class="token function">getAttribute</span><span class="token punctuation">(</span>REQUEST_TIME_BEGIN<span class="token punctuation">)</span><span class="token punctuation">;</span>                 <span class="token keyword">if</span> <span class="token punctuation">(</span>startTime <span class="token operator">!=</span> null<span class="token punctuation">)</span> <span class="token punctuation">{</span>                     log<span class="token punctuation">.</span><span class="token function">info</span><span class="token punctuation">(</span>exchange<span class="token punctuation">.</span><span class="token function">getRequest</span><span class="token punctuation">(</span><span class="token punctuation">)</span><span class="token punctuation">.</span><span class="token function">getURI</span><span class="token punctuation">(</span><span class="token punctuation">)</span><span class="token punctuation">.</span><span class="token function">getRawPath</span><span class="token punctuation">(</span><span class="token punctuation">)</span> <span class="token operator">+</span> <span class="token string">": "</span> <span class="token operator">+</span> <span class="token punctuation">(</span>System<span class="token punctuation">.</span><span class="token function">currentTimeMillis</span><span class="token punctuation">(</span><span class="token punctuation">)</span> <span class="token operator">-</span> startTime<span class="token punctuation">)</span> <span class="token operator">+</span> <span class="token string">"ms"</span><span class="token punctuation">)</span><span class="token punctuation">;</span>                 <span class="token punctuation">}</span>             <span class="token punctuation">}</span><span class="token punctuation">)</span>     <span class="token punctuation">)</span><span class="token punctuation">;</span>  <span class="token punctuation">}</span>  <span class="token annotation punctuation">@Override</span> <span class="token keyword">public</span> <span class="token keyword">int</span> <span class="token function">getOrder</span><span class="token punctuation">(</span><span class="token punctuation">)</span> <span class="token punctuation">{</span>     <span class="token keyword">return</span> <span class="token number">0</span><span class="token punctuation">;</span> <span class="token punctuation">}</span>

}

在上面的代码中，Ordered中的int getOrder()方法是来给过滤器设定优先级别的，值越大则优先级越低。还有有一个filterI(exchange,chain)方法，在该方法中，先记录了请求的开始时间，并保存在ServerWebExchange中，此处是一个“pre”类型的过滤器，然后再chain.filter的内部类中的run()方法中相当于"post"过滤器，在此处打印了请求所消耗的时间。然后将该过滤器注册到router中，代码如下：

    @Bean     public RouteLocator customerRouteLocator(RouteLocatorBuilder builder) {         // @formatter:off         return builder.routes()                 .route(r -> r.path("/customer/**")                         .filters(f -> f.filter(new RequestTimeFilter())                                 .addResponseHeader("X-Response-Default-Foo", "Default-Bar"))                         .uri("http://httpbin.org:80/get")                         .order(0)                         .id("customer_filter_router")                 )                 .build();         // @formatter:on     }

重启程序，通过curl命令模拟请求：

 curl localhost:8081/customer/123

在程序的控制台输出一下的请求信息的日志：

 2018-11-16 15:02:20.177  INFO 20488 --- [ctor-http-nio-3] o.s.cloud.gateway.filter.GatewayFilter   : /customer/123: 152ms

自定义过滤器工厂

在上面的自定义过滤器中，有没有办法自定义过滤器工厂类呢?这样就可以在配置文件中配置过滤器了。现在需要实现一个过滤器工厂，在打印时间的时候，可以设置参数来决定是否打印请参数。查看GatewayFilterFactory的源码，可以发现GatewayFilterfactory的层级如下：

过滤器工厂的顶级接口是GatewayFilterFactory，我们可以直接继承它的两个抽象类来简化开发AbstractGatewayFilterFactory和AbstractNameValueGatewayFilterFactory，这两个抽象类的区别就是前者接收一个参数（像StripPrefix和我们创建的这种），后者接收两个参数（像AddResponseHeader）。

过滤器工厂的顶级接口是GatewayFilterFactory，有2个两个较接近具体实现的抽象类，分别为AbstractGatewayFilterFactory和AbstractNameValueGatewayFilterFactory，这2个类前者接收一个参数，比如它的实现类RedirectToGatewayFilterFactory；后者接收2个参数，比如它的实现类AddRequestHeaderGatewayFilterFactory类。现在需要将请求的日志打印出来，需要使用一个参数，这时可以参照RedirectToGatewayFilterFactory的写法。

 public class RequestTimeGatewayFilterFactory extends AbstractGatewayFilterFactory<RequestTimeGatewayFilterFactory.Config> { <span class="token keyword">private</span> <span class="token keyword">static</span> <span class="token keyword">final</span> Log log <span class="token operator">=</span> LogFactory<span class="token punctuation">.</span><span class="token function">getLog</span><span class="token punctuation">(</span>GatewayFilter<span class="token punctuation">.</span><span class="token keyword">class</span><span class="token punctuation">)</span><span class="token punctuation">;</span> <span class="token keyword">private</span> <span class="token keyword">static</span> <span class="token keyword">final</span> String REQUEST_TIME_BEGIN <span class="token operator">=</span> <span class="token string">"requestTimeBegin"</span><span class="token punctuation">;</span> <span class="token keyword">private</span> <span class="token keyword">static</span> <span class="token keyword">final</span> String KEY <span class="token operator">=</span> <span class="token string">"withParams"</span><span class="token punctuation">;</span>  <span class="token annotation punctuation">@Override</span> <span class="token keyword">public</span> List<span class="token generics function"><span class="token punctuation">&lt;</span>String<span class="token punctuation">&gt;</span></span> <span class="token function">shortcutFieldOrder</span><span class="token punctuation">(</span><span class="token punctuation">)</span> <span class="token punctuation">{</span>     <span class="token keyword">return</span> Arrays<span class="token punctuation">.</span><span class="token function">asList</span><span class="token punctuation">(</span>KEY<span class="token punctuation">)</span><span class="token punctuation">;</span> <span class="token punctuation">}</span>  <span class="token keyword">public</span> <span class="token function">RequestTimeGatewayFilterFactory</span><span class="token punctuation">(</span><span class="token punctuation">)</span> <span class="token punctuation">{</span>     <span class="token keyword">super</span><span class="token punctuation">(</span>Config<span class="token punctuation">.</span><span class="token keyword">class</span><span class="token punctuation">)</span><span class="token punctuation">;</span> <span class="token punctuation">}</span>  <span class="token annotation punctuation">@Override</span> <span class="token keyword">public</span> GatewayFilter <span class="token function">apply</span><span class="token punctuation">(</span>Config config<span class="token punctuation">)</span> <span class="token punctuation">{</span>     <span class="token keyword">return</span> <span class="token punctuation">(</span>exchange<span class="token punctuation">,</span> chain<span class="token punctuation">)</span> <span class="token operator">-</span><span class="token operator">&gt;</span> <span class="token punctuation">{</span>         exchange<span class="token punctuation">.</span><span class="token function">getAttributes</span><span class="token punctuation">(</span><span class="token punctuation">)</span><span class="token punctuation">.</span><span class="token function">put</span><span class="token punctuation">(</span>REQUEST_TIME_BEGIN<span class="token punctuation">,</span> System<span class="token punctuation">.</span><span class="token function">currentTimeMillis</span><span class="token punctuation">(</span><span class="token punctuation">)</span><span class="token punctuation">)</span><span class="token punctuation">;</span>         <span class="token keyword">return</span> chain<span class="token punctuation">.</span><span class="token function">filter</span><span class="token punctuation">(</span>exchange<span class="token punctuation">)</span><span class="token punctuation">.</span><span class="token function">then</span><span class="token punctuation">(</span>                 Mono<span class="token punctuation">.</span><span class="token function">fromRunnable</span><span class="token punctuation">(</span><span class="token punctuation">(</span><span class="token punctuation">)</span> <span class="token operator">-</span><span class="token operator">&gt;</span> <span class="token punctuation">{</span>                     Long startTime <span class="token operator">=</span> exchange<span class="token punctuation">.</span><span class="token function">getAttribute</span><span class="token punctuation">(</span>REQUEST_TIME_BEGIN<span class="token punctuation">)</span><span class="token punctuation">;</span>                     <span class="token keyword">if</span> <span class="token punctuation">(</span>startTime <span class="token operator">!=</span> null<span class="token punctuation">)</span> <span class="token punctuation">{</span>                         StringBuilder sb <span class="token operator">=</span> <span class="token keyword">new</span> <span class="token class-name">StringBuilder</span><span class="token punctuation">(</span>exchange<span class="token punctuation">.</span><span class="token function">getRequest</span><span class="token punctuation">(</span><span class="token punctuation">)</span><span class="token punctuation">.</span><span class="token function">getURI</span><span class="token punctuation">(</span><span class="token punctuation">)</span><span class="token punctuation">.</span><span class="token function">getRawPath</span><span class="token punctuation">(</span><span class="token punctuation">)</span><span class="token punctuation">)</span>                                 <span class="token punctuation">.</span><span class="token function">append</span><span class="token punctuation">(</span><span class="token string">": "</span><span class="token punctuation">)</span>                                 <span class="token punctuation">.</span><span class="token function">append</span><span class="token punctuation">(</span>System<span class="token punctuation">.</span><span class="token function">currentTimeMillis</span><span class="token punctuation">(</span><span class="token punctuation">)</span> <span class="token operator">-</span> startTime<span class="token punctuation">)</span>                                 <span class="token punctuation">.</span><span class="token function">append</span><span class="token punctuation">(</span><span class="token string">"ms"</span><span class="token punctuation">)</span><span class="token punctuation">;</span>                         <span class="token keyword">if</span> <span class="token punctuation">(</span>config<span class="token punctuation">.</span><span class="token function">isWithParams</span><span class="token punctuation">(</span><span class="token punctuation">)</span><span class="token punctuation">)</span> <span class="token punctuation">{</span>                             sb<span class="token punctuation">.</span><span class="token function">append</span><span class="token punctuation">(</span><span class="token string">" params:"</span><span class="token punctuation">)</span><span class="token punctuation">.</span><span class="token function">append</span><span class="token punctuation">(</span>exchange<span class="token punctuation">.</span><span class="token function">getRequest</span><span class="token punctuation">(</span><span class="token punctuation">)</span><span class="token punctuation">.</span><span class="token function">getQueryParams</span><span class="token punctuation">(</span><span class="token punctuation">)</span><span class="token punctuation">)</span><span class="token punctuation">;</span>                         <span class="token punctuation">}</span>                         log<span class="token punctuation">.</span><span class="token function">info</span><span class="token punctuation">(</span>sb<span class="token punctuation">.</span><span class="token function">toString</span><span class="token punctuation">(</span><span class="token punctuation">)</span><span class="token punctuation">)</span><span class="token punctuation">;</span>                     <span class="token punctuation">}</span>                 <span class="token punctuation">}</span><span class="token punctuation">)</span>         <span class="token punctuation">)</span><span class="token punctuation">;</span>     <span class="token punctuation">}</span><span class="token punctuation">;</span> <span class="token punctuation">}</span>   <span class="token keyword">public</span> <span class="token keyword">static</span> <span class="token keyword">class</span> <span class="token class-name">Config</span> <span class="token punctuation">{</span>      <span class="token keyword">private</span> <span class="token keyword">boolean</span> withParams<span class="token punctuation">;</span>      <span class="token keyword">public</span> <span class="token keyword">boolean</span> <span class="token function">isWithParams</span><span class="token punctuation">(</span><span class="token punctuation">)</span> <span class="token punctuation">{</span>         <span class="token keyword">return</span> withParams<span class="token punctuation">;</span>     <span class="token punctuation">}</span>      <span class="token keyword">public</span> <span class="token keyword">void</span> <span class="token function">setWithParams</span><span class="token punctuation">(</span><span class="token keyword">boolean</span> withParams<span class="token punctuation">)</span> <span class="token punctuation">{</span>         <span class="token keyword">this</span><span class="token punctuation">.</span>withParams <span class="token operator">=</span> withParams<span class="token punctuation">;</span>     <span class="token punctuation">}</span>  <span class="token punctuation">}</span>

}

在上面的代码中 apply(Config config)方法内创建了一个GatewayFilter的匿名类，具体的实现逻辑跟之前一样，只不过加了是否打印请求参数的逻辑，而这个逻辑的开关是config.isWithParams()。静态内部类类Config就是为了接收那个boolean类型的参数服务的，里边的变量名可以随意写，但是要重写List shortcutFieldOrder()这个方法。
。

需要注意的是，在类的构造器中一定要调用下父类的构造器把Config类型传过去，否则会报ClassCastException

最后，需要在工程的启动文件Application类中，向Srping Ioc容器注册RequestTimeGatewayFilterFactory类的Bean。

     @Bean     public RequestTimeGatewayFilterFactory elapsedGatewayFilterFactory() {         return new RequestTimeGatewayFilterFactory();     }

然后可以在配置文件中配置如下：

spring:   profiles:     active: elapse_route

spring:
cloud:
gateway:
routes:
- id: elapse_route
uri: http://httpbin.org:80/get
filters:
- RequestTime=false
predicates:
- After=2017-01-20T17:42:47.789-07:00[America/Denver]
profiles: elapse_route

启动工程，在浏览器上访问localhost:8081?name=forezp，可以在控制台上看到，日志输出了请求消耗的时间和请求参数。

global filter

Spring Cloud Gateway根据作用范围划分为GatewayFilter和GlobalFilter，二者区别如下：

GatewayFilter : 需要通过spring.cloud.routes.filters 配置在具体路由下，只作用在当前路由上或通过spring.cloud.default-filters配置在全局，作用在所有路由上
GlobalFilter : 全局过滤器，不需要在配置文件中配置，作用在所有的路由上，最终通过GatewayFilterAdapter包装成GatewayFilterChain可识别的过滤器，它为请求业务以及路由的URI转换为真实业务服务的请求地址的核心过滤器，不需要配置，系统初始化时加载，并作用在每个路由上。

Spring Cloud Gateway框架内置的GlobalFilter如下：

在这里插入图片描述

上图中每一个GlobalFilter都作用在每一个router上，能够满足大多数的需求。但是如果遇到业务上的定制，可能需要编写满足自己需求的GlobalFilter。在下面的案例中将讲述如何编写自己GlobalFilter，该GlobalFilter会校验请求中是否包含了请求参数“token”，如何不包含请求参数“token”则不转发路由，否则执行正常的逻辑。代码如下：

 public class TokenFilter implements GlobalFilter, Ordered { Logger logger<span class="token operator">=</span>LoggerFactory<span class="token punctuation">.</span><span class="token function">getLogger</span><span class="token punctuation">(</span> TokenFilter<span class="token punctuation">.</span><span class="token keyword">class</span> <span class="token punctuation">)</span><span class="token punctuation">;</span> <span class="token annotation punctuation">@Override</span> <span class="token keyword">public</span> Mono<span class="token generics function"><span class="token punctuation">&lt;</span>Void<span class="token punctuation">&gt;</span></span> <span class="token function">filter</span><span class="token punctuation">(</span>ServerWebExchange exchange<span class="token punctuation">,</span> GatewayFilterChain chain<span class="token punctuation">)</span> <span class="token punctuation">{</span>     String token <span class="token operator">=</span> exchange<span class="token punctuation">.</span><span class="token function">getRequest</span><span class="token punctuation">(</span><span class="token punctuation">)</span><span class="token punctuation">.</span><span class="token function">getQueryParams</span><span class="token punctuation">(</span><span class="token punctuation">)</span><span class="token punctuation">.</span><span class="token function">getFirst</span><span class="token punctuation">(</span><span class="token string">"token"</span><span class="token punctuation">)</span><span class="token punctuation">;</span>     <span class="token keyword">if</span> <span class="token punctuation">(</span>token <span class="token operator">==</span> null <span class="token operator">||</span> token<span class="token punctuation">.</span><span class="token function">isEmpty</span><span class="token punctuation">(</span><span class="token punctuation">)</span><span class="token punctuation">)</span> <span class="token punctuation">{</span>         logger<span class="token punctuation">.</span><span class="token function">info</span><span class="token punctuation">(</span> <span class="token string">"token is empty..."</span> <span class="token punctuation">)</span><span class="token punctuation">;</span>         exchange<span class="token punctuation">.</span><span class="token function">getResponse</span><span class="token punctuation">(</span><span class="token punctuation">)</span><span class="token punctuation">.</span><span class="token function">setStatusCode</span><span class="token punctuation">(</span>HttpStatus<span class="token punctuation">.</span>UNAUTHORIZED<span class="token punctuation">)</span><span class="token punctuation">;</span>         <span class="token keyword">return</span> exchange<span class="token punctuation">.</span><span class="token function">getResponse</span><span class="token punctuation">(</span><span class="token punctuation">)</span><span class="token punctuation">.</span><span class="token function">setComplete</span><span class="token punctuation">(</span><span class="token punctuation">)</span><span class="token punctuation">;</span>     <span class="token punctuation">}</span>     <span class="token keyword">return</span> chain<span class="token punctuation">.</span><span class="token function">filter</span><span class="token punctuation">(</span>exchange<span class="token punctuation">)</span><span class="token punctuation">;</span> <span class="token punctuation">}</span>  <span class="token annotation punctuation">@Override</span> <span class="token keyword">public</span> <span class="token keyword">int</span> <span class="token function">getOrder</span><span class="token punctuation">(</span><span class="token punctuation">)</span> <span class="token punctuation">{</span>     <span class="token keyword">return</span> <span class="token operator">-</span><span class="token number">100</span><span class="token punctuation">;</span> <span class="token punctuation">}</span>

}

在上面的TokenFilter需要实现GlobalFilter和Ordered接口，这和实现GatewayFilter很类似。然后根据ServerWebExchange获取ServerHttpRequest，然后根据ServerHttpRequest中是否含有参数token，如果没有则完成请求，终止转发，否则执行正常的逻辑。

然后需要将TokenFilter在工程的启动类中注入到Spring Ioc容器中，代码如下：

 @Bean public TokenFilter tokenFilter(){         return new TokenFilter(); }

启动工程，使用curl命令请求：

 curl localhost:8081/customer/123

可以看到请没有被转发，请求被终止，并在控制台打印了如下日志：

2018-11-16 15:30:13.543  INFO 19372 --- [ctor-http-nio-2] gateway.TokenFilter                      : token is empty...

上面的日志显示了请求进入了没有传“token”的逻辑。

总结

本篇文章讲述了Spring Cloud Gateway中的过滤器，包括GatewayFilter和GlobalFilter。从官方文档的内置过滤器讲起，然后讲解自定义GatewayFilter、GatewayFilterFactory以及自定义的GlobalFilter。有很多内置的过滤器并没有讲述到，比如限流过滤器，这个我觉得是比较重要和大家关注的过滤器，将在之后的文章讲述。

参考资料

https://cloud.spring.io/spring-cloud-static/spring-cloud-gateway/2.1.0.M1/single/spring-cloud-gateway.html

https://www.jianshu.com/p/eb3a67291050

https://blog.csdn.net/qq_36236890/article/details/80822051

https://windmt.com/2018/05/08/spring-cloud-14-spring-cloud-gateway-filter

源码下载

https://github.com/forezp/SpringCloudLearning/tree/master/sc-f-gateway-predicate
