CentOS7下简单搭建Prometheus+Grafana监控系统

Prometheus is an open-source systems monitoring and alerting toolkit originally built at SoundCloud.

1、Features

Prometheus's main features are:

a multi-dimensional data model with time series data identified by metric name and key/value pairs
PromQL, a flexible query language to leverage this dimensionality
no reliance on distributed storage; single server nodes are autonomous
time series collection happens via a pull model over HTTP
pushing time series is supported via an intermediary gateway
targets are discovered via service discovery or static configuration
multiple modes of graphing and dashboarding support

2、Components

The Prometheus ecosystem consists of multiple components, many of which are optional:

the main Prometheus server which scrapes and stores time series data
client libraries for instrumenting application code
a push gateway for supporting short-lived jobs
special-purpose exporters for services like HAProxy, StatsD, Graphite, etc.
an alertmanager to handle alerts
various support tools

Most Prometheus components are written in Go, making them easy to build and deploy as static binaries.

3、Architecture

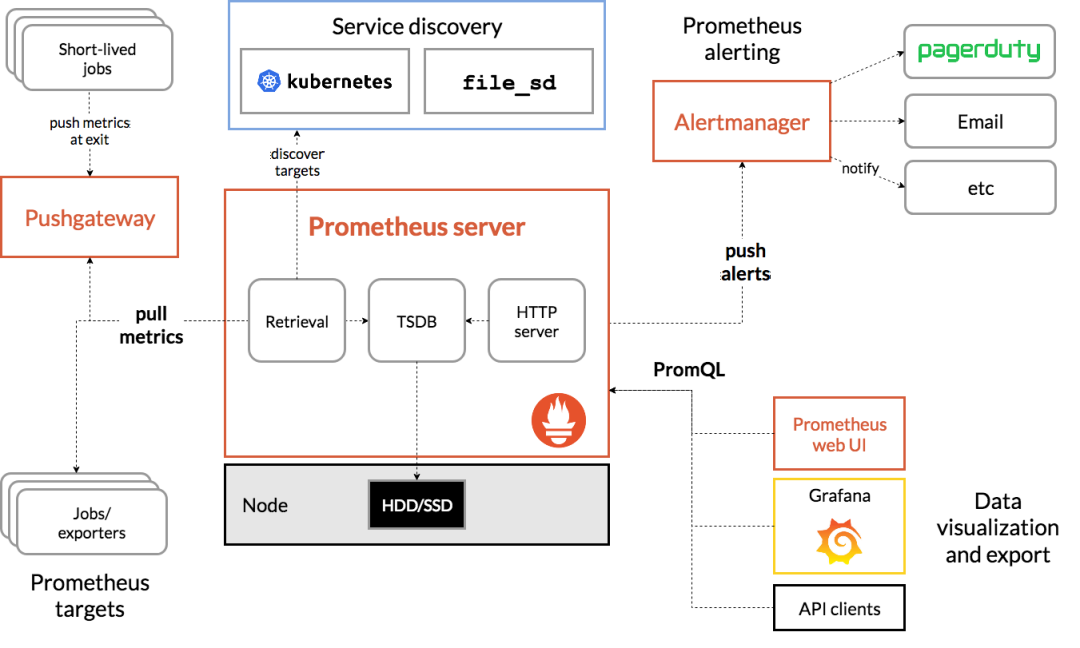

This diagram illustrates the architecture of Prometheus and some of its ecosystem components:

Prometheus scrapes metrics from instrumented jobs, either directly or via an intermediary push gateway for short-lived jobs. It stores all scraped samples locally and runs rules over this data to either aggregate and record new time series from existing data or generate alerts. Grafana or other API consumers can be used to visualize the collected data.

下面介绍CentOS7下简单搭建Prometheus+Grafana监控系统

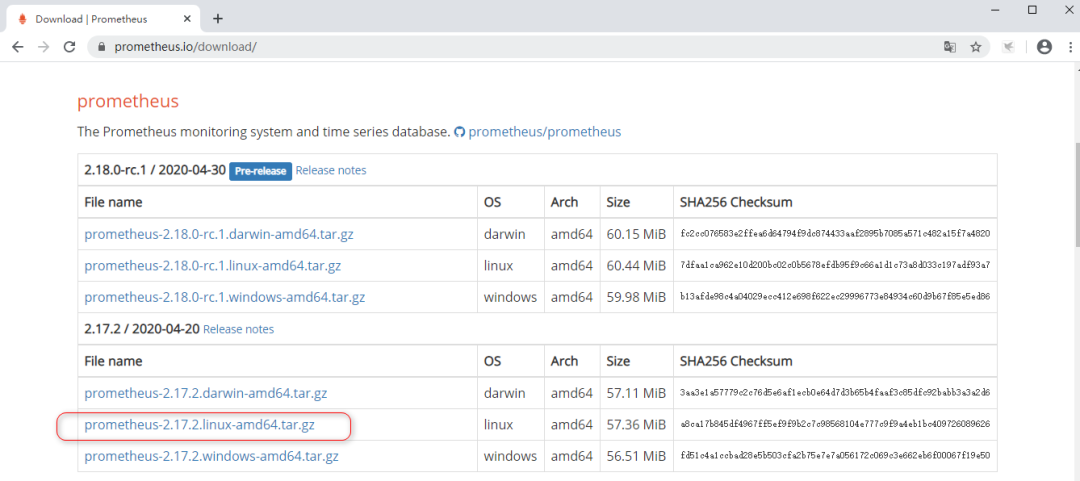

1、先官网下载安装包

https://prometheus.io/download/

1)prometheus-2.17.2.linux-amd64.tar.gz

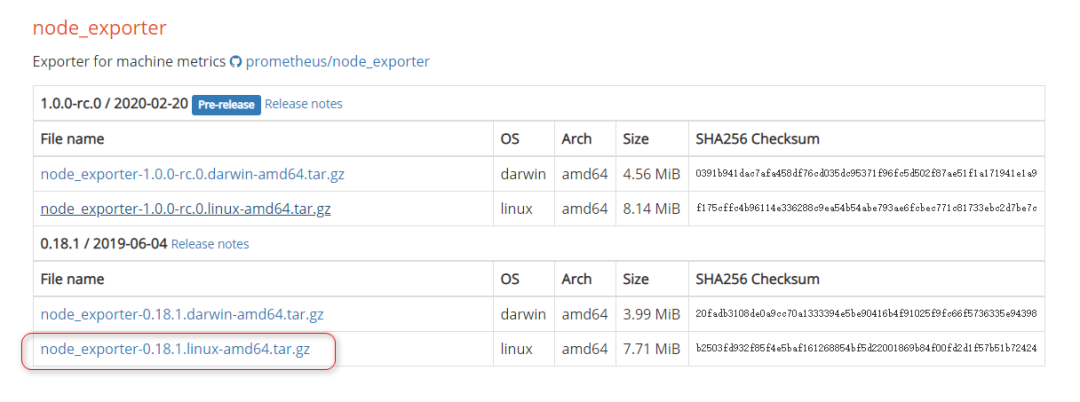

2)node_exporter-0.18.1.linux-amd64.tar.gz

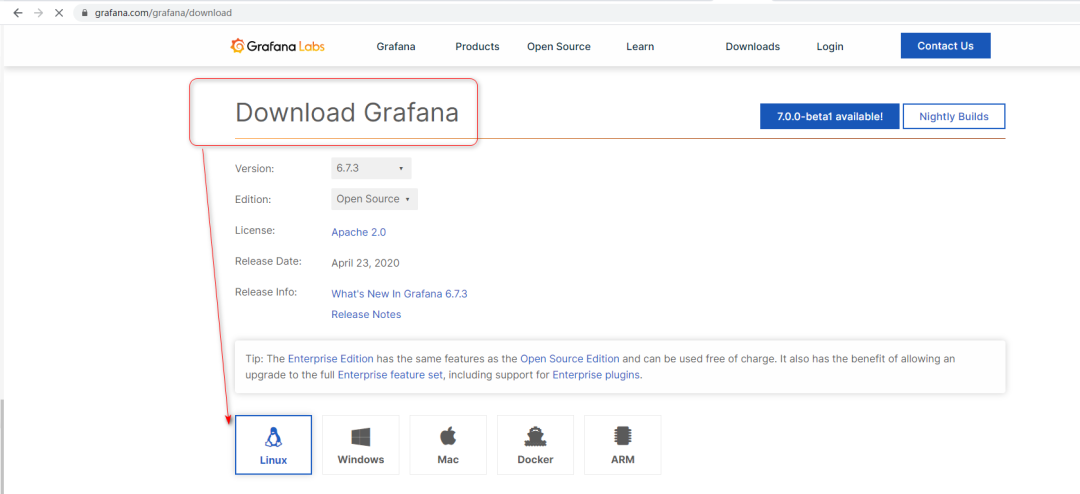

grafana官网下载:https://grafana.com/grafana/download

3)https://dl.grafana.com/oss/release/grafana-6.7.3-1.x86_64.rpm

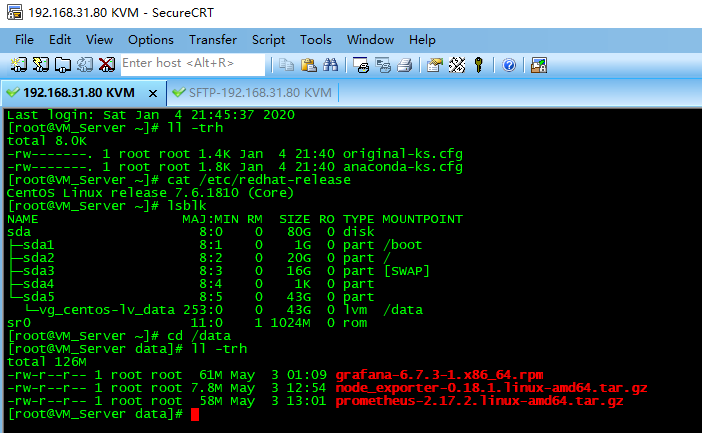

上传安装包到CentOS7服务器上

2、安装并配置prometheus服务端

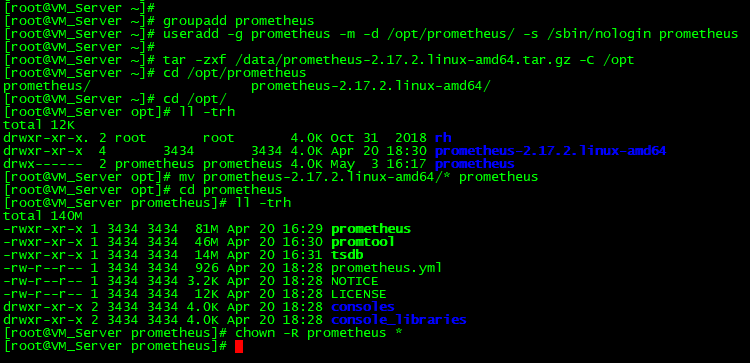

groupadd prometheus

useradd -g prometheus -m -d /opt/prometheus/ -s /sbin/nologin prometheus

tar -zxf /data/prometheus-2.17.2.linux-amd64.tar.gz -C /opt

cd /opt/

mv prometheus-2.17.2.linux-amd64/* prometheus

cd prometheus

chown -R prometheus *

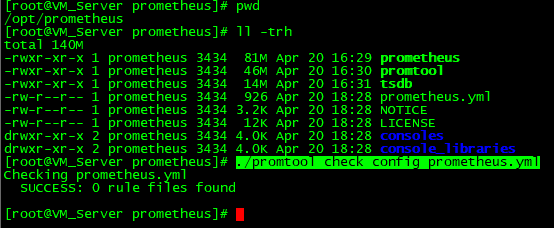

prometheus配置文件语法校验方法

./promtool check config prometheus.yml

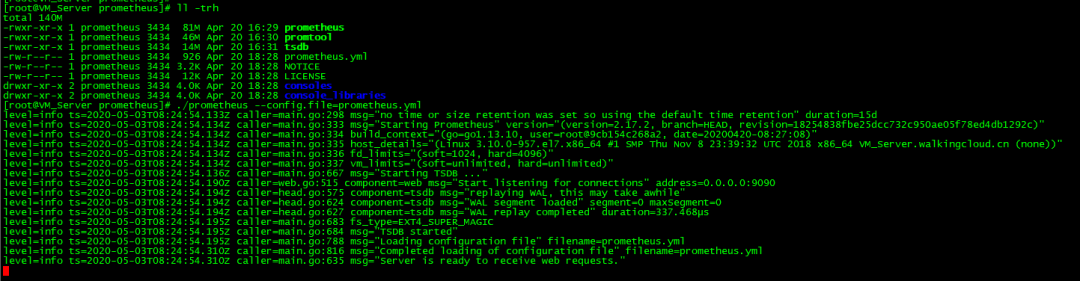

先采用默认配置启动Prometheus Server

登录Prometheus Server的Web界面http://192.168.31.80:9090可以看到只有一个Targets:http://127.0.0.1:9090/metrics

设置Prometheus为系统服务，并配置为开机自启动

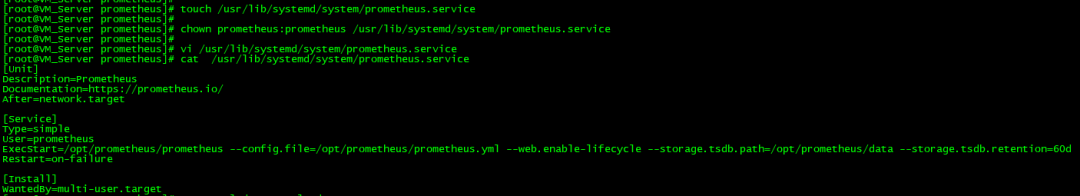

touch /usr/lib/systemd/system/prometheus.service

chown prometheus:prometheus /usr/lib/systemd/system/prometheus.service

vi /usr/lib/systemd/system/prometheus.service

并加入如下配置

[Unit]

Description=Prometheus

Documentation=https://prometheus.io/

After=network.target

[Service]

Type=simple

User=prometheus

ExecStart=/opt/prometheus/prometheus --config.file=/opt/prometheus/prometheus.yml --web.enable-lifecycle --storage.tsdb.path=/opt/prometheus/data --storage.tsdb.retention=60d

Restart=on-failure

[Install]

WantedBy=multi-user.target

启动参数说明：

--config.file -- 指明prometheus的配置文件路径

--web.enable-lifecycle -- 指明prometheus配置更改后可以进行热加载

--storage.tsdb.path -- 指明监控数据存储路径

--storage.tsdb.retention --指明数据保留时间

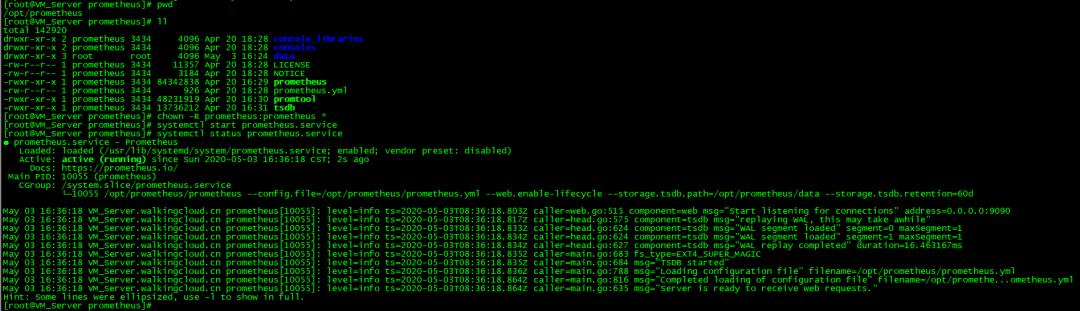

启动服务，并设置为开机自启动

systemctl daemon-reload

systemctl enable prometheus.service

systemctl start prometheus.service

systemctl status prometheus.service

可以看到已经报错了，服务未正常启动

排错

/opt/prometheus下data目录属主不对导致

解决办法：chown -R prometheus:prometheus *

3、安装node_exporter

比如就在该服务器上安装node_exporter

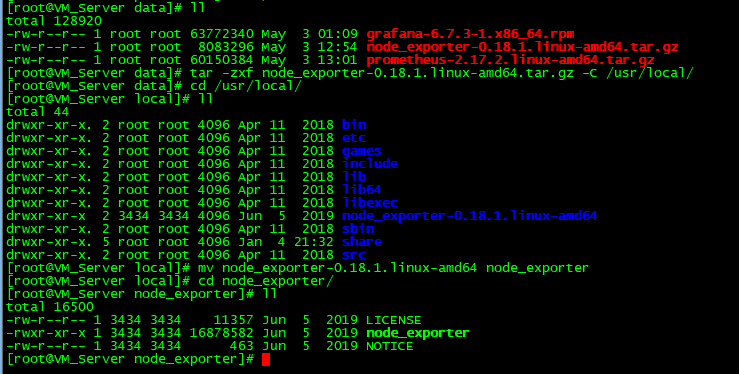

cd /data

tar -zxf node_exporter-0.18.1.linux-amd64.tar.gz -C /usr/local/

cd /usr/local/

mv node_exporter-0.18.1.linux-amd64 node_exporter

cd node_exporter/

ll -trh

创建系统服务

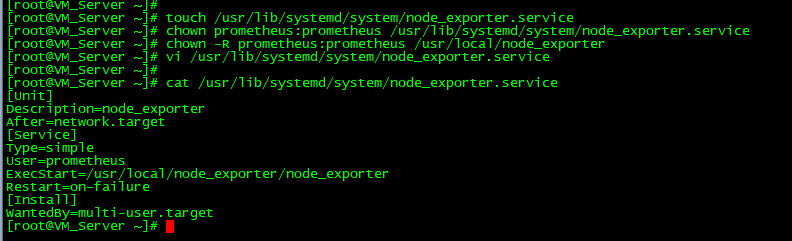

touch /usr/lib/systemd/system/node_exporter.service

chown prometheus:prometheus /usr/lib/systemd/system/node_exporter.service

chown -R prometheus:prometheus /usr/local/node_exporter*

vi /usr/lib/systemd/system/node_exporter.service

加入如下行

[Unit]

Description=node_exporter

After=network.target

[Service]

Type=simple

User=prometheus

ExecStart=/usr/local/node_exporter/node_exporter

Restart=on-failure

[Install]

WantedBy=multi-user.target

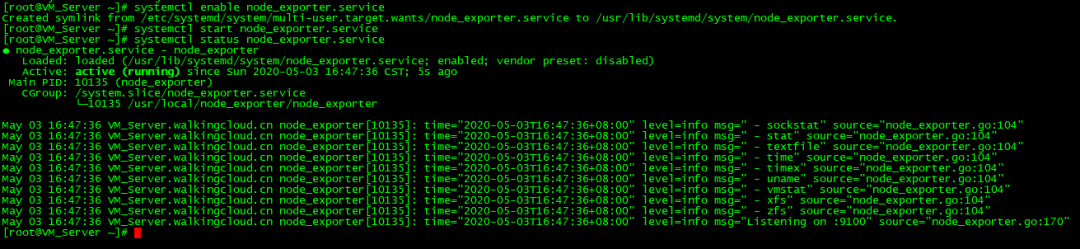

启动node_exporter并设置为开启自启动

systemctl enable node_exporter.service

systemctl start node_exporter.service

systemctl status node_exporter.service

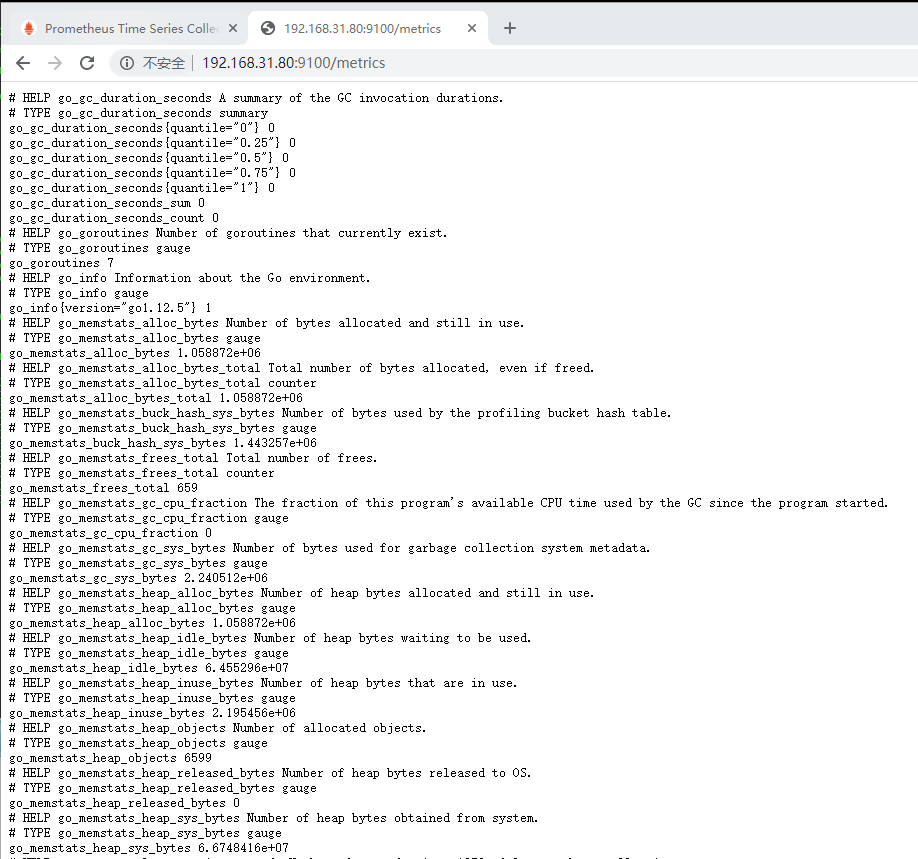

启动成功，测试API访问

http://192.168.31.80:9100/metrics

能正常返回数据说明node_exporter正常

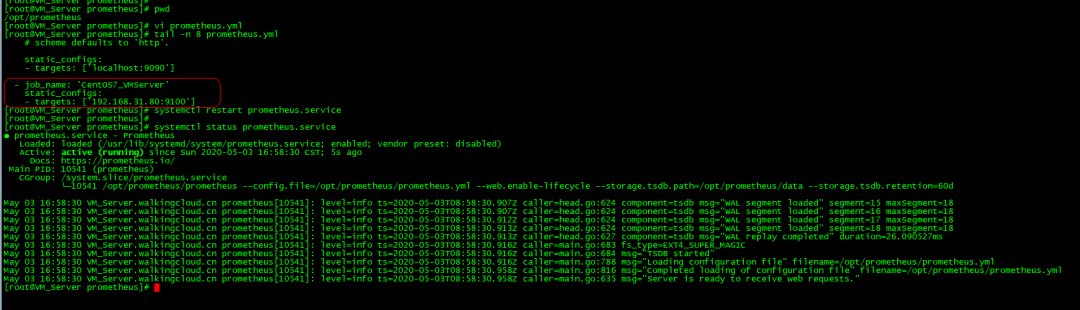

并将其加入prometheus.yml配置文件中

- job_name: 'CentOS7_VMServer'

static_configs:

- targets: ['192.168.31.80:9100']

然后重启服务

systemctl restart prometheus.service

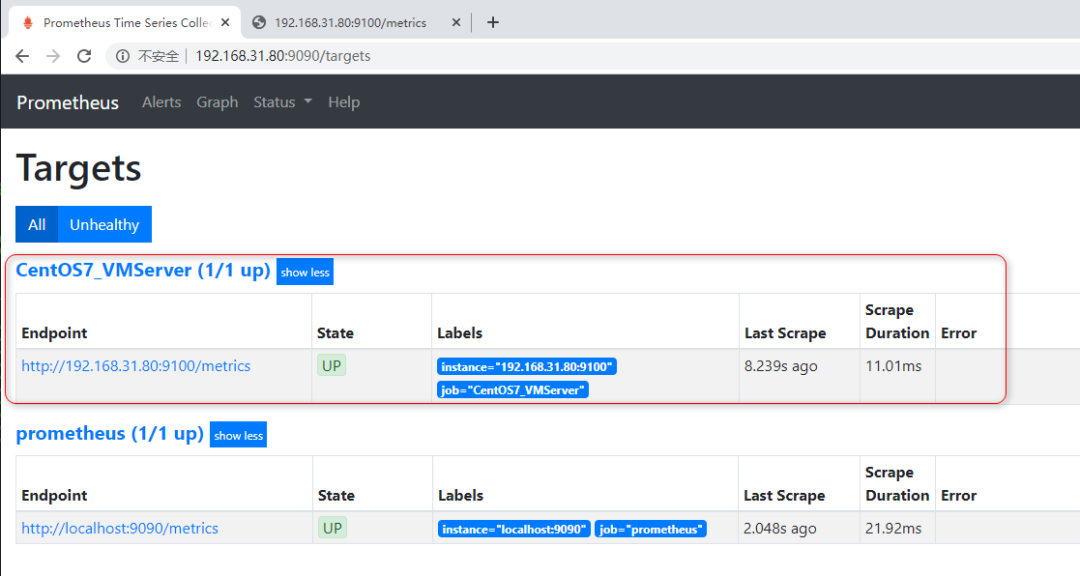

这是再登录prometheus 的Web界面可以看到新增的这个Target

http://192.168.31.80:9090/targets

4、安装Grafana图形化工具包

缺少组件包的情况，使用

yum localinstall grafana-6.7.3-1.x86_64.rpm

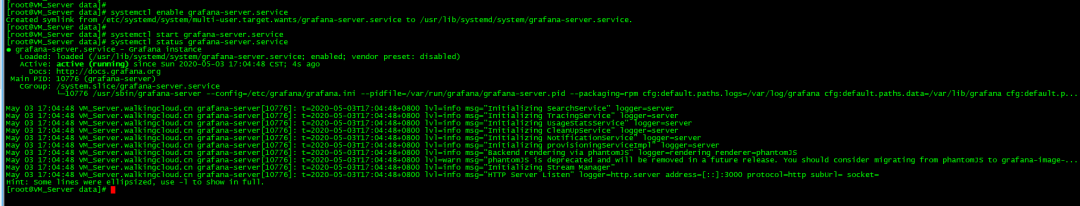

systemctl enable grafana-server.service

systemctl start grafana-server.service

systemctl status grafana-server.service

5、配置数据源并添加Dashboard

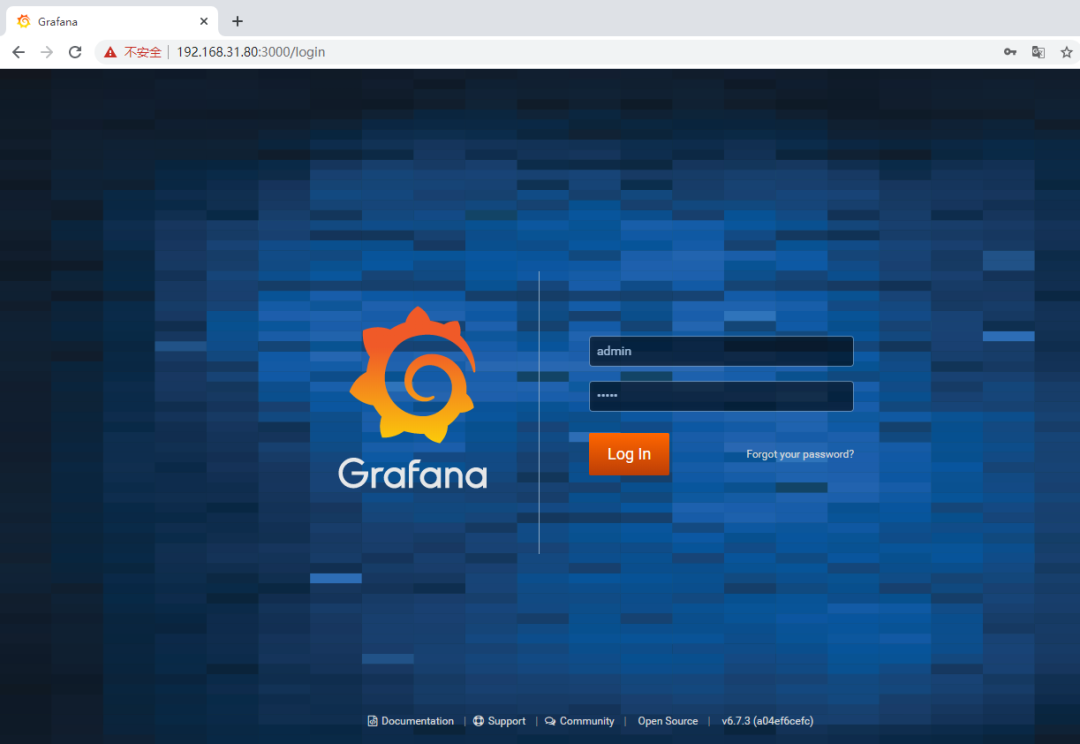

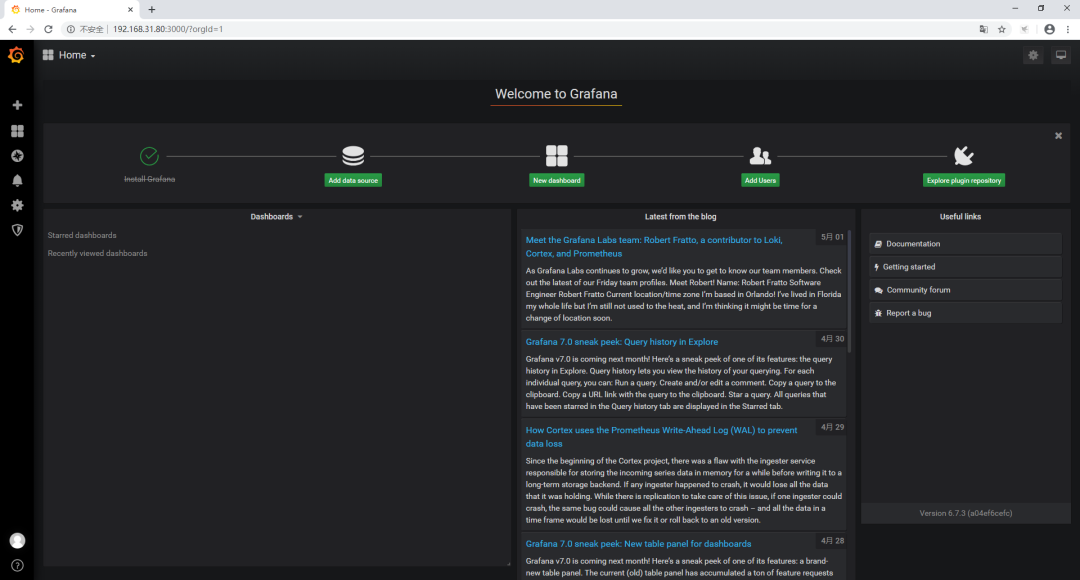

1)、登录grafana，默认端口3000，初始账号/密码:admin/admin

http://192.168.31.80:3000/

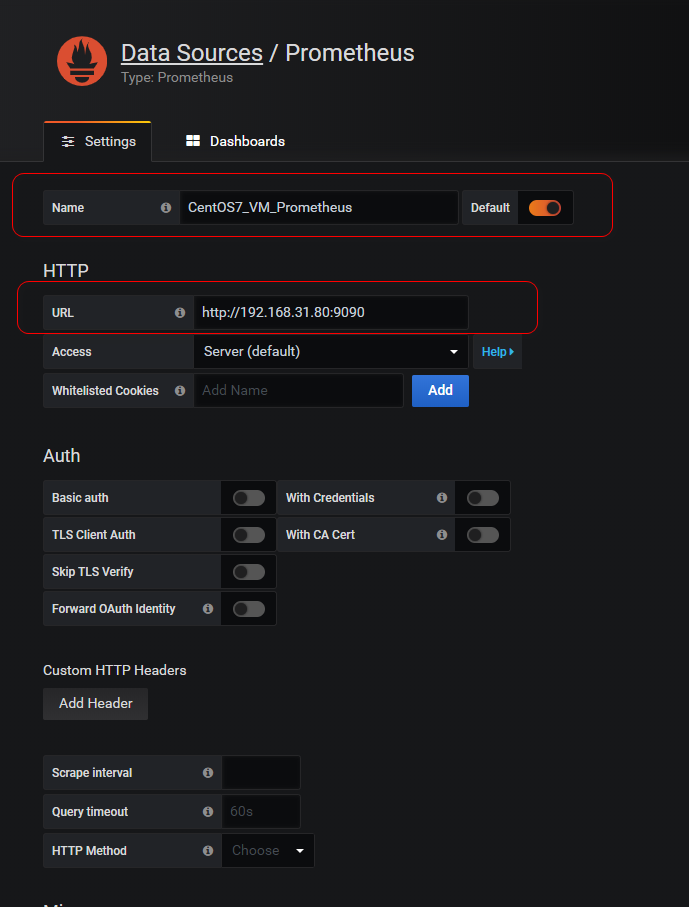

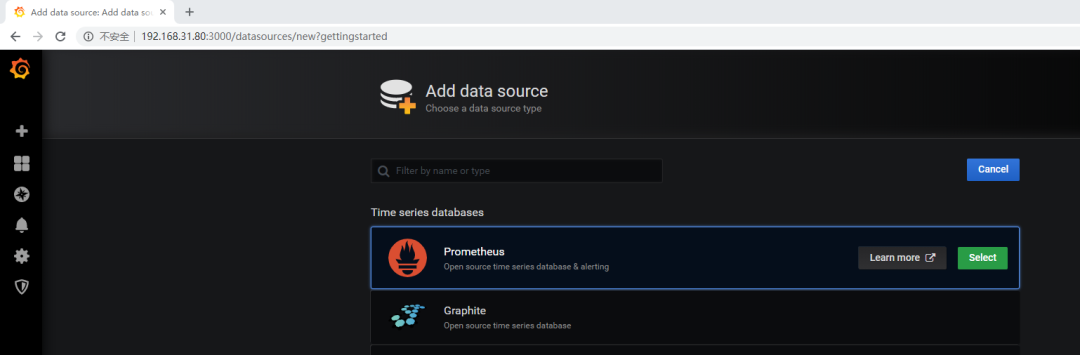

2)添加数据源

示例：Name CentOS7_VM_Prometheus

URL :http://192.168.31.80:9090

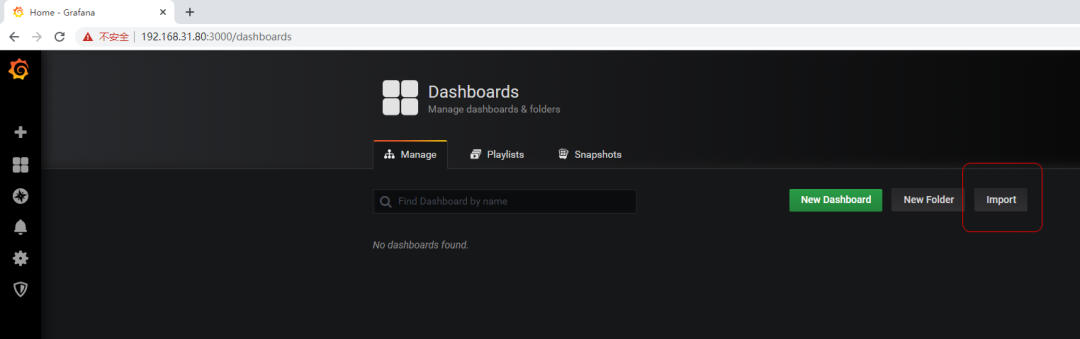

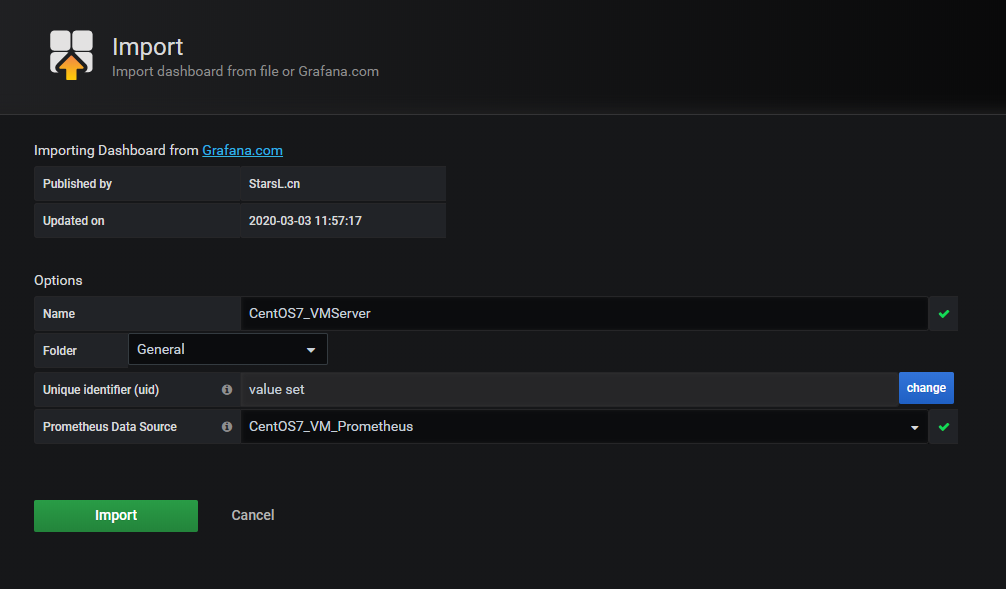

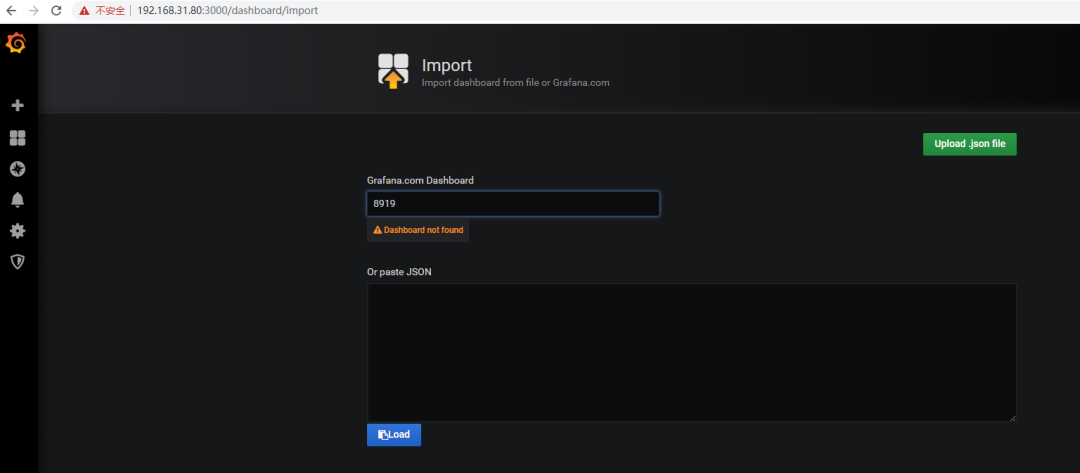

3)添加一个DashBoard，Import 例如8919 ID这个

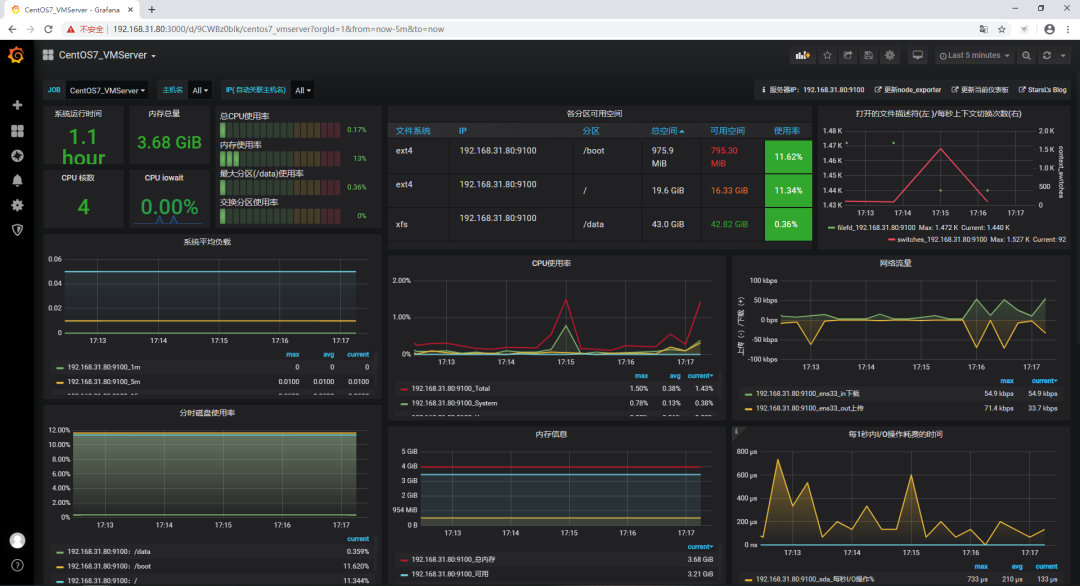

效果如下(点击图片查看清晰大图)

总结：

Prometheus 属于一站式监控告警平台，依赖少，功能齐全。
Prometheus 支持对云或容器的监控，其他系统主要对主机监控。
Prometheus 数据查询语句表现力更强大，内置更强大的统计函数。
Prometheus 在数据存储扩展性以及持久性上没有 InfluxDB，OpenTSDB，Sensu 好

Prometheus vs Zabbix

Zabbix 使用的是 C 和 PHP, Prometheus 使用 Golang, 整体而言 Prometheus 运行速度更快一点。
Zabbix 属于传统主机监控，主要用于物理主机，交换机，网络等监控，Prometheus 不仅适用主机监控，还适用于 Cloud, SaaS, Openstack，Container 监控。
Zabbix 在传统主机监控方面，有更丰富的插件。
Zabbix 可以在 WebGui 中配置很多事情，但是 Prometheus 需要手动修改文件配置。
