在u-boot下,定义变量,

编译,编译完后  使用arm-linux-nm arm    没有去头的二进制可执行文件

  都在BSS段,均为初始化。

打印之后会出算随机值。

  目前还处于uboot阶段,如果在根文件系统的话,加载器把二进制可执行文件加载到内存,并将BSS段清零。    放在BSS段的变量所对应的空间,在二进制可执行文件中不占空间。放在Data段才分配空间。

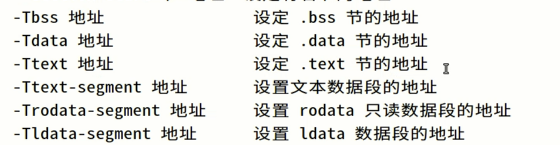

ld --help



默认链接脚本:arm-linux-ld -verbose

  1 GNU ld (GNU Binutils) 2.20.1.20100303
  2   Supported emulations:
  3    armelf_linux_eabi
  4    armelfb_linux_eabi
  5 using internal linker script:
  6 ==================================================
  7 /* Script for -z combreloc: combine and sort reloc sections */
  8 OUTPUT_FORMAT("elf32-littlearm", "elf32-bigarm",
  9           "elf32-littlearm")    //小端存储的arm
 10 OUTPUT_ARCH(arm)
 11 ENTRY(_start)
 12 SEARCH_DIR("=/usr/local/lib"); SEARCH_DIR("=/lib"); SEARCH_DIR("=/usr/lib");
 13 SECTIONS
 14 {
 15   /* Read-only sections, merged into text segment: */
 16   PROVIDE (__executable_start = SEGMENT_START("text-segment", 0x00008000)); . = SEGMENT_START("text-segment", 0x00008000) + SIZEOF_HEADERS;
 17   .interp         : { *(.interp) }
 18   .note.gnu.build-id : { *(.note.gnu.build-id) }
 19   .hash           : { *(.hash) }
 20   .gnu.hash       : { *(.gnu.hash) }
 21   .dynsym         : { *(.dynsym) }
 22   .dynstr         : { *(.dynstr) }
 23   .gnu.version    : { *(.gnu.version) }
 24   .gnu.version_d  : { *(.gnu.version_d) }
 25   .gnu.version_r  : { *(.gnu.version_r) }
 26   .rel.dyn        :
 27     {
 28       *(.rel.init)
 29       *(.rel.text .rel.text.* .rel.gnu.linkonce.t.*)
 30       *(.rel.fini)
 31       *(.rel.rodata .rel.rodata.* .rel.gnu.linkonce.r.*)
 32       *(.rel.data.rel.ro* .rel.gnu.linkonce.d.rel.ro.*)
 33       *(.rel.data .rel.data.* .rel.gnu.linkonce.d.*)
 34       *(.rel.tdata .rel.tdata.* .rel.gnu.linkonce.td.*)
 35       *(.rel.tbss .rel.tbss.* .rel.gnu.linkonce.tb.*)
 36       *(.rel.ctors)
 37       *(.rel.dtors)
 38       *(.rel.got)
 39       *(.rel.bss .rel.bss.* .rel.gnu.linkonce.b.*)
 40       PROVIDE_HIDDEN (__rel_iplt_start = .);
 41       *(.rel.iplt)
 42       PROVIDE_HIDDEN (__rel_iplt_end = .);
 43       PROVIDE_HIDDEN (__rela_iplt_start = .);
 44       PROVIDE_HIDDEN (__rela_iplt_end = .);
 45     }
 46   .rela.dyn       :
 47     {
 48       *(.rela.init)
 49       *(.rela.text .rela.text.* .rela.gnu.linkonce.t.*)
 50       *(.rela.fini)
 51       *(.rela.rodata .rela.rodata.* .rela.gnu.linkonce.r.*)
 52       *(.rela.data .rela.data.* .rela.gnu.linkonce.d.*)
 53       *(.rela.tdata .rela.tdata.* .rela.gnu.linkonce.td.*)
 54       *(.rela.tbss .rela.tbss.* .rela.gnu.linkonce.tb.*)
 55       *(.rela.ctors)
 56       *(.rela.dtors)
 57       *(.rela.got)
 58       *(.rela.bss .rela.bss.* .rela.gnu.linkonce.b.*)
 59       PROVIDE_HIDDEN (__rel_iplt_start = .);
 60       PROVIDE_HIDDEN (__rel_iplt_end = .);
 61       PROVIDE_HIDDEN (__rela_iplt_start = .);
 62       *(.rela.iplt)
 63       PROVIDE_HIDDEN (__rela_iplt_end = .);
 64     }
 65   .rel.plt        :
 66     {
 67       *(.rel.plt)
 68     }
 69   .rela.plt       :
 70     {
 71       *(.rela.plt)
 72     }
 73   .init           :
 74   {
 75     KEEP (*(.init))
 76   } =0
 77   .plt            : { *(.plt) }
 78   .iplt           : { *(.iplt) }
 79   .text           :
 80   {
 81     *(.text.unlikely .text.*_unlikely)
 82     *(.text .stub .text.* .gnu.linkonce.t.*)
 83     /* .gnu.warning sections are handled specially by elf32.em.  */
 84     *(.gnu.warning)
 85     *(.glue_7t) *(.glue_7) *(.vfp11_veneer) *(.v4_bx)
 86   } =0
 87   .fini           :
 88   {
 89     KEEP (*(.fini))
 90   } =0
 91   PROVIDE (__etext = .);
 92   PROVIDE (_etext = .);
 93   PROVIDE (etext = .);
 94   .rodata         : { *(.rodata .rodata.* .gnu.linkonce.r.*) }
 95   .rodata1        : { *(.rodata1) }
 96   .ARM.extab   : { *(.ARM.extab* .gnu.linkonce.armextab.*) }
 97    __exidx_start = .;
 98   .ARM.exidx   : { *(.ARM.exidx* .gnu.linkonce.armexidx.*) }
 99    __exidx_end = .;
100   .eh_frame_hdr : { *(.eh_frame_hdr) }
101   .eh_frame       : ONLY_IF_RO { KEEP (*(.eh_frame)) }
102   .gcc_except_table   : ONLY_IF_RO { *(.gcc_except_table .gcc_except_table.*) }
103   /* Adjust the address for the data segment.  We want to adjust up to
104      the same address within the page on the next page up.  */
105   . = ALIGN (CONSTANT (MAXPAGESIZE)) - ((CONSTANT (MAXPAGESIZE) - .) & (CONSTANT (MAXPAGESIZE) - 1)); . = DATA_SEGMENT_ALIGN (CONSTANT (MAXPAGESIZE), CONSTANT (COMMONPAGESIZE));
106   /* Exception handling  */
107   .eh_frame       : ONLY_IF_RW { KEEP (*(.eh_frame)) }
108   .gcc_except_table   : ONLY_IF_RW { *(.gcc_except_table .gcc_except_table.*) }
109   /* Thread Local Storage sections  */
110   .tdata      : { *(.tdata .tdata.* .gnu.linkonce.td.*) }
111   .tbss          : { *(.tbss .tbss.* .gnu.linkonce.tb.*) *(.tcommon) }
112   .preinit_array     :
113   {
114     PROVIDE_HIDDEN (__preinit_array_start = .);
115     KEEP (*(.preinit_array))
116     PROVIDE_HIDDEN (__preinit_array_end = .);
117   }
118   .init_array     :
119   {
120      PROVIDE_HIDDEN (__init_array_start = .);
121      KEEP (*(SORT(.init_array.*)))
122      KEEP (*(.init_array))
123      PROVIDE_HIDDEN (__init_array_end = .);
124   }
125   .fini_array     :
126   {
127     PROVIDE_HIDDEN (__fini_array_start = .);
128     KEEP (*(.fini_array))
129     KEEP (*(SORT(.fini_array.*)))
130     PROVIDE_HIDDEN (__fini_array_end = .);
131   }
132   .ctors          :
133   {
134     /* gcc uses crtbegin.o to find the start of
135        the constructors, so we make sure it is
136        first.  Because this is a wildcard, it
137        doesn't matter if the user does not
138        actually link against crtbegin.o; the
139        linker won't look for a file to match a
140        wildcard.  The wildcard also means that it
141        doesn't matter which directory crtbegin.o
142        is in.  */
143     KEEP (*crtbegin.o(.ctors))
144     KEEP (*crtbegin?.o(.ctors))
145     /* We don't want to include the .ctor section from
146        the crtend.o file until after the sorted ctors.
147        The .ctor section from the crtend file contains the
148        end of ctors marker and it must be last */
149     KEEP (*(EXCLUDE_FILE (*crtend.o *crtend?.o ) .ctors))
150     KEEP (*(SORT(.ctors.*)))
151     KEEP (*(.ctors))
152   }
153   .dtors          :
154   {
155     KEEP (*crtbegin.o(.dtors))
156     KEEP (*crtbegin?.o(.dtors))
157     KEEP (*(EXCLUDE_FILE (*crtend.o *crtend?.o ) .dtors))
158     KEEP (*(SORT(.dtors.*)))
159     KEEP (*(.dtors))
160   }
161   .jcr            : { KEEP (*(.jcr)) }
162   .data.rel.ro : { *(.data.rel.ro.local* .gnu.linkonce.d.rel.ro.local.*) *(.data.rel.ro* .gnu.linkonce.d.rel.ro.*) }
163   .dynamic        : { *(.dynamic) }
164   . = DATA_SEGMENT_RELRO_END (0, .);
165   .got            : { *(.got.plt) *(.igot.plt) *(.got) *(.igot) }
166   .data           :
167   {
168     PROVIDE (__data_start = .);
169     *(.data .data.* .gnu.linkonce.d.*)
170     SORT(CONSTRUCTORS)
171   }
172   .data1          : { *(.data1) }
173   _edata = .; PROVIDE (edata = .);
174   __bss_start = .;
175   __bss_start__ = .;
176   .bss            :        //找到了
177   {
178    *(.dynbss)
179    *(.bss .bss.* .gnu.linkonce.b.*)
180    *(COMMON)
181    /* Align here to ensure that the .bss section occupies space up to
182       _end.  Align after .bss to ensure correct alignment even if the
183       .bss section disappears because there are no input sections.
184       FIXME: Why do we need it? When there is no .bss section, we don't
185       pad the .data section.  */
186    . = ALIGN(. != 0 ? 32 / 8 : 1);
187   }
188   _bss_end__ = . ; __bss_end__ = . ;
189   . = ALIGN(32 / 8);
190   . = ALIGN(32 / 8);
191   __end__ = . ;
192   _end = .; PROVIDE (end = .);
193   . = DATA_SEGMENT_END (.);
194   /* Stabs debugging sections.  */
195   .stab          0 : { *(.stab) }
196   .stabstr       0 : { *(.stabstr) }
197   .stab.excl     0 : { *(.stab.excl) }
198   .stab.exclstr  0 : { *(.stab.exclstr) }
199   .stab.index    0 : { *(.stab.index) }
200   .stab.indexstr 0 : { *(.stab.indexstr) }
201   .comment       0 : { *(.comment) }
202   /* DWARF debug sections.
203      Symbols in the DWARF debugging sections are relative to the beginning
204      of the section so we begin them at 0.  */
205   /* DWARF 1 */
206   .debug          0 : { *(.debug) }
207   .line           0 : { *(.line) }
208   /* GNU DWARF 1 extensions */
209   .debug_srcinfo  0 : { *(.debug_srcinfo) }
210   .debug_sfnames  0 : { *(.debug_sfnames) }
211   /* DWARF 1.1 and DWARF 2 */
212   .debug_aranges  0 : { *(.debug_aranges) }
213   .debug_pubnames 0 : { *(.debug_pubnames) }
214   /* DWARF 2 */
215   .debug_info     0 : { *(.debug_info .gnu.linkonce.wi.*) }
216   .debug_abbrev   0 : { *(.debug_abbrev) }
217   .debug_line     0 : { *(.debug_line) }
218   .debug_frame    0 : { *(.debug_frame) }
219   .debug_str      0 : { *(.debug_str) }
220   .debug_loc      0 : { *(.debug_loc) }
221   .debug_macinfo  0 : { *(.debug_macinfo) }
222   /* SGI/MIPS DWARF 2 extensions */
223   .debug_weaknames 0 : { *(.debug_weaknames) }
224   .debug_funcnames 0 : { *(.debug_funcnames) }
225   .debug_typenames 0 : { *(.debug_typenames) }
226   .debug_varnames  0 : { *(.debug_varnames) }
227   /* DWARF 3 */
228   .debug_pubtypes 0 : { *(.debug_pubtypes) }
229   .debug_ranges   0 : { *(.debug_ranges) }
230   .gnu.attributes 0 : { KEEP (*(.gnu.attributes)) }
231   .note.gnu.arm.ident 0 : { KEEP (*(.note.gnu.arm.ident)) }
232   /DISCARD/ : { *(.note.GNU-stack) *(.gnu_debuglink) *(.gnu.lto_*) }
233 }
234
235
236 ==================================================

  现在不使用默认的BSS段,使用自己写的BSS段。

OUTPUT_FORMAT("elf32-littlearm", "elf32-bigarm",
          "elf32-littlearm")
OUTPUT_ARCH(arm)
ENTRY(_start)
SECTIONS
{
    . = 0x50000000;

    .text : {
        start.o
        *(.text)
    }
    . = ALIGN(4);

    laomi_data_start = .;
    .laomi : {
        *(.laomi)
    }
    laomi_data_end = .;

    .data : {
        *(.data)
    }
    . = ALIGN(4);

    _bss_start = .;
    .bss : {
        *(.bss)
    }
    . = ALIGN(4);
    _bss_end = .;
}
ld.lds
 1 #include <led.h>
 2 #include <key.h>
 3 #include <lib.h>
 4 #include <uart.h>
 5 #include <backlight.h>
 6 #include <lcd.h>
 7 #include <mmu.h>
 8
 9 u32 *T = (void *)0x60000000;
10
11 int var0;
12 int var1 = 0;
13
14 int data = 9527;
15
16 int glb0 __attribute__ ((unused, section(".jason")))= 7788;
17 int glb1 __attribute__ ((unused, section(".jason")))= 8877;
18 int glb2 __attribute__ ((unused, section(".jason")))= 8866;
19 int glb3 __attribute__ ((unused, section(".jason")))= 8899;
20
21 extern int jason_data_start;
22 extern int jason_data_end;
23
24 void entry(void)
25 {
26     int *p = &jason_data_start;
27
28     while (p < &jason_data_end) {
29         printf("*p = %d\n", *p);
30         p++;
31     }
32 }
entry.c
 1 .PHONE:clean
 2
 3 TARGET        := arm
 4 BIN          := $(TARGET).bin
 5 LDADD        := 0x50000000
 6 ASM        := start.o
 7 OBJS        := entry.o lib.o mmu.o
 8 CROSS_COMPILE    := arm-linux-
 9 CC        := $(CROSS_COMPILE)gcc
10 LD        := $(CROSS_COMPILE)ld
11 OBJCOPY        := $(CROSS_COMPILE)objcopy
12 NM        := $(CROSS_COMPILE)nm
13 OBJDUMP        := $(CROSS_COMPILE)objdump
14
15 all:$(TARGET)
16     $(OBJCOPY) -O binary $< $(BIN)
17 $(TARGET):$(ASM) $(OBJS)
18     $(LD) $(ASM) $(OBJS) -Tld.lds -o $@
19
20 %.o:%.S
21     $(CC) -c $^
22 %.o:%.c
23     $(CC) -c $^ -Iinclude -Wall -fno-builtin
24
25 clean:
26     rm -f *.o $(BIN) $(TARGET)
27
28
29
Makefile

并且指定链接脚本,拿到结果



易学教程内所有资源均来自网络或用户发布的内容,如有违反法律规定的内容欢迎反馈
该文章没有解决你所遇到的问题?点击提问,说说你的问题,让更多的人一起探讨吧!
