Django rest_framework 认证源码流程

。_饼干妹妹 提交于 2021-01-19 07:37:30

一、请求到来后,都要先执行dispatch方法

dispatch根据请求方式的不同触发get/post/put/delete等方法

注意,APIView中的dispatch方法有很多的功能

def dispatch(self, request, *args, **kwargs):
        """
        `.dispatch()` is pretty much the same as Django's regular dispatch,
        but with extra hooks for startup, finalize, and exception handling.
        """
        self.args = args
        self.kwargs = kwargs
        第一步:对request进行加工(添加数据)
        request = self.initialize_request(request, *args, **kwargs)
        self.request = request
        self.headers = self.default_response_headers  # deprecate?

        try:
            #第二步:
                #处理版权信息
                #认证
                #权限
                #请求用户进行访问频率的限制
            self.initial(request, *args, **kwargs)

            # Get the appropriate handler method
            if request.method.lower() in self.http_method_names:
                handler = getattr(self, request.method.lower(),
                                  self.http_method_not_allowed)
            else:
                handler = self.http_method_not_allowed

            # 第三步、执行:get/post/put/delete函数
            response = handler(request, *args, **kwargs)

        except Exception as exc:
            response = self.handle_exception(exc)

        #第四步、 对返回结果再次进行加工
        self.response = self.finalize_response(request, response, *args, **kwargs)
        return self.response



二、上面是大致步骤,下面我们来具体分析一下

1、对request进行加工(添加数据)

我们来看看request里面都添加了那些数据

a、首先  request = self.initialize_request(request, *args, **kwargs)点进去,会发现:在Request里面多加了四个,如下

def initialize_request(self, request, *args, **kwargs):
        """
        Returns the initial request object.
        """
        #把请求弄成一个字典返回了
        parser_context = self.get_parser_context(request)

        return Request(
            request,
            parsers=self.get_parsers(),  #解析数据,默认的有三种方式,可点进去看
            #self.get_authenticator优先找自己的,没有就找父类的
            authenticators=self.get_authenticators(), #获取认证相关的所有类并实例化,传入request对象供Request使用
            negotiator=self.get_content_negotiator(),
            parser_context=parser_context
        )

b、获取认证相关的类的具体   authenticators=self.get_authenticators(),

def get_authenticators(self):
        """
        Instantiates and returns the list of authenticators that this view can use.
        """
        #返回的是对象列表
        return [auth() for auth in self.authentication_classes]  #[SessionAuthentication,BaseAuthentication]

c、查看认证的类:self.authentication_classes

authentication_classes = api_settings.DEFAULT_AUTHENTICATION_CLASSES  #默认的,如果自定制了会优先执行自定制的

d、接着走进api_settings

api_settings = APISettings(None, DEFAULTS, IMPORT_STRINGS)  #点击继承的DEFAULTS类
DEFAULTS = {
    # Base API policies
    'DEFAULT_AUTHENTICATION_CLASSES': (
        'rest_framework.authentication.SessionAuthentication',   #这时候就找到了他默认认证的类了,可以导入看看
        'rest_framework.authentication.BasicAuthentication'
    ),

e、导入了类看看类里面具体干了什么

from rest_framework.authentication import SessionAuthentication
from rest_framework.authentication import BaseAuthentication

f、看到里面有个authenticate方法和authenticate_header方法

class BaseAuthentication(object):
    """
    All authentication classes should extend BaseAuthentication.
    """

    def authenticate(self, request):
        """
        Authenticate the request and return a two-tuple of (user, token).
        """
        raise NotImplementedError(".authenticate() must be overridden.")

    def authenticate_header(self, request):
        """
        Return a string to be used as the value of the `WWW-Authenticate`
        header in a `401 Unauthenticated` response, or `None` if the
        authentication scheme should return `403 Permission Denied` responses.
        """
        pass

 具体处理认证,从headers里面能获取用户名和密码

class BasicAuthentication(BaseAuthentication):
    """
    HTTP Basic authentication against username/password.
    """
    www_authenticate_realm = 'api'

    def authenticate(self, request):
        """
        Returns a `User` if a correct username and password have been supplied
        using HTTP Basic authentication.  Otherwise returns `None`.
        """
        auth = get_authorization_header(request).split()

        if not auth or auth[0].lower() != b'basic':
            return None   #返回none不处理。让下一个处理

        if len(auth) == 1:
            msg = _('Invalid basic header. No credentials provided.')
            raise exceptions.AuthenticationFailed(msg)
        elif len(auth) > 2:
            msg = _('Invalid basic header. Credentials string should not contain spaces.')
            raise exceptions.AuthenticationFailed(msg)

        try:
            auth_parts = base64.b64decode(auth[1]).decode(HTTP_HEADER_ENCODING).partition(':')   #用partition切割,保留了分割项冒号
        except (TypeError, UnicodeDecodeError, binascii.Error):
            msg = _('Invalid basic header. Credentials not correctly base64 encoded.')
            raise exceptions.AuthenticationFailed(msg)

        userid, password = auth_parts[0], auth_parts[2]  # 返回用户和密码
        return self.authenticate_credentials(userid, password, request)

    def authenticate_credentials(self, userid, password, request=None):
        """
        Authenticate the userid and password against username and password
        with optional request for context.
        """
        credentials = {
            get_user_model().USERNAME_FIELD: userid,
            'password': password
        }
        user = authenticate(request=request, **credentials)

        if user is None:
            raise exceptions.AuthenticationFailed(_('Invalid username/password.'))

        if not user.is_active:
            raise exceptions.AuthenticationFailed(_('User inactive or deleted.'))

        return (user, None)

    def authenticate_header(self, request):
        return 'Basic realm="%s"' % self.www_authenticate_realm

g、当然restfulframework默认定义了两个类。我们也可以自定制类,自己有就用自己的了,自己没有就去找父类的了,但是里面必须实现authenticate方法,不然会报错。

2、进行以下操作(处理版权信息,认证,权限,访问频率限制)

  • 处理版权信息
  • 认证
  • 权限
  • 请求用户进行访问频率的限制

我们主要来看一下认证流程

认证流程:

a、首先 self.initial(request, *args, **kwargs)可以看到做了以下操作

def initial(self, request, *args, **kwargs):
        """
        Runs anything that needs to occur prior to calling the method handler.
        """
        self.format_kwarg = self.get_format_suffix(**kwargs)

        # Perform content negotiation and store the accepted info on the request
        neg = self.perform_content_negotiation(request)
        request.accepted_renderer, request.accepted_media_type = neg

        # Determine the API version, if versioning is in use.
        #2.1 处理版本信息
        version, scheme = self.determine_version(request, *args, **kwargs)
        request.version, request.versioning_scheme = version, scheme

        # Ensure that the incoming request is permitted
        #2.2 认证
        self.perform_authentication(request)
        # 2.3 权限
        self.check_permissions(request)
        # 2.4 请求用户进行访问频率的限制
        self.check_throttles(request)

 b、我们先来看认证,self.perform_authentication(request) 具体干了什么,按住ctrl点击进去

def perform_authentication(self, request):
        """
        Perform authentication on the incoming request.

        Note that if you override this and simply 'pass', then authentication
        will instead be performed lazily, the first time either
        `request.user` or `request.auth` is accessed.
        """
        request.user   #执行request的user,这是的request已经是加工后的request了

c、那么我们可以从视图里面导入一下Request,找到request对象的user方法

from rest_framework.views import Request

    @property
    def user(self):
        """
        Returns the user associated with the current request, as authenticated
        by the authentication classes provided to the request.
        """
        if not hasattr(self, '_user'):
            with wrap_attributeerrors():
                self._authenticate()  #
        return self._user  #返回user

d、执行self._authenticate() 开始用户认证,如果验证成功后返回元组: (用户,用户Token)

def _authenticate(self):
        """
        Attempt to authenticate the request using each authentication instance
        in turn.
        """
        #循环对象列表
        for authenticator in self.authenticators:
            try:
                #执行每一个对象的authenticate 方法
                user_auth_tuple = authenticator.authenticate(self)
            except exceptions.APIException:
                self._not_authenticated()
                raise

            if user_auth_tuple is not None:
                self._authenticator = authenticator
                self.user, self.auth = user_auth_tuple  #返回一个元组,user,和auth,赋给了self,
                # 只要实例化Request,就会有一个request对象,就可以request.user,request.auth了
                return

        self._not_authenticated()



e、在user_auth_tuple = authenticator.authenticate(self) 进行验证,如果验证成功,执行类里的authenticatie方法



f、如果用户没有认证成功:self._not_authenticated()

def _not_authenticated(self):
        """
        Set authenticator, user & authtoken representing an unauthenticated request.

        Defaults are None, AnonymousUser & None.
        """
        #如果跳过了所有认证,默认用户和Token和使用配置文件进行设置
        self._authenticator = None  #

        if api_settings.UNAUTHENTICATED_USER:
            self.user = api_settings.UNAUTHENTICATED_USER() # 默认值为:匿名用户AnonymousUser
        else:
            self.user = None  # None 表示跳过该认证

        if api_settings.UNAUTHENTICATED_TOKEN:
            self.auth = api_settings.UNAUTHENTICATED_TOKEN()  # 默认值为:None
        else:
            self.auth = None

    # (user, token)
    # 表示验证通过并设置用户名和Token;
    # AuthenticationFailed异常

3、执行get/post/delete等方法

4、对返回结果在进行加工



三、完整过程

现在我们主要去分析rest_framework内部对这个url的具体实现过程。

    1. 首先我们访问http://127.0.0.1:8000/user/ 根据urls.py中的配置,执行views.TestView.as_view()函数
    2. as_view方法是被定义在rest_framework/views.py里面的一个静态方法,所以可以通过类名直接调用。

    3. 父类的as_view方法是定义在django/views/generic/base.py里面的View类中的方法。在这个方法中最终会执行cls.dispatch,在第一步中我们知道cls是<class 'app01.views.TestView'>

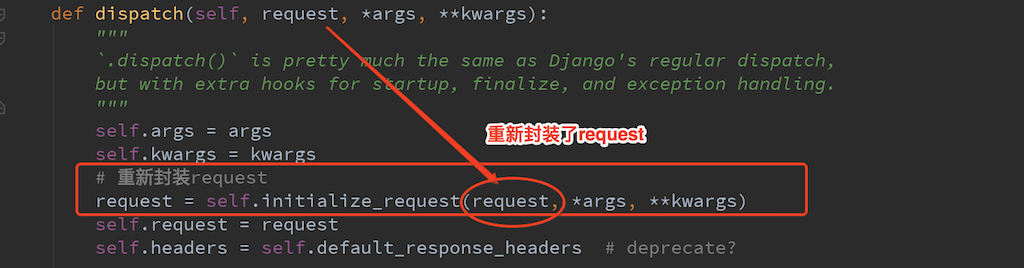

    4. dispatch是定义在TestView继承的父类APIView(rest_framework/views.py)里面的方法。在这个方法里面,首先通过 request = self.initialize_request(request, *args, **kwargs)这条语句重新封装了request对象

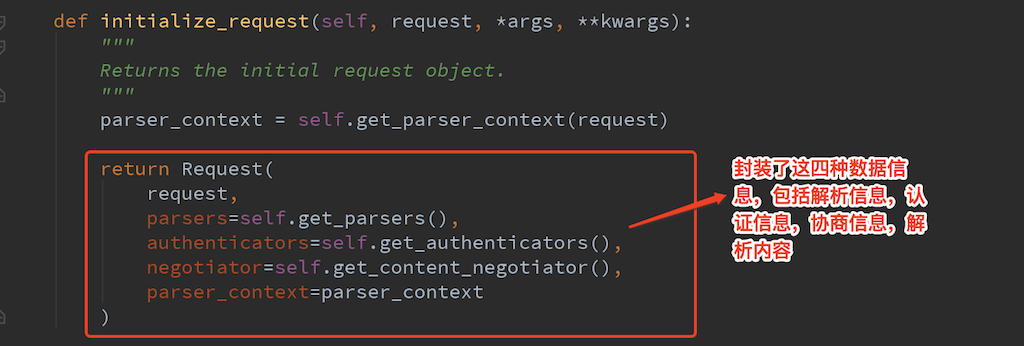

    5. initialize_request是APIView类里面的一个方法,重新封装了request对象,增加了一些属性信息

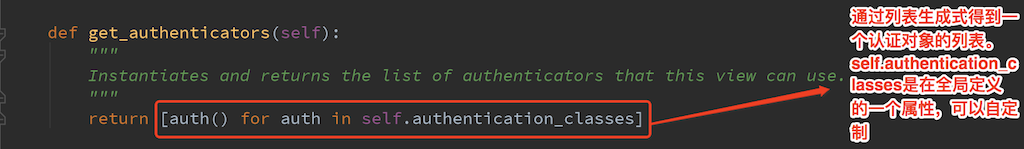

    6. 认证信息。主要通过APIView类中的get_authenticators(rest_framework/views.py)方法获取,这个方法会返回一个所有认证对象的列表
      在全局定义的authentication_classes = api_settings.DEFAULT_AUTHENTICATION_CLASSES

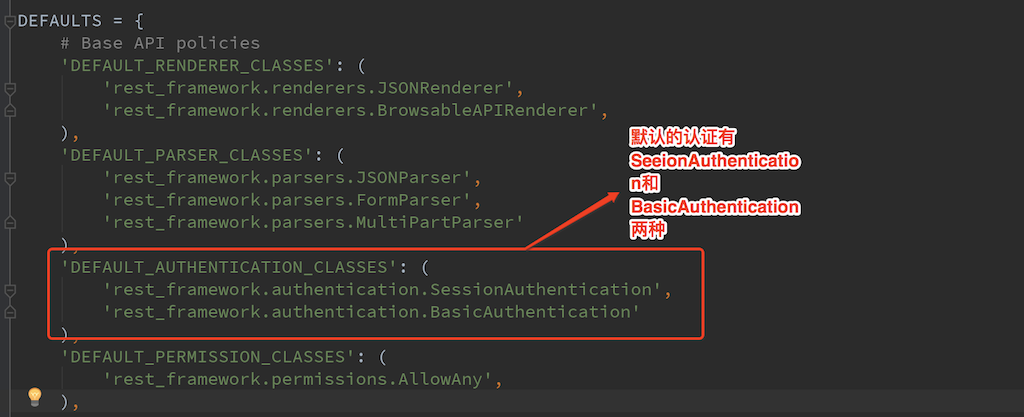

    7. 默认的认证配置信息是在rest_framework/settings.py文件中定义的

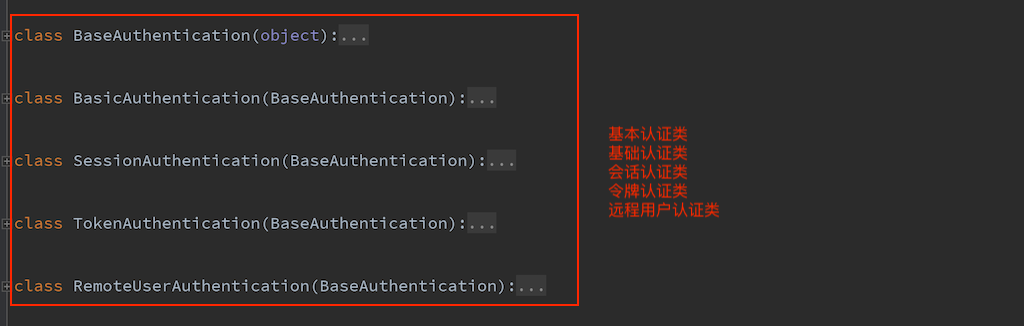

    8. 在rest_framework/authentication.py中定义了几种认证类型,一般情况我们需要自定义认证类,也可以使用django-oauth-toolkit组件进行认证。

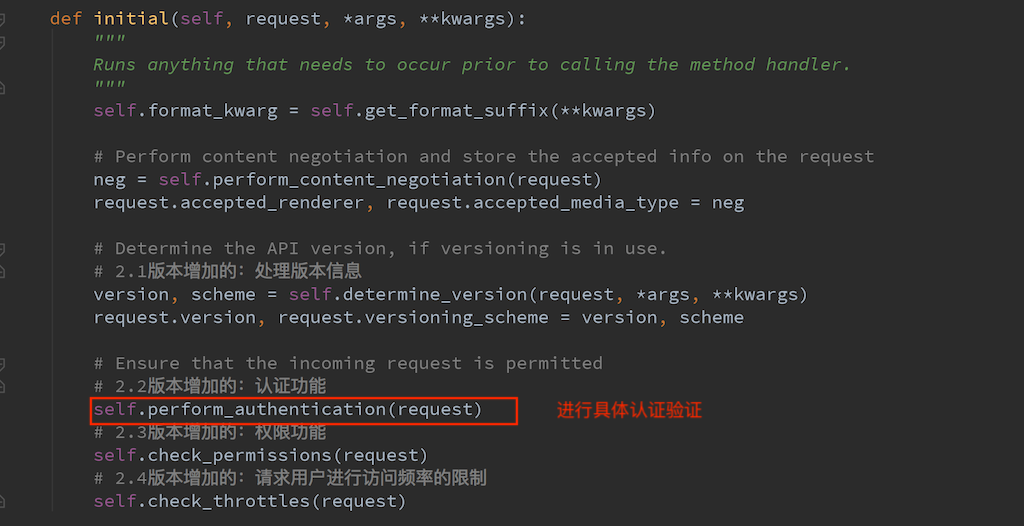

    9. dispatch中的initialize_request方法执行完成之后,还有执行一个重要方法是self.initial(request, *args, **kwargs),这个方法也是APIView类里的。在这个方法里面初始化
      被重新封装的request对象
      实现功能:
      • 版本处理
      • 用户认证
      • 权限
      • 访问频率限制

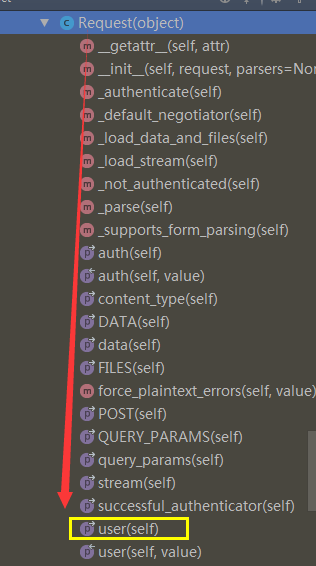

    10. 执行APIView里面的perform_authentication方法,该方法返回request.user,则会调用<rest_framework.request.request object="" at="" 0x10e80deb8="">里面的user方法。在user方法里面最终调用了Request类里面的_authenticate方法

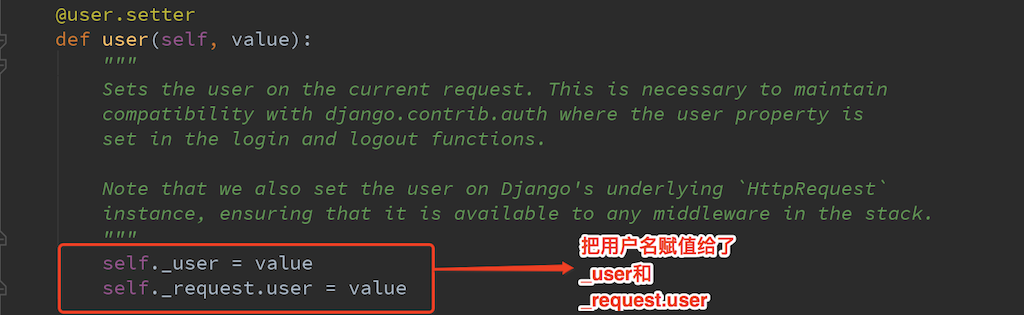

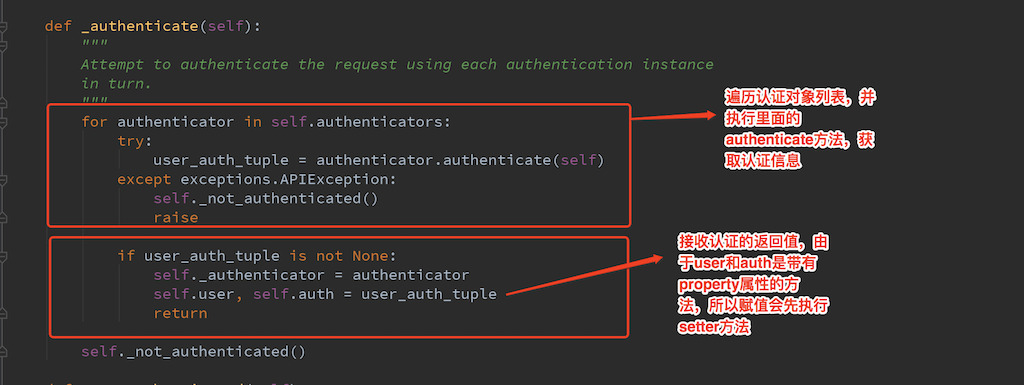

    11. 执行rest_framework.request.Request类中的_authenticate方法,这个方法会遍历认证类,并根据认证结果给self.user, self.auth赋值。由于user,和auth都有property属性,
      所以给赋值的时候先在先执行setter方法

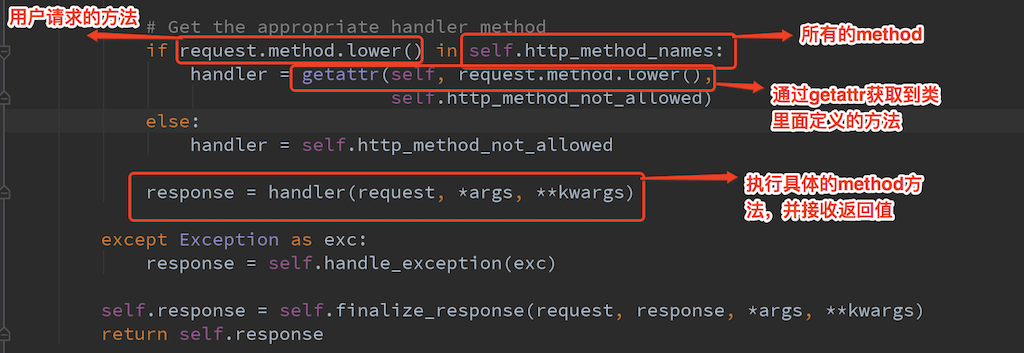

    12. dispatch中的initial方法执行完之后,会继续判断request.method并执行method相应的method.

    13. 执行TestView中定义的get方法,返回数据
