201771010113 李婷华 《面向对象程序设计(java)》学习总结

空扰寡人 提交于 2021-01-13 05:53:14

1、实验目的与要求

(1) 综合掌握java基本程序结构;

(2) 综合掌握java面向对象程序设计特点;

(3) 综合掌握java GUI 程序设计结构;

(4) 综合掌握java多线程编程模型;

(5) 综合编程练习。

2、实验内容和步骤

任务1:填写课程课后调查问卷,网址:https://www.wjx.cn/jq/33108969.aspx。

任务2:综合编程练习

练习1:设计一个用户信息采集程序,要求如下:

(1) 用户信息输入界面如下图所示:





1)用户点击提交按钮时,用户输入信息显示控制台界面;

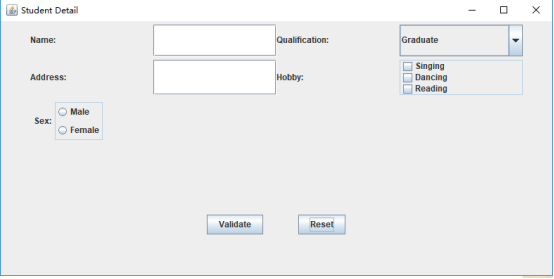

2)用户点击重置按钮后,清空用户已输入信息;

3)点击窗口关闭,程序退出。

import java.awt.EventQueue;

import javax.swing.JFrame;

public class Mian {
    public static void main(String[] args) {
        EventQueue.invokeLater(() -> {
            DemoJFrame page = new DemoJFrame();
        });
    }
}
Mian
import java.awt.Dimension;
import java.awt.Toolkit;
import java.awt.Window;

public class WinCenter {
    public static void center(Window win){
        Toolkit tkit = Toolkit.getDefaultToolkit();//获取默认工具包
        Dimension sSize = tkit.getScreenSize();//获取屏幕的大小
        Dimension wSize = win.getSize();
        if(wSize.height > sSize.height){
            wSize.height = sSize.height;
        }
        if(wSize.width > sSize.width){
            wSize.width = sSize.width;
        }
        win.setLocation((sSize.width - wSize.width)/ 2, (sSize.height - wSize.height)/ 2);//将组件移到新的位置
    }
}
WinCenter
import java.awt.Color;
import java.awt.Dimension;
import java.awt.FlowLayout;
import java.awt.GridLayout;
import java.awt.LayoutManager;
import java.awt.Panel;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
import java.io.BufferedReader;
import java.io.File;
import java.io.FileInputStream;
import java.io.IOException;
import java.io.InputStreamReader;
import java.util.ArrayList;
import java.util.Timer;
import java.util.TimerTask;

import javax.swing.BorderFactory;
import javax.swing.ButtonGroup;
import javax.swing.ButtonModel;
import javax.swing.JButton;
import javax.swing.JCheckBox;
import javax.swing.JComboBox;
import javax.swing.JFrame;
import javax.swing.JLabel;
import javax.swing.JPanel;
import javax.swing.JRadioButton;
import javax.swing.JTextField;

public class DemoJFrame extends JFrame {
    private JPanel jPanel1;
    private JPanel jPanel2;
    private JPanel jPanel3;
    private JPanel jPanel4;
    private JTextField fieldname;
    private JComboBox comboBox;
    private JTextField fieldadress;
    private ButtonGroup bg;
    private JRadioButton nan;
    private JRadioButton nv;
    private JCheckBox sing;
    private JCheckBox dance;
    private JCheckBox draw;

    public DemoJFrame() {
        // 设置窗口大小
        this.setSize(800, 400);
        // 设置可见性
        this.setVisible(true);
        // 设置标题
        this.setTitle("Student Detail");
        // 设置关闭操作
        this.setDefaultCloseOperation(EXIT_ON_CLOSE);
        // 设置窗口居中
        WinCenter.center(this);
        // 创建四个面板对象
        jPanel1 = new JPanel();
        setJPanel1(jPanel1);
        jPanel2 = new JPanel();
        setJPanel2(jPanel2);
        jPanel3 = new JPanel();
        setJPanel3(jPanel3);
        jPanel4 = new JPanel();
        setJPanel4(jPanel4);
        // 设置容器为流式布局
        FlowLayout flowLayout = new FlowLayout();
        this.setLayout(flowLayout);
        // 将四个面板添加到容器中
        this.add(jPanel1);
        this.add(jPanel2);
        this.add(jPanel3);
        this.add(jPanel4);

    }

    /*
     * 设置面一
     */
    private void setJPanel1(JPanel jPanel) {
        jPanel.setPreferredSize(new Dimension(700, 45));//设置此组件的首选大小
        // 给面板的布局设置为网格布局 一行4列
        jPanel.setLayout(new GridLayout(1, 4));
        JLabel name = new JLabel("Name:");
        name.setSize(100, 50);
        fieldname = new JTextField("");
        fieldname.setSize(80, 20);
        JLabel study = new JLabel("Qualification:");
        comboBox = new JComboBox();
        comboBox.addItem("Graduate");
        comboBox.addItem("senior");
        comboBox.addItem("Undergraduate");
        jPanel.add(name);
        jPanel.add(fieldname);
        jPanel.add(study);
        jPanel.add(comboBox);

    }

    /*
     * 设置面板二
     */
    private void setJPanel2(JPanel jPanel) {
        jPanel.setPreferredSize(new Dimension(700, 50));
        // 给面板的布局设置为网格布局 一行4列
        jPanel.setLayout(new GridLayout(1, 4));
        JLabel name = new JLabel("Address:");
        fieldadress = new JTextField();
        fieldadress.setPreferredSize(new Dimension(150, 50));
        JLabel study = new JLabel("Hobby:");
        JPanel selectBox = new JPanel();
        selectBox.setBorder(BorderFactory.createTitledBorder(""));
        selectBox.setLayout(new GridLayout(3, 1));
        sing = new JCheckBox("Singing");
        dance = new JCheckBox("Dancing");
        draw = new JCheckBox("Reading");
        selectBox.add(sing);
        selectBox.add(dance);
        selectBox.add(draw);
        jPanel.add(name);
        jPanel.add(fieldadress);
        jPanel.add(study);
        jPanel.add(selectBox);
    }

    /*
     * 设置面板三
     */
    private void setJPanel3(JPanel jPanel) {
        jPanel.setPreferredSize(new Dimension(700, 150));
        FlowLayout flowLayout = new FlowLayout(FlowLayout.LEFT);
        jPanel.setLayout(flowLayout);
        JLabel sex = new JLabel("Sex:");
        JPanel selectBox = new JPanel();
        selectBox.setBorder(BorderFactory.createTitledBorder(""));
        selectBox.setLayout(new GridLayout(2, 1));
        bg = new ButtonGroup();
        nan = new JRadioButton("Male");
        nv = new JRadioButton("Female");
        bg.add(nan);
        bg.add(nv);
        selectBox.add(nan);
        selectBox.add(nv);
        jPanel.add(sex);
        jPanel.add(selectBox);

    }

    /*
     * 设置面板四
     */
    private void setJPanel4(JPanel jPanel) {
        // TODO 自动生成的方法存根
        jPanel.setPreferredSize(new Dimension(700, 150));
        FlowLayout flowLayout = new FlowLayout(FlowLayout.CENTER, 50, 10);
        jPanel.setLayout(flowLayout);
        jPanel.setLayout(flowLayout);
        JButton sublite = new JButton("Validate");
        JButton reset = new JButton("Reset");
        sublite.addActionListener((e) -> valiData());
        reset.addActionListener((e) -> Reset());
        jPanel.add(sublite);
        jPanel.add(reset);
    }

    /*
     * 提交数据
     */
    private void valiData() {
        // 拿到数据
        String name = fieldname.getText().toString().trim();
        String xueli = comboBox.getSelectedItem().toString().trim();
        String address = fieldadress.getText().toString().trim();
        System.out.println(name);
        System.out.println(xueli);
        String hobbystring="";
        if (sing.isSelected()) {
            hobbystring+="Singing   ";
        }
        if (dance.isSelected()) {
            hobbystring+="Dancing   ";
        }
        if (draw.isSelected()) {
            hobbystring+="Reading  ";
        }
        System.out.println(address);
        if (nan.isSelected()) {
            System.out.println("Male");
        }
        if (nv.isSelected()) {
            System.out.println("Female");
        }
        System.out.println(hobbystring);
    }

    /*
     * 重置
     */
    private void Reset() {
        fieldadress.setText(null);
        fieldname.setText(null);
        comboBox.setSelectedIndex(0);
        sing.setSelected(false);
        dance.setSelected(false);
        draw.setSelected(false);
        bg.clearSelection();
    }
}
DemoJFrame

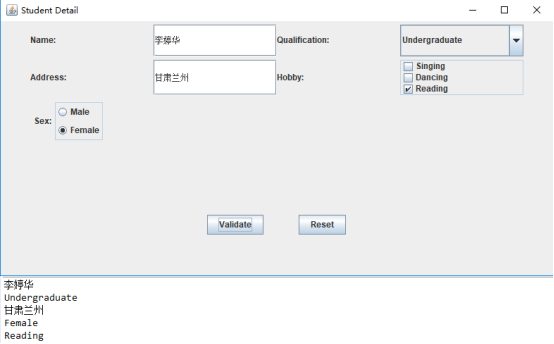

结果:

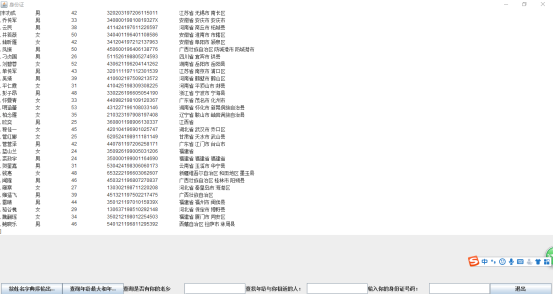

练习2:采用GUI界面设计以下程序:

编制一个程序,将身份证号.txt 中的信息读入到内存中;

按姓名字典序输出人员信息;

查询最大年龄的人员信息;

查询最小年龄人员信息;

输入你的年龄,查询身份证号.txt中年龄与你最近人的姓名、身份证号、年龄、性别和出生地;

查询人员中是否有你的同乡。

输入身份证信息,查询所提供身份证号的人员信息,要求输入一个身份证数字时,查询界面就显示满足查询条件的查询结果,且随着输入的数字的增多,查询匹配的范围逐渐缩小。

package ID;
import java.awt.*;
import javax.swing.*;

public class ButtonTest {
    public static void main(String[] args) {
        EventQueue.invokeLater(() -> {
            JFrame frame = new Test();
            frame.setTitle("身份证");
            frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
            frame.setVisible(true);
        });
    }
}
ButtonTest
package ID;
import java.io.BufferedReader;
import java.io.File;
import java.io.FileInputStream;
import java.io.FileNotFoundException;
import java.io.IOException;
import java.io.InputStreamReader;
import java.util.ArrayList;
import java.util.Arrays;
import java.util.Scanner;
import java.util.Collections;
import java.awt.*;
import javax.swing.*;
import java.awt.event.*;

public class Test extends JFrame {
    private static ArrayList<Citizen> citizenlist;
    private static ArrayList<Citizen> list;
    private JPanel panel;
    private JPanel buttonPanel;
    private static final int DEFAULT_WITH = 600;
    private static final int DEFAULT_HEIGHT = 300;

    public Test(){
        citizenlist = new ArrayList<>();
        Scanner scanner = new Scanner(System.in);
        File file = new File("E:/java/身份证号.txt");
        try {
            FileInputStream fis = new FileInputStream(file);
            BufferedReader in = new BufferedReader(new InputStreamReader(fis));
            String temp = null;
            while ((temp = in.readLine()) != null) {

                Scanner linescanner = new Scanner(temp);

                linescanner.useDelimiter(" ");
                String name = linescanner.next();
                String id = linescanner.next();
                String sex = linescanner.next();
                String age = linescanner.next();
                String birthplace = linescanner.nextLine();
                Citizen citizen = new Citizen();
                citizen.setName(name);
                citizen.setId(id);
                citizen.setSex(sex);
                int ag = Integer.parseInt(age);
                citizen.setage(ag);
                citizen.setBirthplace(birthplace);
                citizenlist.add(citizen);

            }
        } catch (FileNotFoundException e) {
            System.out.println("信息文件找不到");
            e.printStackTrace();
        } catch (IOException e) {
            System.out.println("信息文件读取错误");
            e.printStackTrace();
        }
        panel = new JPanel();
        panel.setLayout(new BorderLayout());
        JTextArea jt = new JTextArea();
        panel.add(jt);
        add(panel, BorderLayout.NORTH);
        buttonPanel = new JPanel();
        buttonPanel.setLayout(new GridLayout(1, 7));
        JButton jButton = new JButton("按姓名字典序输出人员信息");
        JButton jButton1 = new JButton("查询年龄最大和年龄最小的人员");
        JLabel lab = new JLabel("查询是否有你的老乡");
        JTextField jt1 = new JTextField();
        JLabel lab1 = new JLabel("查找年龄与你相近的人:");
        JTextField jt2 = new JTextField();
        JLabel lab2 = new JLabel("输入你的身份证号码:");
        JTextField jt3 = new JTextField();
        JButton jButton2 = new JButton("退出");
        jButton.addActionListener(new ActionListener() {
            public void actionPerformed(ActionEvent e) {
                Collections.sort(citizenlist);
                jt.setText(citizenlist.toString());
            }
        });
        jButton1.addActionListener(new ActionListener() {
            public void actionPerformed(ActionEvent e) {
                int max = 0, min = 100;
                int j, k1 = 0, k2 = 0;
                for (int i = 1; i < citizenlist.size(); i++) {
                    j = citizenlist.get(i).getage();
                    if (j > max) {
                        max = j;
                        k1 = i;
                    }
                    if (j < min) {
                        min = j;
                        k2 = i;
                    }

                }
                jt.setText("年龄最大:" + citizenlist.get(k1) + "年龄最小:" + citizenlist.get(k2));
            }
        });
        jButton2.addActionListener(new ActionListener() {
            public void actionPerformed(ActionEvent e) {
                dispose();
                System.exit(0);
            }
        });
        jt1.addActionListener(new ActionListener() {
            public void actionPerformed(ActionEvent e) {
                String find = jt1.getText();
                String text="";
                String place = find.substring(0, 3);
                for (int i = 0; i < citizenlist.size(); i++) {
                    if (citizenlist.get(i).getBirthplace().substring(1, 4).equals(place)) {
                        text+="\n"+citizenlist.get(i);
                        jt.setText("老乡:" + text);
                    }
                }
            }
        });
        jt2.addActionListener(new ActionListener() {
            public void actionPerformed(ActionEvent e) {
                String yourage = jt2.getText();
                int a = Integer.parseInt(yourage);
                int near = agenear(a);
                int value = a - citizenlist.get(near).getage();
                jt.setText("年龄相近:" + citizenlist.get(near));
            }
        });
        jt3.addActionListener(new ActionListener() {
            public void actionPerformed(ActionEvent e) {
                list = new ArrayList<>();
                Collections.sort(citizenlist);
                String key = jt3.getText();
                for (int i = 1; i < citizenlist.size(); i++) {
                    if (citizenlist.get(i).getId().contains(key)) {
                        list.add(citizenlist.get(i));
                        jt.setText("emmm!你可能是:\n" + list);
                    }
                }
            }
        });
        buttonPanel.add(jButton);
        buttonPanel.add(jButton1);
        buttonPanel.add(lab);
        buttonPanel.add(jt1);
        buttonPanel.add(lab1);
        buttonPanel.add(jt2);
        buttonPanel.add(lab2);
        buttonPanel.add(jt3);
        buttonPanel.add(jButton2);
        add(buttonPanel, BorderLayout.SOUTH);
        setSize(DEFAULT_WITH, DEFAULT_HEIGHT);
    }

    public static int agenear(int age) {
        int min = 53, value = 0, k = 0;
        for (int i = 0; i < citizenlist.size(); i++) {
            value = citizenlist.get(i).getage() - age;
            if (value < 0)
                value = -value;
            if (value < min) {
                min = value;
                k = i;
            }
        }
        return k;
    }

}
Test
package ID;
public class Citizen implements Comparable<Citizen> {

    private String name;
    private String id;
    private String sex;
    private int age;
    private String birthplace;
    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public String getId() {
        return id;
    }

    public void setId(String id) {
        this.id = id;
    }

    public String getSex() {
        return sex;
    }

    public void setSex(String sex) {
        this.sex = sex;
    }

    public int getage() {
        return age;
    }

    public void setage(int age) {
        this.age = age;
    }

    public String getBirthplace() {
        return birthplace;
    }

    public void setBirthplace(String birthplace) {
        this.birthplace = birthplace;
    }

    public int compareTo(Citizen other) {
        return this.name.compareTo(other.getName());
    }

    public String toString() {
        return name + "\t" + sex + "\t" + age + "\t" + id + "\t" + birthplace + "\n";
    }
}
Citizen

结果:

按字典序输出:

查找最大和最小年龄:



查找同乡:



找年龄相近的人:



练习3:采用GUI界面设计以下程序

编写一个计算器类,可以完成加、减、乘、除的操作

利用计算机类,设计一个小学生100以内数的四则运算练习程序,由计算机随机产生10道加减乘除练习题,学生输入答案,由程序检查答案是否正确,每道题正确计10分,错误不计分,10道题测试结束后给出测试总分;

将程序中测试练习题及学生答题结果输出到文件,文件名为test.txt。

package counter;
import java.awt.Dimension;
import java.awt.EventQueue;
import java.awt.Toolkit;
import javax.swing.JFrame;

public class Count {

    public static void main(String args[]) {
        Toolkit t = Toolkit.getDefaultToolkit();
        Dimension s = t.getScreenSize();
        EventQueue.invokeLater(() -> {
            JFrame frame = new Calculator();
            frame.setBounds(0, 0, (int) s.getWidth() / 2, (int) s.getHeight() / 2);
            frame.setTitle("计算器");
            frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
            frame.setVisible(true);
        });
    }

}
Count
package counter;
import java.awt.Font;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
import java.io.FileNotFoundException;
import java.io.PrintWriter;
import java.util.Collections;
import java.util.Scanner;
import javax.swing.*;
import java.math.*;

public class Calculator extends JFrame {
    private String[] c = new String[10];
    private String[] c1 = new String[10];
    private int[] list = new int[10];
    int i = 0, i1 = 0,k=0, sum = 0;
    private PrintWriter out = null;
    private JTextArea text, text1;
    private int counter;

    public Calculator() {
        JPanel Panel = new JPanel();
        Panel.setLayout(null);
        JLabel JLabel1 = new JLabel("");
        JLabel1.setBounds(500, 800, 400, 30);
        JLabel1.setFont(new Font("Courier", Font.PLAIN, 35));
        JButton Button = new JButton("生成练习题");
        Button.setBounds(50, 150, 150, 50);
        Button.setFont(new Font("Courier", Font.PLAIN, 20));
        Button.addActionListener(new Action());
        JButton Button2 = new JButton("检查答案");
        Button2.setBounds(300, 150, 150, 50);
        Button2.setFont(new Font("Courier", Font.PLAIN, 20));
        Button2.addActionListener(new Action1());
        JButton Button3 = new JButton("读出文件");
        Button3.setBounds(500, 150, 150, 50);
        Button3.setFont(new Font("Courier", Font.PLAIN, 20));
        Button3.addActionListener(new Action2());
        text = new JTextArea(30, 80);
        text.setBounds(30, 50, 200, 50);
        text.setFont(new Font("Courier", Font.PLAIN, 35));
        text1 = new JTextArea(30, 80);
        text1.setBounds(270, 50, 200, 50);
        text1.setFont(new Font("Courier", Font.PLAIN, 35));

        Panel.add(text);
        Panel.add(text1);

        Panel.add(Button);
        Panel.add(Button2);
        Panel.add(Button3);
        Panel.add(JLabel1);
        add(Panel);

    }

    private class Action implements ActionListener {
        public void actionPerformed(ActionEvent event) {
            text1.setText("0");
            if (i < 10) {

                int a = 1 + (int) (Math.random() * 99);
                int b = 1 + (int) (Math.random() * 99);
                int m = (int) Math.round(Math.random() * 3);
                switch (m) {
                case 0:
                    while (a < b) {
                        b = (int) Math.round(Math.random() * 100);
                        a = (int) Math.round(Math.random() * 100);
                    }
                    c[i] = (i + ":" + a + "/" + b + "=");
                    list[i] = Math.floorDiv(a, b);
                    text.setText(i + ":" + a + "/" + b + "=");
                    i++;
                    break;
                case 1:
                    c[i] = (i + ":" + a + "*" + b + "=");
                    list[i] = Math.multiplyExact(a, b);
                    text.setText(i + ":" + a + "*" + b + "=");
                    i++;
                    break;
                case 2:
                    c[i] = (i + ":" + a + "+" + b + "=");
                    list[i] = Math.addExact(a, b);
                    text.setText(i + ":" + a + "+" + b + "=");
                    i++;
                    break;
                case 3:
                    while (a <= b) {
                        b = (int) Math.round(Math.random() * 100);
                        a = (int) Math.round(Math.random() * 100);
                    }
                    c[i] = (i + ":" + a + "-" + b + "=");
                    text.setText(i + ":" + a + "-" + b + "=");
                    list[i] = Math.subtractExact(a, b);
                    i++;
                    break;
                }
            }
        }
    }

    private class Action1 implements ActionListener {
        public void actionPerformed(ActionEvent event) {
            if (i < 10) {
                text.setText(null);
                String daan = text1.getText().toString().trim();
                int a = Integer.parseInt(daan);
                if (text1.getText() != "") {
                    if (list[i1] == a)
                        sum += 10;
                }
                c1[i1] = daan;
                i1++;
            }
        }
    }

    private class Action2 implements ActionListener {
        public void actionPerformed(ActionEvent event) {

            try {
                out = new PrintWriter("text.txt");
            } catch (FileNotFoundException e) {
                e.printStackTrace();
            }
            for (int counter = 0; counter < 10; counter++) {
                out.println(c[counter] + c1[counter]);
            }
            out.println("成绩" + sum);
            out.close();

        }

    }
}
Calculator

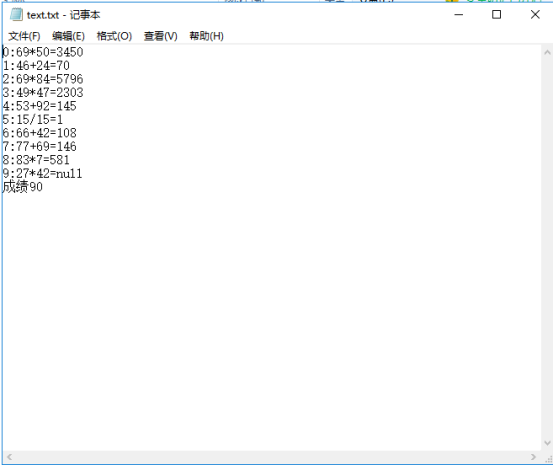

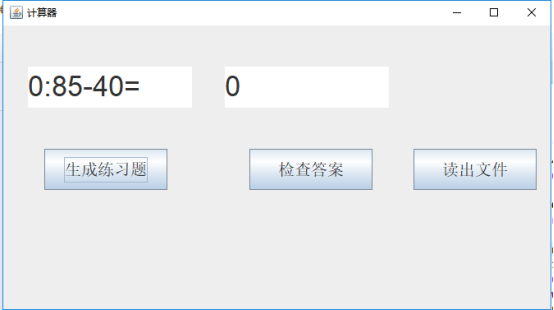

结果:



任务3:本学期课程已结束,请汇总《面向对象程序设计课程学习进度条》的数据,统计个人专业能力提升的数据。并从学习内容、学习方法、学习心得几个方面进行课程学习总结,也希望你对课程的不足提出建议和意见。

 学习内容:

Java语言特点与开发环境配置(第1章、第2章)

Java基本程序结构(第3章)

Java面向对象程序结构(第4章、第5章、第6章)

 类、类间关系、类图

Java JDK预定义类/接口及其API(String-第3章、 Arrays-第3章、Files-第3章62页、LocalDate-第4章、 Object-第5章、对象包装器-第5章、Comparator-第6章、 异常类-第7章、ArrayList-第5+8章、第9章、第10-12章、 第14章)

Java异常处理编程模型

Java GUI编程模型

Java并发程序设计(第14章)

 Java应用程序部署(第13章)

学习方法:

老师讲授知识、自主学习

(1)理论课:课前自主学习,老师总结知识,解除疑惑

(2)实验课:通过阅读并运行示例程序学习。和理论知识结合起来作兴应当更改。课后完成老师不知道实验作业

(3)通过老师提供分享的资料自主学习,遇到的问题找老师或助教学长解决。

学习心得:

通过本学期的学习,掌握了java的一些基本知识,对java有了一定的深入了解,并可以通过java编程来解决一些小问题,在实际问题的解决当中依然有问题。和C语言相比较还是挺喜欢java编程的。在今后的学习中还会继续努力学习java,提升运用java编程去解决实际生活中的问题的能力。在今后的学习中会尝试着去学习其他一些与java有关的课程。

感谢老师和助教学长一学期的悉心教导,帮助我完成了java学习的任务。在这一学期的学习中我也收获了很多。

建议和意见:

每周的作业量还是有些大,每次基本上勉强才能把作业按规定时间交上去。

易学教程内所有资源均来自网络或用户发布的内容,如有违反法律规定的内容欢迎反馈
该文章没有解决你所遇到的问题?点击提问,说说你的问题,让更多的人一起探讨吧!
