openvpn使用账号密码登录

介绍：在前面两篇文章中，已经配置好了openvpn服务，同时也对添加新用户和注销用户做了说明，但是这样并不利于对openvpn客户端的统一管理，所以可以使用账号密码登录的方式，这样再添加或注销一个用户，可以直接在配置文件中完成，只需要秘钥验证就可以了，下面介绍一下具体配置

一、服务端配置

1.1 修改server.conf配置文件

[root@loaclhost ~]# vim /etc/openvpn/server.conf

添加下面几行，注明checkpsw.sh的位置

auth-user-pass-verify /etc/openvpn/checkpsw.sh via-env
client-cert-not-required
username-as-common-name
script-security 3

1.2 编辑checkpsw.sh文件

[root@loaclhost ~]# vim /etc/openvpn/checkpsw.sh

#!/bin/sh
###########################################################
# checkpsw.sh (C) 2004 Mathias Sundman <mathias@openvpn.se>
#
# This script will authenticate OpenVPN users against
# a plain text file. The passfile should simply contain
# one row per user with the username first followed by
# one or more space(s) or tab(s) and then the password.

PASSFILE="/etc/openvpn/psw-file" #用户名和密码的配置文件
LOG_FILE="/var/log/openvpn-password.log"
TIME_STAMP=`date "+%Y-%m-%d %T"`

###########################################################

if [ ! -r "${PASSFILE}" ]; then
  echo "${TIME_STAMP}: Could not open password file \"${PASSFILE}\" for reading." >> ${LOG_FILE}
  exit 1
fi

CORRECT_PASSWORD=`awk '!/^;/&&!/^#/&&$1=="'${username}'"{print $2;exit}' ${PASSFILE}`

if [ "${CORRECT_PASSWORD}" = "" ]; then
  echo "${TIME_STAMP}: User does not exist: username=\"${username}\", password=\"${password}\"." >> ${LOG_FILE}
  exit 1
fi

if [ "${password}" = "${CORRECT_PASSWORD}" ]; then
  echo "${TIME_STAMP}: Successful authentication: username=\"${username}\"." >> ${LOG_FILE}
  exit 0
fi

echo "${TIME_STAMP}: Incorrect password: username=\"${username}\", password=\"${password}\"." >> ${LOG_FILE}
exit 1

1.3 配置账号密码

[root@loaclhost ~]# vim /etc/openvpn/psw-file

client    password

1.4 配置psw-file权限

[root@loaclhost ~]# chmod 400 psw-file

[root@loaclhost ~]# chown nobody.nobody psw-file

1.5 重启服务

[root@loaclhost ~]# service openvpn restart

Shutting down openvpn:                                     [  OK  ]
Starting openvpn:                                          [  OK  ]

二、客户端配置

2.1 配置open.ovpn文件

注释掉秘钥，保留证书，添加一行 auth-user-pass

client
dev tun
proto tcp
remote *.*.*.* 1194
resolv-retry infinite
nobind
persist-key
persist-tun
ca ca.crt
auth-user-pass
#cert client.crt
#key client.key
remote-cert-tls server
cipher AES-256-CBC
verb 3
comp-lzo

2.2 客户端测试

把下面的两个文件放入到config的文件夹内，连接测试

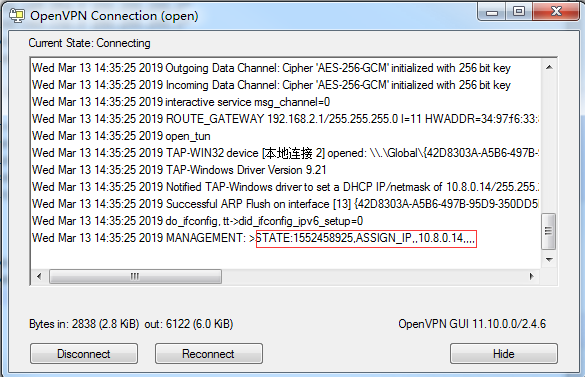

客户端测试正常启动，见下图

2.3 redhat安装openvpn客户端

配置yum源

[root@localhost ~]# rpm -ivh http://mirrors.sohu.com/fedora-epel/6/x86_64/epel-release-6-8.noarch.rpm

root@localhost ~]# sed -i 's/^mirrorlist=https/mirrorlist=http/' /etc/yum.repos.d/epel.repo

yum安装openvpn
[root@localhost ~]# yum -y install openvpn

上传配置文件

[root@localhost ~]# cd /etc/openvpn/

[root@localhost openvpn]# ll

-rw-r--r--. 1 root root 1818 Mar 15 00:56 ca.crt
-rw-r--r--. 1 root root   19 Mar 15 01:01 login.conf
-rw-r--r--. 1 root root  677 Mar 15 01:02 open.ovpn
-rw-r--r--. 1 root root  636 Mar 15 00:56 ta.key

[root@localhost openvpn]# vi open.ovpn

client
dev tun
proto tcp
remote *.*.*.* 1194
auth-user-pass login.conf
resolv-retry infinite
remote-cert-tls server
nobind
persist-key
persist-tun
comp-lzo
verb 3
ca ca.crt

[root@localhost openvpn]# vi login.conf

user
password

连接：

[root@localhost openvpn]# openvpn --daemon --cd /etc/openvpn/ --config open.ovpn

[root@localhost openvpn]# ps aux |grep openvpn

root      20449  0.0  0.1  49780  3084 ?        Ss   01:02   0:00 openvpn --daemon --cd /etc/openvpn/ --config open.ovpn

[root@localhost openvpn]# ip addr

tun0: <POINTOPOINT,MULTICAST,NOARP,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UNKNOWN qlen 100
    link/none
    inet 10.8.0.249 peer 10.8.0.254/32 scope global tun0
       valid_lft forever preferred_lft forever

做别名：

[root@localhost openvpn]# vi /root/.bashrc

alias openvpn='openvpn --daemon --cd /etc/openvpn/ --config open.ovpn'

[root@localhost openvpn]# source /root/.bashrc

成功！！！
