Dubbo的Api+Provider+Customer示例（IDEA+Maven+Springboot+dubbo）

由 丶灬走出姿态 提交于 2020-10-28 05:33:59

项目结构

dubbo-demo

　　dubbo-api：提供api接口，一般存储实体类和接口服务

　　dubbo-provider：dubbo生产者提供服务，一般存储接口具体实现

　　dubbo-customer：dubbo消费者使用服务，分发请求

一、新建项目dubbo-demo

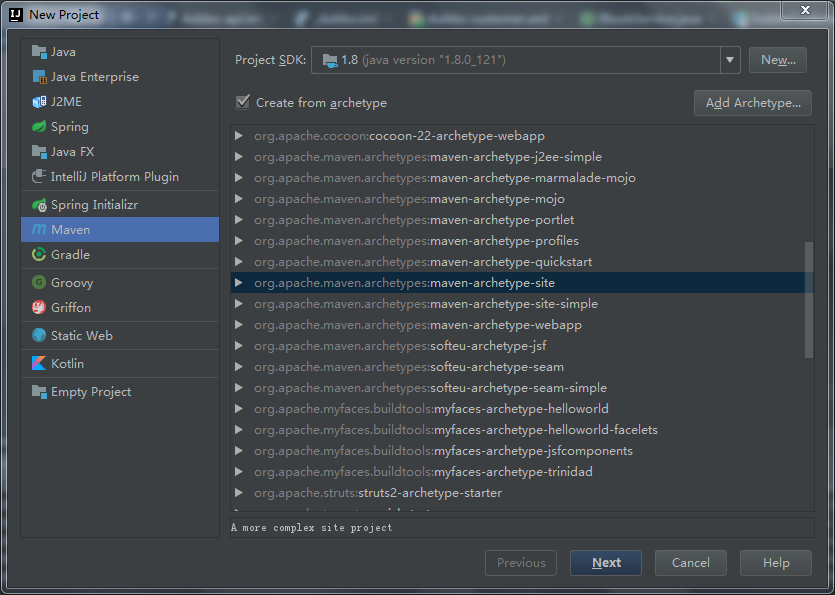

1、新建Maven项目，File-->new-->Project，选择Maven

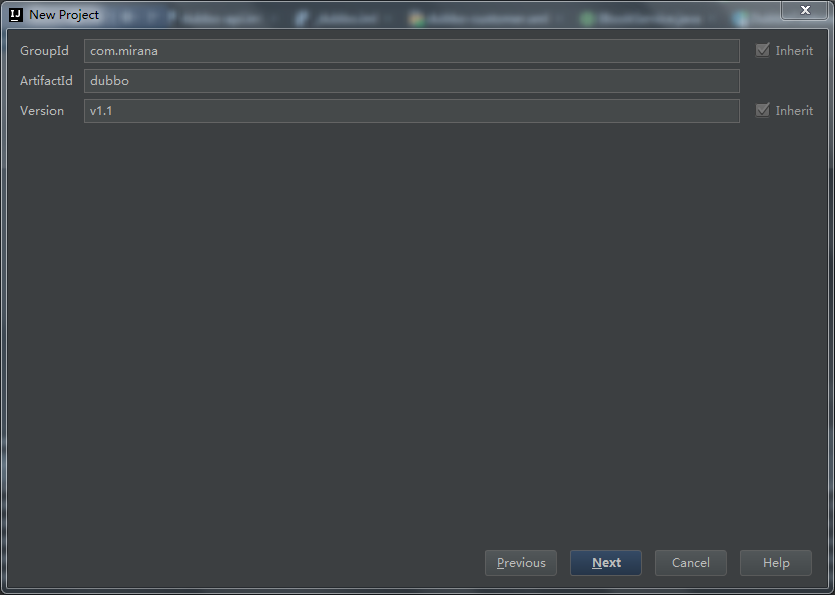

2、填充GroupId、ArtifactId和Version

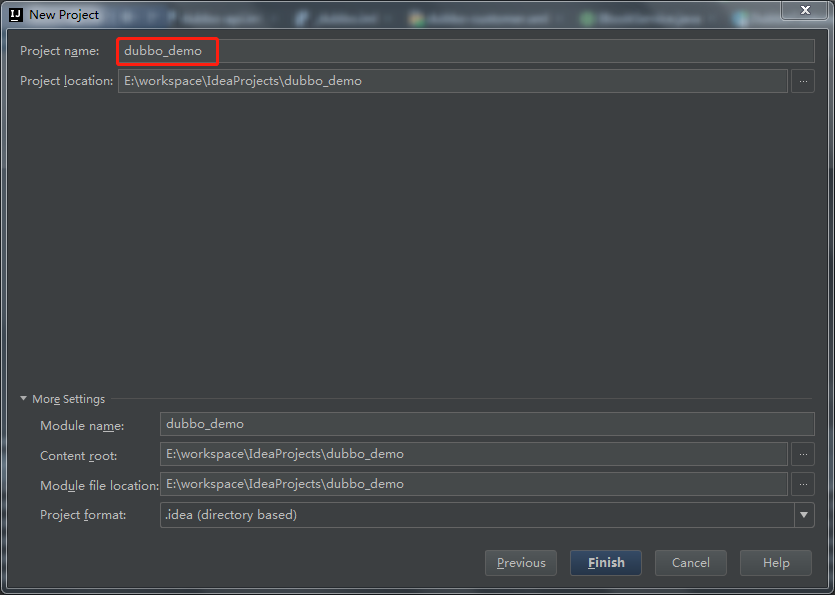

3、一路Next，最后选择项目名称（之前创建过dubbo的项目，这里重命名为dubbo_demo）

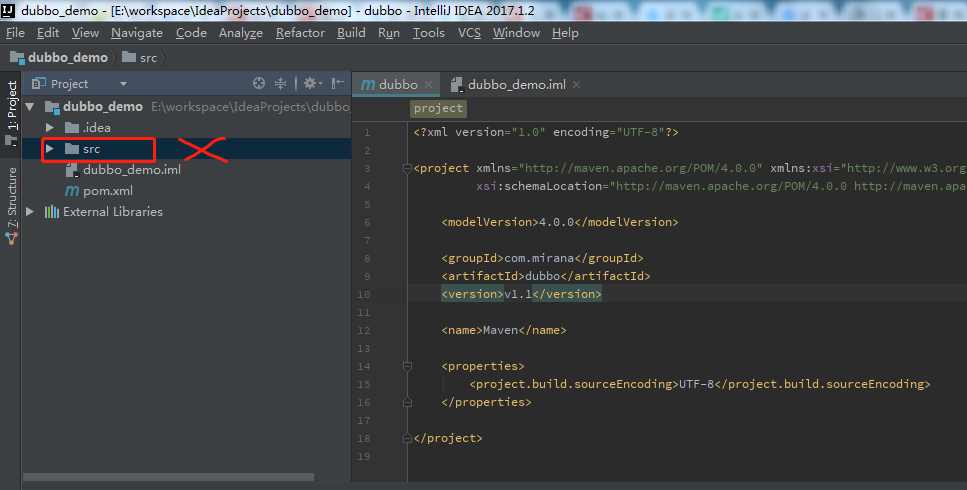

4、生成项目，修改pom.xml（不修改也不影响子模块），删除src



 二、添加基于SpringBoot的三个子模块dubbo-api、dubbo-provider、dubbo-customer

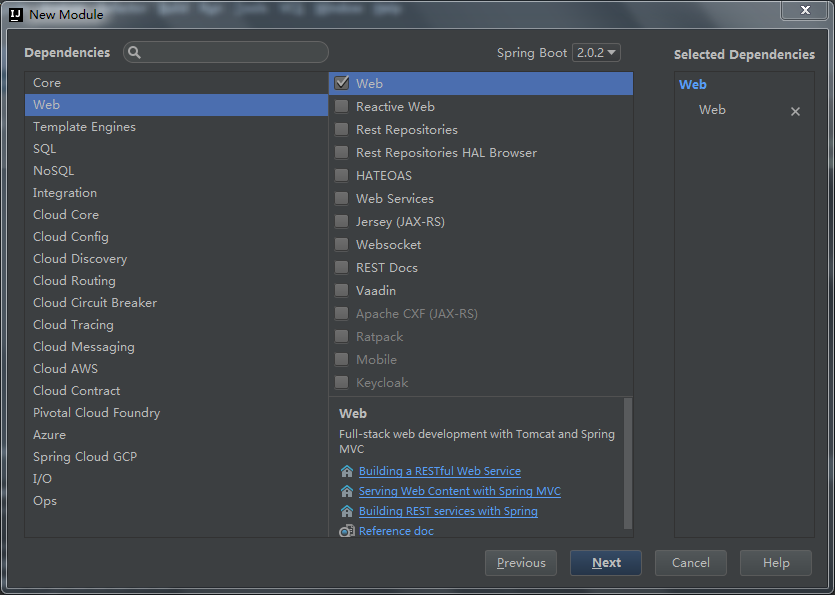

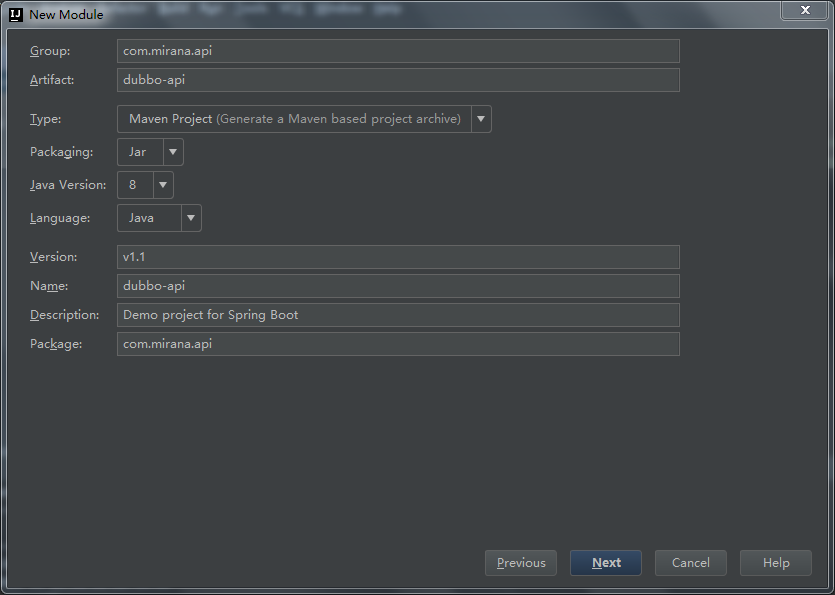

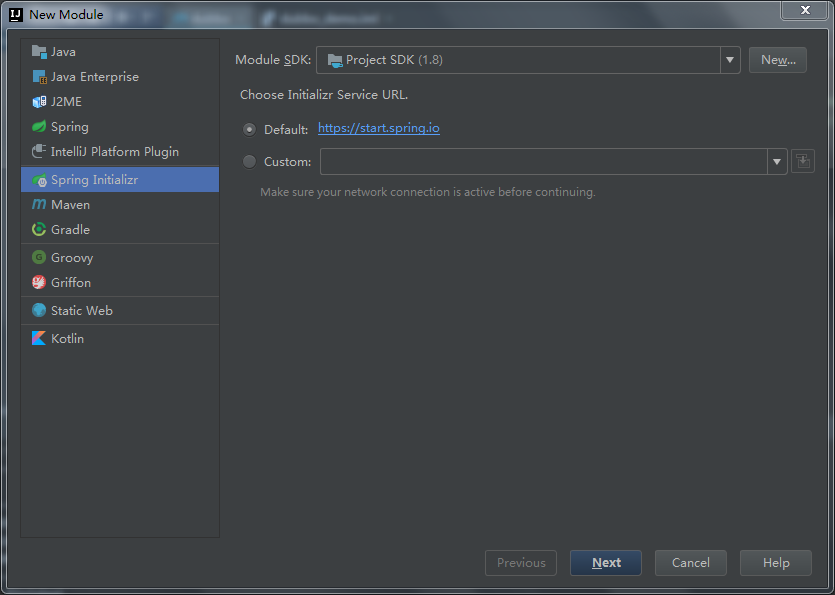

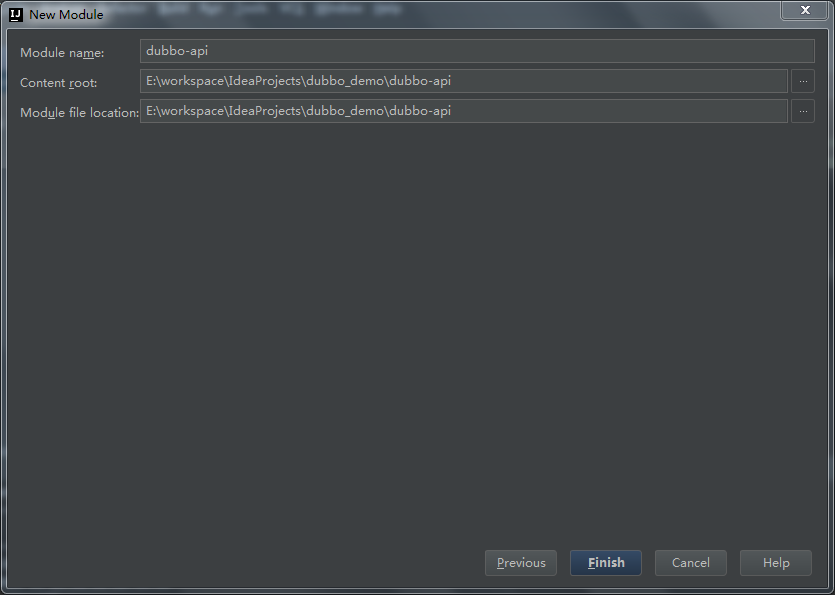

1、添加子模块dubbo-api，项目右键-->new-->Module









 最后生成的dubbo-api 如下：

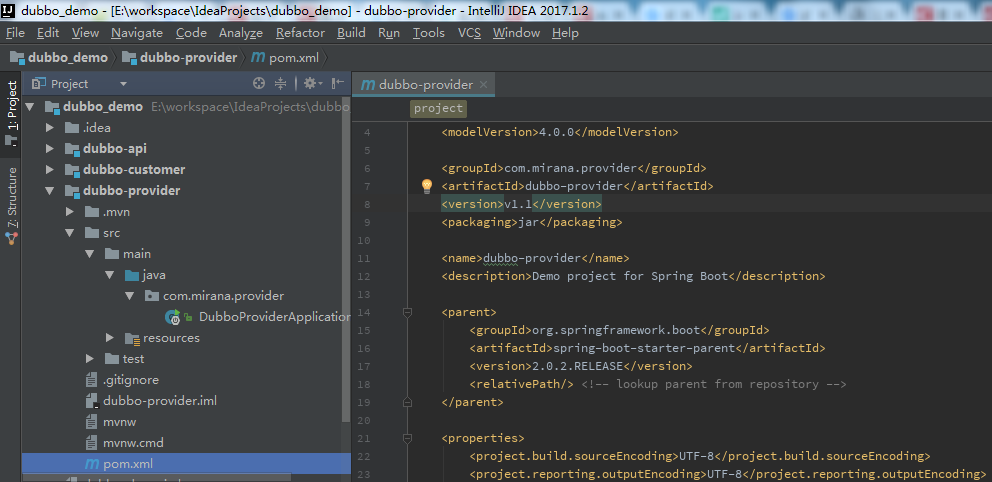

2、以相同的方式创建dubbo-provider和dubbo-customer如下：





三、各个模块添加代码示例

1、dubbo-api



phone（手机实体类）：

package com.mirana.api.model;

import java.io.Serializable;
import java.math.BigDecimal;

/**
 * Title：手机 实体类
 *
 * @CreatedBy Mirana
 * @DateTime 2018/5/25 8:43
 */
public class Phone implements Serializable {

    // 主键id
    private Long       id;
    // 手机名称
    private String     name;
    // 价格
    private BigDecimal price;

    public Long getId () {
        return id;
    }

    public void setId (Long id) {
        this.id = id;
    }

    public String getName () {
        return name;
    }

    public void setName (String name) {
        this.name = name;
    }

    public BigDecimal getPrice () {
        return price;
    }

    public void setPrice (BigDecimal price) {
        this.price = price;
    }

}

 IPhoneService手机接口

package com.mirana.api.service;

import com.mirana.api.model.Phone;

/**
 * Title：手机服务接口
 *
 * @CreatedBy Mirana
 * @DateTime 2018/5/25 8:45
 */
public interface IPhoneService {

    /**
     * 根据id查找手机
     *
     * @param id
     * @return
     */
    Phone findById (Long id);
}

在application.properties中定义端口

server.port=9011

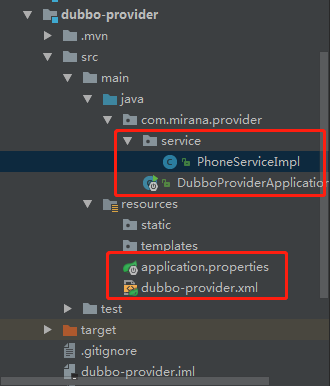

2、dubbo-provider



 pom.xml添加dubbo-api（具体实现类要实现dubbo-api的IPhoneService接口）和Apache Dubbo的Maven依赖，红色部分为新增依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.mirana.provider</groupId>
    <artifactId>dubbo-provider</artifactId>
    <version>v1.1</version>
    <packaging>jar</packaging>

    <name>dubbo-provider</name>
    <description>Demo project for Spring Boot</description>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.0.2.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

　　　　　<!-- 新增dubbo-api依赖 -->
        <dependency>
            <groupId>com.mirana.api</groupId>
            <artifactId>dubbo-api</artifactId>
            <version>v1.1</version>
        </dependency>

　　　　　<!-- 新增dubbo依赖 -->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>dubbo</artifactId>
            <version>2.5.3</version>
            <exclusions>
                <exclusion>
                    <artifactId>spring</artifactId>
                    <groupId>org.springframework</groupId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>org.apache.zookeeper</groupId>
            <artifactId>zookeeper</artifactId>
            <version>3.4.10</version>
            <exclusions>
                <exclusion>
                    <artifactId>slf4j-log4j12</artifactId>
                    <groupId>org.slf4j</groupId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>com.github.sgroschupf</groupId>
            <artifactId>zkclient</artifactId>
            <version>0.1</version>
        </dependency>


    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>


</project>

 添加实现类PhoneServiceImpl，@service注解是dubbo的注解，而非Spring的注解

package com.mirana.provider.service;

import com.alibaba.dubbo.config.annotation.Service;
import com.mirana.api.model.Phone;
import com.mirana.api.service.IPhoneService;

import java.math.BigDecimal;

/**
 * Title：手机服务service
 *
 * @CreatedBy Mirana
 * @DateTime 2018/5/25 10:32
 */
@Service(version = "1.0.0")
public class PhoneServiceImpl implements IPhoneService {

    /**
     * 根据id查找手机
     *
     * @param id
     * @return
     */
    @Override
    public Phone findById (Long id) {
        Phone phone = new Phone();
        phone.setId(id);
        phone.setName("iphonex");
        phone.setPrice(BigDecimal.valueOf(8848.88));
        return phone;
    }
}

新增dubbo服务提供者的配置文件：dubbo-provider.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:dubbo="http://code.alibabatech.com/schema/dubbo"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd
       http://code.alibabatech.com/schema/dubbo
       http://code.alibabatech.com/schema/dubbo/dubbo.xsd">
    <!--定义了提供方应用信息，用于计算依赖关系；在 dubbo-admin 或 dubbo-monitor 会显示这个名字，方便辨识-->
    <dubbo:application name="demo-provider" owner="demo_mirana" organization="dubbo_mirana"/>
    <!--使用 zookeeper 注册中心暴露服务，注意要先开启 zookeeper-->
    <dubbo:registry address="zookeeper://127.0.0.1:2181"/>
    <!--dubbo协议在20880端口暴露服务 -->
    <dubbo:protocol name="dubbo" port="20880"/>
    <!--使用 dubbo 协议实现定义好的 Service Api 接口-->
    <dubbo:service interface="com.mirana.api.service.IPhoneService" ref="phoneService" protocol="dubbo"/>
    <!--具体实现该接口的 bean-->
    <bean id="phoneService" class="com.mirana.provider.service.PhoneServiceImpl"/>
</beans>

在SpringBoot的启动类DubboProviderApplication上导入dubbo-provider.xml的配置

package com.mirana.provider;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.context.annotation.ImportResource;

@SpringBootApplication
@ImportResource(value = {"classpath:dubbo-provider.xml"})
public class DubboProviderApplication {

    public static void main (String[] args) {
        SpringApplication.run(DubboProviderApplication.class, args);
    }
}

在application.properties中定义端口

server.port=9012

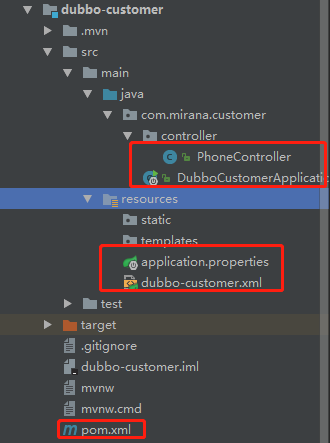

3、dubbo-customer

1、pom.xml，与provider相似，添加dubbo-api和dubbo的依赖（红色部分）

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.mirana.customer</groupId>
    <artifactId>dubbo-customer</artifactId>
    <version>v1.1</version>
    <packaging>jar</packaging>

    <name>dubbo-customer</name>
    <description>Demo project for Spring Boot</description>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.0.2.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

        <!-- 新增dubbo-api -->
        <dependency>
            <groupId>com.mirana.api</groupId>
            <artifactId>dubbo-api</artifactId>
            <version>v1.1</version>
        </dependency>

        <!-- 新增dubbo -->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>dubbo</artifactId>
            <version>2.5.3</version>
            <exclusions>
                <exclusion>
                    <artifactId>spring</artifactId>
                    <groupId>org.springframework</groupId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>org.apache.zookeeper</groupId>
            <artifactId>zookeeper</artifactId>
            <version>3.4.10</version>
            <exclusions>
                <exclusion>
                    <artifactId>slf4j-log4j12</artifactId>
                    <groupId>org.slf4j</groupId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>com.github.sgroschupf</groupId>
            <artifactId>zkclient</artifactId>
            <version>0.1</version>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>
</project>

2、添加视图控制器PhoneController

package com.mirana.customer.controller;

import com.mirana.api.model.Phone;
import com.mirana.api.service.IPhoneService;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import javax.annotation.Resource;

/**
 * Title：TODO
 *
 * @CreatedBy Mirana
 * @DateTime 2018/5/25 10:59
 */
@RestController
@RequestMapping("/phone")
public class PhoneController {

    @Resource
    private IPhoneService phoneService;

    /**
     * @return
     */
    @RequestMapping("/findById")
    public Phone findById (Long id) {
        return phoneService.findById(id);
    }

}

3、添加dubbo服务消费者的配置文件dubbo-customer.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:dubbo="http://code.alibabatech.com/schema/dubbo"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
       http://code.alibabatech.com/schema/dubbo http://code.alibabatech.com/schema/dubbo/dubbo.xsd">

    <dubbo:application name="demo-consumer" owner="mirana" organization="dubbo_mirana"/>
    <!--向 zookeeper 订阅 provider 的地址，由 zookeeper 定时推送-->
    <dubbo:registry address="zookeeper://127.0.0.1:2181" protocol="zookeeper"/>
    <!--使用 dubbo 协议调用定义好的 api 接口-->
    <dubbo:reference id="phoneService" interface="com.mirana.api.service.IPhoneService"/>

</beans>

4、在SpringBoot的启动类DubboCustomerApplication上导入dubbo-customer.xml的配置

package com.mirana.customer;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.context.annotation.ImportResource;

@SpringBootApplication
@ImportResource(value = {"classpath:dubbo-customer.xml"})
public class DubboCustomerApplication {

    public static void main (String[] args) {
        SpringApplication.run(DubboCustomerApplication.class, args);
    }
}

在application.properties中定义端口

server.port=9013

三、请求服务消费者的地址

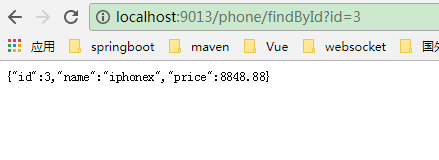

　　查找id为3的手机：http://localhost:9013/phone/findById?id=3，返回的json数据如图



三、运行程序，查看dubbo-admin

1、先运行dubbo-api

　　运行DubboApiApplication的main( )方法

2、再运行dubbo-provider

　　运行DubboProviderApplication的main( )方法

3、最后运行dubbo-customer

　　运行DubboCustomerApplication的main( )方法

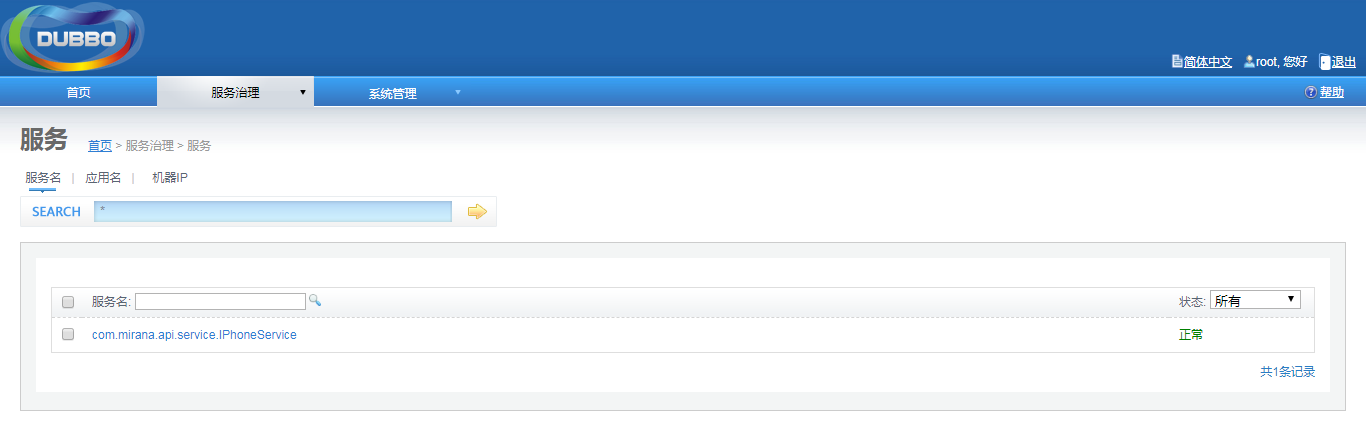

4、查看dubbo-admin的服务

　　http://localhost:8080/dubbo/，输入用户名root密码root

4.1提供的服务

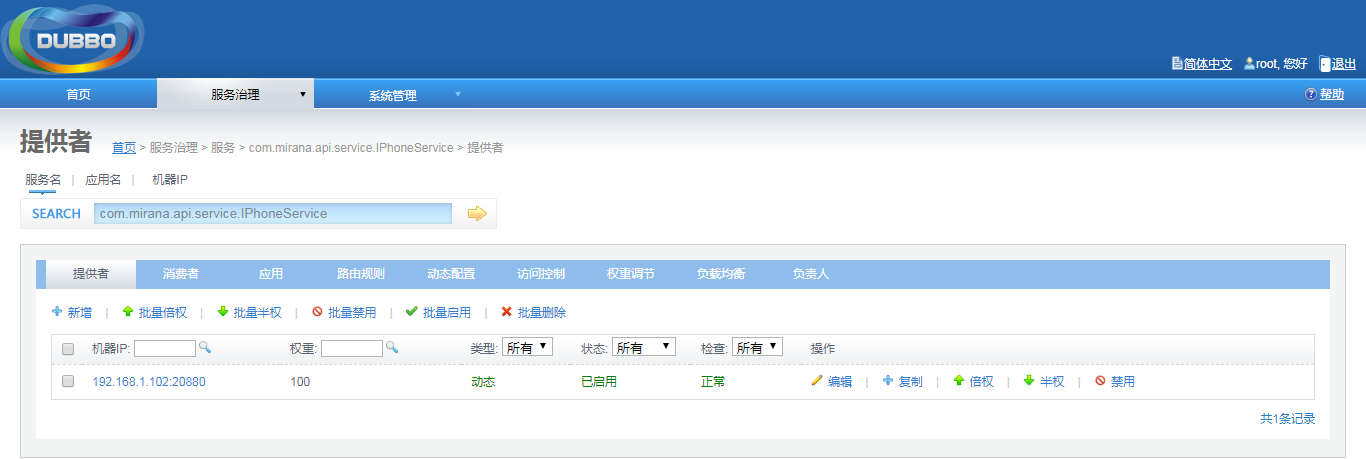

 4.2 服务提供者

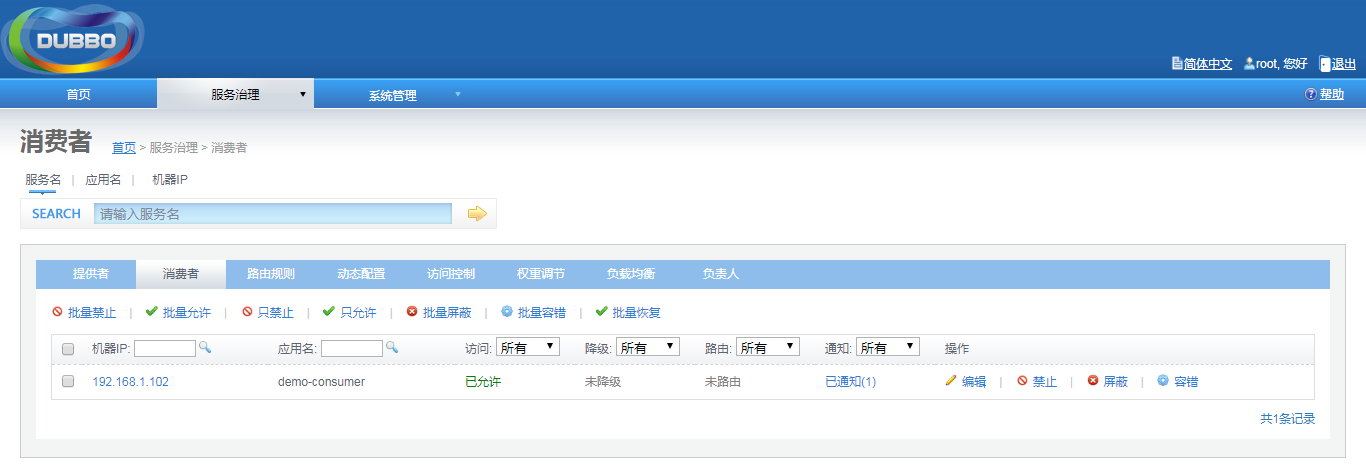

 4.3 服务消费者
