springboot 整合 RabbitMQ
消息队列作为分布式系统中重要的组件，可以有效解决应用耦合，异步消息，流量削锋等系列问题，有利于实现高性能，高可用，可伸缩和最终一致性架构。可应用在业务解耦，消息异步分发(提高应用响应速度)。本文主要讲述springboot部署rabbitmq的一些简单消息发送。
依赖包
<!-- 消息队列 rabbitmq 依赖包 -->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-amqp</artifactId>
</dependency>
<!-- 消息队列 rabbitmq 依赖包 end -->
配置
写在application.properties文件
## ==============rabbitmq配置========= 后台 http://ip地址:15672/
spring.rabbitmq.host=ip地址
spring.rabbitmq.port= 5672
spring.rabbitmq.username=root
spring.rabbitmq.password=123456789
rabbitmq配置
消息名称
package com.sise.demo1.demo.common.config.amqp;
/**
* author zxq
* date 2020/8/6 23:27
* 消息名称
*/
public class MQField {
public static final String HELLO_STRING_QUEUE = "stringQueue";
public static final String HELLO_USER_QUEUE = "userQueue";
public static final String MY_WORKER_QUEUE = "workerQueue";
public static final String MY_FANOUT_A_QUEUE = "fanoutAQueue";
public static final String MY_FANOUT_B_QUEUE = "fanoutBQueue";
public static final String MY_FANOUT_EXCHANGE = "fanoutQueue";
public static final String MY_TOPIC_A_QUEUE = "topicAQueue";
public static final String MY_TOPIC_B_QUEUE = "topicBQueue";
public static final String MY_TOPIC_EXCHANGE = "topicExchange";
}
配置类
package com.sise.demo1.demo.common.config.amqp;
import org.springframework.amqp.core.*;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
/**
* author zxq
* date 2020/8/6 23:25
* RabbitMQ消息队列配置类
*/
@Configuration
public class RabbitMQConfig {
/**
* 声明接收字符串的队列 Hello 默认
* @return
*/
/**
* 声明接收字符串的队列 Hello 默认
*
* @return
*/
@Bean
public Queue stringQueue() {
//boolean isDurable = true;//是否持久化
//boolean isExclusive = false; //仅创建者可以使用的私有队列，断开后自动删除
//boolean isAutoDelete = false; //当所有消费客户端连接断开后，是否自动删除队列
//Queue queue = new Queue(MQField.HELLO_STRING_QUEUE, isDurable, isExclusive, isAutoDelete);
//return queue;
//return new Queue(MQField.HELLO_STRING_QUEUE); //默认支持持久化
return QueueBuilder.durable(MQField.HELLO_STRING_QUEUE)
//.exclusive()
//.autoDelete()
.build();
}
/**
* 声明接收user对象的队列 Hello 支持持久化
*
* @return
*/
@Bean
public Queue userQueue() {
return QueueBuilder.durable(MQField.HELLO_USER_QUEUE).build();
}
/**
* 声明WorkQueue队列 competing consumers pattern，多个消费者不会重复消费队列的相同消息
*
* @return
*/
@Bean
public Queue workQueue() {
return QueueBuilder.durable(MQField.MY_WORKER_QUEUE).build();
}
/**
* 消息队列中最常见的模式：发布订阅模式
* <p>
* 声明发布订阅模式队列 Publish/Subscribe
* <p>
* exchange类型包括：direct, topic, headers 和 fanout
**/
/*fanout（广播）队列相关声明开始*/
@Bean
public Queue fanOutAQueue() {
return QueueBuilder.durable(MQField.MY_FANOUT_A_QUEUE).build();
}
@Bean
public Queue fanOutBQueue() {
return QueueBuilder.durable(MQField.MY_FANOUT_B_QUEUE).build();
}
@Bean
FanoutExchange fanoutExchange() {
return (FanoutExchange) ExchangeBuilder.fanoutExchange(MQField.MY_FANOUT_EXCHANGE).build();
//return new FanoutExchange(MQField.MY_FANOUT_EXCHANGE);
}
@Bean
Binding bindingExchangeA(Queue fanOutAQueue, FanoutExchange fanoutExchange) {
return BindingBuilder.bind(fanOutAQueue).to(fanoutExchange);
}
@Bean
Binding bindingExchangeB(Queue fanOutBQueue, FanoutExchange fanoutExchange) {
return BindingBuilder.bind(fanOutBQueue).to(fanoutExchange);
}
/*fanout队列相关声明结束*/
/*topic队列相关声明开始*/
@Bean
public Queue topicAQueue() {
return QueueBuilder.durable(MQField.MY_TOPIC_A_QUEUE).build();
}
@Bean
public Queue topicBQueue() {
return QueueBuilder.durable(MQField.MY_TOPIC_B_QUEUE).build();
}
@Bean
TopicExchange topicExchange() {
return (TopicExchange) ExchangeBuilder.topicExchange(MQField.MY_TOPIC_EXCHANGE).build();
}业务层
消息生产者
package com.sise.demo1.demo.model.service.amqpService.object;
import com.sise.demo1.demo.common.config.amqp.MQField;
import com.sise.demo1.demo.model.entity.User;
import org.springframework.amqp.core.AmqpTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;
/**
* author zxq
* date 2020/8/7 20:47
*/
@Component
public class Sender {
@Autowired
private AmqpTemplate rabbitTemplate;
public boolean send(User user){
boolean isOk = false;
rabbitTemplate.convertAndSend(MQField.HELLO_USER_QUEUE,user);
isOk = true;
System.out.println("Sender发送对象："+isOk);
return isOk;
}
}
//消息消费者
package com.sise.demo1.demo.model.service.amqpService.object;
import com.sise.demo1.demo.common.config.amqp.MQField;
import com.sise.demo1.demo.model.entity.User;
import org.springframework.amqp.rabbit.annotation.RabbitHandler;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.stereotype.Component;
/**
* author zxq
* date 2020/8/7 20:46
*/
@Component
public class Receive {
@RabbitListener(queues = MQField.HELLO_USER_QUEUE)
@RabbitHandler
public void process(User user){
try {
Thread.sleep(5000);
} catch (Exception e) {
e.printStackTrace();
}
System.out.println("Receiver接收到的对象是 => " + user.toString());
}
}
控制层
package com.sise.demo1.demo.controller.amqp;
import com.sise.demo1.demo.common.ResultVO;
import com.sise.demo1.demo.model.entity.User;
import com.sise.demo1.demo.model.service.IUserService;
import com.sise.demo1.demo.model.service.amqpService.object.Sender;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.util.StringUtils;
/**
* author zxq
* date 2020/8/6 23:49
*/
@RestController
@RequestMapping(value = "/test")
public class Test {
@Autowired
private IUserService userService;
@Autowired
private Sender senderObject;
@RequestMapping(value = "/object")
public ResultVO object_index(@RequestParam(value = "userId", required = false) Integer userId){
if(StringUtils.isEmpty(userId)){
return ResultVO.getError("缺少参数 userId");
}
User user = userService.get(userId);
boolean bool = senderObject.send(user);
return ResultVO.getSuccessWithData("发送："+bool,user);
}
}

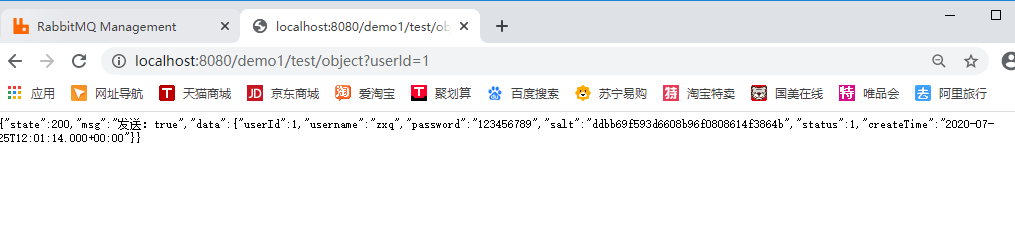

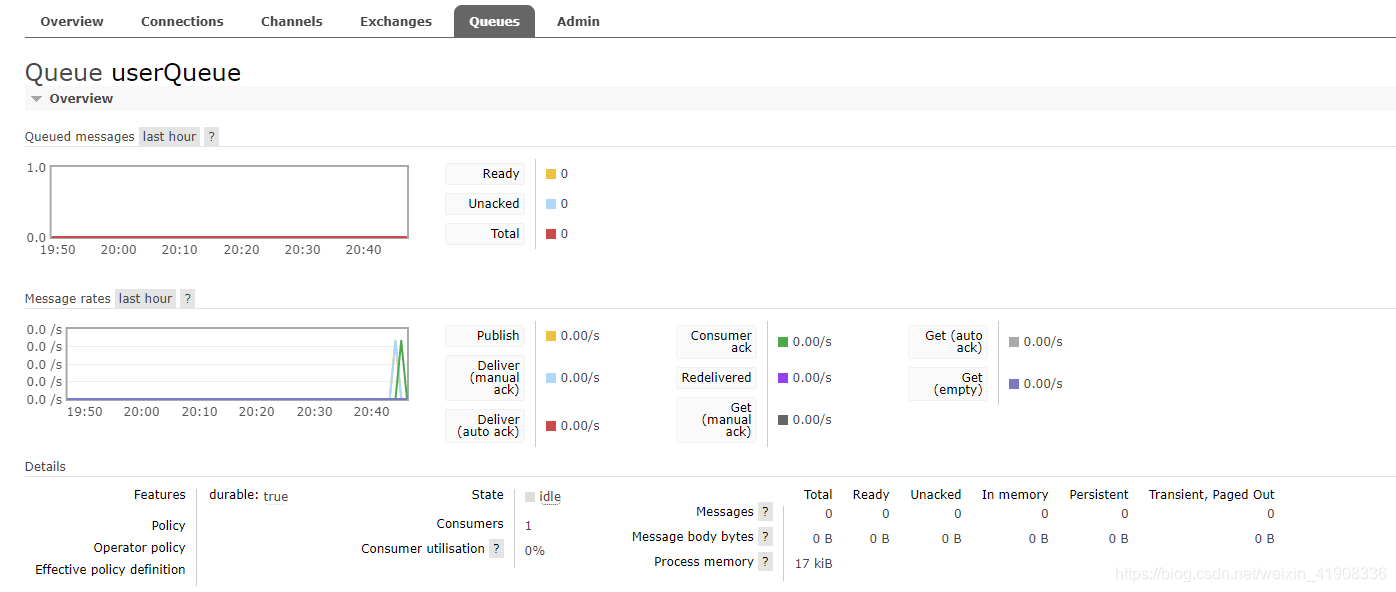

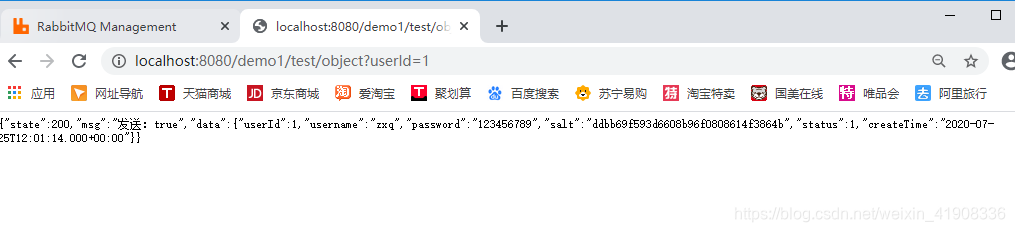

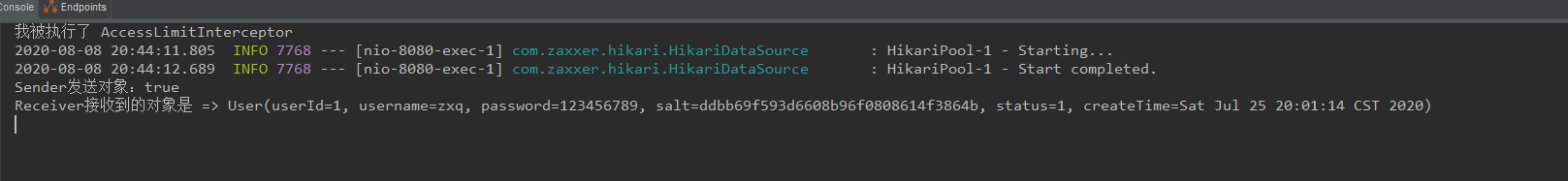

运行截图
此处已经简单地实现了一端发消息，一端进行了接收消息。
如有错误，或有更好的想法，请联系我，感激不尽！
