【Servlet】AsyncContext 实现长轮询场景-配置动态更新

场景：实现类似Nacos配置实时更新

1. 需求

配置中心数据未变更：正常心跳检测
配置中心数据变更：实时同步本地

2. 实现

2.1 基础类

ConfigData：配置抽象

/**
 * function: 配置数据
 * author: zhiwei_yang
 * time: 2020/7/18-18:02
 */
@Data
public class ConfigData {

    /** 配置名 **/
    private String name;

    /** 配置数据 **/
    private String data;

    /** 配置签名，保证唯一 **/
    private String signature;

    /**
     * 监听服务器IP
     */
    private transient Set<String> listenHosts = new CopyOnWriteArraySet<>();

    /**
     * 获取配置签名
     * @return
     */
    public String getSignature() {
        return signature == null ? DigestUtils.md5Hex(name+"#"+data): signature;
    }
}

ConfigStore: 模拟配置存储

**
 * function: 配置数据存储，模拟配置中心
 * author: zhiwei_yang
 * time: 2020/7/18-18:00
 */
public class ConfigStore {

    /**
     * 配置模拟：key: 应用名
     */
    private final static Map<String, ConfigData> configStoreMap = new ConcurrentHashMap<>();

    /** 阻塞队列: 存储变更主机名及更新配置，这里用于模拟实时监听配置变更，
     * 生产环境分布式系统采用公共存存储系统，客户端通过监听变更来提前响应轮询阻塞请求
     * key: 主机名
     * value: 监听配置列表
     **/
    public final static Map<String, BlockingQueue<ConfigData>> blockingQueueMap = new ConcurrentHashMap<>();

    static {
        String name = "default"; // 应用名
        String data = "localhost:8080,localhost:8081"; // 应用部署主机名
        ConfigData configData = new ConfigData();
        configData.setName(name);
        configData.setData(data);
        configStoreMap.put(name, configData);
    }

    /** 更新配置 **/
    public static ConfigData updateConfig(ConfigData configData){
        ConfigData oldConfigData = configStoreMap.put(configData.getName(), configData);
        if(oldConfigData != null) {
            configData.setListenHosts(oldConfigData.getListenHosts());
            oldConfigData.getListenHosts().forEach(host -> {
                if(blockingQueueMap.get(host) == null){
                    blockingQueueMap.put(host, new LinkedBlockingQueue<>(1));
                }
                blockingQueueMap.get(host).offer(configData);
            });
        }
        return oldConfigData;
    }

ResponseUtil: http响应工具类

**
 * function: 请求响应工具类
 * author: zhiwei_yang
 * time: 2020/7/18-18:22
 */
public class ResponseUtil {

    public final static String SUCCESS_CODE = "00000";
    public final static String SUCCESS_MSG = "操作成功";
    public final static String FAILURE_CODE = "10000";
    public final static String FAILURE_MSG = "操作失败";
    public final static String DATA = "data";

    /**
     * 请求响应
     * @param servletResponse
     */
    public static void sendResponse(ServletResponse servletResponse, JSONObject data){
        try {
           servletResponse.setCharacterEncoding(Charset.defaultCharset().name());
            servletResponse.setContentType("application/json;charset=utf-8");
            servletResponse.getWriter().println(data.toJSONString());
        } catch (IOException e) {
            e.printStackTrace();
        }
    }
}

2.2 配置监听

功能：维持心跳、配置变更实时同步

ConfigListenServlet: 配置监听器

@WebServlet(urlPatterns = "/configListen", loadOnStartup = 0, asyncSupported = true)
@Slf4j
public class ConfigListenServlet extends HttpServlet {

    /** 默认长轮询时长 **/
    private final static Integer DEFAULT_LONG_POLLING_INTERNAL_MS = 10000;
    /** 考虑网络抖动时延：提前500ms响应 **/
    private final static Integer NETWORK_TIME_DEVIATE_MS = 500;
    /** 默认请求头 **/
    private final static String LONG_POLLING_REQUEST = "long_polling_time";
    /** 应用名 **/
    private final static String APPLICATION_REQUEST = "application";
    /** 客户端配置签名 **/
    private final static String APPLICATION_CONFIG_SIGNATURE = "signature";

    @Override
    protected void doGet(HttpServletRequest httpServletRequest, HttpServletResponse httpServletResponse) {
        this.doPost(httpServletRequest, httpServletResponse);
    }

    @Override
    protected void doPost(HttpServletRequest httpServletRequest, HttpServletResponse httpServletResponse) {
        String longPollingTimeStr = httpServletRequest.getParameter(LONG_POLLING_REQUEST);
        Integer realLongPollingTime = null == longPollingTimeStr || longPollingTimeStr.length() == 0 ?
                DEFAULT_LONG_POLLING_INTERNAL_MS :
                Integer.parseInt(longPollingTimeStr);

        String requestApplicationName = httpServletRequest.getParameter(APPLICATION_REQUEST);
        JSONObject jsonObject = new JSONObject();
        if(null == requestApplicationName || requestApplicationName.length() == 0){
            jsonObject.put(ResponseUtil.SUCCESS_CODE, ResponseUtil.SUCCESS_MSG);
            jsonObject.put(ResponseUtil.DATA, null);
            ResponseUtil.sendResponse(httpServletResponse, jsonObject);
            return;
        }

        String oldSignature = httpServletRequest.getParameter(APPLICATION_CONFIG_SIGNATURE);
        // 第一次获取配置,直接返回
        if(oldSignature == null || oldSignature.isEmpty()){
            jsonObject.put(ResponseUtil.SUCCESS_CODE, ResponseUtil.SUCCESS_MSG);
            jsonObject.put(ResponseUtil.DATA, ConfigStore.getConfig(httpServletRequest.getRemoteHost(), requestApplicationName));
            ResponseUtil.sendResponse(httpServletResponse, jsonObject);
            return;
        }

        // 轮询配置：
        // 1. 配置未变更则轮询时间到返回
        // 2. 配置中途变更，则提前返回
        AsyncContext asyncContext = httpServletRequest.startAsync();
        //设置请求超时时间
        asyncContext.setTimeout(realLongPollingTime + NETWORK_TIME_DEVIATE_MS);

        // 子线程完成具体的请求业务处理
        ScheduledExecutorService scheduledExecutorService = Executors.newScheduledThreadPool(3);
        scheduledExecutorService.execute(new LongPollingRunnable(scheduledExecutorService, asyncContext, requestApplicationName,
                oldSignature, realLongPollingTime - NETWORK_TIME_DEVIATE_MS));
    }
}

LongPollingRunnable: 长轮询线程

@Slf4j
public class LongPollingRunnable implements Runnable {

    /** 调度线程池 **/
    private ScheduledExecutorService scheduledExecutorService;

    /** servlet 异步上下文 **/
    private AsyncContext asyncContext = null;

    /** 应用名 **/
    private String applicationName;

    /** 请求应用签名 **/
    private final String signature;

    private final Integer longPollingIntervalTIme;

    public LongPollingRunnable(ScheduledExecutorService scheduledExecutorService, AsyncContext asyncContext,
                               String applicationName, String signature, Integer longPollingIntervalTIme){
        this.scheduledExecutorService = scheduledExecutorService;
        this.longPollingIntervalTIme = longPollingIntervalTIme;
        this.asyncContext = asyncContext;
        this.applicationName = applicationName;
        this.signature = signature;
    }

    /**
     * 1. 初次访问配置一样，则进入轮询状态，中间若配置变更则提前返回
     * 2. 初次访问配置不一致，则直接返回
     */
    @Override
    public void run(){
        try {
            ConfigData realConfigData = ConfigStore.getConfig(asyncContext.getRequest().getRemoteHost(), applicationName);

            //1. 应用本地与服务端配置数据一致
            assert realConfigData != null;
            if(signature.equals(realConfigData.getSignature())){

                // 监听配置变化，若一致则轮询时间到返回，否则提前返回
                ScheduledFuture scheduledFuture = scheduledExecutorService.schedule(() -> {
                    log.info("定时任务轮询正常返回配置数据 configData ==> {}", JSON.toJSONString(realConfigData));
                    this.sendResponse(realConfigData);
                }, longPollingIntervalTIme, TimeUnit.MILLISECONDS);

                //监听实时配置：受影响的IP:CopyOnWriteArrayList
                scheduledExecutorService.execute(() ->{
                        BlockingQueue<ConfigData> blockingQueue = ConfigStore.blockingQueueMap.get(asyncContext.getRequest().getRemoteHost());
                    try {
                        ConfigData updatedConfigData = blockingQueue.poll(longPollingIntervalTIme, TimeUnit.MILLISECONDS);
                        // 配置变更
                        if(null != updatedConfigData){
                            log.info("配置更新，提前返回配置数据 updatedConfigData ==> {}", JSON.toJSONString(updatedConfigData));
                            this.sendResponse(updatedConfigData);

                            // 取消正常轮询定时任务
                            scheduledFuture.cancel(true);
                        }
                    } catch (InterruptedException e) {
                        e.printStackTrace();
                    }
                    });

            // 配置不一致,实时响应
            }else{
                sendResponse(realConfigData);
            }
        } catch (Exception e) {
            e.printStackTrace();
        }
    }

    /**
     * 响应客户端请求
     * @param configData
     */
    private void sendResponse(ConfigData configData){
        try {
            JSONObject jsonObject = new JSONObject();
            jsonObject.put(ResponseUtil.SUCCESS_CODE, ResponseUtil.SUCCESS_MSG);
            jsonObject.put(ResponseUtil.DATA, configData);
            ResponseUtil.sendResponse(asyncContext.getResponse(), jsonObject);
        }finally {
            // 响应客户端
            asyncContext.complete();
        }
    }
}

2.3 配置更新

ConfigUpdateServlet

@WebServlet(urlPatterns = "/configUpdate", loadOnStartup = 0, asyncSupported = true)
@Slf4j
public class ConfigUpdateServlet extends HttpServlet {

    /** 配置 **/
    private final static String APPLICATION_CONFIG_DATA = "config";

    /** 应用名 **/
    private final static String APPLICATION_REQUEST = "application";

    @Override
    protected void doGet(HttpServletRequest httpServletRequest, HttpServletResponse httpServletResponse) {
        this.doPost(httpServletRequest, httpServletResponse);
    }

    @Override
    protected void doPost(HttpServletRequest httpServletRequest, HttpServletResponse httpServletResponse) {
        String requestApplicationName = httpServletRequest.getParameter(APPLICATION_REQUEST);
        String configData = httpServletRequest.getParameter(APPLICATION_CONFIG_DATA);
        JSONObject jsonObject = new JSONObject();
        if(null == requestApplicationName || requestApplicationName.isEmpty() ||
         null == configData || configData.isEmpty()){
            jsonObject.put(ResponseUtil.SUCCESS_CODE, ResponseUtil.SUCCESS_MSG);
            jsonObject.put(ResponseUtil.DATA, null);
            ResponseUtil.sendResponse(httpServletResponse, jsonObject);
            return;
        }

        //配置变更
        ConfigData realConfigData = new ConfigData();
        realConfigData.setName(requestApplicationName);
        realConfigData.setData(configData);
        ConfigStore.updateConfig(realConfigData);

        jsonObject.put(ResponseUtil.SUCCESS_CODE, ResponseUtil.SUCCESS_MSG);
        jsonObject.put(ResponseUtil.DATA, null);
        ResponseUtil.sendResponse(httpServletResponse, jsonObject);
    }
}

2.3 JSP测试页面

<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
    <title>长轮询</title>
</head>
<body>
配置值[<a href="###" onclick="refresh()">刷新</a>]：<span id="configText"></span> <br/>

<hr/>
<form>
    配置值[<a href="###" onclick="config()">设置</a>]：<input id="configValue" type="text" placeholder="请设置新的配置值">
</form>

<script type="text/javascript" src="js/ajax/jquery-3.5.1.min.js"></script>
<script>
    let signature = "";
    let longPollingTime = 10000;

    // 配置刷新
    function refresh() {
        $.get("/configListen",
            {"application": "default", "long_polling_time":longPollingTime ,"signature": signature},
            function (result) {
                console.log("=====> %s", JSON.stringify(result))
                signature = result.data.signature;
                $("#configText").text(result.data.data);
            });
    }

    refresh();

    // 设置配置
    function config() {
        let data = $("#configValue").val();
        console.log(data)
        $.get("/configUpdate",
            {"application": "default", "config": data},
            function (result) {
                console.log(result)
            });
    }

    // 心跳监听配置
    setInterval(function () {
        refresh();
    }, longPollingTime);
</script>
</body>
</html>

2.4 效果

后台日志：

[2020-07-19 00:19:56 : pool-12-thread-2] - 定时任务轮询正常返回配置数据 configData ==> {"data":"localhost:8080,localhost:8081","name":"default","signature":"c339787b2d2ba8f2e5a0a282ea565c8d"}
[2020-07-19 00:20:06 : pool-13-thread-2] - 定时任务轮询正常返回配置数据 configData ==> {"data":"localhost:8080,localhost:8081","name":"default","signature":"c339787b2d2ba8f2e5a0a282ea565c8d"}
[2020-07-19 00:20:13 : pool-14-thread-1] - 配置更新，提前返回配置数据 updatedConfigData ==> {"data":"localhost:8080,localhost:8083","name":"default","signature":"2cc8db8cd8e464969f71ae419e1ca9df"}
[2020-07-19 00:20:26 : pool-15-thread-1] - 定时任务轮询正常返回配置数据 configData ==> {"data":"localhost:8080,localhost:8083","name":"default","signature":"2cc8db8cd8e464969f71ae419e1ca9df"}
[2020-07-19 00:20:34 : pool-16-thread-1] - 配置更新，提前返回配置数据 updatedConfigData ==> {"data":"localhost:8080,localhost:8084","name":"default","signature":"8807331bd603991fb44511161b963eca"}
[2020-07-19 00:20:46 : pool-17-thread-1] - 定时任务轮询正常返回配置数据 configData ==> {"data":"localhost:8080,localhost:8084","name":"default","signature":"8807331bd603991fb44511161b963eca"}

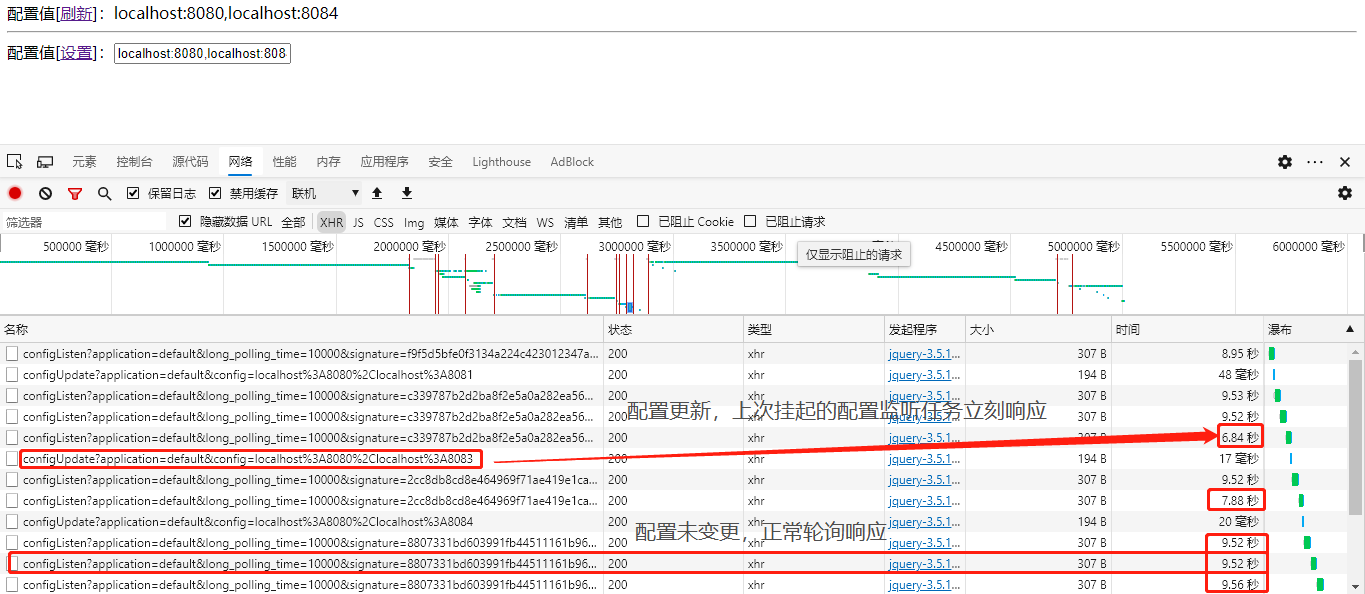

浏览器视图：
