离线安装完成后，一般情况下只装了个基础环境，catalog镜像没有导入，本文主要侧重在jenkins的一些环境设置和演示。
1.导入镜像
首先follow下面链接下载镜像
https://docs.openshift.com/container-platform/3.11/install/disconnected_install.html
我们这里下载的主要是
$ docker pull registry.redhat.io/openshift3/jenkins-2-rhel7:<tag>
$ docker pull registry.redhat.io/openshift3/jenkins-slave-maven-rhel7:<tag>
$ docker pull registry.redhat.io/openshift3/jenkins-slave-nodejs-rhel7:<tag>
导入到本地镜像仓库
[root@node2 images]# docker images
REPOSITORY TAG IMAGE ID CREATED SIZE
registry.example.com/openshift3/jenkins-2-rhel7 latest 0f36706e2c53 10 months ago 1.13 GB
registry.example.com/openshift3/jenkins-slave-maven-rhel7 latest 5ce887d9bf31 11 months ago 1.02 GB
registry.example.com/openshift3/jenkins-slave-nodejs-rhel7 latest a32c719893f2 11 months ago 971 MB但现在进入查看jenkins image stream, 发现仍然是不可用状态。
[root@master ~]# oc describe is jenkins -n openshift
Name: jenkins
Namespace: openshift
Created: 5 months ago
Labels: <none>
Annotations: openshift.io/display-name=Jenkins
openshift.io/image.dockerRepositoryCheck=2019-08-30T14:32:54Z
Docker Pull Spec: docker-registry.default.svc:5000/openshift/jenkins
Image Lookup: local=false
Unique Images: 1
Tags: 3
1
tagged from registry.example.com/openshift3/jenkins-1-rhel7:latest
prefer registry pullthrough when referencing this tag
Provides a Jenkins 1.X server on RHEL 7. For more information about using this container image, including OpenShift considerations, see https://github.com/openshift/jenkins/blob/master/README.md.
Tags: hidden, jenkins
! error: Import failed (InternalError): Internal error occurred: Get https://registry.example.com/v2/: dial tcp 192.168.56.105:443: connect: connection refused
5 months ago
执行导入
oc import-image jenkins --from=registry.example.com/openshift3/jenkins-2-rhel7:latest --confirm --insecure=true确认导入成功后，在项目中选择Jenkins(Ephemeral)，然后等待创建完成。
注意这只是生成一个jenkins master环境。
同样导入用到的其他镜像
oc import-image mongodb:3.2 --from=registry.example.com/rhscl/mongodb-32-rhel7:latest --confirm --insecure=true
oc import-image tomcat:8-slim --from=registry.example.com/tomcat:8-slim --confirm --insecure=true
2. 简单演示Pipeline部署
创建一个samplepiple.yaml文件，文件里面创建了一个pipeline，mongodb svc, mongodb 数据库。
因为是拿别人的修改的，所以里面的很多parameter没有用到。
apiVersion: v1
kind: Template
labels:
template: application-template-sample-pipeline
message: |-
A Jenkins server must be instantiated in this project to manage
the Pipeline BuildConfig created by this template. You will be able to log in to
it using your OpenShift user credentials.
metadata:
annotations:
openshift.io/display-name: Pipeline Build Example
description: |-
This example showcases the new Jenkins Pipeline integration in OpenShift,
which performs continuous integration and deployment right on the platform.
The template contains a Jenkinsfile - a definition of a multi-stage CI/CD process - that
leverages the underlying OpenShift platform for dynamic and scalable
builds. OpenShift integrates the status of your pipeline builds into the web
console allowing you to see your entire application lifecycle in a single view.
iconClass: icon-jenkins
tags: instant-app,jenkins
name: jenkins-pipeline-example
parameters:
- description: The name assigned to all of the frontend objects defined in this template.
displayName: Name
name: NAME
required: true
value: nodejs-mongodb-example
- description: The exposed hostname that will route to the Node.js service, if left
blank a value will be defaulted.
displayName: Application Hostname
name: APPLICATION_DOMAIN
- description: The URL of the repository with your application source code.
displayName: Git Repository URL
name: SOURCE_REPOSITORY_URL
required: true
value: https://github.com/openshift/nodejs-ex.git
- displayName: Database Name
name: DATABASE_NAME
required: true
value: sampledb
- description: Username for MongoDB user that will be used for accessing the database.
displayName: MongoDB Username
from: user[A-Z0-9]{3}
generate: expression
name: DATABASE_USER
- description: Password for the MongoDB user.
displayName: MongoDB Password
from: '[a-zA-Z0-9]{16}'
generate: expression
name: DATABASE_PASSWORD
- description: Maximum amount of memory the Node.js container can use.
displayName: Memory Limit
name: MEMORY_LIMIT
required: true
value: 512Mi
- description: Maximum amount of memory the MongoDB container can use.
displayName: Memory Limit (MongoDB)
name: MEMORY_MONGODB_LIMIT
required: true
value: 512Mi
- displayName: Database Service Name
name: DATABASE_SERVICE_NAME
required: true
value: mongodb
- description: Password for the database admin user.
displayName: Database Administrator Password
from: '[a-zA-Z0-9]{16}'
generate: expression
name: DATABASE_ADMIN_PASSWORD
- description: Set this to a branch name, tag or other ref of your repository if you
are not using the default branch.
displayName: Git Reference
name: SOURCE_REPOSITORY_REF
- description: Set this to the relative path to your project if it is not in the root
of your repository.
displayName: Context Directory
name: CONTEXT_DIR
- description: Github trigger secret. A difficult to guess string encoded as part of the webhook URL. Not encrypted.
displayName: GitHub Webhook Secret
from: '[a-zA-Z0-9]{40}'
generate: expression
name: GITHUB_WEBHOOK_SECRET
- description: A secret string used to configure the Generic webhook.
displayName: Generic Webhook Secret
from: '[a-zA-Z0-9]{40}'
generate: expression
name: GENERIC_WEBHOOK_SECRET
- description: The custom NPM mirror URL
displayName: Custom NPM Mirror URL
name: NPM_MIRROR
- description: The OpenShift Namespace where the NodeJS and MongoDB ImageStreams reside.
displayName: Namespace
name: NAMESPACE
required: true
value: openshift
objects:
- apiVersion: v1
kind: BuildConfig
metadata:
annotations:
pipeline.alpha.openshift.io/uses: '[{"name": "${NAME}", "namespace": "", "kind": "DeploymentConfig"}]'
labels:
name: sample-pipeline
name: sample-pipeline
spec:
strategy:
jenkinsPipelineStrategy:
jenkinsfile: |-
try {
timeout(time: 20, unit: 'MINUTES') {
node('nodejs') {
stage('deploy') {
openshift.withCluster() {
openshift.withProject() {
openshift.newApp("tomcat:8-slim", "--name=mytomcat").narrow('svc').expose()
}
}
}
}
}
} catch (err) {
echo "in catch block"
echo "Caught: ${err}"
currentBuild.result = 'FAILURE'
throw err
}
type: JenkinsPipeline
triggers:
- github:
secret: secret101
type: GitHub
- generic:
secret: secret101
type: Generic
- apiVersion: v1
kind: Service
metadata:
annotations:
description: Exposes the database server
name: ${DATABASE_SERVICE_NAME}
spec:
ports:
- name: mongodb
port: 27017
targetPort: 27017
selector:
name: ${DATABASE_SERVICE_NAME}
- apiVersion: v1
kind: DeploymentConfig
metadata:
annotations:
description: Defines how to deploy the database
name: ${DATABASE_SERVICE_NAME}
spec:
replicas: 1
selector:
name: ${DATABASE_SERVICE_NAME}
strategy:
type: Recreate
template:
metadata:
labels:
name: ${DATABASE_SERVICE_NAME}
name: ${DATABASE_SERVICE_NAME}
spec:
containers:
- env:
- name: MONGODB_USER
value: ${DATABASE_USER}
- name: MONGODB_PASSWORD
value: ${DATABASE_PASSWORD}
- name: MONGODB_DATABASE
value: ${DATABASE_NAME}
- name: MONGODB_ADMIN_PASSWORD
value: ${DATABASE_ADMIN_PASSWORD}
image: ' '
livenessProbe:
initialDelaySeconds: 30
tcpSocket:
port: 27017
timeoutSeconds: 1
name: mongodb
ports:
- containerPort: 27017
readinessProbe:
exec:
command:
- /bin/sh
- -i
- -c
- mongo 127.0.0.1:27017/$MONGODB_DATABASE -u $MONGODB_USER -p $MONGODB_PASSWORD
--eval="quit()"
initialDelaySeconds: 3
timeoutSeconds: 1
resources:
limits:
memory: ${MEMORY_MONGODB_LIMIT}
volumeMounts:
- mountPath: /var/lib/mongodb/data
name: ${DATABASE_SERVICE_NAME}-data
volumes:
- emptyDir:
medium: ""
name: ${DATABASE_SERVICE_NAME}-data
triggers:
- imageChangeParams:
automatic: true
containerNames:
- mongodb
from:
kind: ImageStreamTag
name: mongodb:3.2
namespace: ${NAMESPACE}
type: ImageChange
- type: ConfigChange
oc new-project pipelineproject
oc new-app -f samplepipeline.yaml
--> Deploying template "pipelineproject/jenkins-pipeline-example" for "samplepipeline.yaml" to project pipelineproject
Pipeline Build Example
---------
This example showcases the new Jenkins Pipeline integration in OpenShift,
which performs continuous integration and deployment right on the platform.
The template contains a Jenkinsfile - a definition of a multi-stage CI/CD process - that
leverages the underlying OpenShift platform for dynamic and scalable
builds. OpenShift integrates the status of your pipeline builds into the web
console allowing you to see your entire application lifecycle in a single view.
A Jenkins server must be instantiated in this project to manage
the Pipeline BuildConfig created by this template. You will be able to log in to
it using your OpenShift user credentials.
* With parameters:
* Name=nodejs-mongodb-example
* Application Hostname=
* Git Repository URL=https://github.com/openshift/nodejs-ex.git
* Database Name=sampledb
* MongoDB Username=userYOB # generated
* MongoDB Password=k3XGgVjtUljSY8Tm # generated
* Memory Limit=512Mi
* Memory Limit (MongoDB)=512Mi
* Database Service Name=mongodb
* Database Administrator Password=1R4HJpe3kYHYpYb3 # generated
* Git Reference=
* Context Directory=
* GitHub Webhook Secret=H23NSFhL2aiYBUX7YQJHOfSktEgFEdf2Oofi5hr8 # generated
* Generic Webhook Secret=PUsLojY1wddyQNTg3w2JfDi5LNa8LfOdpSGP8bPO # generated
* Custom NPM Mirror URL=
* Namespace=openshift
--> Creating resources ...
buildconfig.build.openshift.io "sample-pipeline" created
service "mongodb" created
deploymentconfig.apps.openshift.io "mongodb" created
--> Success
Use 'oc start-build sample-pipeline' to start a build.
Application is not exposed. You can expose services to the outside world by executing one or more of the commands below:
'oc expose svc/mongodb'
Run 'oc status' to view your app.查看一下console,同时等待ready.

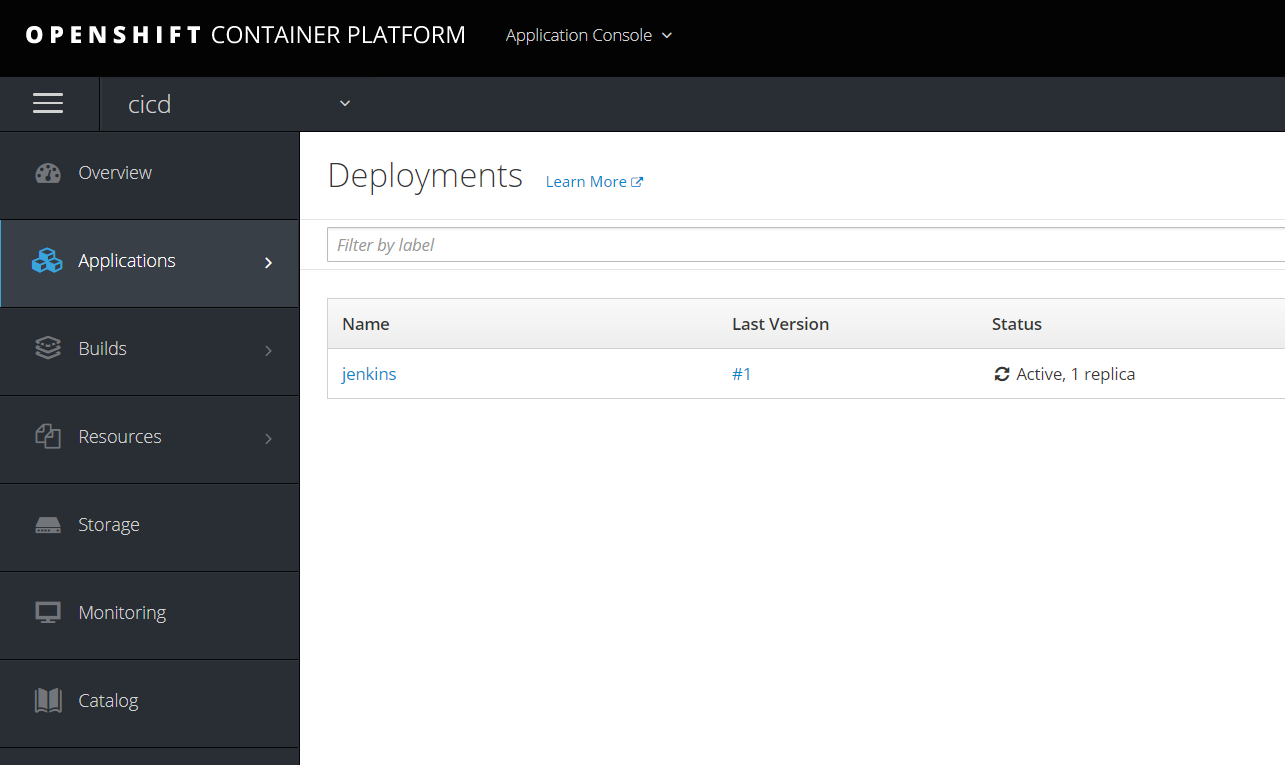

在jenkins的deployment下环境变量中加入 NODEJS_SLAVE_IMAGE=registry.example.com/openshift3/jenkins-slave-nodejs-rhel7,保存生效
如果不加入环境变量，slave的镜像就会从redhat官网上拉取了。

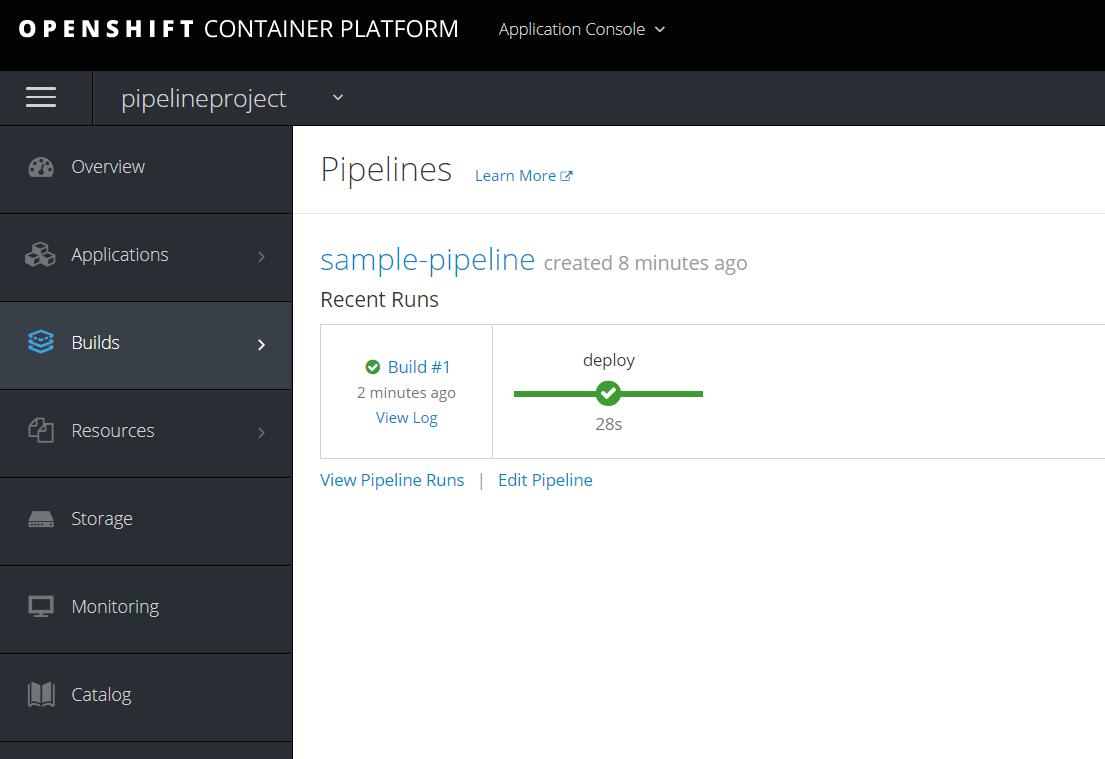

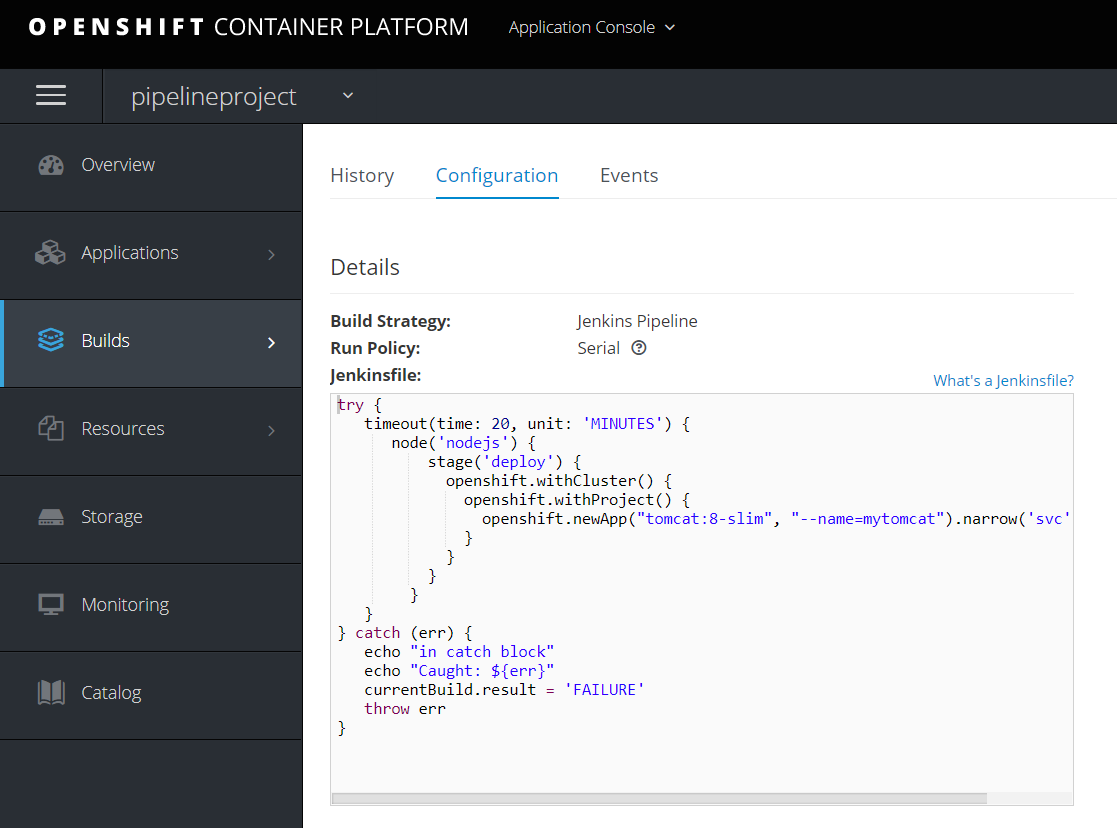

进入pipeline页面，看configuration

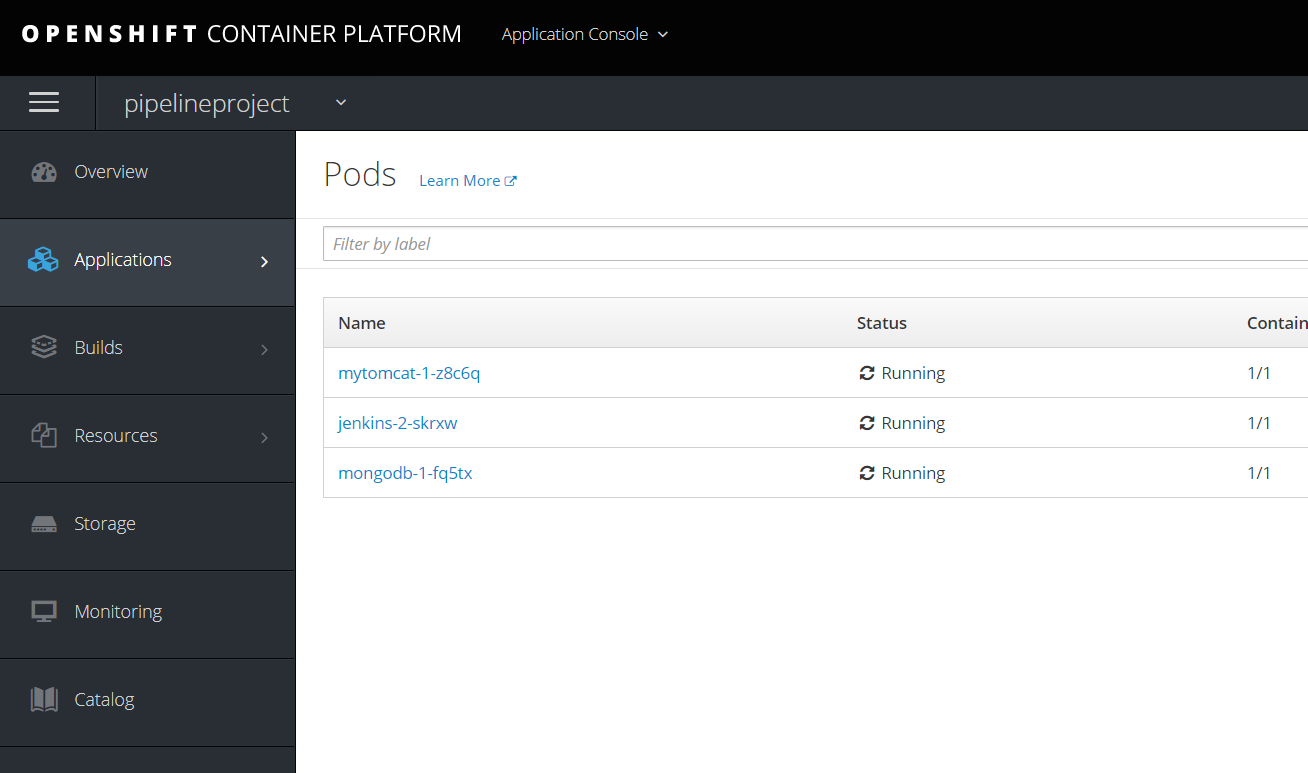

然后运行，发现会启动一个jenkins slave,然后创建一个mytomcat的应用和服务。
修改pipeline里面的内容为，也就是说prepare阶段输出project名，Approval阶段需要用户输入意见，deploy阶段会在myproject项目中部署一个应用。
try {
timeout(time: 20, unit: 'MINUTES') {
node('nodejs') {
stage('prepare') {
openshift.withCluster() {
openshift.withProject() {
echo "Using project: ${openshift.project()}"
}
}
}
stage('Approval') {
timeout(time: 2, unit: 'HOURS') {
input message: 'Approve Deploy?', ok: 'Yes'
}
}
stage('deploy') {
openshift.withCluster() {
openshift.withProject("myproject") {
openshift.newApp("tomcat:8-slim", "--name=mytomcatcicd").narrow('svc').expose()
}
}
}
}
}
} catch (err) {
echo "in catch block"
echo "Caught: ${err}"
currentBuild.result = 'FAILURE'
throw err
} 需要把jenkins加入myproject的admin权限。
oc adm policy add-role-to-user admin system:serviceaccount:pipelineproject:jenkins -n myproject
多集群支持详见
https://github.com/openshift/jenkins-client-plugin/
https://docs.openshift.com/container-platform/3.9/dev_guide/dev_tutorials/openshift_pipeline.html
