ELK之elasticsearch6安装认证模块search guard

　　参考：https://www.cnblogs.com/marility/p/9392645.html

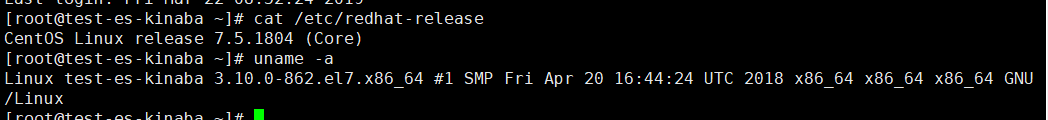

　　1，安装环境及软件版本

程序	版本	安装方式
elasticsearch	6.3.1	rpm
kibana	6.3.1	rpm
java	1.8.0	tar

　　2，search guard安装

　　2.1在elasticsearch安装

cd /usr/share/elasticsearch/bin/
./elasticsearch-plugin install com.floragunn:search-guard-6:6.3.1-24.0

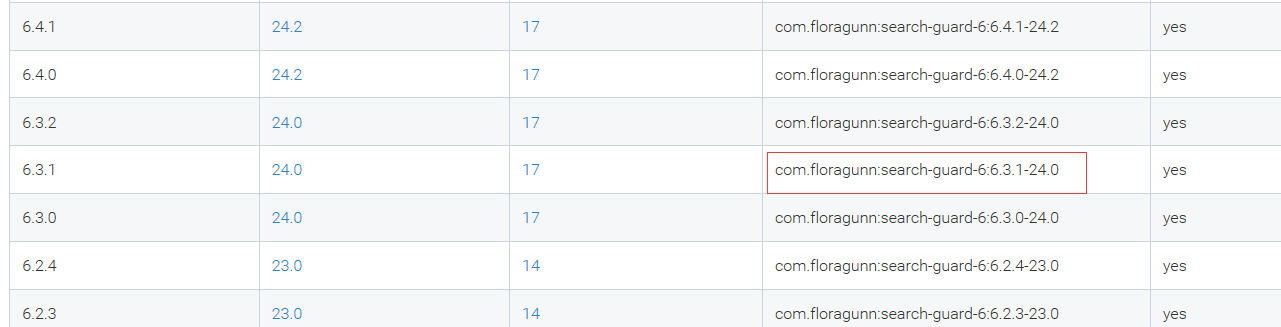

　　安装的版本查看

　

　　查看

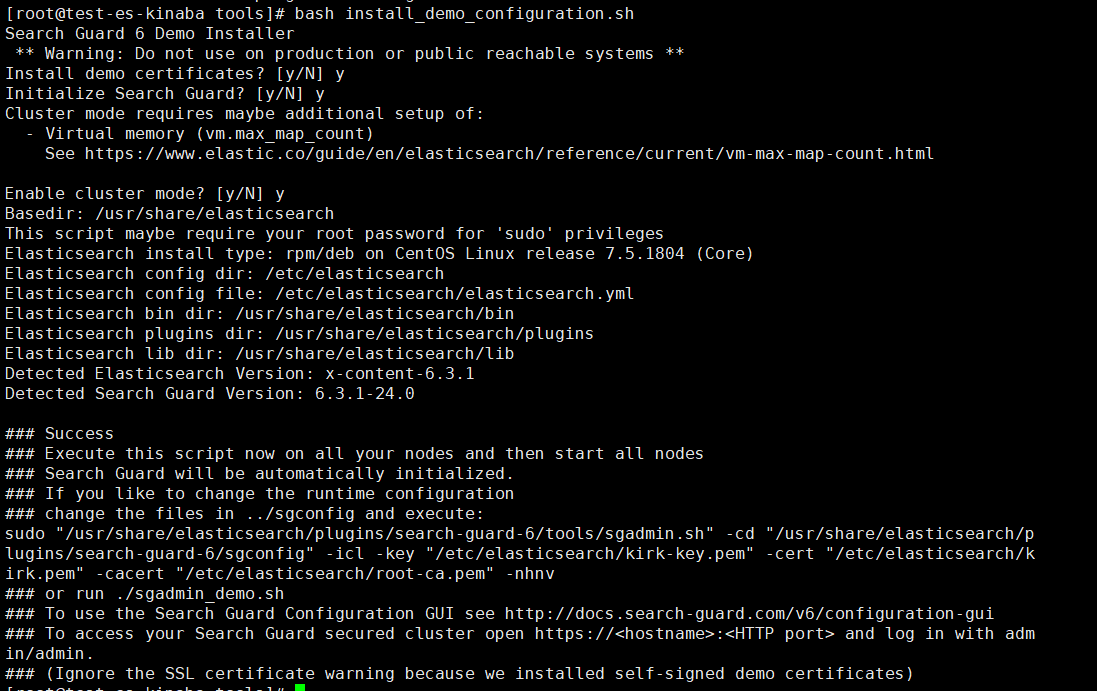

　　进行demo模式安装

cd /usr/share/elasticsearch/plugins/search-guard-6/tools
bash install_demo_configuration.sh

　　安说明输入3个y确认

　　重启elasticsearch

systemctl restart elasticsearch

　　web访问测试安装是否成功

https://172.16.20.12:9200/_searchguard/authinfo

　　注意是https而不是http

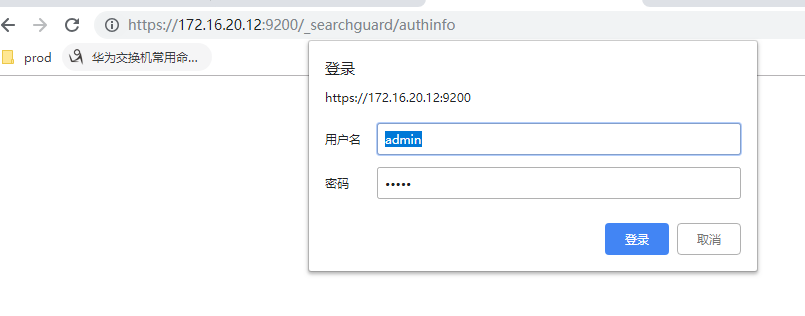

　　输入默认用户名和密码admin



 　　打印admin的json格式则代表安装成功

　　此时打开kibana出现输入用户名密码提示但是无法输入



　　2.2在kibana安装

　　首先停止kibana

systemctl stop kibana

　　PS：如果不停止kibana直接安装，启动会报错 报错日志 /var/log/meaasge

　　　　如果启动报错了，可以删除kibana插件重新安装

./kibana-plugin remove searchguard



cd /usr/share/kibana/bin/

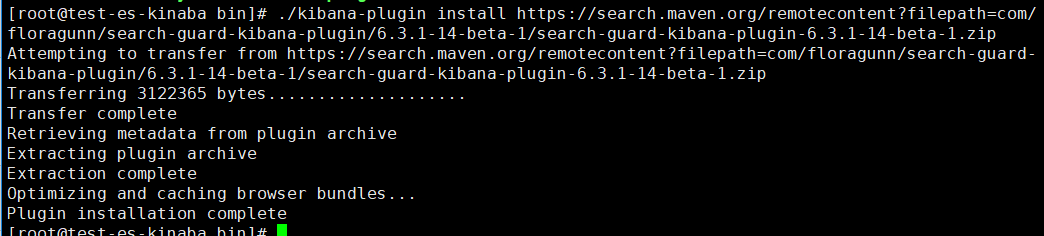

./kibana-plugin install https://search.maven.org/remotecontent?filepath=com/floragunn/search-guard-kibana-plugin/6.3.1-14-beta-1/search-guard-kibana-plugin-6.3.1-14-beta-1.zip

　　需要安装版本查看

　　修改kibana配置文件 /etc/kibana/kibana.yml

server.port: 5601
server.host: "172.16.20.12"
#server.host: "0.0.0.0"
server.name: "test-es-kibana"
elasticsearch.url: "https://172.16.20.12:9200"
kibana.index: ".kibana"
elasticsearch.username: "kibanaserver"
elasticsearch.password: "kibanaserver"
elasticsearch.ssl.verificationMode: none
elasticsearch.requestHeadersWhitelist: [ "Authorization", "sgtenant" ]
xpack.monitoring.enabled: false
xpack.graph.enabled: false
xpack.ml.enabled: false
xpack.watcher.enabled: false
xpack.security.enabled: false

　　　PS:elasticsearch配置为https　　

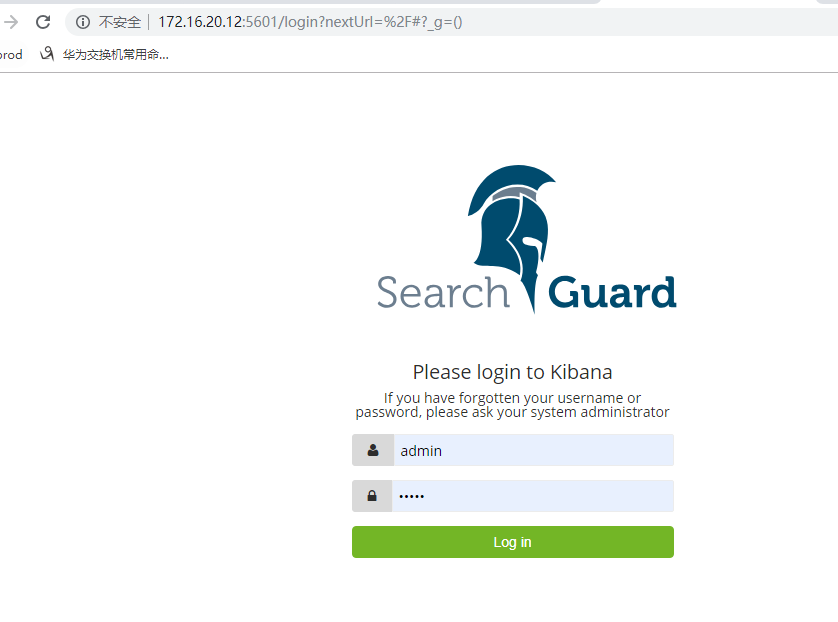

　　　启动kibana通过5601端口访问，输入用户名和密码均为admin

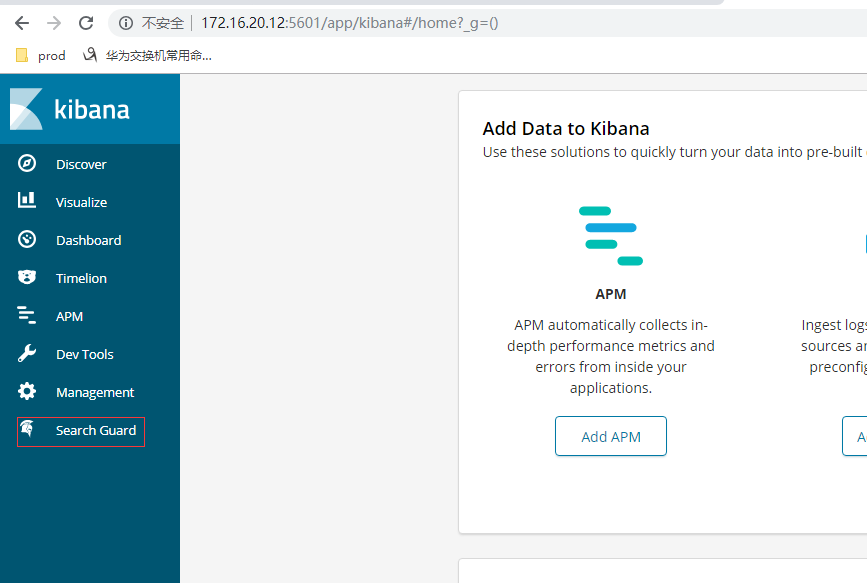

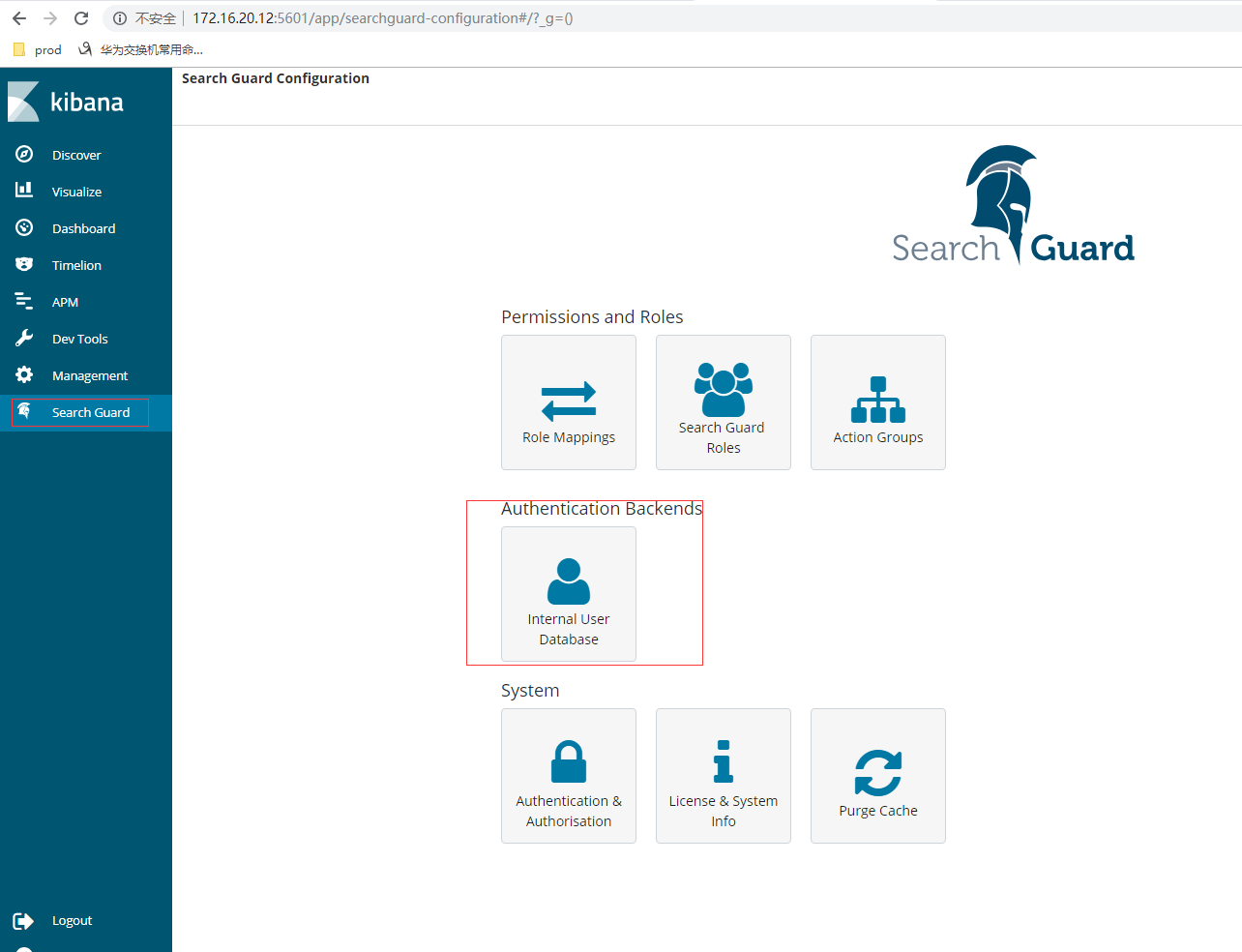

 　　左侧菜单栏出现search guard代表安装成功

　　PS:版本6.5.4配置kibana后启动报错

Browserslist: caniuse-lite is outdated. Please run next command `npm update caniuse-lite browserslis

　　原因为node版本低4版本，升级为8版本重启kibana即可

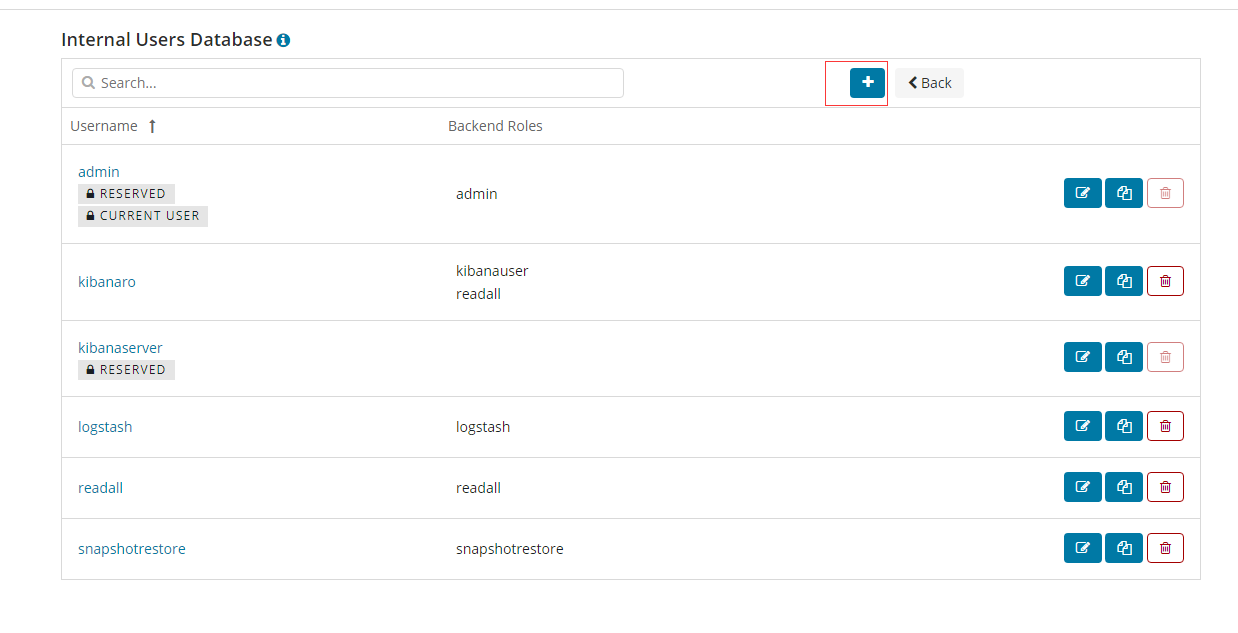

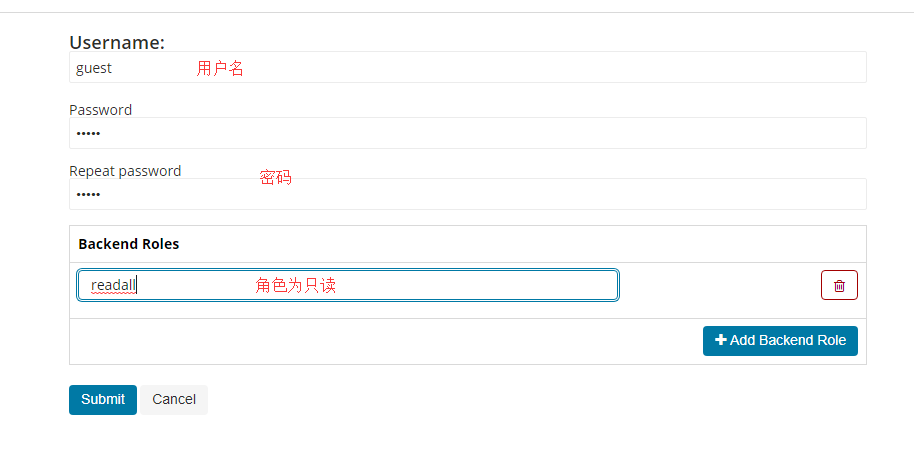

　　添加只读用户guest

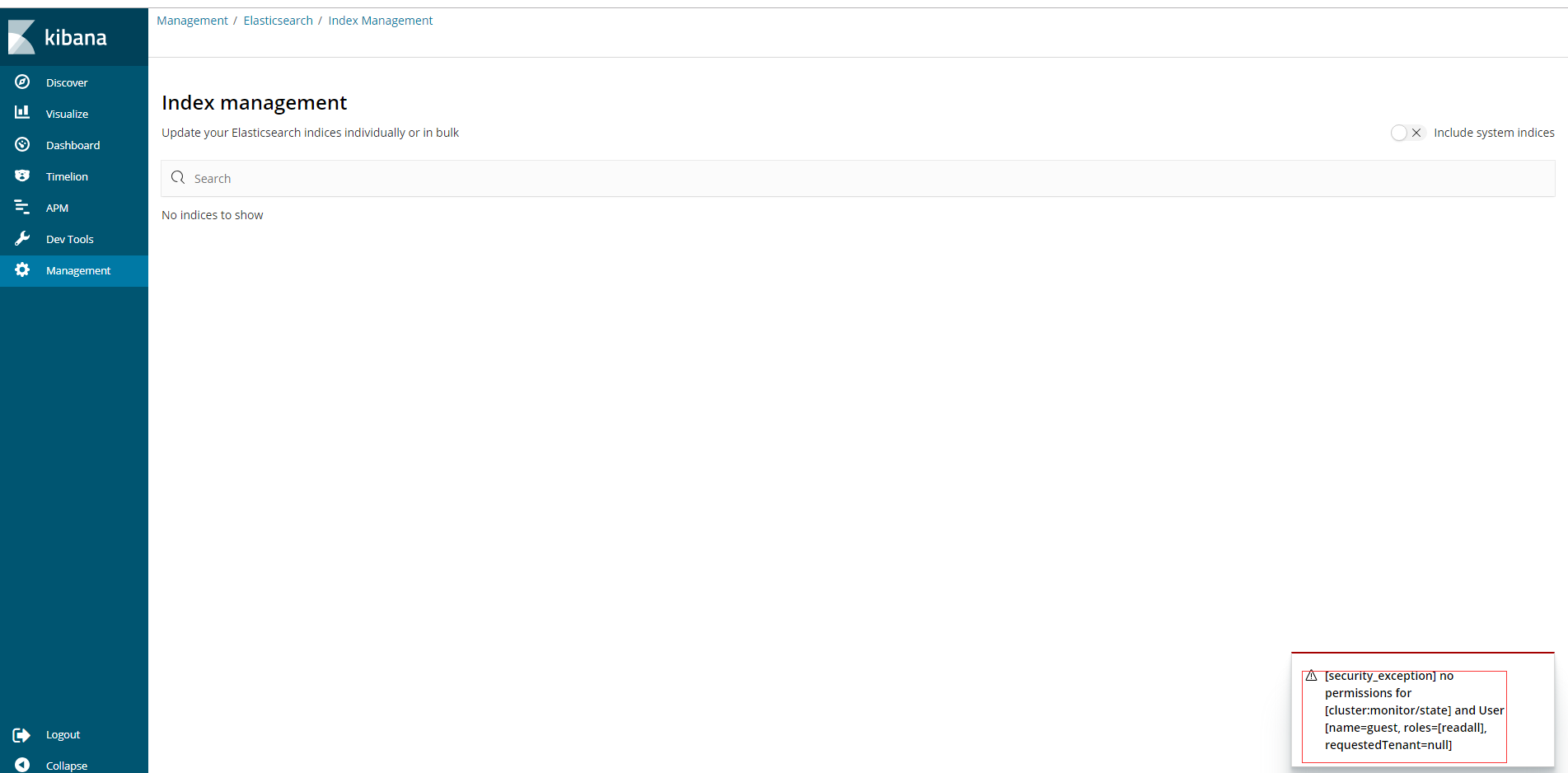

　　使用用户guest登录只能读无法编辑

 　　

　　配置logstash输入至elasticsearch

/etc/logstash/conf.d/logstash.conf

　

input {
    stdin{}
  }

output {
  elasticsearch {
    hosts => [ "172.16.20.12:9200" ]
    ssl => true
    ssl_certificate_verification => false
    user => admin
    password => admin
    index => "logstash_%{+YYYY.MM.dd}"
  }

  stdout {
    codec => rubydebug
  }
}

　　PS：测试标准输出至elasticsearch并输出至屏幕

　　      需要增加这两个配置  否则启动报错

　　 ssl => true
    ssl_certificate_verification => false

       启动

/usr/share/logstash/bin/logstash -f  /etc/logstash/conf.d/logstash.conf



　　以上为自动生成证书，下面使用在线生成证书安装search guard

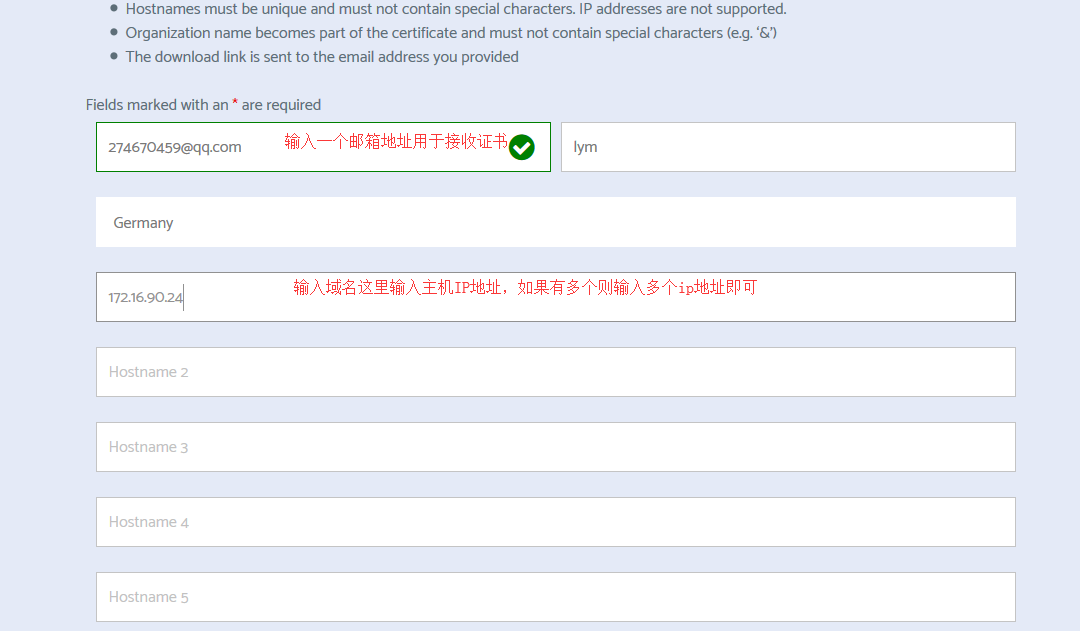

　　在线生成证书，https://search-guard.com/tls-certificate-generator/

　　登录刚刚输入的邮箱下载证书，上传至服务器的文件夹/tmp解压缩并把解压后的所有文件放置在文件夹/etc/elsaticsearch/key

cd /tmp
rz
tar -xf search-guard-certificates-8d1c8141-5f8b-4932-b7e2-a7109c400330.tar.gz.tar
cd /tmp/search-guard-certificates
mv * /etc/elasticsearch/key/

　　证书文件目录结构如下

[root@prd-elk-logstash-02 key]# tree
.
├── chain-ca.pem
├── client-certificates
│   ├── CN=demouser.all.pem
│   ├── CN=demouser.crtfull.pem
│   ├── CN=demouser.crt.pem
│   ├── CN=demouser.csr
│   ├── CN=demouser.key.pem
│   ├── CN=demouser.key.pkcs12
│   ├── CN=demouser-keystore.jks
│   ├── CN=demouser-keystore.p12
│   ├── CN=demouser-signed.pem
│   ├── CN=sgadmin.all.pem
│   ├── CN=sgadmin.crtfull.pem
│   ├── CN=sgadmin.crt.pem
│   ├── CN=sgadmin.csr
│   ├── CN=sgadmin.key.pem
│   ├── CN=sgadmin.key.pkcs12
│   ├── CN=sgadmin-keystore.jks
│   ├── CN=sgadmin-keystore.p12
│   └── CN=sgadmin-signed.pem
├── node-certificates
│   ├── CN=IP-172.16.90.24.crtfull.pem
│   ├── CN=IP-172.16.90.24.csr
│   ├── CN=IP-172.16.90.24.key.pem
│   ├── CN=IP-172.16.90.24.key.pkcs12
│   ├── CN=IP-172.16.90.24-keystore.jks
│   ├── CN=IP-172.16.90.24-keystore.p12
│   └── CN=IP-172.16.90.24-signed.pem
├── README.txt
├── root-ca
│   ├── root-ca.crt
│   ├── root-ca.key
│   └── root-ca.pem
├── root-ca.pem
├── signing-ca
│   ├── signing-ca.crt
│   ├── signing-ca.key
│   └── signing-ca.pem
├── truststore.jks
└── truststore.p12

4 directories, 36 files

　　安装elsticsearch 插件

cd /usr/share/elasticsearch/bin/
./elasticsearch-plugin install com.floragunn:search-guard-6:6.5.4-24.2

　　以上为在线下载安装，也可以下载好文件使用以下命令安装

/usr/share/elasticsearch/bin/elasticsearch-plugin install file:///nas/nas/softs/elk/6.6.2/search-guard-6-6.6.2-24.2.zip

　　

　　安装版本查看

　　配置elasticsearch支持search gurad

　　配置文件/etc/elasticsearch/elasticsearch.yml

cluster.name: hopesz-es
node.name: prd-elk-logstash-02
path.data: /data/es-data
path.logs: /var/log/elasticsearch
bootstrap.memory_lock: false
network.host: 0.0.0.0
http.port: 9200
#集群个节点IP地址，也可以使用els、els.shuaiguoxia.com等名称，需要各节点能够解析
#discovery.zen.ping.unicast.hosts: ["172.16.90.24", "172.16.30.55"]
#集群节点数
#discovery.zen.minimum_master_nodes: 2
http.cors.enabled: true
http.cors.allow-origin: "*"

#search guard配置开始
#证书可以在key目录下找到
searchguard.ssl.transport.pemcert_filepath: key/node-certificates/CN=IP-172.16.90.24.crtfull.pem
searchguard.ssl.transport.pemkey_filepath: key/node-certificates/CN=IP-172.16.90.24.key.pem
#密码可以在key下README.txt找到
searchguard.ssl.transport.pemkey_password: 5ea2206b9b1e041bf052
searchguard.ssl.transport.pemtrustedcas_filepath: key/chain-ca.pem
searchguard.ssl.transport.enforce_hostname_verification: false
searchguard.ssl.http.enabled: true
searchguard.ssl.http.pemcert_filepath: key/node-certificates/CN=IP-172.16.90.24.crtfull.pem
searchguard.ssl.http.pemkey_filepath: key/node-certificates/CN=IP-172.16.90.24.key.pem
searchguard.ssl.http.pemkey_password: 5ea2206b9b1e041bf052
searchguard.ssl.http.pemtrustedcas_filepath: key/chain-ca.pem
searchguard.authcz.admin_dn:
  - CN=sgadmin
searchguard.audit.type: internal_elasticsearch
searchguard.enable_snapshot_restore_privilege: true
searchguard.check_snapshot_restore_write_privileges: true
searchguard.restapi.roles_enabled: ["sg_all_access"]
cluster.routing.allocation.disk.threshold_enabled: false
node.max_local_storage_nodes: 3
xpack.security.enabled: false
#search guard配置结束

　　

　　重启elasticsearch报错

　　首先检查文件是否存在，如存在则设置权限组为elasticsearch

chown -R elasticsearch.elasticsearch key/

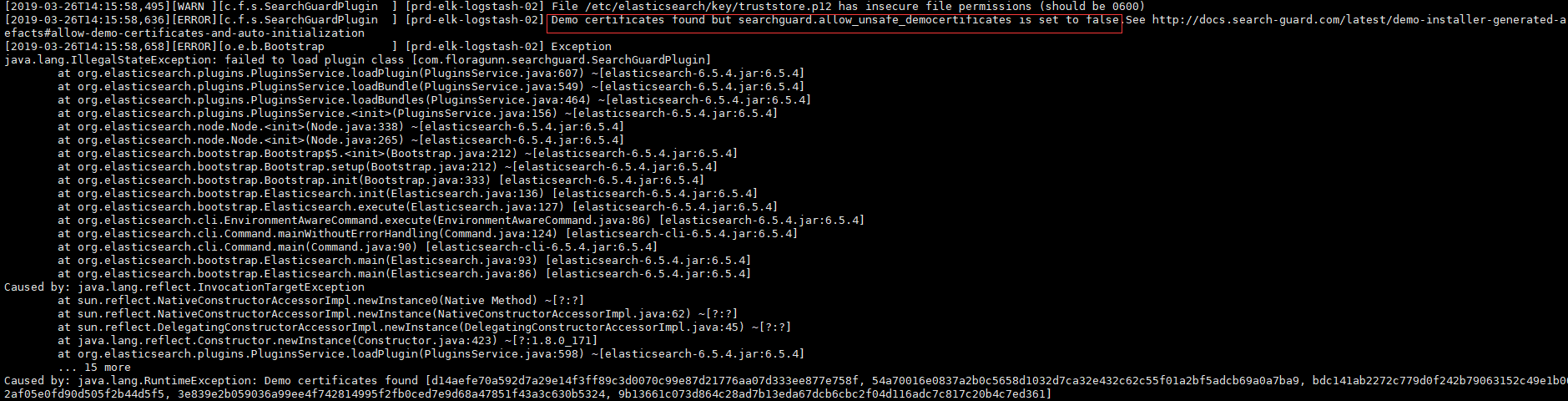

　　启动报错

　　原因：有志气demo安装的证书需要删除 路径为/etc/elasticsearch

rm -rf kirk-key.pem
rm -rf kirk.pem
rm -rf esnode.pem
rm -rf esnode-key.pem
rm -rf root-ca.pem

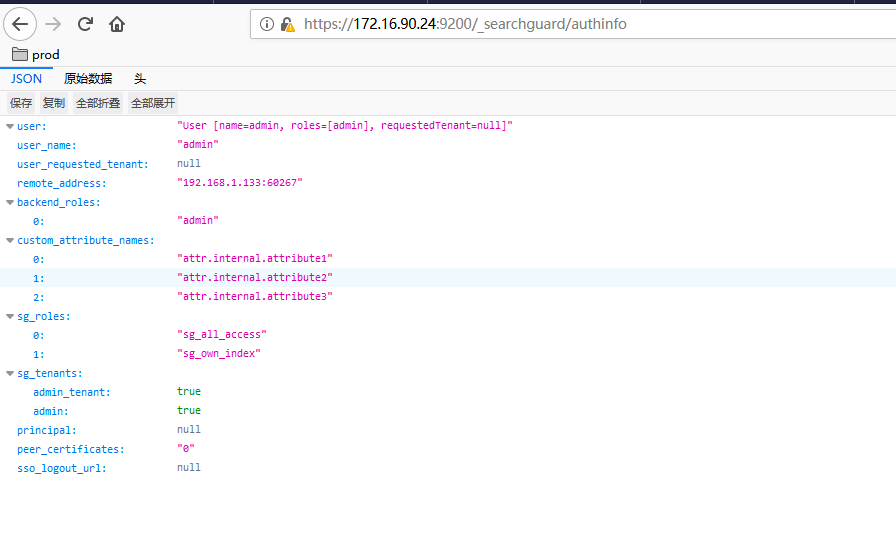

　　验证是否安装成功，web页面访问输入用户名密码admin admin

https://172.16.90.24:9200/_searchguard/authinfo

　　设置权限因子

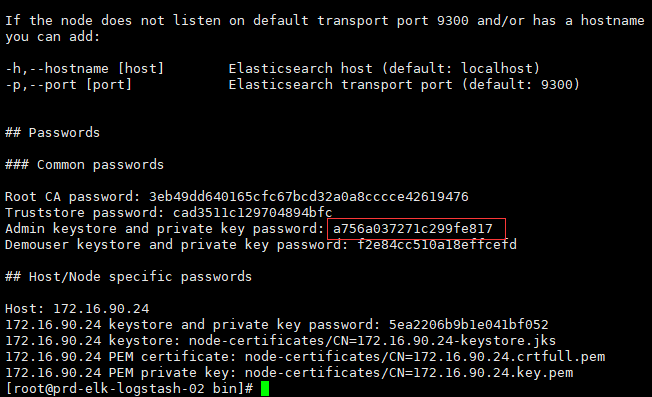

　　权限因子密码也可以在README.txt找到



cd /etc/elasticsearch/key/
 cp root-ca.pem client-certificates/CN\=sgadmin.key.pem client-certificates/CN\=sgadmin.crtfull.pem /usr/share/elasticsearch/plugins/search-guard-6/tools/
 cd /usr/share/elasticsearch/plugins/search-guard-6/tools/

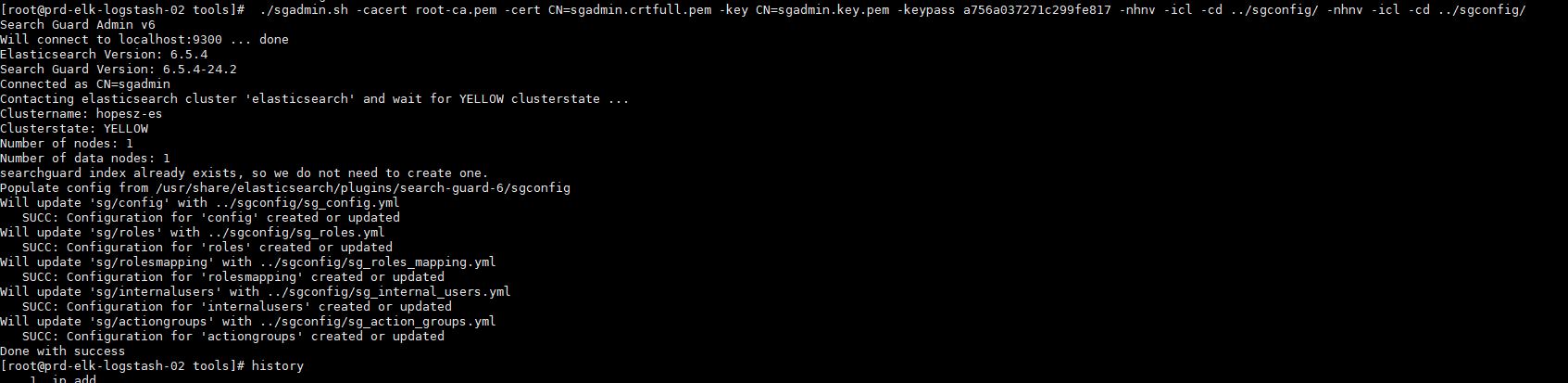

  ./sgadmin.sh -cacert root-ca.pem -cert CN=sgadmin.crtfull.pem -key CN=sgadmin.key.pem -keypass a756a037271c299fe817 -nhnv -icl -cd ../sgconfig/ -nhnv -icl -cd ../sgconfig/

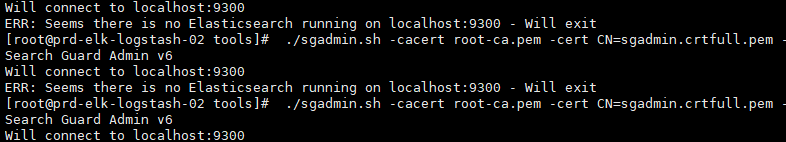

　　执行如果报错

　　修改elaticsearch.yml

network.host: 0.0.0.0

　　

　　初始化搜索保护配置

cd /etc/elasticsearch/key/
cp truststore.jks /usr/share/elasticsearch/plugins/search-guard-6/tools/
cp client-certificates/CN\=sgadmin-keystore.jks /usr/share/elasticsearch/plugins/search-guard-6/tools/
cd /usr/share/elasticsearch/plugins/search-guard-6/tools/
./sgadmin.sh -ts truststore.jks -tspass e0c2b67ecfc6dad6bc42 -ks CN=sgadmin-keystore.jks -kspass 4abdecb00e4d4891761a -nhnv -icl -cd ../sgconfig/



　　安装kibana控件（需要先停止kibana）

cd /usr/share/kibana/bin/
./kibana-plugin install https://search.maven.org/remotecontent?filepath=com/floragunn/search-guard-kibana-plugin/6.5.4-18/search-guard-kibana-plugin-6.5.4-18.zip

　　安装版本查看

　　修改kibana配置文件

server.port: 5601
server.host: "172.16.90.24"
server.name: "prd-elk-logstash-02"
#配置为https
elasticsearch.url: "https://172.16.90.24:9200"
kibana.index: ".kibana"
elasticsearch.username: "kibanaserver"
elasticsearch.password: "kibanaserver"
elasticsearch.ssl.verificationMode: none
elasticsearch.requestHeadersWhitelist: [ "Authorization", "sgtenant" ]
xpack.monitoring.enabled: false
xpack.graph.enabled: false
xpack.ml.enabled: false
xpack.watcher.enabled: false
xpack.security.enabled: false

　　启动kibana web页面访问需要输入用户名密码admim即可

　　

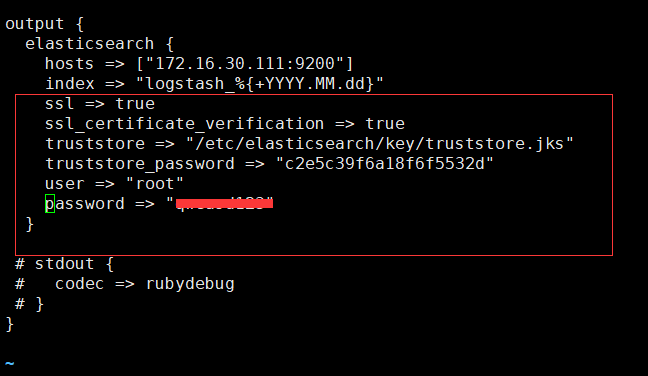

　　配置logstash访问，不同于demo安装的配置需要在logstash配置文件配置如下配置output

output{
    if "nginx-prod-log" in [type] {
        elasticsearch{
        hosts => ["172.16.90.24:9200"]
        index => "nginx-prod-log-%{+YYYY.MM}"
        ssl => true
        ssl_certificate_verification => true
        truststore => "/etc/elasticsearch/key/truststore.jks"
        truststore_password => "cad3511c129704894bfc"
        user => "admin"
        password => "admin"
        }
        #stdout{
        #    codec => rubydebug
        #}
    }

　　增加以下配置



　　PS：truststore密码同样在README.txt可以找到

　　　　truststore密码需要引号 用户名和密码也需要加引号 否则无法启动logstash

　　　　用户名和密码没有加引号报错信息为 ConfigurationError





　　
