Scrapy框架实战-妹子图爬虫

Scrapy这个成熟的爬虫框架，用起来之后发现并没有想象中的那么难。即便是在一些小型的项目上，用scrapy甚至比用requests、urllib、urllib2更方便，简单，效率也更高。废话不多说，下面详细介绍下如何用scrapy将妹子图爬下来，存储在你的硬盘之中。关于Python、Scrapy的安装以及scrapy的原理这里就不作介绍，自行google、百度了解学习。

一、开发工具
Pycharm 2017
Python 2.7
Scrapy 1.5.0
requests

二、爬取过程

1、创建mzitu项目

进入"E:\Code\PythonSpider>"目录执行scrapy startproject mzitu命令创建一个爬虫项目：

1 scrapy startproject mzitu

执行完成后，生产目录文件结果如下：

 1 ├── mzitu
 2 │   ├── mzitu
 3 │   │   ├── __init__.py
 4 │   │   ├── items.py
 5 │   │   ├── middlewares.py
 6 │   │   ├── pipelines.py
 7 │   │   ├── settings.py
 8 │   │   └── spiders
 9 │   │       ├── __init__.py
10 │   │       └── Mymzitu.py
11 │   └── scrapy.cfg

2、进入mzitu项目，编写修改items.py文件

定义titile，用于存储图片目录的名称
定义img，用于存储图片的url
定义name，用于存储图片的名称

 1 # -*- coding: utf-8 -*-
 2
 3 # Define here the models for your scraped items
 4 #
 5 # See documentation in:
 6 # https://doc.scrapy.org/en/latest/topics/items.html
 7
 8 import scrapy
 9
10 class MzituItem(scrapy.Item):
11     # define the fields for your item here like:
12     title = scrapy.Field()
13     img = scrapy.Field()
14     name = scrapy.Field()

3、编写修改spiders/Mymzitu.py文件

 1 # -*- coding: utf-8 -*-
 2 import scrapy
 3 from mzitu.items import MzituItem
 4 from lxml import etree
 5 import requests
 6 import sys
 7 reload(sys)
 8 sys.setdefaultencoding('utf8')
 9
10
11 class MymzituSpider(scrapy.Spider):
12     def get_urls():
13         url = 'http://www.mzitu.com'
14         headers = {}
15         headers['User-Agent'] = 'Mozilla/5.0 (Windows NT 6.1; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/62.0.3202.94 Safari/537.36'
16         r = requests.get(url,headers=headers)
17         html = etree.HTML(r.text)
18         urls = html.xpath('//*[@id="pins"]/li/a/@href')
19         return urls
20
21     name = 'Mymzitu'
22     allowed_domains = ['www.mzitu.com']
23     start_urls = get_urls()
24
25     def parse(self, response):
26         item = MzituItem()
27         #item['title'] = response.xpath('//h2[@class="main-title"]/text()')[0].extract()
28         item['title'] = response.xpath('//h2[@class="main-title"]/text()')[0].extract().split('（')[0]
29         item['img'] = response.xpath('//div[@class="main-image"]/p/a/img/@src')[0].extract()
30         item['name'] = response.xpath('//div[@class="main-image"]/p/a/img/@src')[0].extract().split('/')[-1]
31         yield item
32
33         next_url = response.xpath('//div[@class="pagenavi"]/a/@href')[-1].extract()
34         if next_url:
35             yield scrapy.Request(next_url, callback=self.parse)

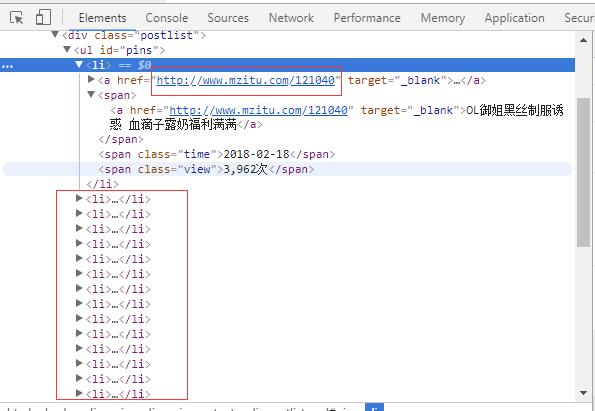

我们要爬取的是妹子图网站“最新”的妹子图片，对应的主url是http://www.mzitu.com，通过查看网页源代码发现每一个图片主题的url在<li>标签中，通过上面代码中get_urls函数可以获取，并且返回一个url列表，这里必须说明一下，用python写爬虫，像re、xpath、Beautiful Soup之类的模块必须掌握一个，否则根本无法下手。这里使用xpath工具来获取url地址，在lxml和scrapy中，都支持使用xpath。

1     def get_urls():
2         url = 'http://www.mzitu.com'
3         headers = {}
4         headers['User-Agent'] = 'Mozilla/5.0 (Windows NT 6.1; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/62.0.3202.94 Safari/537.36'
5         r = requests.get(url,headers=headers)
6         html = etree.HTML(r.text)
7         urls = html.xpath('//*[@id="pins"]/li/a/@href')
8         return urls

name定义爬虫的名称，allowed_domains定义包含了spider允许爬取的域名(domain)列表(list)，start_urls定义了爬取了url列表。

1 name = 'Mymzitu'
2 allowed_domains = ['www.mzitu.com']
3 start_urls = get_urls()

分析图片详情页，获取图片主题、图片url和图片名称，同时获取下一页，循环爬取：

 1     def parse(self, response):
 2         item = MzituItem()
 3         #item['title'] = response.xpath('//h2[@class="main-title"]/text()')[0].extract()
 4         item['title'] = response.xpath('//h2[@class="main-title"]/text()')[0].extract().split('（')[0]
 5         item['img'] = response.xpath('//div[@class="main-image"]/p/a/img/@src')[0].extract()
 6         item['name'] = response.xpath('//div[@class="main-image"]/p/a/img/@src')[0].extract().split('/')[-1]
 7         yield item
 8
 9         next_url = response.xpath('//div[@class="pagenavi"]/a/@href')[-1].extract()
10         if next_url:
11             yield scrapy.Request(next_url, callback=self.parse)

4、编写修改pipelines.py文件，下载图片

 1 # -*- coding: utf-8 -*-
 2
 3 # Define your item pipelines here
 4 #
 5 # Don't forget to add your pipeline to the ITEM_PIPELINES setting
 6 # See: https://doc.scrapy.org/en/latest/topics/item-pipeline.html
 7 import requests
 8 import os
 9
10 class MzituPipeline(object):
11     def process_item(self, item, spider):
12         headers = {
13             'Referer': 'http://www.mzitu.com/'
14         }
15         local_dir = 'E:\\data\\mzitu\\' + item['title']
16         local_file = local_dir + '\\' + item['name']
17         if not os.path.exists(local_dir):
18             os.makedirs(local_dir)
19         with open(local_file,'wb') as f:
20             f.write(requests.get(item['img'],headers=headers).content)
21         return item

5、middlewares.py文件中新增一个RotateUserAgentMiddleware类

 1 class RotateUserAgentMiddleware(UserAgentMiddleware):
 2     def __init__(self, user_agent=''):
 3         self.user_agent = user_agent
 4     def process_request(self, request, spider):
 5         ua = random.choice(self.user_agent_list)
 6         if ua:
 7             request.headers.setdefault('User-Agent', ua)
 8     #the default user_agent_list composes chrome,IE,firefox,Mozilla,opera,netscape
 9     #for more user agent strings,you can find it in http://www.useragentstring.com/pages/useragentstring.php
10     user_agent_list = [
11         "Mozilla/5.0 (Windows NT 6.1; WOW64) AppleWebKit/537.1 (KHTML, like Gecko) Chrome/22.0.1207.1 Safari/537.1"\
12         "Mozilla/5.0 (X11; CrOS i686 2268.111.0) AppleWebKit/536.11 (KHTML, like Gecko) Chrome/20.0.1132.57 Safari/536.11",\
13         "Mozilla/5.0 (Windows NT 6.1; WOW64) AppleWebKit/536.6 (KHTML, like Gecko) Chrome/20.0.1092.0 Safari/536.6",\
14         "Mozilla/5.0 (Windows NT 6.2) AppleWebKit/536.6 (KHTML, like Gecko) Chrome/20.0.1090.0 Safari/536.6",\
15         "Mozilla/5.0 (Windows NT 6.2; WOW64) AppleWebKit/537.1 (KHTML, like Gecko) Chrome/19.77.34.5 Safari/537.1",\
16         "Mozilla/5.0 (X11; Linux x86_64) AppleWebKit/536.5 (KHTML, like Gecko) Chrome/19.0.1084.9 Safari/536.5",\
17         "Mozilla/5.0 (Windows NT 6.0) AppleWebKit/536.5 (KHTML, like Gecko) Chrome/19.0.1084.36 Safari/536.5",\
18         "Mozilla/5.0 (Windows NT 6.1; WOW64) AppleWebKit/536.3 (KHTML, like Gecko) Chrome/19.0.1063.0 Safari/536.3",\
19         "Mozilla/5.0 (Windows NT 5.1) AppleWebKit/536.3 (KHTML, like Gecko) Chrome/19.0.1063.0 Safari/536.3",\
20         "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_8_0) AppleWebKit/536.3 (KHTML, like Gecko) Chrome/19.0.1063.0 Safari/536.3",\
21         "Mozilla/5.0 (Windows NT 6.2) AppleWebKit/536.3 (KHTML, like Gecko) Chrome/19.0.1062.0 Safari/536.3",\
22         "Mozilla/5.0 (Windows NT 6.1; WOW64) AppleWebKit/536.3 (KHTML, like Gecko) Chrome/19.0.1062.0 Safari/536.3",\
23         "Mozilla/5.0 (Windows NT 6.2) AppleWebKit/536.3 (KHTML, like Gecko) Chrome/19.0.1061.1 Safari/536.3",\
24         "Mozilla/5.0 (Windows NT 6.1; WOW64) AppleWebKit/536.3 (KHTML, like Gecko) Chrome/19.0.1061.1 Safari/536.3",\
25         "Mozilla/5.0 (Windows NT 6.1) AppleWebKit/536.3 (KHTML, like Gecko) Chrome/19.0.1061.1 Safari/536.3",\
26         "Mozilla/5.0 (Windows NT 6.2) AppleWebKit/536.3 (KHTML, like Gecko) Chrome/19.0.1061.0 Safari/536.3",\
27         "Mozilla/5.0 (X11; Linux x86_64) AppleWebKit/535.24 (KHTML, like Gecko) Chrome/19.0.1055.1 Safari/535.24",\
28         "Mozilla/5.0 (Windows NT 6.2; WOW64) AppleWebKit/535.24 (KHTML, like Gecko) Chrome/19.0.1055.1 Safari/535.24"
29     ]

6、settings.py设置

 1 # Obey robots.txt rules
 2 ROBOTSTXT_OBEY = False
 3 # Configure maximum concurrent requests performed by Scrapy (default: 16)
 4 CONCURRENT_REQUESTS = 100
 5 # Disable cookies (enabled by default)
 6 COOKIES_ENABLED = False
 7 DOWNLOADER_MIDDLEWARES = {
 8     'mzitu.middlewares.MzituDownloaderMiddleware': 543,
 9     'scrapy.downloadermiddlewares.useragent.UserAgentMiddleware':None,
10     'mzitu.middlewares.RotateUserAgentMiddleware': 400,
11 }
