【qdox】Java 代码解析利器 QDox


前言

最近在写 maven 插件,涉及到了 java 代码解析这块内容。需要解析 java 源码,然后对于类中的不同部分进行处理。发现手写还是很难的,找了一圈发现了两个不错的工具可以使用,一个是 javaparser,另一个是 qdox 。个人感觉 javaparser 强大一些,更新与维护也比较勤,但是相对来说上手难一点,从他的使用文档独立成书在买,可见一斑,而 qdox 比较小巧,上手很快,功能也满足大部分需求,最终还是选择了 qdox。

什么是 QDox

官方的介绍是:

QDox - full extractor of Java class/interface/method definitions (including annotations, parameters, param names)

大概意思是一款完整的 java 类、接口、方法定义的提取器,包括了注释、参数及参数名称。其实核心功能就是我输入一个 java 类的源码,他可以把这个 java 类解析成一个对象,我们通过这个对象可以获取很方便的获取解析的类的不同组成,比如我可以获得这个类有哪些方法,这个方法的参数是什么,返回值又是什么,他们的类型又分别是什么?还有这个方法上有哪些注释、哪些 tag。也能获取类中有哪些的 field。。。总之把这个类庖丁解牛般解析好,使得调用者很方便的获取到自己感兴趣的信息。

为什么使用 QDox

除了上面说的 QDox 上手比较快外,他的运行速度及占用空间都十分优秀。

另外不得不说的是这个项目可以说是一个上古时期的项目了,看了 github 上的提交记录,最早的一条提交记录是 2002 年的时候,因为这个项目之前使用的是 svn,所以具体时间可能更早。一个开源项目维护了快 20 年也是一件挺令人钦佩的事。不过到目前为止,这个项目在 github 上只有 151 个 star,如果这个项目对你有所帮助,希望大家可以给作者一个 star。github 上有太多类似的项目默默无闻的出现,又默默无闻的消逝。

扯远了,虽然项目关注的人比较少,但是使用它的项目还是比较多的。maven 的官方 javadoc 插件 maven-javadoc-plugin 就是使用它来解析代码中的 doc tags 的。所以可能你没有直接使用它,但是它其中已经在你本地的 maven 仓库内躺着了。有官方背书,对于它的使用就比较放心了。

什么情况下适合使用 QDox

这个就比较多了,通常只要我们需要解析源码的内容就可以使用,比如我想获得指定类文件中的全部方法。就可以使用。可能有些人感到不解了,为什么不通过反射拿到这些内容,这样不是更方便吗?首先,反射的前提是你能拿到这个类的实例,或者你项目中就有这个类。即使这些条件都满足,但是一个很常见的需求反射没法满足,比如说拿到方法的注释及 tags 等,这类在编译时就被抹除了。这种情况就不得不用源码解析的方法了。

另外它不只是能解析,他同时可以生成 java 类文件,所以你可以动态的生成一些 java 类。

无论是解析还是生成,在写插件的时候肯定需要会有这样的场景,比如我想通过代码里的 javadoc 这些 tags 生成一个接口文档给前端,这样就不用我一个一个手写了。再比如我想通过数据表的信息,自动生成 model 类,service 类。。。使用场景的限制主要是个人的想象力。

如何使用 QDox

创建 java 项目 builder 对象

        // 创建 java 项目 builder 对象
        JavaProjectBuilder javaProjectBuilder = new JavaProjectBuilder();

添加 java 源文件

        // 添加 java 源文件
        javaProjectBuilder.addSource(new File("/Users/kiwi/study/code/study-example/study-qdox-example/src/main/java/cn/coder4j/study/example/qdox/Demo.java"));

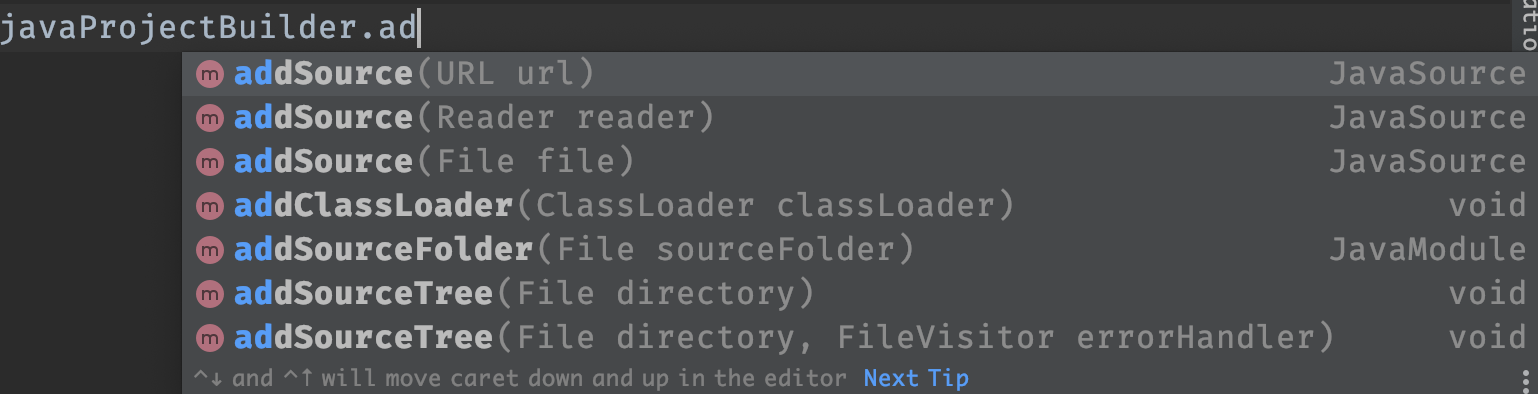

demo 示例是通过文件添加的,其实支持很多种类型,比如 URL、Reader 甚至直接添加一个目录,框架会自己扫描目录下的所有 java 文件


获得解析后的 JavaClass 对象

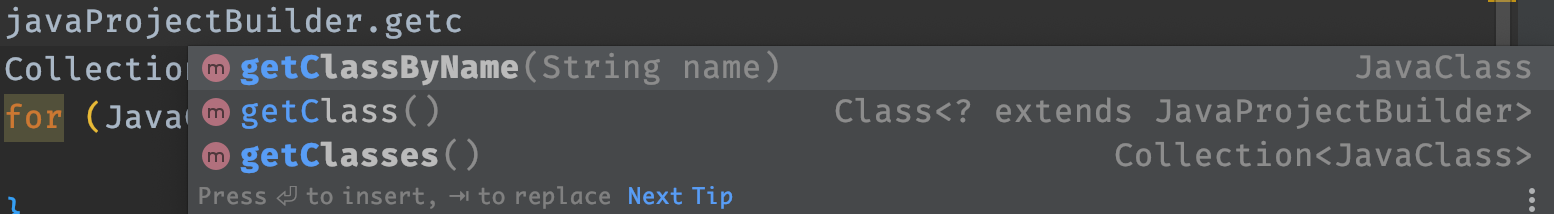

经过上面两步,准备工作就已经结束了,可以直接获得解析后的 JavaClass 对象了,有两种方式获取,一种是直接获得解析后的类集合,为什么是集合呢?因为上面也说了是可以添加目录的,而且 addSource 可以多次调用,添加多个文件。另一种是在知道类名称的情况下直接使用 getClassByName 获得


        // 获得解析后的类
        Collection<JavaClass> classes = javaProjectBuilder.getClasses();
        for (JavaClass javaClass : classes) {

        }

JavaClass 接口定义

package com.thoughtworks.qdox.model;

/*
 * Licensed to the Apache Software Foundation (ASF) under one
 * or more contributor license agreements.  See the NOTICE file
 * distributed with this work for additional information
 * regarding copyright ownership.  The ASF licenses this file
 * to you under the Apache License, Version 2.0 (the
 * "License"); you may not use this file except in compliance
 * with the License.  You may obtain a copy of the License at
 *
 *   http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing,
 * software distributed under the License is distributed on an
 * "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY
 * KIND, either express or implied.  See the License for the
 * specific language governing permissions and limitations
 * under the License.
 */

import java.util.List;

import com.thoughtworks.qdox.library.ClassLibrary;

/**
 * Equivalent of {@link java.lang.Class}, providing the most important methods.
 * Where the original Class is using an Array, this model is using a List.
 *
 * @author Robert Scholte
 */
public interface JavaClass extends JavaModel, JavaType, JavaAnnotatedElement, JavaGenericDeclaration
{
    /**
     * The compilation unit, which includes the imports, the public and anonymous classes
     *
     * @return the {@link JavaSource} of this element
     */
    JavaSource getSource();

    /**
     * (API description of {@link java.lang.Class#isInterface()})
     * <p>
     * Determines if the specified <code>Class</code> object represents an interface type.
     * </p>
     *
     * @return <code>true</code> if this object represents an interface, otherwise <code>false</code>
     */
    boolean isInterface();

    /**
     * (API description of {@link java.lang.Class#isEnum()})
     * <p>
     * Returns <code>true</code> if and only if this class was declared as an enum in the source code.
     * </p>
     *
     * @return <code>true</code> if this object represents an enum, otherwise <code>false</code>

     */
    boolean isEnum();

    /**
     * (API description of {@link java.lang.Class#isAnnotation()})
     * <p>Returns true if this <code>Class</code> object represents an annotation type.
     *    Note that if this method returns true, {@link #isInterface()} would also return true, as all annotation types are also interfaces.
     * </p>
     *
     * @return <code>true</code> if this object represents an annotation, otherwise <code>false</code>
     * @since 2.0
     */
    boolean isAnnotation();

    JavaClass getDeclaringClass();

    JavaType getSuperClass();

    /**
     * Shorthand for getSuperClass().getJavaClass() with null checking.
     * @return the super class as {@link JavaClass}
     */
    JavaClass getSuperJavaClass();

    List<JavaType> getImplements();

    /**
     * Equivalent of {@link java.lang.Class#getInterfaces()}
     *  Determines the interfaces implemented by the class or interface represented by this object.
     *
     * @return a list of interfaces, never <code>null</code>
     * @since 2.0
     */
    List<JavaClass> getInterfaces();

    String getCodeBlock();

    JavaSource getParentSource();

    /**
     * Equivalent of {@link java.lang.Class#getPackage()}
     * @return the package
     */
    JavaPackage getPackage();

    /**
     * If this class has a package, the packagename will be returned.
     * Otherwise an empty String.
     *
     * @return the name of the package, otherwise an empty String
     */
    String getPackageName();

    /**
     * @since 1.3
     * @return <code>true</code> if this class is an inner class, otherwise <code>false</code>
     */
    boolean isInner();

    /**
     * Equivalent of {@link java.lang.Class#getMethods()}
     *
     * @return the methods declared or overridden in this class
     */
    List<JavaMethod> getMethods();

    /**
     * Equivalent of {@link java.lang.Class#getConstructors()}
     *
     * @return the list of constructors
     * @since 2.0
     */
    List<JavaConstructor> getConstructors();


    /**
     *
     * @param parameterTypes the parameter types of the constructor, can be <code>null</code>
     * @return the matching constructor, otherwise <code>null</code>
     * @since 2.0
     */
    JavaConstructor getConstructor(List<JavaType> parameterTypes);

    /**
     *
     * @param parameterTypes the parameter types of the constructor, can be <code>null</code>
     * @param varArg define is the constructor has varArgs
     * @return the matching constructor, otherwise <code>null</code>
     * @since 2.0
     */
    JavaConstructor getConstructor(List<JavaType> parameterTypes, boolean varArg);


    /**
     * Return declared methods and optionally the inherited methods
     *
     * @param superclasses {@code true} if inherited methods should be returned as well
     * @return all methods
     * @since 1.3
     */
    List<JavaMethod> getMethods( boolean superclasses );

    /**
     *
     * @param name the name of the method
     * @param parameterTypes the parameter types of the method, can be <code>null</code>.
     * @return the matching method, otherwise <code>null</code>
     */
    JavaMethod getMethodBySignature( String name, List<JavaType> parameterTypes );

    /**
     * This should be the signature for getMethodBySignature.
     *
     * @param name the name of the method
     * @param parameterTypes the parameter types of the method, can be {@code null}
     * @param varArgs define if the method has varArgs
     * @return the matching method, otherwise  {@code null}
     */
    JavaMethod getMethod( String name, List<JavaType> parameterTypes, boolean varArgs );

    /**
     *
     * @param name the name of the method
     * @param parameterTypes the parameter types of the method, can be  {@code null}
     * @param superclasses to define if superclasses should be included as well
     * @return the matching method, otherwise  {@code null}
     */
    JavaMethod getMethodBySignature( String name, List<JavaType> parameterTypes, boolean superclasses );

    /**
     *
     * @param name the name of the method
     * @param parameterTypes the parameter types of the method, can be  {@code null}
     * @param superclasses {@code true} if inherited methods should be matched as well
     * @param varArg define if the method has varArgs
     * @return the matching method, otherwise  {@code null}
     */
    JavaMethod getMethodBySignature( String name, List<JavaType> parameterTypes, boolean superclasses, boolean varArg );

    /**
     *
     * @param name the name of the method
     * @param parameterTypes the parameter types of the method, can be  {@code null}
     * @param superclasses {@code true} if inherited methods should be matched as well
     * @return the matching methods, otherwise  {@code null}
     */
    List<JavaMethod> getMethodsBySignature( String name, List<JavaType> parameterTypes, boolean superclasses );

    /**
     *
     * @param name the name of the method
     * @param parameterTypes the parameter types of the method, can be  {@code null}
     * @param superclasses {@code true} if inherited methods should be matched as well
     * @param varArg define if the method has varArgs
     * @return the matching methods, otherwise  {@code null}
     */
    List<JavaMethod> getMethodsBySignature( String name, List<JavaType> parameterTypes, boolean superclasses,
                                                   boolean varArg );

    /**
     * Equivalent of {@link java.lang.Class#getFields()}
     *
     * @return a list of fiels, never  {@code null}
     */
    List<JavaField> getFields();

    /**
     * Equivalent of {@link java.lang.Class#getField(String)}, where this method can resolve every field
     *
     * @param name the name of the field
     * @return the field
     */
    JavaField getFieldByName( String name );

    /**
     * Based on {@link java.lang.Class#getEnumConstants()}.
     *
     *
     * @return a List of enum constants if this class is an <code>enum</code>, otherwise  {@code null}
     */
    List<JavaField> getEnumConstants();

    /**
     *
     * @param name the name of the enum constant
     * @return the enumConstant matching the {@code name}, otherwise <code>null</code>
     */
    JavaField getEnumConstantByName( String name );

    /**
     * Equivalent of {@link Class#getDeclaredClasses()}
     *
     * @return a list of declared classes, never <code>null</code>
     * @since 1.3
     */
    List<JavaClass> getNestedClasses();

    JavaClass getNestedClassByName( String name );

    /**
     * @param fullyQualifiedName the FQN to match with
     * @return {@code true} if this is of type FQN, otherwise {@code false}
     * @since 1.3
     */
    boolean isA( String fullyQualifiedName );

    /**
     * @param javaClass the JavaClass to match with
     * @return {@code true} if this is of type {@literal javaClass}, otherwise {@code false}
     * @since 1.3
     */
    boolean isA( JavaClass javaClass );

    /**
     * Returns the depth of this array, 0 if it's not an array
     *
     * @return The depth of this array, at least <code>0</code>
     * @since 2.0
     */
    int getDimensions();

    /**
     *
     * @return <code>true</code> if this JavaClass is an array, otherwise <code>false</code>
     * @since 2.0
     */
    boolean isArray();

    /**
     *
     * @return <code>true</code> if this JavaClass is a void, otherwise <code>false</code>
     * @since 2.0 (was part of Type since 1.6)
     */
    boolean isVoid();

    /**
     * Equivalent of {@link Class#getComponentType()}
     * If this type is an array, return its component type
     *
     * @return the type of array if it's one, otherwise <code>null</code>
     */
    JavaClass getComponentType();

    /**
     * Gets bean properties without looking in superclasses or interfaces.
     *
     * @return the bean properties
     * @since 1.3
     */
    List<BeanProperty> getBeanProperties();

    /**
     *
     * @param superclasses to define if superclasses should be included as well
     * @return the bean properties
     * @since 1.3
     */
    List<BeanProperty> getBeanProperties( boolean superclasses );

    /**
     * Gets bean property without looking in superclasses or interfaces.
     *
     * @param propertyName the name of the property
     * @return the bean property
     * @since 1.3
     */
    BeanProperty getBeanProperty( String propertyName );

    /**
     * @param propertyName the name of the property
     * @param superclasses to define if superclasses should be included as well
     * @return the bean property
     * @since 1.3
     */
    BeanProperty getBeanProperty( String propertyName, boolean superclasses );

    /**
     * Equivalent of {@link Class#getClasses()}
     * Gets the known derived classes. That is, subclasses or implementing classes.
     * @return the derived classes
     */
    List<JavaClass> getDerivedClasses();

    List<DocletTag> getTagsByName( String name, boolean superclasses );

    ClassLibrary getJavaClassLibrary();

    /**
     * A list if {@link JavaInitializer}, either static or instance initializers.
     *
     * @return a List of initializers
     */
    List<JavaInitializer> getInitializers();

    /**
     * Equivalent of {@link java.lang.Class#getName()}.
     *
     * @return the name of the entity (class, interface, array class, primitive type, or void) represented by this Class object, as a String.
     */
    String getName();

    /**
     * Equivalent of {@link java.lang.Class#getSimpleName()}.
     *
     * @return the simple name of the underlying class as given in the source code.
     * @since 2.0
     */
    String getSimpleName();

    /**
     * Equivalent of {@link Class#getModifiers()}
     *
     * <strong>This does not follow the java-api</strong>
     * The Class.getModifiers() returns an <code>int</code>, which should be decoded with the {@link java.lang.reflect.Modifier}.
     * This method will return a list of strings representing the modifiers.
     * If this member was extracted from a source, it will keep its order.
     * Otherwise if will be in the preferred order of the java-api.
     *
     * @return all modifiers is this member
     */
    List<String> getModifiers();

    /**
     * (API description of {@link java.lang.reflect.Modifier#isPublic(int)})
     * <p>
     * Return <code>true</code> if the class includes the public modifier, <code>false</code> otherwise.
     * <p>
     *
     * @return <code>true</code> if class has the public modifier, otherwise <code>false</code>
     */
    boolean isPublic();

    /**
     * (API description of {@link java.lang.reflect.Modifier#isProtected(int)})
     * <p>
     * Return <code>true</code> if the class includes the protected modifier, <code>false</code> otherwise.
     * </p>
     *
     * @return <code>true</code> if class has the protected modifier, otherwise <code>false</code>
     */
    boolean isProtected();

    /**
     * (API description of {@link java.lang.reflect.Modifier#isPrivate(int)})
     * <p>
     * Return <code>true</code> if the class includes the private modifier, <code>false</code> otherwise.
     * </p>
     *
     * @return <code>true</code> if class has the private modifier, otherwise <code>false</code>
     */
    boolean isPrivate();

    /**
     * (API description of {@link java.lang.reflect.Modifier#isFinal(int)})
     * <p>
     * Return <code>true</code> if the class includes the final modifier, <code>false</code> otherwise.
     * </p>
     *
     * @return <code>true</code> if class has the final modifier, otherwise <code>false</code>
     */
    boolean isFinal();

    /**
     * (API description of {@link java.lang.reflect.Modifier#isStatic(int)})
     * <p>
     * Return <code>true</code> if the class includes the static modifier, <code>false</code> otherwise.
     * </p>
     *
     * @return <code>true</code> if class the static modifier, otherwise <code>false</code>
     */
    boolean isStatic();

    /**
     * (API description of {@link java.lang.reflect.Modifier#isAbstract(int)})
     *
     * Return <code>true</code> if the class includes the abstract modifier, <code>false</code> otherwise.
     *
     * @return <code>true</code> if class has the abstract modifier, otherwise <code>false</code>
     */
    boolean isAbstract();

    /**
     *  Equivalent of  {@link java.lang.Class#isPrimitive()}
     *
     * @return <code>true</code> if this class represents a primitive, otherwise <code>false</code>
     */
    boolean isPrimitive();

    /**
     * (API description of {@link java.lang.Class#toString()})
     *
     * Converts the object to a string.
     * The string representation is the string "class" or "interface", followed by a space, and then by the fully qualified name of the class in the format returned by <code>getName</code>.
     * If this <code>Class</code> object represents a primitive type, this method returns the name of the primitive type.
     * If this <code>Class</code> object represents void this method returns "void".
     *
     * @return a string representation of this class object.
     */
    @Override
    String toString();
}

可以看到 JavaClass 提供的方法还是很多的,主要有如下这些,大概可以分成两类:

一类是getXXX 这个是通过获得类中不同的组成部分的,比较常用有 getFields ,可以获得类所有的 Field 变量的对象,通过 Field 又可以获得 Field 上的注解以及注释,类型。。。所有关于 field 的信息。又比如 getTags、getMethods 顾名思义是获得 javadoc 的注释及方法列表。

另一类是 isXXX ,这个是用来判断类的一定特性的,比如 isEnum 判断类是否是枚举,isInterface 判断是否是接口。

// 这些方法名,其实也是用 QDox 打印出来的
getBeanProperties
getBeanProperty
getCodeBlock
getComponentType
getConstructor
getConstructors
getDeclaringClass
getDerivedClasses
getDimensions
getEnumConstantByName
getEnumConstants
getFieldByName
getFields
getImplements
getInitializers
getInterfaces
getJavaClassLibrary
getMethod
getMethodBySignature
getMethods
getMethodsBySignature
getModifiers
getName
getNestedClassByName
getNestedClasses
getPackage
getPackageName
getParentSource
getSimpleName
getSource
getSuperClass
getSuperJavaClass
getTagsByName
isA
isAbstract
isAnnotation
isArray
isEnum
isFinal
isInner
isInterface
isPrimitive
isPrivate
isProtected
isPublic
isStatic
isVoid

完整 Demo

/*
 *
 *  * *
 *  *  * blog.coder4j.cn
 *  *  * Copyright (C) 2016-2020 All Rights Reserved.
 *  *
 *
 */
package cn.coder4j.study.example.qdox;

import com.thoughtworks.qdox.JavaProjectBuilder;
import com.thoughtworks.qdox.model.JavaClass;
import com.thoughtworks.qdox.model.JavaMethod;

import java.io.File;
import java.io.IOException;
import java.util.Collection;
import java.util.List;
import java.util.stream.Collectors;

/**
 * @author buhao
 * @version DemoParser.java, v 0.1 2020-03-22 19:03 buhao
 */
public class DemoParser {
    public static void main(String[] args) throws IOException {
        // 创建 java 项目 builder 对象
        JavaProjectBuilder javaProjectBuilder = new JavaProjectBuilder();
        // 添加 java 源文件
        javaProjectBuilder.addSource(new File("/Users/kiwi/study/code/study-example/study-qdox-example/src/main/java/cn/coder4j/study/example/qdox/Demo.java"));
        // 获得解析后的类
        Collection<JavaClass> classes = javaProjectBuilder.getClasses();
        for (JavaClass javaClass : classes) {
            // 打印类相关信息
            System.out.println("类名:" + javaClass.getName());
            System.out.println("实现了哪些类:" + javaClass.getImplements());
            System.out.println("继承哪个类:" + javaClass.getSuperJavaClass());
            System.out.println("注释:" + javaClass.getComment());
            // 获得方法列表
            List<JavaMethod> methods = javaClass.getMethods();
            for (JavaMethod method : methods) {
                System.out.println("方法名是:" + method.getName());
                System.out.println("方法的 Tags 有哪些:" + method.getTags().stream().map(it -> it.getName() + "->"+ it.getValue()).collect(Collectors.joining("\n")));
                System.out.println("方法的参数有哪些:" + method.getParameters());
                System.out.println("方法的返回值有哪些:" + method.getReturns());
            }
        }
    }
}

执行结果

类名:Demo
实现了哪些类:[java.io.Serializable]
继承哪个类:class java.lang.Object
注释:这是一个 demo 类
方法名是:hello
方法的 Tags 有哪些:param->name 姓名
return->hello {name}
方法的参数有哪些:[String name]
方法的返回值有哪些:java.lang.String

其它

项目代码

因为篇幅有限,无法贴完所有代码,如遇到问题可到 github 上查看源码。

关于我


欢迎关注我的个人公众号 KIWI的碎碎念 ,关注后回复 学习资料,海量学习内容直接分享!

易学教程内所有资源均来自网络或用户发布的内容,如有违反法律规定的内容欢迎反馈
该文章没有解决你所遇到的问题?点击提问,说说你的问题,让更多的人一起探讨吧!
