Nginx配置WebService、MySQL、SQL Server、ORACLE等代理

nginx配置webservice

#user  nobody;
worker_processes  4;

#error_log  logs/error.log;
#error_log  logs/error.log  notice;
#error_log  logs/error.log  info;

#pid        logs/nginx.pid;


events {
    worker_connections  1024;
}


http {
    include       mime.types;
    default_type  application/octet-stream;

    log_format  main  '$remote_addr - $remote_user [$time_local] "$request" '
                      '$status $body_bytes_sent "$http_referer" '
                      '"$http_user_agent" "$http_x_forwarded_for"';

    #access_log  logs/access.log  main;

    sendfile        on;
    #tcp_nopush     on;

    #keepalive_timeout  0;
    keepalive_timeout  65;

    upstream esbServer {
        server 127.0.0.1:8083 weight=1 max_fails=2 fail_timeout=30s;
    }

    #gzip  on;

    server {
        listen       8081;
        server_name  localhost;

        #charset koi8-r;

        #access_log  logs/host.access.log  main;

        location /ladder_web {
            proxy_set_header X-real-ip $remote_addr;
            proxy_pass http://esbServer;
        }


    }

}

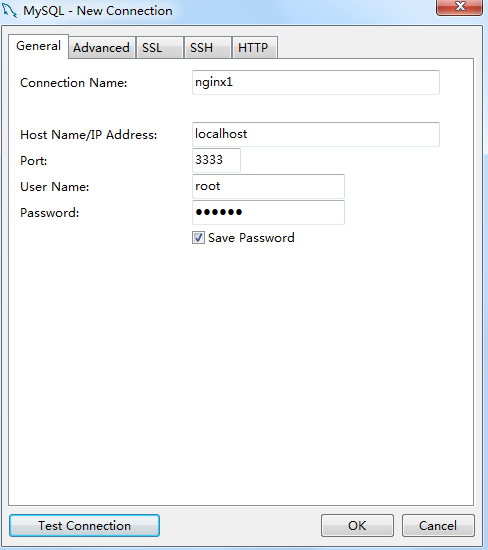

nginx 配置mysql代理 -- 基于nginx1.9以上 stream module
 stream 模块用于一般的 TCP 代理和负载均衡。

#user  nobody;
worker_processes  1;

#error_log  logs/error.log;
#error_log  logs/error.log  notice;
#error_log  logs/error.log  info;

#pid        logs/nginx.pid;


events {
    worker_connections  1024;
}

stream {
    upstream sql {
        server 172.16.10.229:3306 weight=1 max_fails=2 fail_timeout=30s;
    }

     server {
        listen       3333;
        proxy_connect_timeout 1s;
        proxy_timeout 3s;
        proxy_pass sql;
    }
}

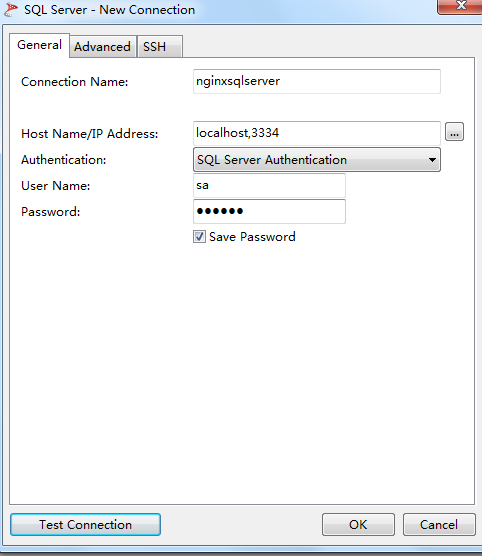

nginx配置Sql server服务代理

#user  nobody;
worker_processes  1;

#error_log  logs/error.log;
#error_log  logs/error.log  notice;
#error_log  logs/error.log  info;

#pid        logs/nginx.pid;


events {
    worker_connections  1024;
}

stream {

    upstream sqlserver {
        server 172.16.10.167:1433 weight=1 max_fails=2 fail_timeout=30s;
    }


     server {
        listen       3334;
        proxy_connect_timeout 1s;
        proxy_timeout 3s;
        proxy_pass sqlserver;
    }
}

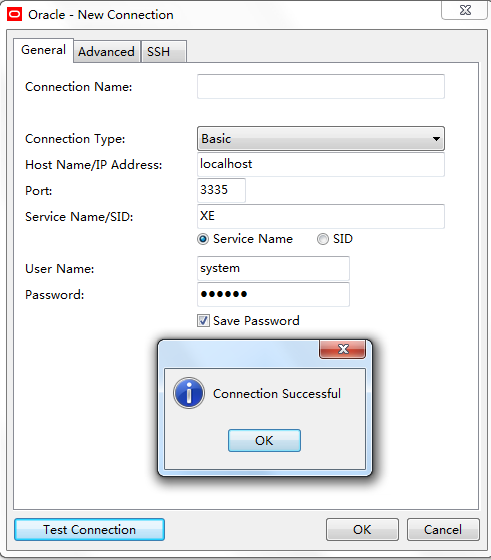

nginx配置Oracle代理

#user  nobody;
worker_processes  1;

#error_log  logs/error.log;
#error_log  logs/error.log  notice;
#error_log  logs/error.log  info;

#pid        logs/nginx.pid;


events {
    worker_connections  1024;
}

stream {


    upstream oracle {
        server 172.16.10.222:1521 weight=1 max_fails=2 fail_timeout=30s;
    }

 server {
        listen       3335;
        proxy_connect_timeout 1s;
        proxy_timeout 3s;
        proxy_pass oracle;
    }
}
