[hadoop@hadoop003 software]$ tar -zxf wormhole-0.6.2.tar.gz -C ../app/

[hadoop@hadoop003 app]$ ln -s wormhole-0.6.2 wormhole

[hadoop@hadoop003 app]$ sudo vi /etc/profile

export WORMHOLE_HOME=/home/hadoop/app/wormhole
export PATH=$WORMHOLE_HOME/bin:$PATH

[hadoop@hadoop003 app]$ source /etc/profile

[hadoop@hadoop003 app]$ vi $WORMHOLE_HOME/conf/application.conf


mysql> set global validate_password_policy=0;
Query OK, 0 rows affected (0.00 sec)

mysql> set global validate_password_mixed_case_count=0;
Query OK, 0 rows affected (0.00 sec)

mysql> set global validate_password_number_count=3;
Query OK, 0 rows affected (0.00 sec)

mysql> set global validate_password_special_char_count=0;
Query OK, 0 rows affected (0.00 sec)

mysql> set global validate_password_length=3;
Query OK, 0 rows affected (0.00 sec)

mysql> CREATE DATABASE IF NOT EXISTS wormhole DEFAULT CHARSET utf8 COLLATE utf8_general_ci;
Query OK, 1 row affected (0.01 sec)

mysql> CREATE USER 'wormhole'@'%' IDENTIFIED BY '123456';
Query OK, 0 rows affected (0.01 sec)

mysql> GRANT ALL ON wormhole.* TO 'wormhole'@'%';
Query OK, 0 rows affected (0.00 sec)

mysql> FLUSH PRIVILEGES;
Query OK, 0 rows affected (0.00 sec)

mysql> exit
Bye

创建测试topic

[hadoop@hadoop002 ~]$ cd /usr/hdp/current/kafka-broker/bin

[hadoop@hadoop002 bin]$ ./kafka-topics.sh --zookeeper hadoop001:2181 --create --topic test_source --replication-factor 1 --partitions 1

[hadoop@hadoop002 bin]$ ./kafka-topics.sh --zookeeper hadoop001:2181 --list

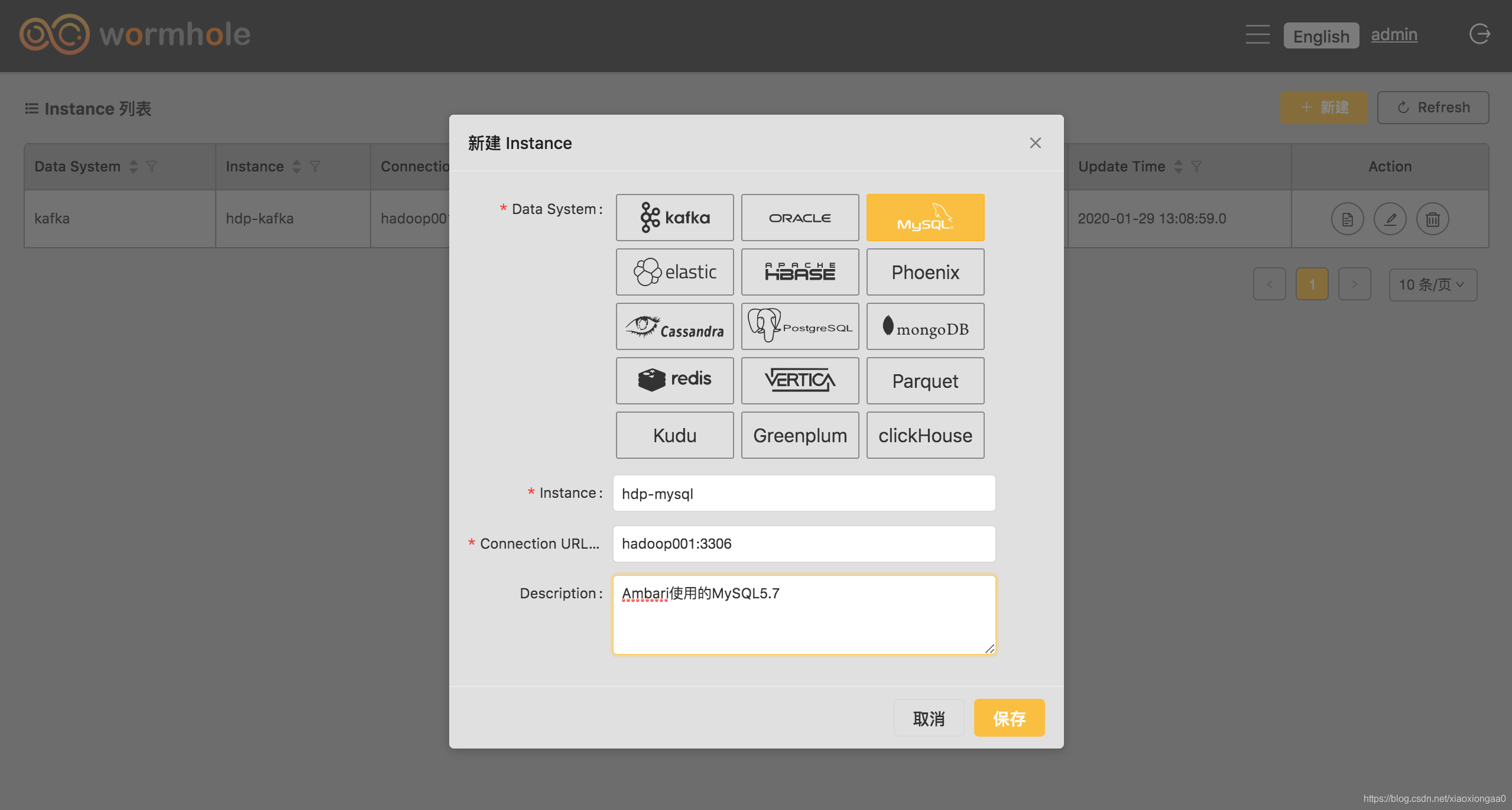

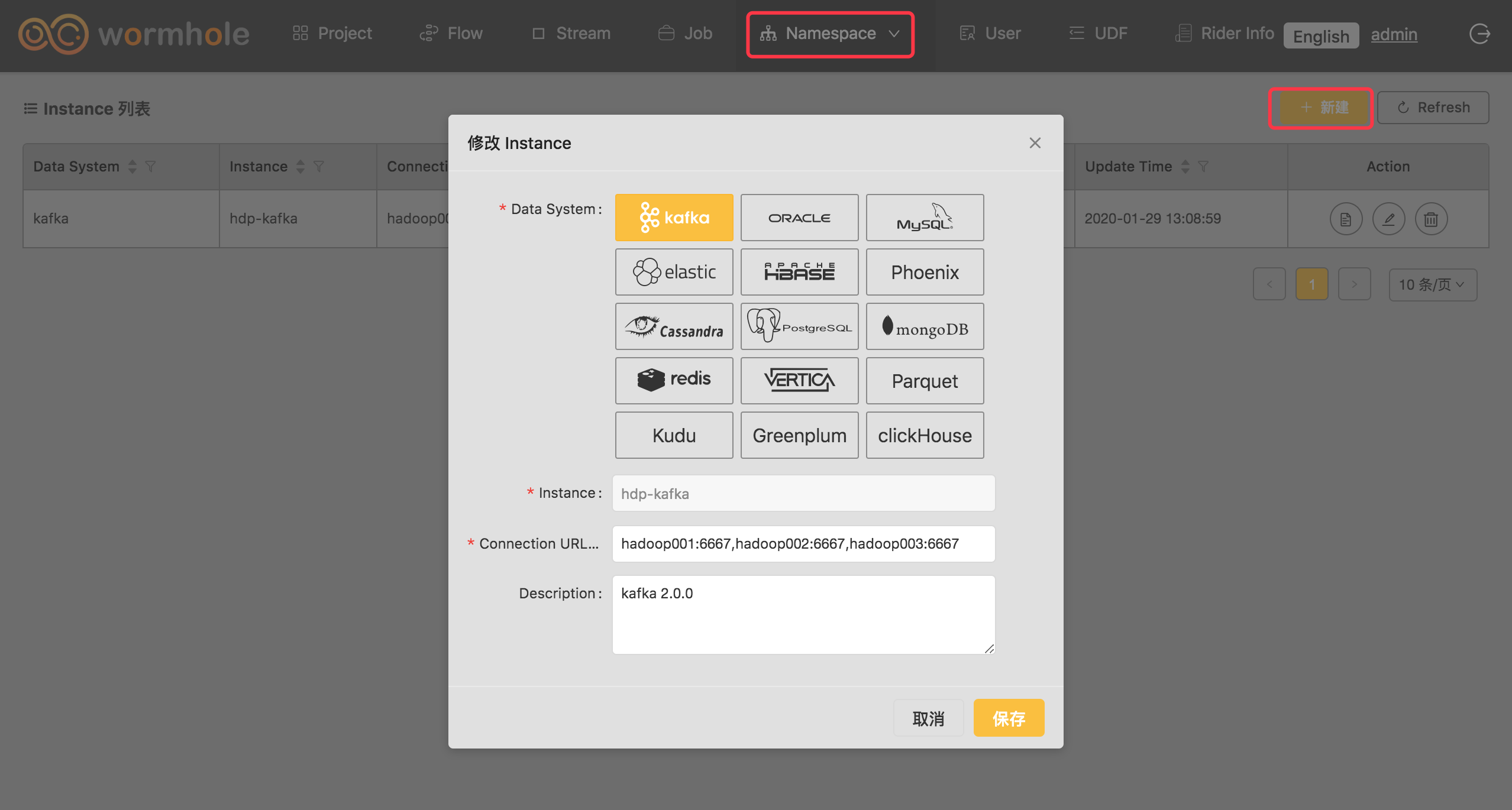

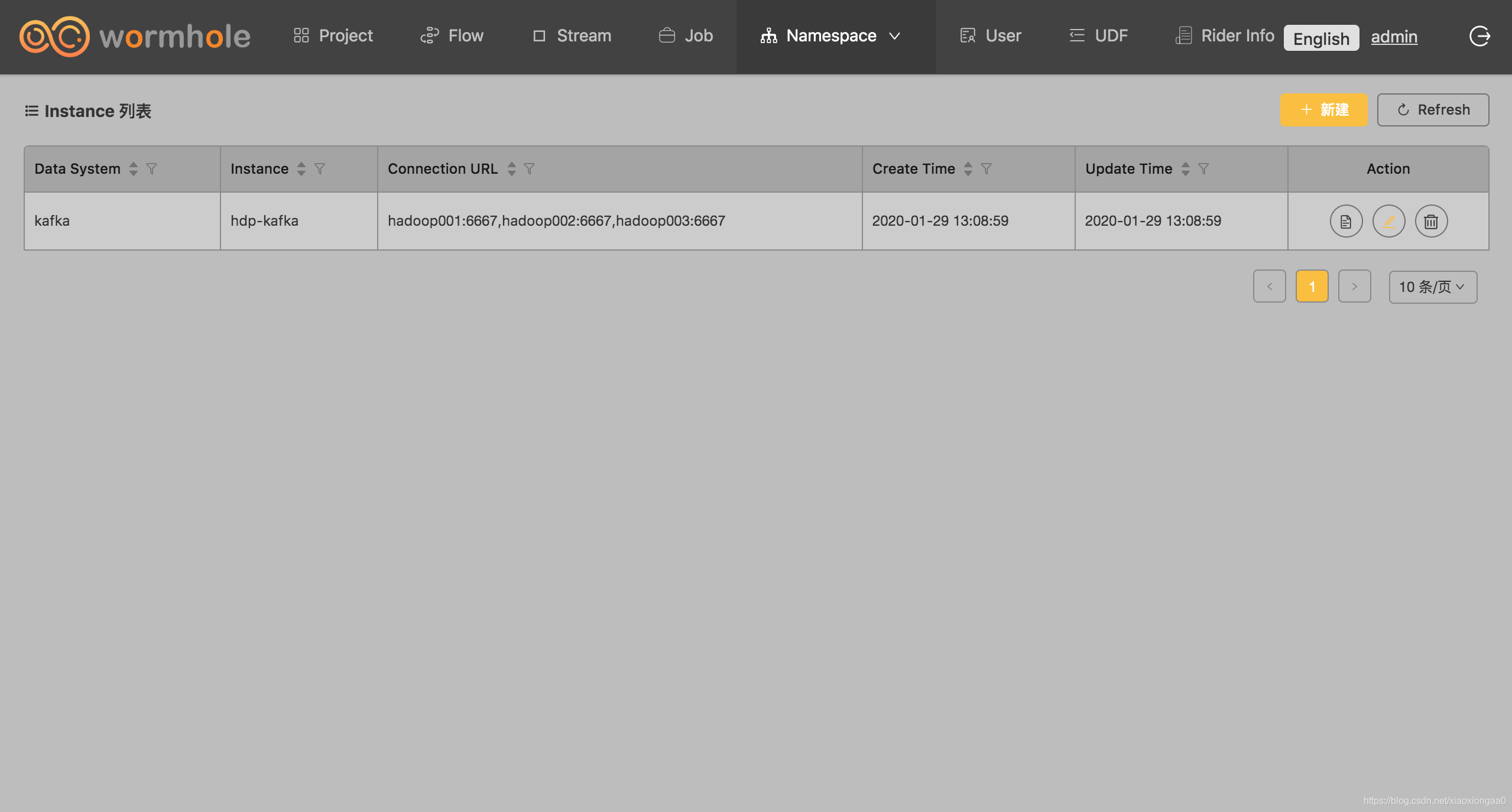

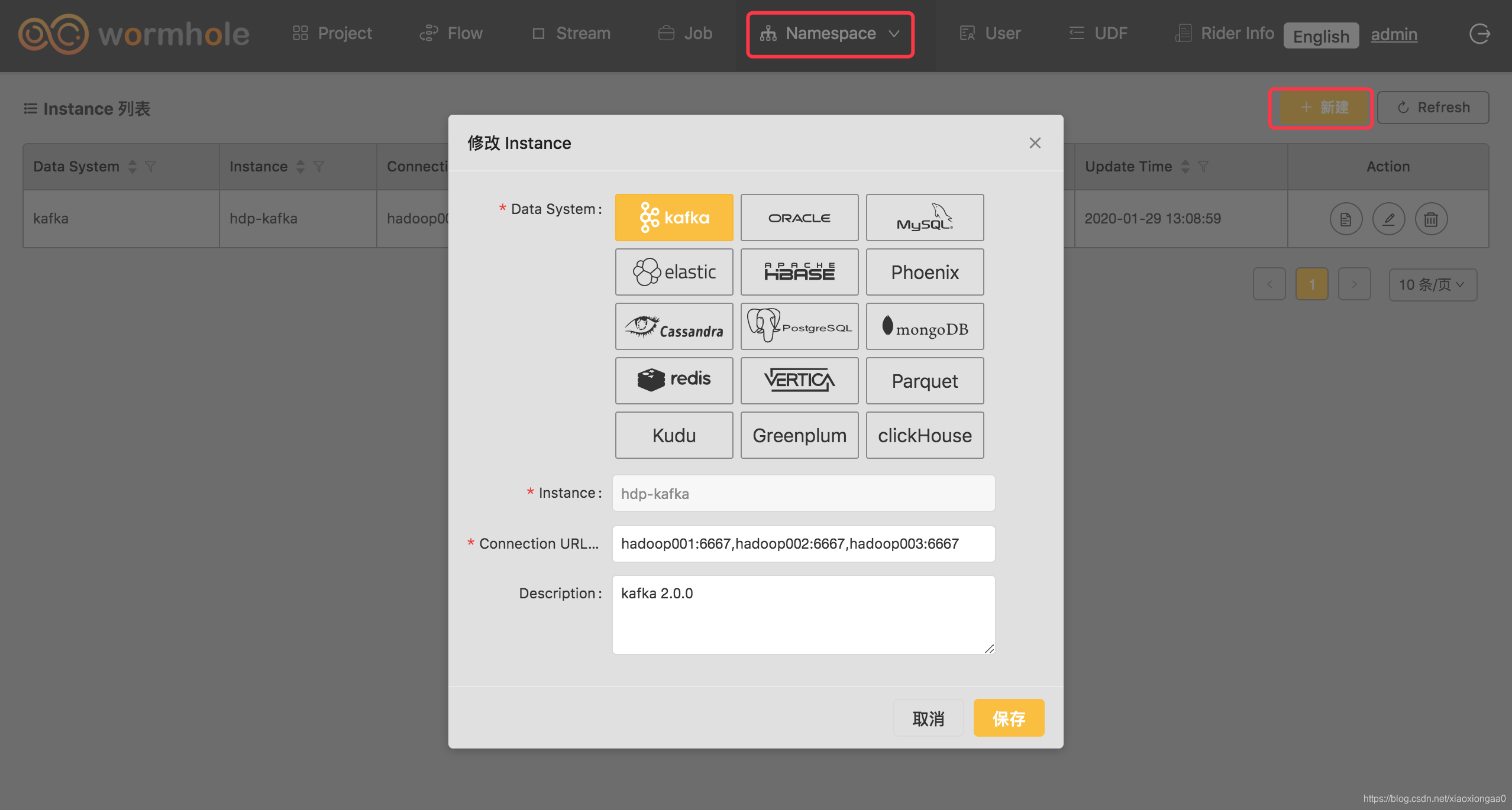

创建Instance

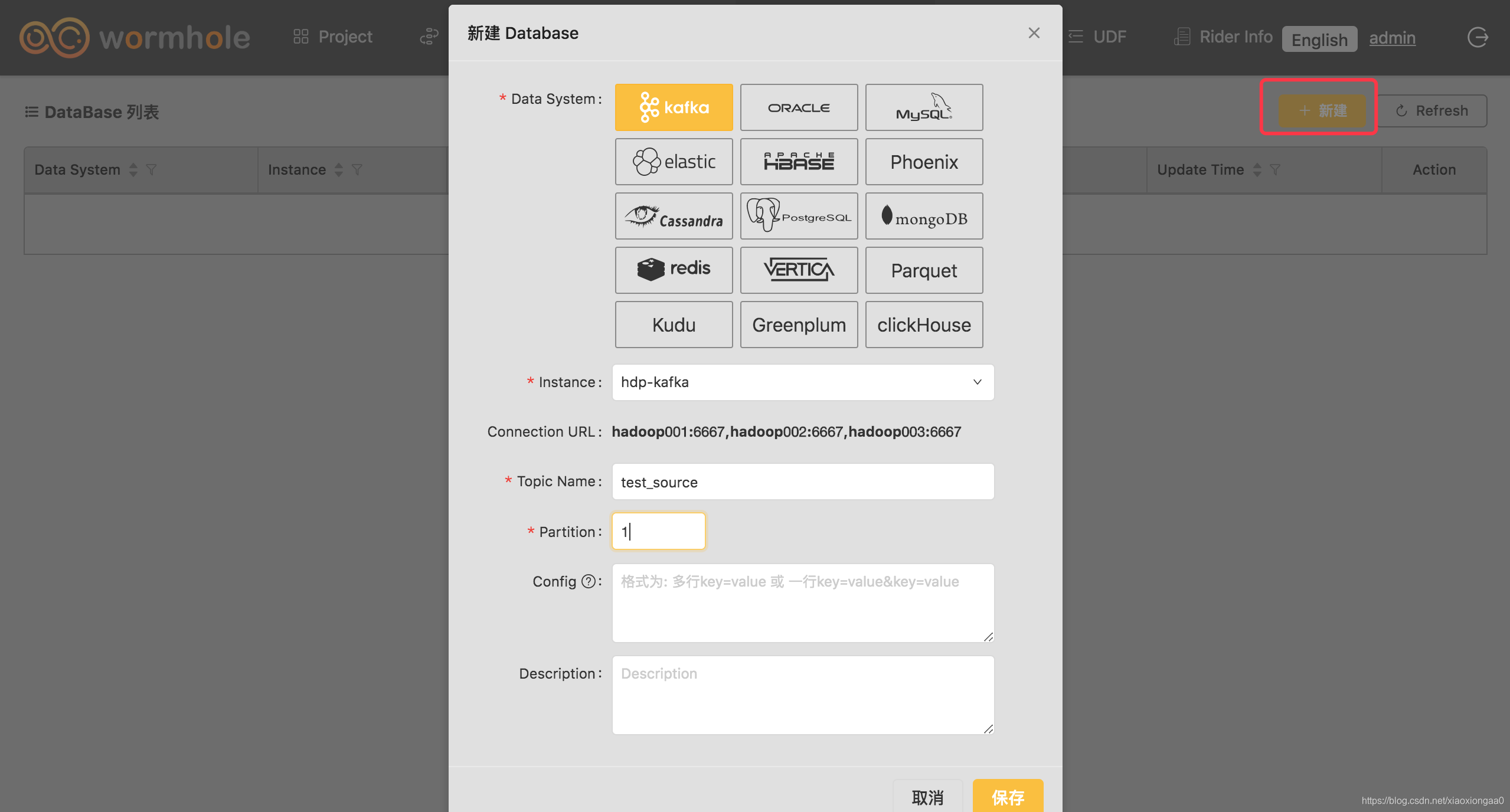

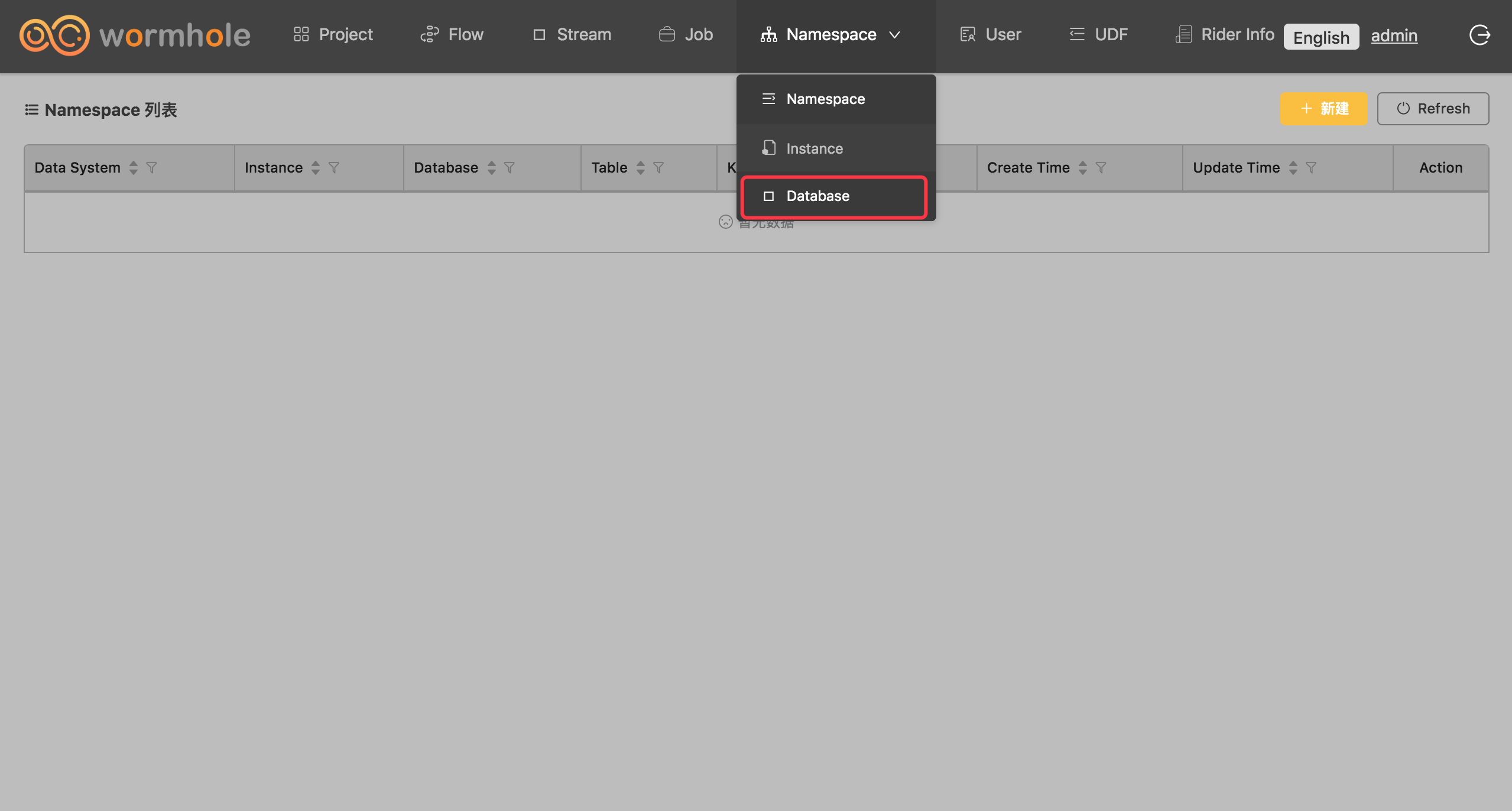

创建Database

创建Namespace

往Kafka写数据

[hadoop@hadoop002 bin]$ ./kafka-console-producer.sh --broker-list hadoop002:6667 --topic test_source --property "parse.key=true" --property "key.separator=@@@"

[hadoop@hadoop003 bin]$ ./kafka-console-consumer.sh  --bootstrap-server hadoop001:6667 --from-beginning --topic test_source

{"id": 1, "name": "test", "phone":"18074546423", "city": "Beijing", "time": "2017-12-22 10:00:00"}

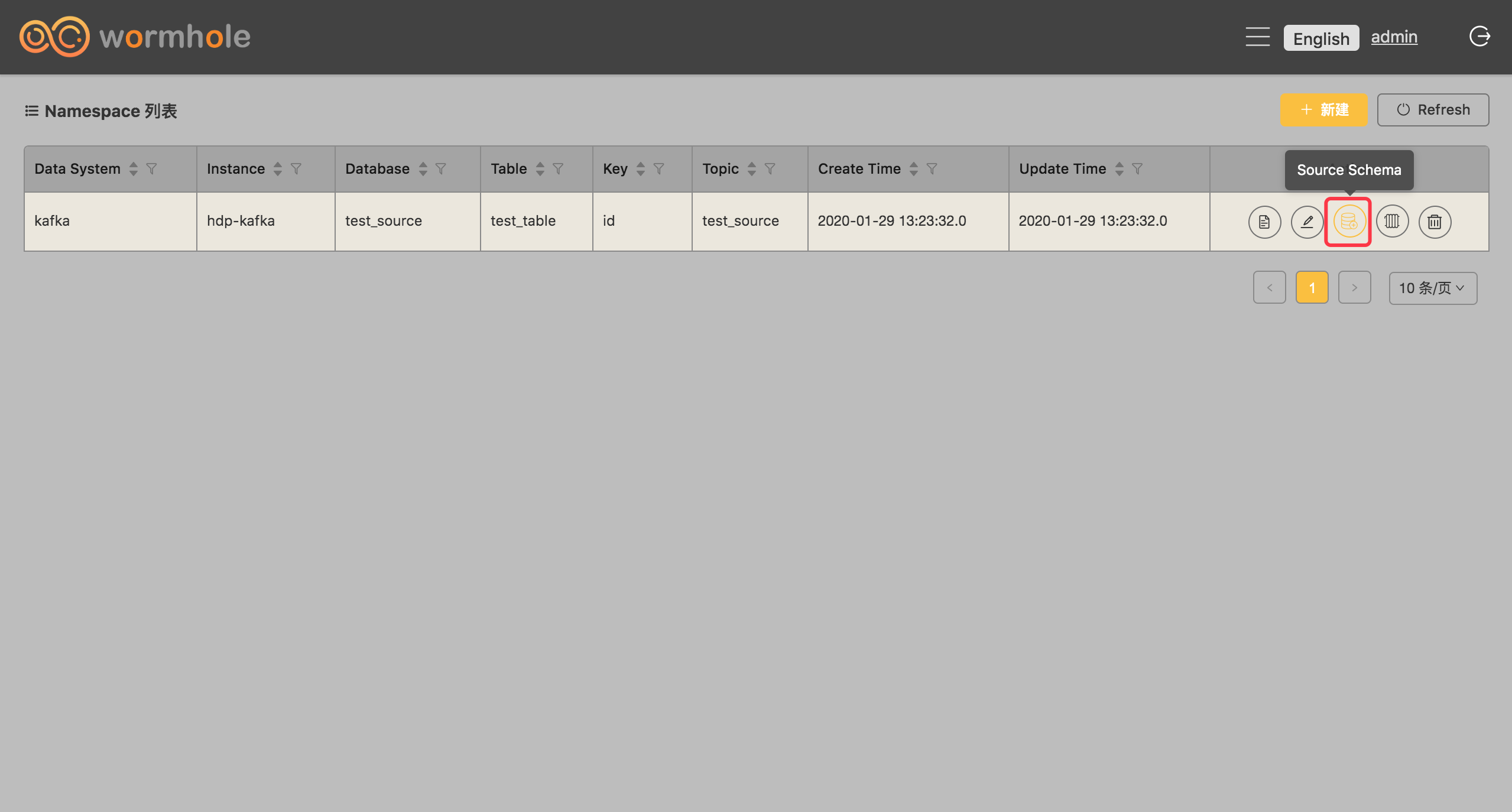

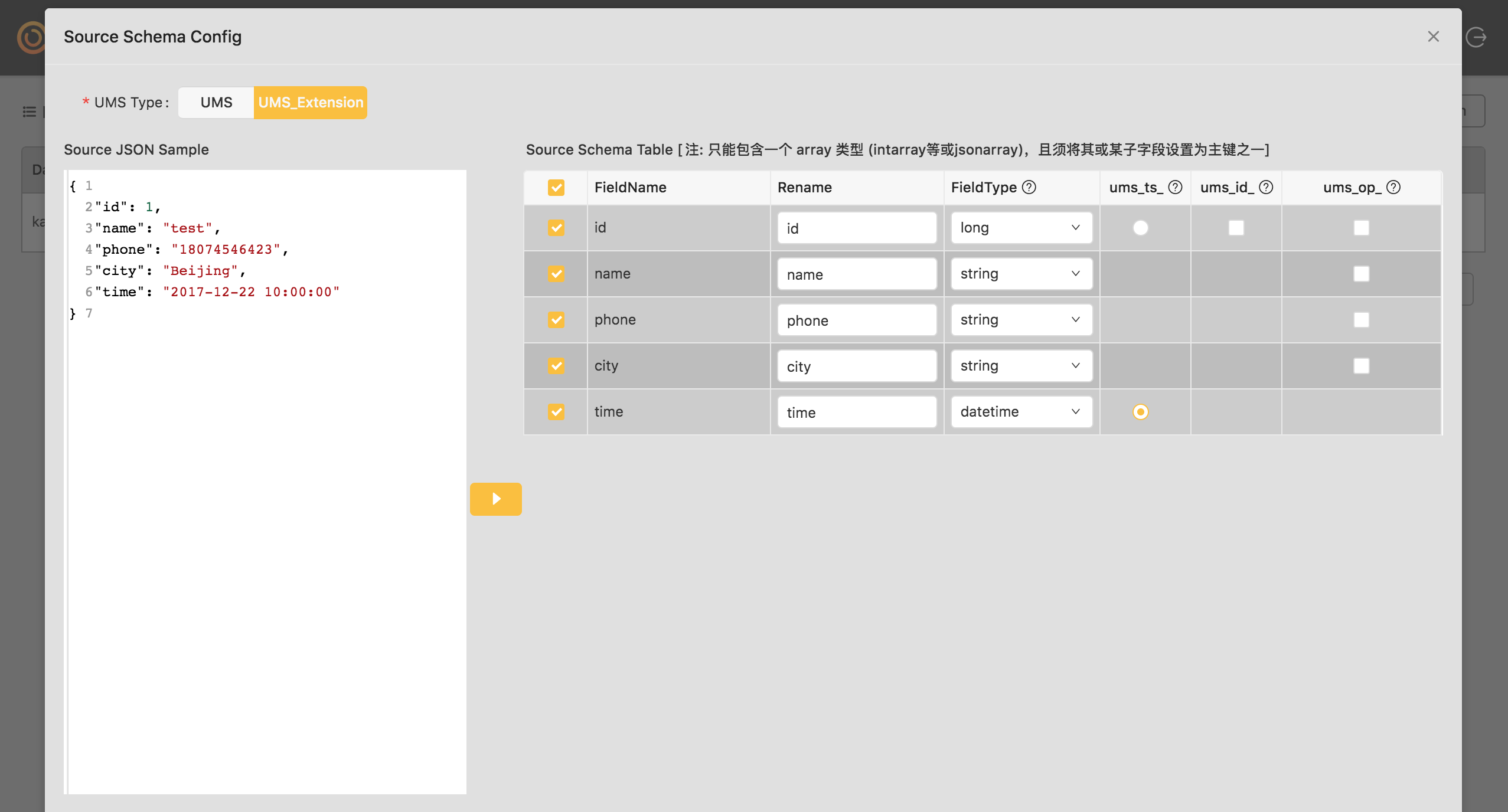

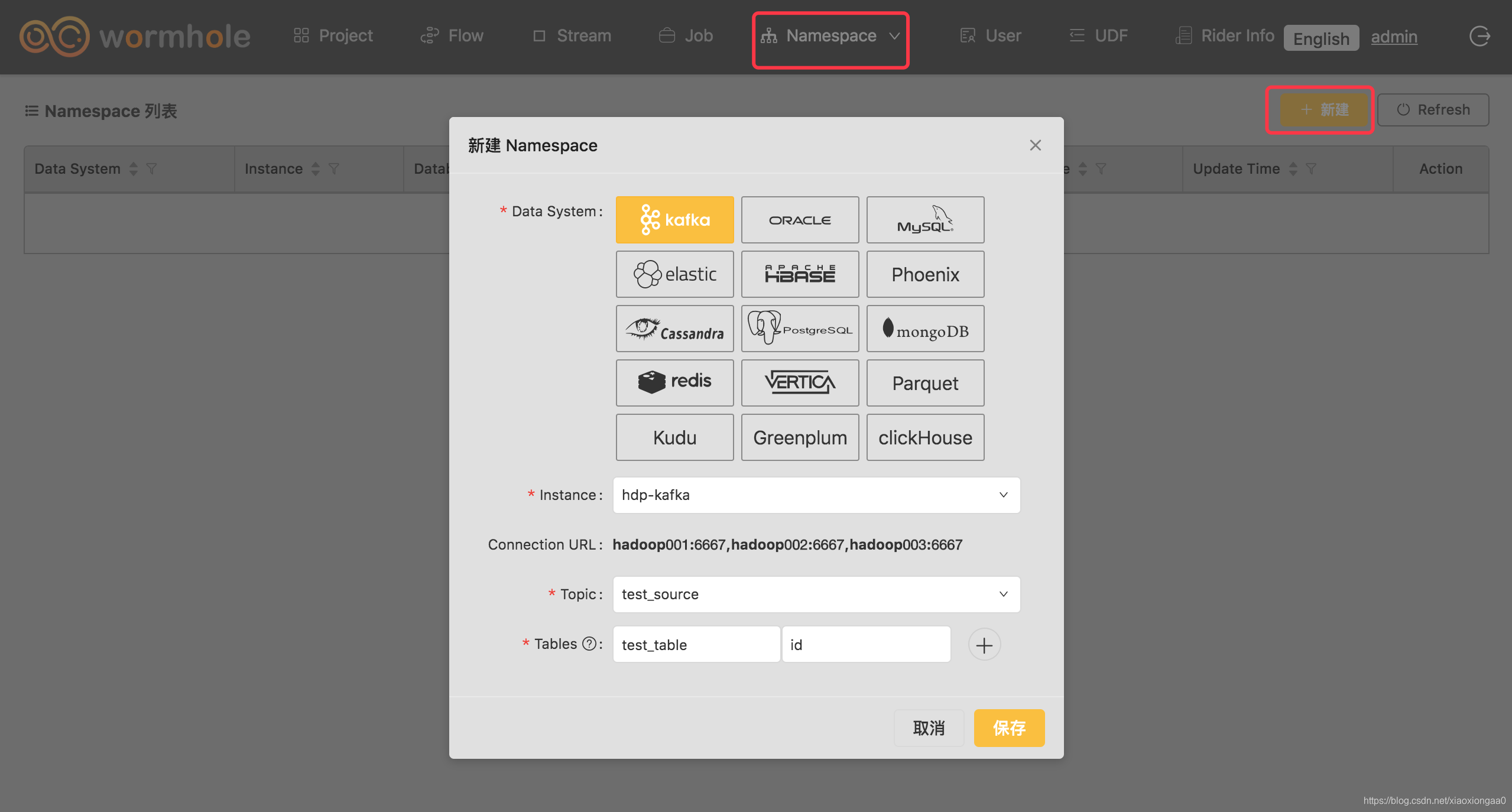

创建Source Namaspace

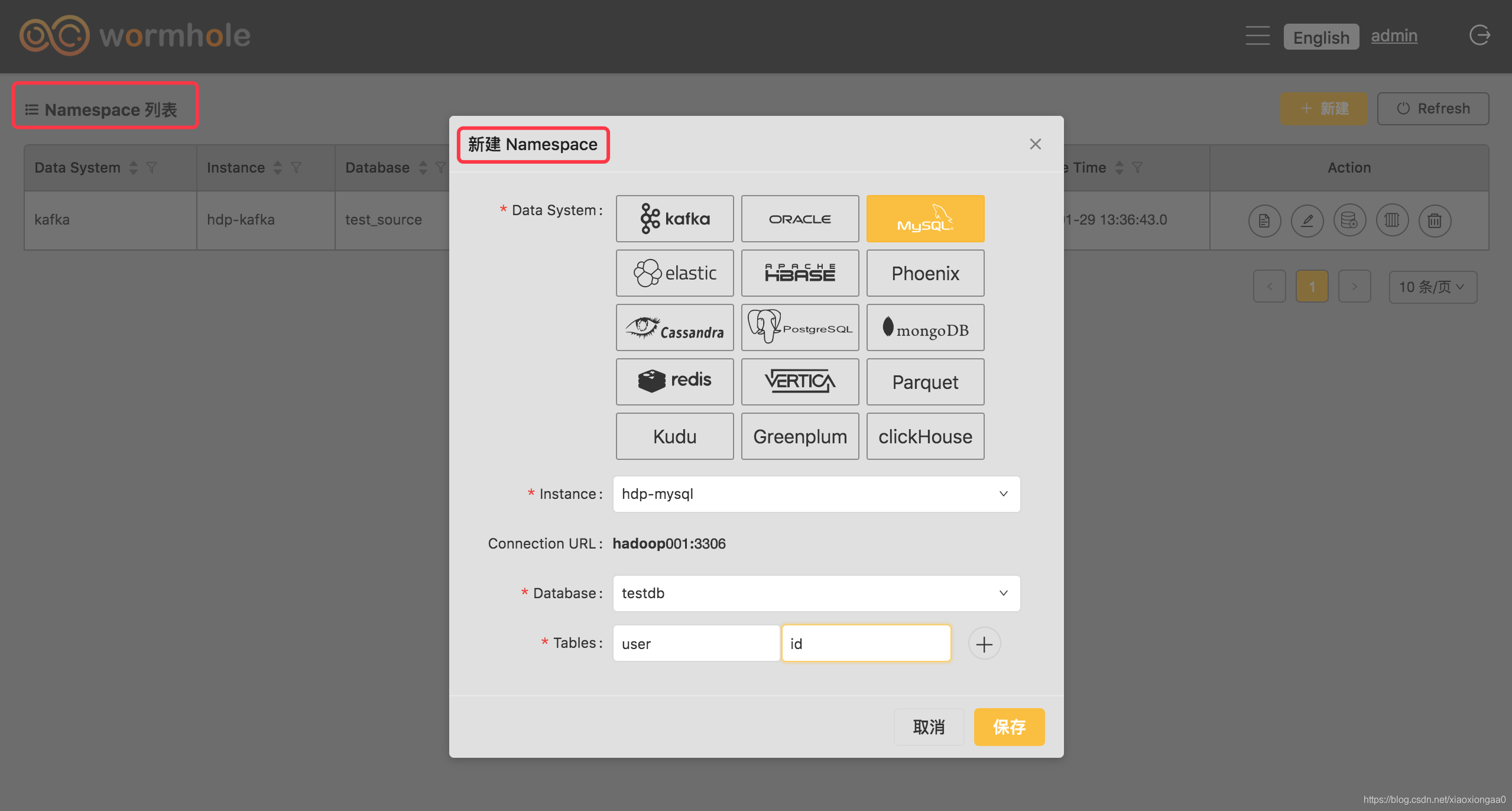

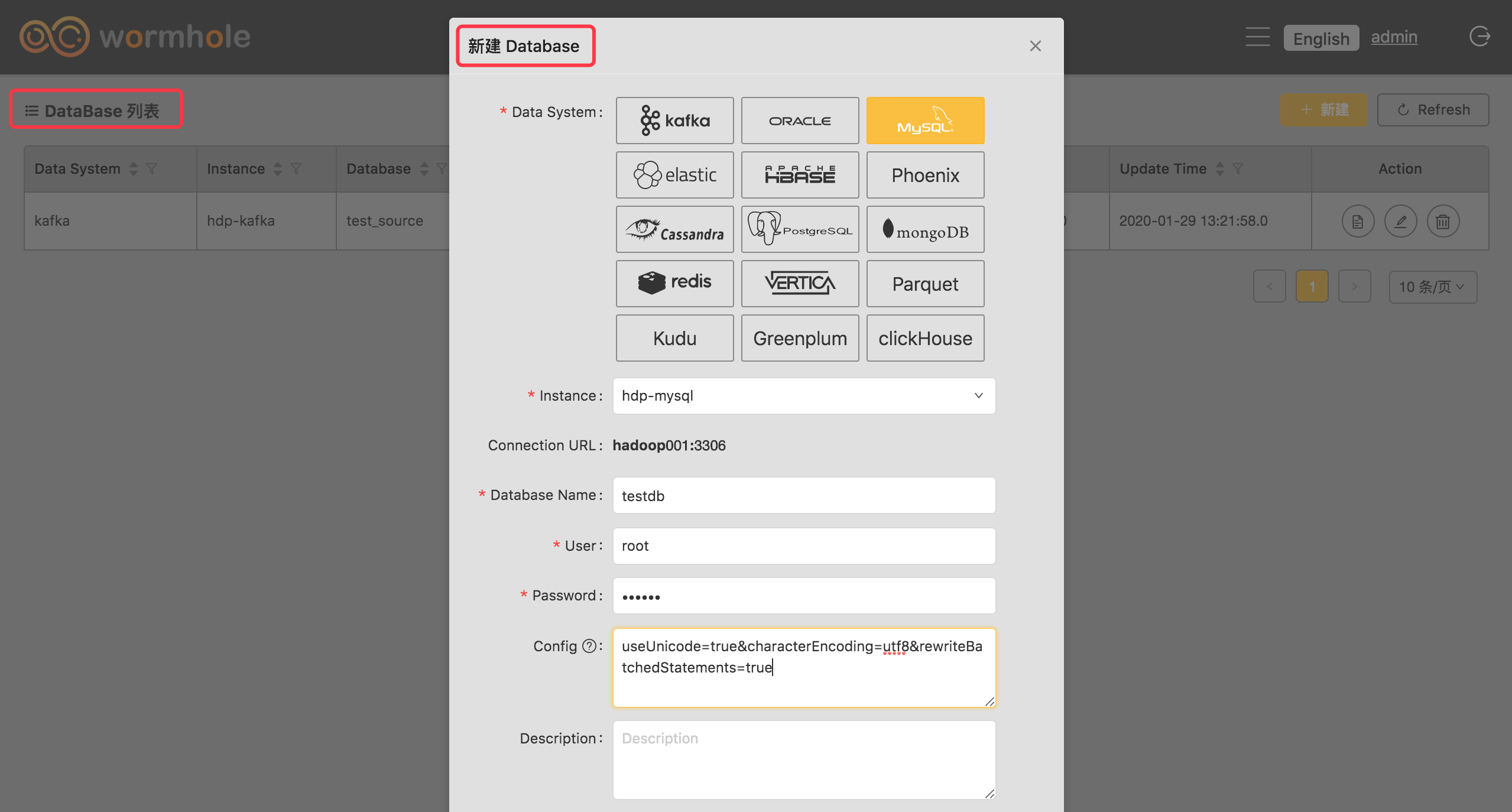

创建Sink Namaspace

useUnicode=true&characterEncoding=utf8&rewriteBatchedStatements=true

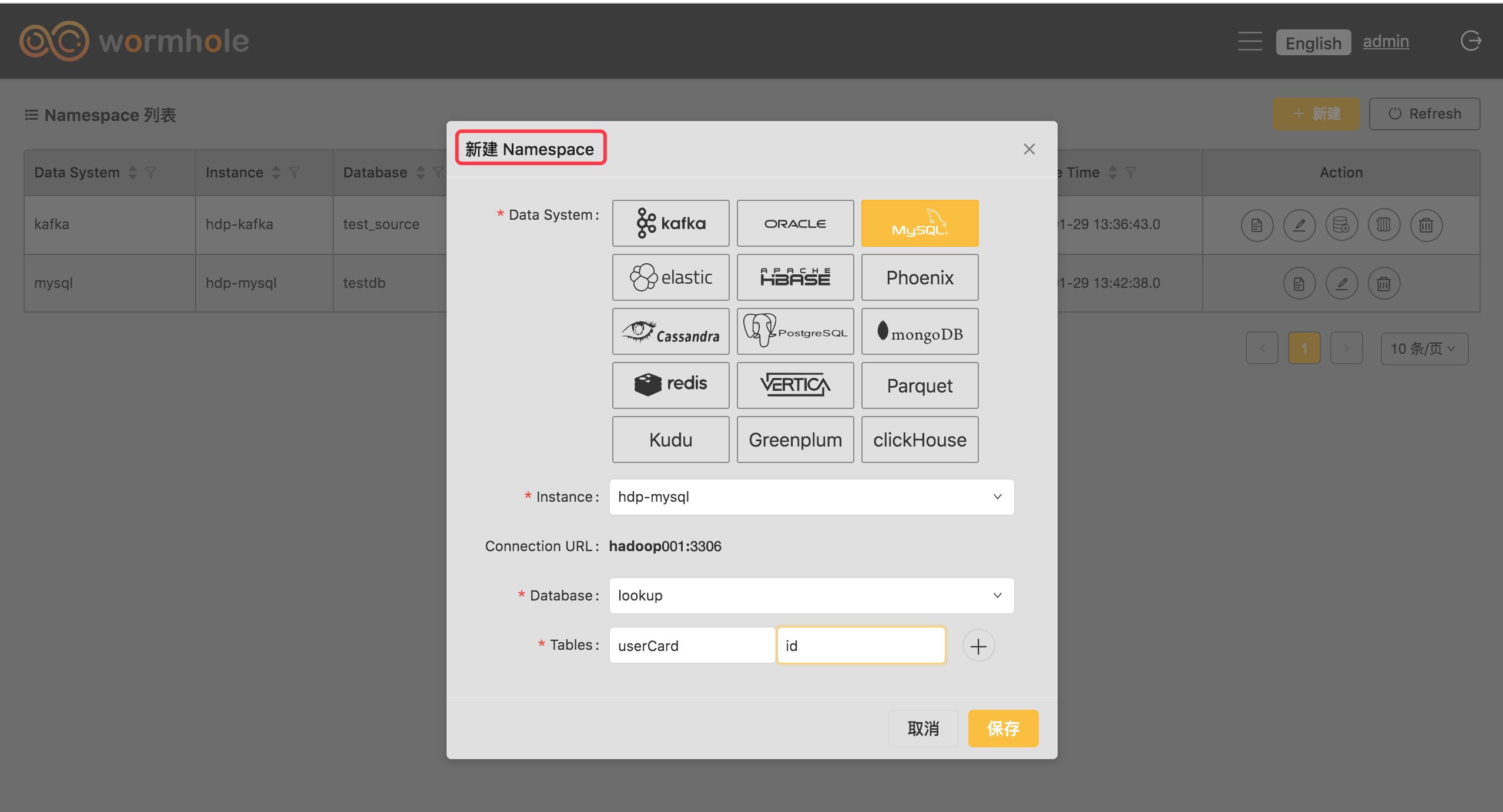

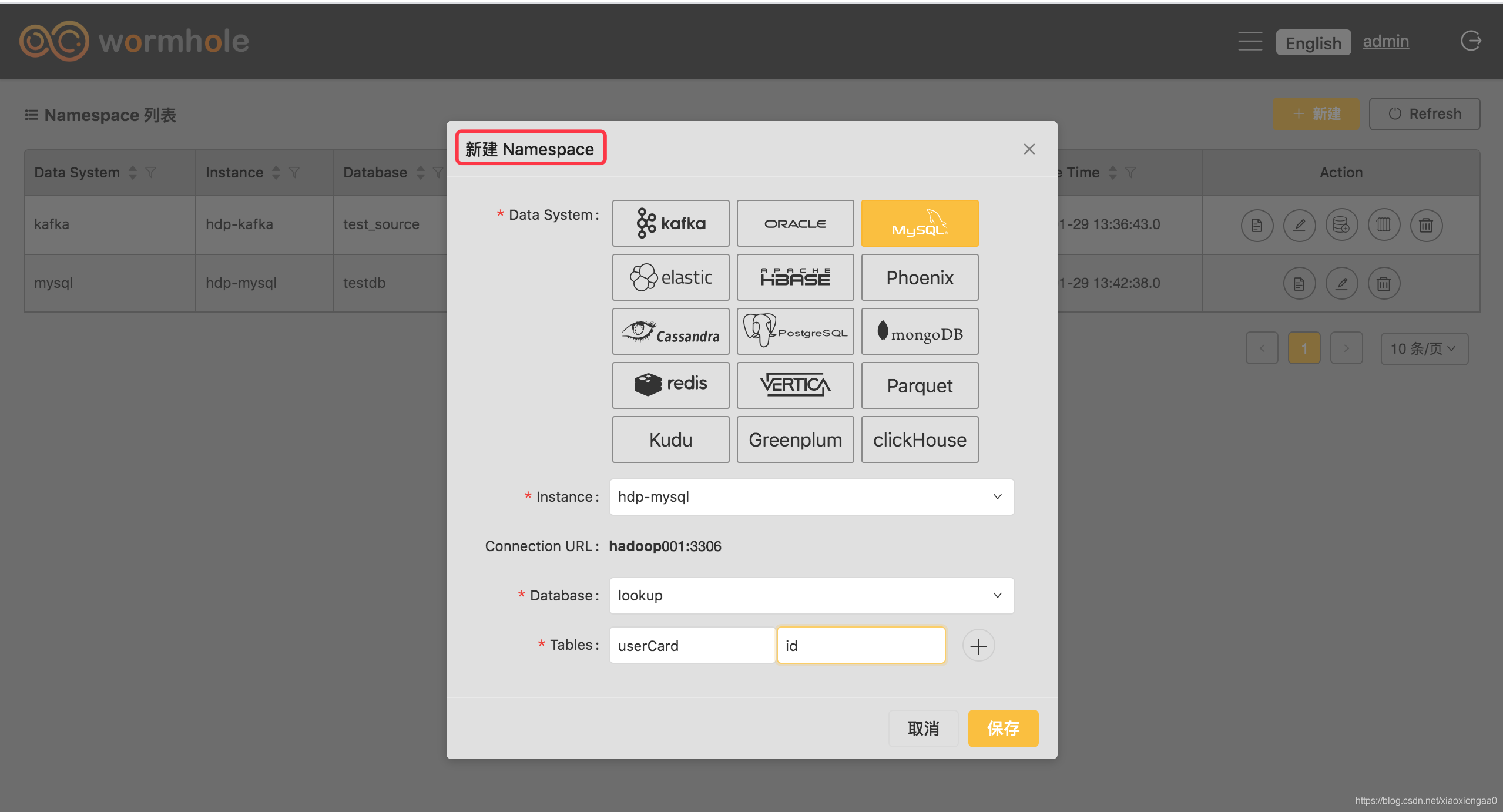

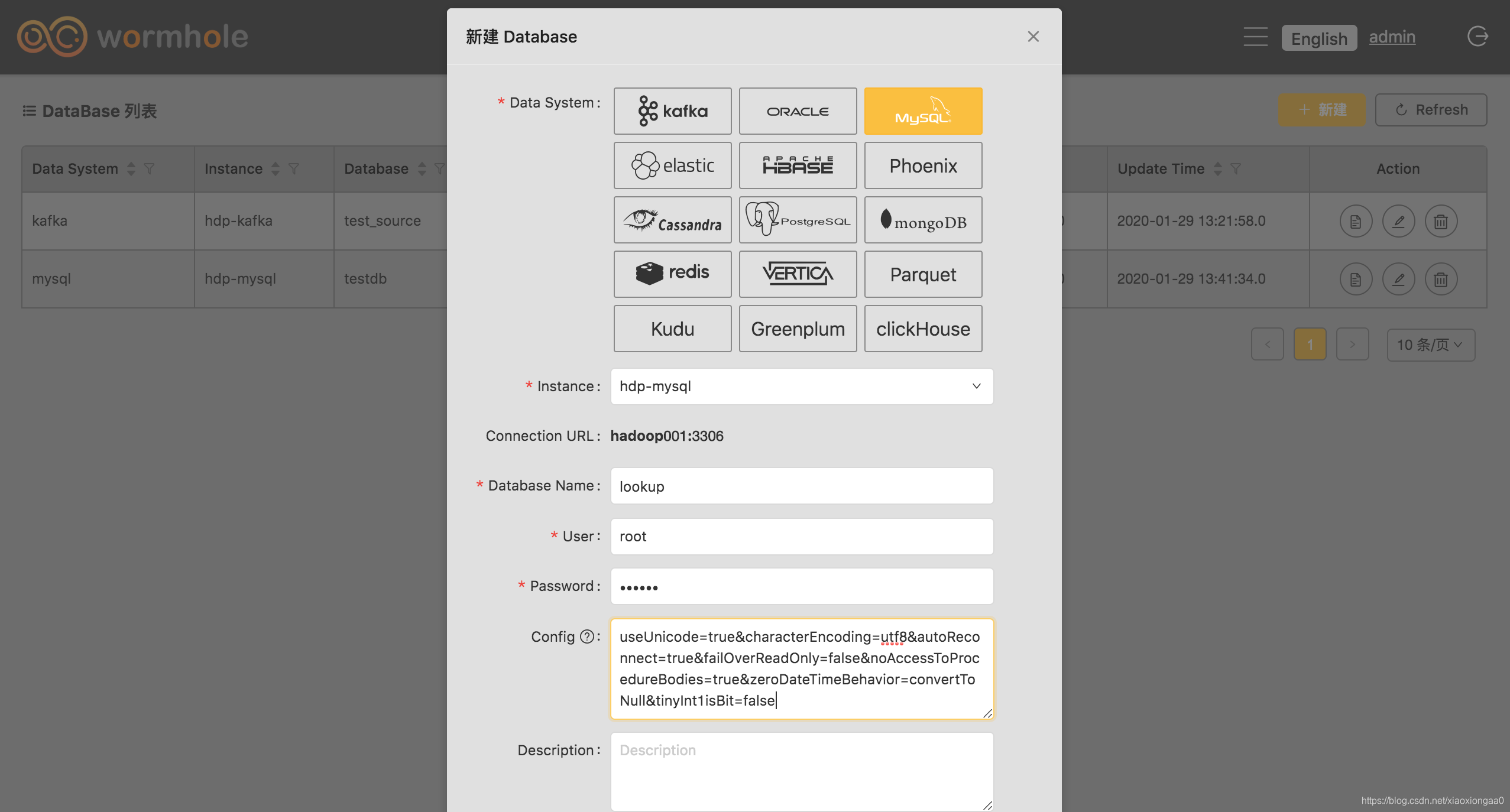

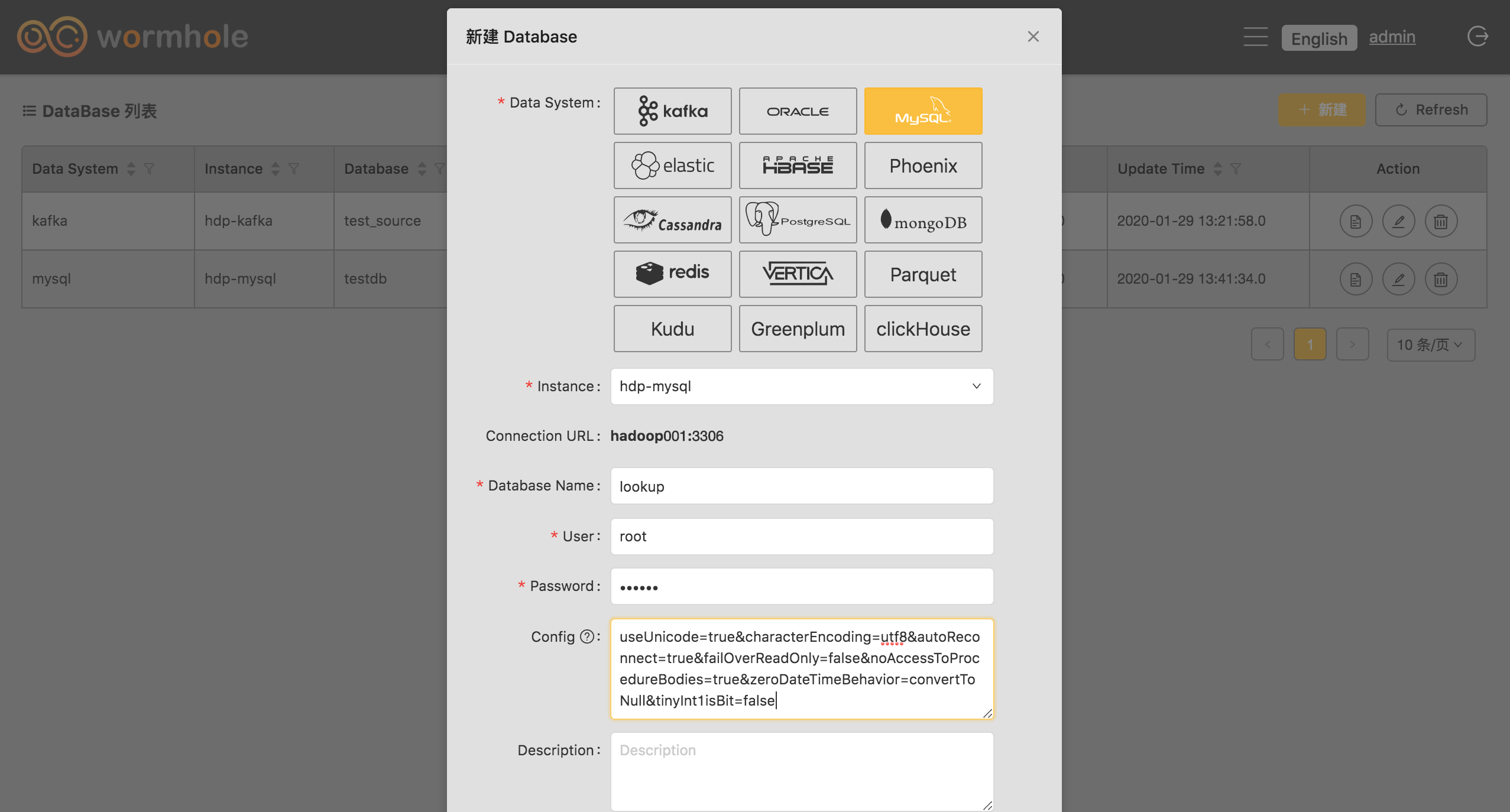

创建Lookup Namespace

useUnicode=true&characterEncoding=utf8&autoReconnect=true&failOverReadOnly=false&noAccessToProcedureBodies=true&zeroDateTimeBehavior=convertToNull&tinyInt1isBit=false

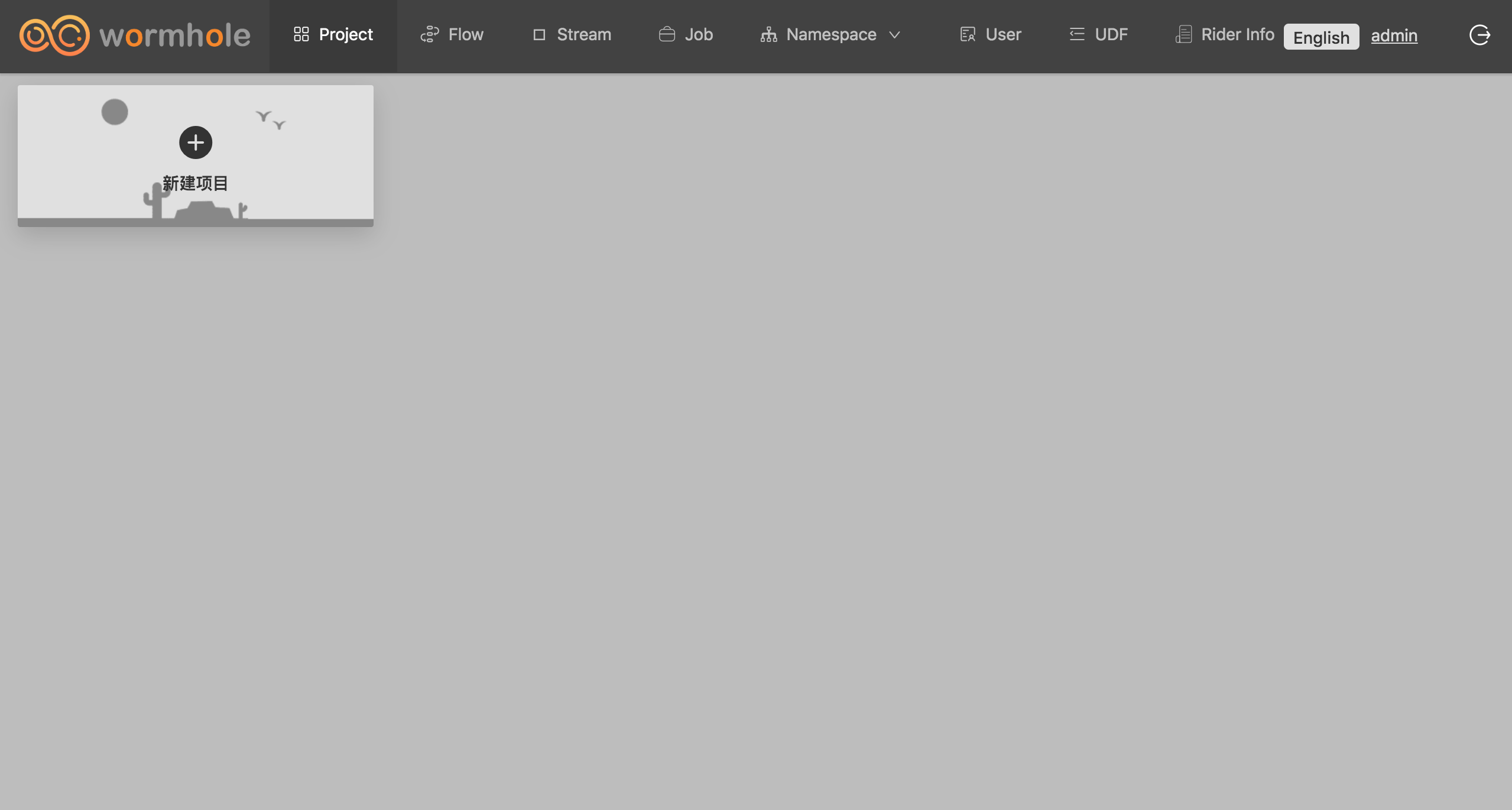

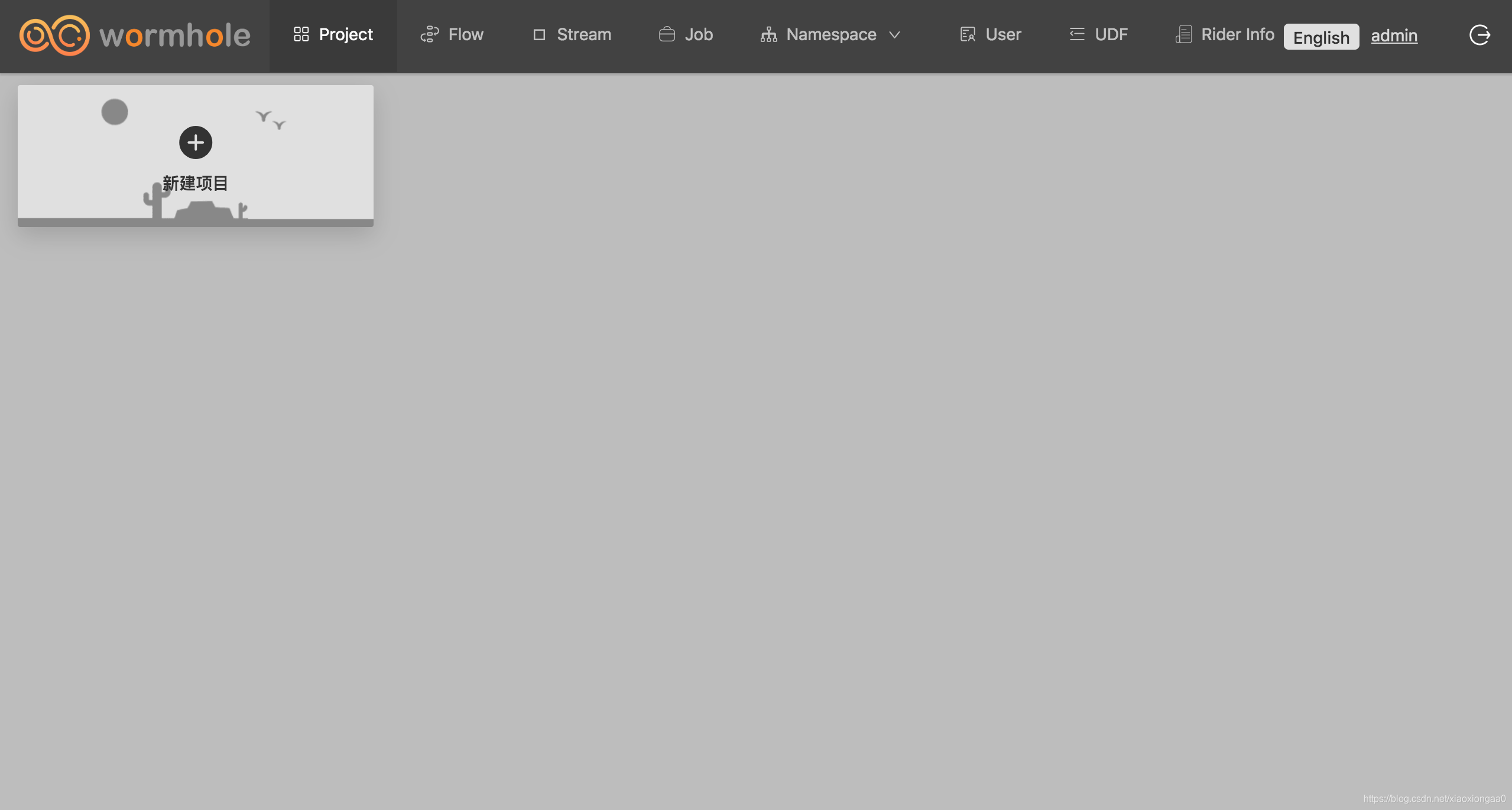

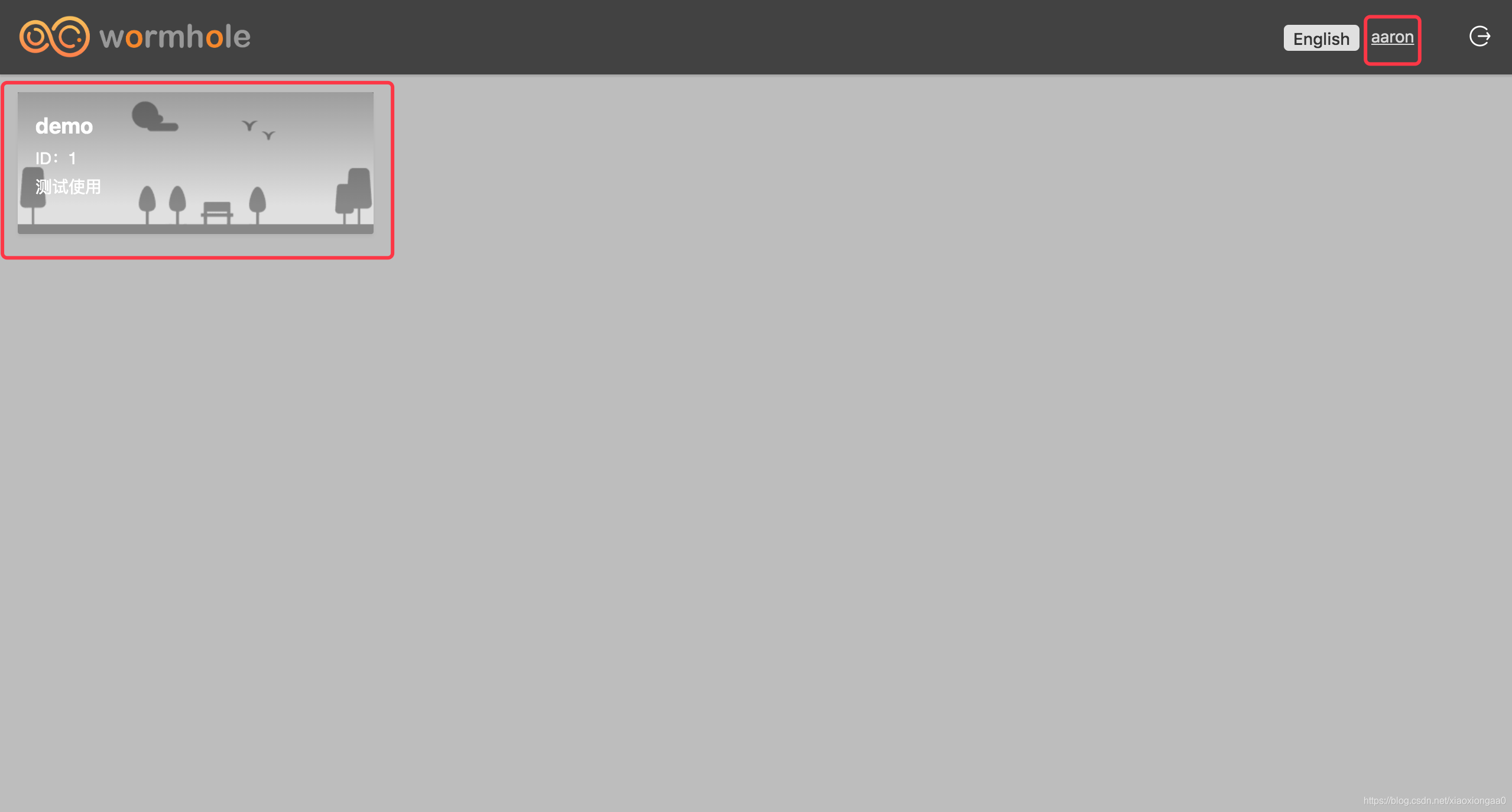

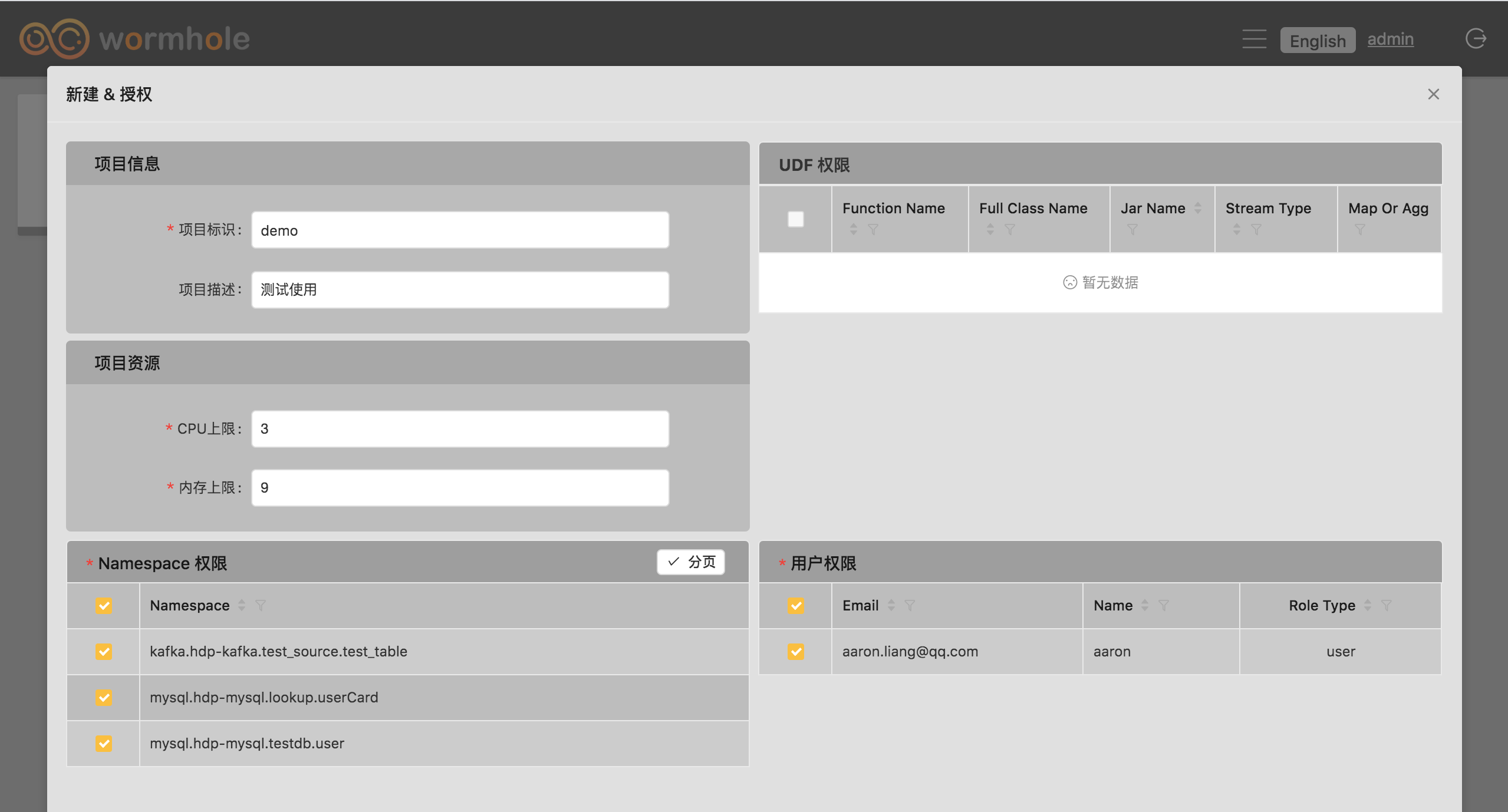

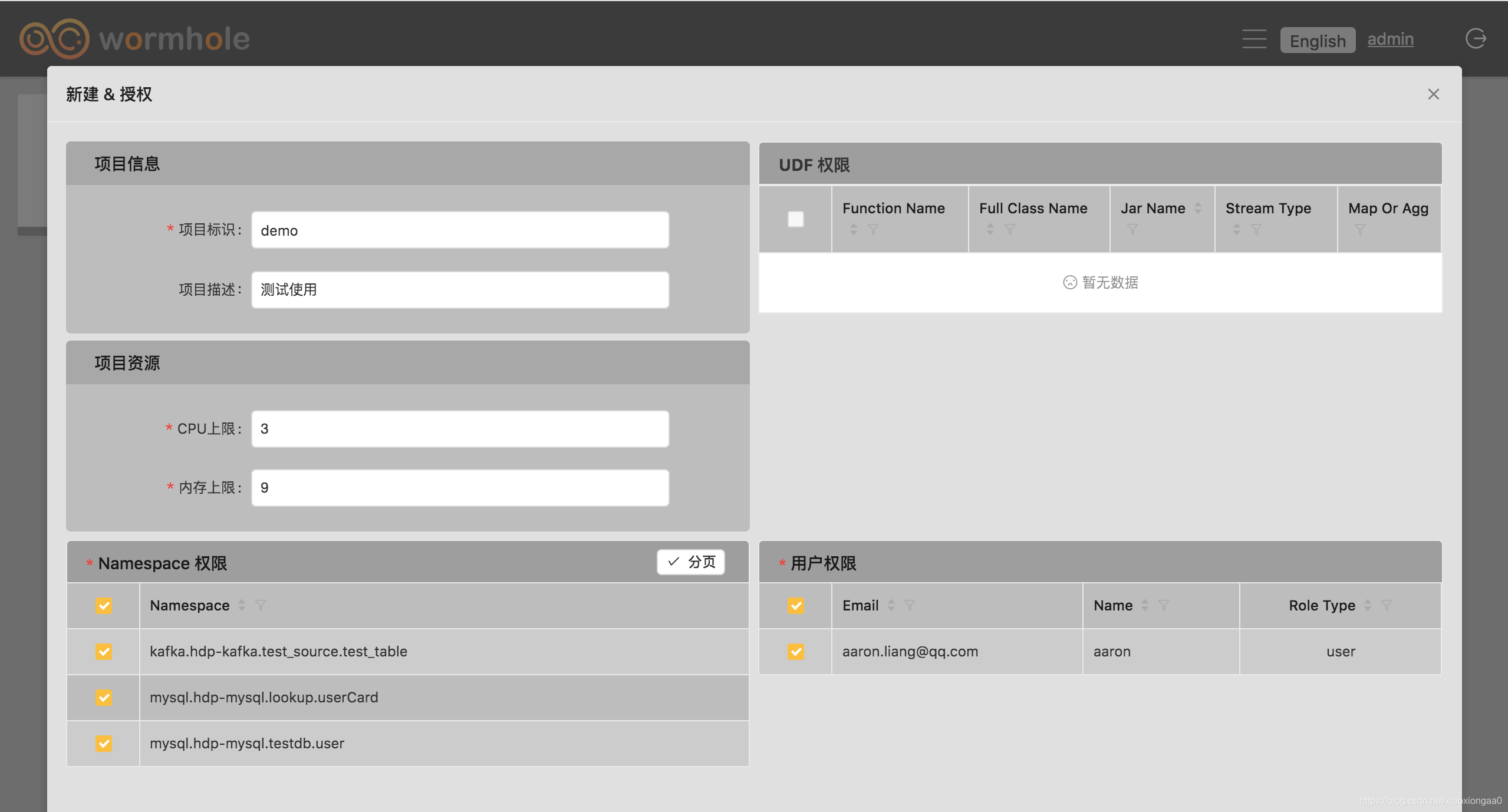

创建Project并授权

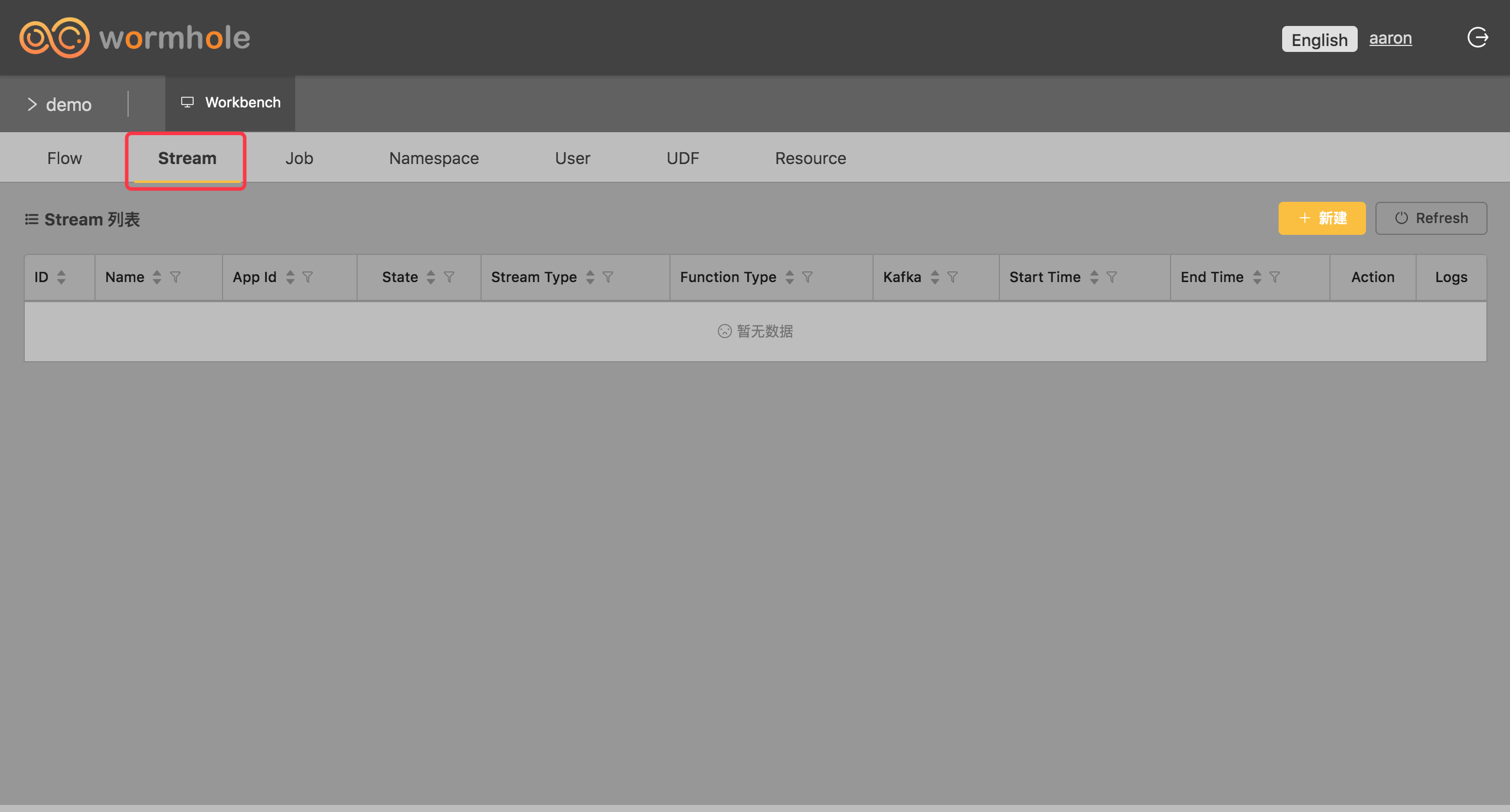

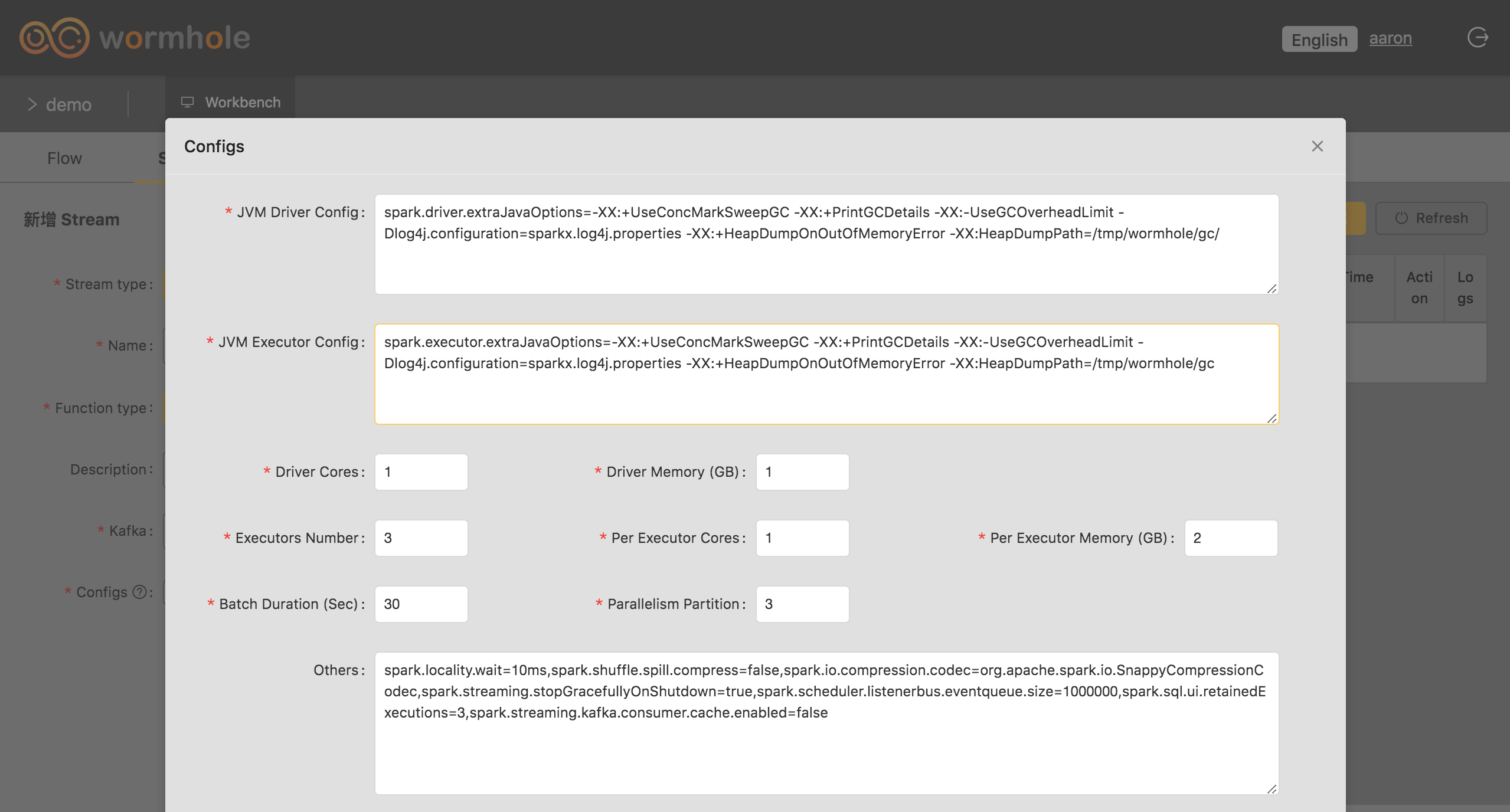

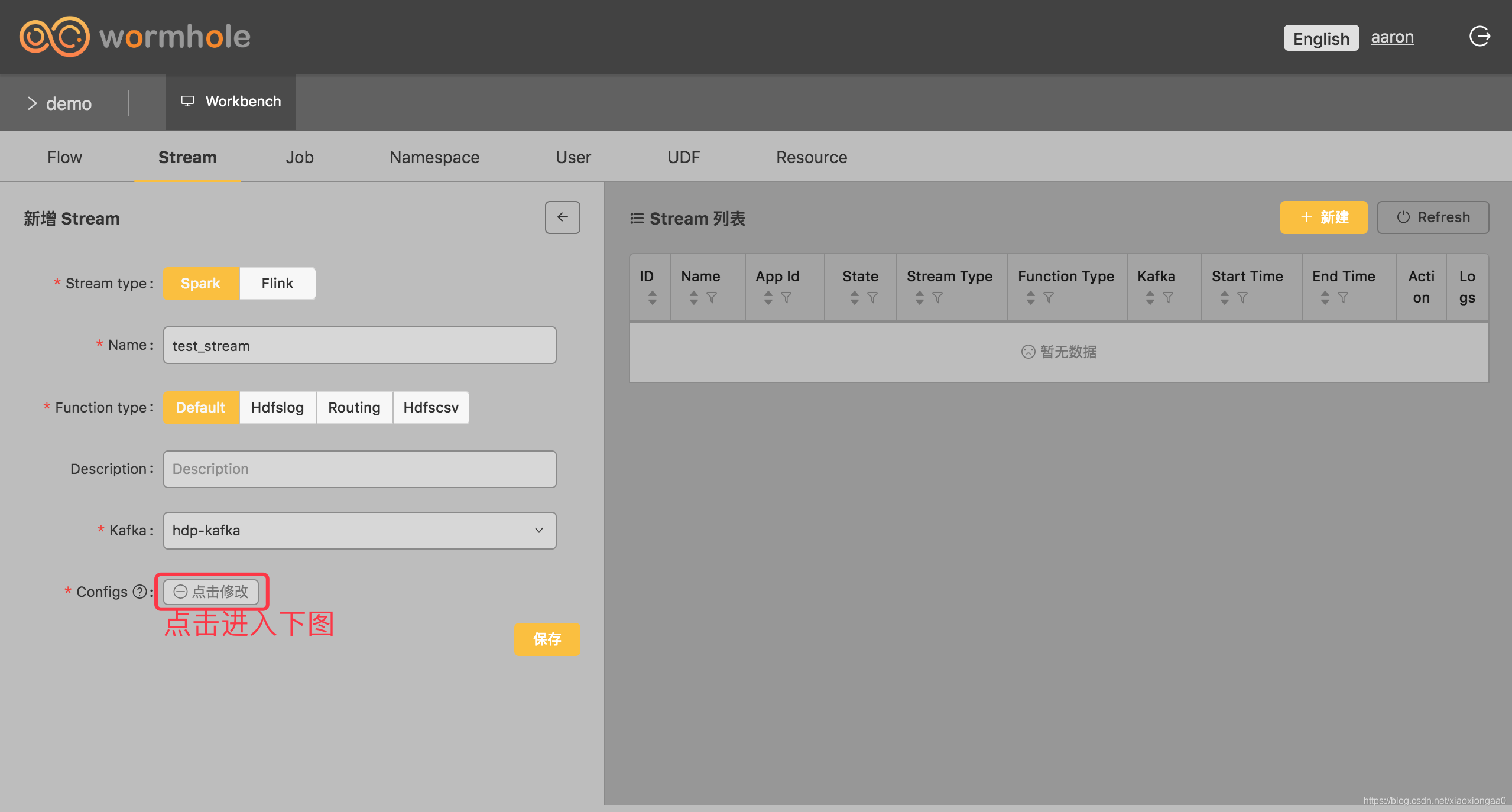

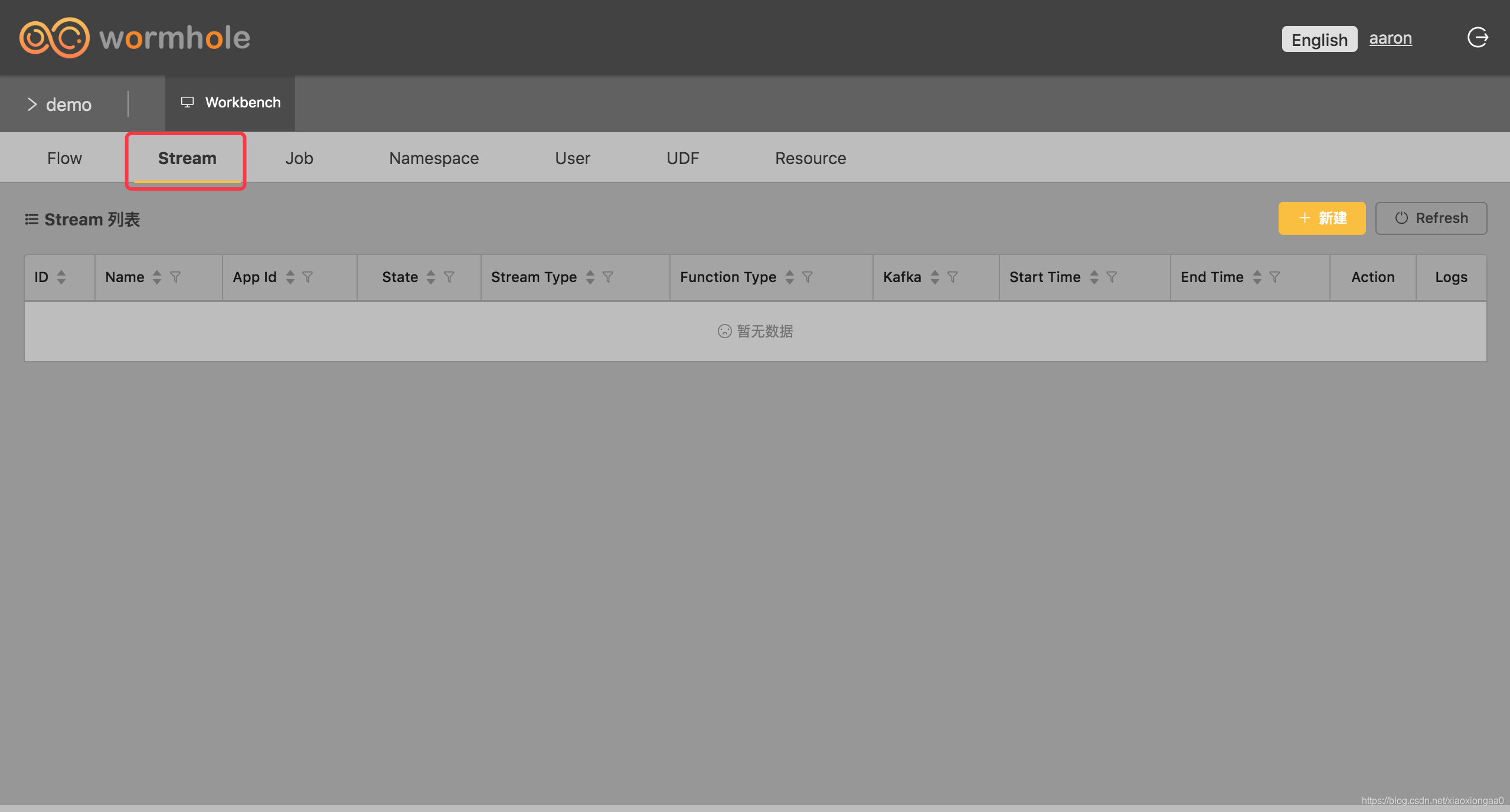

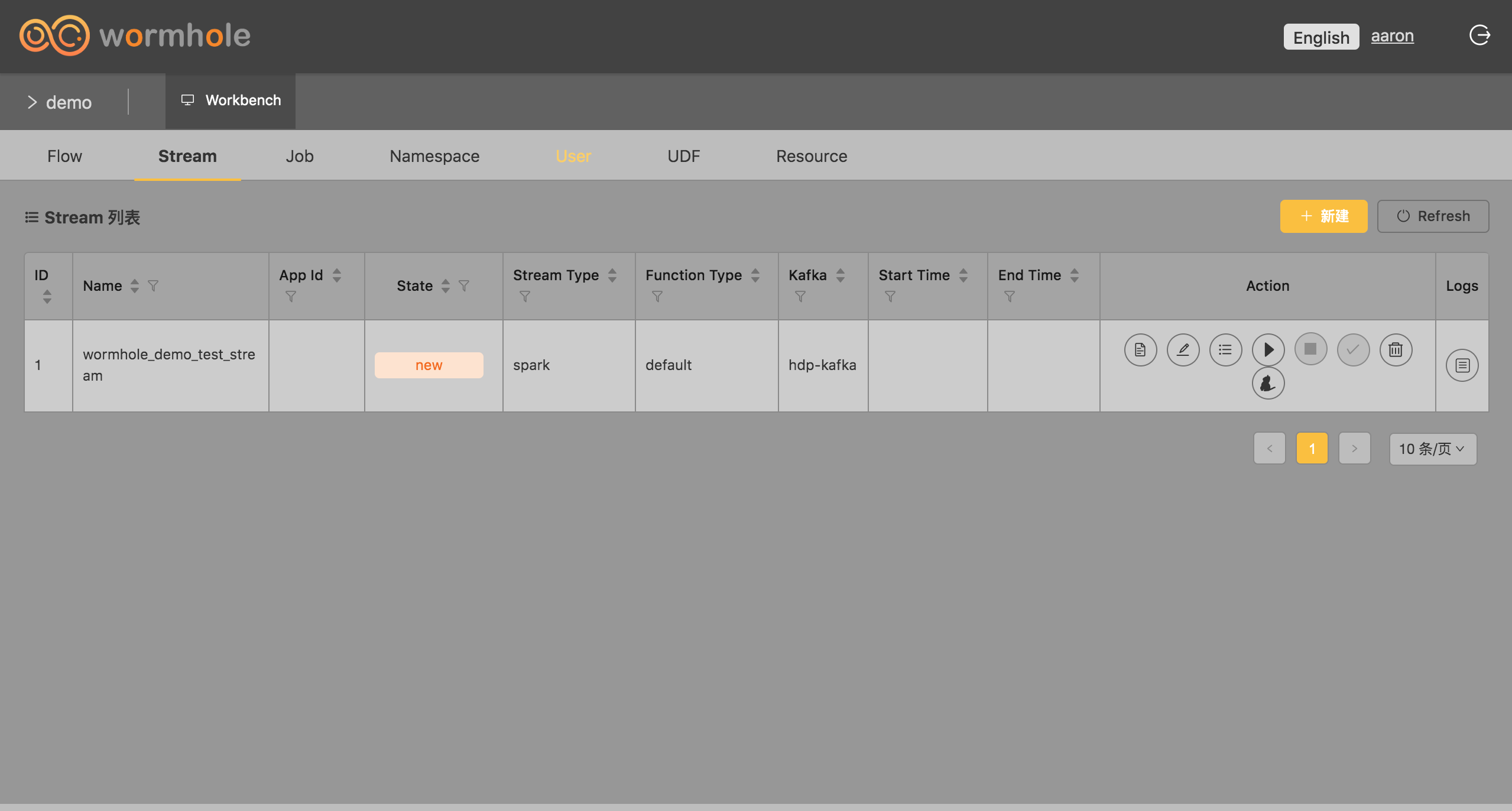

创建Stream

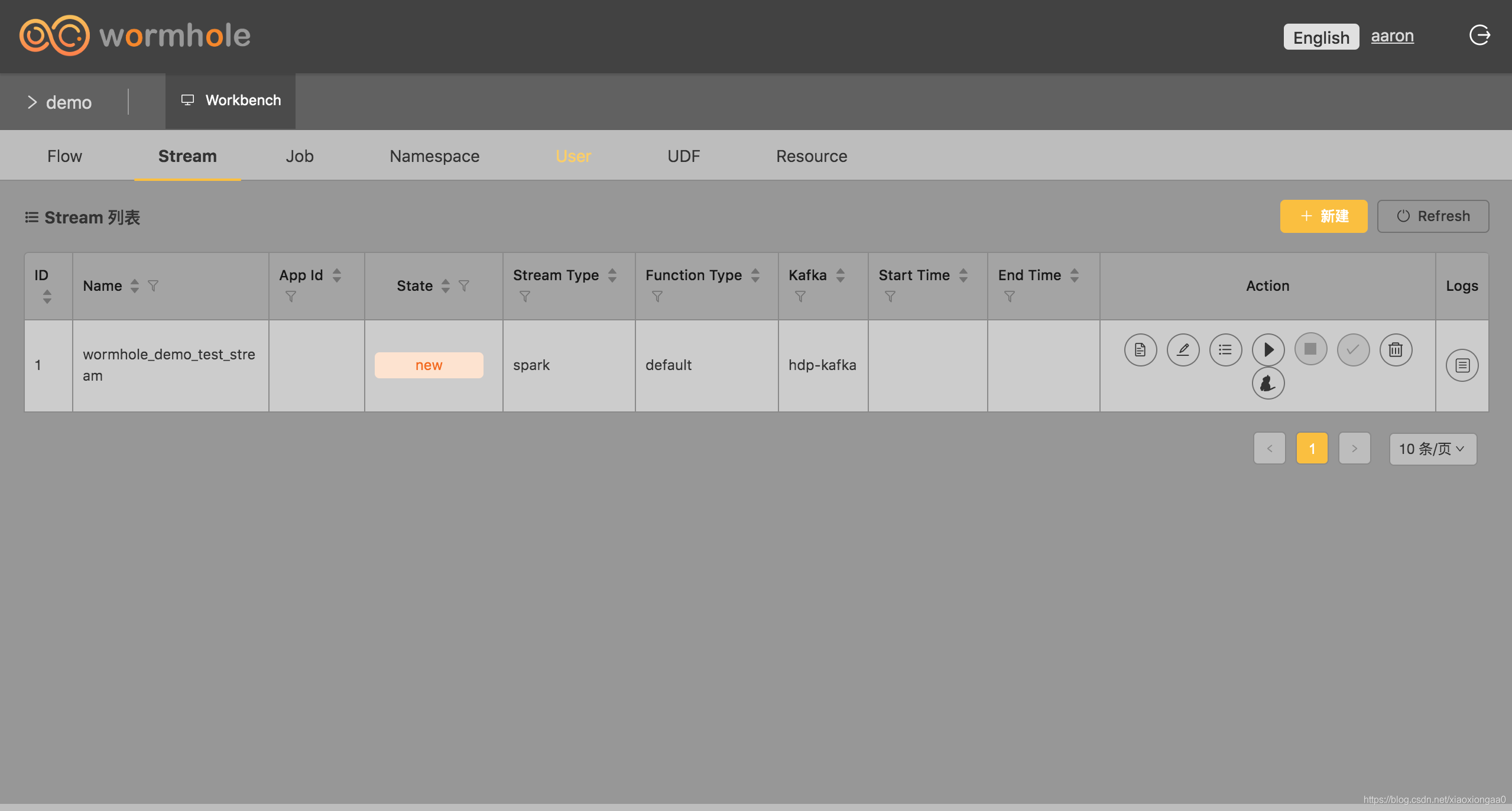

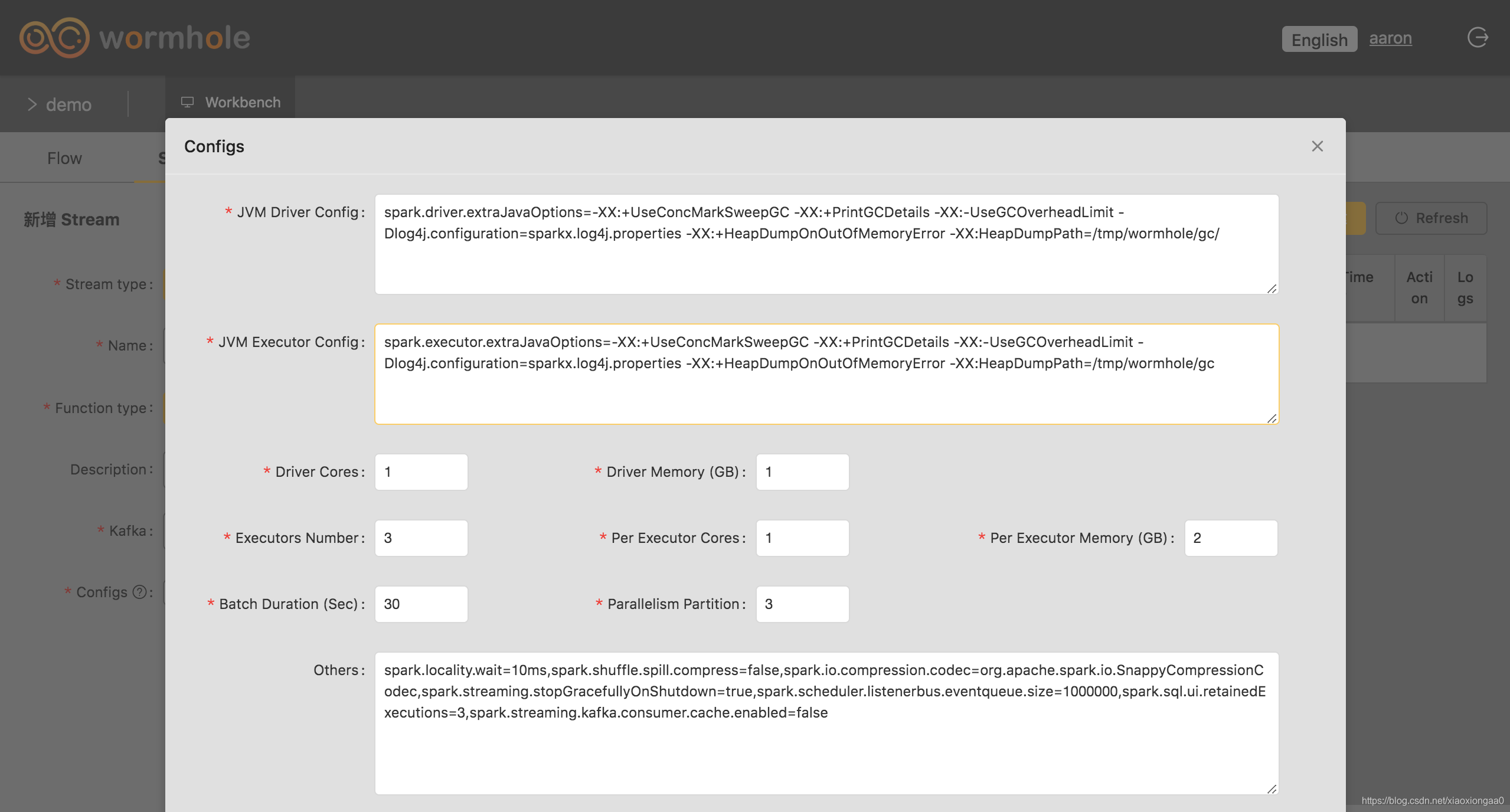

添加Stream

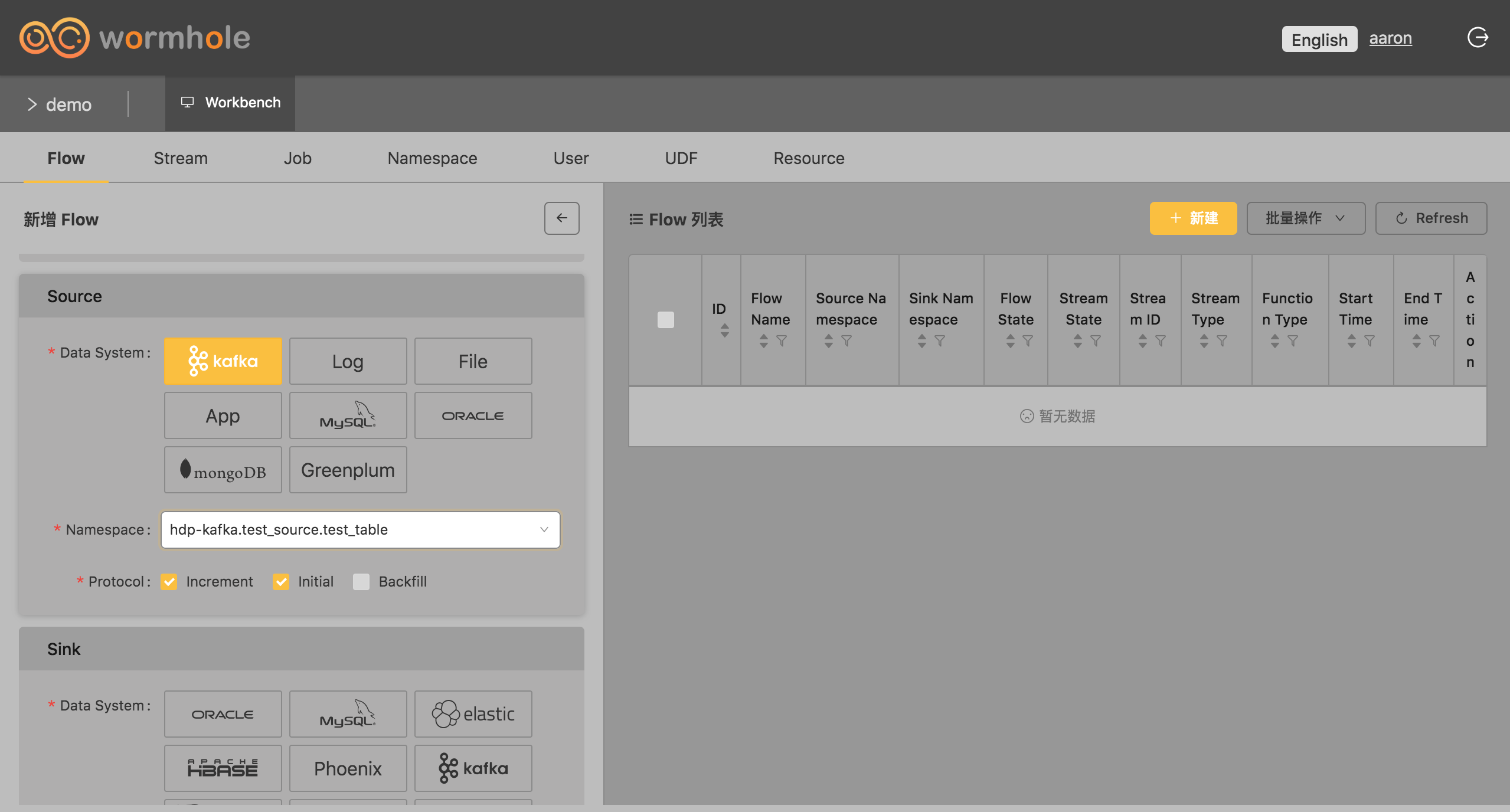

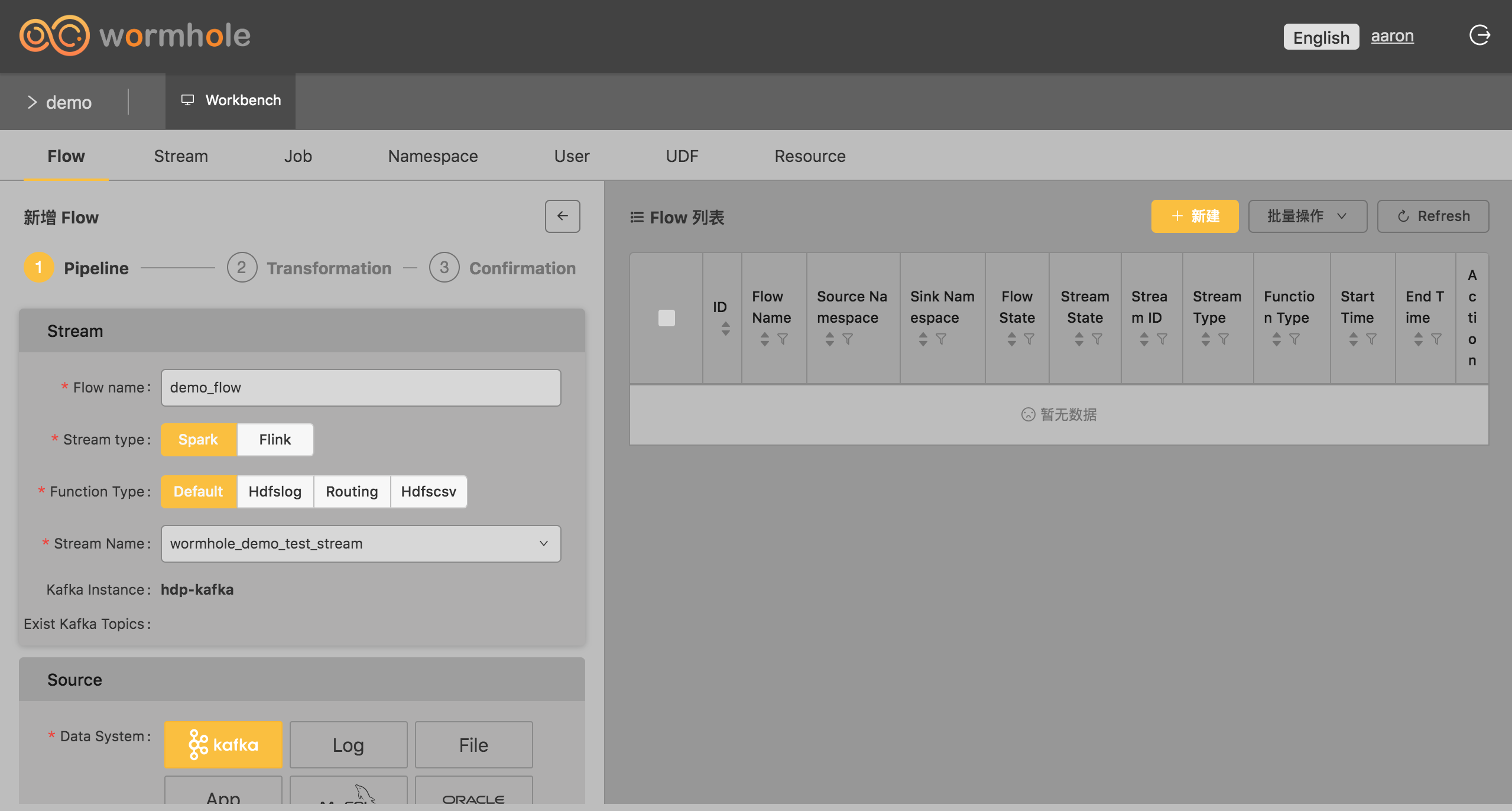

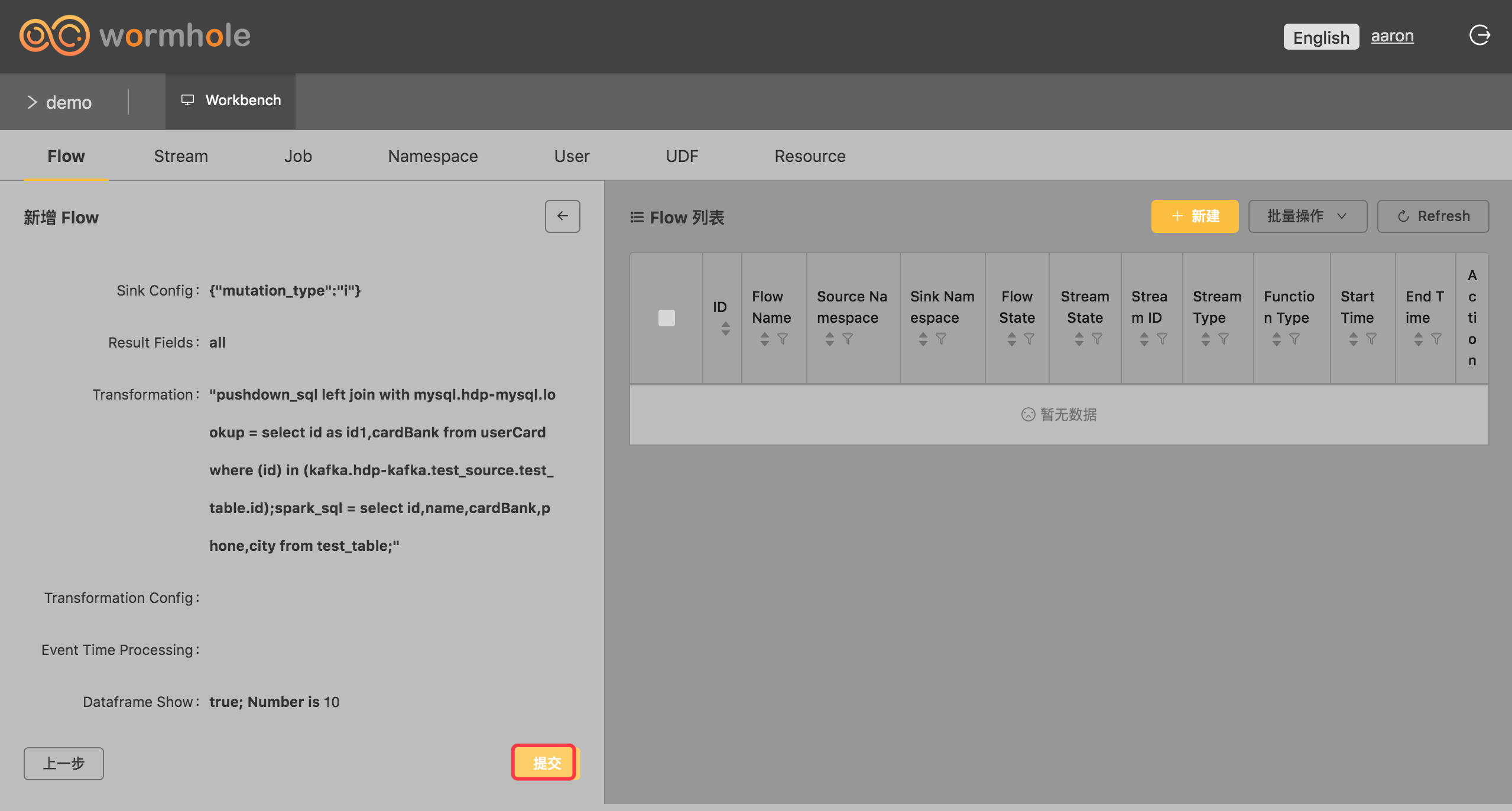

创建Flow

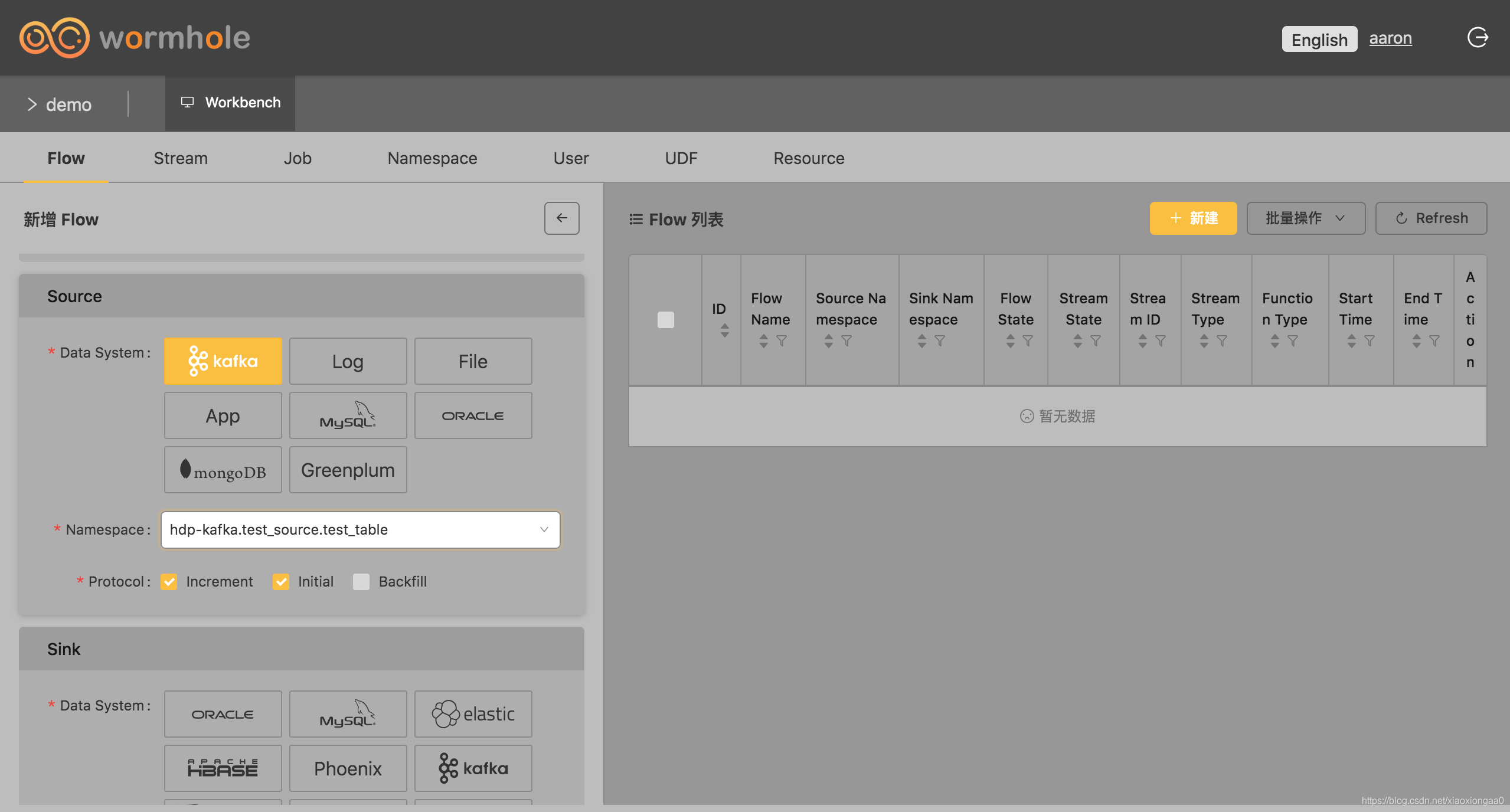

选择数据源source

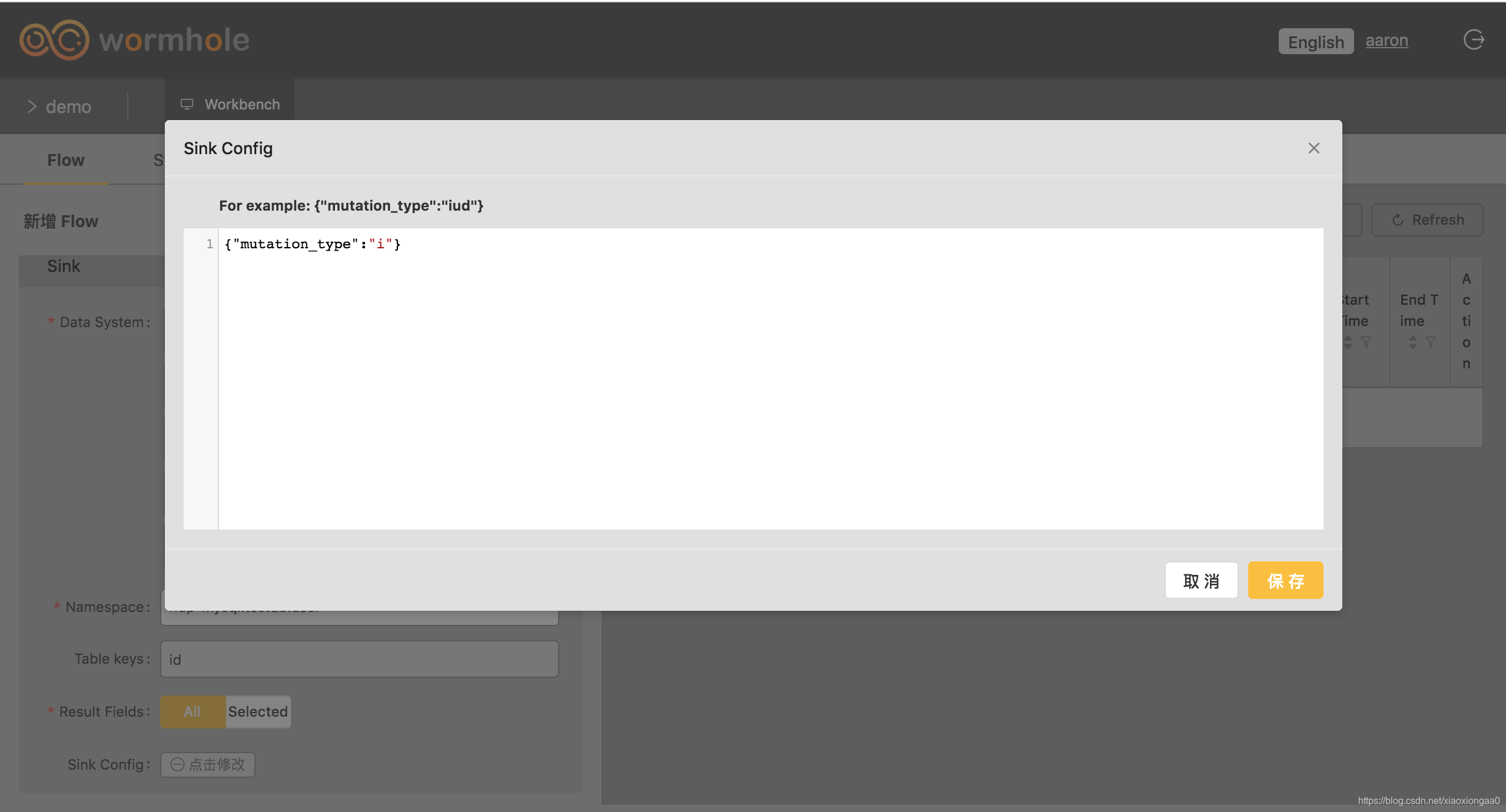

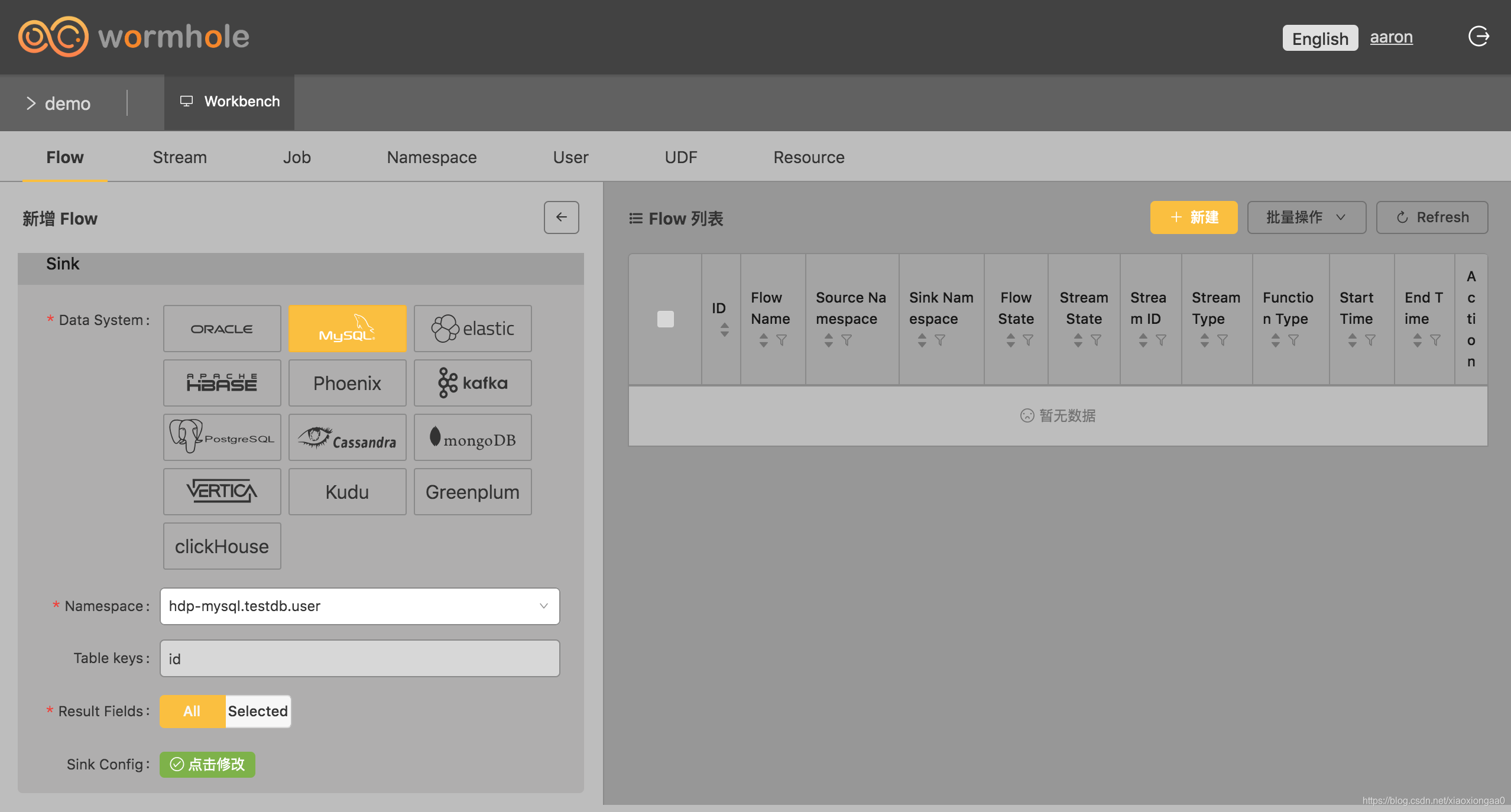

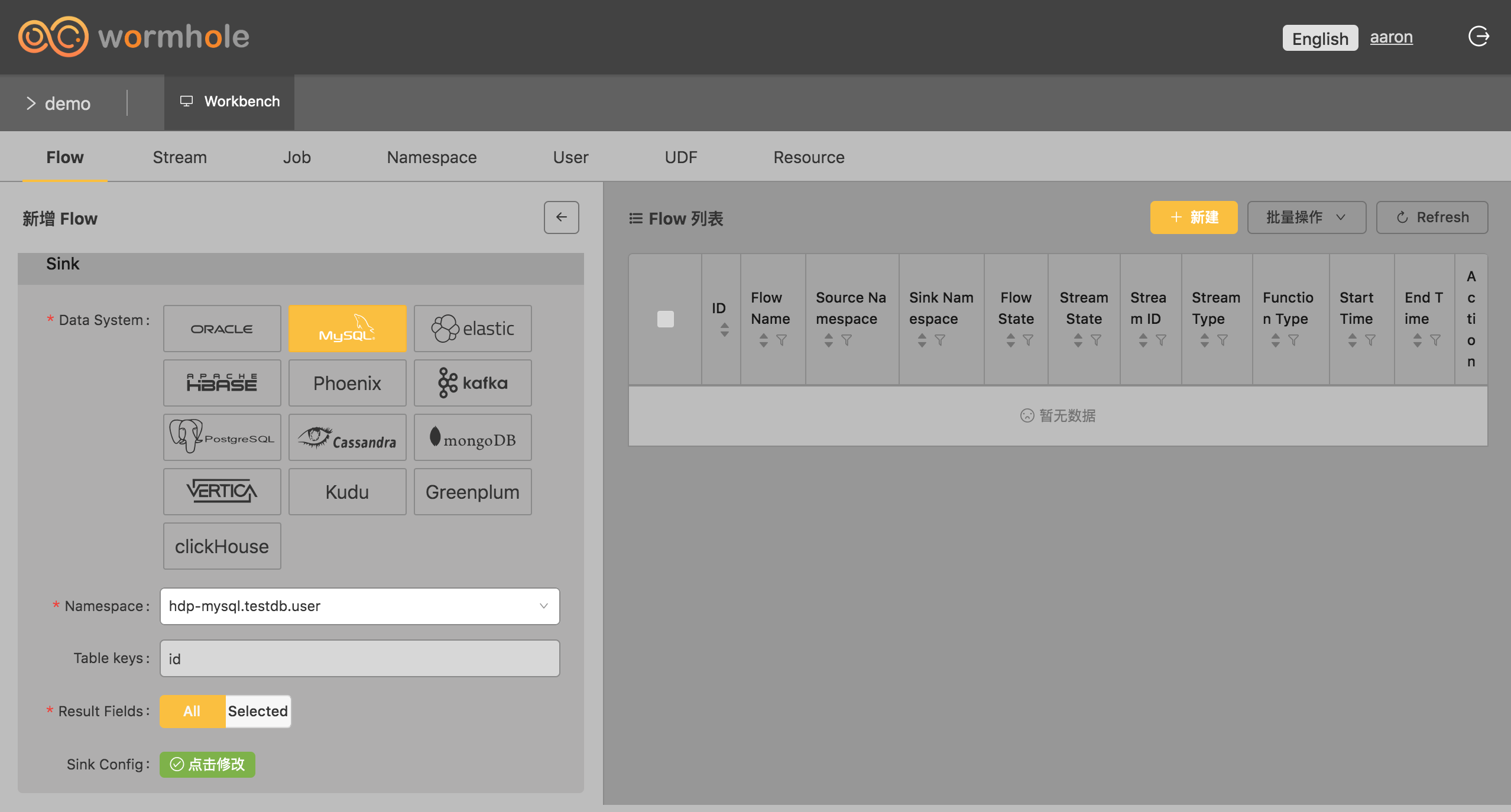

选择目标(sink)

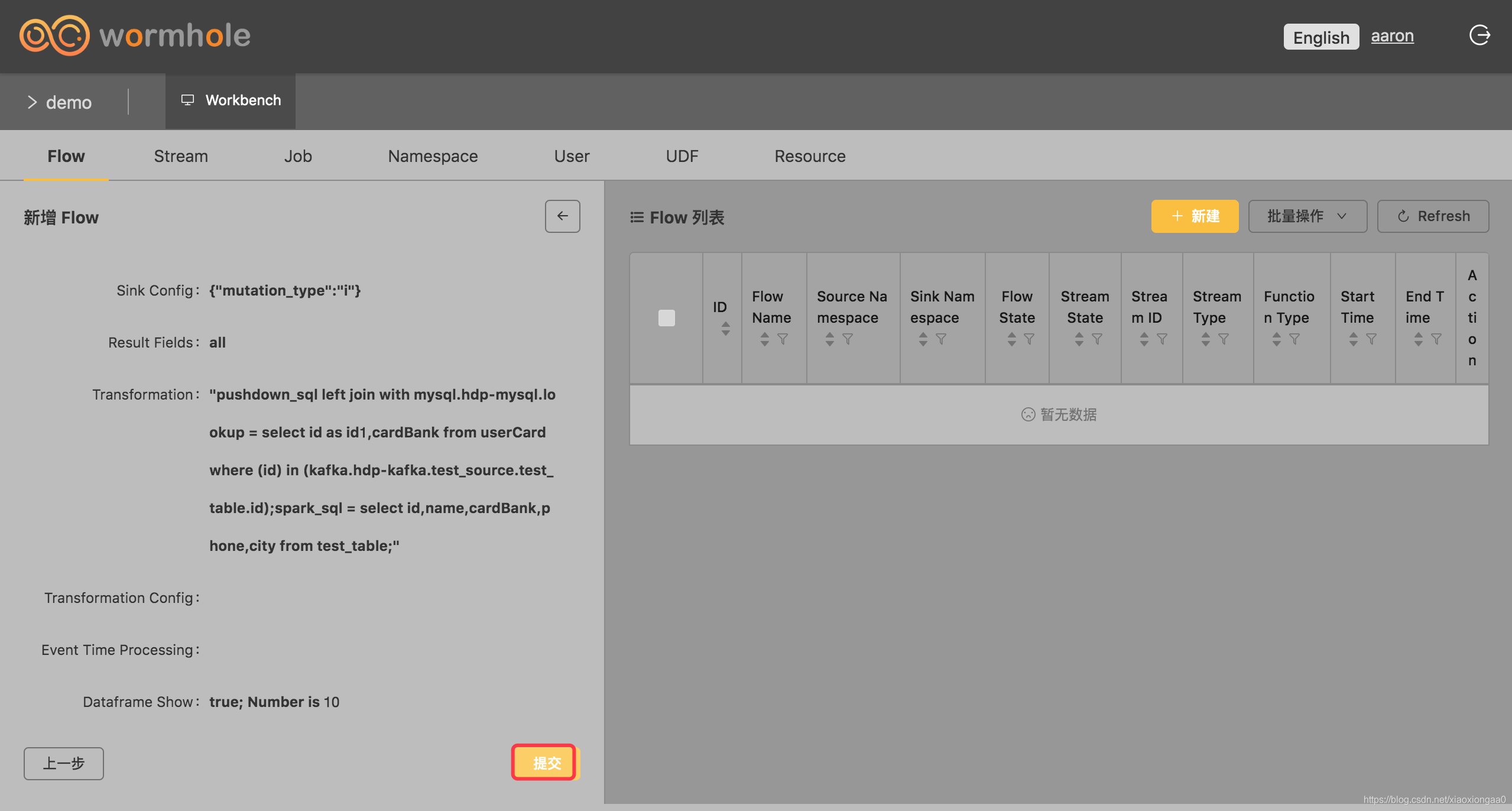

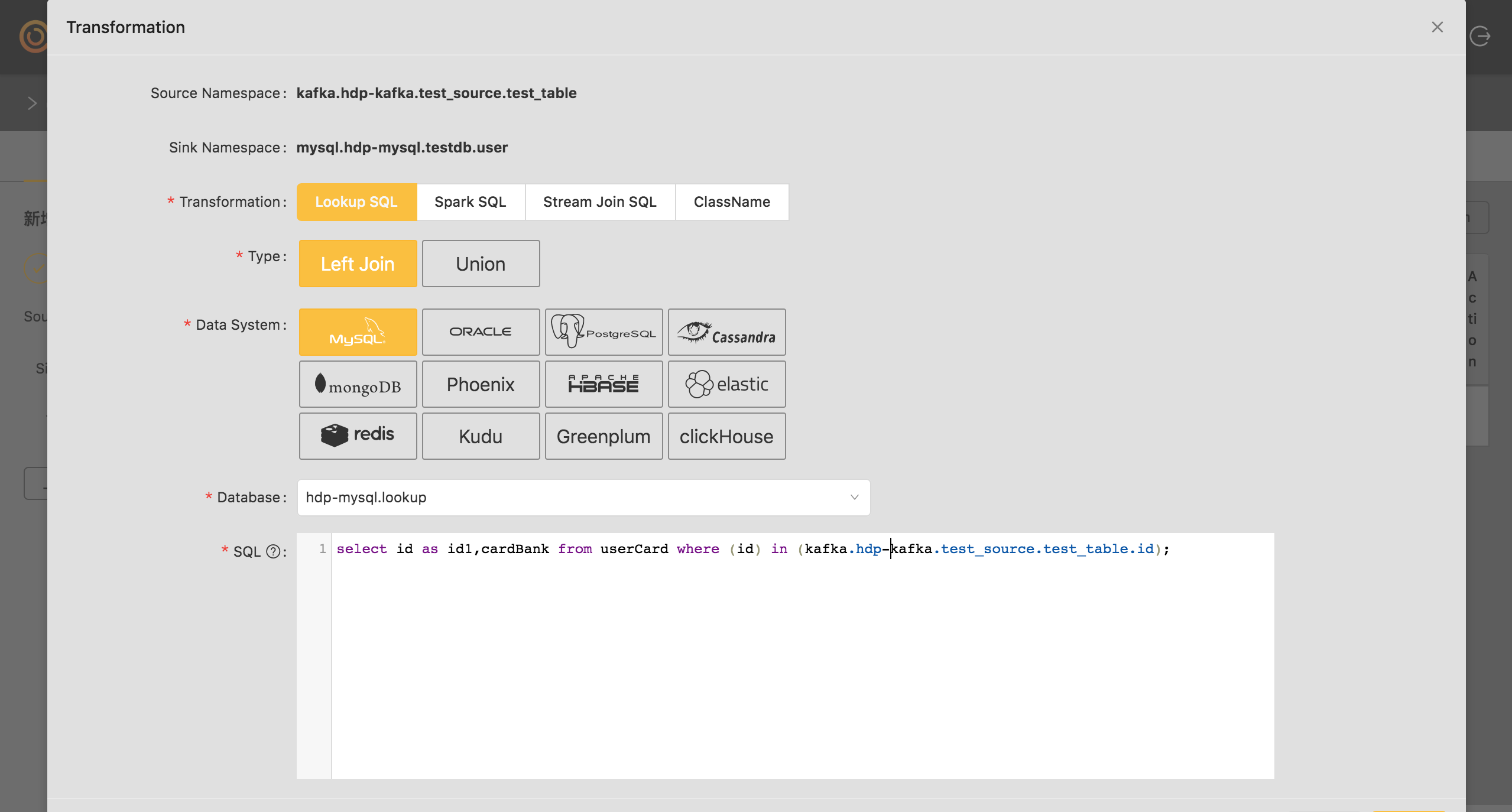

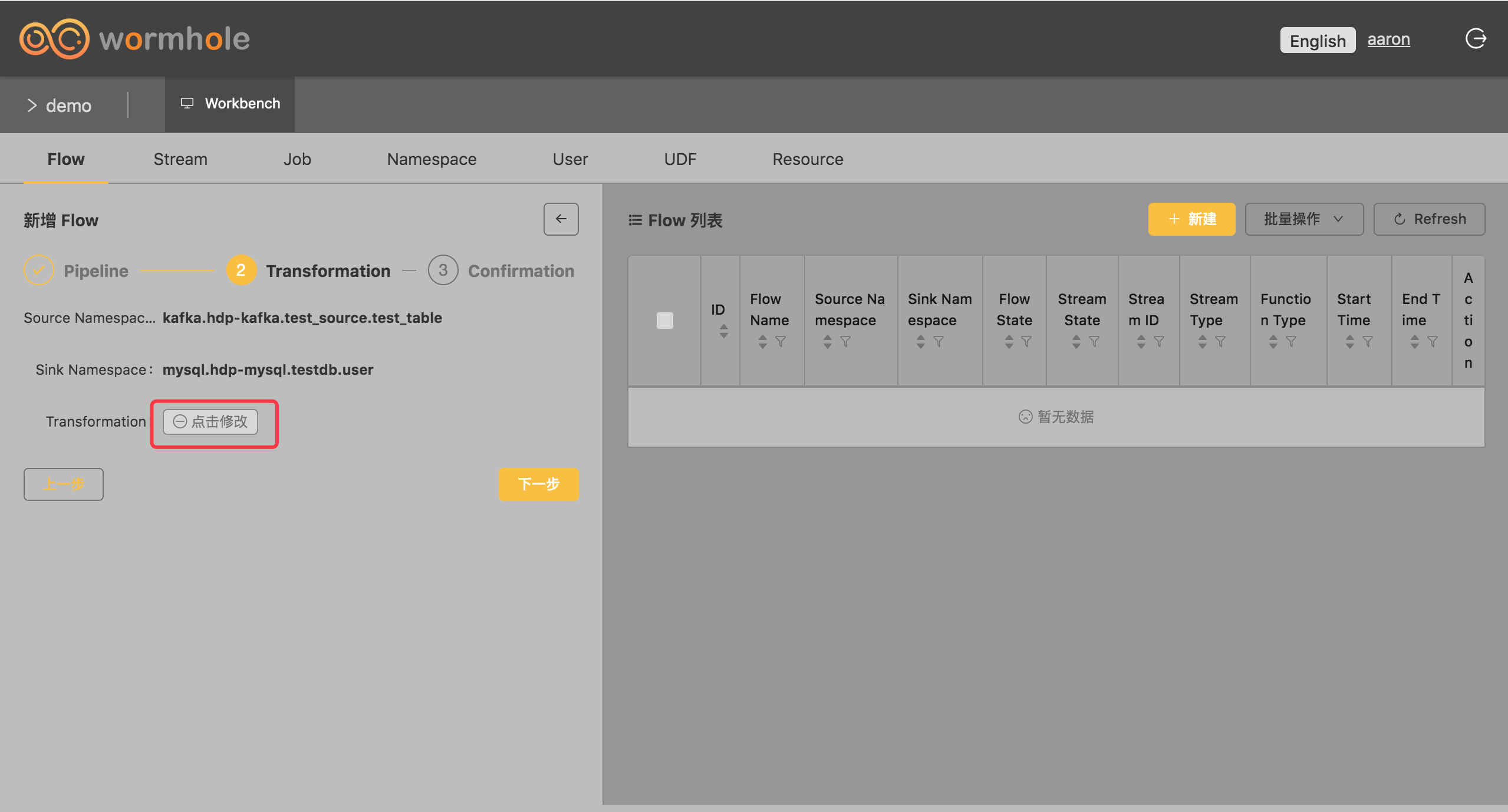

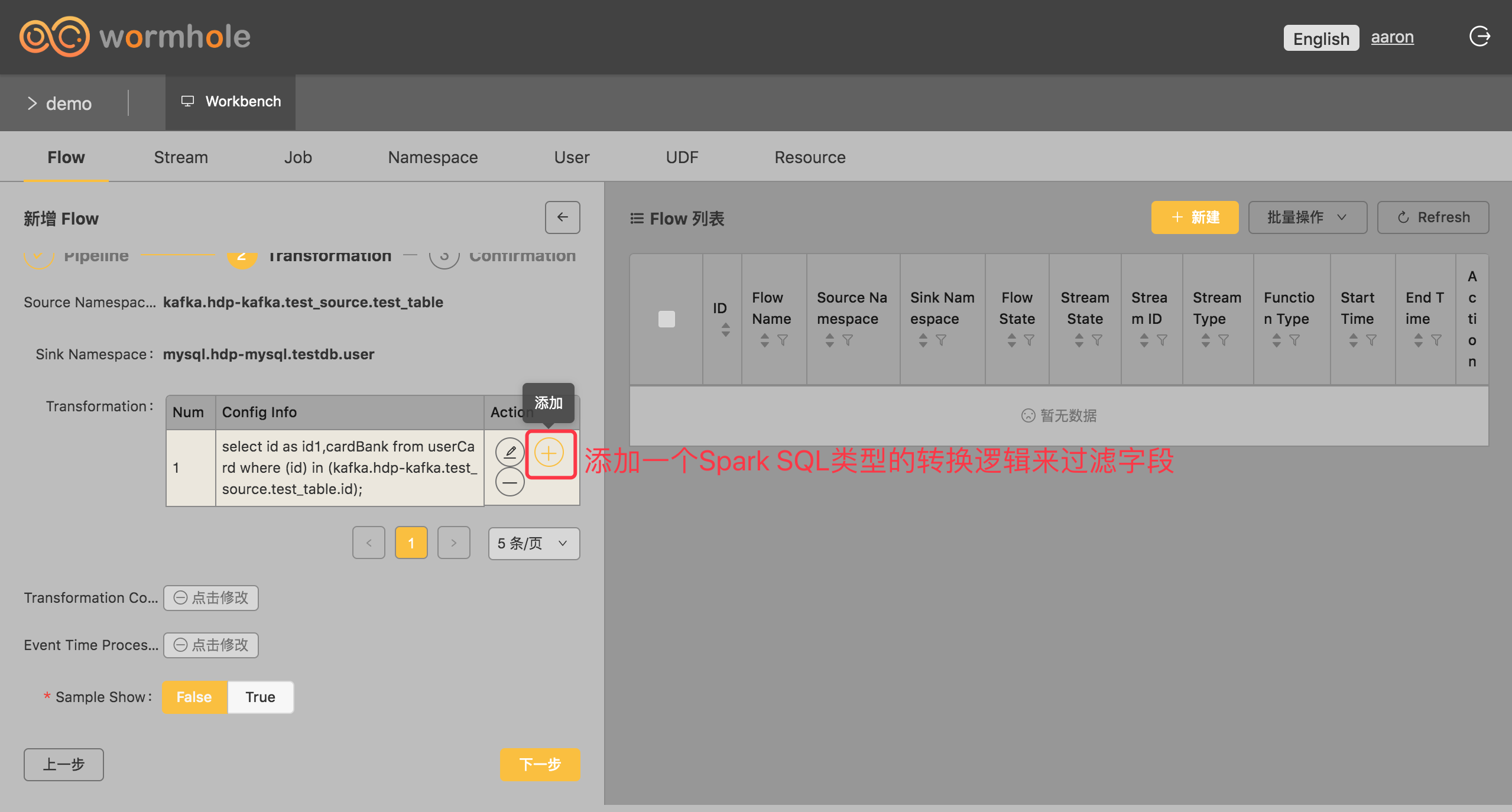

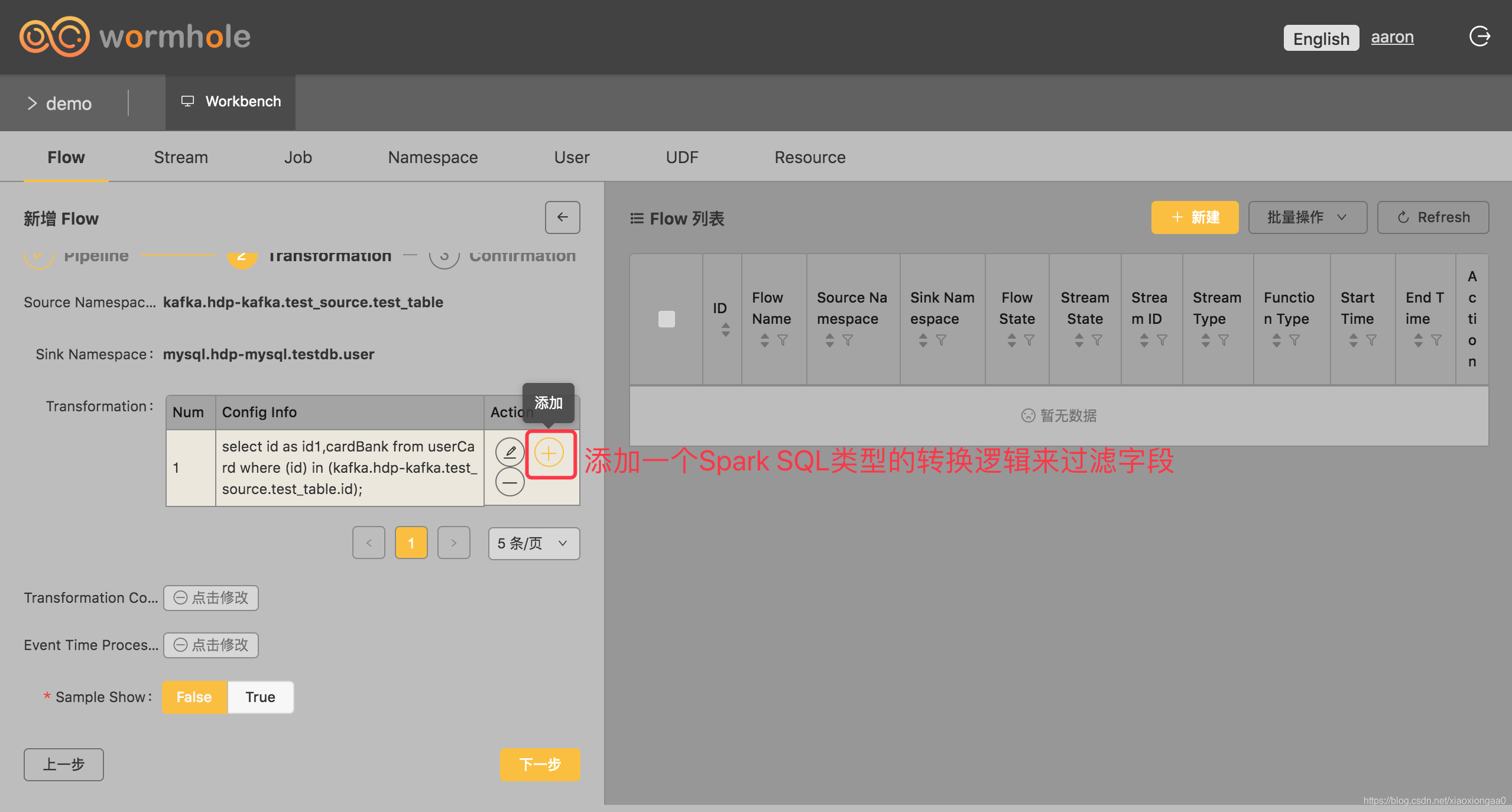

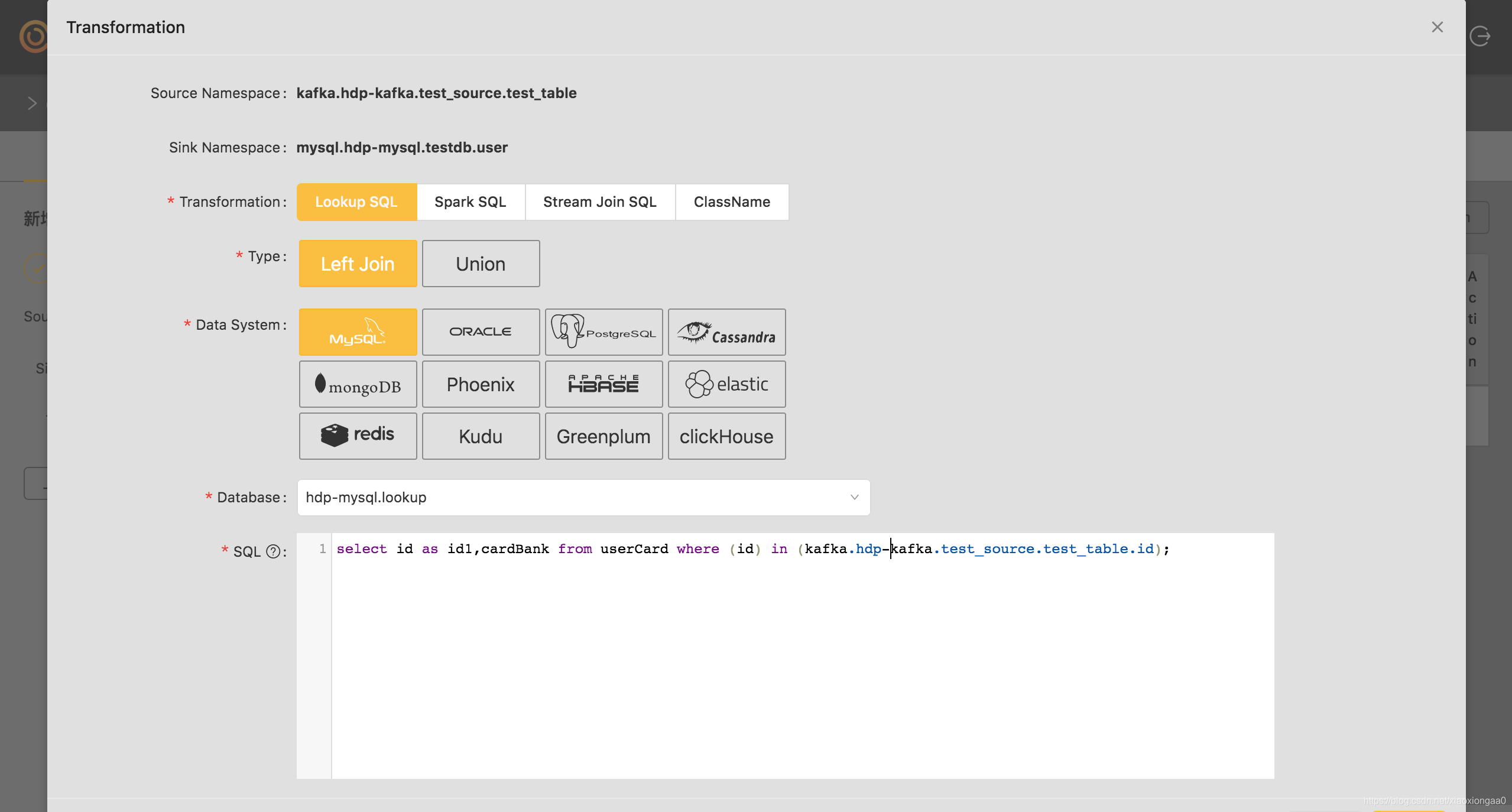

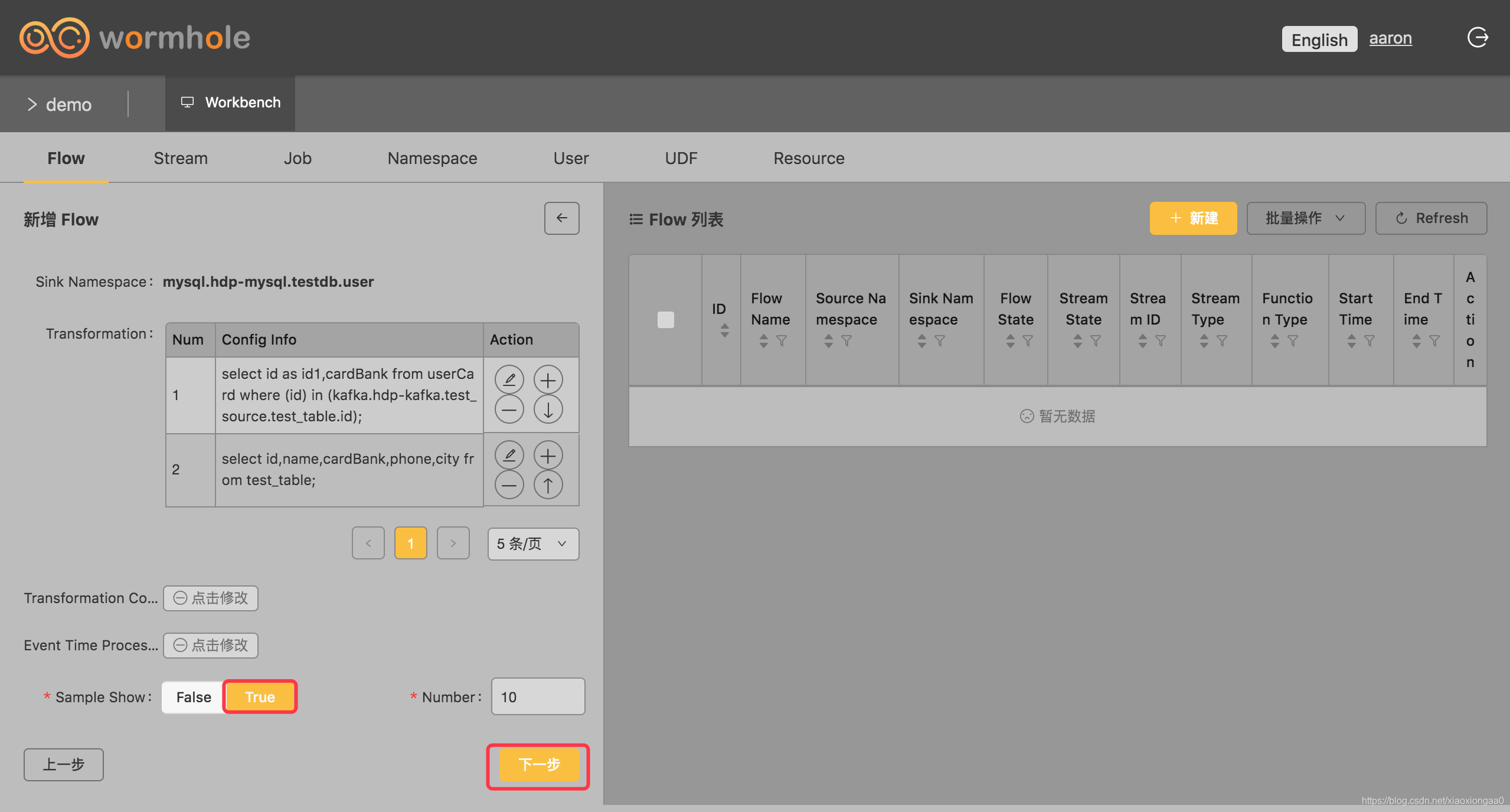

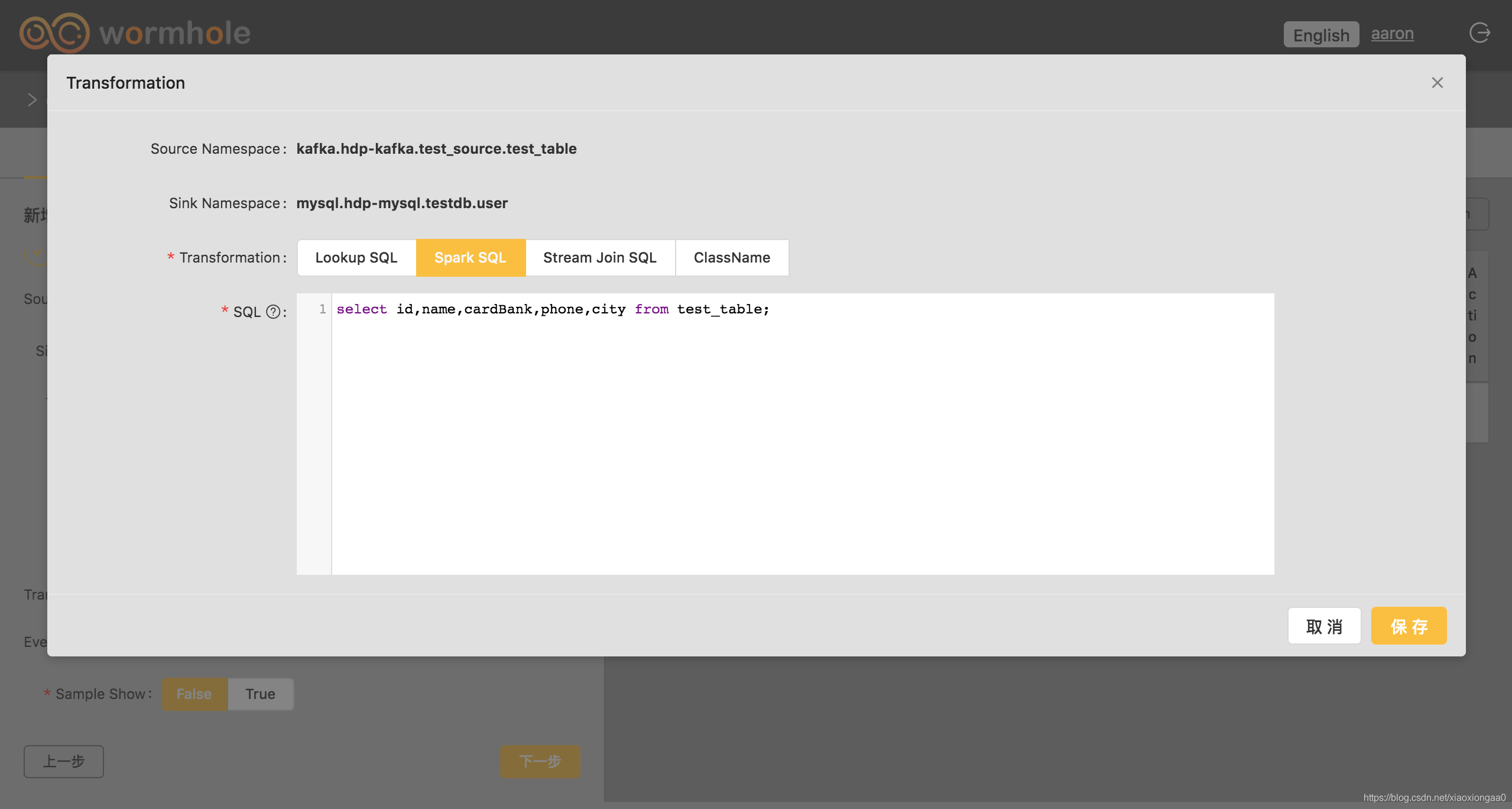

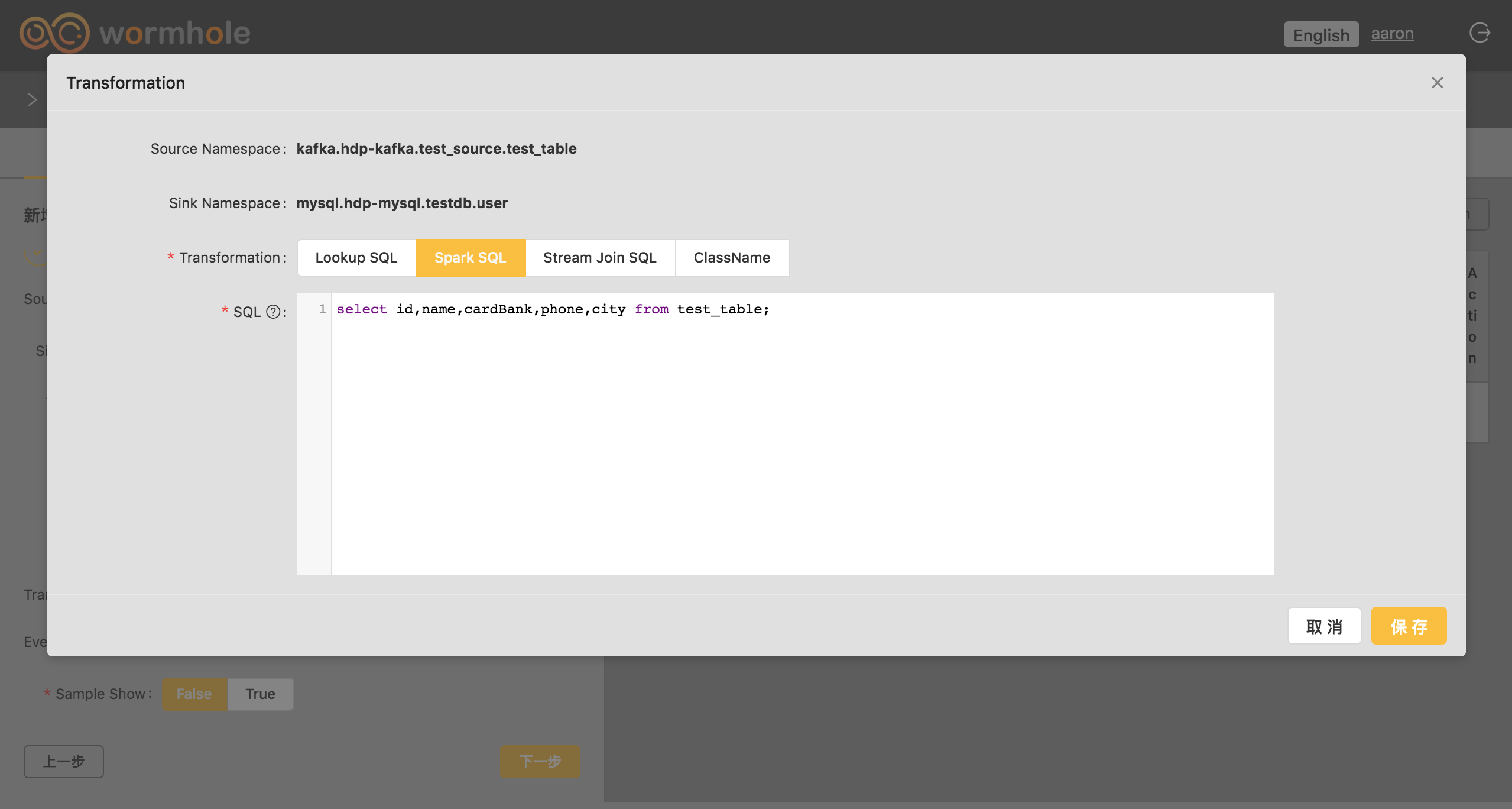

配置转换逻辑

select id as id1,cardBank from userCard where (id) in (kafka.hdp-kafka.test_source.test_table.id);

在hadoop01节点上登录MySQL:

CREATE DATABASE IF NOT EXISTS lookup DEFAULT CHARSET utf8 COLLATE utf8_unicode_ci;

use lookup;

CREATE TABLE IF NOT EXISTS `userCard` (
  `id` BIGINT NOT NULL AUTO_INCREMENT,
  `cardBank` VARCHAR(200) NOT NULL,
  PRIMARY KEY (`id`)
)ENGINE = InnoDB CHARSET=utf8 COLLATE=utf8_unicode_ci;

INSERT INTO userCard (id, cardBank) VALUES (1, "CMB");
INSERT INTO userCard (id, cardBank) VALUES (2, "CITIC");
INSERT INTO userCard (id, cardBank) VALUES (3, "ABC");
INSERT INTO userCard (id, cardBank) VALUES (4, "BOC");
INSERT INTO userCard (id, cardBank) VALUES (5, "CEB");
INSERT INTO userCard (id, cardBank) VALUES (6, "CCB");
INSERT INTO userCard (id, cardBank) VALUES (7, "ICBC");
INSERT INTO userCard (id, cardBank) VALUES (8, "CMBC");
INSERT INTO userCard (id, cardBank) VALUES (9, "SPDB");
INSERT INTO userCard (id, cardBank) VALUES (10, "GDB");

sink table

CREATE DATABASE IF NOT EXISTS testdb DEFAULT CHARSET utf8 COLLATE utf8_unicode_ci;

use testdb;

CREATE TABLE IF NOT EXISTS `user` (
  `id` BIGINT NOT NULL AUTO_INCREMENT,
  `name` VARCHAR(200) NOT NULL,
  `cardBank` VARCHAR(200) NOT NULL,
  `phone` VARCHAR(200) NOT NULL,
  `city` VARCHAR(200) NOT NULL,
  PRIMARY KEY (`id`)
)ENGINE = InnoDB CHARSET=utf8 COLLATE=utf8_unicode_ci;

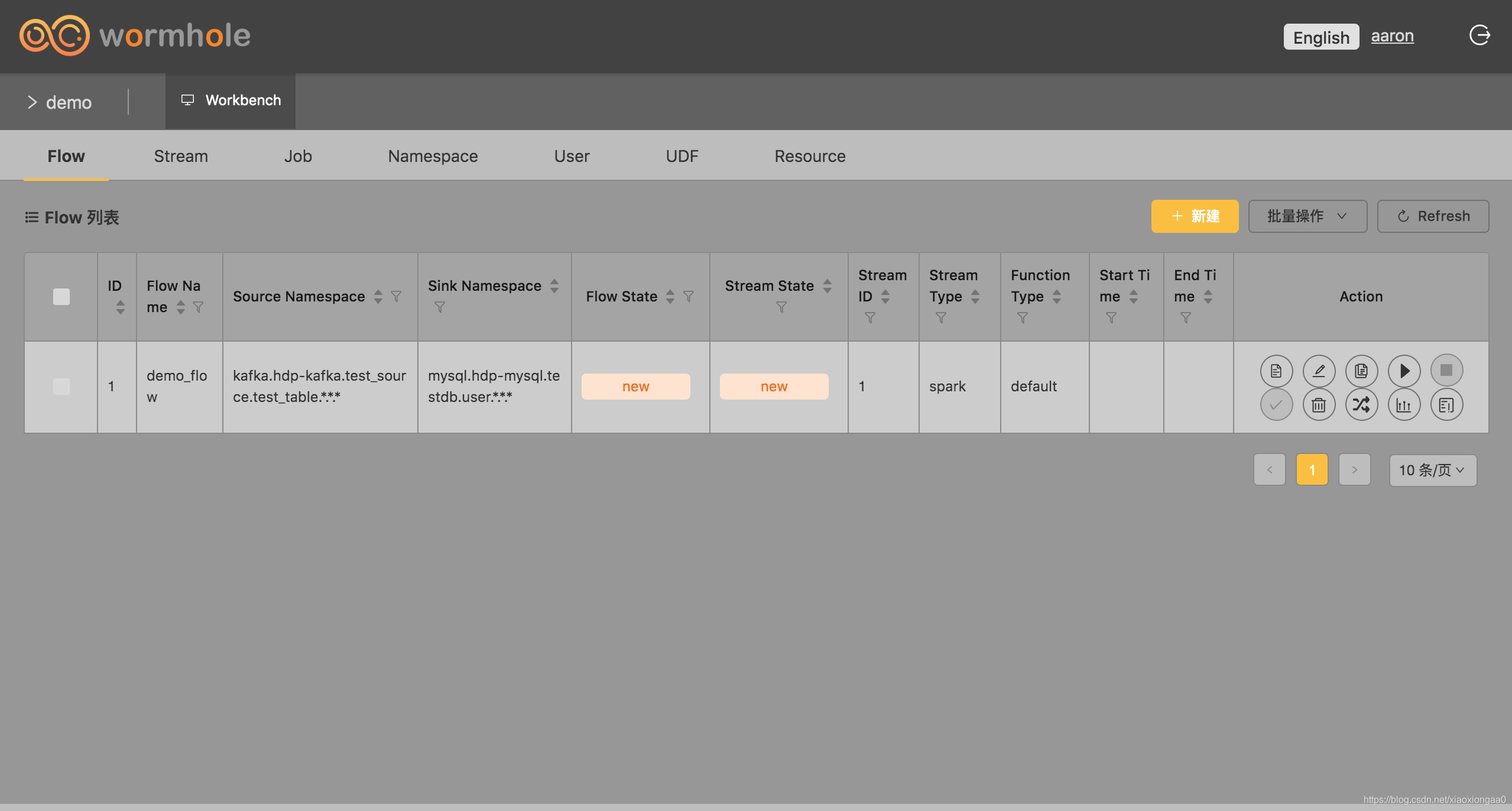

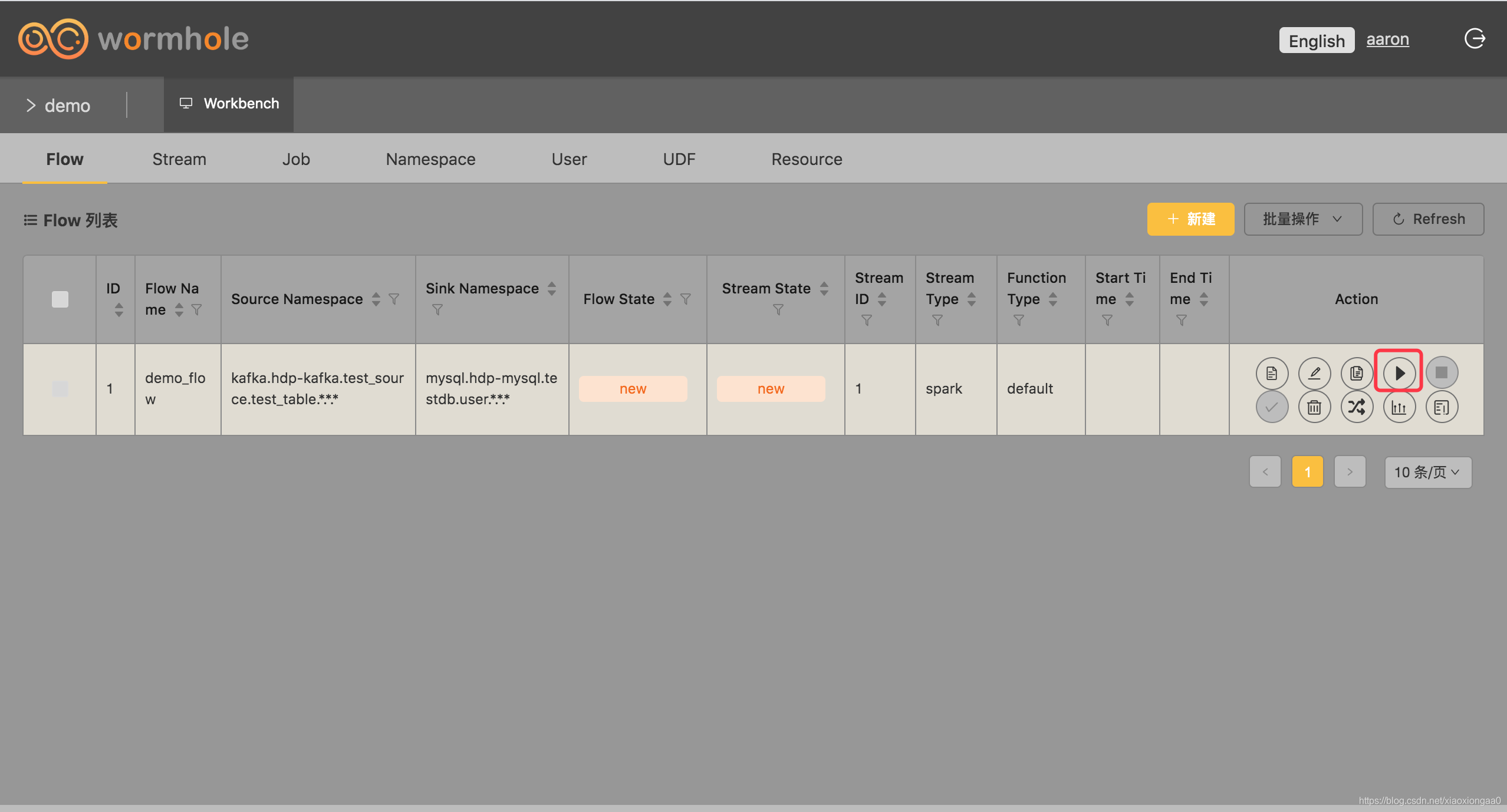

启动Flow

注意:Flow suspending状态代表挂起状态，标识Flow信息已注册到Stream中，Stream目前处于非 running状态。Stream状态正常后Flow状态会自动切换到running或failed状态

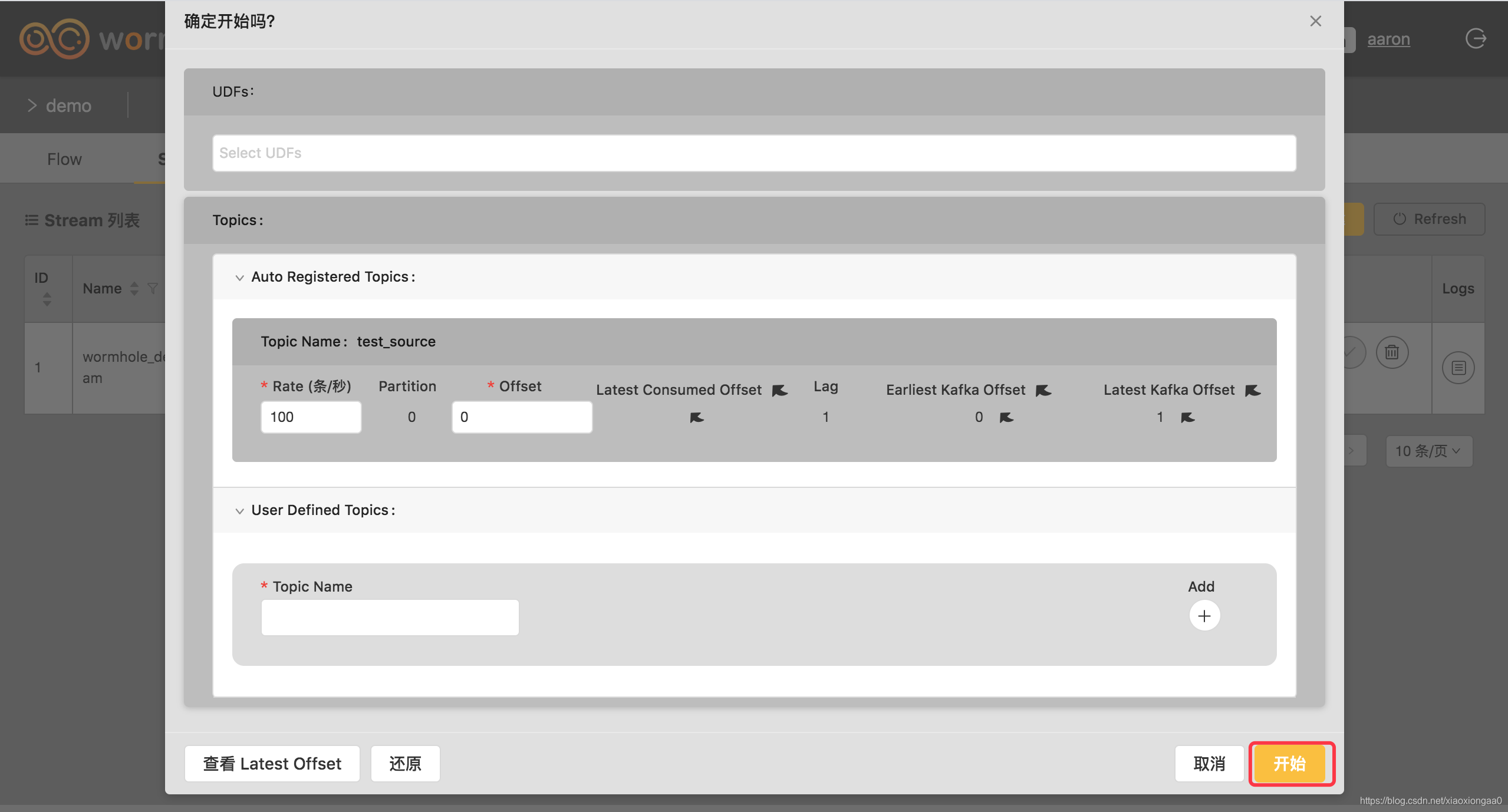

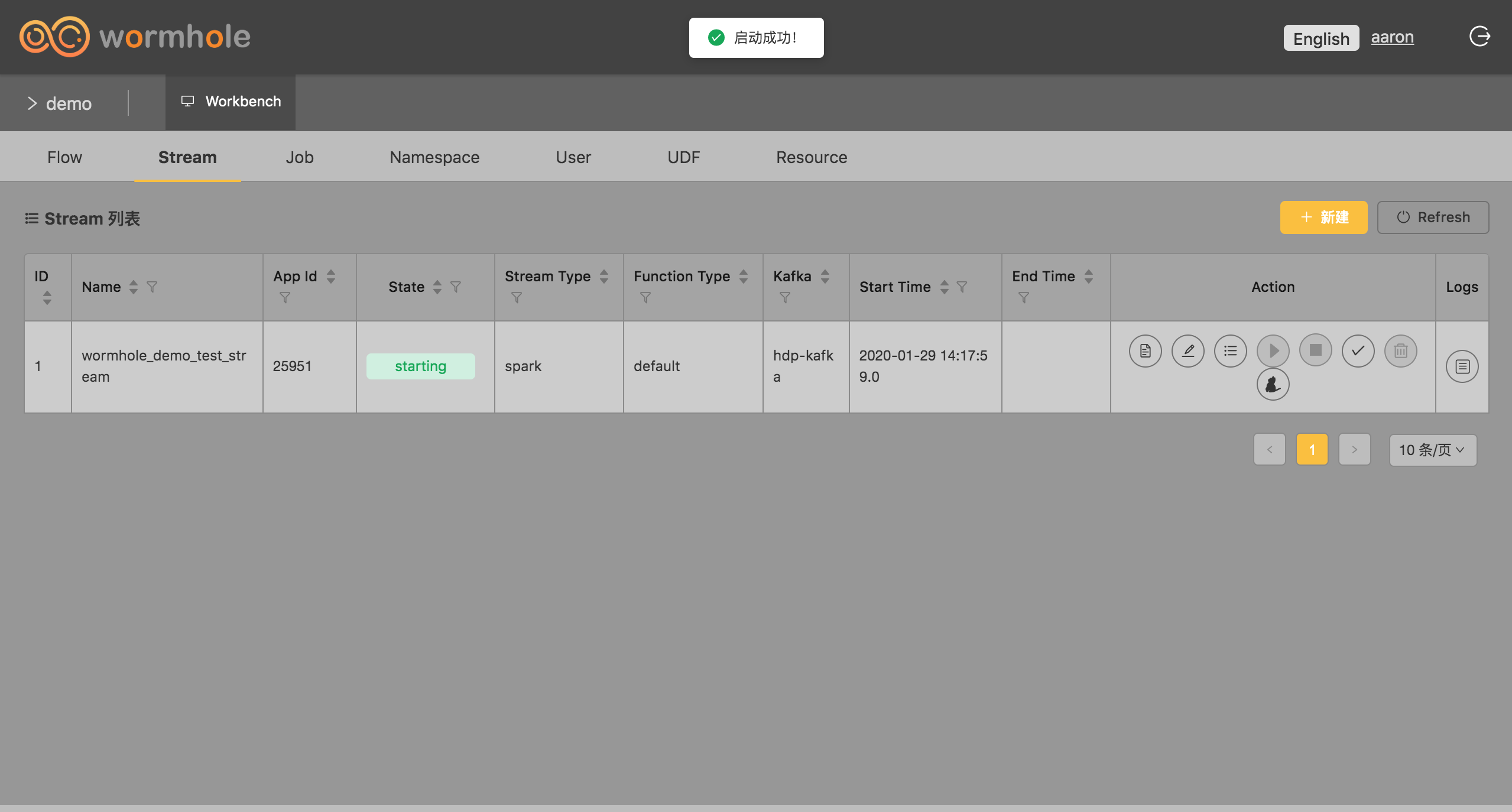

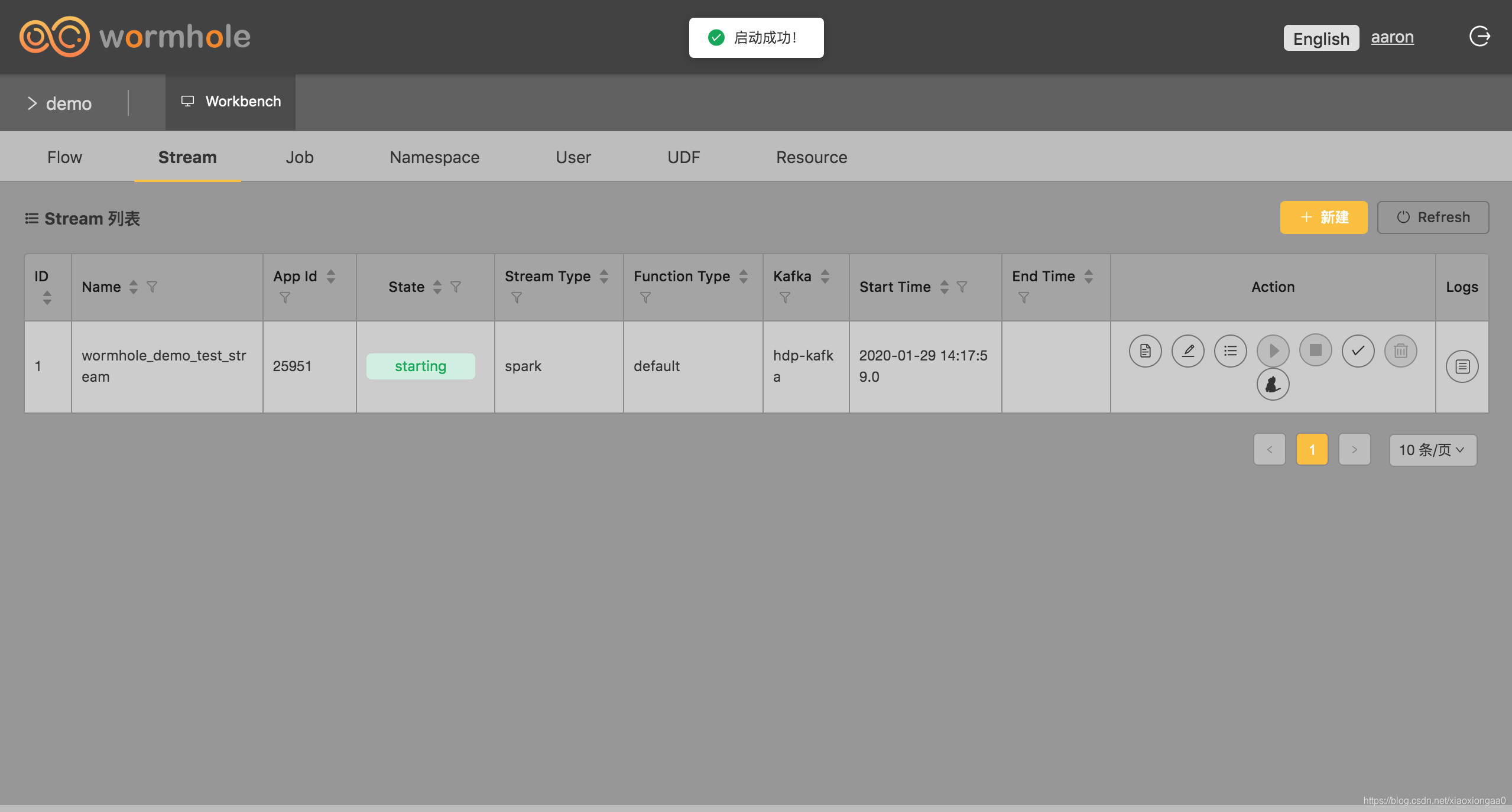

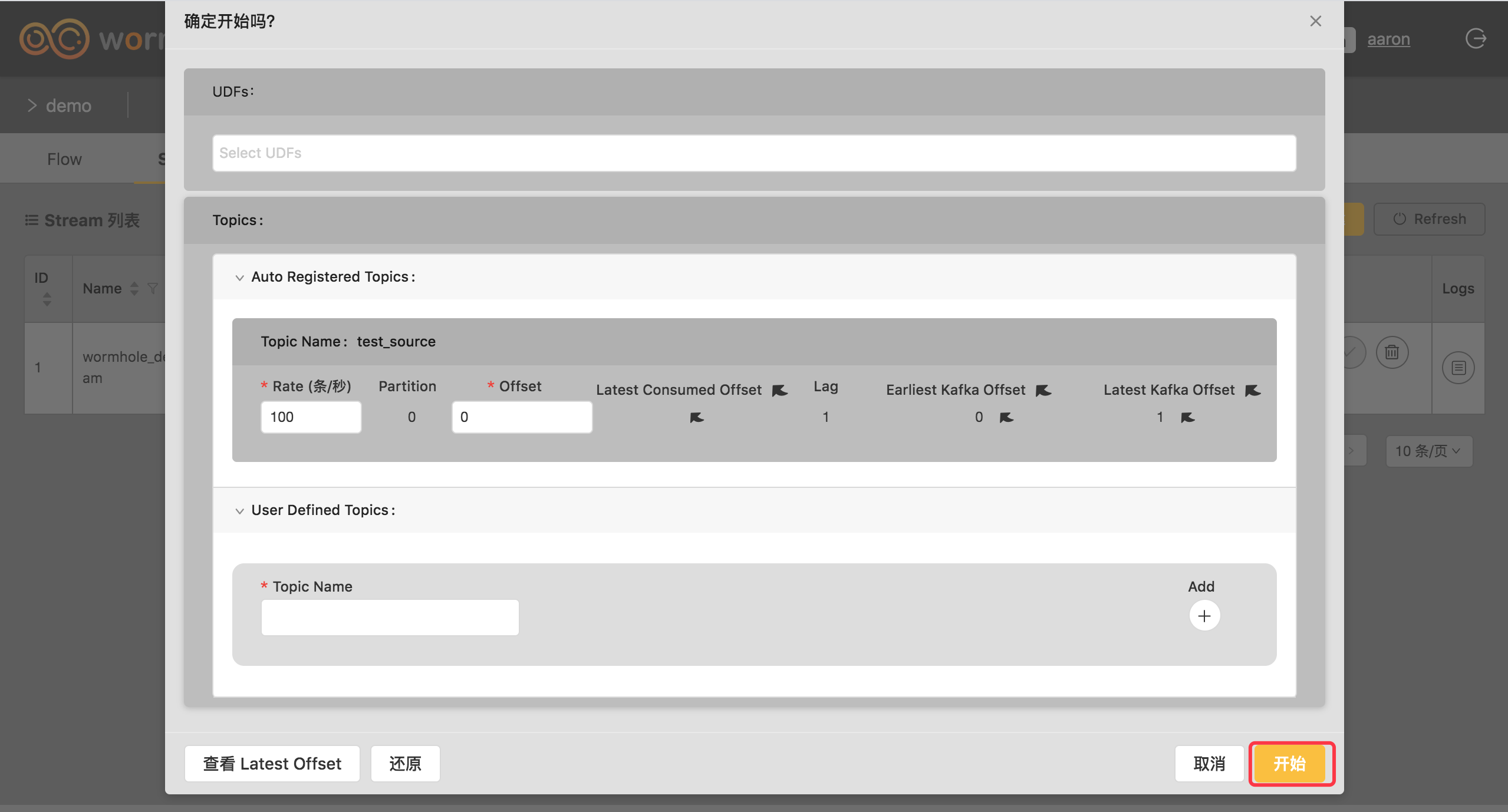

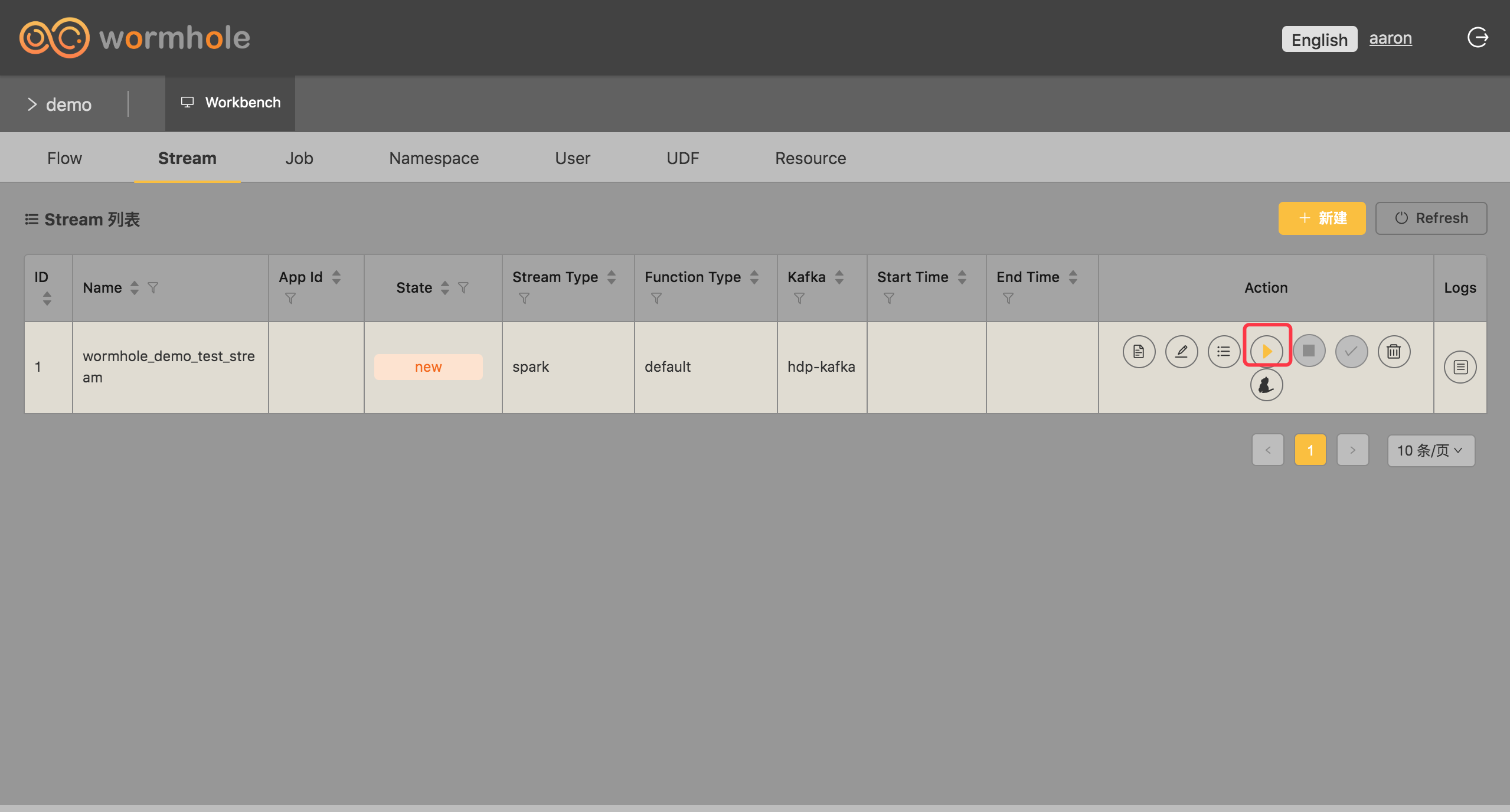

启动Stream
