Springboot如何集成swagger

由 落爺英雄遲暮 提交于 2020-01-25 11:10:18

转自：http://www.leftso.com/blog/223.html

现在微服务已经有了很大的发展势头。微服务中常用的接口方式就是Restful风格，实际的REST规范并没有建议使用任何标准的方法来记录我们将要公开的REST api(就像SOAP的WSDL)。因此，每个人都在用自己的方式记录他们的api，这导致了通用结构上的一个缺陷，为了解决这个问题，出现了swagger，根据swagger生成的接口文档，所有人都可以很容易地理解并进行使用相应的接口。



      我们将首先创建一些REST api接口，这些api接口将用于演示Swagger的文档功能。我们将使用Spring boot风格来显示rest API，以获得更快的开发时间。

    1、创建spring boot项目

     可以去spring boot官网创建一个web带Rest接口依赖的spring boot项目，也可以用idea工具创建。（如果）

  2、修改application.properties配置文件。

    添加以下属性。项目将会从 /swagger2-democontext 路径启动应用.

  3、添加一个REST的contrller和实体类

  创建类Swagger2DemoRestController,他将会为学生实体提供基本的基于REST的功能。

package com.testswagger.controller;

import com.testswagger.model.Student;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import java.util.ArrayList;
import java.util.List;
import java.util.stream.Collectors;

/**
 * @author xmh
 * @description swagger2的controller
 * @Date 2020/1/7
 */
@RestController
public class Swagger2DemoRestController {
    List<Student> students = new ArrayList<Student>();
    {
        students.add(new Student("Sajal", "IV", "India"));
        students.add(new Student("Lokesh", "V", "India"));
        students.add(new Student("Kajal", "III", "USA"));
        students.add(new Student("Sukesh", "VI", "USA"));
    }

    @RequestMapping(value = "/getStudents")
    public List<Student> getStudents() {
        return students;
    }

    @RequestMapping(value = "/getStudent/{name}")
    public Student getStudent(@PathVariable(value = "name") String name) {
        return students.stream().filter(x -> x.getName().equalsIgnoreCase(name)).collect(Collectors.toList()).get(0);
    }

    @RequestMapping(value = "/getStudentByCountry/{country}")
    public List<Student> getStudentByCountry(@PathVariable(value = "country") String country) {
        System.out.println("Searching Student in country : " + country);
        List<Student> studentsByCountry = students.stream().filter(x -> x.getCountry().equalsIgnoreCase(country))
                .collect(Collectors.toList());
        System.out.println(studentsByCountry);
        return studentsByCountry;
    }

    @RequestMapping(value = "/getStudentByClass/{cls}")
    public List<Student> getStudentByClass(@PathVariable(value = "cls") String cls) {
        return students.stream().filter(x -> x.getCls().equalsIgnoreCase(cls)).collect(Collectors.toList());
    }
}

Student.java

package com.testswagger.model;

/**
 * @author xmh
 * @description Student实体类
 * @Date 2020/1/7
 */
public class Student {
    private String name;
    private String cls;
    private String country;

    public Student(String name, String cls, String country) {
        super();
        this.name = name;
        this.cls = cls;
        this.country = country;
    }

    public String getName() {
        return name;
    }

    public String getCls() {
        return cls;
    }

    public String getCountry() {
        return country;
    }

    @Override
    public String toString() {
        return "Student [name=" + name + ", cls=" + cls + ", country=" + country + "]";
    }
}

4、配置Swagger

添加Swagger的maven依赖库

<dependency>
    <groupId>io.springfox</groupId>
    <artifactId>springfox-swagger2</artifactId>
    <version>2.6.1</version>
</dependency>

<dependency>
    <groupId>io.springfox</groupId>
    <artifactId>springfox-swagger-ui</artifactId>
    <version>2.6.1</version>
</dependency>

5、添加Swagger配置类

package com.testswagger.controller;

import com.google.common.base.Predicates;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.config.annotation.ResourceHandlerRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurerAdapter;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

/**
 * @author xmh
 * @description Swagger2配置
 * @Date 2020/1/7
 */
@Configuration
@EnableSwagger2
public class Swagger2UiConfiguration extends WebMvcConfigurerAdapter
{
    @Bean
    public Docket api() {
        // @formatter:off
        //Register the controllers to swagger
        //Also it is configuring the Swagger Docket
        return new Docket(DocumentationType.SWAGGER_2).select()
                // .apis(RequestHandlerSelectors.any())
                .apis(Predicates.not(RequestHandlerSelectors.basePackage("org.springframework.boot")))
                // .paths(PathSelectors.any())
                // .paths(PathSelectors.ant("/swagger2-demo"))
                .build();
        // @formatter:on
    }

    @Override
    public void addResourceHandlers(ResourceHandlerRegistry registry)
    {
        //enabling swagger-ui part for visual documentation
        registry.addResourceHandler("swagger-ui.html").addResourceLocations("classpath:/META-INF/resources/");
        registry.addResourceHandler("/webjars/**").addResourceLocations("classpath:/META-INF/resources/webjars/");
    }
}

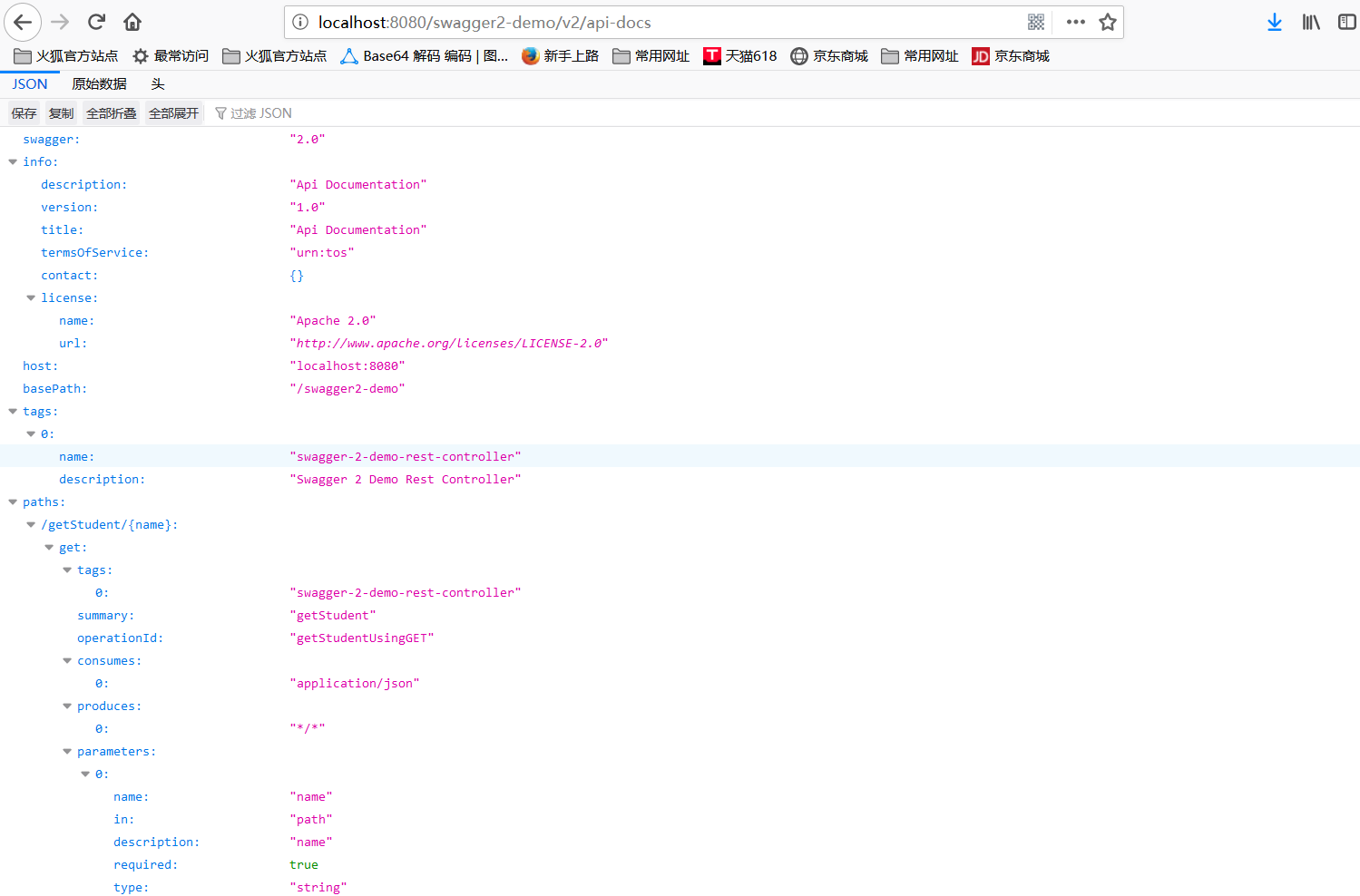

6、验证Swagger2的JSON格式文档

启动项目，访问地址http://localhost:8080/swagger2-demo/v2/api-docs，会生成一个JSON格式的文档

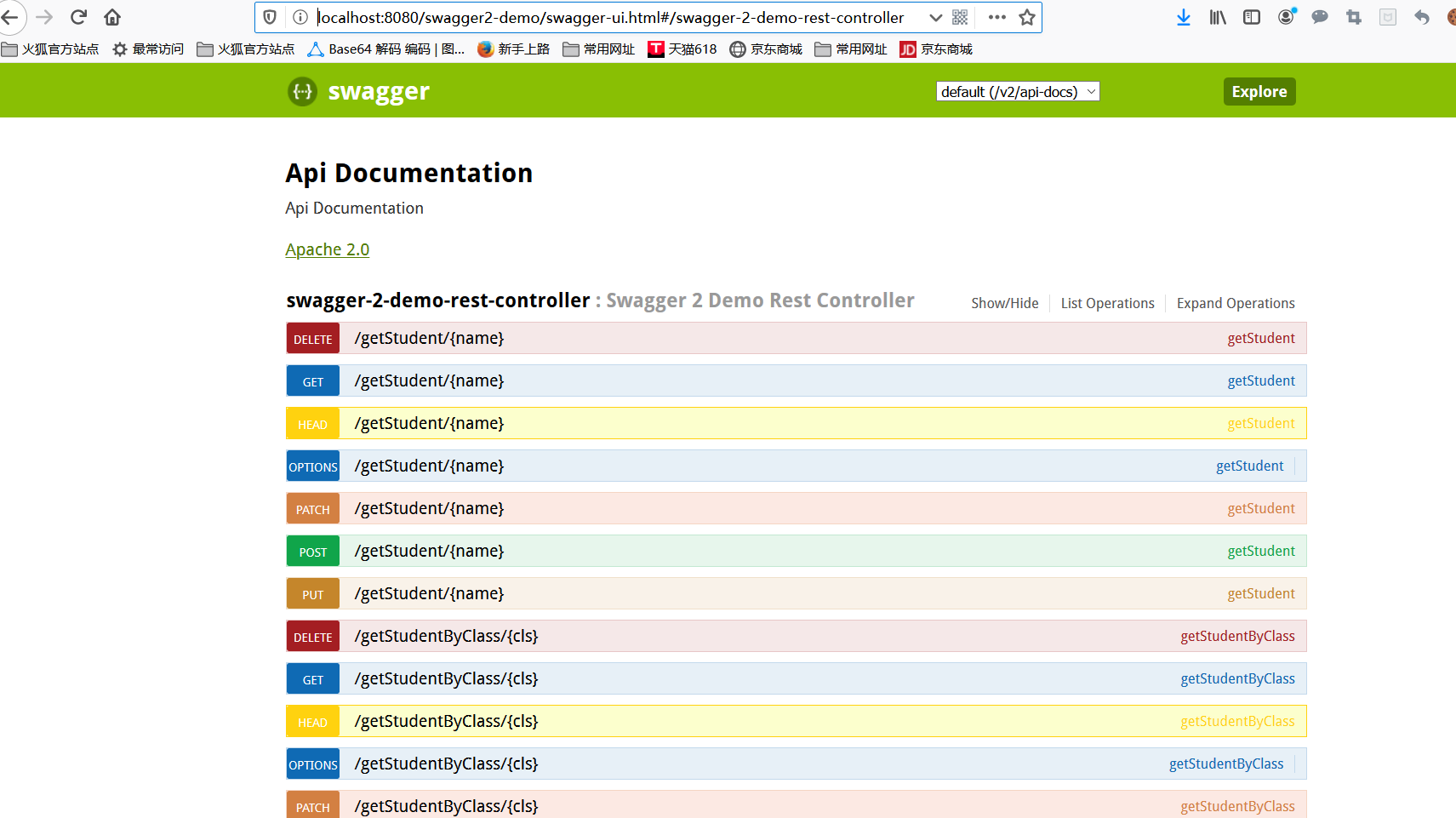

7、验证Swagger2 UI文档

打开链接http://localhost:8080/swagger2-demo/swagger-ui.html#/swagger-2-demo-rest-controller 在浏览器中来查看Swagger UI文档

8、默认生成的API文档很好，但是它们缺乏详细的API级别信息。Swagger提供了一些注释，可以将这些详细信息添加到api中。如：@Api –我们可以添加这个注解在controller上,去添加一个基本的controller说明，@ApiOperation and @ApiResponses – 我们添加这个注解到任何controller的rest方法上来给方法添加基本的描述

新的Swagger2DemoRestController.java

package com.testswagger.controller;

import com.testswagger.model.Student;
import io.swagger.annotations.Api;
import io.swagger.annotations.ApiOperation;
import io.swagger.annotations.ApiResponse;
import io.swagger.annotations.ApiResponses;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import java.util.ArrayList;
import java.util.List;
import java.util.stream.Collectors;

/**
 * @author xmh
 * @description swagger的controller
 * @Date 2020/1/7
 */

@Api(value = "Swagger2DemoRestController", description = "REST Apis related to Student Entity!!!!")
@RestController
public class Swagger2DemoRestController {
    List<Student> students = new ArrayList<Student>();
    {
        students.add(new Student("Sajal", "IV", "India"));
        students.add(new Student("Lokesh", "V", "India"));
        students.add(new Student("Kajal", "III", "USA"));
        students.add(new Student("Sukesh", "VI", "USA"));
    }

    @ApiOperation(value = "Get list of Students in the System ", response = Iterable.class, tags = "getStudents")
    @ApiResponses(value = {
            @ApiResponse(code = 200, message = "Suceess|OK"),
            @ApiResponse(code = 401, message = "not authorized!"),
            @ApiResponse(code = 403, message = "forbidden!!!"),
            @ApiResponse(code = 404, message = "not found!!!") })
    @RequestMapping(value = "/getStudents")
    public List<Student> getStudents() {
        return students;
    }

    @ApiOperation(value = "Get specific Student in the System ", response = Student.class, tags = "getStudent")
    @RequestMapping(value = "/getStudent/{name}")
    public Student getStudent(@PathVariable(value = "name") String name) {
        return students.stream().filter(x -> x.getName().equalsIgnoreCase(name)).collect(Collectors.toList()).get(0);
    }

    @ApiOperation(value = "Get specific Student By Country in the System ", response = Student.class, tags = "getStudentByCountry")
    @RequestMapping(value = "/getStudentByCountry/{country}")
    public List<Student> getStudentByCountry(@PathVariable(value = "country") String country) {
        System.out.println("Searching Student in country : " + country);
        List<Student> studentsByCountry = students.stream().filter(x -> x.getCountry().equalsIgnoreCase(country))
                .collect(Collectors.toList());
        System.out.println(studentsByCountry);
        return studentsByCountry;
    }

    @RequestMapping(value = "/getStudentByClass/{cls}")
    public List<Student> getStudentByClass(@PathVariable(value = "cls") String cls) {
        return students.stream().filter(x -> x.getCls().equalsIgnoreCase(cls)).collect(Collectors.toList());
    }
}

新的Student.java

package com.testswagger.model;

import io.swagger.annotations.ApiModelProperty;

/**
 * @author xmh
 * @description Student实体类
 * @Date 2020/1/7
 */
public class Student {
    @ApiModelProperty(notes = "Name of the Student",name="name",required=true,value="test name")
    private String name;
    @ApiModelProperty(notes = "Class of the Student",name="cls",required=true,value="test class")
    private String cls;
    @ApiModelProperty(notes = "Country of the Student",name="country",required=true,value="test country")
    private String country;

    public Student(String name, String cls, String country) {
        super();
        this.name = name;
        this.cls = cls;
        this.country = country;
    }

    public String getName() {
        return name;
    }

    public String getCls() {
        return cls;
    }

    public String getCountry() {
        return country;
    }

    @Override
    public String toString() {
        return "Student [name=" + name + ", cls=" + cls + ", country=" + country + "]";
    }
}

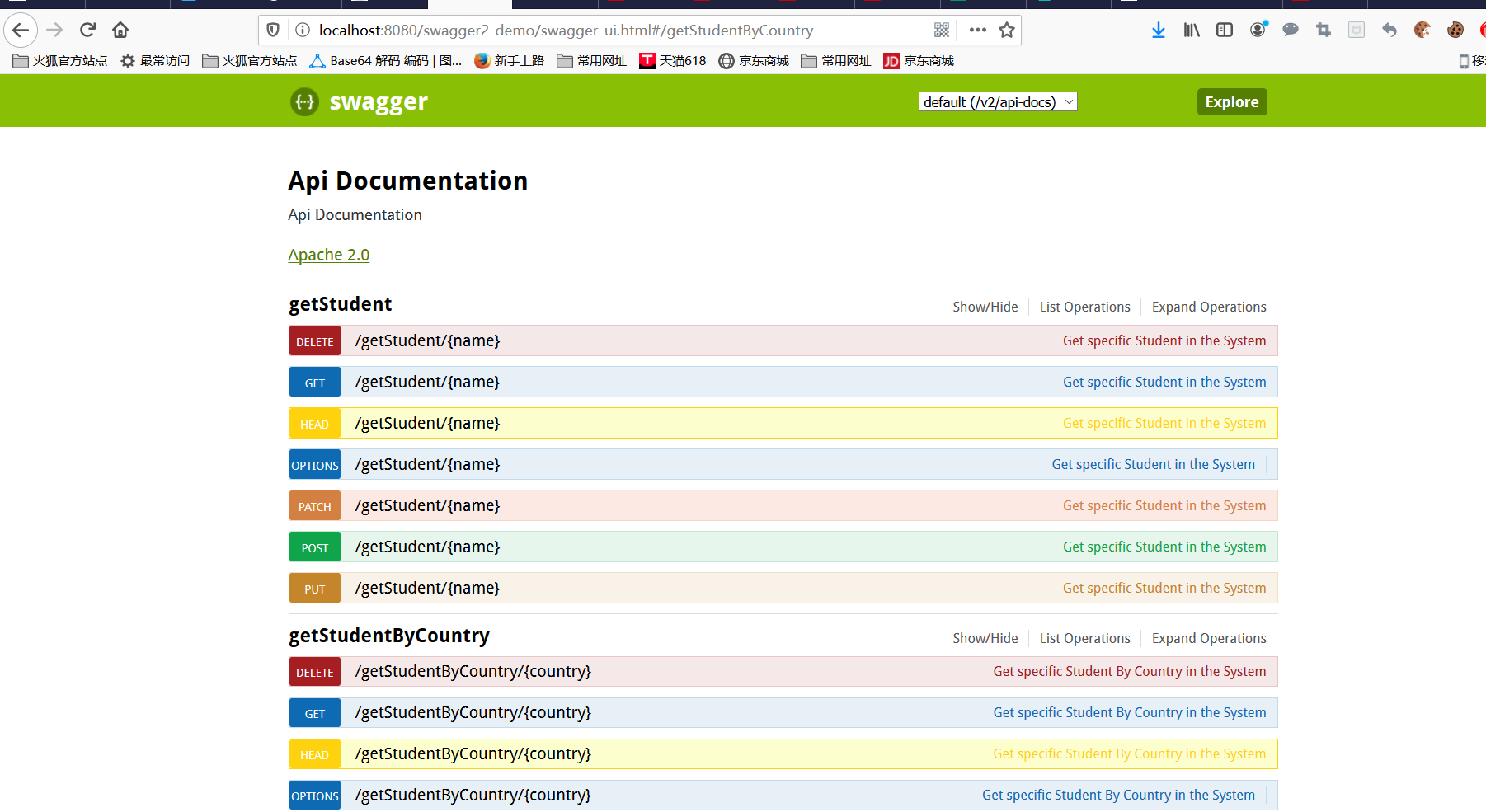

9、打开http://localhost:8080/swagger2-demo/swagger-ui.html 在浏览器中查看Swagger ui 文档。
