SQL Server 透明数据加密TDE for AlwaysOn

雨燕双飞 提交于 2020-01-17 03:19:55

 上篇留下了一个问题,如何将已启用TDE的数据库加入AG?https://blog.csdn.net/Hehuyi_In/article/details/102926952

实际上TDE for AlwaysOn分两种情况:

  • 对已在AG中的数据库启用TDE
  • 已启用TDE的数据库加入AG(更复杂)

注意如果在数据库镜像、日志传送、AlwaysOn中使用TDE,则主从数据库都将被加密,不必显式启用辅助数据库加密,事务日志在它们之间发送时将被加密。



一、 对已在AG中的数据库设置TDE

注意以下步骤如果已经有的则不需要再建,否则会报错

1. 主节点建DMK

无域alwayson已创建,此步可忽略

USE MASTER
GO
-- Create a Master Key
CREATE MASTER KEY ENCRYPTION BY Password = '<password>';

-- Backup the Master Key
BACKUP MASTER KEY
TO FILE = '\\<PRIMARYSERVERNAME>\E$\MSSQL\TDE\<PRIMARYSERVERNAME>_BACKUPKEY'
ENCRYPTION BY Password = '<password>';

2. 主节点建证书

无域alwayson已创建,此步可忽略

-- Create Certificate Protected by Master Key
CREATE Certificate TDECert WITH Subject = 'TDE_CERT';

-- Backup the Certificate
BACKUP Certificate TDECert
  TO FILE = 'C:\TDE\TDECert_backup'
WITH Private KEY (FILE = 'C:\TDE\TDECert_key',
ENCRYPTION BY Password = 'xxx');

3. 主节点建DEK

USE testag
GO
-- Create a Database Encryption Key
CREATE DATABASE ENCRYPTION KEY
WITH ALGORITHM = AES_128
ENCRYPTION BY SERVER CERTIFICATE TDECert;
GO

4. 从节点创建及备份DMK

无域alwayson已创建,此步可忽略

-- 检查DMK是否已存在
USE MASTER;
GO
SELECT * FROM sys.symmetric_keys WHERE name = '##MS_DatabaseMasterKey##'

-- 若不存在则创建
CREATE MASTER KEY ENCRYPTION BY Password = '<password>';

-- 备份DMK
BACKUP MASTER KEY
TO FILE = '\\<SECONDARYSERVERNAME>\E$\MSSQL\TDE\<SECONDARYSERVERNAME>_BACKUPKEY'
ENCRYPTION BY Password = '<password>';

5. 从节点创建及备份证书

无域alwayson已创建,此步可忽略

-- Create Certificate Protected by Master Key
CREATE CERTIFICATE TDECert
FROM FILE = 'C:\TDE\TDECert_backup'
WITH PRIVATE KEY (FILE = 'C:\TDE\TDECert_key',
DECRYPTION BY PASSWORD = 'xxx');
GO

-- Backup the Certificate
BACKUP Certificate TDECert
  TO FILE = 'C:\TDE\TDECert_backup'
WITH Private KEY (FILE = 'C:\TDE\TDECert_key',
ENCRYPTION BY Password = 'xxx');

6. 主节点启用TDE

ALTER DATABASE testag SET ENCRYPTION ON;

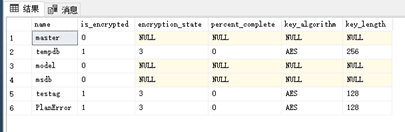

7. 检查加密情况

USE MASTER;
GO
SELECT db.name,db.is_encrypted,dm.encryption_state,dm.percent_complete,dm.key_algorithm,dm.key_length
FROM sys.databases db LEFT OUTER JOIN sys.dm_database_encryption_keys dm ON db.database_id = dm.database_id;

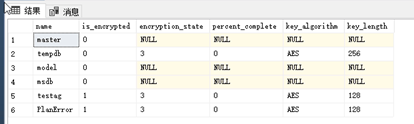

主节点

从节点



二、 已启用TDE的数据库加入AG

更复杂,无法使用向导工具将TDE加密库加入AG,只能手动添加。

1. 主节点建DMK

无域alwayson已创建,此步可忽略

-- 主节点是否存在DMK
USE master;
GO
SELECT * FROM  sys.symmetric_keys WHERE name = '##MS_DatabaseMasterKey##'
-- 若不存在则创建
CREATE MASTER KEY ENCRYPTION BY Password = '<password>';

2. 主节点备份证书

无域alwayson已创建,此步可忽略

-- 证书是否存在
USE master;
GO
SELECT db_name(database_id) DatabaseName,cer.name as CertificateName
FROM sys.dm_database_encryption_keys dek INNER JOIN sys.certificates cer ON dek.encryptor_thumbprint = cer.thumbprint
WHERE db_name(database_id) ='<TDE_DATABASE>'

-- 备份证书
BACKUP Certificate <PRIMARYSERVERNAME>_CERT TO FILE = '\\<PRIMARYSERVERNAME>\E$\MSSQL\TDE\<PRIMARYSERVERNAME>_BACKUPCERT'
WITH Private KEY (FILE = '\\<PRIMARYSERVERNAME>\E$\MSSQL\TDE\<PRIMARYSERVERNAME>_PRIVKEY',ENCRYPTION BY Password = '<password>');

3. 从节点利用主节点的证书备份创建新证书

需要先将主库证书拷贝至从库再创建,无域alwayson已创建,此步可忽略

-- Create Certificate Protected by Master
CREATE CERTIFICATE TDECert
FROM FILE = 'C:\TDE\TDECert_backup'
WITH PRIVATE KEY (FILE = 'C:\TDE\TDECert_key',
DECRYPTION BY PASSWORD = 'xxx');
GO

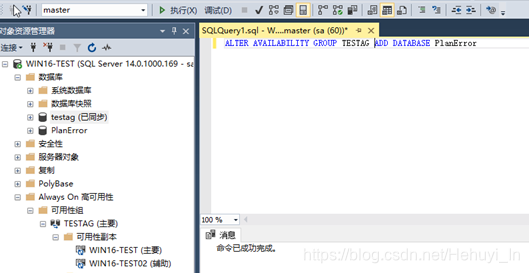

4. 主节点将DB加入AG

ALTER AVAILABILITY GROUP <AGNAME> ADD DATABASE <TDE_DATABASE>;

5. 主节点做DB全备+日志备份

全备

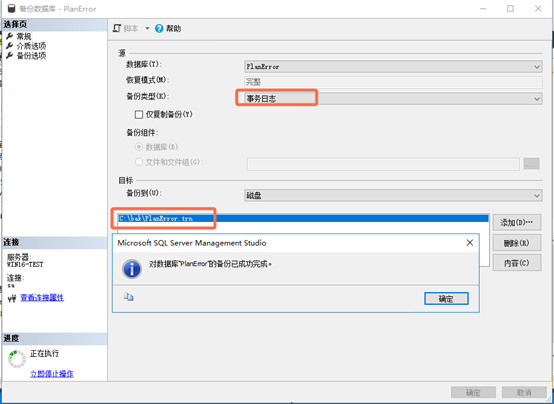

日志备份

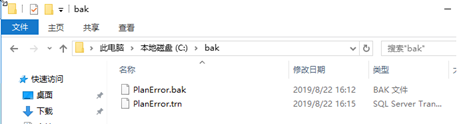

备份文件传至备库



6.  从节点,还原全备及日志备份

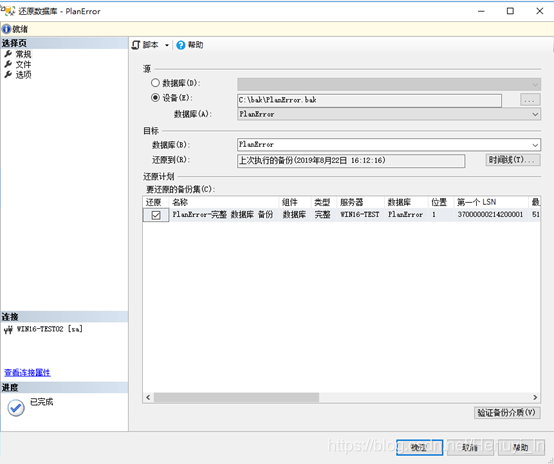

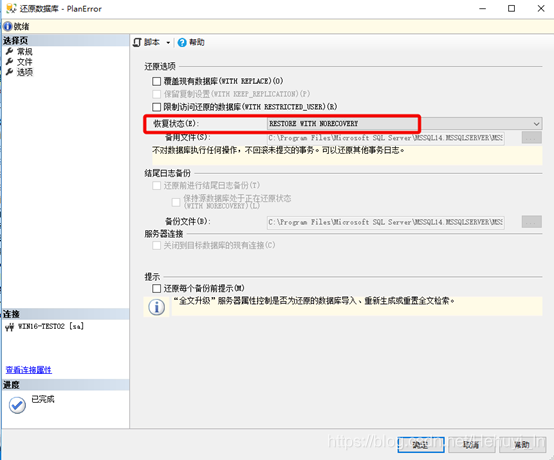

还原全备,注意选项选restore with norecovery

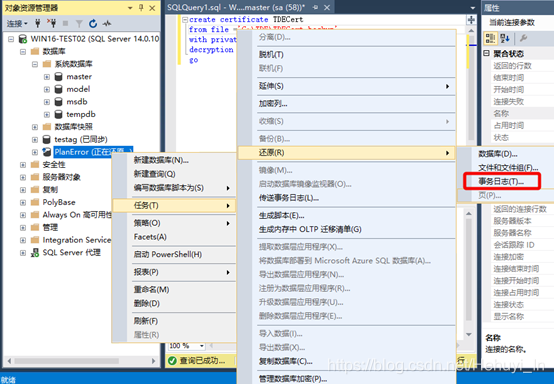

db状态变为正在还原

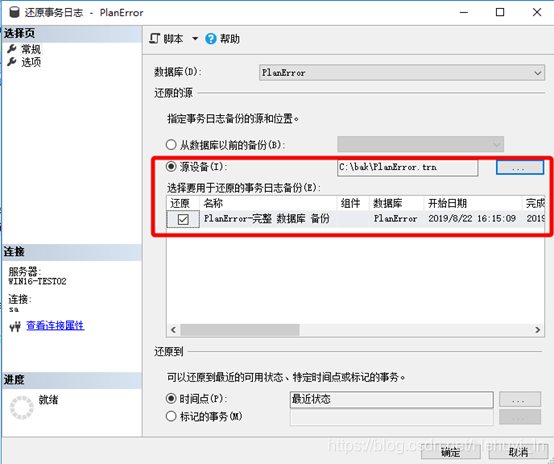

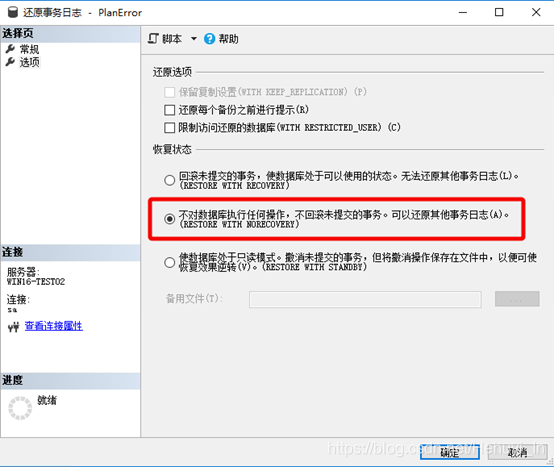

还原事务日志,注意选项同样选restore with norecovery

此时DB状态还是正在还原

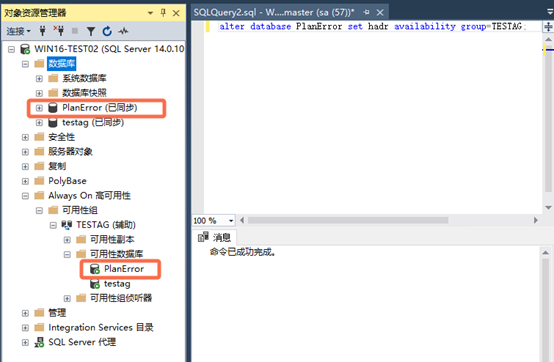

7.  从节点将DB加入AG

USE master;
go
ALTER DATABASE PlanError SET HADR AVAILABILITY GROUP = TESTAG;

测试也可看到数据已同步



参考

https://www.sqlservercentral.com/articles/enabling-tde-on-databases-in-an-alwayson-scenario

http://mysql.taobao.org/monthly/2016/05/06/
