使用xxl-sso实现单点登录

XXL-SSO 是一个分布式单点登录框架。只需要登录一次就可以访问所有相互信任的应用系统。拥有"轻量级、分布式、跨域、Cookie+Token均支持、Web+APP均支持"等特性。
以下是它的github地址以及文档地址。

话不多说，先将该项目的代码从github上clone下来。

git clone https://github.com/xuxueli/xxl-sso.git

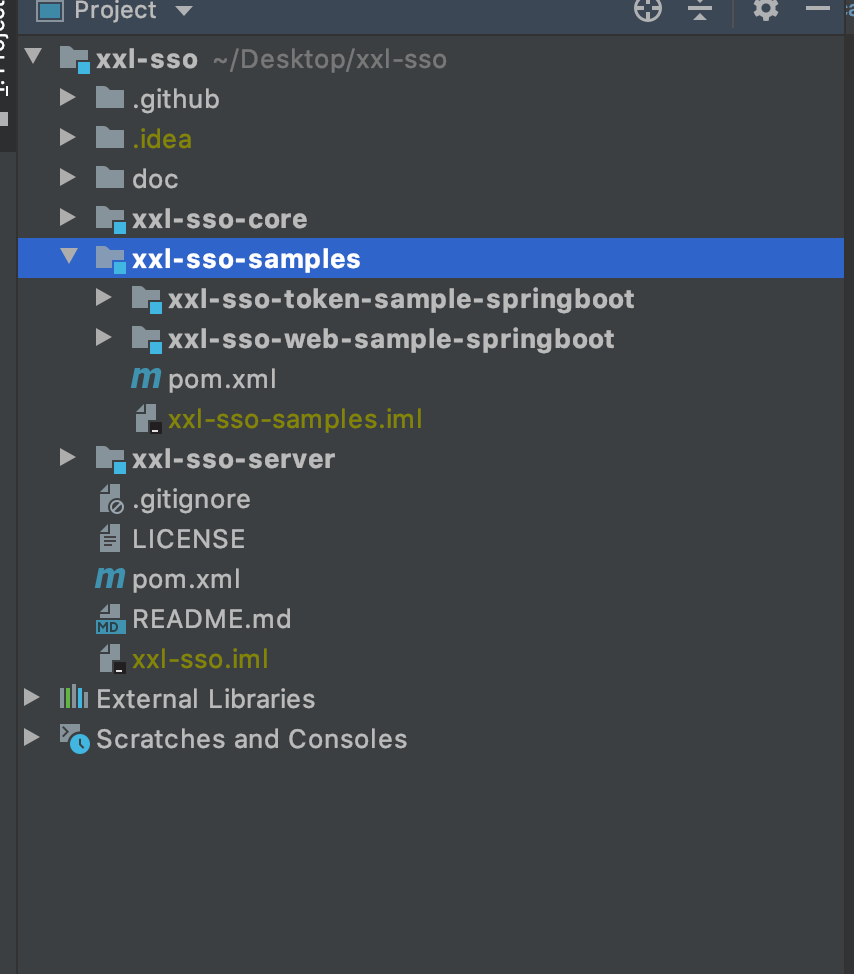

代码整体结构如下
在这里插入图片描述
如图中所示，xxl-sso-core是整个项目的核心，是由它来实现整个单点登录的过程，XxlSsoWebFilter,代码如下：

package com.xxl.sso.core.filter;

import com.xxl.sso.core.conf.Conf;
import com.xxl.sso.core.entity.ReturnT;
import com.xxl.sso.core.login.SsoTokenLoginHelper;
import com.xxl.sso.core.path.impl.AntPathMatcher;
import com.xxl.sso.core.user.XxlSsoUser;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

import javax.servlet.*;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;

/**
 * app sso filter
 *
 * @author xuxueli 2018-04-08 21:30:54
 */
public class XxlSsoTokenFilter extends HttpServlet implements Filter {
    private static Logger logger = LoggerFactory.getLogger(XxlSsoTokenFilter.class);

    private static final AntPathMatcher antPathMatcher = new AntPathMatcher();

    private String ssoServer;
    private String logoutPath;
    private String excludedPaths;

    @Override
    public void init(FilterConfig filterConfig) throws ServletException {

        ssoServer = filterConfig.getInitParameter(Conf.SSO_SERVER);
        logoutPath = filterConfig.getInitParameter(Conf.SSO_LOGOUT_PATH);
        excludedPaths = filterConfig.getInitParameter(Conf.SSO_EXCLUDED_PATHS);

        logger.info("XxlSsoTokenFilter init.");
    }

    @Override
    public void doFilter(ServletRequest request, ServletResponse response, FilterChain chain) throws IOException, ServletException {
        HttpServletRequest req = (HttpServletRequest) request;
        HttpServletResponse res = (HttpServletResponse) response;

        // make url
        String servletPath = req.getServletPath();

        // excluded path check
        if (excludedPaths!=null && excludedPaths.trim().length()>0) {
            for (String excludedPath:excludedPaths.split(",")) {
                String uriPattern = excludedPath.trim();

                // 支持ANT表达式
                if (antPathMatcher.match(uriPattern, servletPath)) {
                    // excluded path, allow
                    chain.doFilter(request, response);
                    return;
                }

            }
        }

        // logout filter
        if (logoutPath!=null
                && logoutPath.trim().length()>0
                && logoutPath.equals(servletPath)) {

            // logout
            SsoTokenLoginHelper.logout(req);

            // response
            res.setStatus(HttpServletResponse.SC_OK);
            res.setContentType("application/json;charset=UTF-8");
            res.getWriter().println("{\"code\":"+ReturnT.SUCCESS_CODE+", \"msg\":\"\"}");

            return;
        }

        // login filter
        XxlSsoUser xxlUser = SsoTokenLoginHelper.loginCheck(req);
        if (xxlUser == null) {

            // response
            res.setStatus(HttpServletResponse.SC_OK);
            res.setContentType("application/json;charset=UTF-8");
            res.getWriter().println("{\"code\":"+Conf.SSO_LOGIN_FAIL_RESULT.getCode()+", \"msg\":\""+ Conf.SSO_LOGIN_FAIL_RESULT.getMsg() +"\"}");
            return;
        }

        // ser sso user
        request.setAttribute(Conf.SSO_USER, xxlUser);


        // already login, allow
        chain.doFilter(request, response);
        return;
    }


}

excludedPaths用于实现将不需要被拦截的请求路径排除在外，在访问时不会被这个filter所拦截，XxlSsoWebFilter是基于cookie实现的，即在登录认证中心时，会将XxlSsoUser这个对象存入到cookie中，再由这里去判断是否在cookie中存在该对象，存在则放行。还有一种是基于token实现的，大致原理和cookie实现的一致。
xxl-sso-server，即它的服务端，它功能的核心主要在WebController/AppController下，分别代表cookie和token这两种单点登录模式，代码如下所示：

package com.xxl.sso.server.controller;

import com.xxl.sso.core.conf.Conf;
import com.xxl.sso.core.login.SsoWebLoginHelper;
import com.xxl.sso.core.store.SsoLoginStore;
import com.xxl.sso.core.user.XxlSsoUser;
import com.xxl.sso.core.store.SsoSessionIdHelper;
import com.xxl.sso.server.core.model.UserInfo;
import com.xxl.sso.server.core.result.ReturnT;
import com.xxl.sso.server.service.UserService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.servlet.mvc.support.RedirectAttributes;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.util.UUID;

/**
 * sso server (for web)
 *
 * @author xuxueli 2017-08-01 21:39:47
 */
@Controller
public class WebController {

    @Autowired
    private UserService userService;

    @RequestMapping("/")
    public String index(Model model, HttpServletRequest request, HttpServletResponse response) {

        // login check
        XxlSsoUser xxlUser = SsoWebLoginHelper.loginCheck(request, response);

        if (xxlUser == null) {
            return "redirect:/login";
        } else {
            model.addAttribute("xxlUser", xxlUser);
            return "index";
        }
    }

    /**
     * Login page
     *
     * @param model
     * @param request
     * @return
     */
    @RequestMapping(Conf.SSO_LOGIN)
    public String login(Model model, HttpServletRequest request, HttpServletResponse response) {

        // login check
        XxlSsoUser xxlUser = SsoWebLoginHelper.loginCheck(request, response);

        if (xxlUser != null) {

            // success redirect
            String redirectUrl = request.getParameter(Conf.REDIRECT_URL);
            if (redirectUrl!=null && redirectUrl.trim().length()>0) {

                String sessionId = SsoWebLoginHelper.getSessionIdByCookie(request);
                String redirectUrlFinal = redirectUrl + "?" + Conf.SSO_SESSIONID + "=" + sessionId;;

                return "redirect:" + redirectUrlFinal;
            } else {
                return "redirect:/";
            }
        }

        model.addAttribute("errorMsg", request.getParameter("errorMsg"));
        model.addAttribute(Conf.REDIRECT_URL, request.getParameter(Conf.REDIRECT_URL));
        return "login";
    }

    /**
     * Login
     *
     * @param request
     * @param redirectAttributes
     * @param username
     * @param password
     * @return
     */
    @RequestMapping("/doLogin")
    public String doLogin(HttpServletRequest request,
                        HttpServletResponse response,
                        RedirectAttributes redirectAttributes,
                        String username,
                        String password,
                        String ifRemember) {

        boolean ifRem = (ifRemember!=null&&"on".equals(ifRemember))?true:false;

        // valid login
        ReturnT<UserInfo> result = userService.findUser(username, password);
        if (result.getCode() != ReturnT.SUCCESS_CODE) {
            redirectAttributes.addAttribute("errorMsg", result.getMsg());

            redirectAttributes.addAttribute(Conf.REDIRECT_URL, request.getParameter(Conf.REDIRECT_URL));
            return "redirect:/login";
        }

        // 1、make xxl-sso user
        XxlSsoUser xxlUser = new XxlSsoUser();
        xxlUser.setUserid(String.valueOf(result.getData().getUserid()));
        xxlUser.setUsername(result.getData().getUsername());
        xxlUser.setVersion(UUID.randomUUID().toString().replaceAll("-", ""));
        xxlUser.setExpireMinute(SsoLoginStore.getRedisExpireMinute());
        xxlUser.setExpireFreshTime(System.currentTimeMillis());


        // 2、make session id
        String sessionId = SsoSessionIdHelper.makeSessionId(xxlUser);

        // 3、login, store storeKey + cookie sessionId
        SsoWebLoginHelper.login(response, sessionId, xxlUser, ifRem);

        // 4、return, redirect sessionId
        String redirectUrl = request.getParameter(Conf.REDIRECT_URL);
        if (redirectUrl!=null && redirectUrl.trim().length()>0) {
            String redirectUrlFinal = redirectUrl + "?" + Conf.SSO_SESSIONID + "=" + sessionId;
            return "redirect:" + redirectUrlFinal;
        } else {
            return "redirect:/";
        }

    }

    /**
     * Logout
     *
     * @param request
     * @param redirectAttributes
     * @return
     */
    @RequestMapping(Conf.SSO_LOGOUT)
    public String logout(HttpServletRequest request, HttpServletResponse response, RedirectAttributes redirectAttributes) {

        // logout
        SsoWebLoginHelper.logout(request, response);

        redirectAttributes.addAttribute(Conf.REDIRECT_URL, request.getParameter(Conf.REDIRECT_URL));
        return "redirect:/login";
    }


}

其中一共提供了4个接口,第一个不用多说，很简单，从cookie中获取user，存在则放行，不存在则重定向到登录页面。第二个接口"/login",和第一个很类似，唯一不同的是从请求上下文中获取的重定向的url，由此可判断这个接口应该是提供给客户端用的，单点成功则重定向到指定页面，不成功则返回登录界面。第三个接口"/doLogin",是登录接口，从代码中判断是控制登录逻辑的，使用者可以在这个接口中自定义登录逻辑，满足条件的时候生成XxoUser对象，并以此生成sessionId,并存入cookie中，最后放行。最后一个是登出接口，登出时清除cookie和redis中存放的sessionId,即登录态取消。以下是server端的配置文件，没有什么特别的地方，唯一注意的就是redis带密码时候的配置写法。

### web
server.port=8080
server.context-path=/xxl-sso-server

### resources
spring.mvc.static-path-pattern=/static/**
spring.resources.static-locations=classpath:/static/

### freemarker
spring.freemarker.templateLoaderPath=classpath:/templates/
spring.freemarker.suffix=.ftl
spring.freemarker.charset=UTF-8
spring.freemarker.request-context-attribute=request
spring.freemarker.settings.number_format=0.##########

### xxl-sso
xxl.sso.redis.address=redis://xxl-sso:123456@127.0.0.1:6379/0
xxl.sso.redis.expire.minute=1440

启动前需要修改logback.xml中生成日志的地址，否则启动会报错。
之后启动xxl-sso-samples下的xxl-sso-web-sample-springboot，同样是修改配置文件和logback.xml。这个项目下主要就是你想被单点访问到的地址。在XxlSsoConfig中注入了一个bean，叫xxlSsoFilterRegistration，这个主要是将核心包下的filter过滤器加入进来，实现拦截请求，重定向到认证中心去登录。

 @Bean
    public FilterRegistrationBean xxlSsoFilterRegistration() {

        // xxl-sso, redis init
        JedisUtil.init(xxlSsoRedisAddress);

        // xxl-sso, filter init
        FilterRegistrationBean registration = new FilterRegistrationBean();

        registration.setName("XxlSsoWebFilter");
        registration.setOrder(1);
        registration.addUrlPatterns("/*");
        registration.setFilter(new XxlSsoWebFilter());
        registration.addInitParameter(Conf.SSO_SERVER, xxlSsoServer);
        registration.addInitParameter(Conf.SSO_LOGOUT_PATH, xxlSsoLogoutPath);
        registration.addInitParameter(Conf.SSO_EXCLUDED_PATHS, xxlSsoExcludedPaths);

        return registration;
    }

启动项目，访问http://localhost:8081/xxl-sso-web-sample-springboot/
在这里插入图片描述

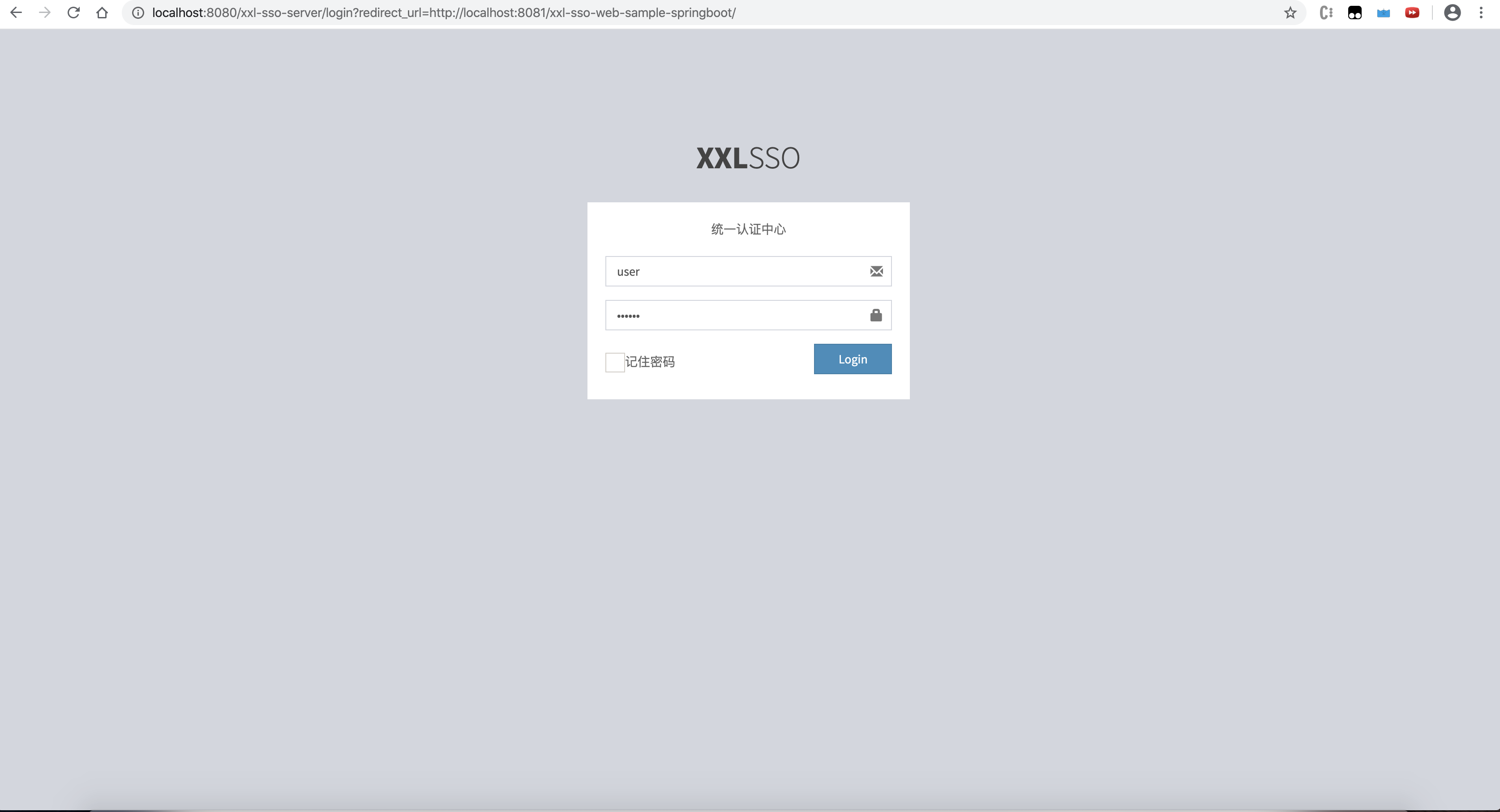

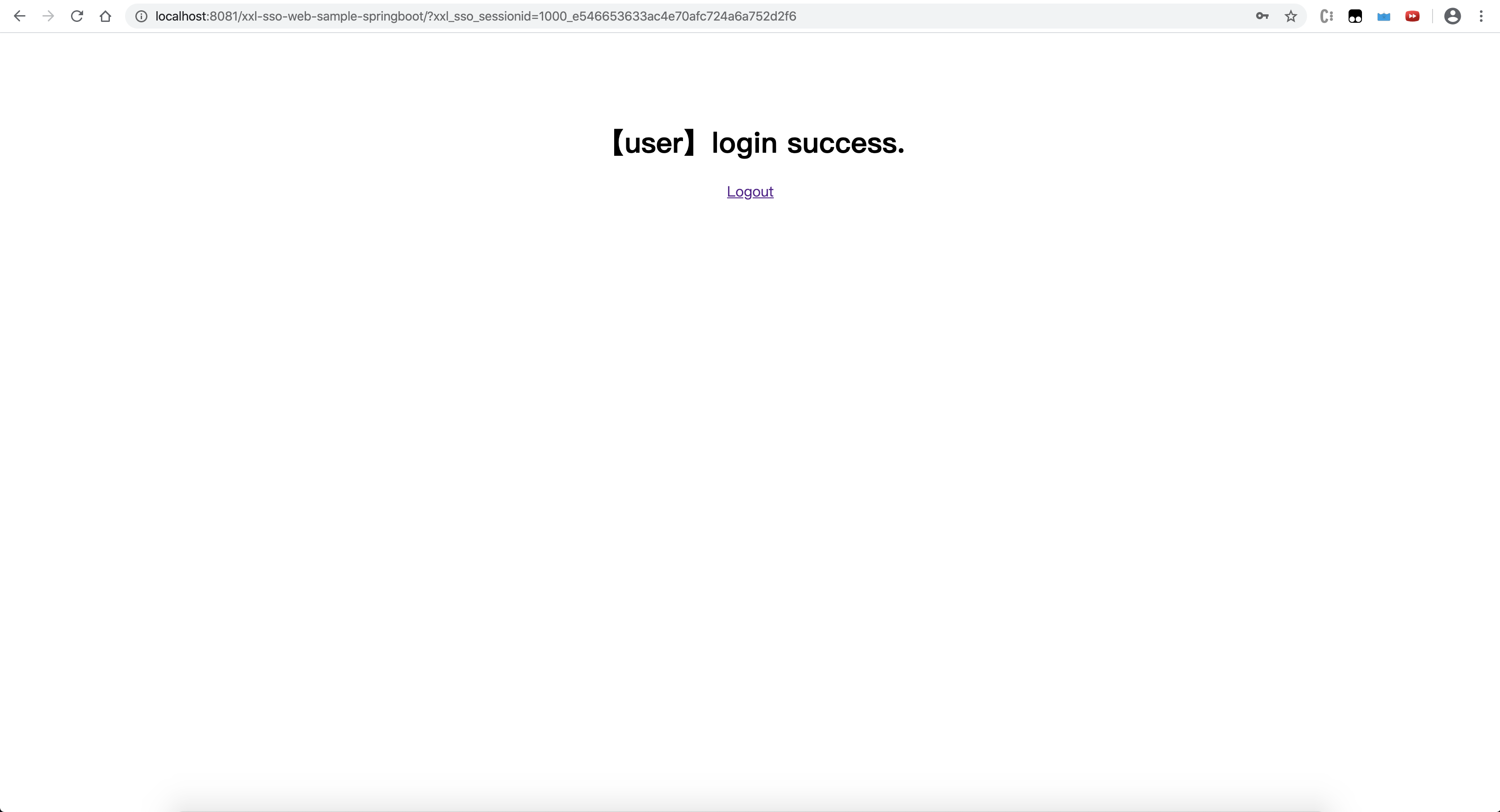

可以看到它被重定向到了认证中心，后面redirect_url是你要实现单点登录的地址。登陆成功，此时我们可以做一个测试，不携带后面的sessionId直接去访问该地址，发现登录态依然存在。由此证明，我们的单点登录demo已经成功了。
在这里插入图片描述
token版的中心思想和cookie版的基本一致，只是在登录成功后会生成一个token秘钥，并存放在redis中，单点登录时，在header中增加该凭证即可单点成功。
