SSM+ElementUI综合练习

SSM

ssm -->springmvc+spring+mybatis

步骤:

1)新建maven web项目，导入pom.xml 加入依赖 -- 注意:把网络开启

<properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <maven.compiler.source>1.7</maven.compiler.source>
    <maven.compiler.target>1.7</maven.compiler.target>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <!-- spring版本号 -->
    <spring.version>4.1.2.RELEASE</spring.version>
    <!-- mybatis版本号 -->
    <mybatis.version>3.2.1</mybatis.version>
    <!-- log4j日志文件管理包版本 -->
    <slf4j.version>1.7.2</slf4j.version>
    <log4j.version>1.2.17</log4j.version>
    <!-- jackson包版本 -->
    <jackson.version>2.5.0</jackson.version>

  </properties>

  <dependencies>
    <dependency>
      <groupId>junit</groupId>
      <artifactId>junit</artifactId>
      <version>4.11</version>
      <scope>test</scope>
    </dependency>
    <!--Spring核心-->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-aop</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-aspects</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-beans</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-context</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-core</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-expression</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-jdbc</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-test</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-tx</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>commons-logging</groupId>
      <artifactId>commons-logging</artifactId>
      <version>1.1.1</version>
    </dependency>

    <!--SpringMVC-->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-web</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-webmvc</artifactId>
      <version>${spring.version}</version>
    </dependency>

    <!--aop依赖包-->
    <dependency>
      <groupId>aopalliance</groupId>
      <artifactId>aopalliance</artifactId>
      <version>1.0</version>
    </dependency>
    <dependency>
      <groupId>org.aspectj</groupId>
      <artifactId>aspectjweaver</artifactId>
      <version>1.6.8</version>
    </dependency>

    <!--文件上传-->
    <dependency>
      <groupId>commons-fileupload</groupId>
      <artifactId>commons-fileupload</artifactId>
      <version>1.3.1</version>
    </dependency>
    <dependency>
      <groupId>commons-io</groupId>
      <artifactId>commons-io</artifactId>
      <version>2.2</version>
    </dependency>
    <!--jackson-->
    <dependency>
      <groupId>com.fasterxml.jackson.core</groupId>
      <artifactId>jackson-databind</artifactId>
      <version>${jackson.version}</version>
    </dependency>
    <dependency>
      <groupId>com.fasterxml.jackson.core</groupId>
      <artifactId>jackson-core</artifactId>
      <version>${jackson.version}</version>
    </dependency>
    <dependency>
      <groupId>com.fasterxml.jackson.core</groupId>
      <artifactId>jackson-annotations</artifactId>
      <version>${jackson.version}</version>
    </dependency>

    <!--数据库连接池-->
    <dependency>
      <groupId>commons-dbcp</groupId>
      <artifactId>commons-dbcp</artifactId>
      <version>1.2.2</version>
    </dependency>
    <dependency>
      <groupId>commons-pool</groupId>
      <artifactId>commons-pool</artifactId>
      <version>1.5.3</version>
    </dependency>

    <!--Mybatis集成-->
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis</artifactId>
      <version>${mybatis.version}</version>
    </dependency>
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis-spring</artifactId>
      <version>1.2.0</version>
    </dependency>

    <!--log4j-->
    <dependency>
      <groupId>log4j</groupId>
      <artifactId>log4j</artifactId>
      <version>${log4j.version}</version>
    </dependency>

    <!--slf4j-->
    <dependency>
      <groupId>org.slf4j</groupId>
      <artifactId>slf4j-api</artifactId>
      <version>${slf4j.version}</version>
    </dependency>
    <dependency>
      <groupId>org.slf4j</groupId>
      <artifactId>slf4j-log4j12</artifactId>
      <version>${slf4j.version}</version>
      <scope>test</scope>
    </dependency>

    <!--数据库连接驱动-->
    <dependency>
      <groupId>mysql</groupId>
      <artifactId>mysql-connector-java</artifactId>
      <version>5.1.46</version>
    </dependency>

    <!-- JSTL标签类 -->
    <dependency>
      <groupId>jstl</groupId>
      <artifactId>jstl</artifactId>
      <version>1.2</version>
    </dependency>

    <!--servlet-->
    <dependency>
      <groupId>javax.servlet</groupId>
      <artifactId>javax.servlet-api</artifactId>
      <version>3.0.1</version>
      <scope>provided</scope>
    </dependency>

    <dependency>
      <groupId>javax.servlet.jsp</groupId>
      <artifactId>jsp-api</artifactId>
      <version>2.2</version>
      <scope>provided</scope>
    </dependency>

  </dependencies>

2)配置

   web.xml

<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xmlns="http://java.sun.com/xml/ns/javaee"
         xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd"
         version="3.0">

<display-name>Archetype Created Web Application</display-name>
  <!-- Spring的配置文件 -->
  <context-param>
    <param-name>contextConfigLocation</param-name>
    <param-value>classpath:applicationContext.xml</param-value>
  </context-param>
  <!--Spring监听器 ApplicationContext 载入 -->
  <listener>
    <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
  </listener>

  <!-- Spring MVC 核心配置开始 -->
  <servlet>
    <servlet-name>springmvc</servlet-name>
    <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
    <init-param>
      <param-name>contextConfigLocation</param-name>
      <param-value>classpath:applicationContext-mvc.xml</param-value>
    </init-param>
    <load-on-startup>1</load-on-startup>
  </servlet>
  <servlet-mapping>
    <servlet-name>springmvc</servlet-name>
    <url-pattern>/</url-pattern>
  </servlet-mapping>

  <!-- 编码过滤器 -->
  <filter>
    <filter-name>encodingFilter</filter-name>
    <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
    <init-param>
      <param-name>encoding</param-name>
      <param-value>UTF-8</param-value>
    </init-param>
  </filter>
  <filter-mapping>
    <filter-name>encodingFilter</filter-name>
    <url-pattern>/*</url-pattern>
  </filter-mapping>
</web-app>

   applicationContext.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context" xmlns:tx="http://www.springframework.org/schema/tx"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd">

    <!--扫描的包-->
    <context:component-scan base-package="cn.itsource.ssm.service"/>

    <!-- Jdbc配置文件 -->
    <context:property-placeholder location="classpath:db.properties" />

    <!-- 数据源dataSource -->
    <bean id="dataSource" class="org.apache.commons.dbcp.BasicDataSource" destroy-method="close">
        <property name="driverClassName" value="${jdbc.driverClassName}" />
        <property name="url" value="${jdbc.url}" />
        <property name="username" value="${jdbc.username}" />
        <property name="password" value="${jdbc.password}" />
        <!--maxActive: 最大连接数量 -->
        <property name="maxActive" value="150" />
        <!--minIdle: 最小空闲连接 -->
        <property name="minIdle" value="5" />
        <!--maxIdle: 最大空闲连接 -->
        <property name="maxIdle" value="20" />
        <!--initialSize: 初始化连接 -->
        <property name="initialSize" value="30" />
        <!--maxWait: 超时等待时间以毫秒为单位 1000等于60秒 -->
        <property name="maxWait" value="1000" />
        <!-- 在空闲连接回收器线程运行期间休眠的时间值,以毫秒为单位. -->
        <property name="timeBetweenEvictionRunsMillis" value="10000" />
        <!-- 在每次空闲连接回收器线程(如果有)运行时检查的连接数量 -->
        <property name="numTestsPerEvictionRun" value="10" />
        <!-- 1000 * 60 * 30 连接在池中保持空闲而不被空闲连接回收器线程 -->
        <property name="minEvictableIdleTimeMillis" value="10000" />
        <property name="validationQuery" value="SELECT NOW() FROM DUAL" />
    </bean>

    <!--Mybatis核心对象-->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <!-- 注入数据源 -->
        <property name="dataSource" ref="dataSource" />
        <!-- 配置mybatis (mapper)映射器路径 -->
        <property name="mapperLocations" value="classpath*:cn/itsource/ssm/mapper/*Mapper.xml" />
        <!-- 配置mybatis 类型别名 -->
        <property name="typeAliasesPackage">
            <value>
                cn.itsource.ssm.domain
                Cn.itsource.ssm.query
            </value>
        </property>
    </bean>

    <!--注入映射器，一劳永逸的做法-->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <property name="basePackage" value="cn.itsource.ssm.mapper"></property>
    </bean>

    <!--事务管理-->
    <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="dataSource"/>
    </bean>

    <!--以注解的方式进行事务管理-->
    <tx:annotation-driven transaction-manager="transactionManager"/>


</beans>

   applicationContext-mvc.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc.xsd">

    <!-- 自动扫描该包，使SpringMVC认为包下用了@controller注解的类是控制器 -->
    <context:component-scan base-package="cn.itsource.ssm.web.controller" />

    <!-- 启动SpringMVC的注解功能 -->
    <mvc:annotation-driven/>

    <!--静态资源放行-->
    <mvc:default-servlet-handler/>

    <!-- 定义跳转的文件的前后缀 ，视图解析器配置-->
    <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="prefix" value="/WEB-INF/views/" />
        <property name="suffix" value=".jsp" />
    </bean>

    <!-- 配置文件上传解析器 -->
    <bean id="multipartResolver"
          class="org.springframework.web.multipart.commons.CommonsMultipartResolver">
        <!-- 默认编码 -->
        <property name="defaultEncoding" value="utf-8" />
        <!-- 文件大小最大值 -->
        <property name="maxUploadSize" value="10485760000" />
    </bean>
</beans>

   db.properites

jdbc.driverClassName=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql:///ssm?useUnicode=true&characterEncoding=utf-8
jdbc.username=root
jdbc.password=root





         log4j.properties

log4j.rootLogger=ERROR, stdout
#log4j.rootLogger=NONE
log4j.logger.cn.itsource=TRACE
log4j.appender.stdout=org.apache.log4j.ConsoleAppender
log4j.appender.stdout.layout=org.apache.log4j.PatternLayout



3)测试

       4)抽取Base

maven多模块搭建

为什么要搭建多模块？

1.方便维护

2.有些公共的美容，除了这个项目，其他项目（其他模块）也可以使用

3.如果有些代码，不希望任何人去修改，也可以把这些内容单独抽取，放到一个模块里去

4.如果不去拆分项目，随着业务的增加，代码越来越多，编译事件越久

对上面的ssm项目进行改造，将web和service和mapper层分成三个模块，再抽出base的几个模块作为公共模块使用，具体模块结构划分如下图所示：

crm：客户关系管理系统

模块名	放那些内容
basic-util	工具类:Ajaxresult PageList
basic-core	基础核心:核心实现 baseMapper baseService baseServiceImpl baseDomain .....
crm-common	项目对应的公共东西,domain,query
crm-mapper	映射器,*Mapper.java *Mapper.xml
crm-service	业务模块
crm-web  -- applicationContext-mvc	web模块提供数据(接口层)

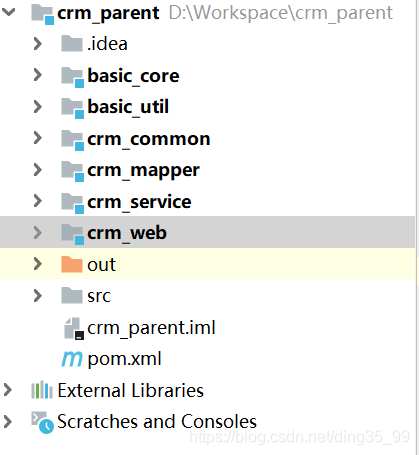

项目结构：

引用关系：

crm_web -->crm_service

crm_service-->crm_mapper

crm_mapper-->crm_common

crm_common-->basic_core

basic_core->basic_util

注意配置文件拆分:

web.xml -->crm_web

applicationContext-mvc.xml-->crm_web

applicationContext.xml -->crm_service

db.properties-->crm_service/crm_mapper

写项目写代码 尽量满足下面内容

开闭原则

对扩展开放

对修改关闭 -- 公共的不要乱修改

低耦合:  尽量的分层开发 service  mapper  controller --为了维护

高内聚:  比如一个方法 (方法就应该完成一个方法该干的事情 save  )  --最多40行

restfull风格

什么叫restfull风格?

restful风格它是http协议扩展 是以资源为核心,通过url定位资源,通过不同请求方式表示操作.(PUT-add,POST-update,DELET-del,GET-获取或查询,PATCH,HEAD,OPTION)

put -- 新增 (修改)

post --修改(新增)

get --查询

delete --删除

patch --查询

head --头信息(不用)

以前我们在发送的请求 常用 get/post, 但是现在发送请求,就要增加 delete/put/options

以前发送请求:

删除: get(post) /deleteProduct?id=1 (动作+资源在一起)

现在删除: --restfull的风格 好处:不会暴露资源

delete(动作) (/product/1 资源) -->动作+资源



前后端分离的项目:

采用restful的风格来交互,使用json来传递数据

使用restfull :

@Controller
@RequestMapping("/dept")
public class DepartmentController {
    @Autowired
    private DepartmentService departmentService;

    @RequestMapping(value = "/list",method = RequestMethod.PATCH)
    @ResponseBody
    public List<Department> findAll(){
        return departmentService.findAll();
    }

    @RequestMapping(value = "/save",method = RequestMethod.PUT)
    @ResponseBody
    public AjaxResult save(@RequestBody Department department){
        System.out.println("新增--"+department);
        return new AjaxResult();
    }

    @RequestMapping(value = "/update",method = RequestMethod.POST)
    @ResponseBody
    public AjaxResult update(@RequestBody Department department){
        System.out.println("修改--"+department);
        return new AjaxResult();
    }

    @RequestMapping(value = "/delete/{id}",method = RequestMethod.DELETE)
    @ResponseBody
    public AjaxResult delete(@PathVariable("id") Long id){
        System.out.println("删除的id--"+id);
        return new AjaxResult();
    }

    @RequestMapping(value = "/queryOne/{id}",method = RequestMethod.GET)
    @ResponseBody
    public AjaxResult queryOne (@PathVariable("id") Long id){
        System.out.println("查询的id--"+id);
        return new AjaxResult();
    }

}



swagger

swagger:可以根据controller生成接口文档

(1) 导入jar包

 <!--swagger配置-->
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger2</artifactId>
            <version>${springfox.version}</version>
        </dependency>
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger-ui</artifactId>
            <version>${springfox.version}</version>
        </dependency>

(2)写一个配置类

SwaggerConfig.java

//对swagger进行配置
@Configuration
@EnableWebMvc
@EnableSwagger2
//扫描个包下面controller来生成接口描述
@ComponentScan(basePackages="cn.itsource.crm.web.controller")
public class SwaggerConfig {

    @Bean
    public Docket api(){
        return new Docket(DocumentationType.SWAGGER_2)
                .apiInfo(this.apiInfo())
                .select()
                .apis(RequestHandlerSelectors.basePackage("cn.itsource.crm.web.controller"))
                .paths(PathSelectors.any())
                .build();
    }


    private ApiInfo apiInfo(){
        @SuppressWarnings("deprecation")
        ApiInfo info=new ApiInfo(
                "itsourcekedayacrud测试",
                "一个完成crud",
                "v1",
                "http://www.itsource.cn",
                "zytest",
                "apache",
                "http://www.itsource.cn");
        return info;
    }
}

 (3)扫描的配置

<context:component-scan base-package="cn.itsource.crm.web.config"/>

(4)启动测试

http://localhost/swagger-ui.html

postman

    就是一个工具,可以来发送各种http请求,可以用它来测试http协议接口. postman就是httm协议接口测试工具

vue-admin-master模块

Github地址：

https://github.com/PanJiaChen/vue-element-admin

解压，启动项目

npm install

npm run dev



node-saas安装 --解决方案:

1) npm install -g node-gyp

2) npm uninstall node-sass

3)npm install node-sass















来源：CSDN

作者：Din35

链接：https://blog.csdn.net/ding35_99/article/details/103809677
