【Spring Boot AOP记录用户操作日志】1. 集成mybatis基础框架

【推荐】2019 Java 开发者跳槽指南.pdf(吐血整理) >>>

在Spring框架中，使用AOP配合自定义注解可以方便的实现用户操作的监控。首先搭建一个基本的Spring Boot Web环境开启Spring Boot，然后引入必要依赖：

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
        </dependency>
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jdbc</artifactId>
        </dependency>
        <!--常用工具类 -->
        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-lang3</artifactId>
        </dependency>

创建记录日志的数据库表

CREATE TABLE `sys_oper_log` (
  `oper_id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT '日志主键',
  `title` varchar(50) COLLATE utf8_bin DEFAULT '' COMMENT '模块标题',
  `business_type` int(2) DEFAULT '0' COMMENT '业务类型（0其它 1新增 2修改 3删除）',
  `method` varchar(100) COLLATE utf8_bin DEFAULT '' COMMENT '方法名称',
  `request_method` varchar(10) COLLATE utf8_bin DEFAULT '' COMMENT '请求方式',
  `operator_type` int(1) DEFAULT '0' COMMENT '操作类别（0其它 1后台用户 2手机端用户）',
  `oper_name` varchar(50) COLLATE utf8_bin DEFAULT '' COMMENT '操作人员',
  `dept_name` varchar(50) COLLATE utf8_bin DEFAULT '' COMMENT '部门名称',
  `oper_url` varchar(255) COLLATE utf8_bin DEFAULT '' COMMENT '请求URL',
  `oper_ip` varchar(50) COLLATE utf8_bin DEFAULT '' COMMENT '主机地址',
  `oper_location` varchar(255) COLLATE utf8_bin DEFAULT '' COMMENT '操作地点',
  `oper_param` varchar(2000) COLLATE utf8_bin DEFAULT '' COMMENT '请求参数',
  `json_result` varchar(2000) COLLATE utf8_bin DEFAULT '' COMMENT '返回参数',
  `status` int(1) DEFAULT '0' COMMENT '操作状态（0正常 1异常）',
  `error_msg` varchar(2000) COLLATE utf8_bin DEFAULT '' COMMENT '错误消息',
  `oper_time` datetime DEFAULT NULL COMMENT '操作时间',
  PRIMARY KEY (`oper_id`)
) ENGINE=InnoDB AUTO_INCREMENT=10 DEFAULT CHARSET=utf8 COLLATE=utf8_bin COMMENT='操作日志记录';

配置application.yml数据库连接

server:
  port: 8080
spring:
  datasource:
    driver-class-name: com.mysql.jdbc.Driver
    url: jdbc:mysql://127.0.0.1:3306/aoplog?useUnicode=yes&characterEncoding=UTF-8&useSSL=false
    username: root
    password: 123456

新建实体类domain文件夹

SysOperLog.java


import lombok.Data;

import java.util.Date;

/**
 * 操作日志记录表 oper_log
 *
 * @author hekang
 */
@Data
public class SysOperLog
{
    private static final long serialVersionUID = 1L;

    /** 日志主键 */
    private Long operId;

    /** 操作模块 */
    private String title;

    /** 业务类型（0其它 1新增 2修改 3删除） */
    private Integer businessType;

    /** 业务类型数组 */
    private Integer[] businessTypes;

    /** 请求方法 */
    private String method;

    /** 请求方式 */
    private String requestMethod;

    /** 操作类别（0其它 1后台用户 2手机端用户） */
    private Integer operatorType;

    /** 操作人员 */
    private String operName;

    /** 部门名称 */
    private String deptName;

    /** 请求url */
    private String operUrl;

    /** 操作地址 */
    private String operIp;

    /** 操作地点 */
    private String operLocation;

    /** 请求参数 */
    private String operParam;

    /** 返回参数 */
    private String jsonResult;

    /** 操作状态（0正常 1异常） */
    private Integer status;

    /** 错误消息 */
    private String errorMsg;

    /** 操作时间 */
    private Date operTime;
}

如果没有@Data注解请在IDEA里安装lombok插件

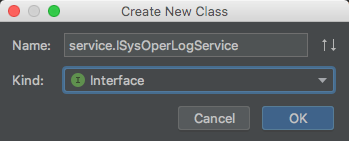

新建service接口类

package com.exception.exceptiondemo.service;


import com.aoplog.springbootaoplog.domain.SysOperLog;

import java.util.List;

/**
 * 操作日志 服务层
 *
 * @author hekang
 */
public interface ISysOperLogService
{
    /**
     * 新增操作日志
     *
     * @param operLog 操作日志对象
     */
    public void insertOperlog(SysOperLog operLog);

    /**
     * 查询系统操作日志集合
     *
     * @param operLog 操作日志对象
     * @return 操作日志集合
     */
    public List<SysOperLog> selectOperLogList(SysOperLog operLog);


    /**
     * 查询操作日志详细
     *
     * @param operId 操作ID
     * @return 操作日志对象
     */
    public SysOperLog selectOperLogById(Long operId);

    /**
     * 清空操作日志
     */
    public void cleanOperLog();
}

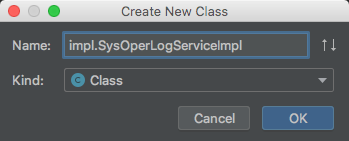

新建service接口实现类


import com.aoplog.springbootaoplog.domain.SysOperLog;
import com.aoplog.springbootaoplog.mapper.SysOperLogMapper;
import com.aoplog.springbootaoplog.service.ISysOperLogService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.List;

/**
 * 操作日志 服务层处理
 *
 * @author hekang
 */
@Service
public class SysOperLogServiceImpl implements ISysOperLogService
{
    @Autowired
    private SysOperLogMapper operLogMapper;

    /**
     * 新增操作日志
     *
     * @param operLog 操作日志对象
     */
    @Override
    public void insertOperlog(SysOperLog operLog)
    {
        operLogMapper.insertOperlog(operLog);
    }

    /**
     * 查询系统操作日志集合
     *
     * @param operLog 操作日志对象
     * @return 操作日志集合
     */
    @Override
    public List<SysOperLog> selectOperLogList(SysOperLog operLog)
    {
        return operLogMapper.selectOperLogList(operLog);
    }


    /**
     * 查询操作日志详细
     *
     * @param operId 操作ID
     * @return 操作日志对象
     */
    @Override
    public SysOperLog selectOperLogById(Long operId)
    {
        return operLogMapper.selectOperLogById(operId);
    }

    /**
     * 清空操作日志
     */
    @Override
    public void cleanOperLog()
    {
        operLogMapper.cleanOperLog();
    }
}

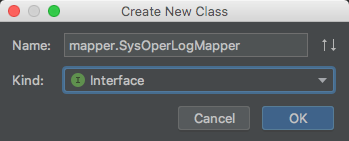

新建mapper接口类


import com.aoplog.springbootaoplog.domain.SysOperLog;

import java.util.List;

/**
 * 操作日志 数据层
 *
 * @author hekang
 */
public interface SysOperLogMapper
{
    /**
     * 新增操作日志
     *
     * @param operLog 操作日志对象
     */
    public void insertOperlog(SysOperLog operLog);

    /**
     * 查询系统操作日志集合
     *
     * @param operLog 操作日志对象
     * @return 操作日志集合
     */
    public List<SysOperLog> selectOperLogList(SysOperLog operLog);


    /**
     * 查询操作日志详细
     *
     * @param operId 操作ID
     * @return 操作日志对象
     */
    public SysOperLog selectOperLogById(Long operId);

    /**
     * 清空操作日志
     */
    public void cleanOperLog();
}

创建SQL的mapper文件

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.aoplog.springbootaoplog.mapper.SysOperLogMapper">

	<resultMap type="SysOperLog" id="SysOperLogResult">
		<id     property="operId"         column="oper_id"        />
		<result property="title"          column="title"          />
		<result property="businessType"   column="business_type"  />
		<result property="method"         column="method"         />
		<result property="requestMethod"  column="request_method" />
		<result property="operatorType"   column="operator_type"  />
		<result property="operName"       column="oper_name"      />
		<result property="deptName"       column="dept_name"      />
		<result property="operUrl"        column="oper_url"       />
		<result property="operIp"         column="oper_ip"        />
		<result property="operLocation"   column="oper_location"  />
		<result property="operParam"      column="oper_param"     />
		<result property="jsonResult"     column="json_result"    />
		<result property="status"         column="status"         />
		<result property="errorMsg"       column="error_msg"      />
		<result property="operTime"       column="oper_time"      />
	</resultMap>

	<sql id="selectOperLogVo">
        select oper_id, title, business_type, method, request_method, operator_type, oper_name, dept_name, oper_url, oper_ip, oper_location, oper_param, json_result, status, error_msg, oper_time
        from sys_oper_log
    </sql>

	<insert id="insertOperlog" parameterType="SysOperLog">
		insert into sys_oper_log(title, business_type, method, request_method, operator_type, oper_name, dept_name, oper_url, oper_ip, oper_location, oper_param, json_result, status, error_msg, oper_time)
        values (#{title}, #{businessType}, #{method}, #{requestMethod}, #{operatorType}, #{operName}, #{deptName}, #{operUrl}, #{operIp}, #{operLocation}, #{operParam}, #{jsonResult}, #{status}, #{errorMsg}, sysdate())
	</insert>

	<select id="selectOperLogList" parameterType="SysOperLog" resultMap="SysOperLogResult">
		<include refid="selectOperLogVo"/>
		<where>
			<if test="title != null and title != ''">
				AND title like concat('%', #{title}, '%')
			</if>
			<if test="businessType != null">
				AND business_type = #{businessType}
			</if>
			<if test="businessTypes != null and businessTypes.length > 0">
			    AND business_type in
			    <foreach collection="businessTypes" item="businessType" open="(" separator="," close=")">
		 			#{businessType}
		        </foreach>
			</if>
			<if test="status != null">
				AND status = #{status}
			</if>
			<if test="operName != null and operName != ''">
				AND oper_name like concat('%', #{operName}, '%')
			</if>
		</where>
	</select>

 	<select id="selectOperLogById" parameterType="Long" resultMap="SysOperLogResult">
		<include refid="selectOperLogVo"/>
		where oper_id = #{operId}
	</select>

	<update id="cleanOperLog">
        truncate table sys_oper_log
    </update>

</mapper>

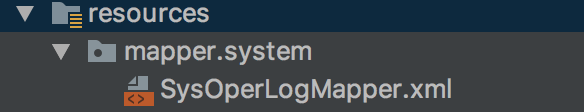

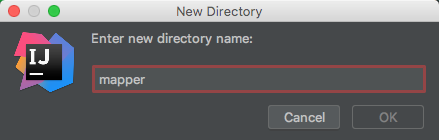

这里新建文件夹的时候要注意不能这样创建：

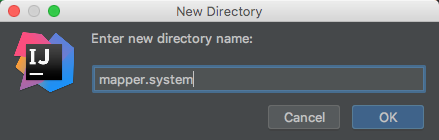

这样先新建mapper在新建子目录system

新建mybatis配置文件

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>

    <settings>
        <setting name="cacheEnabled"             value="true" />  <!-- 全局映射器启用缓存 -->
        <setting name="useGeneratedKeys"         value="true" />  <!-- 允许 JDBC 支持自动生成主键 -->
        <setting name="defaultExecutorType"      value="REUSE" /> <!-- 配置默认的执行器 -->
        <setting name="logImpl"                  value="SLF4J" /> <!-- 指定 MyBatis 所用日志的具体实现 -->
        <!-- <setting name="mapUnderscoreToCamelCase" value="true"/>  驼峰式命名 -->
    </settings>

</configuration>

配置注解到启动类SpringBootAopLogApplication

@MapperScan("com.aoplog.**.mapper")

在application.yml配置mybatis扫描目录

mybatis:
  type-aliases-package: com.aoplog.springbootaoplog.domain
  configLocation: classpath:mybatis/mybatis-config.xml
  mapperLocations: classpath*:mapper/**/*Mapper.xml

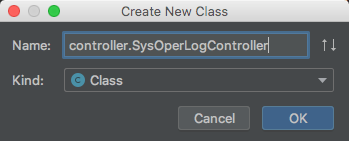

新建SysOperLogController

import com.aoplog.springbootaoplog.domain.SysOperLog;
import com.aoplog.springbootaoplog.service.ISysOperLogService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

import java.util.List;

@RestController
public class SysOperLogController {
    @Autowired
    private ISysOperLogService iSysOperLogService;

    /**
     * 查询全部日志
     *
     * @return
     */
    @GetMapping("/api/operLog")
    public List<SysOperLog> selectOperLogList() {
        return this.iSysOperLogService.selectOperLogList(null);
    }
}

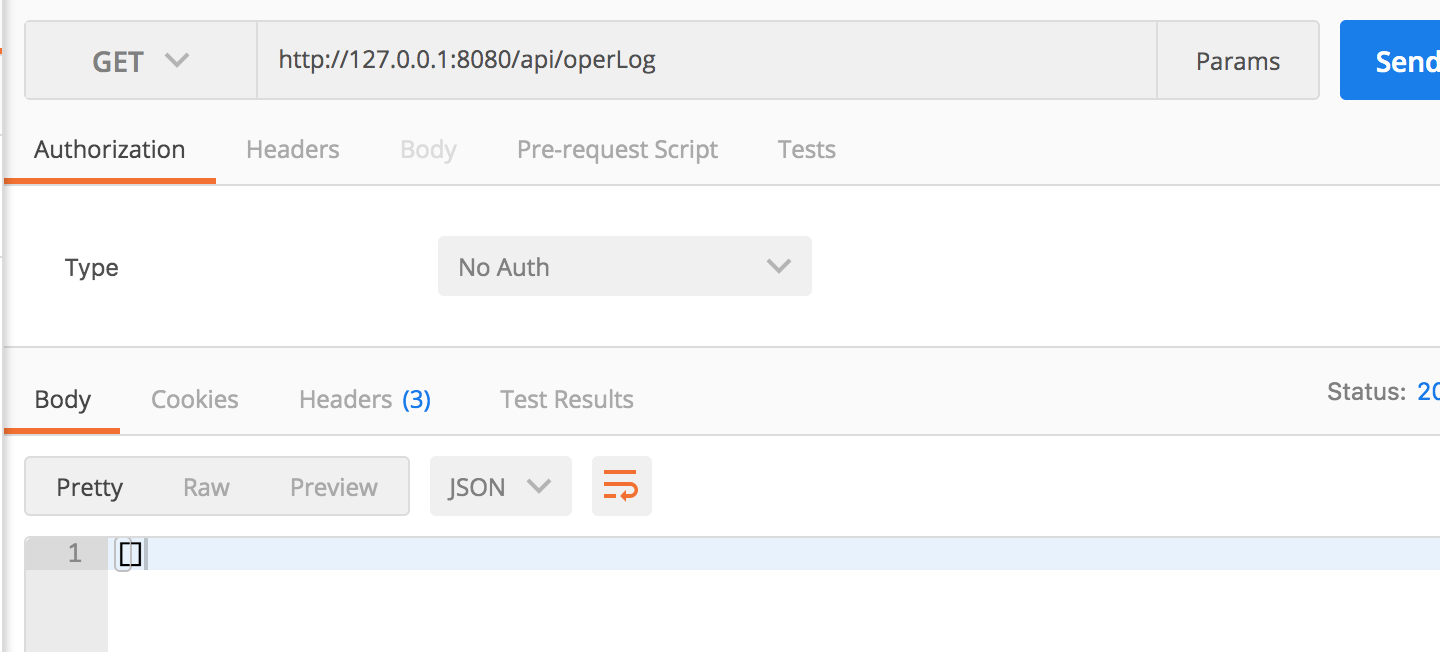

启动项目：http://127.0.0.1:8080/api/operLog
