0x01 xx

1.准备

2.IDA打开

0x01 xx

测试文件：https://www.lanzous.com/i7dyqhc

1.准备

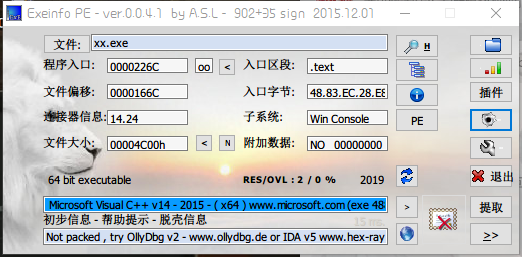

获取信息

64位文件

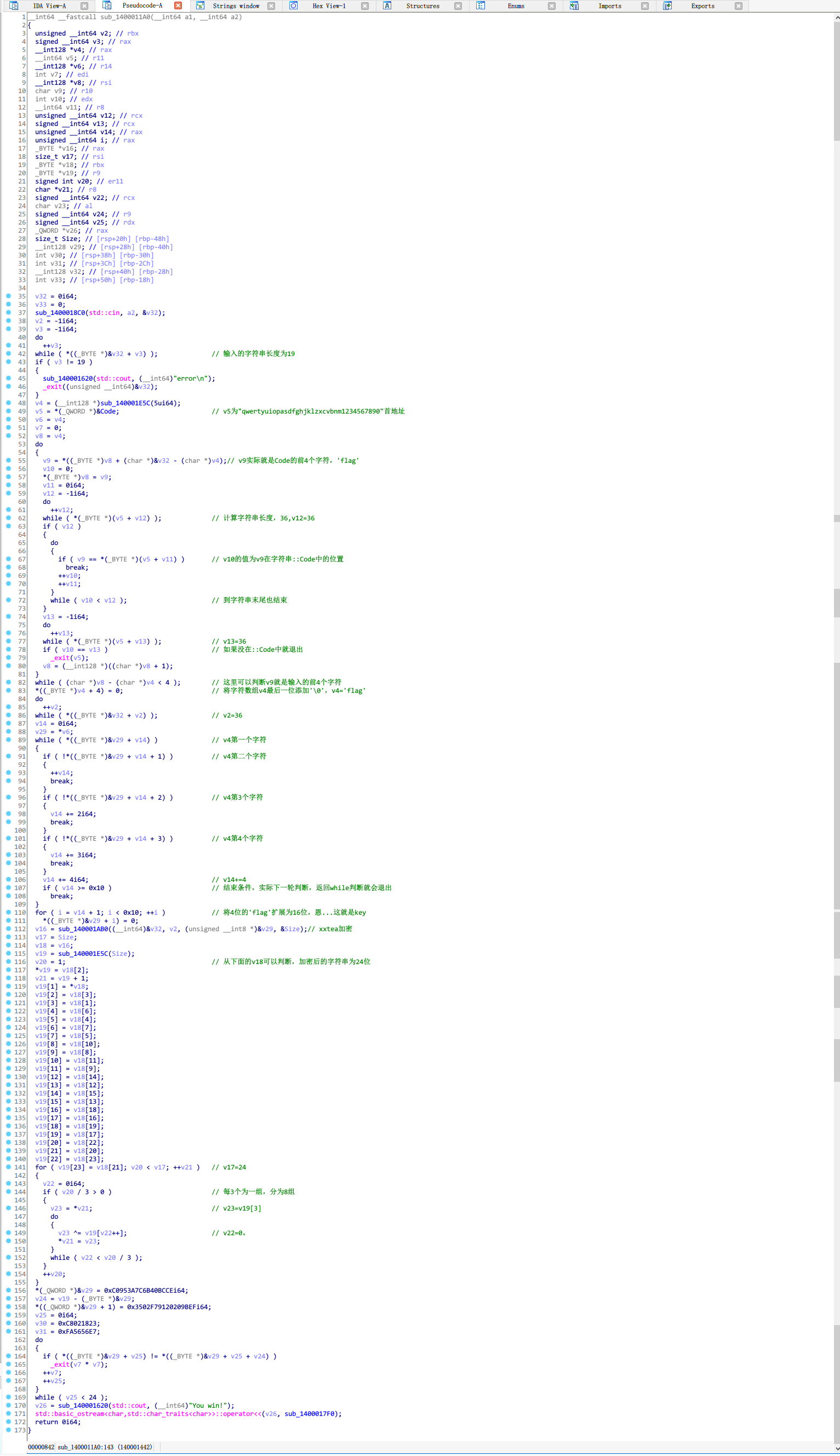

2.IDA打开

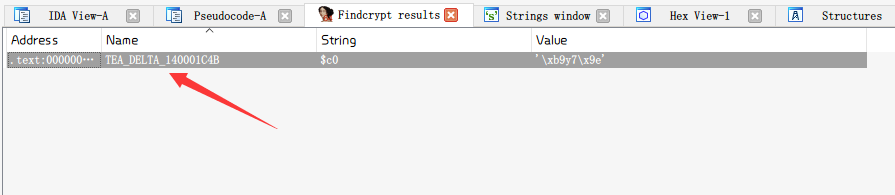

使用Findcrypt脚本可以看到

结合文件名是xx，因此猜测代码用到了xxtea加密方法

3.流程总结

因此，总的流程为：

判断输入的字符串的每个字符是否包含在"qwertyuiopasdfghjklzxcvbnm1234567890"中
取输入字符串的前4位字符，即"flag"，扩展为16位，作为xxtea加密的秘钥key
将输入的字符串使用key加密，加密后的字符保存在字符数组v18，共24位字符
打乱v18数组，保存到v19数组中
将24位字符，每3位为一组，每一组异或值（具体看代码），得到新的加密字符串
将新的加密字符串与已经存在的字符串比较，相同即获得胜利

因此，只需要逆向变换，就能得到flag

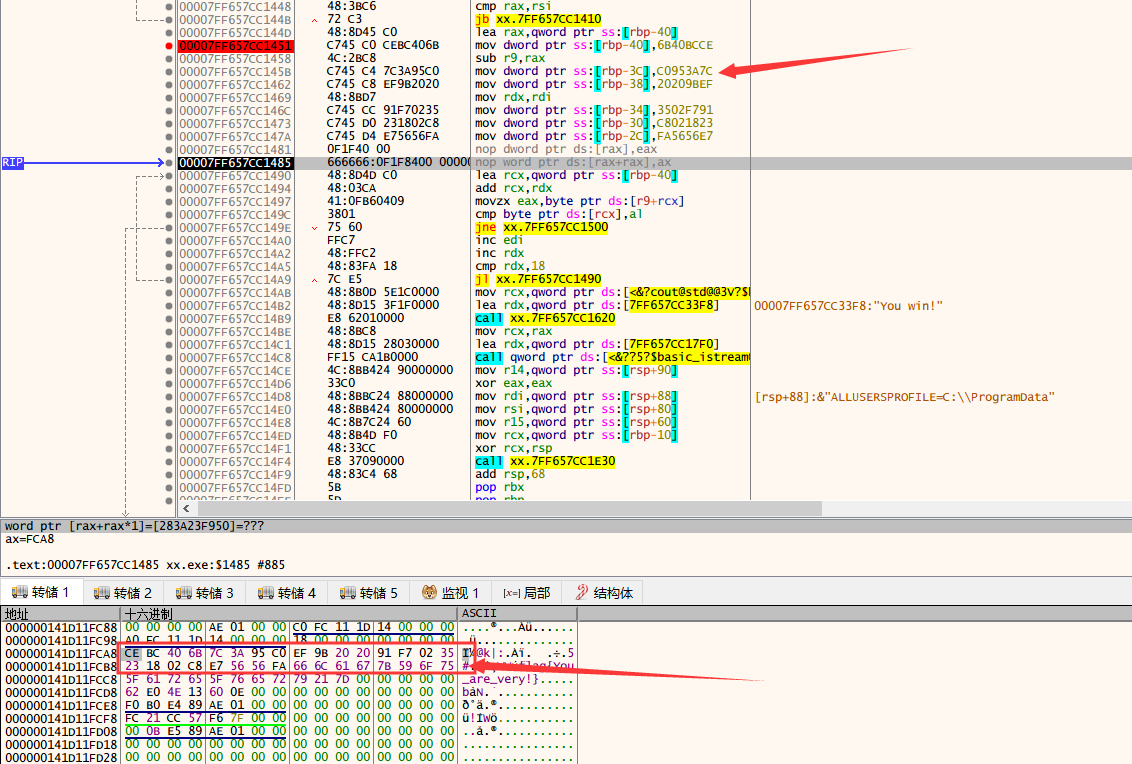

使用动态调试，可以获取到已经存在的字符串

enc = 'CEBC406B7C3A95C0EF9B202091F70235231802C8E75656FA'

4.脚本解密

Python带了xxtea的包，不过我用的时候，一直提示我“ValueError: Need a 16-byte key.”，用rjust或者'\x00'*16补足了16位也不管用。

所以用了另外一种方法，借用了下面xxtea的文章：

参考文章：https://blog.csdn.net/weixin_41474364/article/details/84314674

# encoding: utf-8
import struct

_DELTA = 0x9E3779B9

def _long2str(v, w):
    n = (len(v) - 1) << 2
    if w:
        m = v[-1]
        if (m < n - 3) or (m > n): return ''
        n = m
    s = struct.pack('<%iL' % len(v), *v)
    return s[0:n] if w else s

def _str2long(s, w):
    n = len(s)
    m = (4 - (n & 3) & 3) + n
    s = s.ljust(m, "\0")
    v = list(struct.unpack('<%iL' % (m >> 2), s))
    if w: v.append(n)
    return v

def encrypt(str, key):
    if str == '': return str
    v = _str2long(str, True)
    k = _str2long(key.ljust(16, "\0"), False)
    n = len(v) - 1
    z = v[n]
    y = v[0]
    sum = 0
    q = 6 + 52 // (n + 1)
    while q > 0:
        sum = (sum + _DELTA) & 0xffffffff
        e = sum >> 2 & 3
        for p in xrange(n):
            y = v[p + 1]
            v[p] = (v[p] + ((z >> 5 ^ y << 2) + (y >> 3 ^ z << 4) ^ (sum ^ y) + (k[p & 3 ^ e] ^ z))) & 0xffffffff
            z = v[p]
        y = v[0]
        v[n] = (v[n] + ((z >> 5 ^ y << 2) + (y >> 3 ^ z << 4) ^ (sum ^ y) + (k[n & 3 ^ e] ^ z))) & 0xffffffff
        z = v[n]
        q -= 1
    return _long2str(v, False)

def decrypt(str, key):
    if str == '': return str
    v = _str2long(str, False)
    k = _str2long(key.ljust(16, "\0"), False)
    n = len(v) - 1
    z = v[n]
    y = v[0]
    q = 6 + 52 // (n + 1)
    sum = (q * _DELTA) & 0xffffffff
    while (sum != 0):
        e = sum >> 2 & 3
        for p in xrange(n, 0, -1):
            z = v[p - 1]
            v[p] = (v[p] - ((z >> 5 ^ y << 2) + (y >> 3 ^ z << 4) ^ (sum ^ y) + (k[p & 3 ^ e] ^ z))) & 0xffffffff
            y = v[p]
        z = v[n]
        v[0] = (v[0] - ((z >> 5 ^ y << 2) + (y >> 3 ^ z << 4) ^ (sum ^ y) + (k[0 & 3 ^ e] ^ z))) & 0xffffffff
        y = v[0]
        sum = (sum - _DELTA) & 0xffffffff
    return _long2str(v, True)

def xor(x ,y):
    return ord(x) ^ ord(y)

# 转换为16进制
arr = 'CEBC406B7C3A95C0EF9B202091F70235231802C8E75656FA'.decode('hex')

dec = ''

# 因为加密时是正向加密，会用到加密之后的字符，因此解密需要逆向解密
for i in range(7,-1,-1):
    res = ''
    # 每3个为一组
    for j in range(3):
        temp = ord(arr[i*3+j])
        # 需要异或的值，例如第i组的值就是,arr[i*3+j]^(arr[n] for n in range(i))
        for m in range(i):
            temp ^= ord(arr[m])
        res += chr(temp)
    dec = res + dec

# 原来的v18到v19数组是被打乱排序了的
num = [2,0,3,1,6,4,7,5,10,8,11,9,14,12,15,13,18,16,19,17,22,20,23,21]
enc = [0] * 24
# key需要是16位
key = 'flag'+'\x00'*12
for i in range(24):
    enc[num[i]] = dec[i]
dec2 = ''.join(enc)

dec3 = decrypt(dec2, key)
print dec4

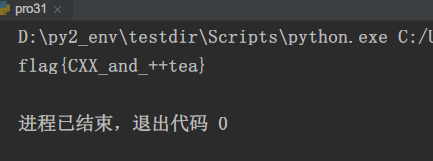

5.get flag！

flag{CXX_and_++tea}

0x02 easyRE

测试文件：https://share.weiyun.com/5qzM6bU

1.准备

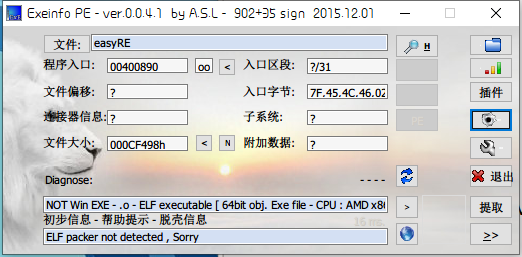

获取信息

64位文件

2.IDA打开

signed __int64 sub_4009C6()
{
  char *v0; // rsi
  char *v1; // rdi
  signed __int64 result; // rax
  __int64 v3; // ST10_8
  __int64 v4; // ST18_8
  __int64 v5; // ST20_8
  __int64 v6; // ST28_8
  __int64 v7; // ST30_8
  __int64 v8; // ST38_8
  __int64 v9; // ST40_8
  __int64 v10; // ST48_8
  __int64 v11; // ST50_8
  __int64 v12; // ST58_8
  int i; // [rsp+Ch] [rbp-114h]
  char arraym[36]; // [rsp+60h] [rbp-C0h]
  char v15[32]; // [rsp+90h] [rbp-90h]
  int v16; // [rsp+B0h] [rbp-70h]
  char v17; // [rsp+B4h] [rbp-6Ch]
  char v18; // [rsp+C0h] [rbp-60h]
  char v19; // [rsp+E7h] [rbp-39h]
  char v20; // [rsp+100h] [rbp-20h]
  unsigned __int64 v21; // [rsp+108h] [rbp-18h]

  v21 = __readfsqword(0x28u);
  arraym[0] = 73;
  arraym[1] = 111;
  arraym[2] = 100;
  arraym[3] = 108;
  arraym[4] = 62;
  arraym[5] = 81;
  arraym[6] = 110;
  arraym[7] = 98;
  arraym[8] = 40;
  arraym[9] = 111;
  arraym[10] = 99;
  arraym[11] = 121;
  arraym[12] = 127;
  arraym[13] = 121;
  arraym[14] = 46;
  arraym[15] = 105;
  arraym[16] = 127;
  arraym[17] = 100;
  arraym[18] = 96;
  arraym[19] = 51;
  arraym[20] = 119;
  arraym[21] = 125;
  arraym[22] = 119;
  arraym[23] = 101;
  arraym[24] = 107;
  arraym[25] = 57;
  arraym[26] = 123;
  arraym[27] = 105;
  arraym[28] = 121;
  arraym[29] = 61;
  arraym[30] = 126;
  arraym[31] = 121;
  arraym[32] = 76;
  arraym[33] = 64;
  arraym[34] = 69;
  arraym[35] = 67;
  memset(v15, 0, sizeof(v15));
  v16 = 0;
  v17 = 0;
  v0 = v15;
  sub_4406E0(0LL, (__int64)v15);
  v17 = 0;
  v1 = v15;
  if ( sub_424BA0(v15) == 36 )
  {
    for ( i = 0; ; ++i )
    {
      v1 = v15;
      if ( i >= (unsigned __int64)sub_424BA0(v15) )
        break;
      if ( (unsigned __int8)(v15[i] ^ i) != arraym[i] )
      {
        result = 4294967294LL;
        goto LABEL_13;
      }
    }
    sub_410CC0("continue!");
    memset(&v18, 0, 0x40uLL);
    v20 = 0;
    v0 = &v18;
    sub_4406E0(0LL, (__int64)&v18);
    v19 = 0;
    v1 = &v18;
    if ( sub_424BA0(&v18) == 39 )
    {
      v3 = sub_400E44(&v18);
      v4 = sub_400E44(v3);
      v5 = sub_400E44(v4);
      v6 = sub_400E44(v5);
      v7 = sub_400E44(v6);
      v8 = sub_400E44(v7);
      v9 = sub_400E44(v8);
      v10 = sub_400E44(v9);
      v11 = sub_400E44(v10);
      v12 = sub_400E44(v11);
      v0 = off_6CC090;
      v1 = (char *)v12;
      if ( !(unsigned int)sub_400360(v12, off_6CC090) )
      {
        sub_410CC0("You found me!!!");
        v1 = "bye bye~";
        sub_410CC0("bye bye~");
      }
      result = 0LL;
    }
    else
    {
      result = 4294967293LL;
    }
  }
  else
  {
    result = 0xFFFFFFFFLL;
  }
LABEL_13:
  if ( __readfsqword(0x28u) != v21 )
    sub_444020(v1, v0);
  return result;
}

3.代码分析

首先有两次输入，第一次输入32位字符串，将每位字符异或后与已存在的marray数组比较，因此可以写出脚本，正确输入

arr = [73,111,100,108,62,81,110,98,40,111,99,121,127,121,46,105,127,100,96,51,119,125,
       119,101,107,57,123,105,121,61,126,121,76,64,69,67]

dec = ''
for i in range(36):
    dec += chr(arr[i]^i)

print(dec)

Info:The first four chars are `flag`

第二次输入，将输入的字符串进行10次base64加密后，与已知的字符串比较，反向解密就行

enc = "Vm0wd2VHUXhTWGhpUm1SWVYwZDRWVll3Wkc5WFJsbDNXa1pPVlUxV2NIcFhhMk0xVmpKS1NHVkdXbFpOYmtKVVZtcEtTMUl5VGtsaVJtUk9ZV3hhZVZadGVHdFRNVTVYVW01T2FGSnRVbGhhVjNoaFZWWmtWMXBFVWxSTmJFcElWbTAxVDJGV1NuTlhia0pXWWxob1dGUnJXbXRXTVZaeVdrWm9hVlpyV1hwV1IzaGhXVmRHVjFOdVVsWmlhMHBZV1ZSR1lWZEdVbFZTYlhSWFRWWndNRlZ0TVc5VWJGcFZWbXR3VjJKSFVYZFdha1pXWlZaT2NtRkhhRk5pVjJoWVYxZDBhMVV3TlhOalJscFlZbGhTY1ZsclduZGxiR1J5VmxSR1ZXSlZjRWhaTUZKaFZqSktWVkZZYUZkV1JWcFlWV3BHYTFkWFRrZFRiV3hvVFVoQ1dsWXhaRFJpTWtsM1RVaG9hbEpYYUhOVmJUVkRZekZhY1ZKcmRGTk5Wa3A2VjJ0U1ExWlhTbFpqUldoYVRVWndkbFpxUmtwbGJVWklZVVprYUdFeGNHOVhXSEJIWkRGS2RGSnJhR2hTYXpWdlZGVm9RMlJzV25STldHUlZUVlpXTlZadE5VOVdiVXBJVld4c1dtSllUWGhXTUZwell6RmFkRkpzVWxOaVNFSktWa1phVTFFeFduUlRhMlJxVWxad1YxWnRlRXRXTVZaSFVsUnNVVlZVTURrPQ=="

for i in range(10):
    enc = enc.decode('base64')
print (enc)

https://bbs.pediy.com/thread-254172.htm

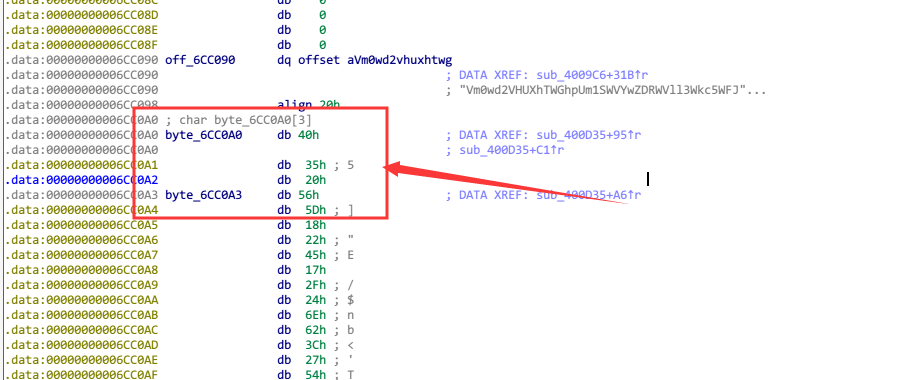

在第二次输入加密后对比的常量下面，还发现了一个常量，在sub_400D35函数中调用

__int64 __fastcall sub_400D35(__int64 a1, __int64 a2)
{
  __int64 v2; // rdi
  __int64 result; // rax
  unsigned __int64 v4; // rt1
  unsigned int v5; // [rsp+Ch] [rbp-24h]
  signed int i; // [rsp+10h] [rbp-20h]
  signed int j; // [rsp+14h] [rbp-1Ch]
  unsigned int v8; // [rsp+24h] [rbp-Ch]
  unsigned __int64 v9; // [rsp+28h] [rbp-8h]

  v9 = __readfsqword(0x28u);
  v2 = 0LL;
  v5 = sub_43FD20(0LL) - qword_6CEE38;
  for ( i = 0; i <= 1233; ++i )
  {
    v2 = v5;
    sub_40F790(v5);
    sub_40FE60();
    sub_40FE60();
    v5 = (unsigned __int64)sub_40FE60() ^ 0x98765432;
  }
  v8 = v5;
  if ( ((unsigned __int8)v5 ^ byte_6CC0A0[0]) == 'f' && (HIBYTE(v8) ^ (unsigned __int8)byte_6CC0A3) == 'g' )
  {
    for ( j = 0; j <= 24; ++j )
    {
      v2 = (unsigned __int8)(byte_6CC0A0[j] ^ *((_BYTE *)&v8 + j % 4));
      sub_410E90(v2);
    }
  }
  v4 = __readfsqword(0x28u);
  result = v4 ^ v9;
  if ( v4 != v9 )
    sub_444020(v2, a2);
  return result;
}

两段异或，第一段异或，能够通过'flag'和已知数组反向解出v5

第二段异或。通过已知数组和v5解出flag

key = ''
enc1 = 'flag'
dec = ''
enc = [0x40,0x35,0x20,0x56,0x5D,0x18,0x22,0x45,0x17,0x2F,0x24,0x6E,0x62,0x3C,0x27,0x54,0x48,0x6C,0x24,0x6E,0x72,0x3C,0x32,0x45,0x5B]
for i in range(4):
    key += chr(enc[i] ^ ord(enc1[i]))
print (key)

for i in range(len(enc)):
    dec += chr(enc[i] ^ ord(key[i%4]))
print(dec)

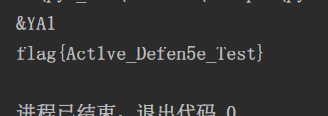

4.get flag！

flag{Act1ve_Defen5e_Test}

0x03 calc

测试文件：https://www.lanzous.com/i7frprg

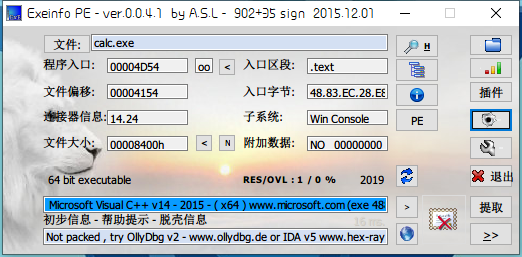

1准备

获取信息

64位文件

2.IDA打开

伪C代码

3.流程总结

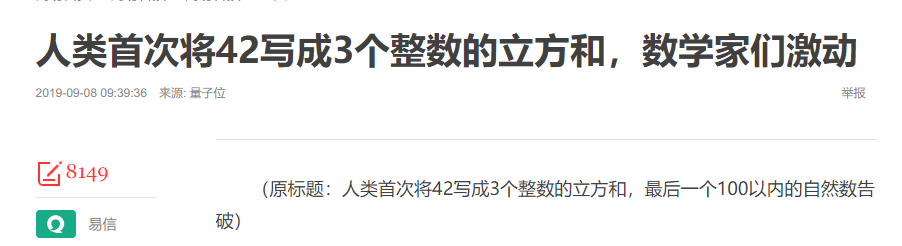

整个过程，有三次输入，定义为变量x, y, z。在满足x < z and x > y的条件下，进行x**3+y**3+z**3=42，搜了一下有关“三次方42”的新闻

得到

(-80538738812075974)^3 + 80435758145817515^3 + 12602123297335631^3 = 42

根据x,y,z关系式得到

x=80435758145817515
y=12602123297335631
z=80538738812075974

将Sleep的时间全部改为0

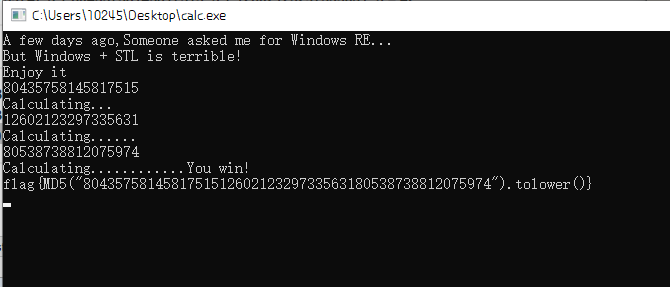

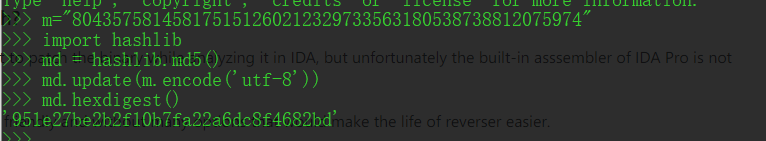

写出脚本得到flag

4.get flag！

flag{951e27be2b2f10b7fa22a6dc8f4682bd}

0x04 childRE

测试文件：https://www.lanzous.com/i7h66wd

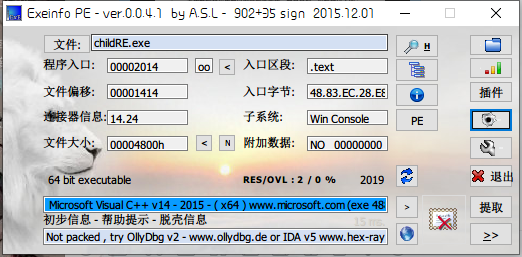

1.准备

64位文件

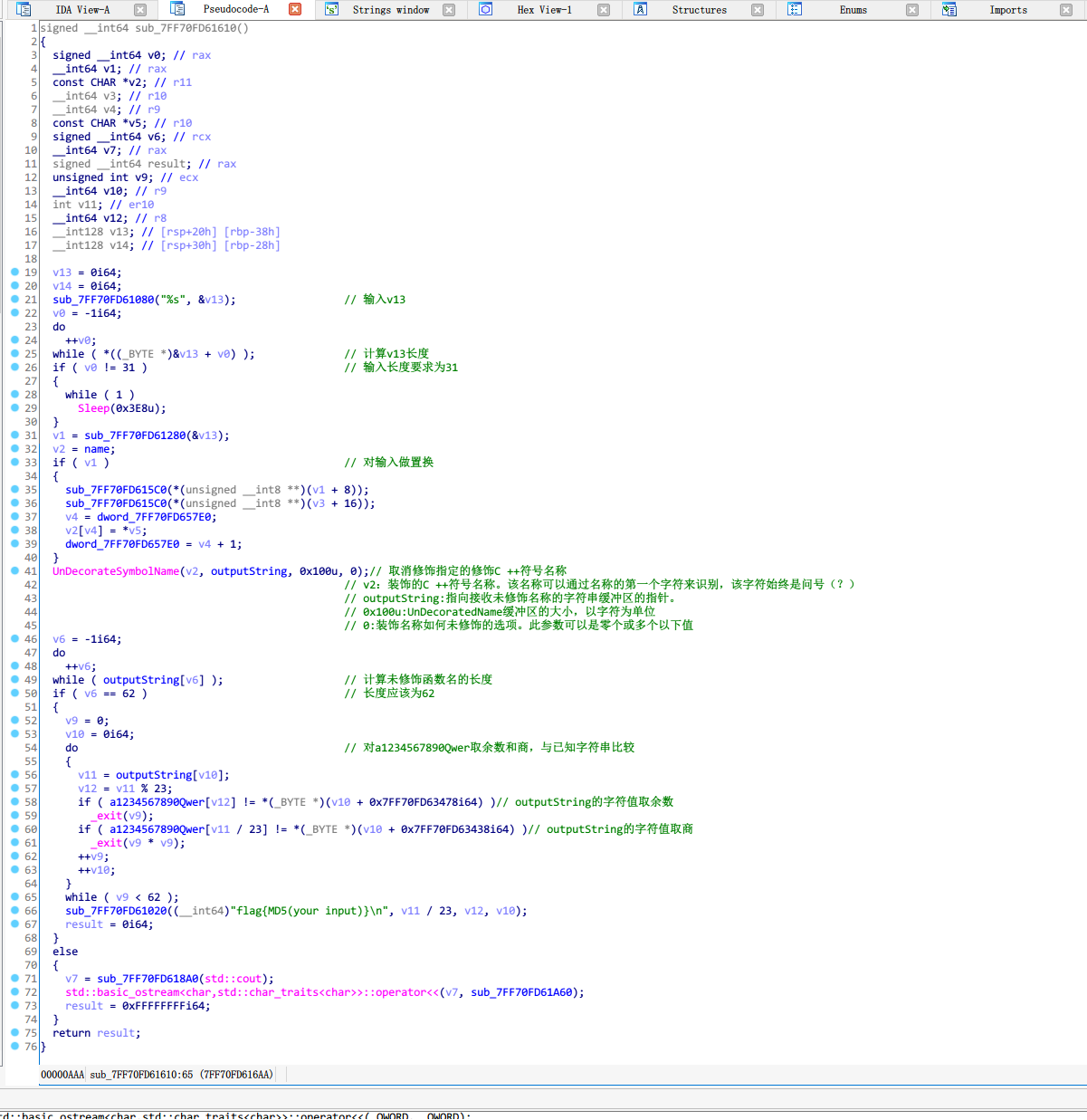

2.IDA代码分析

3.流程总结

因此总的运算流程就是：
输入长度为31的字符串
进行置换运算
取消修饰函数名
将未修饰函数名的商和余数与指定字符串比较

我们能够逆向操作来得到未修饰的函数名。

4.获取未修饰函数名

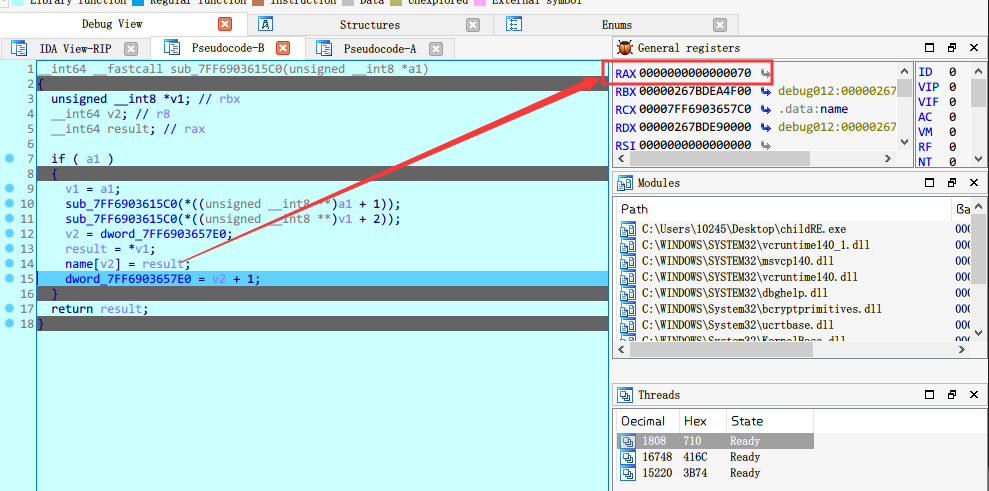

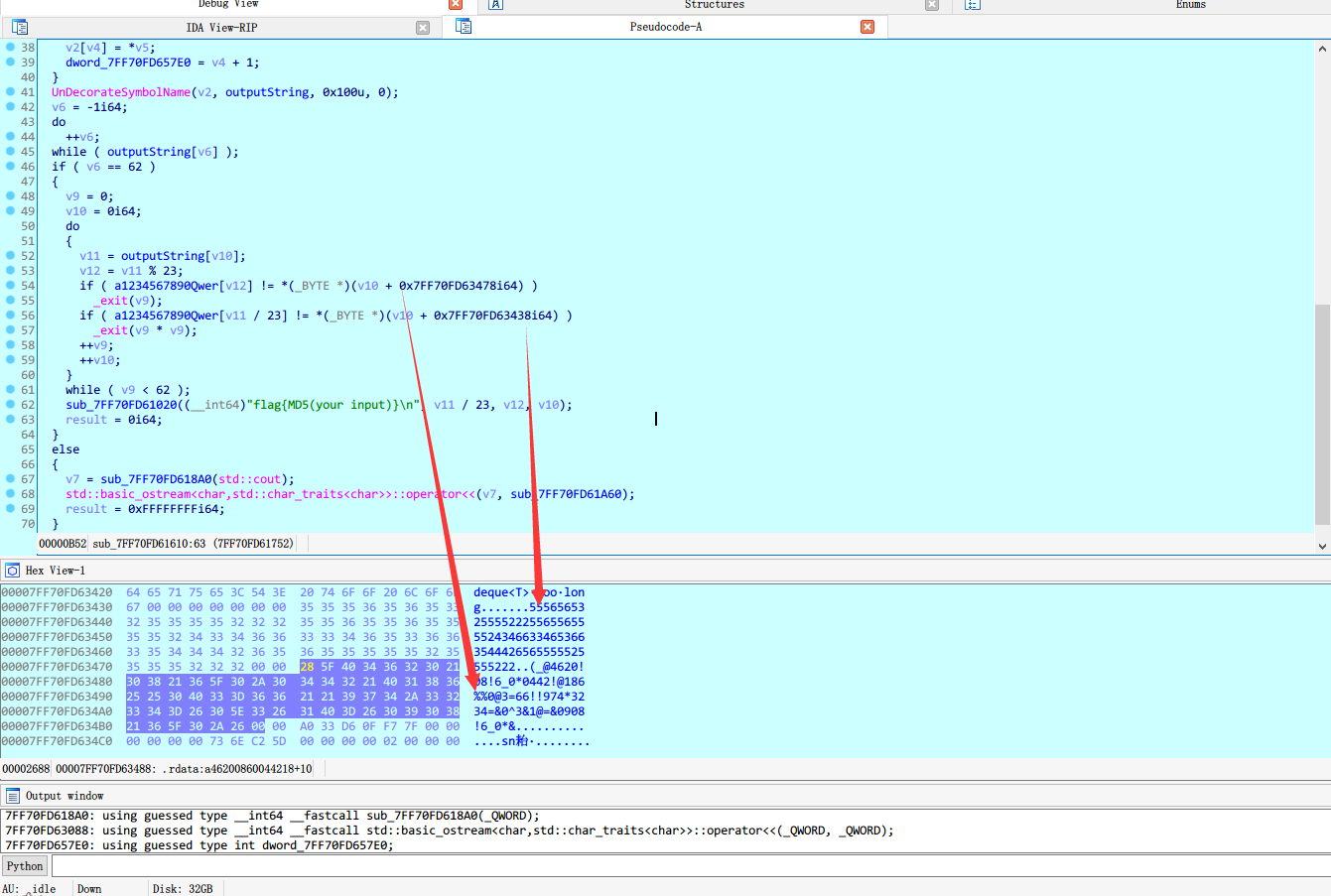

IDA动态调试

写出脚本

str1 = "(_@4620!08!6_0*0442!@186%%0@3=66!!974*3234=&0^3&1@=&0908!6_0*&"
str2 = "55565653255552225565565555243466334653663544426565555525555222"
str3 = '1234567890-=!@#$%^&*()_+qwertyuiop[]QWERTYUIOP{}asdfghjkl;,ASDFGHJKL:"ZXCVBNM<>?zxcvbnm,./'

name = ''

for i in range(62):
    name += chr(str3.index(str1[i]) + str3.index(str2[i])*23 )

print (name)

得到：private: char * __thiscall R0Pxx::My_Aut0_PWN(unsigned char *)

使用C++写出一个上面函数的例子：

#include <iostream>

class R0Pxx {
public:
    R0Pxx() {
        My_Aut0_PWN((unsigned char*)"hello");
    }
private:
    char* __thiscall My_Aut0_PWN(unsigned char*);
};

char* __thiscall R0Pxx::My_Aut0_PWN(unsigned char*) {
    std::cout << __FUNCDNAME__ << std::endl;

    return 0;
}

int main()
{
    R0Pxx A;

    system("PAUSE");
    return 0;
}

得到：?My_Aut0_PWN@R0Pxx@@AAEPADPAE@Z

5.置换运算

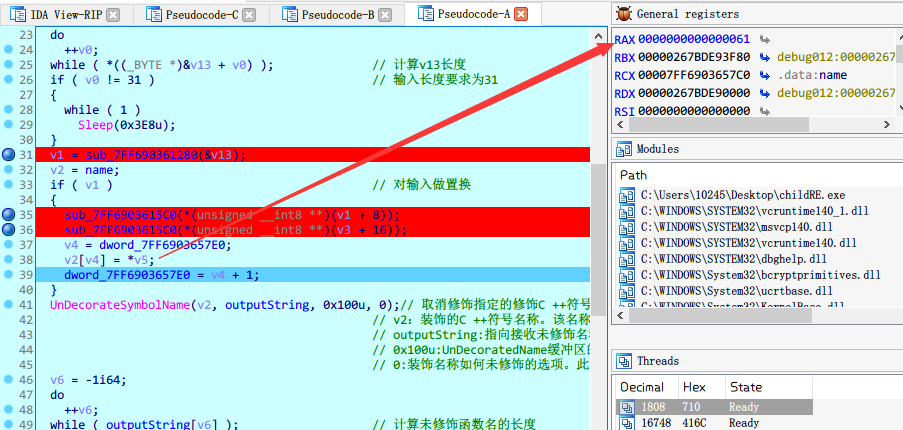

通过动态调试，发现乱序取值的数值是固定的，因此随便输入一组长度31的字符串（其中的字符不能重复）

反向操作，写出脚本来解决flag

from hashlib import md5

str1 = 'abcdefghijklmnopqrstuvwxyz12345'
dec1 = '7071687273696474756A76776B656278796C7A316D6632336E34356F676361'.decode('hex')
serial = []

print dec1

for i in dec1:
    serial.append(str1.index(i))

print serial

name = '?My_Aut0_PWN@R0Pxx@@AAEPADPAE@Z'
enc = [''] * 31

for i in range(31):
    enc[serial[i]] = name[i]
enc = ''.join(enc)

print enc

print md5(enc).hexdigest()

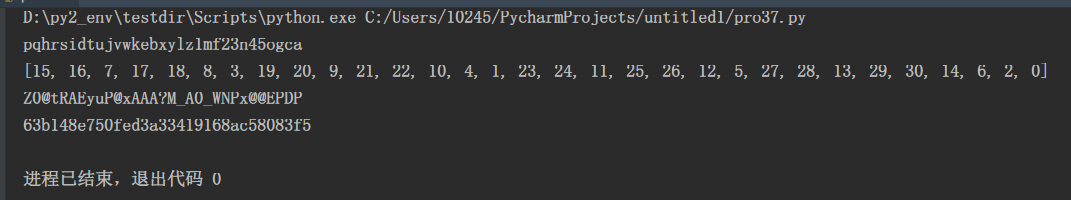

6.get flag！

flag{63b148e750fed3a33419168ac58083f5}

0x05 Snake

测试文件：https://www.lanzous.com/i7gol0d

Unity逆向

1.查看DLL文件

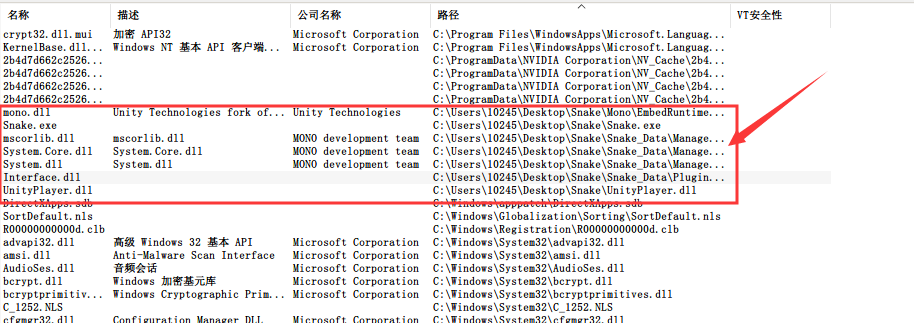

运行Snake，查看调用的DLL文件

2.DLL文件分析

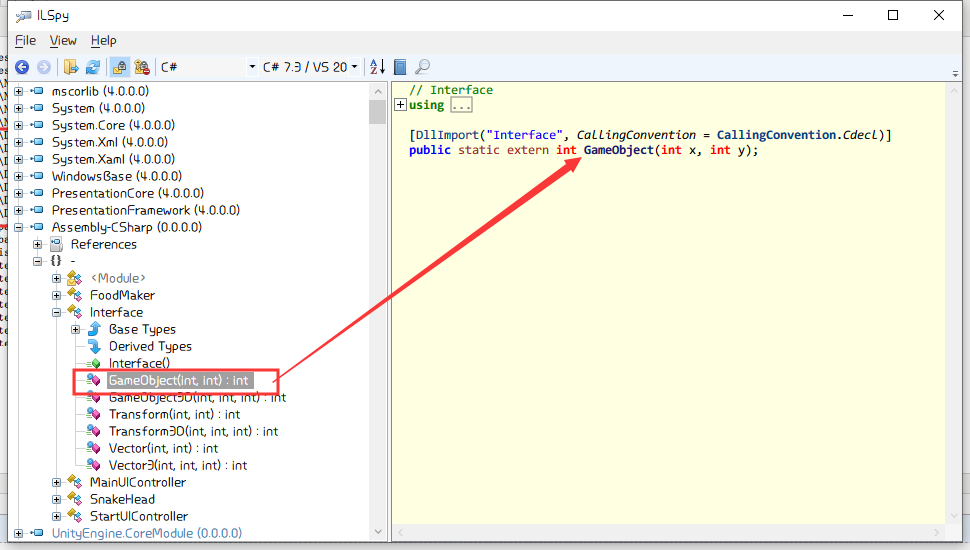

使用ILSpy打开Interface.dll文件

发现了DLL文件使用的函数GameObject

使用IDA打开DLL文件

GameObject

判断出GameObject函数传入的参数，最大应该是199，因此直接写程序，调用DLL文件，爆破求flag

3.爆破求解

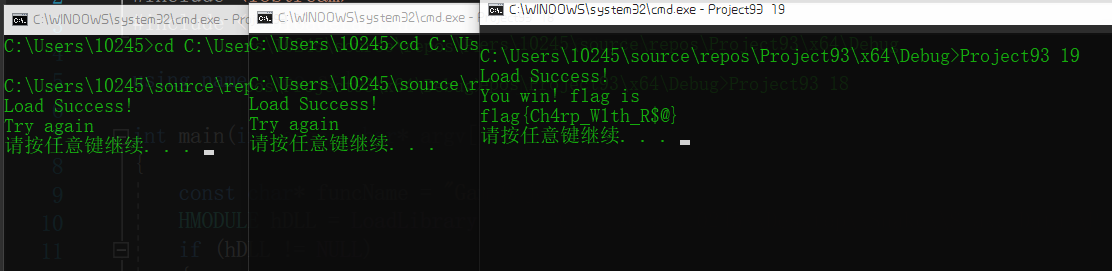

开多个进程，同时求解。

#include <Windows.h>
#include <iostream>
#include <libloaderapi.h>

using namespace std;

int main(int argc, char* argv[])
{
    const char* funcName = "GameObject";
    HMODULE hDLL = LoadLibrary(TEXT("C:\\Users\\10245\\Desktop\\Snake\\Snake_Data\\Plugins\\Interface.dll"));
    if (hDLL != NULL)
    {
        cout << "Load Success!" << endl;
        typedef int(_cdecl *FuncPtr)(int);
        FuncPtr func = (FuncPtr)GetProcAddress(hDLL, funcName);
        func(atoi(argv[1]));
    }
    else
    {
        cout << "Load Failed!" << endl;
    }


    system("PAUSE");
    return 0;
}

4.get flag！

flag{Ch4rp_W1th_R$@}
