I found a function for rectangles with all 4 corners being round, but I want to have just the top 2 corners round. What can I do?
canvas.drawRoundRect(new RectF(0, 100, 100, 300), 6, 6, paint);
You can draw that piece by piece using drawLine() and drawArc() functions from the Canvas.
Use a path. It has the advantage of working for APIs less than 21 (Arc is also limited thusly, which is why I quad). Which is a problem because not everybody has Lollipop yet. You can however specify a RectF and set the values with that and use arc back to API 1, but then you wouldn't get to use a static (without declaring a new object to build the object).
Drawing a rounded rect:
path.moveTo(right, top + ry);
path.rQuadTo(0, -ry, -rx, -ry);
path.rLineTo(-(width - (2 * rx)), 0);
path.rQuadTo(-rx, 0, -rx, ry);
path.rLineTo(0, (height - (2 * ry)));
path.rQuadTo(0, ry, rx, ry);
path.rLineTo((width - (2 * rx)), 0);
path.rQuadTo(rx, 0, rx, -ry);
path.rLineTo(0, -(height - (2 * ry)));
path.close();
As a full function:
static public Path RoundedRect(float left, float top, float right, float bottom, float rx, float ry, boolean conformToOriginalPost) {
Path path = new Path();
if (rx < 0) rx = 0;
if (ry < 0) ry = 0;
float width = right - left;
float height = bottom - top;
if (rx > width/2) rx = width/2;
if (ry > height/2) ry = height/2;
float widthMinusCorners = (width - (2 * rx));
float heightMinusCorners = (height - (2 * ry));
path.moveTo(right, top + ry);
path.rQuadTo(0, -ry, -rx, -ry);//top-right corner
path.rLineTo(-widthMinusCorners, 0);
path.rQuadTo(-rx, 0, -rx, ry); //top-left corner
path.rLineTo(0, heightMinusCorners);
if (conformToOriginalPost) {
path.rLineTo(0, ry);
path.rLineTo(width, 0);
path.rLineTo(0, -ry);
}
else {
path.rQuadTo(0, ry, rx, ry);//bottom-left corner
path.rLineTo(widthMinusCorners, 0);
path.rQuadTo(rx, 0, rx, -ry); //bottom-right corner
}
path.rLineTo(0, -heightMinusCorners);
path.close();//Given close, last lineto can be removed.
return path;
}
You'd want to line all the way to those corner bits, rather than quad across them. This is what setting true to conformToOriginalPost does. Just line to the control point there.

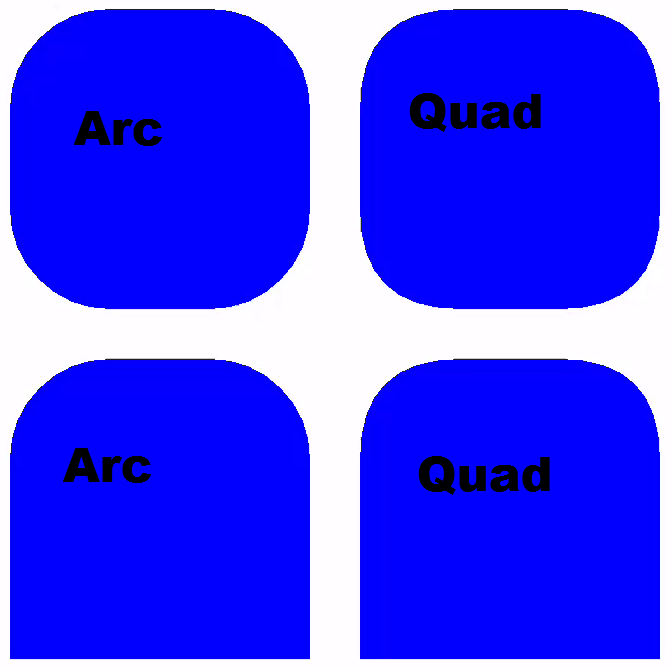

If you want to do that all but don't care about pre-Lollipop stuff, and urgently insist that if your rx and ry are high enough, it should draw a circle.
@TargetApi(Build.VERSION_CODES.LOLLIPOP)
static public Path RoundedRect(float left, float top, float right, float bottom, float rx, float ry, boolean conformToOriginalPost) {
Path path = new Path();
if (rx < 0) rx = 0;
if (ry < 0) ry = 0;
float width = right - left;
float height = bottom - top;
if (rx > width/2) rx = width/2;
if (ry > height/2) ry = height/2;
float widthMinusCorners = (width - (2 * rx));
float heightMinusCorners = (height - (2 * ry));
path.moveTo(right, top + ry);
path.arcTo(right - 2*rx, top, right, top + 2*ry, 0, -90, false); //top-right-corner
path.rLineTo(-widthMinusCorners, 0);
path.arcTo(left, top, left + 2*rx, top + 2*ry, 270, -90, false);//top-left corner.
path.rLineTo(0, heightMinusCorners);
if (conformToOriginalPost) {
path.rLineTo(0, ry);
path.rLineTo(width, 0);
path.rLineTo(0, -ry);
}
else {
path.arcTo(left, bottom - 2 * ry, left + 2 * rx, bottom, 180, -90, false); //bottom-left corner
path.rLineTo(widthMinusCorners, 0);
path.arcTo(right - 2 * rx, bottom - 2 * ry, right, bottom, 90, -90, false); //bottom-right corner
}
path.rLineTo(0, -heightMinusCorners);
path.close();//Given close, last lineto can be removed.
return path;
}
So, conformToOriginalPost actually draws a rounded rect without the bottom two bits rounded.
I would draw two rectangles:
canvas.drawRect(new RectF(0, 110, 100, 290), paint);
canvas.drawRoundRect(new RectF(0, 100, 100, 200), 6, 6, paint);
Or something like that, you just overlap them so that the upper corners will be round. Preferably you should write a method for this
I changed this answer so you can set which corner you want to be round and which one you want to be sharp. also works on pre-lolipop
Usage Example:only top-right and botton-right corners are rounded
Path path = RoundedRect(0, 0, fwidth , fheight , 5,5,
false, true, true, false);
canvas.drawPath(path,myPaint);
RoundRect:
public static Path RoundedRect(
float left, float top, float right, float bottom, float rx, float ry,
boolean tl, boolean tr, boolean br, boolean bl
){
Path path = new Path();
if (rx < 0) rx = 0;
if (ry < 0) ry = 0;
float width = right - left;
float height = bottom - top;
if (rx > width / 2) rx = width / 2;
if (ry > height / 2) ry = height / 2;
float widthMinusCorners = (width - (2 * rx));
float heightMinusCorners = (height - (2 * ry));
path.moveTo(right, top + ry);
if (tr)
path.rQuadTo(0, -ry, -rx, -ry);//top-right corner
else{
path.rLineTo(0, -ry);
path.rLineTo(-rx,0);
}
path.rLineTo(-widthMinusCorners, 0);
if (tl)
path.rQuadTo(-rx, 0, -rx, ry); //top-left corner
else{
path.rLineTo(-rx, 0);
path.rLineTo(0,ry);
}
path.rLineTo(0, heightMinusCorners);
if (bl)
path.rQuadTo(0, ry, rx, ry);//bottom-left corner
else{
path.rLineTo(0, ry);
path.rLineTo(rx,0);
}
path.rLineTo(widthMinusCorners, 0);
if (br)
path.rQuadTo(rx, 0, rx, -ry); //bottom-right corner
else{
path.rLineTo(rx,0);
path.rLineTo(0, -ry);
}
path.rLineTo(0, -heightMinusCorners);
path.close();//Given close, last lineto can be removed.
return path;
}
Simple helper function written in Kotlin.
private fun Canvas.drawTopRoundRect(rect: RectF, paint: Paint, radius: Float) {
// Step 1. Draw rect with rounded corners.
drawRoundRect(rect, radius, radius, paint)
// Step 2. Draw simple rect with reduced height,
// so it wont cover top rounded corners.
drawRect(
rect.left,
rect.top + radius,
rect.right,
rect.bottom,
paint
)
}
Usage:
canvas.drawTopRoundRect(rect, paint, radius)
public static Path composeRoundedRectPath(RectF rect, float topLeftDiameter, float topRightDiameter,float bottomRightDiameter, float bottomLeftDiameter){
Path path = new Path();
topLeftDiameter = topLeftDiameter < 0 ? 0 : topLeftDiameter;
topRightDiameter = topRightDiameter < 0 ? 0 : topRightDiameter;
bottomLeftDiameter = bottomLeftDiameter < 0 ? 0 : bottomLeftDiameter;
bottomRightDiameter = bottomRightDiameter < 0 ? 0 : bottomRightDiameter;
path.moveTo(rect.left + topLeftDiameter/2 ,rect.top);
path.lineTo(rect.right - topRightDiameter/2,rect.top);
path.quadTo(rect.right, rect.top, rect.right, rect.top + topRightDiameter/2);
path.lineTo(rect.right ,rect.bottom - bottomRightDiameter/2);
path.quadTo(rect.right ,rect.bottom, rect.right - bottomRightDiameter/2, rect.bottom);
path.lineTo(rect.left + bottomLeftDiameter/2,rect.bottom);
path.quadTo(rect.left,rect.bottom,rect.left, rect.bottom - bottomLeftDiameter/2);
path.lineTo(rect.left,rect.top + topLeftDiameter/2);
path.quadTo(rect.left,rect.top, rect.left + topLeftDiameter/2, rect.top);
path.close();
return path;
}
I achieved this by following the below steps.
These are the pre-requisites for the rounded rectangle to look neat
- The radius of the edges have to be equal to the (height of the rectangle / 2). This is because if its any different value then the place where the curve meets straight line of the rectangle will not be
Next is the steps to draw the rounded rectangle.
First we draw 2 circles on the left and right side, with the radius = height of rectange / 2
Then we draw a rectangle between these circles to get the desired rounded rectangle.
I am posting the code below
private void drawRoundedRect(Canvas canvas, float left, float top, float right, float bottom) {
float radius = getHeight() / 2;
canvas.drawCircle(radius, radius, radius, mainPaint);
canvas.drawCircle(right - radius, radius, radius, mainPaint);
canvas.drawRect(left + radius, top, right - radius, bottom, mainPaint);
}
Now this results in a really nice rounded rectangle like the one shown below
For API 21 and above the Path class added a new method addRoundRect() which you can use it like this.
corners = new float[]{
80, 80, // Top left radius in px
80, 80, // Top right radius in px
0, 0, // Bottom right radius in px
0, 0 // Bottom left radius in px
};
final Path path = new Path();
path.addRoundRect(rect, corners, Path.Direction.CW);
canvas.drawPath(path, mPaint);
in Kotlin
val corners = floatArrayOf(
80f, 80f, // Top left radius in px
80f, 80f, // Top right radius in px
0f, 0f, // Bottom right radius in px
0f, 0f // Bottom left radius in px
)
val path = Path()
path.addRoundRect(rect, corners, Path.Direction.CW)
canvas.drawPath(path, mPaint)
One simple and efficient way to draw a solid side is to use clipping - rect clipping is essentially free, and a lot less code to write than a custom Path.
If I want a 300x300 rect, with the top left and right rounded by 50 pixels, you can do:
canvas.save();
canvas.clipRect(0, 0, 300, 300);
canvas.drawRoundRect(new RectF(0, 0, 300, 350), 50, 50, paint);
canvas.restore();
This approach will only work for rounding on 2 or 3 adjacent corners, so it's a little less configurable than a Path based approach, but using round rects is more efficient, since drawRoundRect() is fully hardware accelerated (that is, tessellated into triangles) while drawPath() always falls back to software rendering (software-draw a path bitmap, and upload that to be cached on the GPU).
Not a huge performance issue for small infrequent drawing, but if you're animating paths, the cost of software draw can make your frame times longer, and increase your chance to drop frames. The path mask also costs memory.
If you do want to go with a Path-based approach, I'd recommend using GradientDrawable to simplify the lines of code (assuming you don't need to set a custom shader, e.g. to draw a Bitmap).
mGradient.setBounds(0, 0, 300, 300);
mGradient.setCornerRadii(new int[] {50,50, 50,50, 0,0, 0,0});
With GradientDrawable#setCornerRadii(), you can set any corner to be any roundedness, and reasonably animate between states.
draw round rect with left rounded corners
private void drawRoundRect(float left, float top, float right, float bottom, Paint paint, Canvas canvas) {
Path path = new Path();
path.moveTo(left, top);
path.lineTo(right, top);
path.lineTo(right, bottom);
path.lineTo(left + radius, bottom);
path.quadTo(left, bottom, left, bottom - radius);
path.lineTo(left, top + radius);
path.quadTo(left, top, left + radius, top);
canvas.drawPath(path, onlinePaint);
}
Use PaintDrawable could be better:
val topLeftRadius = 10
val topRightRadius = 10
val bottomLeftRadius = 0
val bottomRightRadius = 0
val rect = Rect(0, 0, 100, 100)
val paintDrawable = PaintDrawable(Color.RED)
val outter = floatArrayOf(topLeftRadius, topLeftRadius, topRightRadius, topRightRadius,
bottomLeftRadius, bottomLeftRadius, bottomRightRadius, bottomRightRadius)
paintDrawable.setCornerRadii(outter)
paintDrawable.bounds = rect
paintDrawable.draw(canvas)
