Springboot集成Phoenix+Hbase+MybatisPlus
环境配置
Springboot2.2.1.RELEASE
JDK1.8
Phoenix5.0.0
Hbase2.0.0
MybatisPlus3.1.0
Squirrel SQL Client数据库连接客户端
Hbase部署在Centos7 本地虚拟机中
hbase-2.0.0-bin.tar.gz 下载地址：
https://archive.apache.org/dist/hbase/2.0.0/hbase-2.0.0-bin.tar.gz
apache-phoenix-5.0.0-HBase-2.0-bin.tar.gz 下载地址：
http://archive.apache.org/dist/phoenix/apache-phoenix-5.0.0-HBase-2.0/bin/apache-phoenix-5.0.0-HBase-2.0-bin.tar.gz
Squirrel 客户端工具下载地址：
http://sourceforge.net/projects/squirrel-sql/files/1-stable/4.0.0/squirrel-sql-4.0.0-standard.jar/download
相关配置文件
- pom.xml
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>2.2.1.RELEASE</version>
<relativePath/> <!-- lookup parent from repository -->
</parent>
<groupId>com.yuan</groupId>
<artifactId>demo-druid</artifactId>
<version>0.0.1-SNAPSHOT</version>
<name>demo-druid</name>
<description>Demo project for Spring Boot</description>
<properties>
<java.version>1.8</java.version>
</properties>
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
</dependency>
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>druid-spring-boot-starter</artifactId>
<version>1.1.10</version>
</dependency>
<dependency>
<groupId>com.baomidou</groupId>
<artifactId>mybatis-plus-boot-starter</artifactId>
<version>3.1.0</version>
</dependency>
<!-- mybatis plus 代码生成器依赖 -->
<dependency>
<groupId>com.baomidou</groupId>
<artifactId>mybatis-plus-generator</artifactId>
<version>3.1.0</version>
</dependency>
<!-- 代码生成器模板 -->
<dependency>
<groupId>org.freemarker</groupId>
<artifactId>freemarker</artifactId>
</dependency>
<!--phoenix core-->
<dependency>
<groupId>org.apache.phoenix</groupId>
<artifactId>phoenix-core</artifactId>
<version>5.0.0-HBase-2.0</version>
</dependency>
<dependency>
<groupId>org.apache.hadoop</groupId>
<artifactId>hadoop-common</artifactId>
<version>2.9.2</version>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-devtools</artifactId>
<scope>runtime</scope>
</dependency>
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
<optional>true</optional>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
<scope>test</scope>
</dependency>
</dependencies>
<build>
<plugins>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
</plugin>
</plugins>
</build>
</project>
- hbase-2.0.0-bin/conf: hbase-site.xml
<?xml version="1.0" encoding="UTF-8"?>
<configuration>
<property>
<name>hbase.rootdir</name>
<value>file:///usr/hbase-release/rootdir</value>
<description>The directory shared byregion servers.</description>
</property>
<property>
<name>fs.defaultFS</name>
<value>file:///usr/hbase-release/dfs</value>
</property>
<!-- hbase的端口 -->
<property>
<name>hbase.zookeeper.property.clientPort</name>
<value>2181</value>
<description>Property from ZooKeeper'sconfig zoo.cfg. The port at which the clients will connect.
</description>
</property>
<!-- 超时时间 -->
<property>
<name>zookeeper.session.timeout</name>
<value>620000</value>
</property>
<!-- zookeeper 集群配置。如果是集群，则添加其它的主机地址 -->
<property>
<name>hbase.zookeeper.quorum</name>
<value>192.168.100.11:2181</value>
</property>
<property>
<name>hbase.tmp.dir</name>
<value>/usr/hbase-release/tmp</value>
</property>
<property>
<name>hbase.cluster.distributed</name>
<value>false</value>
</property>
<property>
<name>hbase.zookeeper.property.dataDir</name>
<value>/usr/hbase-release/datadir</value>
</property>
<property>
<name>zookeeper.znode.parent</name>
<value>/hbase</value>
</property>
<property>
<name>hbase.regionserver.wal.codec</name>
<value>org.apache.hadoop.hbase.regionserver.wal.IndexedWALEditCodec</value>
</property>
<property>
<name>hbase.region.server.rpc.scheduler.factory.class</name>
<value>org.apache.hadoop.hbase.ipc.PhoenixRpcSchedulerFactory</value>
<description>Factory to create the Phoenix RPC Scheduler that uses separate queues for index and metadata updates</description>
</property>
<property>
<name>hbase.rpc.controllerfactory.class</name>
<value>org.apache.hadoop.hbase.ipc.controller.ServerRpcControllerFactory</value>
<description>Factory to create the Phoenix RPC Scheduler that uses separate queues for index and metadata updates</description>
</property>
<property>
<name>hbase.client.scanner.timeout.period</name>
<value>6000000</value>
</property>
<property>
<name>hbase.regionserver.lease.period</name>
<value>6000000</value>
</property>
<property>
<name>hbase.rpc.timeout</name>
<value>6000000</value>
</property>
<property>
<name>hbase.client.operation.timeout</name>
<value>6000000</value>
</property>
<property>
<name>hbase.client.ipc.pool.type</name>
<value>RoundRobinPool</value>
</property>
<property>
<name>hbase.client.ipc.pool.size</name>
<value>20</value>
</property>
<property>
<name>phoenix.query.timeoutMs</name>
<value>6000000</value>
</property>
<property>
<name>phoenix.query.keepAliveMs</name>
<value>6000000</value>
</property>
</configuration>
- apache-phoenix-5.0.0-HBase-2.0-bin:/bin/hbase-site.xml
<?xml version="1.0"?>
<?xml-stylesheet type="text/xsl" href="configuration.xsl"?>
<!--
/**
* Licensed to the Apache Software Foundation (ASF) under one
* or more contributor license agreements. See the NOTICE file
* distributed with this work for additional information
* regarding copyright ownership. The ASF licenses this file
* to you under the Apache License, Version 2.0 (the
* "License"); you may not use this file except in compliance
* with the License. You may obtain a copy of the License at
*
* http://www.apache.org/licenses/LICENSE-2.0
*
* Unless required by applicable law or agreed to in writing, software
* distributed under the License is distributed on an "AS IS" BASIS,
* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
* See the License for the specific language governing permissions and
* limitations under the License.
*/
-->
<configuration>
<property>
<name>hbase.regionserver.wal.codec</name>
<value>org.apache.hadoop.hbase.regionserver.wal.IndexedWALEditCodec</value>
</property>
<property>
<name>phoenix.query.timeoutMs</name>
<value>60000000</value>
</property>
</configuration>
安装Hbase，集成Phoenix
下载
hbase-2.0.0-bin.tar.gz
apache-phoenix-5.0.0-HBase-2.0-bin.tar.gz

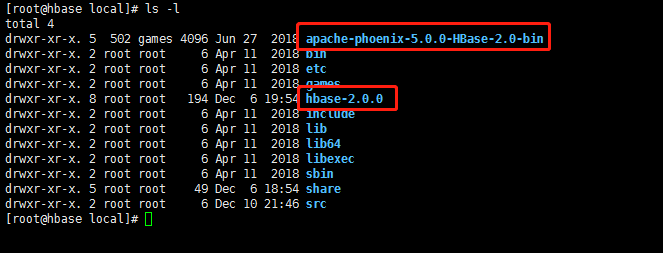

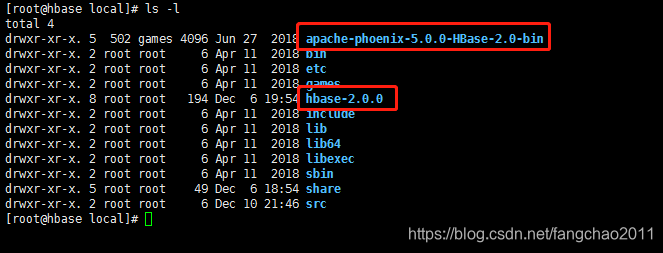

解压到 /usr/local
修改 hbase-site.xml配置文件，参考文章最前面的配置。
hbase-2.0.0/conf: hbase-site.xml
apache-phoenix-5.0.0-HBase-2.0-bin:/bin/hbase-site.xml
修改vi hbase-env.sh:
设置JDK地址：export JAVA_HOME=/usr/lib/jvm/java-1.8.0-openjdk-1.8.0.232.b09-0.el7_7.x86_64/jre
设置使用内置zookeeper：export HBASE_MANAGES_ZK=true
从apache-phoenix-5.0.0-HBase-2.0-bin中复制 phoenix-5.0.0-HBase-2.0-server.jar
到hbase-2.0.0/lib 下
cd /usr/local/apache-phoenix-5.0.0-HBase-2.0-bin
cp phoenix-5.0.0-HBase-2.0-server.jar /usr/local/hbase-2.0.0/lib
然后启动Hbase数据库
./hbase-2.0.0/bin/start-hbase.sh
停止是：
./hbase-2.0.0/bin/stop-hbase.sh

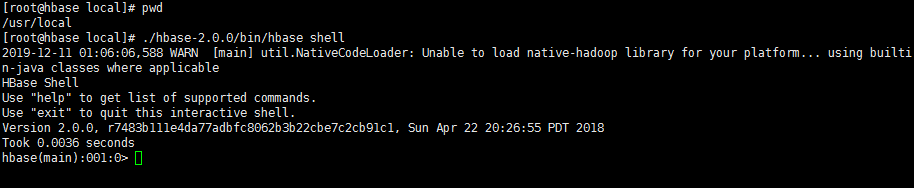

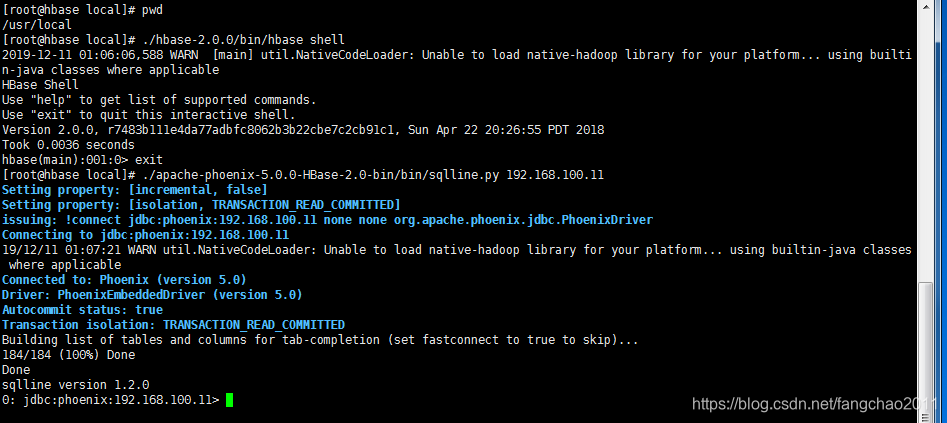

进入hbase shell
./hbase-2.0.0/bin/hbase shell

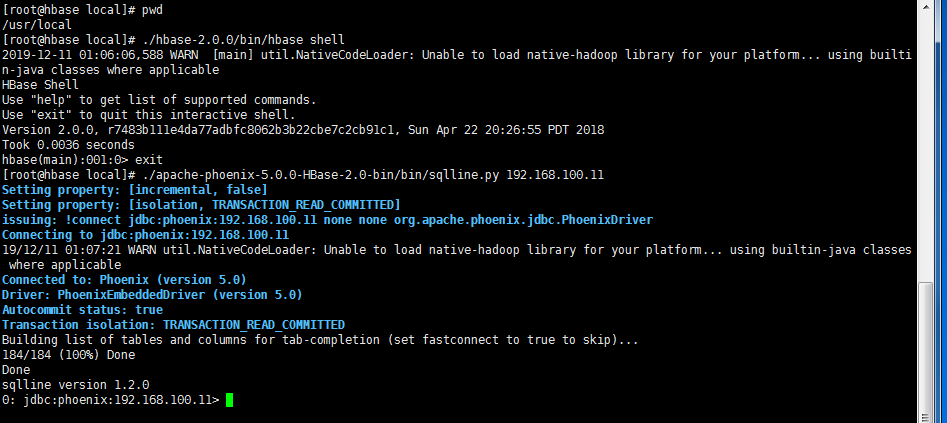

进入Phoenix 控制台：
./apache-phoenix-5.0.0-HBase-2.0-bin/bin/sqlline.py 192.168.100.11

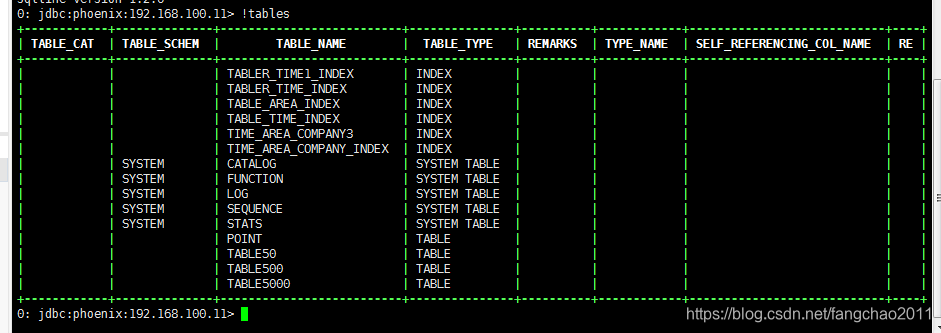

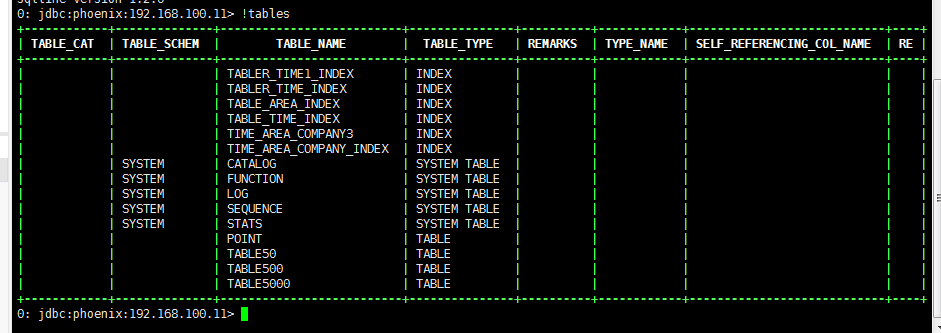

查询数据库所有表：
!tables 或 !table
到此说明Hbase数据库已经部署成功，并且集成Phoenix成功了。
Squirrel客户端连接Phoenix
1.下载安装Squirrel到本地
2.添加Phoenix的驱动程序包（驱动包在apache-phoenix-5.0.0-HBase-2.0-bin.tar.gz 这个包里。）到Squirrel的安装路径中，如：D:\Program Files\squirrel-sql-4.0.0\lib
phoenix-core-5.0.0-HBase-2.0.jar
phoenix-pherf-5.0.0-HBase-2.0.jar
phoenix-pherf-5.0.0-HBase-2.0-minimal.jar
phoenix-5.0.0-HBase-2.0-client.jar
phoenix-5.0.0-HBase-2.0-thin-client.jar #如果想支持thin连接，需要加这个包

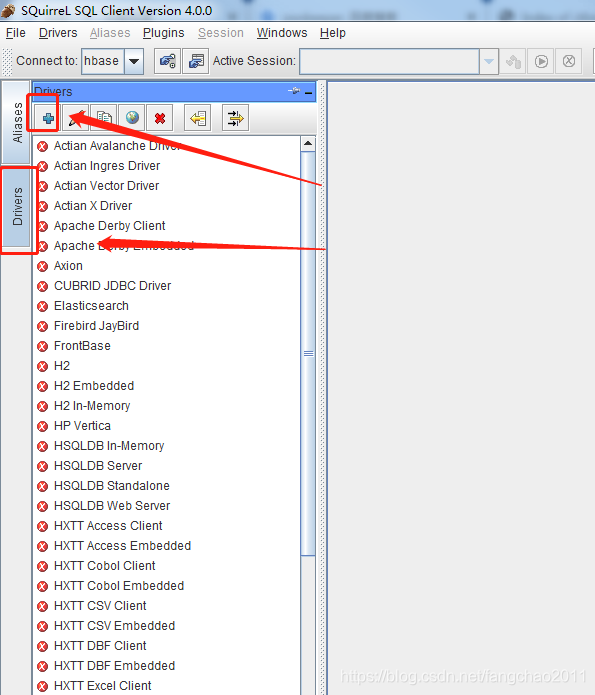

3.Squirrel 客户端添加Phoenix驱动

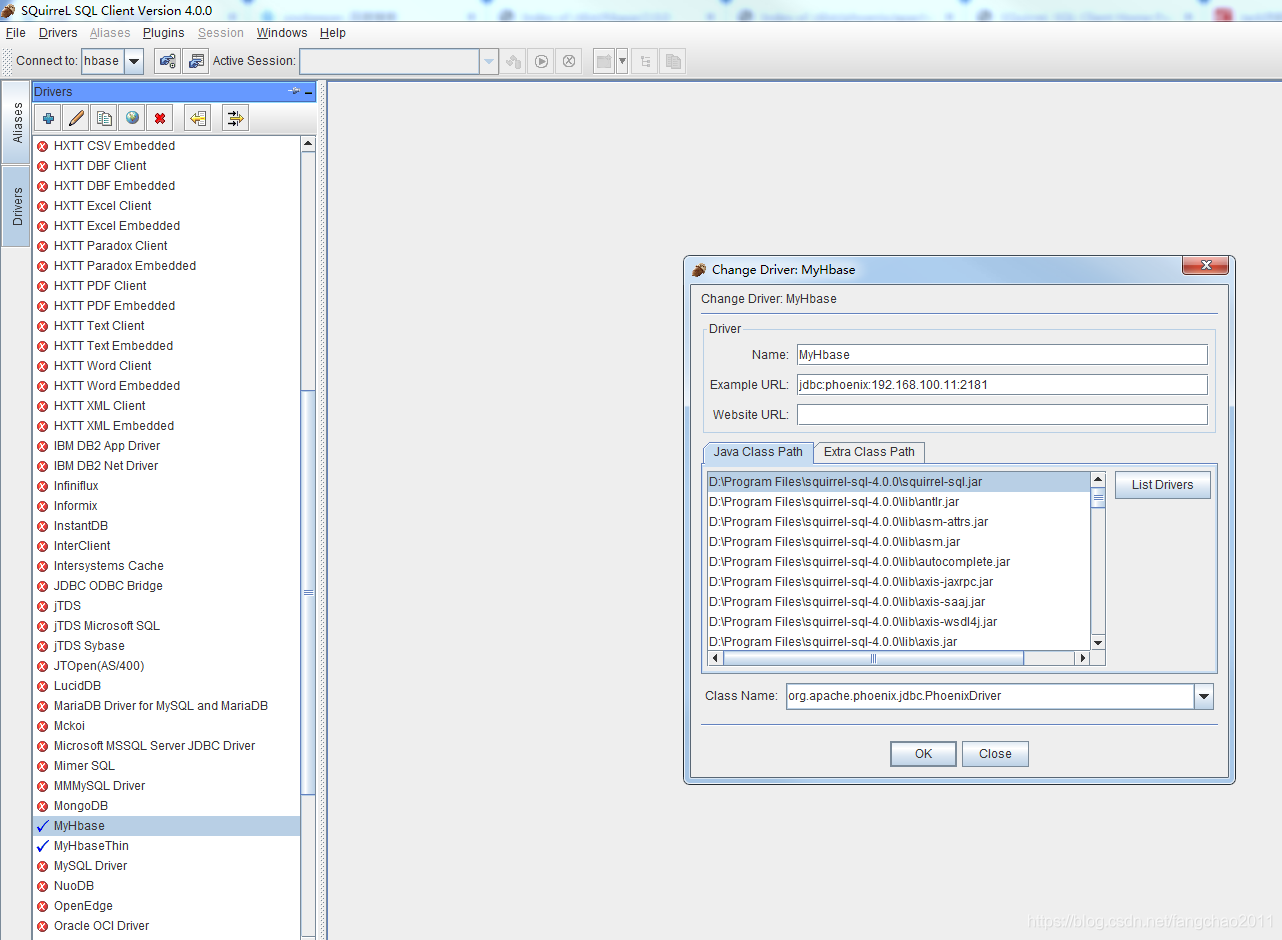

4.胖连接驱动：
Name：自己取
Example URL：jdbc:phoenix:192.168.100.11:2181 （Centos地址：zookeeper端口）
ClassName：加入了驱动包后点击 List Drivers 会自动填充。org.apache.phoenix.jdbc.PhoenixDriver
填写完毕后点击OK

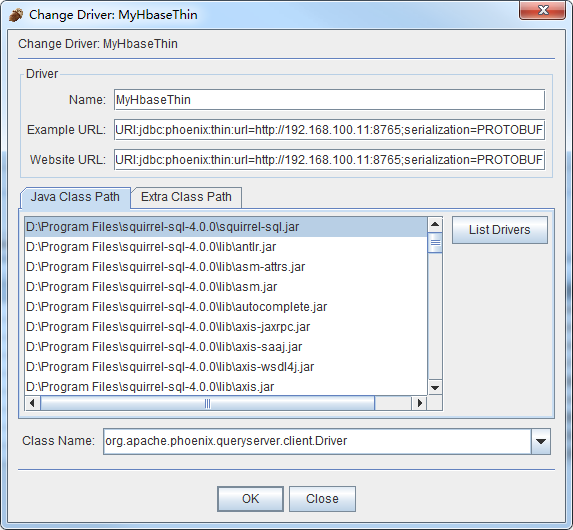

瘦连接：
Example URL：URI:jdbc:phoenix:thin:url=http://192.168.100.11:8765;serialization=PROTOBUF
Website URL：URI:jdbc:phoenix:thin:url=http://192.168.100.11:8765;serialization=PROTOBUF
ClassName：选择 org.apache.phoenix.queryserver.client.Driver

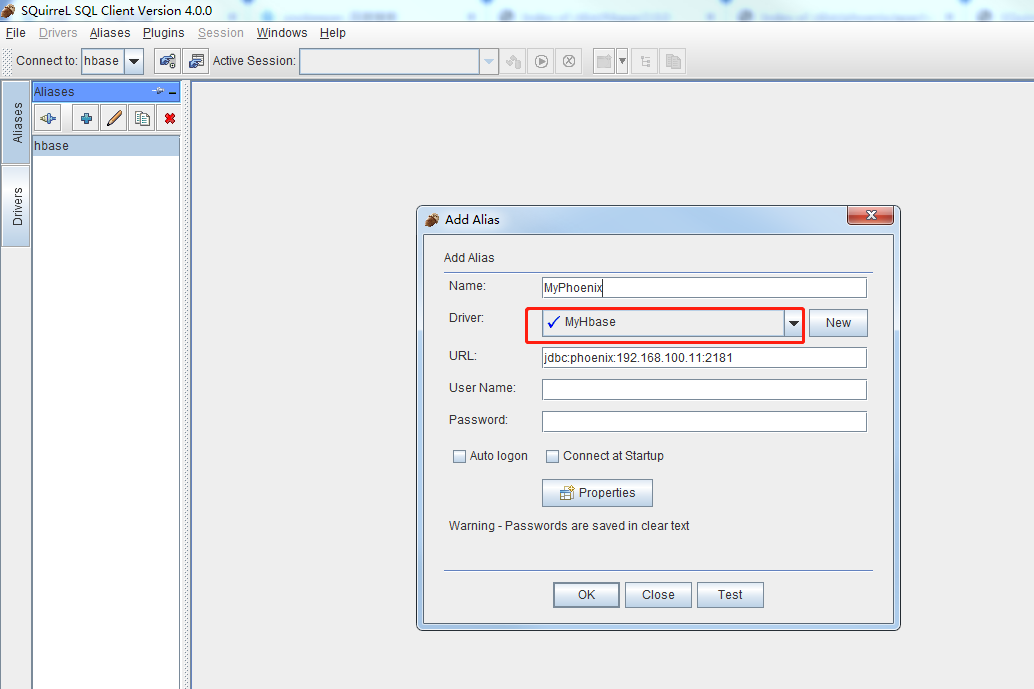

5.添加数据库连接实例
Name：自己取
Driver：选择上面刚创建的驱动
填写数据库+密码
点击Test测试连接。

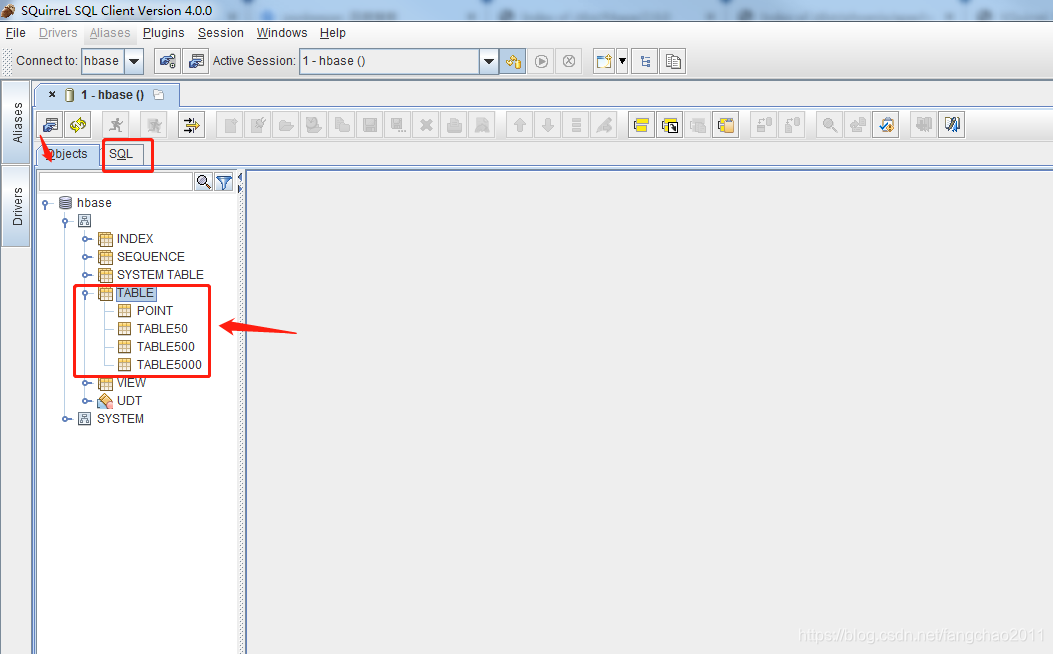

连接成功后：
查看表、写SQL位置如下

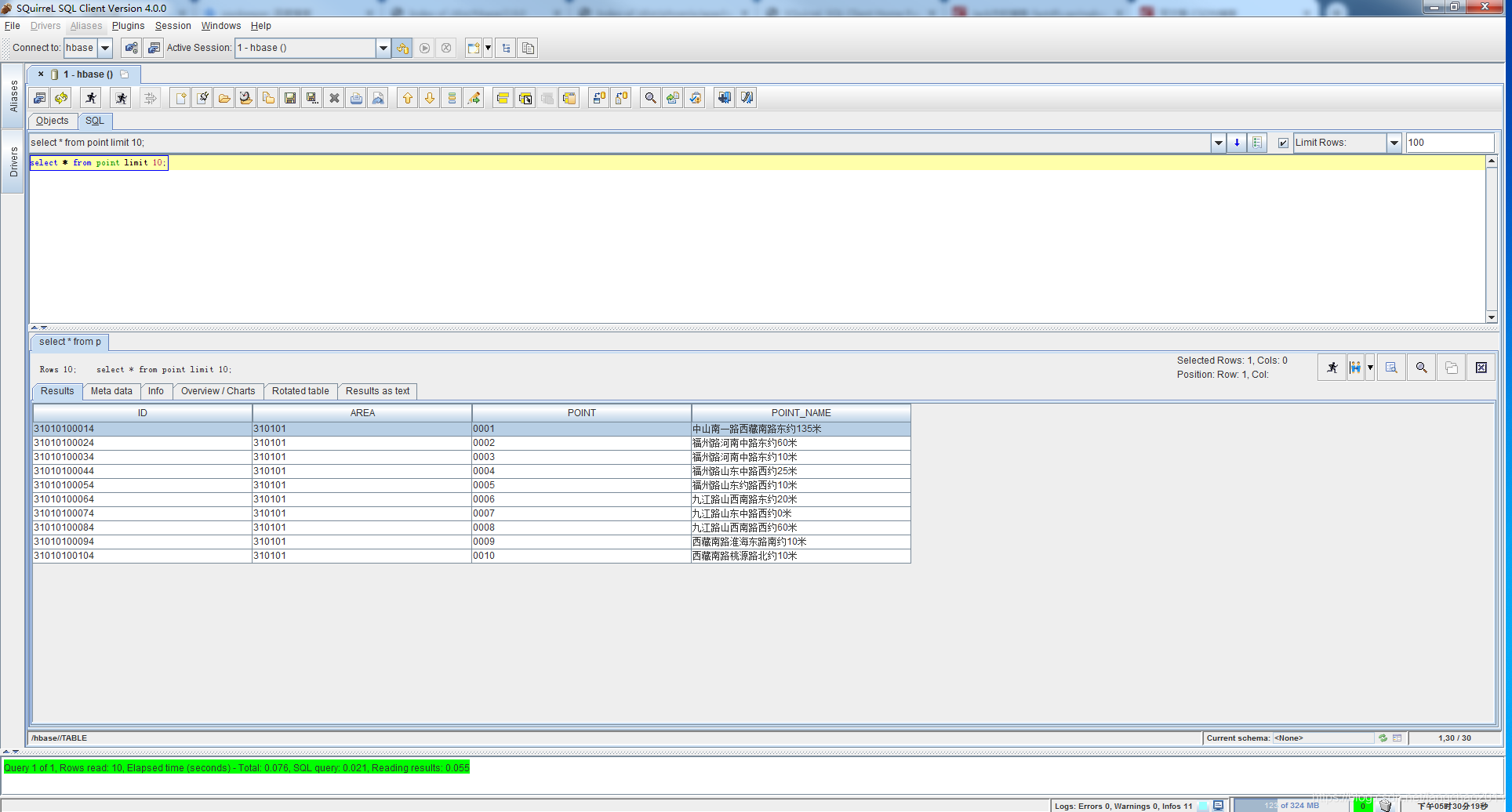

查询10条记录：
集成到Springboot+myBatisPlus项目中
0.项目结构
1.配置信息
pom.xml配置：见文章开头。
application.properties：
spring.profiles.active=druid, mybatisplus
#spring.application.name=demo-druid
#server.servlet.context-path=/demo-druid
#server.port=8080
#logging.file=demo-druid.log
#debug=true
#logging.level.com.yuan=debug
application-druid.yml:
spring:
datasource:
driver-class-name: org.apache.phoenix.jdbc.PhoenixDriver
url: jdbc:phoenix:192.168.100.11:2181
username:
password:
# type: com.alibaba.druid.pool.DruidDataSource
type: com.zaxxer.hikari.HikariDataSource
hikari:
# 池中维护的最小空闲连接数
minimum-idle: 10
# 池中最大连接数，包括闲置和使用中的连接
maximum-pool-size: 20
# 此属性控制从池返回的连接的默认自动提交行为。默认为true
auto-commit: true
# 允许最长空闲时间
idle-timeout: 30000
# 此属性表示连接池的用户定义名称，主要显示在日志记录和JMX管理控制台中，以标识池和池配置。 默认值：自动生成
pool-name: custom-hikari
#此属性控制池中连接的最长生命周期，值0表示无限生命周期，默认1800000即30分钟
max-lifetime: 1800000
# 数据库连接超时时间,默认30秒，即30000
connection-timeout: 30000
# 连接测试sql 这个地方需要根据数据库方言差异而配置 例如 oracle 就应该写成 select 1 from dual
connection-test-query: SELECT 1
application-mybatisplus.yml:
mybatis-plus:
# global-config:
# db-config:
# id-type: auto
# field-strategy: not_empty
# table-underline: true
# db-type: mysql
# logic-delete-value: 1 # 逻辑已删除值(默认为 1)
# logic-not-delete-value: 0 # 逻辑未删除值(默认为 0)
mapper-locations: classpath:/mapper/*.xml
相关查询语句编写：
Phoenix查询语句和Mysql 查询差不多
插入和更新不太一样 Phoenix是 UPSERT
例子如下：
MpUserMapper.xml：
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.yuan.demodruid.mapper.MpUserMapper">
<!-- 通用查询映射结果 -->
<select id="getAll" resultType="com.yuan.demodruid.domain.entity.MpUser">
select * from point
</select>
<insert id="putOne">
upsert into TABLE50 values('test','test','test','test','test','test','test','test','test')
</insert>
<select id="getOne1" resultType="com.yuan.demodruid.domain.entity.MyHbase">
select * from TABLE50 where NUMBER=#{id}
</select>
<insert id="upsertOne">
upsert into TABLE50 values(#{MyHbase.number},#{MyHbase.area},#{MyHbase.point},#{MyHbase.type},#{MyHbase.bicycleId},#{MyHbase.time},#{MyHbase.company},#{MyHbase.isDownload},#{MyHbase.isOnline})
</insert>
<insert id="upsertOne500">
upsert into TABLE500 values(#{MyHbase.number},#{MyHbase.area},#{MyHbase.point},#{MyHbase.type},#{MyHbase.bicycleId},#{MyHbase.time},#{MyHbase.company},#{MyHbase.isDownload},#{MyHbase.isOnline})
</insert>
<insert id="upsertOne5000">
upsert into TABLE5000 values(#{MyHbase.number},#{MyHbase.area},#{MyHbase.point},#{MyHbase.type},#{MyHbase.bicycleId},#{MyHbase.time},#{MyHbase.company},#{MyHbase.isDownload},#{MyHbase.isOnline})
</insert>
</mapper>

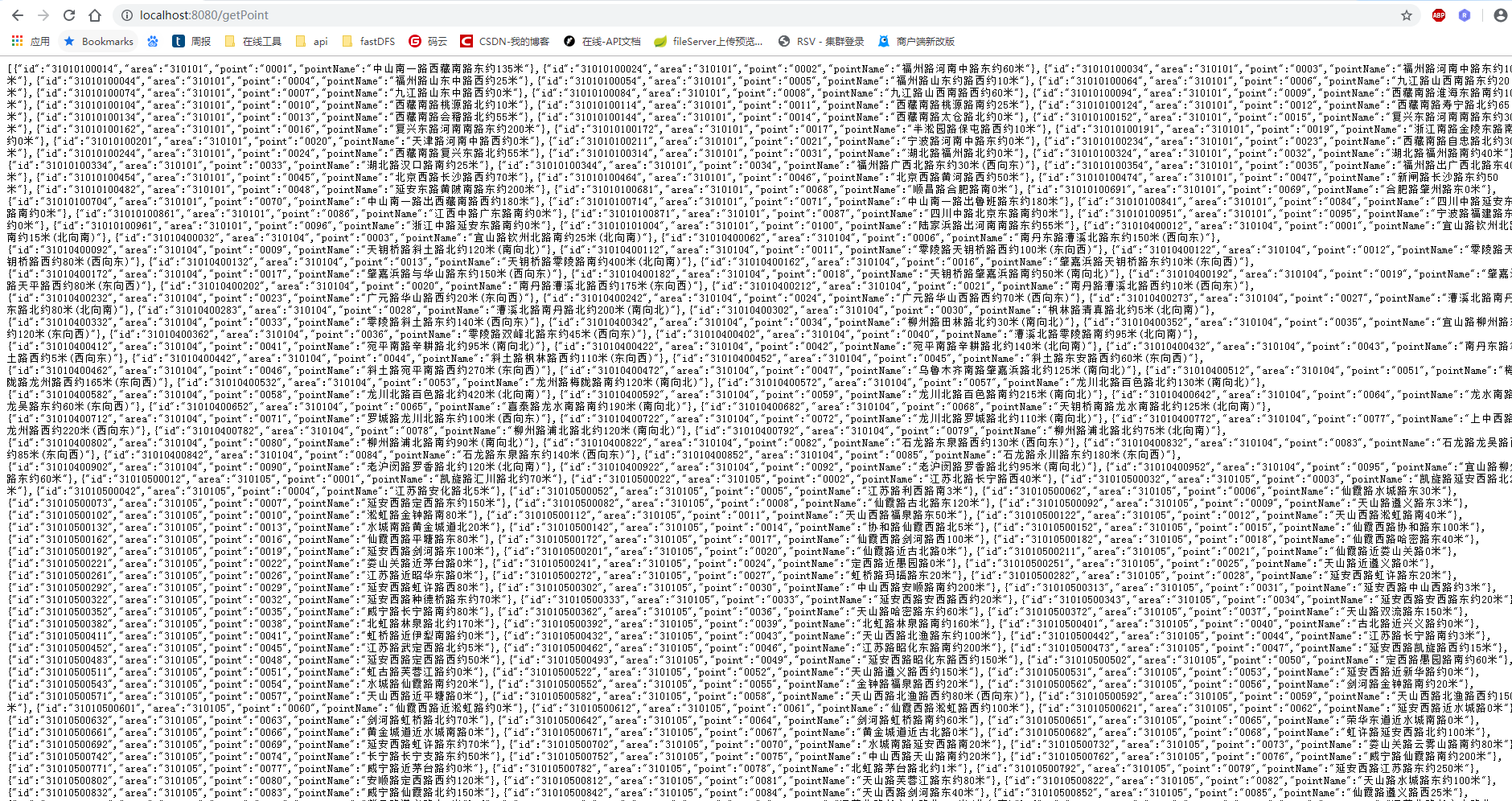

Springboot+MybatisPlus查询Hbase中数据 测试
http://localhost:8080/getPoint
在Phoenix中查询的结果：
完结
