TX-LCN分布式事务使用方案

Lcn分布式事务流程实现（启动事务协调者）

如果觉得还可以 记得关注一下公众号哦！一起交流学习！

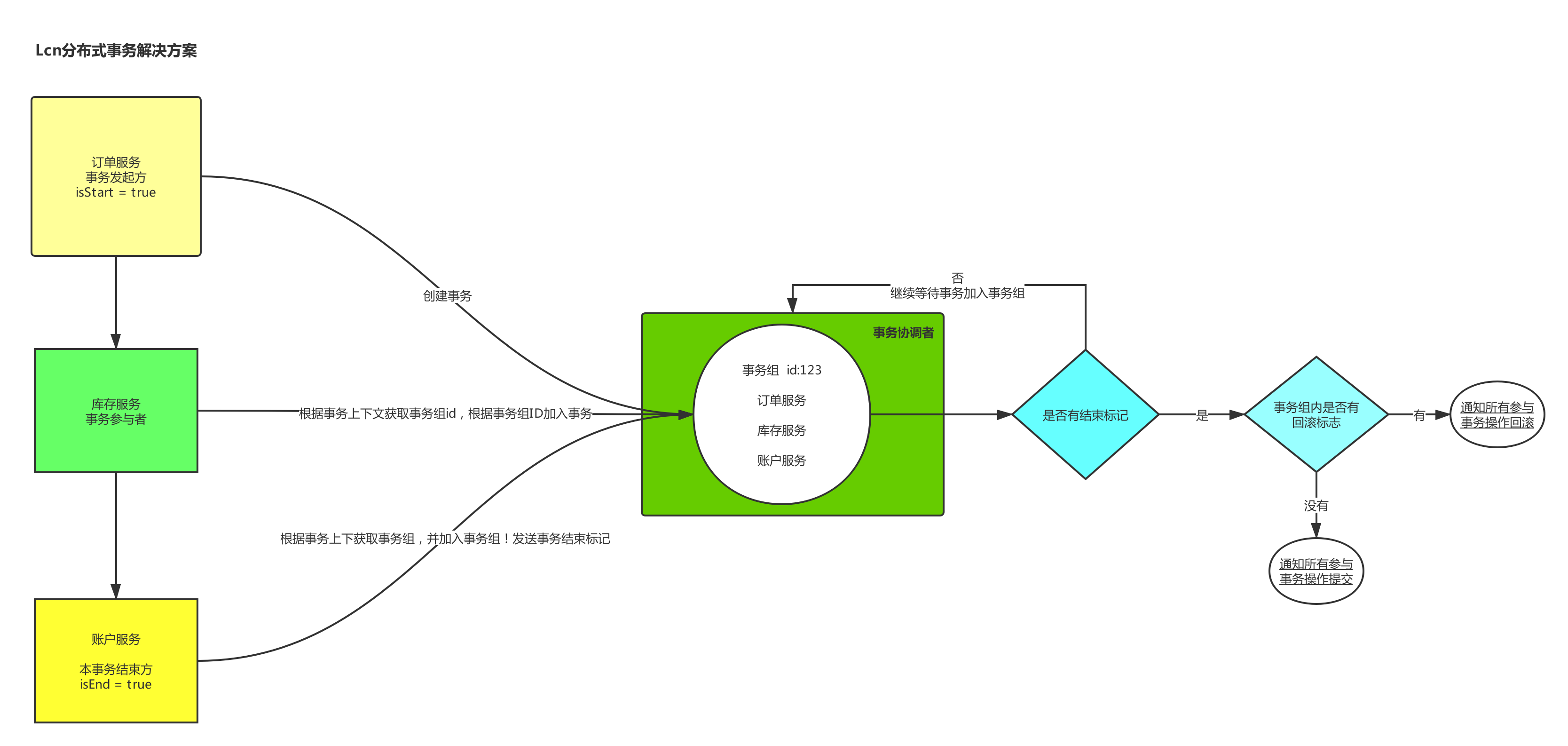

一、lcn流程图实现

二、Lcn介绍

1. tx-lcn

1.正如官网所说的：LCN并不生产事务，LCN只是本地事务的协调工！

Lcn本身不会产生事务，也不会涉及到某些业务代码！他对事务的操作本身就依赖一个事务协调者服务

如上图所说的一样 他分为4个步骤

1. 服务发起者 在事务协调者内创建事务组，并将本事务加入事务组
2. 事务参与者加入事务组，直到有结束标记出现
3. 事务协调者向所有的事务参与者发送询问，是否能够提交！全部提交则事务组提交！有一个回滚标记则事务组回滚！
4. 事务组执行操作之后，释放所有锁资源！

三、代码案例

1 创建数据库 tx-manager

创建表

CREATE TABLE `t_tx_exception`  (
  `id` bigint(20) NOT NULL AUTO_INCREMENT,
  `group_id` varchar(64) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL,
  `unit_id` varchar(32) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL,
  `mod_id` varchar(128) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL,
  `transaction_state` tinyint(4) NULL DEFAULT NULL,
  `registrar` tinyint(4) NULL DEFAULT NULL,
  `remark` varchar(4096) NULL DEFAULT  NULL,
  `ex_state` tinyint(4) NULL DEFAULT NULL COMMENT '0 未解决 1已解决',
  `create_time` datetime(0) NULL DEFAULT NULL,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 1 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci ROW_FORMAT = Dynamic;

2.引入事务协调者，并启动

github:https://github.com/codingapi/tx-lcn.git

将标记的项目加入IDEA，并修改配置文件

spring.application.name=tx-manager
server.port=7970

spring.datasource.driver-class-name=com.mysql.jdbc.Driver
spring.datasource.url=jdbc:mysql://127.0.0.1:3306/tx-manager?characterEncoding=UTF-8
spring.datasource.username=root
spring.datasource.password=root

mybatis.configuration.map-underscore-to-camel-case=true
mybatis.configuration.use-generated-keys=true

#tx-lcn.logger.enabled=true
# TxManager Host Ip
#tx-lcn.manager.host=127.0.0.1
# TxClient连接请求端口
#tx-lcn.manager.port=8070
# 心跳检测时间(ms)
#tx-lcn.manager.heart-time=15000
# 分布式事务执行总时间
#tx-lcn.manager.dtx-time=30000
#参数延迟删除时间单位ms
#tx-lcn.message.netty.attr-delay-time=10000
#tx-lcn.manager.concurrent-level=128
# 开启日志
#tx-lcn.logger.enabled=true
#logging.level.com.codingapi=debug
#redis 主机
#spring.redis.host=127.0.0.1
#redis 端口
#spring.redis.port=6379
#redis 密码
#spring.redis.password=

以上的配置详情介绍

spring.application.name=TransactionManager
server.port=7970

# JDBC 数据库配置
spring.datasource.driver-class-name=com.mysql.jdbc.Driver
spring.datasource.url=jdbc:mysql://127.0.0.1:3306/tx-manager?characterEncoding=UTF-8
spring.datasource.username=root
spring.datasource.password=123456

# 数据库方言
spring.jpa.database-platform=org.hibernate.dialect.MySQL5InnoDBDialect

# 第一次运行可以设置为: create, 为TM创建持久化数据库表
spring.jpa.hibernate.ddl-auto=validate

# TM监听IP. 默认为 127.0.0.1
tx-lcn.manager.host=127.0.0.1

# TM监听Socket端口. 默认为 ${server.port} - 100
tx-lcn.manager.port=8070

# 心跳检测时间(ms). 默认为 300000
tx-lcn.manager.heart-time=300000

# 分布式事务执行总时间(ms). 默认为36000
tx-lcn.manager.dtx-time=8000

# 参数延迟删除时间单位ms  默认为dtx-time值
tx-lcn.message.netty.attr-delay-time=${tx-lcn.manager.dtx-time}

# 事务处理并发等级. 默认为机器逻辑核心数5倍
tx-lcn.manager.concurrent-level=160

# TM后台登陆密码，默认值为codingapi
tx-lcn.manager.admin-key=codingapi

# 分布式事务锁超时时间 默认为-1，当-1时会用tx-lcn.manager.dtx-time的时间
tx-lcn.manager.dtx-lock-time=${tx-lcn.manager.dtx-time}

# 雪花算法的sequence位长度，默认为12位.
tx-lcn.manager.seq-len=12

# 异常回调开关。开启时请制定ex-url
tx-lcn.manager.ex-url-enabled=false

# 事务异常通知（任何http协议地址。未指定协议时，为TM提供内置功能接口）。默认是邮件通知
tx-lcn.manager.ex-url=/provider/email-to/***@**.com



# 开启日志,默认为false
tx-lcn.logger.enabled=true
tx-lcn.logger.enabled=false
tx-lcn.logger.driver-class-name=${spring.datasource.driver-class-name}
tx-lcn.logger.jdbc-url=${spring.datasource.url}
tx-lcn.logger.username=${spring.datasource.username}
tx-lcn.logger.password=${spring.datasource.password}

# redis 的设置信息. 线上请用Redis Cluster
spring.redis.host=127.0.0.1
spring.redis.port=6379
spring.redis.password=

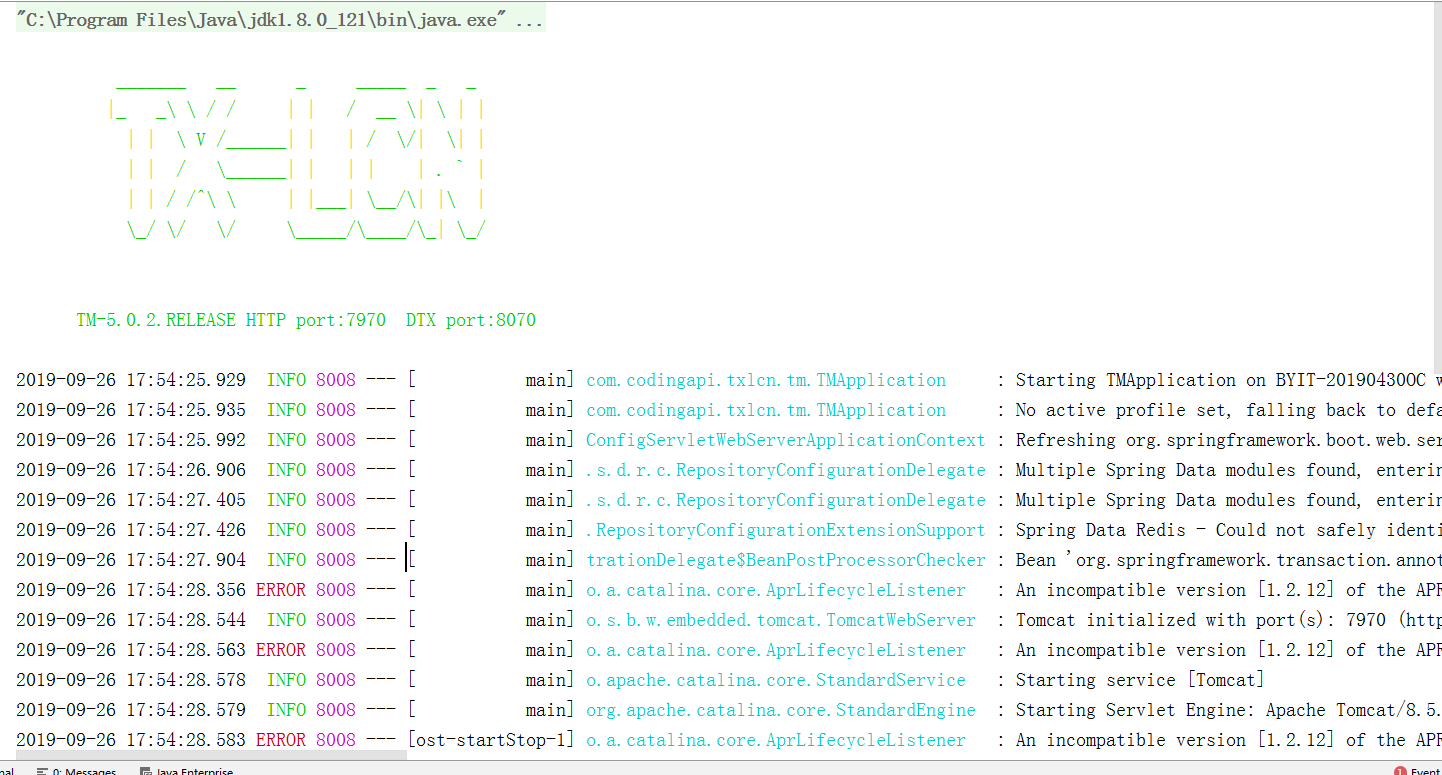

3 启动事务协调者

Lcn案例编写

一、上个文章里面已经启动了事务协调者 现在我们来开发一个demo来测试一下协调者是否生效了吧！

一、编写数据库

分别在两个不同的库中创建两张表

CREATE DATABASE /*!32312 IF NOT EXISTS*/`server1` /*!40100 DEFAULT CHARACTER SET utf8mb4 COLLATE utf8mb4_bin */;

USE `server1`;

SET FOREIGN_KEY_CHECKS = 0;

-- ----------------------------
-- Table structure for server1
-- ----------------------------
DROP TABLE IF EXISTS `server1`;
CREATE TABLE `server1`  (
  `id` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL,
  `name` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

SET FOREIGN_KEY_CHECKS = 1;

SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;


CREATE DATABASE /*!32312 IF NOT EXISTS*/`server2` /*!40100 DEFAULT CHARACTER SET utf8mb4 COLLATE utf8mb4_bin */;

USE `server2`;
-- ----------------------------
-- Table structure for server2
-- ----------------------------
DROP TABLE IF EXISTS `server2`;
CREATE TABLE `server2`  (
  `id` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL,
  `name` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

SET FOREIGN_KEY_CHECKS = 1;

二、父项目pom

pom文件

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.lcn</groupId>
    <artifactId>lcn-test</artifactId>
    <packaging>pom</packaging>
    <version>1.0-SNAPSHOT</version>
    <modules>
        <module>server1</module>
        <module>public-resources</module>
        <module>server2</module>
        <module>eureka</module>
    </modules>


    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.1.1.RELEASE</version>
    </parent>

    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>Finchley.RELEASE</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>

        </dependencies>
    </dependencyManagement>

    <dependencies>

        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
        </dependency>

        <!--spring boot的核心启动器-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

    </dependencies>
</project>

三、Eureka编写

pom文件

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>lcn-test</artifactId>
        <groupId>com.lcn</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.lcn</groupId>
    <artifactId>eureka</artifactId>


    <dependencies>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-server</artifactId>
        </dependency>
    </dependencies>

</project>

配置文件 application.yml

server:
  port: 8761
spring:
  application:
    name: eureka-server

eureka:
  server:
    peer-eureka-nodes-update-interval-ms: 60000
    enable-self-preservation: false
    eviction-interval-timer-in-ms: 5000
  client:
    service-url:
      defaultZone: http://localhost:8761/eureka/
    register-with-eureka: false
    fetch-registry: true

启动类

package com.eureka.server;

import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.boot.builder.SpringApplicationBuilder;
import org.springframework.cloud.netflix.eureka.server.EnableEurekaServer;

/**
 * @author huangfu
 */
@SpringBootApplication
@EnableEurekaServer
public class EurekaServer {
    public static void main(String[] args) {
        new SpringApplicationBuilder(EurekaServer.class).run(args);
    }
}

四、创建公共资源 module(public-resources)

创建serve1实体类

package com.pojo;

import lombok.Data;

/**
 * @author huangfu
 */
@Data
public class ServerOne {
    private String id;
    private String name;

    public ServerOne() {
    }

    public ServerOne(String id, String name) {
        this.id = id;
        this.name = name;
    }
}

创建server2

package com.pojo;

import lombok.Data;

/**
 * @author huangfu
 */
@Data
public class ServerTwo {
    private String id;
    private String name;

    public ServerTwo() {
    }

    public ServerTwo(String id, String name) {
        this.id = id;
        this.name = name;
    }
}

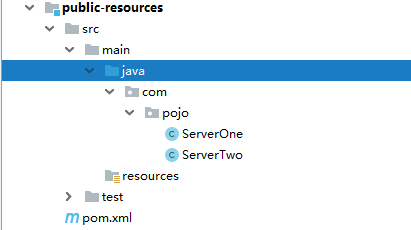

项目结构

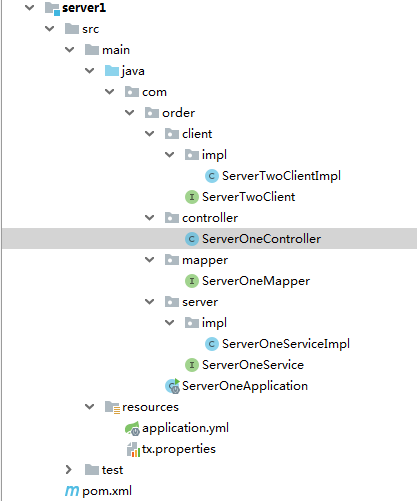

五、Server1开发

配置文件 appplication.yml

server:
  port: 8080

spring:
  application:
    name: server1
  main:
    allow-bean-definition-overriding: true
  datasource:
    driver-class-name:  com.mysql.jdbc.Driver
    url: jdbc:mysql://localhost:3306/lcn-server1?useUnicode=true&characterEncoding=utf8
    username: root
    password: root

eureka:
  client:
    service-url:
      defaultZone: http://localhost:8761/eureka/
  instance:
    prefer-ip-address: true


feign:
  hystrix:
    enabled : true
    # 在feign中开启hystrix功能，默认情况下feign不开启hystrix功能

mybatis:
  configuration:
    map-underscore-to-camel-case: true

tx.properties 注意：必须添加，用来指定事务协调者的访问位置

# 默认之配置为TM的本机默认端口
tx-lcn.client.manager-address=127.0.0.1:8070

启动类 注意：启动类必须添加@EnableDistributedTransaction注解 启动分布式事务

package com.order;

import com.codingapi.txlcn.tc.config.EnableDistributedTransaction;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.EnableEurekaClient;
import org.springframework.cloud.openfeign.EnableFeignClients;

/**
 * @author huangfu
 */
@EnableEurekaClient
@SpringBootApplication
@EnableFeignClients
@MapperScan("com.order.mapper")
@EnableDistributedTransaction
public class ServerOneApplication {
    public static void main(String[] args) {
        SpringApplication.run(ServerOneApplicatin.class);
    }
}

Mapper类 开发

package com.order.mapper;


import com.pojo.ServerOne;
import org.apache.ibatis.annotations.Insert;

/**
 * @author huangfu
 */
public interface ServerOneMapper {
    /**
     * 插入数据
     * @param serverOne
     */
    @Insert("insert into server1 values(#{id},#{name})")
    void insertData(ServerOne serverOne);
}

service类开发

package com.order.server;

import com.pojo.ServerOne;

/**
 * @author huangfu
 */
public interface ServerOneService {
    /**
     * 插入数据
     * @param serverOne
     */
    void insertData(ServerOne serverOne,String id);
}

注意：涉及到分布式事务的一定要添加 @LcnTransaction 注解

package com.order.server.impl;

import com.codingapi.txlcn.tc.annotation.LcnTransaction;
import com.order.client.ServerTwoClient;
import com.order.mapper.ServerOneMapper;
import com.order.server.ServerOneService;
import com.pojo.ServerOne;
import com.pojo.ServerTwo;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import org.springframework.transaction.annotation.Transactional;

/**
 * @author huangfu
 */
@Service
@SuppressWarnings("all")
public class ServerOneServiceImpl implements ServerOneService {
    @Autowired
    private ServerOneMapper serverOneMapper;
    @Autowired
    private ServerTwoClient serverTwoClient;

    @Override
    @LcnTransaction
    @Transactional(rollbackFor = Exception.class)
    public void insertData(ServerOne serverOne,String id) {
        serverOneMapper.insertData(serverOne);
        ServerTwo serverTwo = new ServerTwo(serverOne.getId(),serverOne.getName());
        serverTwoClient.addData2(serverTwo);
        if("1".equals(id)){
            throw new RuntimeException("自定义异常");
        }
        System.out.println("---------------服务一执行完成---------------");
    }
}

feign远程调用Server2服务

package com.order.client;

import com.codingapi.txlcn.tc.annotation.LcnTransaction;
import com.pojo.ServerTwo;
import org.springframework.cloud.openfeign.FeignClient;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;

/**
 * @author huangfu
 */
@FeignClient(value = "server2")
public interface ServerTwoClient {

    @RequestMapping(value = "/addData2",method = RequestMethod.POST)
    public void addData2(@RequestBody ServerTwo serverTwo);
}

package com.order.client.impl;

import com.order.client.ServerTwoClient;
import com.pojo.ServerTwo;
import org.springframework.stereotype.Component;

/**
 * @author huangfu
 */
@Component
public class ServerTwoClientImpl implements ServerTwoClient {
    @Override
    public void addData2(ServerTwo serverTwo) {
        System.out.println("------断路器-------------");
    }
}

开发Controller

package com.order.controller;

import com.order.server.ServerOneService;
import com.pojo.ServerOne;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;

import java.util.UUID;

/**
 * @author huangfu
 */
@RestController
public class ServerOneController {

    private final ServerOneService serverOneService;

    @Autowired
    public ServerOneController(ServerOneService serverOneService) {
        this.serverOneService = serverOneService;
    }


    @RequestMapping("addDataOne")
    public String addDataOne(String id){
        ServerOne serverOne = new ServerOne();
        serverOne.setId(UUID.randomUUID().toString());
        serverOne.setName("张三");
        serverOneService.insertData(serverOne,id);
        return "success";
    }
}

项目结构

六、Server2开发

配置文件 appplication.yml

server:
  port: 8080

spring:
  application:
    name: server2
  main:
    allow-bean-definition-overriding: true
  datasource:
    driver-class-name:  com.mysql.jdbc.Driver
    url: jdbc:mysql://localhost:3306/lcn-server2?useUnicode=true&characterEncoding=utf8
    username: root
    password: root

eureka:
  client:
    service-url:
      defaultZone: http://localhost:8761/eureka/
  instance:
    prefer-ip-address: true


feign:
  hystrix:
    enabled : true
    # 在feign中开启hystrix功能，默认情况下feign不开启hystrix功能

mybatis:
  configuration:
    map-underscore-to-camel-case: true

tx.properties 注意：必须添加，用来指定事务协调者的访问位置

# 默认之配置为TM的本机默认端口
tx-lcn.client.manager-address=127.0.0.1:8070

启动类 注意：启动类必须添加@EnableDistributedTransaction注解 启动分布式事务

package com.server2;

import com.codingapi.txlcn.tc.config.EnableDistributedTransaction;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.EnableEurekaClient;
import org.springframework.cloud.openfeign.EnableFeignClients;

/**
 * @author huangfu
 */
@EnableEurekaClient
@SpringBootApplication
@EnableFeignClients
@MapperScan("com.server2.mapper")
@EnableDistributedTransaction
public class ServerTwoApplication {
    public static void main(String[] args) {
        SpringApplication.run(ServerTwoApplication.class);
    }
}

mapper

package com.server2.mapper;


import com.pojo.ServerOne;
import com.pojo.ServerTwo;
import org.apache.ibatis.annotations.Insert;

/**
 * @author huangfu
 */
public interface ServerTwoMapper {
    /**
     * 插入数据
     * @param serverTwo
     */
    @Insert("insert into server2 values(#{id},#{name})")
    void insertData(ServerTwo serverTwo);
}

service类开发

package com.server2.server;

import com.pojo.ServerOne;
import com.pojo.ServerTwo;

/**
 * @author huangfu
 */
public interface ServerTwoService {
    /**
     * 插入数据
     * @param serverTwo
     */
    void insertData(ServerTwo serverTwo);
}

注意：涉及到分布式事务的一定要添加 @LcnTransaction 注解

package com.server2.server.impl;

import com.codingapi.txlcn.tc.annotation.LcnTransaction;
import com.pojo.ServerOne;
import com.pojo.ServerTwo;
import com.server2.mapper.ServerTwoMapper;
import com.server2.server.ServerTwoService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import org.springframework.transaction.annotation.Transactional;

/**
 * @author huangfu
 */
@Service
@SuppressWarnings("all")
public class ServerTwoServiceImpl implements ServerTwoService {
    @Autowired
    private ServerTwoMapper serverTwoMapper;

    @Override
    @LcnTransaction
    @Transactional(rollbackFor = Exception.class)
    public void insertData(ServerTwo serverTwo) {
        serverTwoMapper.insertData(serverTwo);
        System.out.println("---------------服务二执行完成---------------");
    }

}

Controller开发

package com.server2.controller;

import com.pojo.ServerTwo;
import com.server2.server.ServerTwoService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

/**
 * @author huangfu
 */
@RestController
public class ServerTwoController {

    @Autowired
    private ServerTwoService serverTwoService;

    @PostMapping("addData2")
    public void addData(@RequestBody ServerTwo serverTwo){
        serverTwoService.insertData(serverTwo);
    }
}

server2项目结构

七、浏览器访问

http://localhost:8080/addDataOne?id=2 当id=1时出现异常，测试各数据库是否回滚

八、整体项目结构

来源：CSDN

作者：皇甫嗷嗷叫

链接：https://blog.csdn.net/qq_37561309/article/details/101512691
