本文通过利用信用卡的历史交易数据进行机器学习，构建信用卡反欺诈预测模型，对客户信用卡盗刷进行预测
一、项目背景
对信用卡盗刷事情进行预测对于挽救客户、银行损失意义十分重大，此项目数据集来源于Kaggle，数据集包含由欧洲持卡人于2013年9月使用信用卡进行交的数据。此数据集显示两天内发生的交易，其中284,807笔交易中有492笔被盗刷。数据集非常不平衡，积极的类（被盗刷）占所有交易的0.172％。因判定信用卡持卡人信用卡是否会被盗刷为二分类问题，解决分类问题我们可以有逻辑回归、SVM、随机森林算法，也可利用boost集成学习的XGboost算法进行数据的训练与判别，本文中采用逻辑回归算法进行测试。
二、探索性数据分析
2.1 理解数据
import numpy as np
import pandas as pd
data = pd.read_csv('E:\\数据挖掘\\Project\\信用卡反欺诈模型\\creditcardfraud\\creditcard.csv')
len(data)
data.info()
data.head()
Data columns (total 31 columns): Time 284807 non-null float64 V1 284807 non-null float64 V2 284807 non-null float64 V3 284807 non-null float64 V4 284807 non-null float64 V5 284807 non-null float64 V6 284807 non-null float64 V7 284807 non-null float64 V8 284807 non-null float64 V9 284807 non-null float64 V10 284807 non-null float64 V11 284807 non-null float64 V12 284807 non-null float64 V13 284807 non-null float64 V14 284807 non-null float64 V15 284807 non-null float64 V16 284807 non-null float64 V17 284807 non-null float64 V18 284807 non-null float64 V19 284807 non-null float64 V20 284807 non-null float64 V21 284807 non-null float64 V22 284807 non-null float64 V23 284807 non-null float64 V24 284807 non-null float64 V25 284807 non-null float64 V26 284807 non-null float64 V27 284807 non-null float64 V28 284807 non-null float64 Amount 284807 non-null float64 Class 284807 non-null int64 dtypes: float64(30), int64(1)
Time V1 V2 V3 ... V27 V28 Amount Class 0 0.0 -1.359807 -0.072781 2.536347 ... 0.133558 -0.021053 149.62 0 1 0.0 1.191857 0.266151 0.166480 ... -0.008983 0.014724 2.69 0 2 1.0 -1.358354 -1.340163 1.773209 ... -0.055353 -0.059752 378.66 0 3 1.0 -0.966272 -0.185226 1.792993 ... 0.062723 0.061458 123.50 0 4 2.0 -1.158233 0.877737 1.548718 ... 0.219422 0.215153 69.99 0
可见数据共有31列，284807行，其中V1-V28为结构化数据，另一列为整形数据，也为类别属性Class，Amount和Time的数据特征与规格与其他特征不大相同，此外还显示了各列的均值、最小值、最大值、四分位数
2.2 数据初步探索
No Frauds 99.83 % of the dataset Frauds 0.17 % of the dataset
可以看出数据很不均衡：数据不均衡很可能导致我们模型预测结果‘0’时很准确，而预测‘1’时并不准确。
2.3 数据预处理
由上图知Fraud 与No Fraud的数据不均衡，若直接进行数据建模则会造成如下问题：
1）过拟合，因样本中存在大量的正例（No Fraud），故机器可能过多学习正例的特征而造成判断错误
2）特征关联错误，因样本数据不平衡，容易将不同的特征属性误关联
解决方案有如下：
1）Random undersampling，欠采样
通过选取正例中与Fraud相同数量的样本构成均衡的样本，这样新的样本样本中，Fraud、No Fraud各占50%
2）Oversampling，过采样
采用SMOTE算法，从少数类Fraud中创建合成点，以便在少数类和多数类之间达到平衡，不必删除任何行，这与随机欠采样不同，也由于没有如前所述未删除任何行，因此需要更多时间进行训练
需要说明的是虽然我们在实现Random Undersampling或Oversampling技术时对数据进行处理，但仍需要原始测试集上测试我们的模型，而不是在欠采样或过采样上。欠采样和过采样的作用是使构建的模型合适，最终还是服务于原始数据集。之后对分别采用欠采样和过采样的方法进行数据处理、建模，再对原始数据集进行预测分析。
此外还发现Amount列数值较大，不符合数据相似性原则，因此需要归一化使其范围在（-1， 1），否则在进行皮尔逊相关性分析时会出错。
三、特征工程
1. 绘制各种特征的分布图
1 ）查看盗刷与正常刷卡的刷卡金额分布图
\(信用卡被盗刷发生的金额与信用卡正常用户发生的金额相比，比较小。这说明信用卡盗刷者为了不引起信用卡卡主的注意，更偏向选择小金额消费\)

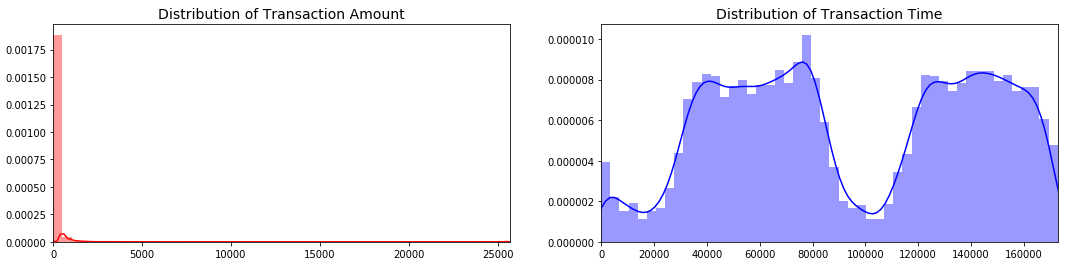

2） 查看交易时间与交易金额的分布图
3） 查看其他特征的分布图
2. 处理不平衡数据
对Amount进行归一化，使其范围在（-1， 1）
from sklearn.preprocessing import StandardScaler data['normAmount'] = StandardScaler().fit_transform(data['Amount'].reshape(-1, 1)) data = data.drop(['Time','Amount'],axis=1) data.head()
此外还需要进行采用处理，分为欠采样处理和过采样处理，Random undersampling 和 Oversampling，这里先按照欠处理采样进行分析。因此我们得到一个正反例平衡的数据样本。
X = data.ix[:,data.columns != 'Class'] Y = data.ix[:,data.columns == 'Class'] number_record_fraud = len(Y[Y.Class==1]) fraud_indices = np.array(data[data.Class == 1].index) normal_indices = np.array(data[data.Class == 0].index) random_normal_indices = np.array(np.random.choice(normal_indices,number_record_fraud,replace=False)) under_sample_indices = np.concatenate([fraud_indices,random_normal_indices]) under_sample_data = data.iloc[under_sample_indices,:] X_under_sample = under_sample_data.ix[:,under_sample_data.columns != 'Class'] Y_under_sample = under_sample_data.ix[:,under_sample_data.columns == 'Class'] from sklearn.cross_validation import train_test_split X_train_under_sample,X_test_under_sample,Y_train_under_sample,Y_test_under_sample = train_test_split(X_under_sample,Y_under_sample,test_size=0.3,random_state=0) X_train, X_test, Y_train, Y_test = train_test_split(X, Y, test_size=0.3, random_state=0)
3.相关性特征分析
3.1 相关性分析
f, (ax1, ax2) = plt.subplots(2, 1, figsize=(24,20))
sub_sample_corr = new_df.corr()
sns.heatmap(sub_sample_corr, cmap='coolwarm_r', annot_kws={'size':20}, ax=ax2)
ax2.set_title('SubSample Correlation Matrix \n', fontsize=14)
plt.show()
通过heatmap发现， V17，V14，V12和V10呈负相关，这意味着这些值越低，最终结果就越有可能成为欺诈交易，V4，V11和V19正相关。注意这些值越高，最终结果越有可能成为欺诈交易。
3.2 箱线图
绘制上述的正相关、负相关的特征属性的箱线图
f, axes = plt.subplots(ncols=4, figsize=(20,4))
# Negative Correlations with our Class (The lower our feature value the more likely it will be a fraud transaction)
sns.boxplot(x="Class", y="V17", data=new_df, palette=colors, ax=axes[0])
axes[0].set_title('V17 vs Class Negative Correlation')
sns.boxplot(x="Class", y="V14", data=new_df, palette=colors, ax=axes[1])
axes[1].set_title('V14 vs Class Negative Correlation')
sns.boxplot(x="Class", y="V12", data=new_df, palette=colors, ax=axes[2])
axes[2].set_title('V12 vs Class Negative Correlation')
sns.boxplot(x="Class", y="V10", data=new_df, palette=colors, ax=axes[3])
axes[3].set_title('V10 vs Class Negative Correlation')
plt.show()
f, axes = plt.subplots(ncols=4, figsize=(20,4))
# Positive correlations (The higher the feature the probability increases that it will be a fraud transaction)
sns.boxplot(x="Class", y="V11", data=new_df, palette=colors, ax=axes[0])
axes[0].set_title('V11 vs Class Positive Correlation')
sns.boxplot(x="Class", y="V4", data=new_df, palette=colors, ax=axes[1])
axes[1].set_title('V4 vs Class Positive Correlation')
sns.boxplot(x="Class", y="V2", data=new_df, palette=colors, ax=axes[2])
axes[2].set_title('V2 vs Class Positive Correlation')
sns.boxplot(x="Class", y="V19", data=new_df, palette=colors, ax=axes[3])
axes[3].set_title('V19 vs Class Positive Correlation')
plt.show()
3.3 异常值处理
在异常值处理前，需要可视化我们将要使用的特征的。由于上述V17、V14、V12、V10为负相关特征，观察这些特征的分布，与其他相比，V14是唯一具有高斯分布的特征。根据四分位数确定阀值，对在阀值外的异常数据进行剔除。
from scipy.stats import norm
f, (ax1, ax2, ax3) = plt.subplots(1,3, figsize=(20, 6))
v14_fraud_dist = new_df['V14'].loc[new_df['Class'] == 1].values
sns.distplot(v14_fraud_dist,ax=ax1, fit=norm, color='#FB8861')
ax1.set_title('V14 Distribution \n (Fraud Transactions)', fontsize=14)
v12_fraud_dist = new_df['V12'].loc[new_df['Class'] == 1].values
sns.distplot(v12_fraud_dist,ax=ax2, fit=norm, color='#56F9BB')
ax2.set_title('V12 Distribution \n (Fraud Transactions)', fontsize=14)
v10_fraud_dist = new_df['V10'].loc[new_df['Class'] == 1].values
sns.distplot(v10_fraud_dist,ax=ax3, fit=norm, color='#C5B3F9')
ax3.set_title('V10 Distribution \n (Fraud Transactions)', fontsize=14)
plt.show()
# # -----> V14 Removing Outliers (Highest Negative Correlated with Labels)
v14_fraud = new_df['V14'].loc[new_df['Class'] == 1].values
q25, q75 = np.percentile(v14_fraud, 25), np.percentile(v14_fraud, 75)
print('Quartile 25: {} | Quartile 75: {}'.format(q25, q75))
v14_iqr = q75 - q25
print('iqr: {}'.format(v14_iqr))
v14_cut_off = v14_iqr * 1.5
v14_lower, v14_upper = q25 - v14_cut_off, q75 + v14_cut_off
print('Cut Off: {}'.format(v14_cut_off))
print('V14 Lower: {}'.format(v14_lower))
print('V14 Upper: {}'.format(v14_upper))
outliers = [x for x in v14_fraud if x < v14_lower or x > v14_upper]
print('Feature V14 Outliers for Fraud Cases: {}'.format(len(outliers)))
print('V10 outliers:{}'.format(outliers))
new_df = new_df.drop(new_df[(new_df['V14'] > v14_upper) | (new_df['V14'] < v14_lower)].index)
print('----' * 44)
# -----> V12 removing outliers from fraud transactions
v12_fraud = new_df['V12'].loc[new_df['Class'] == 1].values
q25, q75 = np.percentile(v12_fraud, 25), np.percentile(v12_fraud, 75)
v12_iqr = q75 - q25
v12_cut_off = v12_iqr * 1.5
v12_lower, v12_upper = q25 - v12_cut_off, q75 + v12_cut_off
print('V12 Lower: {}'.format(v12_lower))
print('V12 Upper: {}'.format(v12_upper))
outliers = [x for x in v12_fraud if x < v12_lower or x > v12_upper]
print('V12 outliers: {}'.format(outliers))
print('Feature V12 Outliers for Fraud Cases: {}'.format(len(outliers)))
new_df = new_df.drop(new_df[(new_df['V12'] > v12_upper) | (new_df['V12'] < v12_lower)].index)
print('Number of Instances after outliers removal: {}'.format(len(new_df)))
print('----' * 44)
# Removing outliers V10 Feature
v10_fraud = new_df['V10'].loc[new_df['Class'] == 1].values
q25, q75 = np.percentile(v10_fraud, 25), np.percentile(v10_fraud, 75)
v10_iqr = q75 - q25
v10_cut_off = v10_iqr * 1.5
v10_lower, v10_upper = q25 - v10_cut_off, q75 + v10_cut_off
print('V10 Lower: {}'.format(v10_lower))
print('V10 Upper: {}'.format(v10_upper))
outliers = [x for x in v10_fraud if x < v10_lower or x > v10_upper]
print('V10 outliers: {}'.format(outliers))
print('Feature V10 Outliers for Fraud Cases: {}'.format(len(outliers)))
new_df = new_df.drop(new_df[(new_df['V10'] > v10_upper) | (new_df['V10'] < v10_lower)].index)
print('Number of Instances after outliers removal: {}'.format(len(new_df)))
f,(ax1, ax2, ax3) = plt.subplots(1, 3, figsize=(20,6))
colors = ['#B3F9C5', '#f9c5b3']
# Boxplots with outliers removed
# Feature V14
sns.boxplot(x="Class", y="V14", data=new_df,ax=ax1, palette=colors)
ax1.set_title("V14 Feature \n Reduction of outliers", fontsize=14)
ax1.annotate('Fewer extreme \n outliers', xy=(0.98, -17.5), xytext=(0, -12),
arrowprops=dict(facecolor='black'),
fontsize=14)
# Feature 12
sns.boxplot(x="Class", y="V12", data=new_df, ax=ax2, palette=colors)
ax2.set_title("V12 Feature \n Reduction of outliers", fontsize=14)
ax2.annotate('Fewer extreme \n outliers', xy=(0.98, -17.3), xytext=(0, -12),
arrowprops=dict(facecolor='black'),
fontsize=14)
# Feature V10
sns.boxplot(x="Class", y="V10", data=new_df, ax=ax3, palette=colors)
ax3.set_title("V10 Feature \n Reduction of outliers", fontsize=14)
ax3.annotate('Fewer extreme \n outliers', xy=(0.95, -16.5), xytext=(0, -12),
arrowprops=dict(facecolor='black'),
fontsize=14)
plt.show()
3.3 降维
降维的作用是将高维的数据集中不必要的特征去除，只保留需要的特征属性。
f, (ax1, ax2, ax3) = plt.subplots(1, 3, figsize=(24,6))
# labels = ['No Fraud', 'Fraud']
f.suptitle('Clusters using Dimensionality Reduction', fontsize=14)
blue_patch = mpatches.Patch(color='#0A0AFF', label='No Fraud')
red_patch = mpatches.Patch(color='#AF0000', label='Fraud')
# t-SNE scatter plot
ax1.scatter(X_reduced_tsne[:,0], X_reduced_tsne[:,1], c=(y == 0), cmap='coolwarm', label='No Fraud', linewidths=2)
ax1.scatter(X_reduced_tsne[:,0], X_reduced_tsne[:,1], c=(y == 1), cmap='coolwarm', label='Fraud', linewidths=2)
ax1.set_title('t-SNE', fontsize=14)
ax1.grid(True)
ax1.legend(handles=[blue_patch, red_patch])
# PCA scatter plot
ax2.scatter(X_reduced_pca[:,0], X_reduced_pca[:,1], c=(y == 0), cmap='coolwarm', label='No Fraud', linewidths=2)
ax2.scatter(X_reduced_pca[:,0], X_reduced_pca[:,1], c=(y == 1), cmap='coolwarm', label='Fraud', linewidths=2)
ax2.set_title('PCA', fontsize=14)
ax2.grid(True)
ax2.legend(handles=[blue_patch, red_patch])
# TruncatedSVD scatter plot
ax3.scatter(X_reduced_svd[:,0], X_reduced_svd[:,1], c=(y == 0), cmap='coolwarm', label='No Fraud', linewidths=2)
ax3.scatter(X_reduced_svd[:,0], X_reduced_svd[:,1], c=(y == 1), cmap='coolwarm', label='Fraud', linewidths=2)
ax3.set_title('Truncated SVD', fontsize=14)
ax3.grid(True)
ax3.legend(handles=[blue_patch, red_patch])
plt.show()
四、数据建模与评估
4.1 Recall
引入recall，针对上述Random undersampling 欠采样，进行LR回归训练
#Recall = TP/(TP+FN) from sklearn.linear_model import LogisticRegression from sklearn.cross_validation import KFold, cross_val_score from sklearn.metrics import confusion_matrix,recall_score,classification_report
4.2 Logistic Regression
def printing_Kfold_scores(x_train_data,y_train_data):
fold = KFold(len(y_train_data),5,shuffle=False)
# Different C parameters
c_param_range = [0.01,0.1,1,10,100]
results_table = pd.DataFrame(index = range(len(c_param_range),2), columns = ['C_parameter','Mean recall score'])
results_table['C_parameter'] = c_param_range
# the k-fold will give 2 lists: train_indices = indices[0], test_indices = indices[1]
j = 0
for c_param in c_param_range:
print('-------------------------------------------')
print('C parameter: ', c_param)
print('-------------------------------------------')
print('')
recall_accs = []
for iteration, indices in enumerate(fold,start=1):
# Call the logistic regression model with a certain C parameter
lr = LogisticRegression(C = c_param, penalty = 'l1')
# Use the training data to fit the model. In this case, we use the portion of the fold to train the model
# with indices[0]. We then predict on the portion assigned as the 'test cross validation' with indices[1]
lr.fit(x_train_data.iloc[indices[0],:],y_train_data.iloc[indices[0],:].values.ravel())
# Predict values using the test indices in the training data
y_pred_undersample = lr.predict(x_train_data.iloc[indices[1],:].values)
# Calculate the recall score and append it to a list for recall scores representing the current c_parameter
recall_acc = recall_score(y_train_data.iloc[indices[1],:].values,y_pred_undersample)
recall_accs.append(recall_acc)
print('Iteration ', iteration,': recall score = ', recall_acc)
# The mean value of those recall scores is the metric we want to save and get hold of.
results_table.ix[j,'Mean recall score'] = np.mean(recall_accs)
j += 1
print('')
print('Mean recall score ', np.mean(recall_accs))
print('')
best_c = results_table.loc[results_table['Mean recall score'].idxmax()]['C_parameter']
# Finally, we can check which C parameter is the best amongst the chosen.
print('*********************************************************************************')
print('Best model to choose from cross validation is with C parameter = ', best_c)
print('*********************************************************************************')
return best_c
4.3 混淆矩阵
因单一使用recall值来评价模型还是有一定的缺陷，现引入混淆矩阵来进一步对模型进行评估。
import itertools
def plot_confusion_matrix(cm, classes,
title='Confusion matrix',
cmap=plt.cm.Blues):
"""
This function prints and plots the confusion matrix.
"""
plt.imshow(cm, interpolation='nearest', cmap=cmap)
plt.title(title)
plt.colorbar()
tick_marks = np.arange(len(classes))
plt.xticks(tick_marks, classes, rotation=0)
plt.yticks(tick_marks, classes)
thresh = cm.max() / 2.
for i, j in itertools.product(range(cm.shape[0]), range(cm.shape[1])):
plt.text(j, i, cm[i, j],
horizontalalignment="center",
color="white" if cm[i, j] > thresh else "black")
plt.tight_layout()
plt.ylabel('True label')
plt.xlabel('Predicted label')
lr = LogisticRegression(C = best_c, penalty = 'l1')
y_pred_undersample_score = lr.fit(X_train_undersample,y_train_undersample.values.ravel()).decision_function(X_test_undersample.values)
fpr, tpr, thresholds = roc_curve(y_test_undersample.values.ravel(),y_pred_undersample_score)
roc_auc = auc(fpr,tpr)
# Plot ROC
plt.title('Receiver Operating Characteristic')
plt.plot(fpr, tpr, 'b',label='AUC = %0.2f'% roc_auc)
plt.legend(loc='lower right')
plt.plot([0,1],[0,1],'r--')
plt.xlim([-0.1,1.0])
plt.ylim([-0.1,1.01])
plt.ylabel('True Positive Rate')
plt.xlabel('False Positive Rate')
plt.show()
best_c = printing_Kfold_scores(X_train,y_train)
lr = LogisticRegression(C = best_c, penalty = 'l1')
lr.fit(X_train,y_train.values.ravel())
y_pred_undersample = lr.predict(X_test.values)
cnf_matrix = confusion_matrix(y_test,y_pred_undersample)
np.set_printoptions(precision=2)
print("Recall metric in the testing dataset: ", cnf_matrix[1,1]/(cnf_matrix[1,0]+cnf_matrix[1,1]))
class_names = [0,1]
plt.figure()
plot_confusion_matrix(cnf_matrix
, classes=class_names
, title='Confusion matrix')
plt.show()
lr = LogisticRegression(C = best_c, penalty = 'l1')
y_pred_score = lr.fit(X_train,y_train.values.ravel()).decision_function(X_test.values)
fpr, tpr, thresholds = roc_curve(y_test.values.ravel(),y_pred_score)
roc_auc = auc(fpr,tpr)
plt.title('Receiver Operating Characteristic')
plt.plot(fpr, tpr, 'b',label='AUC = %0.2f'% roc_auc)
plt.legend(loc='lower right')
plt.plot([0,1],[0,1],'r--')
plt.xlim([-0.1,1.0])
plt.ylim([-0.1,1.01])
plt.ylabel('True Positive Rate')
plt.xlabel('False Positive Rate')
plt.show()
4.4 原始数据分析
上面是用下采样处理得到的测试数据来求recall和混淆矩阵的，因为下采样得到的数据相比于原始数据是很少的，所以这个测试结果没什么说服力，所以我们要用原始数据（没有经过下采样的数据）来进行测试
lr = LogisticRegression(C = best_c, penalty = 'l1')
lr.fit(X_train_under_sample,Y_train_under_sample.values.ravel())
Y_pred = lr.predict(X_test.values)
# Compute confusion matrix
cnf_matrix = confusion_matrix(Y_test,Y_pred)
np.set_printoptions(precision=2)
print("Recall metric in the testing dataset: ", float(cnf_matrix[1,1])/(cnf_matrix[1,0]+cnf_matrix[1,1]))
# Plot non-normalized confusion matrix
class_names = [0,1]
plt.figure()
plot_confusion_matrix(cnf_matrix
, classes=class_names
, title='Confusion matrix')
plt.show()
逻辑回归模型中除了惩罚力度参数C需要整定，Threshold也可以调调，默认不做处理相当于Threshold为0.5
lr = LogisticRegression(C = 0.01, penalty = 'l1')
lr.fit(X_train_undersample,y_train_undersample.values.ravel())
y_pred_undersample_proba = lr.predict_proba(X_test_undersample.values)
thresholds = [0.1,0.2,0.3,0.4,0.5,0.6,0.7,0.8,0.9]
plt.figure(figsize=(10,10))
j = 1
for i in thresholds:
y_test_predictions_high_recall = y_pred_undersample_proba[:,1] > i
plt.subplot(3,3,j)
j += 1
# Compute confusion matrix
cnf_matrix = confusion_matrix(y_test_undersample,y_test_predictions_high_recall)
np.set_printoptions(precision=2)
print("Recall metric in the testing dataset: ", cnf_matrix[1,1]/(cnf_matrix[1,0]+cnf_matrix[1,1]))
# Plot non-normalized confusion matrix
class_names = [0,1]
plot_confusion_matrix(cnf_matrix
, classes=class_names
, title='Threshold >= %s'%i)
4.5 过采样处理
现在使用SMOTE过采样进行分析
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
from imblearn.over_sampling import SMOTE
from sklearn.ensemble import RandomForestClassifier
from sklearn.metrics import confusion_matrix
from sklearn.model_selection import train_test_split
data = pd.read_csv('creditcard.csv')
from sklearn.preprocessing import StandardScaler
data['normAmount'] = StandardScaler().fit_transform(data['Amount'].values.reshape(-1,1))
data = data.drop(['Amount','Time'], axis=1)
import itertools
from sklearn.linear_model import LogisticRegression
from sklearn.cross_validation import KFold, cross_val_score
from sklearn.metrics import confusion_matrix,recall_score,classification_report
def printing_Kfold_scores(x_train_data,y_train_data):
fold = KFold(len(y_train_data),5,shuffle=False)
c_param_range = [0.01,0.1,1,10,100]
results_table = pd.DataFrame(index = range(len(c_param_range),2), columns = ['C_parameter','Mean recall score'])
results_table['C_parameter'] = c_param_range
j = 0
for c_param in c_param_range:
print('-------------------------------------------')
print('C parameter: ', c_param)
print('-------------------------------------------')
print('')
recall_accs = []
for iteration, indices in enumerate(fold,start=1):
lr = LogisticRegression(C = c_param, penalty = 'l1')
lr.fit(x_train_data.iloc[indices[0],:],y_train_data.iloc[indices[0],:].values.ravel())
y_pred_undersample = lr.predict(x_train_data.iloc[indices[1],:].values)
recall_acc = recall_score(y_train_data.iloc[indices[1],:].values,y_pred_undersample)
recall_accs.append(recall_acc)
print('Iteration ', iteration,': recall score = ', recall_acc)
results_table.ix[j,'Mean recall score'] = np.mean(recall_accs)
j += 1
print('')
print('Mean recall score ', np.mean(recall_accs))
print('')
best_c = results_table.loc[results_table['Mean recall score'].idxmax()]['C_parameter']
print('*********************************************************************************')
print('Best model to choose from cross validation is with C parameter = ', best_c)
print('*********************************************************************************')
return best_c
def plot_confusion_matrix(cm, classes,
title='Confusion matrix',
cmap=plt.cm.Blues):
plt.imshow(cm, interpolation='nearest', cmap=cmap)
plt.title(title)
plt.colorbar()
tick_marks = np.arange(len(classes))
plt.xticks(tick_marks, classes, rotation=0)
plt.yticks(tick_marks, classes)
thresh = cm.max() / 2.
for i, j in itertools.product(range(cm.shape[0]), range(cm.shape[1])):
plt.text(j, i, cm[i, j],
horizontalalignment="center",
color="white" if cm[i, j] > thresh else "black")
plt.tight_layout()
plt.ylabel('True label')
plt.xlabel('Predicted label')
columns=data.columns
features_columns=columns.delete(len(columns)-1)
features=data[features_columns]
labels=data['Class']
features_train, features_test, labels_train, labels_test = train_test_split(features,
labels,
test_size=0.3,
random_state=0)
oversampler=SMOTE(random_state=0)
os_features,os_labels=oversampler.fit_sample(features_train,labels_train)
os_features = pd.DataFrame(os_features)
os_labels = pd.DataFrame(os_labels)
#print len(os_labels[os_labels==1])
lr = LogisticRegression(C = best_c, penalty = 'l1')
lr.fit(os_features,os_labels.values.ravel())
y_pred = lr.predict(features_test.values)
# Compute confusion matrix
cnf_matrix = confusion_matrix(labels_test,y_pred)
np.set_printoptions(precision=2)
print("Recall metric in the testing dataset: ", cnf_matrix[1,1]/(cnf_matrix[1,0]+cnf_matrix[1,1]))
# Plot non-normalized confusion matrix
class_names = [0,1]
plt.figure()
plot_confusion_matrix(cnf_matrix
, classes=class_names
, title='Confusion matx')
plt.show()
五、结论
- 在遇到数据不平衡时一定要进行处理，若按原数据集进行训练有可能模型无意义，此外数据间差异过大需要进行归一化。
- 通过下采样（Random undersampling) 处理数据得到的逻辑回归模型，虽然recall值挺高的，但NP值非常高，也就是误杀率非常高。而使用过采样来处理数据，效果优于下采样
- 逻辑回归模型中除了惩罚力度参数C需要整定，Threshold也可以调，使得模型的各项指标最优
- 特征工程中的降温处理非常有必要，在高维数据集中包含许多不必要的数据时。
- 待完善的地方是需要结合不同的机器学习算法进行数据集训练，如决策树、SVM、随机森林、GBDT、XGBoost等，综合分析最好的模型。此外还可依据模型制定评分卡，通过评分卡对欺诈行为进行预测。
[1] CSDN机器学习笔记七 实战样本不均衡数据解决方法，谢厂节，https://blog.csdn.net/xundh/article/details/73302288
