源于HystrixCommandStartStream和RollingCommandMaxConcurrencyStream 的 RxJava demo

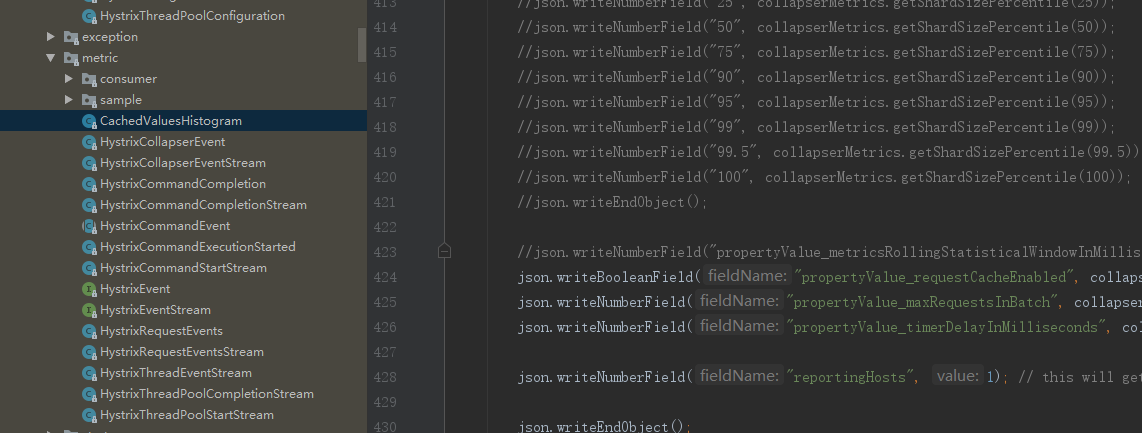

其实，最近在工作之余看Hystrix源代码已经有一个多月了，除了对 HystrixCommandProperties ，HystrixCommand 和AbstractCommand 几个类比较了解以外，其余看山不是山，比较懵，主要是因为Hystrix基于RxJava 来实现，而RxJava 则又是函数式编程，跳跃性很大，习惯了面向过程和面向对象编程，看RxJava则有点吃力。但昨晚有所顿悟，因为我看懂了 Hystrix 是如何统计并发量(currentConcurrentExecutionCount)和最近10s最大并发量(rollingMaxConcurrentExecutionCount)的。 Hystrix的所有统计工作在 com.netflix.hystrix.metric 这个package中，初看十分吃力，十分复杂。我把统计最近10s 最大并发量抽象成如下需求，并用rxJava 来实现。

有n个线程不停的产生整数，速率不固定，求最近10s内产生的最大整数。昨晚在断网的情况下写了如下实现：使用rxJava的 window 功能来实现。

import rx.Observable;
import rx.functions.Func1;
import rx.functions.Func2;
import rx.subjects.BehaviorSubject;
import rx.subjects.PublishSubject;
import rx.subjects.SerializedSubject;
import rx.subjects.Subject;

import java.util.ArrayList;
import java.util.List;
import java.util.Random;
import java.util.concurrent.TimeUnit;

public class Main1 {

    //  线程安全   SerializedSubject.onNext  调用SerializedObserver.onNext ，而SerializedObserver.onNext 使用了synchronized
    private static Subject<String, String> writeOnlySubject = new SerializedSubject<String, String>(PublishSubject.<String>create());

    //  共享，能被多个消费者处理
    private static Observable<String> readOnlyStream = writeOnlySubject.share();


    public static void main(String[] args) throws Exception{

        new Thread(new ProduceStream()).start();
        new Thread(new ProduceStream()).start();

        // 计算最近10s产生数据中的最大值
        new Thread(new ConsumerMax()).start();
        // 计算最近10s产生数据中的最小值
        //  new Thread(new ConsumerMin()).start();

    }

    //  只产生数据,不停的产生数据就会形成流
    private static class ProduceStream implements Runnable {

        @Override
        public void run() {

            while (true){
                writeOnlySubject.onNext(String.valueOf(new Random().nextInt(10000)));
                try {
                    Thread.sleep(new Random().nextInt(200));
                }catch (Exception e){

                }

            }
        }

    }

    /*   消费者，观察者  */
    private static class ConsumerMax implements Runnable {

        private static final Func1<String, Integer> getConcurrencyCountFromEvent = new Func1<String, Integer>() {
            @Override
            public Integer call(String event) {
                // 当前的并发量
                int value = Integer.parseInt(event);
                return value;
            }
        };

        private static final Func1<Observable<Integer>, Observable<Integer>> reduceStreamToMax = new Func1<Observable<Integer>, Observable<Integer>>() {
            @Override
            public Observable<Integer> call(Observable<Integer> observedConcurrency) {
                return observedConcurrency.reduce(0, reduceToMax);
            }
        };

        private static final Func2<Integer, Integer, Integer> reduceToMax = new Func2<Integer, Integer, Integer>() {
            @Override
            public Integer call(Integer a, Integer b) {
                return Math.max(a, b);
            }
        };


        private final static BehaviorSubject<Integer> rollingMax = BehaviorSubject.create(0);

        private static Observable<Integer> rollingMaxStream;



        @Override
        public void run() {

            final List<Integer> emptyRollingMaxBuckets = new ArrayList<Integer>();
            for (int i = 0; i < 10; i++) {
                emptyRollingMaxBuckets.add(0);
            }

            // 对readOnlyStream进行处理
            rollingMaxStream =  readOnlyStream
                    .map(getConcurrencyCountFromEvent)
                    .window(1000, TimeUnit.MILLISECONDS)
                    .flatMap(reduceStreamToMax)
                    .startWith(emptyRollingMaxBuckets)
                    .window(10, 1)
                    .flatMap(reduceStreamToMax)
                    .share()
                    .onBackpressureDrop();

            //  订阅处理的结果
            rollingMaxStream.subscribe(rollingMax) ;


            while (true) {

                if (rollingMax.hasValue()) {
                    // 输出最近10s最大的并发量
                    System.out.println("最近10s内产生的最大整数为:\t" + rollingMax.getValue());
                }

                try {
                    Thread.sleep(1000);
                } catch (Exception e) {

                }
            }
        }
    }
}

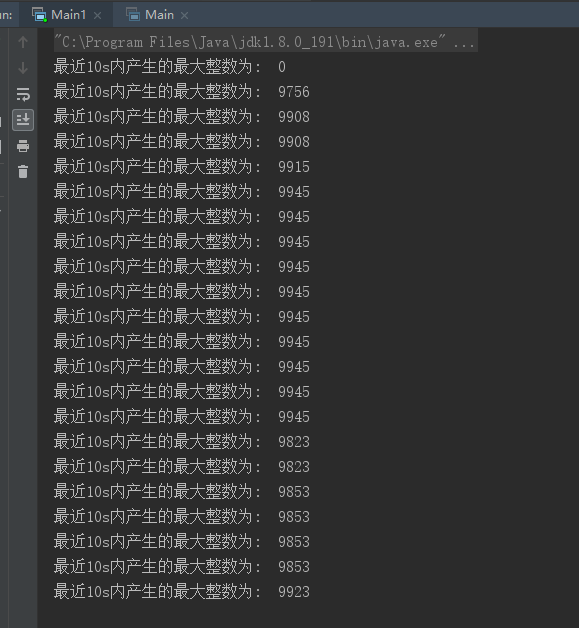

输出如下

这个几乎是面向过程的编程，好理解，但是不好维护和扩展。今天又把这个demo整理成了面向对象编程的dome 。

主类：

public class Main {

    public static void main(String[] args) throws Exception{
        Metrics metrics = new Metrics() ;
        Work work = new Work(metrics) ;

        new Thread(work).start();
        new Thread(work).start();

        while (true){
            System.out.println(metrics.getMax());
            Thread.sleep(1000);
        }
    }

}

指标监控类

public class Metrics {

    private IntegerStream integerStream;

    private ConsumerMaxStream consumerMaxStream;

    public Metrics() {
        this.integerStream = new IntegerStream();
        this.consumerMaxStream = new ConsumerMaxStream(integerStream);
    }


    public void add(Integer item) {
        integerStream.write(item);
    }

    public int getMax() {
        return consumerMaxStream.getMax();
    }
}

整型数据流类之所以会形成Stream，是因为 writeOnlySubject 不停的有数据加进来。

import rx.Observable;
import rx.subjects.PublishSubject;
import rx.subjects.SerializedSubject;
import rx.subjects.Subject;

/**
 * @Classname IntegerStream
 * @Since 2020/7/2 18:17
 * @Created by lizhifeng
 * @Desc
 * @see
 */

public class IntegerStream {


    //  线程安全   SerializedSubject.onNext  调用SerializedObserver.onNext ，而SerializedObserver.onNext 使用了synchronized
    private final Subject<String, String> writeOnlySubject;

    //  共享，能被多个消费者处理
    private final Observable<String> readOnlyStream;

    public IntegerStream() {
        this.writeOnlySubject = new SerializedSubject<String, String>(PublishSubject.<String>create());
        this.readOnlyStream = writeOnlySubject.share();
    }


    /*   这使 IntegerStream变成被观察者 */
    public Observable<String> observe() {
        return readOnlyStream;
    }


    public void write(Integer item) {
        writeOnlySubject.onNext(String.valueOf(item));
    }

}

在流上进行统计

import rx.Observable;
import rx.functions.Func1;
import rx.functions.Func2;
import rx.subjects.BehaviorSubject;

import java.util.ArrayList;
import java.util.List;
import java.util.concurrent.TimeUnit;

/**
 * @Classname ConsumerMaxStream
 * @Since 2020/7/2 18:18
 * @Created by lizhifeng
 * @Desc
 * @see
 */


/*   消费者，观察者  */
public class ConsumerMaxStream {

    private final Func1<String, Integer> getConcurrencyCountFromEvent = new Func1<String, Integer>() {
        @Override
        public Integer call(String event) {
            // 当前的并发量
            int value = Integer.parseInt(event);
            return value;
        }
    };

    private final Func1<Observable<Integer>, Observable<Integer>> reduceStreamToMax = new Func1<Observable<Integer>, Observable<Integer>>() {
        @Override
        public Observable<Integer> call(Observable<Integer> observedConcurrency) {
            return observedConcurrency.reduce(0, reduceToMax);
        }
    };

    private final Func2<Integer, Integer, Integer> reduceToMax = new Func2<Integer, Integer, Integer>() {
        @Override
        public Integer call(Integer a, Integer b) {
            return Math.max(a, b);
        }
    };


    private final BehaviorSubject<Integer> rollingMax = BehaviorSubject.create(0);

    private Observable<Integer> rollingMaxStream;

    public ConsumerMaxStream(IntegerStream integerStream) {

        final List<Integer> emptyRollingMaxBuckets = new ArrayList<Integer>();
        for (int i = 0; i < 10; i++) {
            emptyRollingMaxBuckets.add(0);
        }

        // 对readOnlyStream进行处理
        rollingMaxStream = integerStream.observe()
                .map(getConcurrencyCountFromEvent)
                .window(1000, TimeUnit.MILLISECONDS)
                .flatMap(reduceStreamToMax)
                .startWith(emptyRollingMaxBuckets)
                .window(10, 1)
                .flatMap(reduceStreamToMax)
                .share()
                .onBackpressureDrop();

        //  订阅处理的结果
        rollingMaxStream.subscribe(rollingMax);
    }


    public int getMax() {
        if (rollingMax.hasValue()) {
            return rollingMax.getValue();
        }
        return 0;
    }
}

Work 类

import java.util.Random;

/**
 * @Classname Work
 * @Since 2020/7/2 18:15
 * @Created by lizhifeng
 * @Desc
 * @see
 */
public class Work implements Runnable {

    private Metrics metrics ;
    public Work(Metrics metrics){
        this.metrics = metrics ;
    }

    @Override
    public void run() {

        while (true){
            metrics.add(new Random().nextInt(10000));

            try{
                Thread.sleep(new Random().nextInt(200));
            }catch (Exception e){

            }
        }
    }
}

每个类都足够的简单，足够的专注，是吧？如果看源码你则又会陷入迷茫，

public abstract class BucketedCounterStream<Event extends HystrixEvent, Bucket, Output> {

    abstract Bucket getEmptyBucketSummary();

    abstract Output getEmptyOutputValue();

    public abstract Observable<Output> observe();

}

public abstract class BucketedRollingCounterStream<Event extends HystrixEvent, Bucket, Output> extends BucketedCounterStream<Event, Bucket, Output>

public class HealthCountsStream extends BucketedRollingCounterStream<HystrixCommandCompletion, long[], HystrixCommandMetrics.HealthCounts>

为啥又是泛型，又是抽象继承，让人头疼。

纵观整个 com.netflix.hystrix.metric package ，在重复使用这个套路，来完成各个指标的统计。 dome 中使用是一个Integer流，但到实际项目中一般都是事件流，不停的产生事件，形成流。

HystrixThreadEventStream 是其他四个流的源头， 是一个 ThreadLocal 变量。  因为在 Hystrix-Timer线程内部执行， 因此不需要考虑线程安全问题。

HystrixThreadEventStream 又会write下面四个流，从字面上很好理解，命令开始执行流，命令结束流。

HystrixCommandStartStream    HystrixCommandCompletionStream    HystrixThreadPoolStartStream    HystrixThreadPoolCompletionStream

如果ExecutionIsolationStrategy为SEMAPHORE  只会产生前面两个流。

每个流有若干消费者 consumer

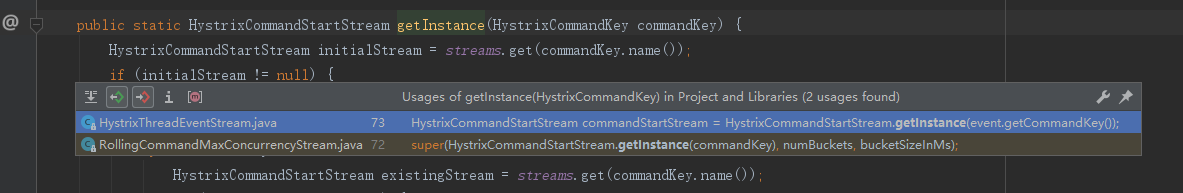

HystrixCommandStartStream 的消费者有 RollingCommandMaxConcurrencyStream , 滚动计算最近10s内的最大并发量。

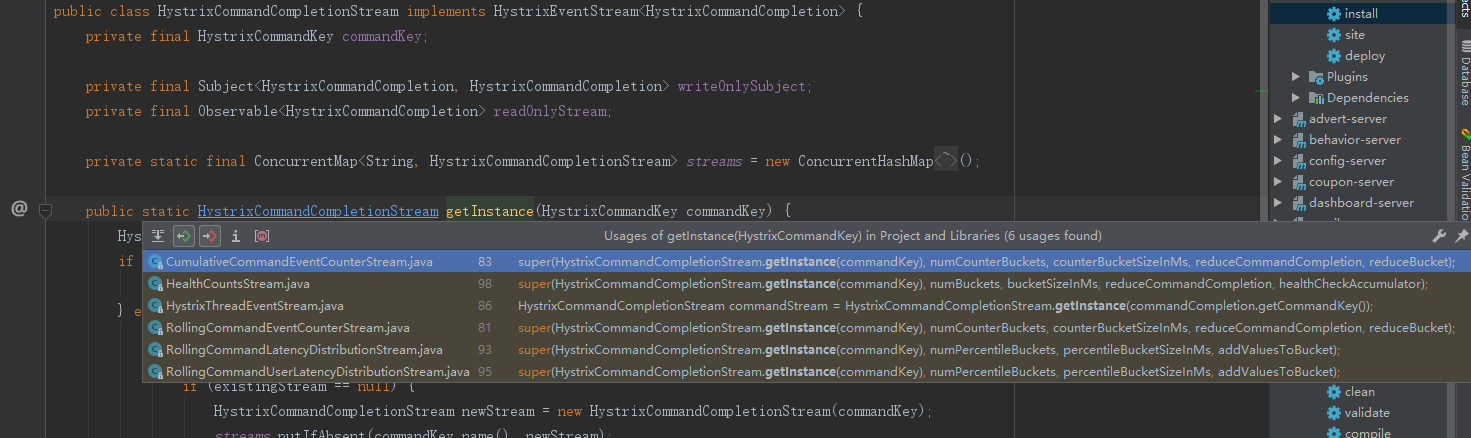

HystrixCommandCompletionStream 有五个消费者：

HealthCountsStream      健康统计，作为是否熔断的判断。

CumulativeCommandEventCounterStream

RollingCommandEventCounterStream

RollingCommandLatencyDistributionStream             统计执行每个请求花费的时间，  比如99%的请求都在15ms内完成了 。

RollingCommandUserLatencyDistributionStream

HystrixDashboard 的数据来源便是上传的各种 ConsumerStream 计算而来的。
