clickhouse在上一篇转载的博客中已初步介绍，最近在公司项目中，遇到了数据库大量数据查询慢的问题，借此来实战clickhouse，本文重点介绍数据同步。

接下来重点讲一下，使用flume同步oracle数据至clickhouse。

安装flume

1. 下载flume

wget http://www.apache.org/dist/flume/1.5.2/apache-flume-1.5.2-bin.tar.gz

2. 解压安装

tar zxvf apache-flume-1.5.2-bin.tar.gz

打包flume-ng-sql-source

1. 在github上下载源码

https://github.com/keedio/flume-ng-sql-source

2. 本地编译打包

（1）为了能正确同步到clickhouse，需修改代码，如图：

将默认分隔符由‘，’改为‘\t’；（不改的话，插入数据到clickhouse会报错）

（2）编译打包：mvn package -Dmaven.test.skip=true

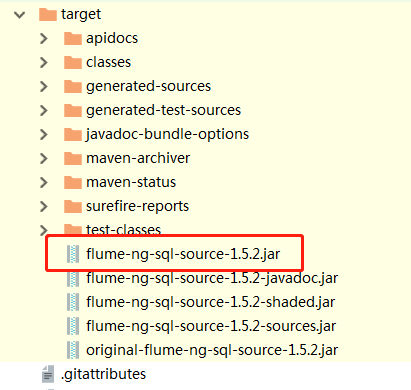

（3）将打包的jar包flume-ng-sql-source-1.5.2.jar，上传至flume的lib目录下。

打包flume-clickhouse-sink

这个相对麻烦一些，网上没有详细的资料，我这里尽量详细叙述，有问题可以联系我。

1. 下载flume-ng-kafka-sink

https://github.com/camathieu/flume-ng-kafka-sink.git

这里为什么下载flume-ng-kafka-sink，主要作为参考，将项目中的kafka-sink改为clickhouse-sink。

2. 改造

（1）将org.apache.flume.sink.kafka包下的KafkaSink全部屏蔽。

（2）修改pom，如图：

内容如下：

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>

  <name>Apache Flume ClickHouse Sink</name>
  <description>Kafka 0.8+ sink for Apache Flume NG</description>

  <groupId>org.apache.flume.sink.clickhouse</groupId>
  <artifactId>flume-clickhouse-sink</artifactId>
  <version>1.5.2</version>
  <packaging>jar</packaging>

  <parent>
    <groupId>org.apache.flume</groupId>
    <artifactId>flume-ng-sinks</artifactId>
    <version>1.4.0</version>
  </parent>

  <dependencies>
    <dependency>
        <groupId>org.apache.flume</groupId>
        <artifactId>flume-ng-core</artifactId>
    </dependency>
    <dependency>
	    <groupId>org.apache.kafka</groupId>
	    <artifactId>kafka_2.10</artifactId>
	    <version>0.8.0</version>
    </dependency>

    <dependency>
      <groupId>com.google.guava</groupId>
      <artifactId>guava</artifactId>
      <version>19.0</version>
    </dependency>
  </dependencies>

  <build>
    <plugins>
      <plugin>
        <groupId>org.apache.maven.plugins</groupId>
        <artifactId>maven-compiler-plugin</artifactId>
        <version>3.1</version>
        <configuration>
          <source>1.6</source>
          <target>1.6</target>
        </configuration>
      </plugin>
    </plugins>
  </build>
</project>

（3）下载clickhouse-sink代码

下载地址：https://reviews.apache.org/r/50692/diff/1#2

如下图，将代码拷贝至本地

（4）修改代码

在测试过程中，遇到了同步的数据中文乱码的问题，需要修改类ClickHouseSink，封装HttpEntity的时候指定StreamUtils.UTF_8格式，如图：

其中涉及到了三个工具类（StreamUtils、StringUtils、Utils），直接复制拷贝到工程中即可。

这三个类，可以从项目中找到：https://github.com/yandex/clickhouse-jdbc.git

3. 本地编译打包

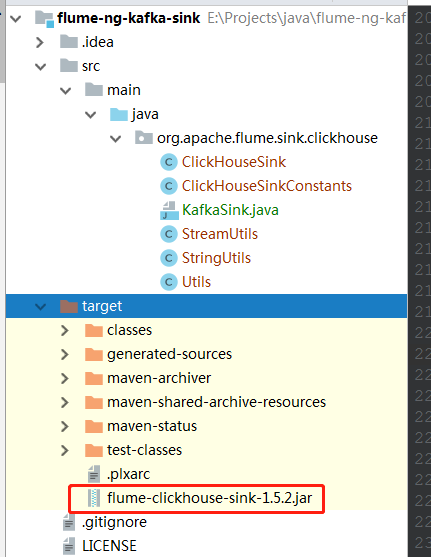

执行 mvn package，生成包：flume-clickhouse-sink-1.5.2.jar

4. 使用jar包

将打包的jar包flume-ng-sql-source-1.5.2.jar，上传至flume的lib目录下。

配置文件

1. 创建配置文件

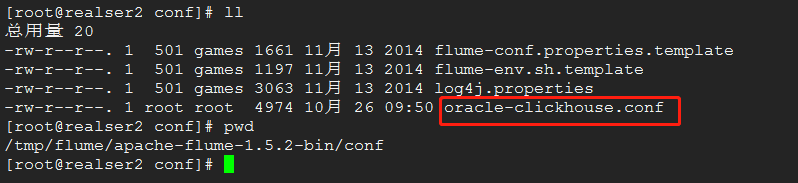

在flume的conf目录下创建配置文件：oracle-clickhouse.conf

2. 修改配置文件

配置文件格式参考flume官网文档，这里不作过多介绍，直接上示例，我这里同步了两张表，每张表都有一个channel、source和sink：

agent.channels = channelMProductPL channelMProductPP
agent.sources = sourceMProductPL sourceMProductPP
agent.sinks = sinkMProductPL sinkMProductPP

###########sql source#################
# For each Test of the sources, the type is defined
agent.sources.sourceMProductPL.type = org.keedio.flume.source.SQLSource
agent.sources.sourceMProductPL.hibernate.connection.url = jdbc:oracle:thin:@10.10.10.10:1521:orcl

# Hibernate Database connection properties
agent.sources.sourceMProductPL.hibernate.connection.user = user
agent.sources.sourceMProductPL.hibernate.connection.password = password
agent.sources.sourceMProductPL.hibernate.connection.autocommit = true
agent.sources.sourceMProductPL.hibernate.dialect = org.hibernate.dialect.Oracle10gDialect
agent.sources.sourceMProductPL.hibernate.connection.driver_class = oracle.jdbc.driver.OracleDriver
#agent.sources.sourceMProductPL.hibernate.table = M_PRODUCT_PL
agent.sources.sourceMProductPL.run.query.delay=10000
agent.sources.sourceMProductPL.enclose.by.quotes = false

agent.sources.sourceMProductPL.status.file.path = /tmp/flume/apache-flume-1.5.2-bin
agent.sources.sourceMProductPL.status.file.name = agent.sqlSource.status.mProductPL

agent.sources.sourceMProductPL.inputCharset = UTF-8

# Custom query
agent.sources.sourceMProductPL.start.from = 0
agent.sources.sourceMProductPL.custom.query = SELECT PRODUCT_PL,TXTSH FROM M_PRODUCT_PL WHERE "TO_NUMBER"(PRODUCT_PL) > $@$

agent.sources.sourceMProductPL.batch.size = 1
#1000
agent.sources.sourceMProductPL.max.rows = 1
#1000
agent.sources.sourceMProductPL.hibernate.connection.provider_class = org.hibernate.connection.C3P0ConnectionProvider
agent.sources.sourceMProductPL.hibernate.c3p0.min_size=1
agent.sources.sourceMProductPL.hibernate.c3p0.max_size=10

##############################

# For each Test of the sources, the type is defined
agent.sources.sourceMProductPP.type = org.keedio.flume.source.SQLSource
agent.sources.sourceMProductPP.hibernate.connection.url = jdbc:oracle:thin:@10.10.10.10:1521:orcl
# Hibernate Database connection properties
agent.sources.sourceMProductPP.hibernate.connection.user = user
agent.sources.sourceMProductPP.hibernate.connection.password = password
agent.sources.sourceMProductPP.hibernate.connection.autocommit = true
agent.sources.sourceMProductPP.hibernate.dialect = org.hibernate.dialect.Oracle10gDialect
agent.sources.sourceMProductPP.hibernate.connection.driver_class = oracle.jdbc.driver.OracleDriver
#agent.sources.sourceMProductPP.hibernate.table = M_PRODUCT_PP
agent.sources.sourceMProductPP.run.query.delay=10000
agent.sources.sourceMProductPP.enclose.by.quotes = false

agent.sources.sourceMProductPP.status.file.path = /tmp/flume/apache-flume-1.5.2-bin
agent.sources.sourceMProductPP.status.file.name = agent.sqlSource.status.mProductPP

agent.sources.sourceMProductPP.inputCharset = UTF-8

# Custom query
agent.sources.sourceMProductPP.start.from = 0
agent.sources.sourceMProductPP.custom.query = SELECT PRODUCT_PP,TXTSH FROM M_PRODUCT_PP WHERE "TO_NUMBER"(PRODUCT_PP) > $@$

agent.sources.sourceMProductPP.batch.size = 1
#1000
agent.sources.sourceMProductPP.max.rows = 1
#1000
agent.sources.sourceMProductPP.hibernate.connection.provider_class = org.hibernate.connection.C3P0ConnectionProvider
agent.sources.sourceMProductPP.hibernate.c3p0.min_size=1
agent.sources.sourceMProductPP.hibernate.c3p0.max_size=10

##############################

agent.channels.channelMProductPL.type = memory
agent.channels.channelMProductPL.capacity = 1000
agent.channels.channelMProductPL.transactionCapacity = 1000
agent.channels.channelMProductPL.byteCapacityBufferPercentage = 20
agent.channels.channelMProductPL.byteCapacity = 1600000

agent.channels.channelMProductPP.type = memory
agent.channels.channelMProductPP.capacity = 1000
agent.channels.channelMProductPP.transactionCapacity = 1000
agent.channels.channelMProductPP.byteCapacityBufferPercentage = 20
agent.channels.channelMProductPP.byteCapacity = 1600000

agent.sinks.sinkMProductPL.type = org.apache.flume.sink.clickhouse.ClickHouseSink
agent.sinks.sinkMProductPL.host = http://10.122.1.229
agent.sinks.sinkMProductPL.port = 8123
agent.sinks.sinkMProductPL.database = store_analysis
agent.sinks.sinkMProductPL.table = M_PRODUCT_PL
agent.sinks.sinkMProductPL.batchSize = 1
#3000
agent.sinks.sinkMProductPL.format = TabSeparated

agent.sinks.sinkMProductPP.type = org.apache.flume.sink.clickhouse.ClickHouseSink
agent.sinks.sinkMProductPP.host = http://10.122.1.229
agent.sinks.sinkMProductPP.port = 8123
agent.sinks.sinkMProductPP.database = store_analysis
agent.sinks.sinkMProductPP.table = M_PRODUCT_PP
agent.sinks.sinkMProductPP.batchSize = 1
#3000
agent.sinks.sinkMProductPP.format = TabSeparated

agent.sinks.sinkMProductPL.channel = channelMProductPL
agent.sources.sourceMProductPL.channels=channelMProductPL

agent.sinks.sinkMProductPP.channel = channelMProductPP
agent.sources.sourceMProductPP.channels=channelMProductPP

参数根据具体情况自定义设置。

执行同步

在flume的bin目录下，执行命令：

./flume-ng agent --conf ../conf -conf-file ../conf/oracle-clickhouse.conf -name agent -Dflume.root.logger=INFO,console

如果要后台执行，加nohup &

至此，同步工作已完成！
