【Spring Security + OAuth2 + JWT入门到实战】7. 图形验证码

简介

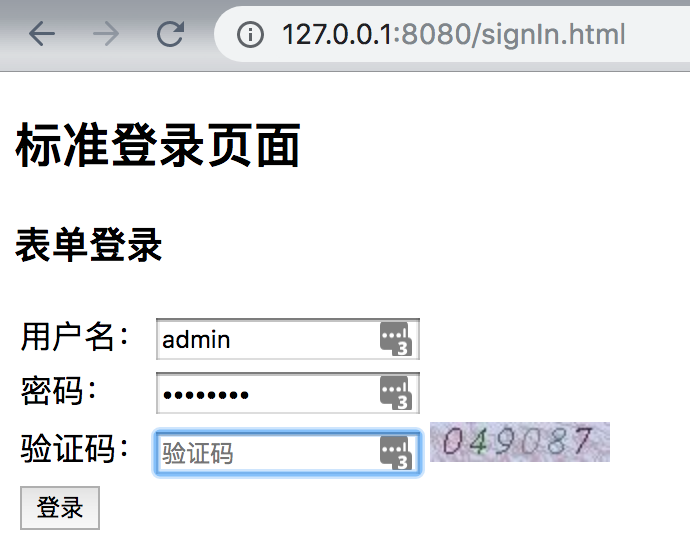

在登录界面图形添加验证码，流程1.开发生成图像验证码接口  2.在认证流程中加入图像验证码校验

图形验证码实体类

import lombok.Data;

import java.awt.image.BufferedImage;
import java.time.LocalDateTime;

/**
 * 图片的代码
 *
 * @author hekang
 * @date 2020/01/10
 */
@Data
public class ImageCode {

    private BufferedImage image;

    private String code;

    private LocalDateTime expireTime;

    public ImageCode(BufferedImage image, String code, int expireIn) {
        this.image = image;
        this.code = code;
        this.expireTime = LocalDateTime.now().plusSeconds(expireIn);
    }

    public boolean isExpire() {
        return LocalDateTime.now().isAfter(expireTime);
    }

}

我们是做一个可以复用的框架，这些参数也弄到系统配置。

配置系统参数

spring:
  datasource:
    driver-class-name: com.mysql.jdbc.Driver
    url: jdbc:mysql://127.0.0.1/auto_test?useUnicode=yes&characterEncoding=UTF-8&useSSL=false
    username: root
    password: 123456
hk:
  security:
    browser:
      loginSucess: /index #登录成功跳转
      loginType: JSON #登录成功 失败返回值类型
      loginPage: /signIn.html  #登录页面
      oginFailure: /failure #登录失败跳转
    code:
      image:
        width: 90 # 验证码图片宽度
        height: 20 # 验证码图片长度
        length: 6 # 验证码位数
        expireIn: 60 # 验证码有效时间 60s
        url: /login #需要过滤的路径/login,/login/*

注意：code这里多了一层image是因为考虑到后期还有短信验证码。

创建ValidateCodeProperties类，core项目properties目录

package com.spring.security.properties;

import lombok.Data;

/**
 * 验证代码属性
 */

@Data
public class ValidateCodeProperties {

    private ImageCodeProperties image = new ImageCodeProperties();
}

同目录创建ImageCodeProperties类

package com.spring.security.properties;

import lombok.Data;

/**
 * 图像编码属性
 */
@Data
public class ImageCodeProperties {

    // 验证码图片宽度
    private int width = 60;
    // 验证码图片长度
    private int height = 20;
    // 验证码位数
    private int length = 4;
    // 验证码有效时间 60s
    private int expireIn = 60;
    //要拦截的路径
    private String url;
}



生成图像验证码接口

同目录创建接口ValidateCodeGenerator类

package com.spring.security.validate.code;

import org.springframework.web.context.request.ServletWebRequest;

/**
 * 验证代码生成器
 *
 */
public interface ValidateCodeGenerator {

    ImageCode createImageCode(ServletWebRequest request);

}

同目录创建接口ValidateCodeGenerator实现ImageCodeGenerator类

package com.spring.security.validate.code;

import com.spring.security.properties.SecurityProperties;
import lombok.Data;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.ServletRequestUtils;
import org.springframework.web.context.request.ServletWebRequest;

import java.awt.*;
import java.awt.image.BufferedImage;
import java.util.Random;

/**
 * 图像代码生成器
 */
@Data
public class ImageCodeGenerator implements ValidateCodeGenerator {

    @Autowired
    private SecurityProperties securityProperties;

    /**
     * 创建图片的代码
     *
     * @param request
     * @return {@link ImageCode}
     */
    @Override
    public ImageCode createImageCode(ServletWebRequest request) {
        //先从用户获取   如果取不到再获取配置
        // 验证码图片宽度
        int width = ServletRequestUtils.getIntParameter(request.getRequest(), "width", securityProperties.getCode().getImage().getWidth());
        // 验证码图片长度
        int height = ServletRequestUtils.getIntParameter(request.getRequest(), "height", securityProperties.getCode().getImage().getHeight());
        // 验证码位数
        int length = securityProperties.getCode().getImage().getLength();
        // 验证码有效时间 60s
        int expireIn = securityProperties.getCode().getImage().getExpireIn();

        BufferedImage image = new BufferedImage(width, height, BufferedImage.TYPE_INT_RGB);
        Graphics g = image.getGraphics();

        Random random = new Random();

        g.setColor(getRandColor(200, 250));
        g.fillRect(0, 0, width, height);
        g.setFont(new Font("Times New Roman", Font.ITALIC, 20));
        g.setColor(getRandColor(160, 200));
        for (int i = 0; i < 155; i++) {
            int x = random.nextInt(width);
            int y = random.nextInt(height);
            int xl = random.nextInt(12);
            int yl = random.nextInt(12);
            g.drawLine(x, y, x + xl, y + yl);
        }

        StringBuilder sRand = new StringBuilder();
        for (int i = 0; i < length; i++) {
            String rand = String.valueOf(random.nextInt(10));
            sRand.append(rand);
            g.setColor(new Color(20 + random.nextInt(110), 20 + random.nextInt(110), 20 + random.nextInt(110)));
            g.drawString(rand, 13 * i + 6, 16);
        }
        g.dispose();
        return new ImageCode(image, sRand.toString(), expireIn);
    }

    private Color getRandColor(int fc, int bc) {
        Random random = new Random();
        if (fc > 255) {
            fc = 255;
        }
        if (bc > 255) {
            bc = 255;
        }
        int r = fc + random.nextInt(bc - fc);
        int g = fc + random.nextInt(bc - fc);
        int b = fc + random.nextInt(bc - fc);
        return new Color(r, g, b);
    }
}



图像验证码访问接口

同目录创建ValidateController控制器

package com.spring.security.validate.code;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.social.connect.web.HttpSessionSessionStrategy;
import org.springframework.social.connect.web.SessionStrategy;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.context.request.ServletWebRequest;

import javax.imageio.ImageIO;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;

/**
 * 验证控制器
 */
@RestController
public class ValidateController {
    public final static String SESSION_KEY_IMAGE_CODE = "SESSION_KEY_IMAGE_CODE";

    private SessionStrategy sessionStrategy = new HttpSessionSessionStrategy();

    @Autowired
    private ValidateCodeGenerator imageCodeGenerator;

    /**
     * 创建验证码
     *
     * @param request  请求
     * @param response 响应
     * @throws IOException IOException
     */
    @GetMapping("/code/image")
    public void createCode(HttpServletRequest request, HttpServletResponse response) throws IOException {
        ImageCode imageCode = imageCodeGenerator.createImageCode(new ServletWebRequest(request));
        sessionStrategy.setAttribute(new ServletWebRequest(request), SESSION_KEY_IMAGE_CODE, imageCode);
        ImageIO.write(imageCode.getImage(), "jpeg", response.getOutputStream());
    }
}



图形验证码拦截器

同目录创建ValidateCodeFilter拦截器

package com.spring.security.validate.code;

import com.spring.security.properties.SecurityProperties;
import org.apache.commons.lang3.StringUtils;
import org.springframework.beans.factory.InitializingBean;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.web.authentication.AuthenticationFailureHandler;
import org.springframework.social.connect.web.HttpSessionSessionStrategy;
import org.springframework.social.connect.web.SessionStrategy;
import org.springframework.stereotype.Component;
import org.springframework.util.AntPathMatcher;
import org.springframework.web.bind.ServletRequestBindingException;
import org.springframework.web.bind.ServletRequestUtils;
import org.springframework.web.context.request.ServletWebRequest;
import org.springframework.web.filter.OncePerRequestFilter;

import javax.servlet.FilterChain;
import javax.servlet.ServletException;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
import java.util.HashSet;
import java.util.Set;

/**
 * 验证代码过滤
 */
@Component
public class ValidateCodeFilter extends OncePerRequestFilter implements InitializingBean {
    @Autowired
    private AuthenticationFailureHandler authenticationFailureHandler;

    private SessionStrategy sessionStrategy = new HttpSessionSessionStrategy();

    @Autowired
    private SecurityProperties securityProperties;

    private Set<String> urls = new HashSet<>();


    @Override
    public void afterPropertiesSet() throws ServletException {
        super.afterPropertiesSet();
        String[] configUrls = StringUtils.splitPreserveAllTokens(securityProperties.getCode().getImage().getUrl(), ",");
        for (String configUrl : configUrls) {
            urls.add(configUrl);
        }
        //加入固定提交地址
        urls.add("/authentication/form");
    }

    /**
     * 做过滤器内部
     *
     * @param httpServletRequest  http Servlet请求
     * @param httpServletResponse
     * @param filterChain         过滤器链
     * @throws ServletException Servlet异常
     * @throws IOException      IOException
     */
    @Override
    protected void doFilterInternal(HttpServletRequest httpServletRequest, HttpServletResponse httpServletResponse, FilterChain filterChain) throws ServletException, IOException {
        boolean action = false;
        for (String url : urls) {
            if (StringUtils.startsWithIgnoreCase(url, httpServletRequest.getRequestURI())
                    && StringUtils.startsWithIgnoreCase(httpServletRequest.getMethod(), "post")) {
                action = true;
            }
        }

        if (action) {
            try {
                validateCode(new ServletWebRequest(httpServletRequest));
            } catch (ValidateCodeException e) {
                authenticationFailureHandler.onAuthenticationFailure(httpServletRequest, httpServletResponse, e);
                return;
            }
        }
        filterChain.doFilter(httpServletRequest, httpServletResponse);

    }

    /**
     * 验证代码
     *
     * @param servletWebRequest servlet的Web请求
     * @throws ServletRequestBindingException Servlet请求绑定异常
     */
    private void validateCode(ServletWebRequest servletWebRequest) throws ServletRequestBindingException {
        ImageCode codeInSession = (ImageCode) sessionStrategy.getAttribute(servletWebRequest, ValidateController.SESSION_KEY_IMAGE_CODE);
        String codeInRequest = ServletRequestUtils.getStringParameter(servletWebRequest.getRequest(), "imageCode");

        if (StringUtils.isEmpty(codeInRequest)) {

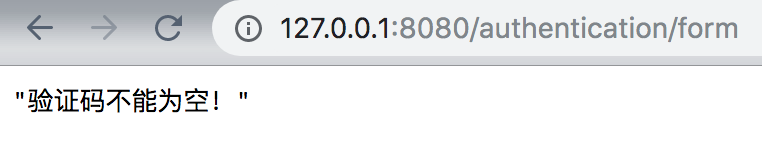

            throw new ValidateCodeException("验证码不能为空！");
        }
        if (codeInSession == null) {
            throw new ValidateCodeException("验证码不存在！");
        }
        if (codeInSession.isExpire()) {
            sessionStrategy.removeAttribute(servletWebRequest, ValidateController.SESSION_KEY_IMAGE_CODE);
            throw new ValidateCodeException("验证码已过期！");
        }
        if (!StringUtils.startsWithIgnoreCase(codeInSession.getCode(), codeInRequest)) {

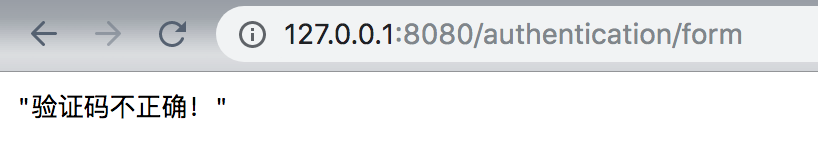

            throw new ValidateCodeException("验证码不正确！");
        }
        sessionStrategy.removeAttribute(servletWebRequest, ValidateController.SESSION_KEY_IMAGE_CODE);
    }
}



异常处理

同目录创建ValidateCodeException异常处理类

package com.spring.security.validate.code;

import org.springframework.security.core.AuthenticationException;
public class ValidateCodeException extends AuthenticationException {
    private static final long serialVersionUID = 5022575393500654458L;

    public ValidateCodeException(String message) {
        super(message);
    }
}



配置Bean

同目录创建ValidateCodeBeanConfig配置Bean类

package com.spring.security.validate.code;

import com.spring.security.properties.SecurityProperties;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.autoconfigure.condition.ConditionalOnMissingBean;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

/**
 * 验证代码Bean配置
 */
@Configuration
public class ValidateCodeBeanConfig {

    @Autowired
    private SecurityProperties securityProperties;

    /**
     * 不存在imageCodeGenerator再使用下面的bean
     * @return
     */
    @Bean
    @ConditionalOnMissingBean(name = "imageCodeGenerator")
    public ValidateCodeGenerator imageCodeGenerator(){
        ImageCodeGenerator codeGenerator = new ImageCodeGenerator();
        codeGenerator.setSecurityProperties(securityProperties);
        return codeGenerator;
    }
}



配置图形验证码拦截器

修改BrowserSecurityConfig类把图形验证码拦截器加入到security拦截器里

package com.spring.security;

import com.spring.security.authentication.HkAuthenticationFailureHandler;
import com.spring.security.authentication.HkAuthenticationSuccessHandler;
import com.spring.security.properties.SecurityProperties;
import com.spring.security.validate.code.ValidateCodeFilter;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;
import org.springframework.security.crypto.password.PasswordEncoder;
import org.springframework.security.web.authentication.UsernamePasswordAuthenticationFilter;

@Configuration
public class BrowserSecurityConfig extends WebSecurityConfigurerAdapter {

    @Autowired
    private SecurityProperties securityProperties;

    @Autowired
    private HkAuthenticationSuccessHandler hkAuthenticationSuccessHandler;

    @Autowired
    private HkAuthenticationFailureHandler hkAuthenticationFailureHandler;

    @Autowired
    private ValidateCodeFilter validateCodeFilter;

    @Bean
    public PasswordEncoder passwordEncoder() {
        return new BCryptPasswordEncoder();
    }

    @Override
    protected void configure(HttpSecurity http) throws Exception {
        //配置
        http.addFilterBefore(validateCodeFilter, UsernamePasswordAuthenticationFilter.class) // 添加验证码校验过滤器
                .formLogin()
                .loginPage("/authentication/require")//登录页面路径
                // 处理登录请求路径
                .loginProcessingUrl("/authentication/form")
                .successHandler(hkAuthenticationSuccessHandler) // 处理登录成功
                .failureHandler(hkAuthenticationFailureHandler) // 处理登录失败
                .and()
                .authorizeRequests() // 授权配置
                //不需要认证的路径
                .antMatchers("/authentication/require","/signIn.html","/code/image",securityProperties.getBrowser().getLoginPage(),"/failure").permitAll()
                .anyRequest() // 所有请求
                .authenticated() // 都需要认证
                .and().csrf().disable();
    }
}



登录页面加入图形验证码

改造signIn.html

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>标准登录页面</title>
</head>
<body>
<h2>标准登录页面</h2>
<h3>表单登录</h3>
<form action="/authentication/form" method="post">
    <table>
        <tr>
            <td>用户名：</td>
            <td><input type="text" name="username"></td>
        </tr>
        <tr>
            <td>密码：</td>
            <td><input type="password" name="password"></td>
        </tr>
        <tr>
            <td>验证码：</td>
            <td> <input type="text" name="imageCode" placeholder="验证码"/>
                <img src="/code/image"/></td>
        </tr>
        <tr>
            <td colspan="2">
                <button type="submit">登录</button>
            </td>
        </tr>
    </table>
</form>
</body>
</html>

 启动项目

访问：http://127.0.0.1:8080/index.html



不输入验证码点击登录：



输入错误验证码点击登录：

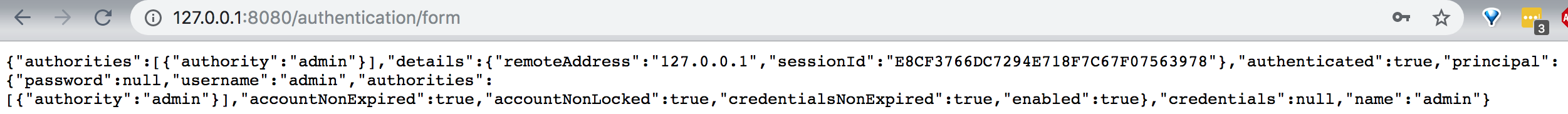

输入正确验证码和账号密码：



来源：oschina

链接：https://my.oschina.net/u/1046143/blog/3185342
