如何配置容器支持HTTP/2

配置 HTTPS 支持

通过参数进行配置

server.port=8443
一般来说都是在443端口
server.ssl.*
• server.ssl.key-store 配置用到的ssl的证书的信息
• server.ssl.key-store-type，一般来说使用JKS或者PKCS12类型
• server.ssl.key-store-password=secret 提供key-store的密码

生成证书文件

命令

keytool -genkey -alias 证书的别名
-storetype 仓库类型 -keyalg 算法 -keysize 长度
-keystore 文件名 -validity 有效期

说明

仓库类型，JKS、JCEKS、PKCS12 等
算法，RSA、DSA 等
长度，例如 2048

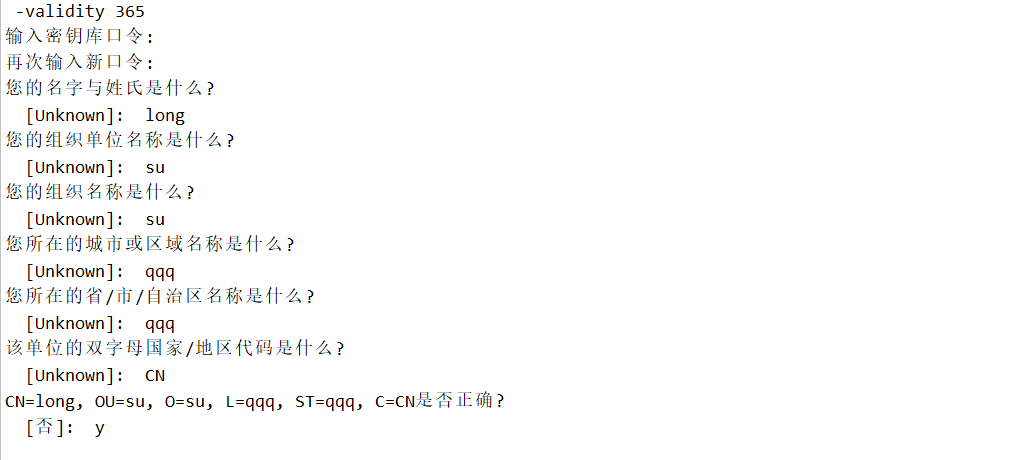

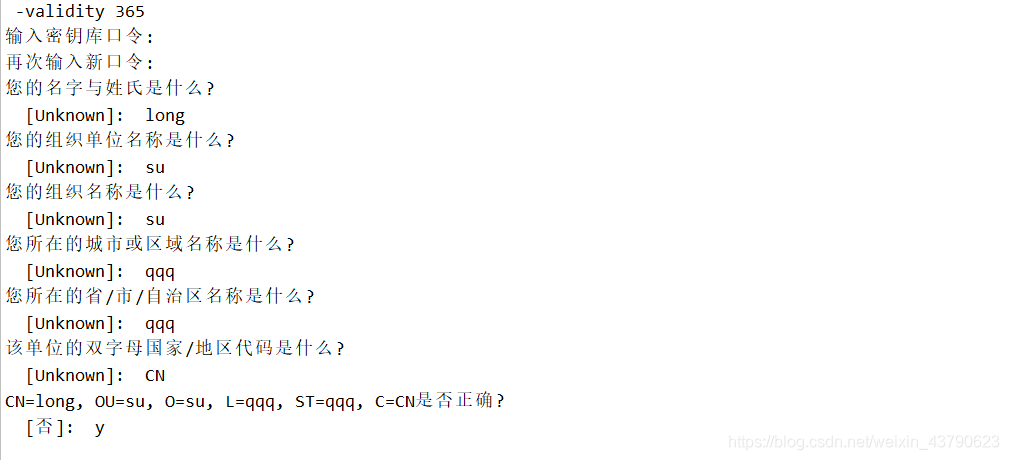

在 terminal 中输入 keytool -genkey -alias springbucks -storetype PKCS12 -keyalg RSA -keysize 2048 -keystore springbucks.p12 -validity 365 使用keytool 生成一个keystore
含义：生成一个 springbucks.p12 的 keytool 用的RSA算法 2048位的长度有效期是365天

在这里插入图片描述
会生成一个 springbucks.p12 的文件这就是我们的keystore

客户端 HTTPS 支持

配置 HttpClient （ >= 4.4 ）

通过SSLContextBuilder 构造 SSLContext
setSSLHostnameVerifier(new NoopHostnameVerifier())
设置 HttpClient 不去校验 Hostname

配置 RequestFactory

HttpComponentsClientHttpRequestFactory
• setHttpClient()
用上面配置的HttpClient(

例子1

customer

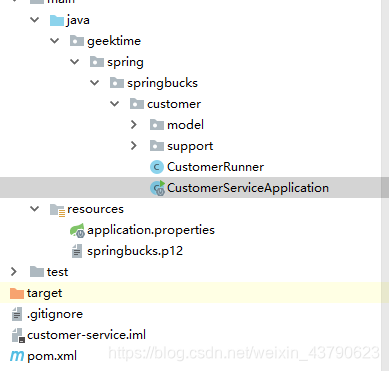

目录

在这里插入图片描述

@SpringBootApplication
@Slf4j
public class 	CustomerServiceApplication {
	@Value("${security.key-store}")
	private Resource keyStore;
	@Value("${security.key-pass}")
	private String keyPass;

	public static void main(String[] args) {
		new SpringApplicationBuilder()
				.sources(CustomerServiceApplication.class)
				.bannerMode(Banner.Mode.OFF)
				.web(WebApplicationType.NONE)
				.run(args);
	}

	@Bean
	public HttpComponentsClientHttpRequestFactory requestFactory() {
		SSLContext sslContext = null;
		try {
			sslContext = SSLContextBuilder.create()//创建一个SSLContex
					// 会校验证书
					.loadTrustMaterial(keyStore.getURL(), keyPass.toCharArray()) //这个方法需要一个url 和 一个char数组
					// 放过所有证书校验
//					.loadTrustMaterial(null, (certificate, authType) -> true)
					.build();
		} catch(Exception e) {
			log.error("Exception occurred while creating SSLContext.", e);
		}

		CloseableHttpClient httpClient = HttpClients.custom()
				.evictIdleConnections(30, TimeUnit.SECONDS)
				.setMaxConnTotal(200)
				.setMaxConnPerRoute(20)
				.disableAutomaticRetries()
				.setKeepAliveStrategy(new CustomConnectionKeepAliveStrategy())
				.setSSLContext(sslContext)//设置SSLContext
				.setSSLHostnameVerifier(NoopHostnameVerifier.INSTANCE)//设置Hostname校验
				.build();

		HttpComponentsClientHttpRequestFactory requestFactory =
				new HttpComponentsClientHttpRequestFactory(httpClient);//将httpClient放入

		return requestFactory;
	}

	@Bean
	public RestTemplate restTemplate(RestTemplateBuilder builder) { //定制restTemplate
		return builder
				.setConnectTimeout(Duration.ofMillis(100))
				.setReadTimeout(Duration.ofMillis(500))
				.requestFactory(this::requestFactory)
				.build();
	}
}

application.properties

waiter.service.url=https://localhost:8443

security.key-store=classpath:springbucks.p12
security.key-pass=123123

pom

<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>

		<dependency>
			<groupId>org.joda</groupId>
			<artifactId>joda-money</artifactId>
			<version>1.0.1</version>
		</dependency>

		<dependency>
			<groupId>org.apache.commons</groupId>
			<artifactId>commons-lang3</artifactId>
		</dependency>

		<dependency>
			<groupId>org.apache.httpcomponents</groupId>
			<artifactId>httpclient</artifactId>
			<version>4.5.7</version>
		</dependency>

		<dependency>
			<groupId>org.projectlombok</groupId>
			<artifactId>lombok</artifactId>
			<optional>true</optional>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
		</dependency>
	</dependencies>

waiter

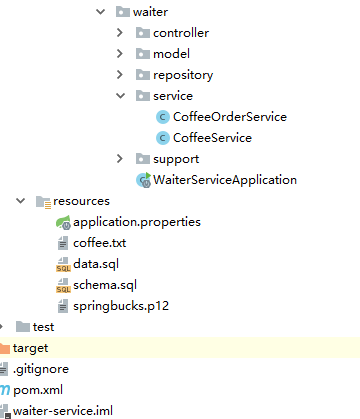

目录
在这里插入图片描述

@SpringBootApplication
@EnableJpaRepositories
@EnableCaching
public class WaiterServiceApplication implements WebMvcConfigurer {

	public static void main(String[] args) {
		SpringApplication.run(WaiterServiceApplication.class, args);
	}

	@Override
	public void addInterceptors(InterceptorRegistry registry) {
		registry.addInterceptor(new PerformanceInteceptor())
				.addPathPatterns("/coffee/**").addPathPatterns("/order/**");
	}

	@Bean
	public Hibernate5Module hibernate5Module() {
		return new Hibernate5Module();
	}

	@Bean
	public Jackson2ObjectMapperBuilderCustomizer jacksonBuilderCustomizer() {
		return builder -> {
			builder.indentOutput(true);
			builder.timeZone(TimeZone.getTimeZone("Asia/Shanghai"));
		};
	}
}

application.properties

spring.jpa.hibernate.ddl-auto=none
spring.jpa.properties.hibernate.show_sql=true
spring.jpa.properties.hibernate.format_sql=true

management.endpoints.web.exposure.include=*
management.endpoint.health.show-details=always

info.app.author=DigitalSonic
info.app.encoding=@project.build.sourceEncoding@

server.port=8443
server.ssl.key-store=classpath:springbucks.p12
server.ssl.key-store-type=PKCS12
#类型
server.ssl.key-store-password=123123

结果1

因为我的java版本为1.7 版本不支持所以无法演示
在 terminal 中输入 https://localhost:8443/coffee/1 我们会发现报错原因是我们自己颁发的证书是不受信的
我们可以通过 -k 的参数来接受这个不安全的证书用 -v 来打印证书信息

配置 HTTP/2 支持

前提条件

Java 的 JDK 版本 >= JDK 9
Tomcat 的版本 >= 9.0.0
Spring Boot 不支持 h2c，需要先配置 SSL

配置项

server.http2.enabled

客户端 HTTP/2 支持

HTTP 库选择

OkHttp（ com.squareup.okhttp3:okhttp:3.14.0 ）
• OkHttpClient

RestTemplate 配置

OkHttp3ClientHttpRequestFactory

例子2

目录如上
CustomerServiceApplication

@SpringBootApplication
@Slf4j
public class CustomerServiceApplication {
	@Value("${security.key-store}")
	private Resource keyStore;
	@Value("${security.key-pass}")
	private String keyPass;

	public static void main(String[] args) {
		new SpringApplicationBuilder()
				.sources(CustomerServiceApplication.class)
				.bannerMode(Banner.Mode.OFF)
				.web(WebApplicationType.NONE)
				.run(args);
	}

	@Bean
	public ClientHttpRequestFactory requestFactory() {
		OkHttpClient okHttpClient = null;
		try {
			KeyStore keyStore = KeyStore.getInstance(KeyStore.getDefaultType());
			keyStore.load(this.keyStore.getInputStream(), keyPass.toCharArray());//加载用户名 和 密码
			TrustManagerFactory tmf = TrustManagerFactory.getInstance(TrustManagerFactory.getDefaultAlgorithm());//获取默认算法
			tmf.init(keyStore);//将之前配置好的keyStore 放入
			SSLContext sslContext = SSLContext.getInstance("TLS");//根据 "TLS" 取出 Context
			sslContext.init(null, tmf.getTrustManagers(), null);//将tmf.getTrustManagers()放入
			//上面的代码 基本上 为模板代码

			okHttpClient = new OkHttpClient.Builder()
					.sslSocketFactory(sslContext.getSocketFactory(), (X509TrustManager) tmf.getTrustManagers()[0])
					.hostnameVerifier((hostname, session) -> true)//对于hostname不做校验
					.build();
		} catch (Exception e) {
			log.error("Exception occurred!", e);
		}
		return new OkHttp3ClientHttpRequestFactory(okHttpClient);
	}

	@Bean
	public RestTemplate restTemplate(RestTemplateBuilder builder) {
		return builder
				.setConnectTimeout(Duration.ofMillis(100))
				.setReadTimeout(Duration.ofMillis(500))
				.requestFactory(this::requestFactory)
				.build();
	}
}

customer pom

<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>

		<dependency>
			<groupId>org.joda</groupId>
			<artifactId>joda-money</artifactId>
			<version>1.0.1</version>
		</dependency>

		<dependency>
			<groupId>org.apache.commons</groupId>
			<artifactId>commons-lang3</artifactId>
		</dependency>

		<dependency>
			<groupId>com.squareup.okhttp3</groupId>
			<artifactId>okhttp</artifactId>
			<version>3.14.0</version>
		</dependency>

		<dependency>
			<groupId>org.projectlombok</groupId>
			<artifactId>lombok</artifactId>
			<optional>true</optional>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
		</dependency>
	</dependencies>

waiter application.properties

spring.jpa.hibernate.ddl-auto=none
spring.jpa.properties.hibernate.show_sql=true
spring.jpa.properties.hibernate.format_sql=true

management.endpoints.web.exposure.include=*
management.endpoint.health.show-details=always

info.app.author=DigitalSonic
info.app.encoding=@project.build.sourceEncoding@

server.http2.enabled=true
#开启http2.0的一个支持
server.port=8443
server.ssl.key-store=classpath:springbucks.p12
server.ssl.key-store-type=PKCS12
server.ssl.key-store-password=spring

water pom

<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-cache</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-data-jpa</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-actuator</artifactId>
		</dependency>

		<dependency>
			<groupId>org.joda</groupId>
			<artifactId>joda-money</artifactId>
			<version>1.0.1</version>
		</dependency>
		<dependency>
			<groupId>org.jadira.usertype</groupId>
			<artifactId>usertype.core</artifactId>
			<version>6.0.1.GA</version>
		</dependency>
		<!-- 增加Jackson的Hibernate类型支持 -->
		<dependency>
			<groupId>com.fasterxml.jackson.datatype</groupId>
			<artifactId>jackson-datatype-hibernate5</artifactId>
			<version>2.9.8</version>
		</dependency>

		<dependency>
			<groupId>org.apache.commons</groupId>
			<artifactId>commons-lang3</artifactId>
		</dependency>

		<dependency>
			<groupId>com.h2database</groupId>
			<artifactId>h2</artifactId>
			<scope>runtime</scope>
		</dependency>
		<dependency>
			<groupId>org.projectlombok</groupId>
			<artifactId>lombok</artifactId>
			<optional>true</optional>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
		</dependency>
	</dependencies>

结果2

操作和结果1 一样
