SSM整合配置

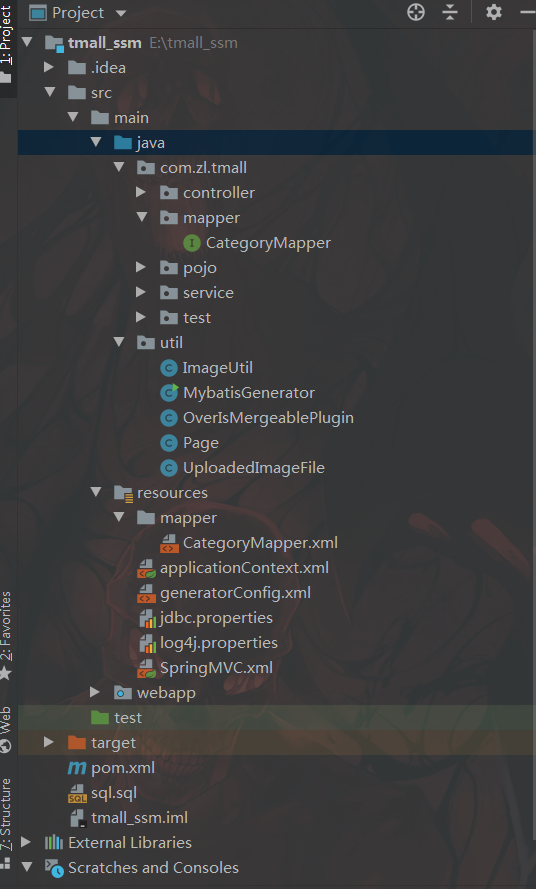

文档目录结构

jdbc.properties

#数据库配置文件
jdbc.driver=com.mysql.cj.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/tmall_ssm?useUnicode=true&characterEncoding=utf8&serverTimezone=UTC
jdbc.username=root
jdbc.password=root

MyBatis配置文件

<!DOCTYPE configuration
PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
	<!--开启驼峰命名 -->
	<settings>
		<setting name="mapUnderscoreToCamelCase" value="true" />
	</settings>

	<!-- 可以在mybatis的配置文件中或者web.xml文件中配置log4j -->
	<!--
	<settings>
    	<setting name="logImpl" value="LOG4J" />
	</settings>
	-->

	<!--实体类别名 -->
	<!-- 在spring的applicationContext.xml中已经配置了这里就不需要再配置
	<property name="typeAliasesPackage" value="com.zl.tmall.pojo"/>
	-->
	<!--
	<typeAliases>
		<package name="com.zl.tmall.pojo" />
	</typeAliases>
	-->
</configuration>

spring配置文件
整合spring与mybatis
applicationContext.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/context
       http://www.springframework.org/schema/context/spring-context.xsd
       http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd">

    <!-- 开启注解识别 -->
    <context:annotation-config />
    <!-- 自动扫描包 -->
    <context:component-scan base-package="com.zl.tmall.service"/>

    <!-- 导入数据库配置文件 -->
    <context:property-placeholder location="classpath:jdbc.properties" />
    <!-- 配置数据源 -->
    <bean id="dataSource" class="com.alibaba.druid.pool.DruidDataSource" init-method="init"
          destroy-method="close">
        <property name="url" value="${jdbc.url}"/>
        <property name="username" value="${jdbc.username}"/>
        <property name="password" value="${jdbc.password}"/>

        <!-- 配置连接池初始化大小，最大，最小 -->
        <property name="initialSize" value="1"/>
        <property name="minIdle" value="1"/>
        <property name="maxActive" value="20"/>

        <!-- 配置获取连接等待超时的时间 -->
        <property name="maxWait" value="60000"/>
        <!-- 配置进行一次检测的间隔时间，检测需要关闭的空闲连接，单位是毫秒 -->
        <property name="timeBetweenEvictionRunsMillis" value="60000"/>
        <!-- 配置一个连接在连接池中最小的生存时间，单位是毫秒 -->
        <property name="minEvictableIdleTimeMillis" value="300000"/>
        <!-- 用来检测连接是否是有效的sql，要求是一个查询语句。如果validationQuery为null，
            testOnBorrow、testOnReturn、testWhileIdle都不会起作用 -->
        <property name="validationQuery" value="SELECT 1"/>
        <!-- 建议配置为true，不影响性能，并且保证安全性。申请连接的时候检测，如果空闲时间大于
            timeBetweenEvictionRunsMillis，执行validationQuery检测连接是否有效。-->
        <property name="testWhileIdle" value="true"/>
        <!-- 申请连接时执行validationQuery检测连接是否有效，做了这个配置会降低性能 -->
        <property name="testOnBorrow" value="false"/>
        <!-- 归还连接时执行validationQuery检测连接是否有效，做了这个配置会降低性能 -->
        <property name="testOnReturn" value="false"/>

        <!-- 是否缓存perparedStatement，并且指定每个连接上PSCache的大小 -->
        <property name="poolPreparedStatements" value="true"/>
        <property name="maxPoolPreparedStatementPerConnectionSize" value="20"/>
    </bean>

    <!-- MyBatis的SessionFactory配置 -->
    <bean id="sqlSession" class="org.mybatis.spring.SqlSessionFactoryBean">
        <!-- 指定别名 -->
        <property name="typeAliasesPackage" value="com.zl.tmall.pojo"/>
        <property name="dataSource" ref="dataSource"/>
        <!-- 整合mybatis -->
        <!--
        <property name="configLocation" value="classpath:mybatis-config.xml"/>
        -->
        <!-- 自动扫描指定包下所有的mapper文件，当Mapper文件跟对应的Mapper接口处于同一个包时可以不用指定该属性值 -->
        <property name="mapperLocations" value="classpath:mapper/*.xml"/>

        <!-- 分页插件 -->
        <property name="plugins">
            <array>
                <bean class="com.github.pagehelper.PageInterceptor">
                    <property name="properties">
                        <value></value>
                    </property>
                </bean>
            </array>
        </property>

    </bean>

    <!-- MyBatis的Mapper映射对象 -->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <property name="basePackage" value="com.zl.tmall.mapper"/>
    </bean>

</beans>

SpringMVC配置
SpringMVC.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xsi:schemaLocation="http://www.springframework.org/schema/context
       http://www.springframework.org/schema/context/spring-context.xsd
       http://www.springframework.org/schema/mvc
       http://www.springframework.org/schema/mvc/spring-mvc.xsd
       http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd">

    <!-- 启动注解识别 -->
    <context:annotation-config/>
    <!-- 自动扫描包 -->
    <context:component-scan base-package="com.zl.tmall.controller">
        <context:include-filter type="annotation" expression="org.springframework.stereotype.Controller"/>
    </context:component-scan>
    <!-- 开启SpringMVC注解功能 -->
    <mvc:annotation-driven/>
    <!-- 开启静态资源的访问，否则访问图片，css、js等文件可能出错 -->
    <mvc:default-servlet-handler/>

    <!-- 视图定位 -->
    <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="viewClass" value="org.springframework.web.servlet.view.JstlView"/>
        <property name="prefix" value="/WEB-INF/jsp/"/>
        <property name="suffix" value=".jsp"/>
    </bean>

    <!-- 对文件上传的解析 -->
    <bean id="multipartResolver" class="org.springframework.web.multipart.commons.CommonsMultipartResolver" />

</beans>

web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xmlns="http://java.sun.com/xml/ns/javaee"
         xsi:schemaLocation="http://java.sun.com/xml/ns/javaee
         http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd" version="3.0">

    <display-name>Archetype Created Web Application</display-name>
    <!-- Spring的配置文件 -->
    <context-param>
        <param-name>contextConfigLocation</param-name>
        <param-value>classpath:applicationContext.xml</param-value>
    </context-param>
    <!-- Spring监听器 -->
    <listener>
        <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
    </listener>
    <!-- 防止Spring内存溢出监听器 -->
    <!--
    <listener>
      <listener-class>org.springframework.web.util.IntrospectorCleanupListener</listener-class>
    </listener>
    -->

    <!-- Spring MVC前端控制器：分发servlet -->
    <servlet>
        <servlet-name>mvc-dispatcher</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <!-- Spring MVC的配置文件 -->
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>classpath:SpringMVC.xml</param-value>
        </init-param>
        <load-on-startup>1</load-on-startup>
    </servlet>
    <servlet-mapping>
        <servlet-name>mvc-dispatcher</servlet-name>
        <url-pattern>/</url-pattern>
    </servlet-mapping>

    <!-- log4j -->
    <!--
    <context-param>
        <param-name>log4jConfigLocation</param-name>
        <param-value>classpath:log4j.properties</param-value>
    </context-param>
    -->

    <!-- 中文过滤器 -->
    <filter>
        <filter-name>CharacterEncodingFilter</filter-name>
        <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
        <init-param>
            <param-name>encoding</param-name>
            <param-value>utf-8</param-value>
        </init-param>
    </filter>
    <filter-mapping>
        <filter-name>CharacterEncodingFilter</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>
</web-app>

maven依赖
pom.xml

<?xml version="1.0" encoding="UTF-8"?>

<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>org.zl</groupId>
    <artifactId>tmall_ssm</artifactId>
    <version>1.0-SNAPSHOT</version>
    <packaging>war</packaging>

    <name>tmall_ssm Maven Webapp</name>
    <!-- FIXME change it to the project's website -->
    <url>http://www.example.com</url>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <maven.compiler.source>1.8</maven.compiler.source>
        <maven.compiler.target>1.8</maven.compiler.target>

        <spring.version>5.1.8.RELEASE</spring.version>
        <pagehelper.version>5.1.9</pagehelper.version>
        <mysql.version>8.0.18</mysql.version>
        <mybatis.spring.version>2.0.0</mybatis.spring.version>
        <mybatis.version>3.5.2</mybatis.version>
        <junit.version>4.12</junit.version>
        <jstl.version>1.2</jstl.version>
        <jsqlparser.version>2.0</jsqlparser.version>
        <jackson.version>2.9.9</jackson.version>
        <servlet-api.version>4.0.1</servlet-api.version>
        <druid.version>1.1.20</druid.version>
        <log4j.version>1.2.17</log4j.version>
        <commons-logging.version>1.2</commons-logging.version>
        <commons-fileupload.version>1.4</commons-fileupload.version>
        <commons-io.version>2.6</commons-io.version>
        <commons-lang.version>2.6</commons-lang.version>
        <aopalliance.version>1.0</aopalliance.version>
        <mybatis-generator.version>1.4.0</mybatis-generator.version>
    </properties>


    <dependencies>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>${junit.version}</version>
        </dependency>
        <!-- mybatis -->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>${mybatis.version}</version>
        </dependency>
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis-spring</artifactId>
            <version>${mybatis.spring.version}</version>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>${mysql.version}</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/com.alibaba/druid -->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid</artifactId>
            <version>${druid.version}</version>
        </dependency>

        <!-- spring -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-test</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-beans</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-aspects</artifactId>
            <version>${spring.version}</version>
        </dependency>

        <!-- jsp相关 -->
        <dependency>
            <groupId>jstl</groupId>
            <artifactId>jstl</artifactId>
            <version>${jstl.version}</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/javax.servlet/javax.servlet-api -->
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>javax.servlet-api</artifactId>
            <version>${servlet-api.version}</version>
            <scope>provided</scope>
        </dependency>

        <!-- pagehelper -->
        <!-- https://mvnrepository.com/artifact/com.github.pagehelper/pagehelper -->
        <dependency>
            <groupId>com.github.pagehelper</groupId>
            <artifactId>pagehelper</artifactId>
            <version>${pagehelper.version}</version>
        </dependency>

        <!-- jsqlparser -->
        <!-- https://mvnrepository.com/artifact/com.github.jsqlparser/jsqlparser -->
        <dependency>
            <groupId>com.github.jsqlparser</groupId>
            <artifactId>jsqlparser</artifactId>
            <version>${jsqlparser.version}</version>
        </dependency>

        <!-- log4j -->
        <dependency>
            <groupId>log4j</groupId>
            <artifactId>log4j</artifactId>
            <version>${log4j.version}</version>
        </dependency>

        <!-- commons -->
        <dependency>
            <groupId>commons-logging</groupId>
            <artifactId>commons-logging</artifactId>
            <version>${commons-logging.version}</version>
        </dependency>
        <dependency>
            <groupId>commons-fileupload</groupId>
            <artifactId>commons-fileupload</artifactId>
            <version>${commons-fileupload.version}</version>
        </dependency>
        <dependency>
            <groupId>commons-io</groupId>
            <artifactId>commons-io</artifactId>
            <version>${commons-io.version}</version>
        </dependency>
        <dependency>
            <groupId>commons-lang</groupId>
            <artifactId>commons-lang</artifactId>
            <version>${commons-lang.version}</version>
        </dependency>

        <dependency>
            <groupId>aopalliance</groupId>
            <artifactId>aopalliance</artifactId>
            <version>${aopalliance.version}</version>
        </dependency>

        <dependency>
            <groupId>org.mybatis.generator</groupId>
            <artifactId>mybatis-generator-core</artifactId>
            <version>${mybatis-generator.version}</version>
        </dependency>

    </dependencies>


    <build>
        <finalName>${project.artifactId}</finalName>
        <pluginManagement><!-- lock down plugins versions to avoid using Maven defaults (may be moved to parent pom) -->
            <plugins>
                <plugin>
                    <artifactId>maven-clean-plugin</artifactId>
                    <version>3.1.0</version>
                </plugin>
                <!-- 资源文件拷贝插件 -->
                <!-- see http://maven.apache.org/ref/current/maven-core/default-bindings.html#Plugin_bindings_for_war_packaging -->
                <plugin>
                    <artifactId>maven-resources-plugin</artifactId>
                    <version>3.0.2</version>
                </plugin>
                <!-- java编译插件 -->
                <plugin>
                    <artifactId>maven-compiler-plugin</artifactId>
                    <version>3.8.0</version>
                    <configuration>
                        <source>1.8</source>
                        <target>1.8</target>
                    </configuration>
                </plugin>
                <plugin>
                    <artifactId>maven-surefire-plugin</artifactId>
                    <version>2.22.1</version>
                </plugin>
                <plugin>
                    <artifactId>maven-war-plugin</artifactId>
                    <version>3.2.2</version>
                </plugin>
                <plugin>
                    <artifactId>maven-install-plugin</artifactId>
                    <version>2.5.2</version>
                </plugin>
                <plugin>
                    <artifactId>maven-deploy-plugin</artifactId>
                    <version>2.8.2</version>
                </plugin>
            </plugins>
        </pluginManagement>

        <resources>
            <resource>
                <directory>src/main/resources</directory>
                <includes>
                    <include>**/*.properties</include>
                    <include>**/*.xml</include>
                    <include>**/*.tld</include>
                </includes>
                <filtering>false</filtering>
            </resource>
            <resource>
                <directory>src/main/java</directory>
                <includes>
                    <include>**/*.properties</include>
                    <include>**/*.xml</include>
                </includes>
                <filtering>false</filtering>
            </resource>
        </resources>
    </build>
</project>

来源：CSDN

作者：?.`???

链接：https://blog.csdn.net/weixin_45808666/article/details/103961087
