Rest微服务构建

总体介绍

api：封装的整体entity/接口/公共配置等
provider：微服务落地的服务提供者
consumer：微服务调用的客户端使用

本次springCloud版本

构建步骤

新建数据库db01

CREATE DATABASE db01;
DROP TABLE IF EXISTS `dept`;
CREATE TABLE `dept`  (
  `deptno` bigint(20) NOT NULL AUTO_INCREMENT,
  `dname` varchar(60) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL,
  `db_source` varchar(60) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL,
  PRIMARY KEY (`deptno`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 6 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci COMMENT = '部门表' ROW_FORMAT = Dynamic;

INSERT INTO `dept` VALUES (1, '开发部', 'db01');
INSERT INTO `dept` VALUES (2, '人事部', 'db01');
INSERT INTO `dept` VALUES (3, '财务部', 'db01');
INSERT INTO `dept` VALUES (4, '市场部', 'db01');
INSERT INTO `dept` VALUES (5, '运维部', 'db01');

SET FOREIGN_KEY_CHECKS = 1;

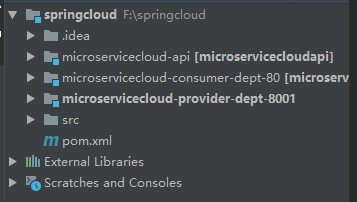

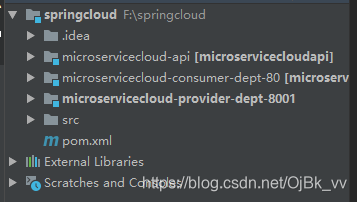

整体父工程Project：springcloud

新建父工程microservicecloud,切记是Packageing是pom模式。主要是定义POM文件，将后续各个子模块公用的jar包等统一提出来，类似一个抽象父类

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.javax</groupId>
    <artifactId>springcloud</artifactId>
    <packaging>pom</packaging>
    <version>1.0-SNAPSHOT</version>
    <modules>
        <module>microservicecloud-api</module>
        <module>microservicecloud-provider-dept-8001</module>
    </modules>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <maven.compiler.source>1.8</maven.compiler.source>
        <maven.compiler.target>1.8</maven.compiler.target>
        <junit.version>4.12</junit.version>
        <log4j.version>1.2.17</log4j.version>
        <lombok.version>1.16.18</lombok.version>
    </properties>

    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>Greenwich.SR2</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-dependencies</artifactId>
                <version>2.1.3.RELEASE</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <dependency>
                <groupId>mysql</groupId>
                <artifactId>mysql-connector-java</artifactId>
                <version>5.0.4</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <dependency>
                <groupId>com.alibaba</groupId>
                <artifactId>druid</artifactId>
                <version>1.0.31</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <dependency>
                <groupId>org.mybatis.spring.boot</groupId>
                <artifactId>mybatis-spring-boot-starter</artifactId>
                <version>1.3.0</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <dependency>
                <groupId>ch.qos.logback</groupId>
                <artifactId>logback-core</artifactId>
                <version>1.2.3</version>
            </dependency>
            <dependency>
                <groupId>junit</groupId>
                <artifactId>junit</artifactId>
                <version>${junit.version}</version>
            </dependency>
            <dependency>
                <groupId>log4j</groupId>
                <artifactId>log4j</artifactId>
                <version>${log4j.version}</version>
            </dependency>
        </dependencies>
    </dependencyManagement>

</project>

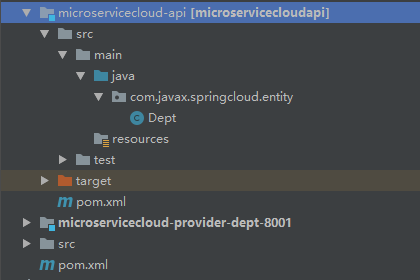

公共子模块Module：microservicecloud-api

mvn clean install后给其它模块引用，达到通用目的。 也即需要用到部门实体的话，不用每个工程都定义一份，直接引用本模块即可；

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent><!-- 子类款面显示声明才能有明确的继承表现，无意外就是父类的默认版本否则自己定义 -->
        <artifactId>springcloud</artifactId>
        <groupId>com.javax</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>microservicecloud-api</artifactId>

    <dependencies><!-- 当前Module需要用到的jar包，按自己需求添加，如果父类已经包含了，可以不用写版本号 -->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
        </dependency>
    </dependencies>

</project>

Dept，新建部门Entity且配合lombok使用

package com.javax.entity;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;
import lombok.experimental.Accessors;

import java.io.Serializable;

@SuppressWarnings("serial")
@AllArgsConstructor
@NoArgsConstructor
@Data
@Accessors(chain = true)
public class Dept implements Serializable//必须实例化
{
    private Long deptno; //主键
    private String dname; //部门名称
    private String db_source; //来自那个数据库，因为微服务架构可以一个服务对应一个数据库， 同一个信息被存储到不同数据库
}

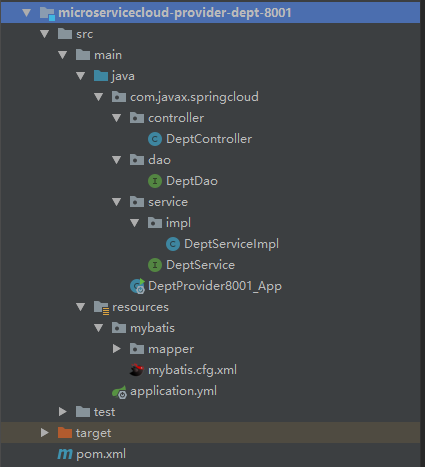

部门微服务提供者Module：microservicecloud-provider-dept-8001

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>springcloud</artifactId>
        <groupId>com.javax</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>microservicecloud-provider-dept-8001</artifactId>

    <dependencies>
        <dependency><!-- 引入自己定义的api通用包，可以使用Dept部门Entity -->
            <groupId>com.javax</groupId>
            <artifactId>microservicecloud-api</artifactId>
            <version>${project.version}</version>
        </dependency>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid</artifactId>
            <version>1.0.31</version>
        </dependency>
        <dependency>
            <groupId>ch.qos.logback</groupId>
            <artifactId>logback-core</artifactId>
        </dependency>
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
        </dependency>
        <!--<dependency>
            <groupId>org.mortbay.jetty</groupId>
            <artifactId>spring-boot-statrter-jetty</artifactId>
            <version>2.1.0.RELEASE</version>
        </dependency>-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
            <version>2.1.0.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <version>2.1.0.RELEASE</version>
        </dependency>
    </dependencies>

</project>

application.yml

server:
  port: 8001
mybatis:
  # mybatis配置文件所在路径
  config-location: classpath:mybatis/mybatis.cfg.xml
  #所有Entity别名类所在包
  type-aliases-package: com.javax.springcloud.entity
  # mapper映射文件
  mapper-locations:
    - classpath:mybatis/mapper/**/*.xml
spring:
  application:
    #对外暴露的微服务名字！！！
    name: microservicecloud-dept
  datasource:
    #当前数据源操作类型
    type: com.alibaba.druid.pool.DruidDataSource
    # mysq1驱动包  弃用com.mysql.jdbc.Driver
    driver-class-name:  com.mysql.cj.jdbc.Driver
    #数据库名称
    url: jdbc:mysql://192.***.**.**:3306/db01?useSSL=false&serverTimezone=UTC&allowPublicKeyRetrieval=true
    username: ****
    password: ****
    dbcp2:
      #数据库连接池的最小维持连接数
      min-idle: 5
      #初始化连接数
      initial-size: 5
      #最大连接数
      max-total: 5
      #等待连接获取的最大超时时间
      max-wait-millis: 200

mybatis.cfg.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0//EN" "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
    <settings>
        <setting name="cacheEnabled" value="true"/><!-- 开启二级缓存 -->
    </settings>
</configuration>

DeptDao

package com.javax.springcloud.dao;

import com.javax.springcloud.entity.Dept;
import org.apache.ibatis.annotations.Mapper;

import java.util.List;

@Mapper
public interface DeptDao {
    boolean addDept(Dept dept);

    Dept findById(Long id);

    List<Dept> findAll();

}

DeptMapper.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="com.javax.springcloud.dao.DeptDao">
	<select id="findById" resultType="Dept" parameterType="Long" >
        SELECT * FROM dept WHERE deptno = #{deptno};
    </select>

    <select id="findAll" resultType="Dept" parameterType="Long" >
        SELECT * FROM dept;
    </select>

    <insert id="addDept" parameterType="Dept">
        INSERT INTO dept(dname,db_source) VALUES(#{dname},DATABASE());
    </insert>
</mapper>

DeptService

package com.javax.springcloud.service;

import com.javax.springcloud.entity.Dept;

import java.util.List;

public interface DeptService {
    boolean add(Dept dept);

    Dept get(Long id);

    List<Dept> list();
}

DeptServiceImpl

package com.javax.springcloud.service.impl;

import com.javax.springcloud.dao.DeptDao;
import com.javax.springcloud.entity.Dept;
import com.javax.springcloud.service.DeptService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.List;

@Service
public class DeptServiceImpl implements DeptService {

    @Autowired
    private DeptDao deptDao;

    @Override
    public boolean add(Dept dept) {
        return deptDao.addDept(dept);
    }

    @Override
    public Dept get(Long id) {
        return deptDao.findById(id);
    }

    @Override
    public List<Dept> list() {
        return deptDao.findAll();
    }
}

DeptController

package com.javax.springcloud.controller;

import com.javax.springcloud.entity.Dept;
import com.javax.springcloud.service.DeptService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;

import java.util.List;

@RestController
@RequestMapping("/dept")
public class DeptController {

    @Autowired
    private DeptService deptService;


    @PostMapping("/add")
    public boolean add(@RequestBody Dept dept){
        return deptService.add(dept);
    }

    @GetMapping("/get/{id}")
    public Dept get(@PathVariable("id") Long id){
        return deptService.get(id);
    }

    @GetMapping("/list")
    public List<Dept> list(){
        return deptService.list();
    }

}

测试

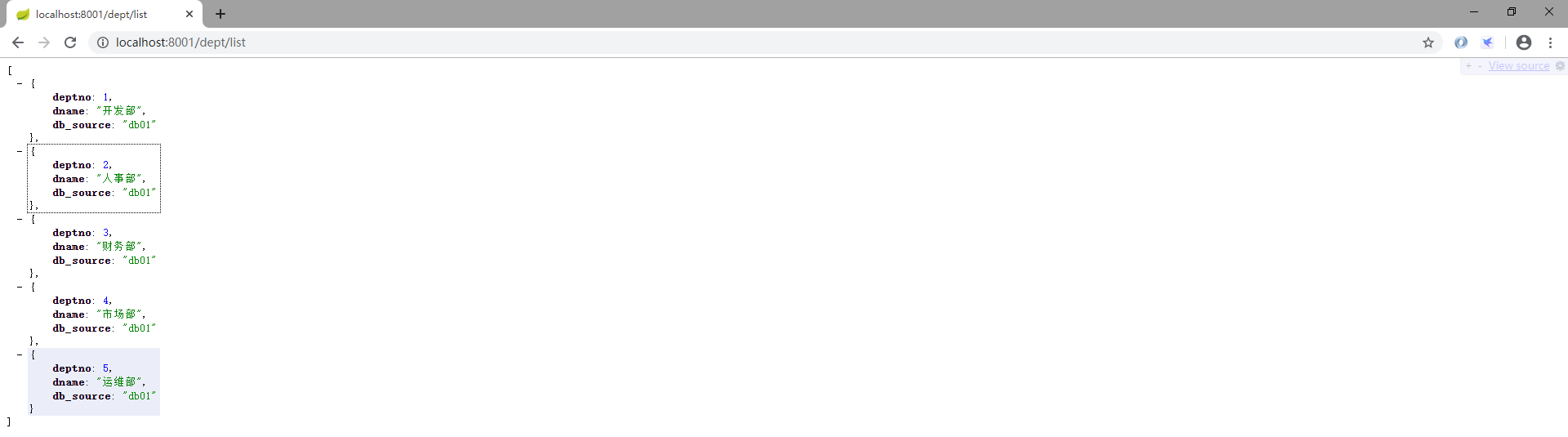

启动8001，http://localhost:8001/dept/list

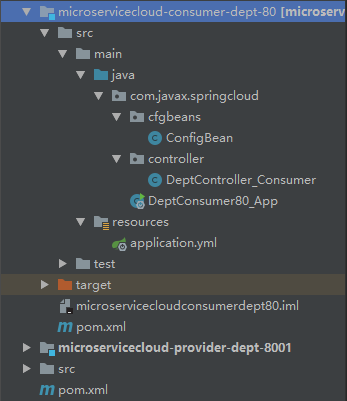

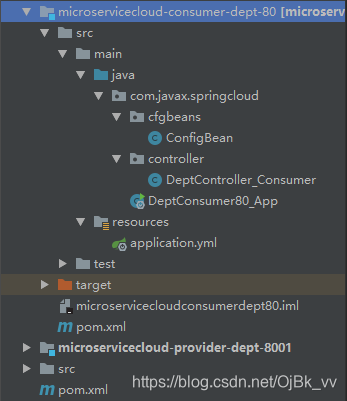

部门微服务消费者Module：microservicecloud-consumer-dept-80

RestTemplate提供了多种便捷访问远程Http服务的方法，是一种简单便捷的访问restful服务模板类，是Spring提供的用于访问Rest服务的客户端模板工具集；
使用restTemplate访问restful接口非常的简单粗暴无脑。(url，requestMap，ResponseBean.class)这三个参数分别代表
REST请求地址、请求参数、HTTP响应转换被转换成的对象类型；

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>springcloud</artifactId>
        <groupId>com.javax</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>microservicecloud-consumer-dept-80</artifactId>
    <description>部门微服务消费者</description>

    <dependencies>
        <dependency>
            <groupId>com.javax</groupId>
            <artifactId>microservicecloud-api</artifactId>
            <version>${project.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
    </dependencies>

</project>

application.yml

server:
  port: 80

ConfigBean

package com.javax.springcloud.cfgbeans;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.client.RestTemplate;

@Configuration
public class ConfigBean //ConfigBean=applocationContext.xml
{
    @Bean
    public RestTemplate getRestTemplate(){
        return new RestTemplate();
    }
}

DeptController_Consumer

package com.javax.springcloud.controller;

import com.javax.springcloud.entity.Dept;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.client.RestTemplate;

import java.util.List;

@RestController
@RequestMapping("/consumer/dept")
public class DeptController_Consumer {

    private static final String REST_URL_PREFIX = "http://localhost:8001";

    @Autowired
    private RestTemplate restTemplate;

    @GetMapping("/add")
    public boolean add(Dept dept)
    {
        return restTemplate.postForObject(REST_URL_PREFIX+"/dept/add",dept,Boolean.class);
    }

    @GetMapping("/get/{id}")
    public Dept get(@PathVariable("id")Long id)
    {
        return restTemplate.getForObject(REST_URL_PREFIX+"/dept/get/"+id,Dept.class);
    }

    @GetMapping("/list")
    public List<Dept> list()
    {
        return restTemplate.getForObject(REST_URL_PREFIX+"/dept/list",List.class);
    }
}

DeptConsumer80_App

package com.javax.springcloud;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class DeptConsumer80_App
{
    public static void main(String[] args)
    {
        SpringApplication.run(DeptConsumer80_App.class,args);
    }
}

测试

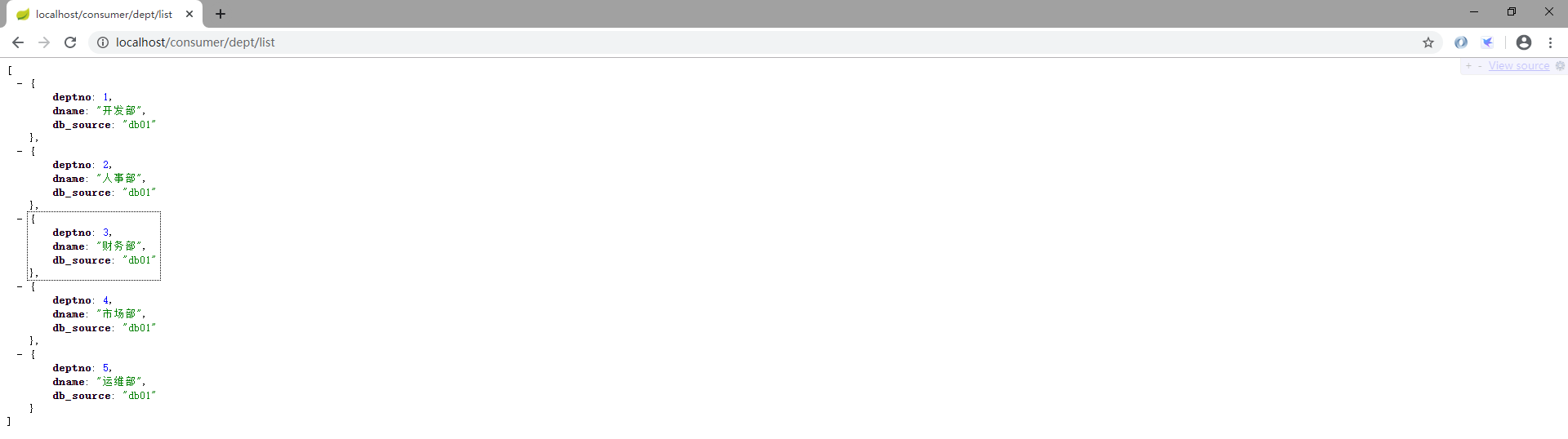

启动8001,80。访问：http://localhost:80/consumer/dept/list

来源：CSDN

作者：GodH

链接：https://blog.csdn.net/OjBk_vv/article/details/103738854
