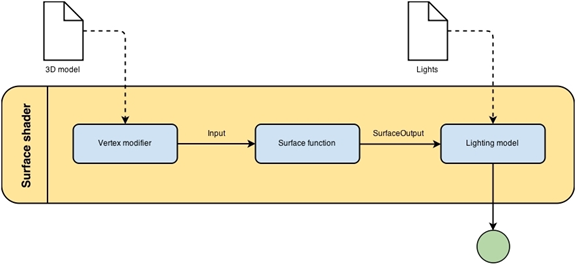

Ox00 Surface Shader Syntax
常用的三种输出数据格式：
//Standard output structure of surface shaders is this:
struct SurfaceOutput
{
fixed3 Albedo; // diffuse color
fixed3 Normal; // tangent space normal, if written
fixed3 Emission;
half Specular; // specular power in 0..1 range
fixed Gloss; // specular intensity
fixed Alpha; // alpha for transparencies
};
struct SurfaceOutputStandard
{
fixed3 Albedo; // base (diffuse or specular) color
fixed3 Normal; // tangent space normal, if written
half3 Emission;
half Metallic; // 0=non-metal, 1=metal
half Smoothness; // 0=rough, 1=smooth
half Occlusion; // occlusion (default 1)
fixed Alpha; // alpha for transparencies
};
struct SurfaceOutputStandardSpecular
{
fixed3 Albedo; // diffuse color
fixed3 Specular; // specular color
fixed3 Normal; // tangent space normal, if written
half3 Emission;
half Smoothness; // 0=rough, 1=smooth
half Occlusion; // occlusion (default 1)
fixed Alpha; // alpha for transparencies
};
0x01 Surface Shader compile directives
surfaceFunction | |||||||
lightModel |
|
struct Input
{
float2 uv_MainTex;
}
float3 viewDir | |
float4 color | |
float4 screenPos | |
float3 worldPos | |
float3 worldRefl | |
float3 worldNormal | |
float3 worldRefl;INTERNAL_DATA | |
float3 worldNormal;INTERNAL_DATA |
Transparency and alpha testing 使用alpha and alphatest指令 |
| |||||||||||||||||||||||||||
Custom modifier functions用于计算更改输入的顶点数据，或更改最终计算的片元色 |
| |||||||||||||||||||||||||||
Shadows and Tessellation 阴影和网格细分 |
| |||||||||||||||||||||||||||
Code generation options 调整生成着色器代码选项，使得shader更小加载更快 |
| |||||||||||||||||||||||||||
Miscellaneous options 各种其他选项 |
|
0x02 Surface Shader Light Model
Lighting.cginc
UnityLambertLight | |
LightingLambert | |
LightingLambert_Deferred | //.. |
LightingLambert_PrePass | //.. |
UnityBlinnPhongLight | |
LightingBlinnPhong | //.. |
LightingBlinnPhong_Deferred | //.. |
LightingBlinnPhong_PrePass | //.. |
LightingLambert_GI | //.. |
LightingBlinnPhong_GI | //.. |
half4 Lighting<Name>_Deferred (SurfaceOutput s, UnityGI gi, out half4 outDiffuseOcclusion, out half4 outSpecSmoothness, out half4 outNormal); deferred lighting paths
half4 Lighting<Name>_PrePass (SurfaceOutput s, half4 light); Use this in light prepass (legacy deferred) lighting paths. in light prepass (legacy deferred) lighting paths
自定义光照函数：
0x03 Example
